Stock 72 fj40 build

Discussion in '40- & 55-Series Tech' started by elgatoocho, Mar 11, 2018.

  1. elgatoocho

    elgatoocho

    Messages:
    35
    Likes Received:
    18
    Joined:
    Apr 20, 2013
    Location:
    Redding California
    This stock, frame off 72-fj40 build started in January of 2013, 5 years ago, wow, and I just now have a rolling chassis. It’s been enjoyable, I think its looking good, I’m excited but kinda feeling like this is when the real work starts. I’ve already received some very appreciated and valuable information and help, with brakes, steering box, and instrument cluster etc. etc. I look forward to the dialogue, the help and possibly even helping. if you guys see anything in the pictures that dosn't look right please let me know.

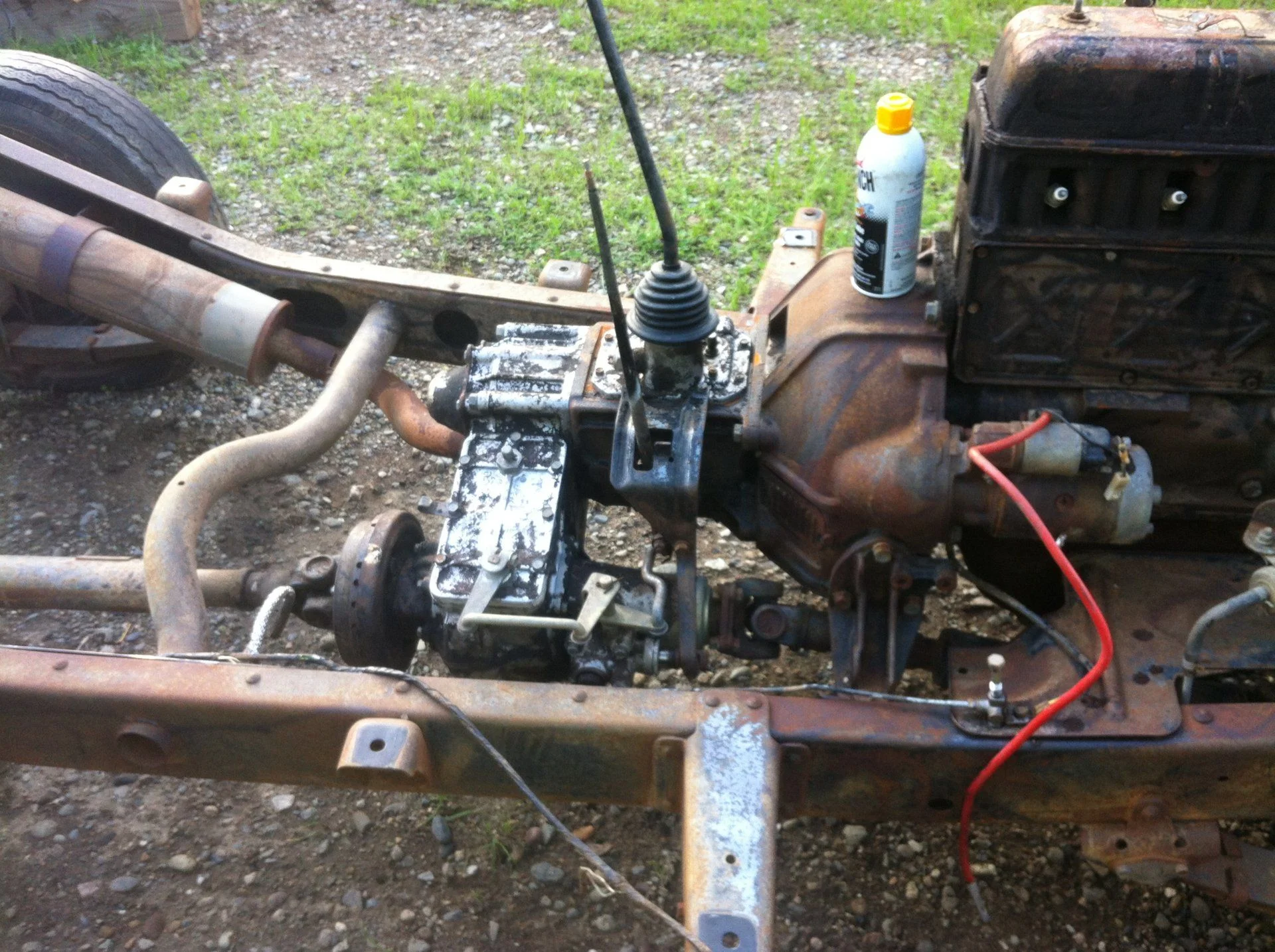

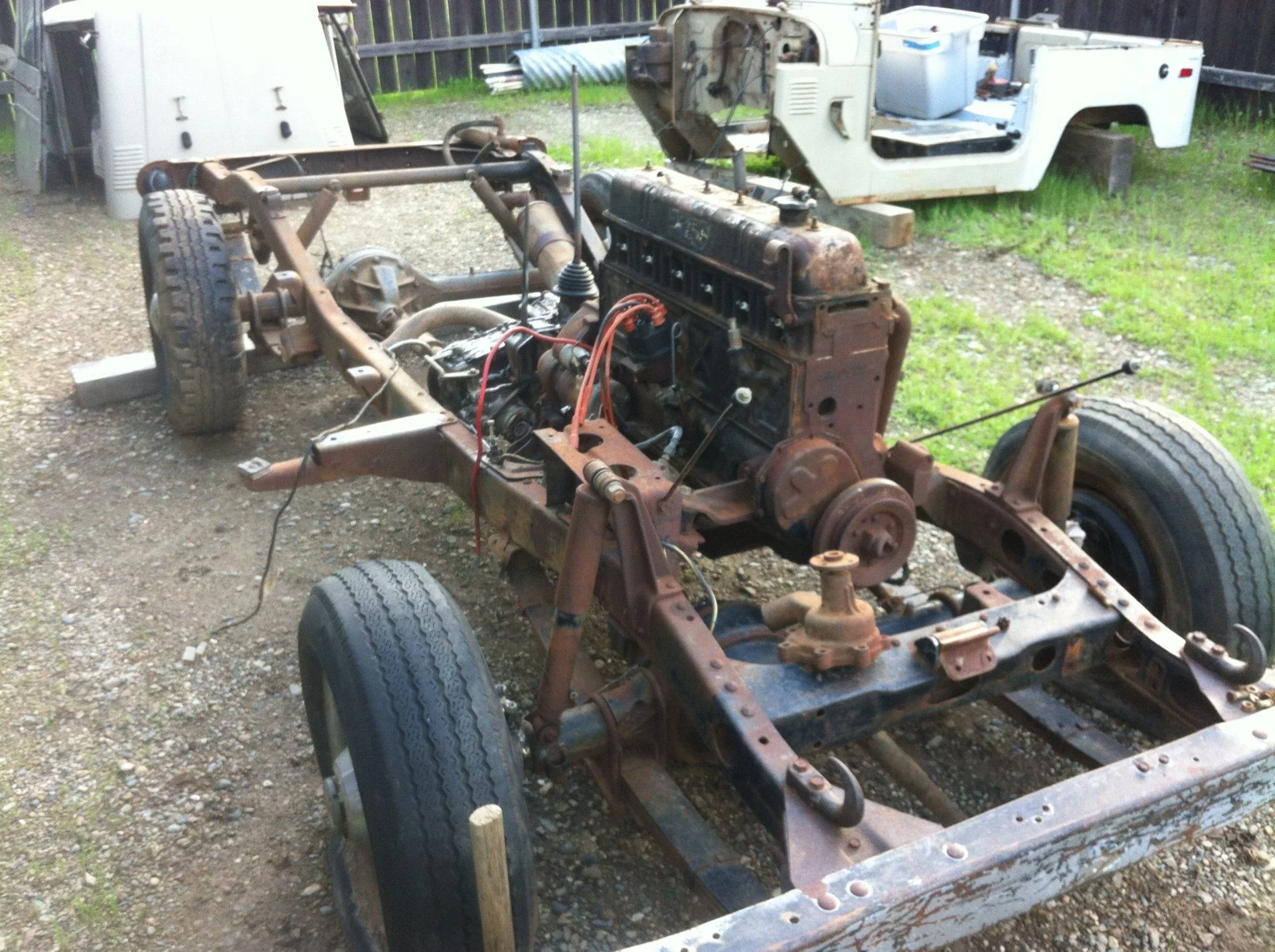

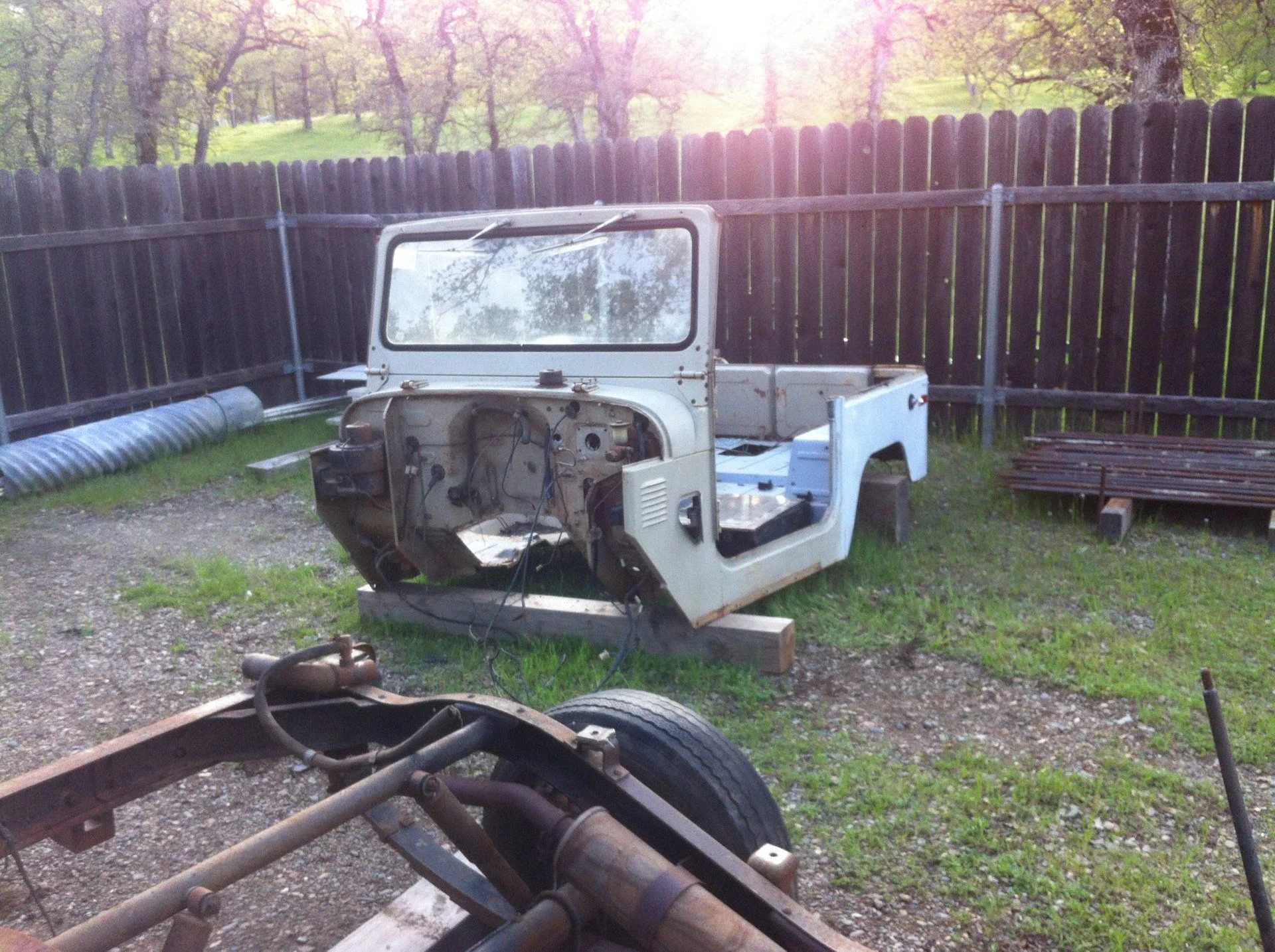

    Here are a few pictures of where we came from.






    thebigredrocker likes this.
  2. elgatoocho

    elgatoocho

    Messages:
    35
    Likes Received:
    18
    Joined:
    Apr 20, 2013
    Location:
    Redding California
    And where we now.




  3. elgatoocho

    elgatoocho

    Messages:
    35
    Likes Received:
    18
    Joined:
    Apr 20, 2013
    Location:
    Redding California

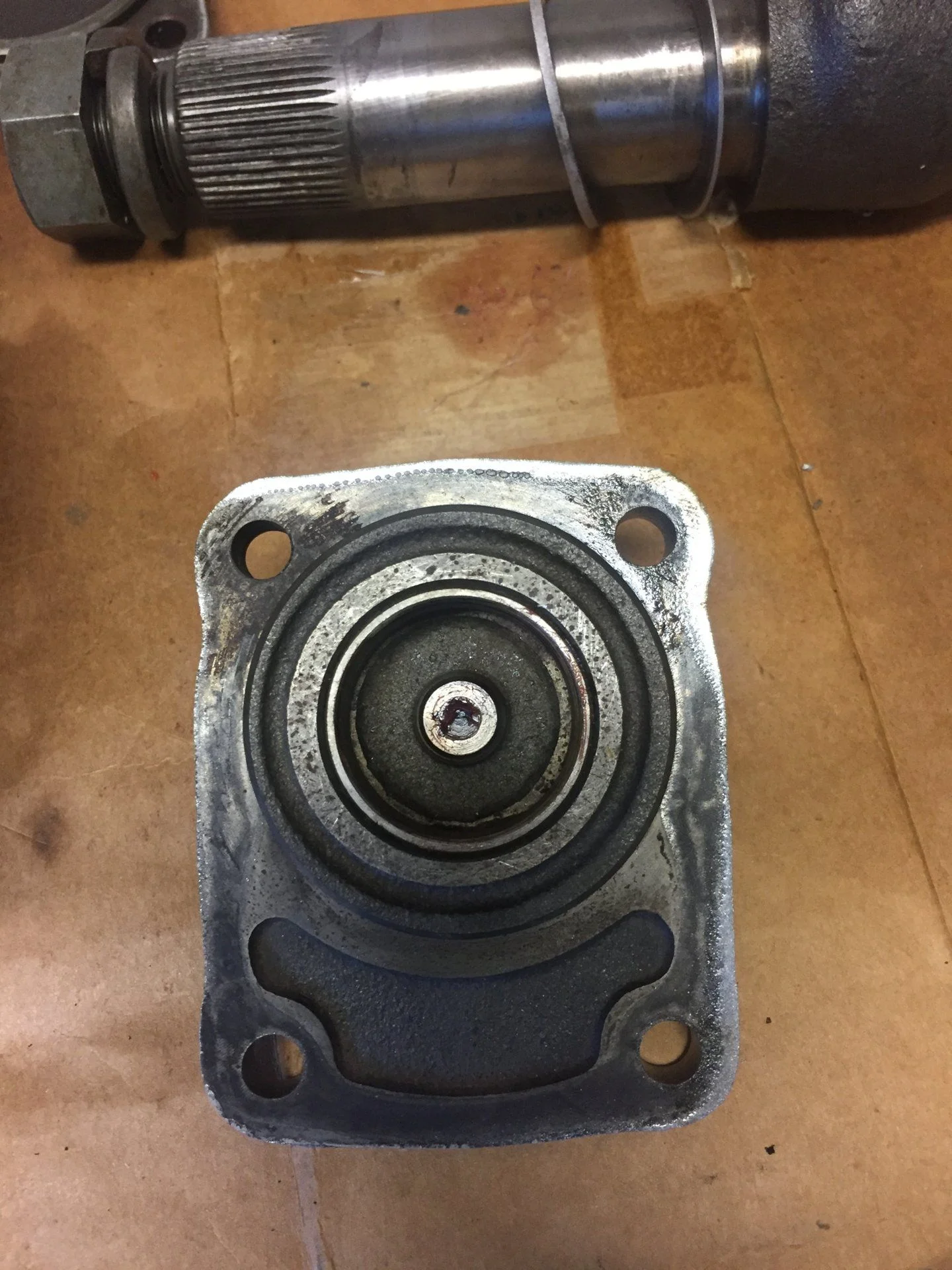

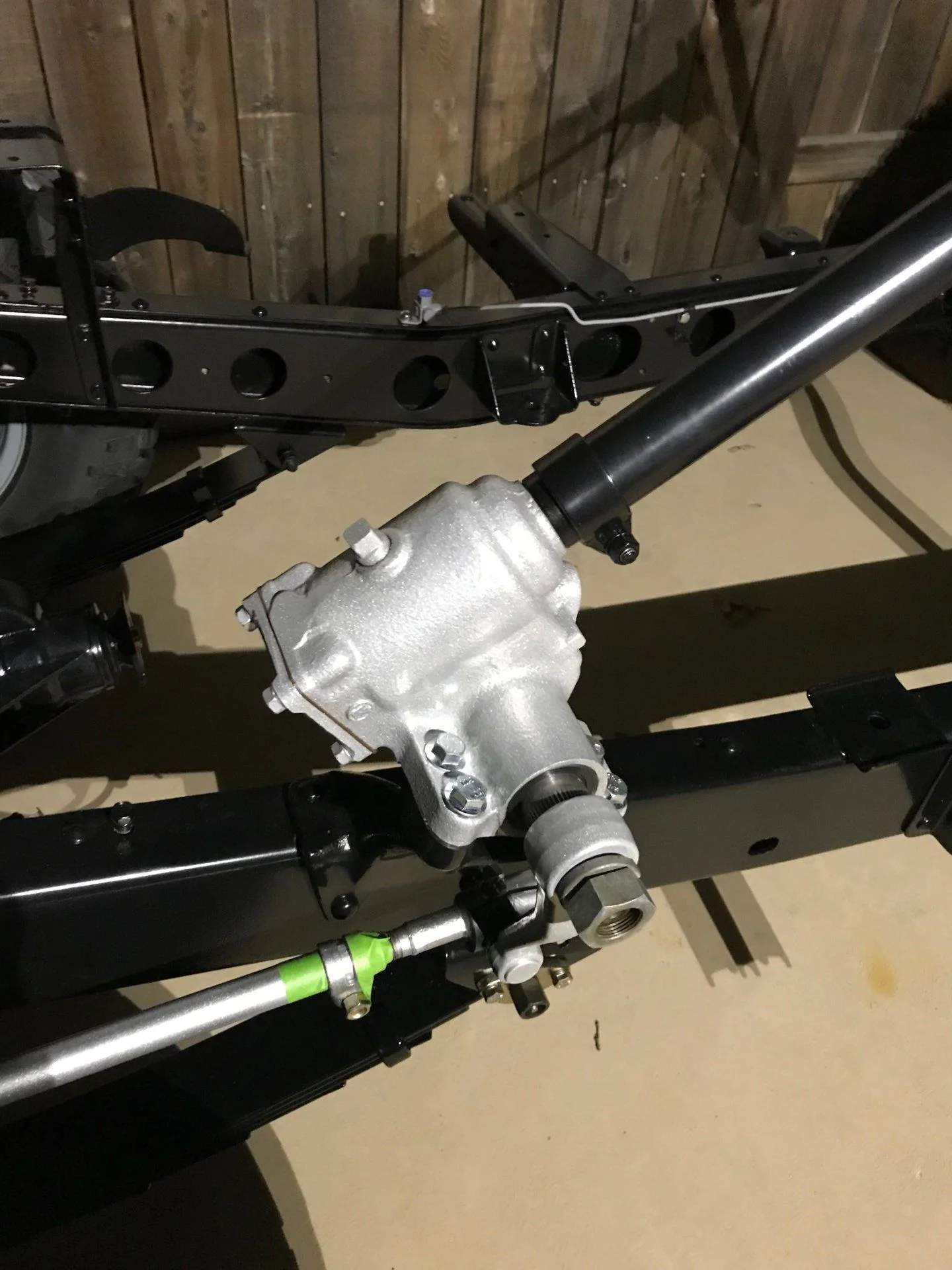

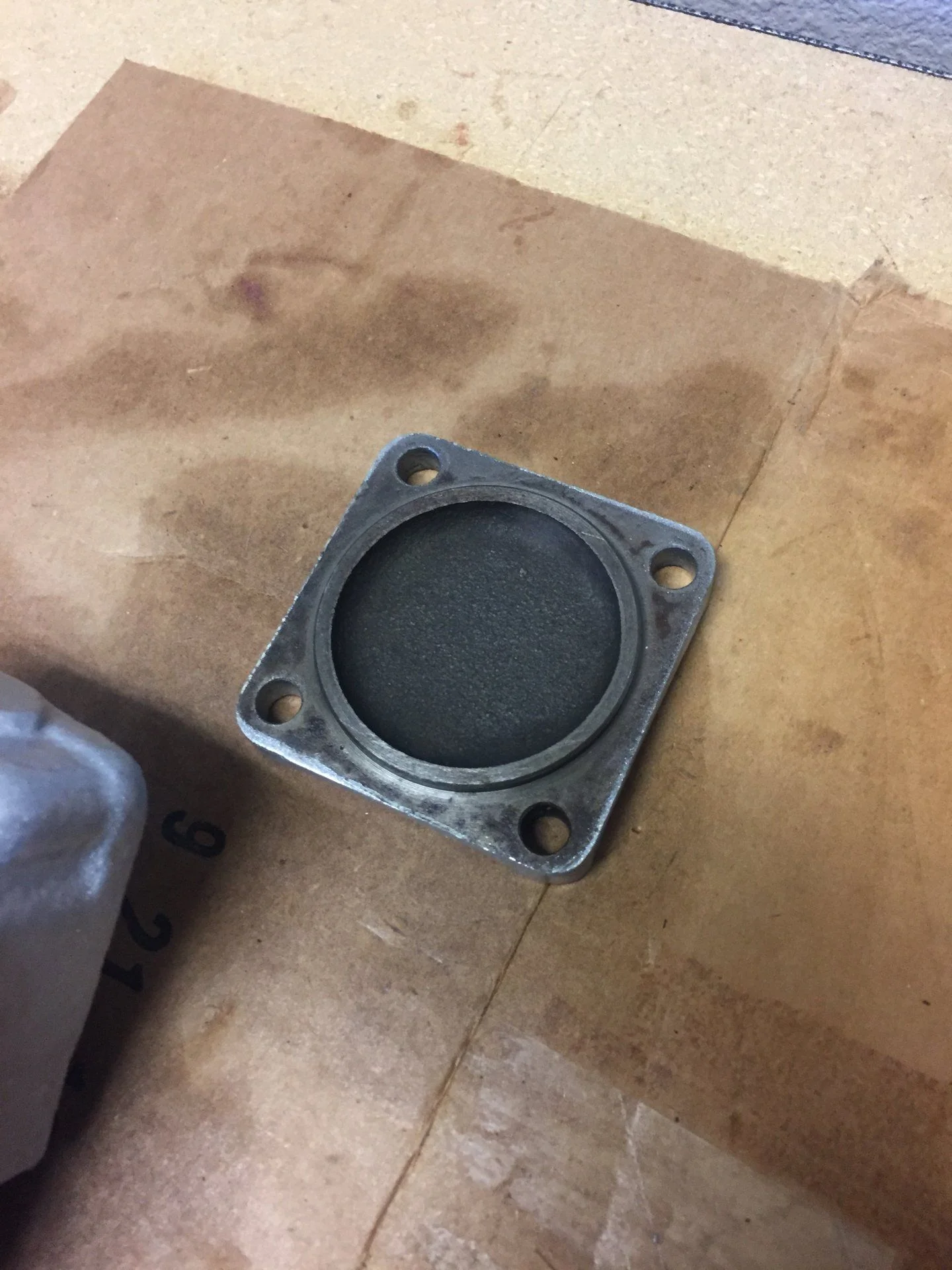

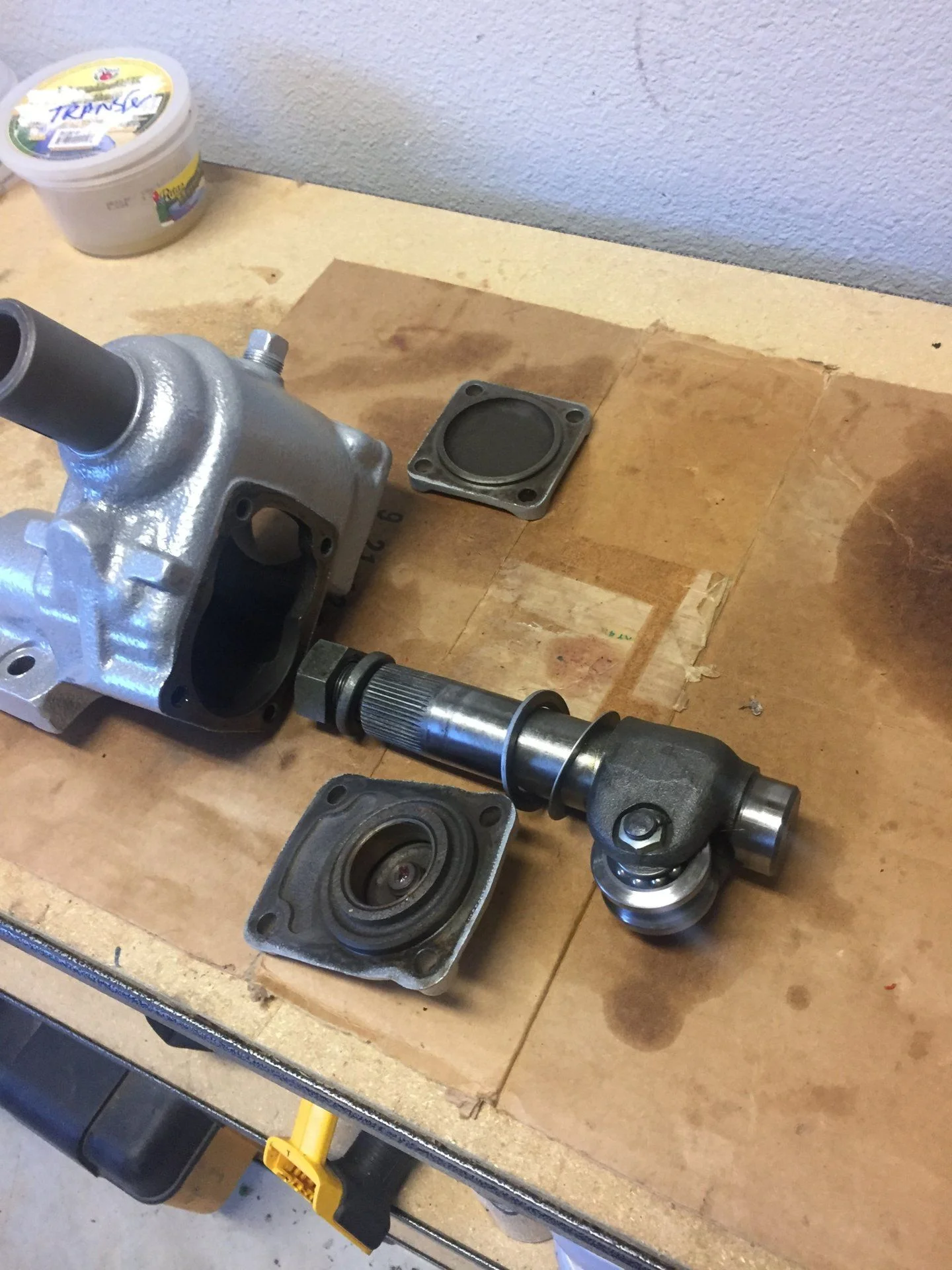

    I started with the small stuff i could tinker with on evenings, like the steering box, the shims are seemingly impossible to get and mine got destroyed on removal, so i purchased shim stock and used my wife's "cricut" to cut the shims and the gaskets. Two years latter when i installed it and filled it with oil, i realized i had forgotten the oil seal, so after cleaning the puddle, off it came, then back on. no leaks.





  4. elgatoocho

    elgatoocho

    Messages:
    35
    Likes Received:
    18
    Joined:
    Apr 20, 2013
    Location:
    Redding California
    i had the steering wheel Rhino coated then epoxied the horn shroud sanded and painted it. The coating's a bit rough, it should wear in time, but it look nice and i had it done for $40.00



    thebigredrocker likes this.
  5. Steeler58

    Steeler58 SILVER Star

    Messages:
    61
    Media:
    1
    Likes Received:
    60
    Joined:
    Nov 17, 2013
    Location:
    Fredericksburg, PA
    Your frame looks great. Can't even see any pitting so that's fantastic. Great work. Powder coat or paint? If paint, what did you use? Used SEM Rust Shield on mine. I'm also nearly 5 years in on my '72. Bought the truck in November 2013. Looks almost identical to yours, Dune Beige. Keep up the great work.

  6. elgatoocho

    elgatoocho

    Messages:
    35
    Likes Received:
    18
    Joined:
    Apr 20, 2013
    Location:
    Redding California
    thank you, yea the frame is powder coated, Steve, the powder coater, and i have become very familiar over the past few years.

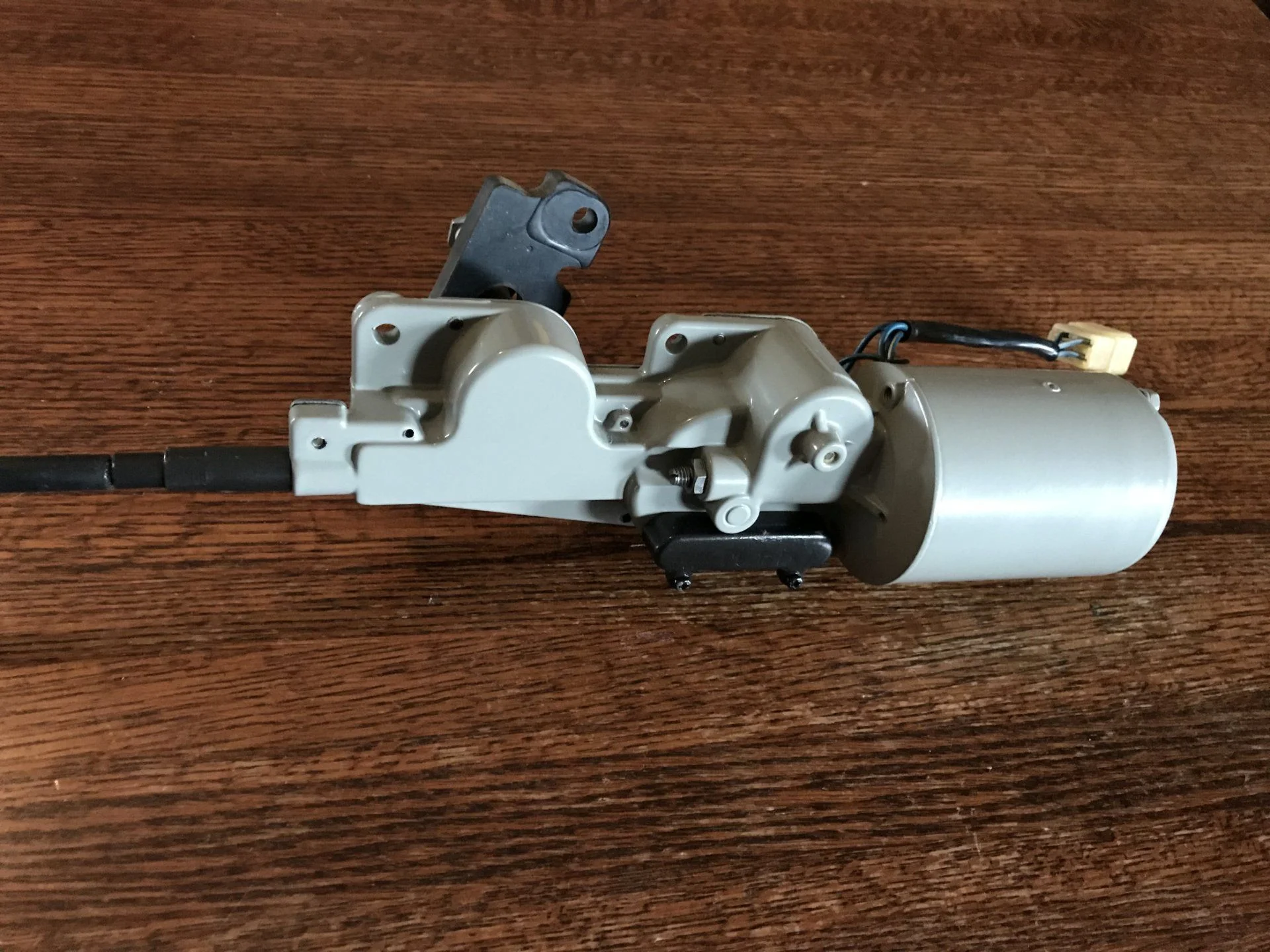

    here's a few more items ive cleaned, he's coated and i rebuilt.





  7. elgatoocho

    elgatoocho

    Messages:
    35
    Likes Received:
    18
    Joined:
    Apr 20, 2013
    Location:
    Redding California

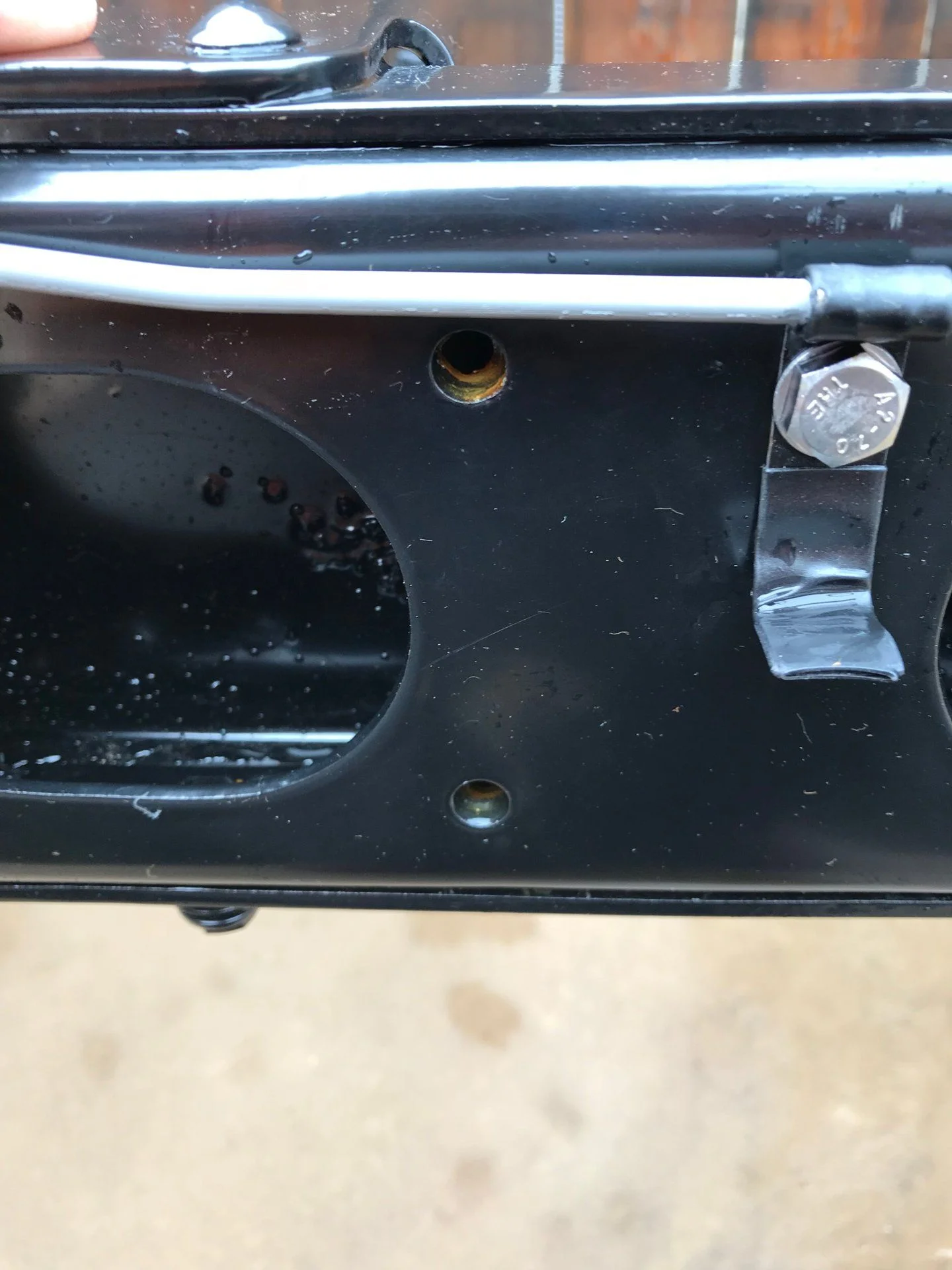

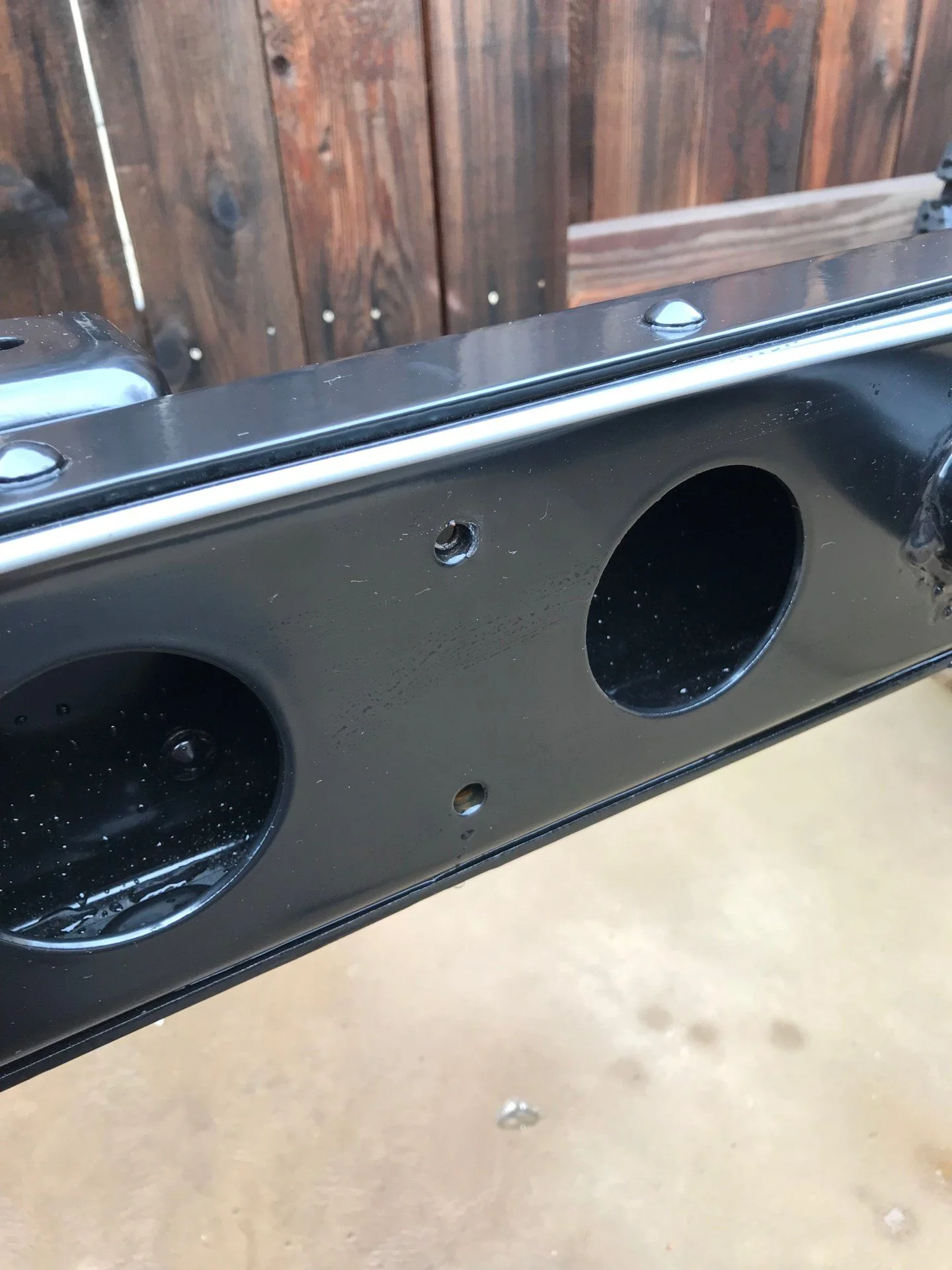

    anyone know if i mounted these brake line clips in the correct place and if so what are these two pair of bolt holes for ?




  8. kmj64

    kmj64 SILVER Star

    Messages:
    60
    Likes Received:
    17
    Joined:
    Feb 2, 2012
    Location:
    San Antonio
    did you powder coat your instrument cluster, and gloves bob? if not what paint did you use? I have a 75 FST and mine were painted black.

  9. Steeler58

    Steeler58 SILVER Star

    Messages:
    61
    Media:
    1
    Likes Received:
    60
    Joined:
    Nov 17, 2013
    Location:
    Fredericksburg, PA

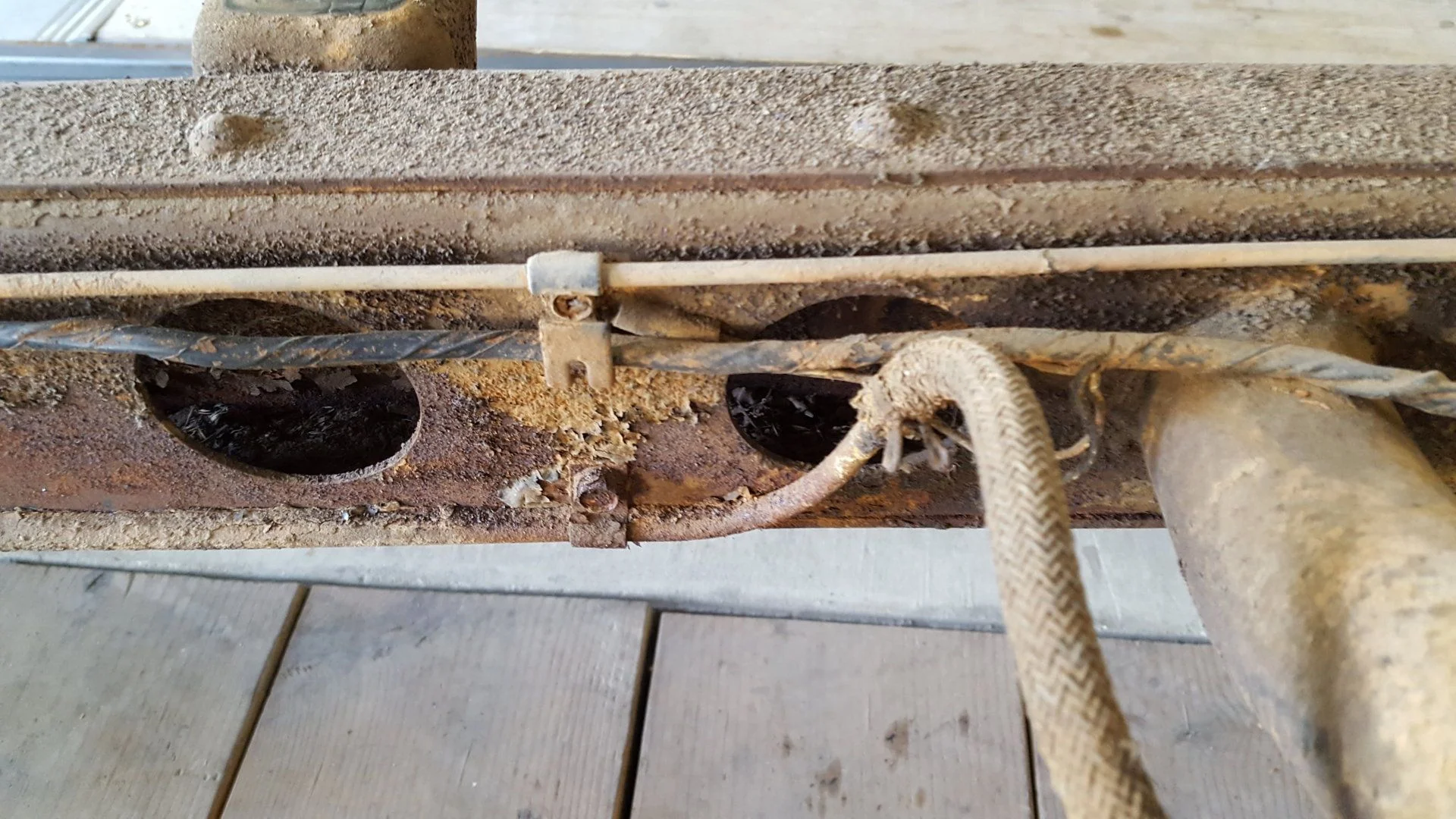

    Took these before I disassembled . Hopefully these help. 20170423_112205.jpg 20170423_112155.jpg 20170423_112200.jpg

  10. 73FJ40

    73FJ40 After another night of rust removal! SILVER Star

    Messages:
    784
    Media:
    4
    Albums:
    1
    Likes Received:
    508
    Joined:
    Dec 28, 2006
    Location:
    Western Massachusetts
    @elgatoocho :

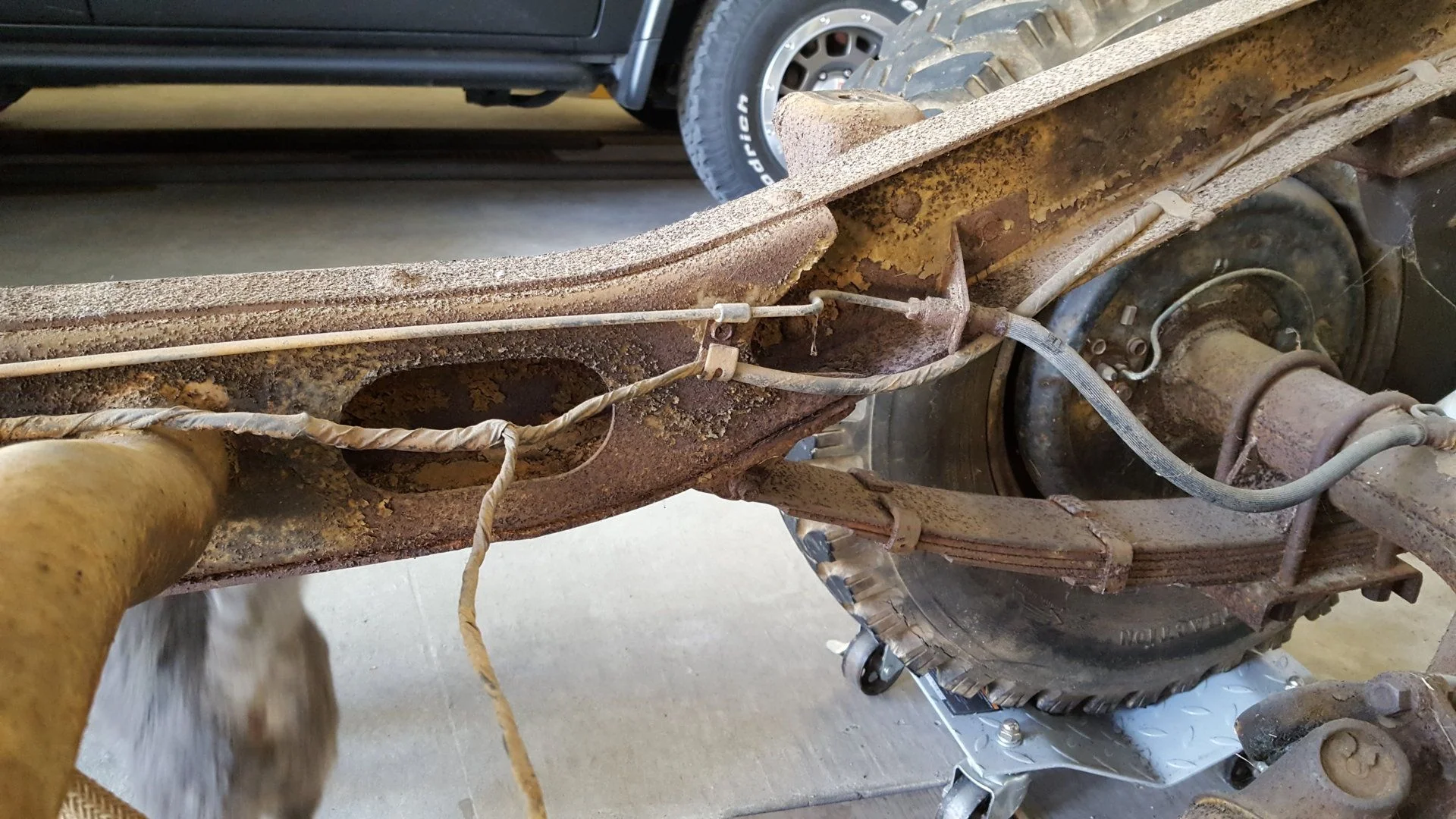

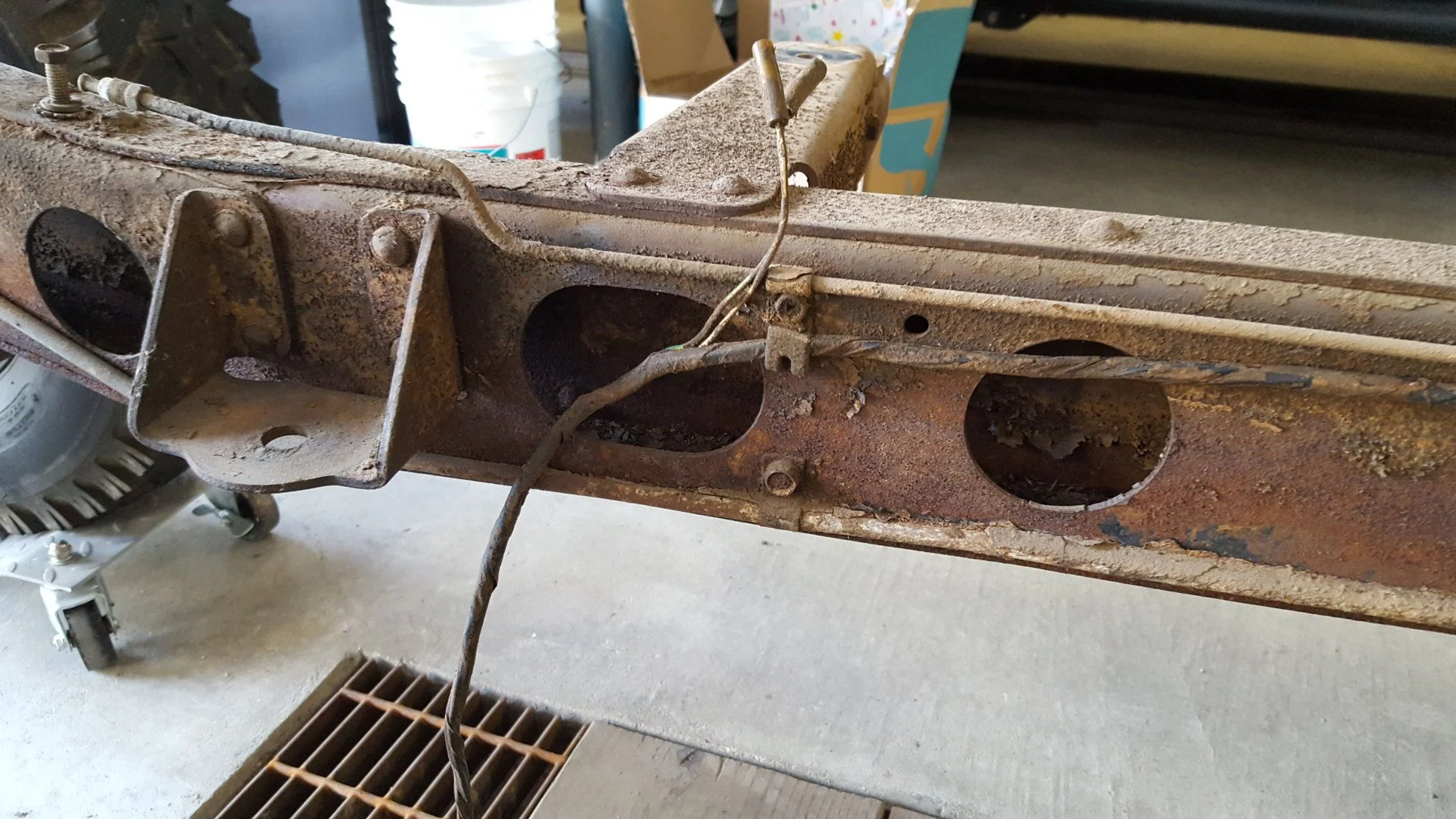

    Brake line and harness support on the upper holes, fuel line on the lower holes.

    Note, the upper holes (on my '73, anyway) take a 'sheet metal screw' type thread, not a machine screw thread.

    [​IMG]

    [​IMG]

    thebigredrocker likes this.
  11. Boaf 32

    Boaf 32

    Messages:
    431
    Likes Received:
    32
    Joined:
    Oct 1, 2015
    Location:
    PA

    Hi Al,

    These are great pictures and work. I am interested in what the 2 wires that are disconnected in this picture. I am wondering where they go to? I have the same 2 wires, but all my lights work. The wiring diagram seams to indicate they are for the rear brake lights. Any ideas?

    Thanks.

    Boaf

  12. BretwithoneT

    BretwithoneT SILVER Star

    Messages:
    126
    Media:
    2
    Albums:
    1
    Likes Received:
    23
    Joined:
    Jan 20, 2012
    Location:
    Pittsboro, NC
    Are those new leaf springs? They look fantastic. If so, where did you get them? Stock height?

  13. elgatoocho

    elgatoocho

    Messages:
    35
    Likes Received:
    18
    Joined:
    Apr 20, 2013
    Location:
    Redding California

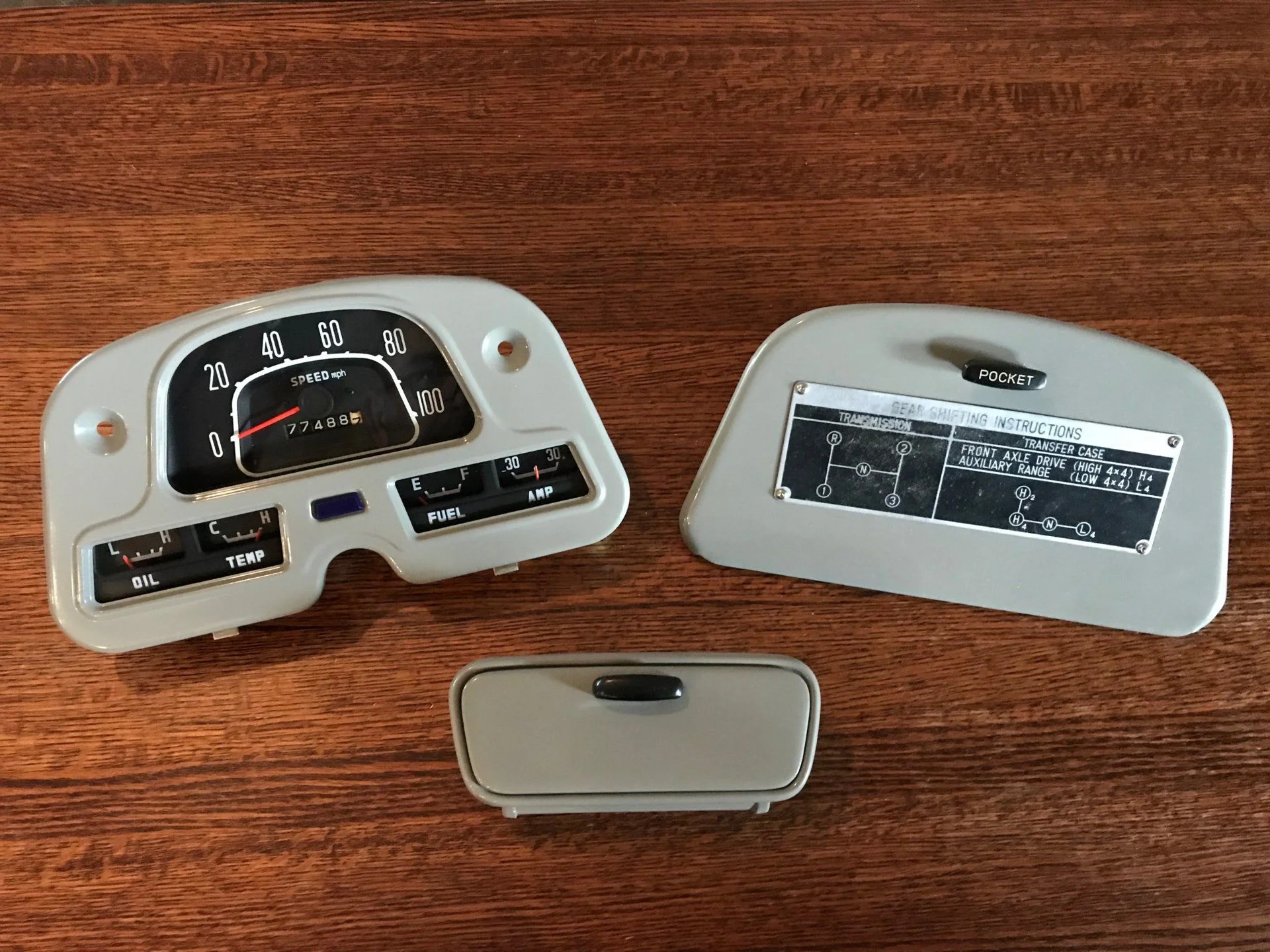

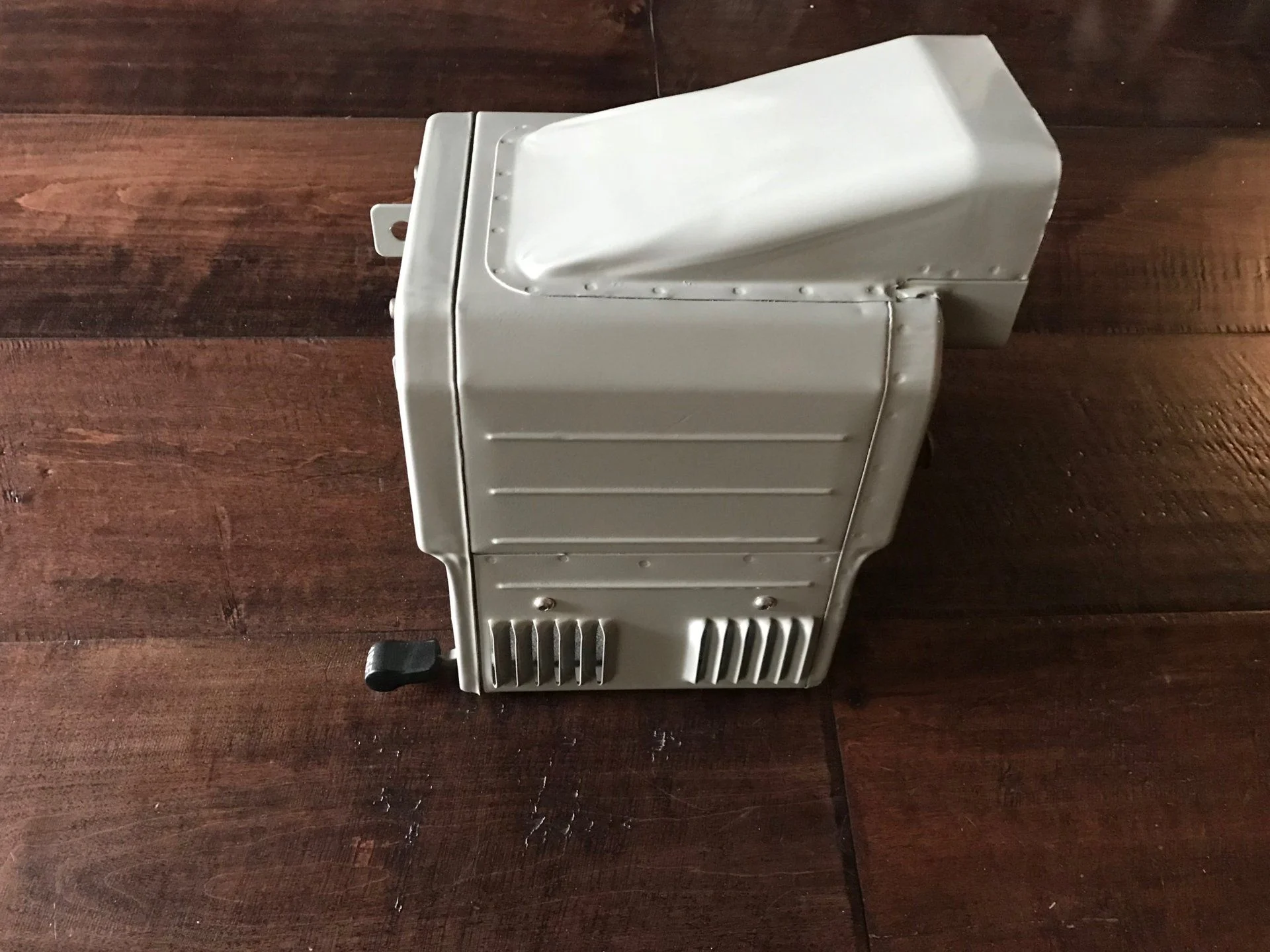

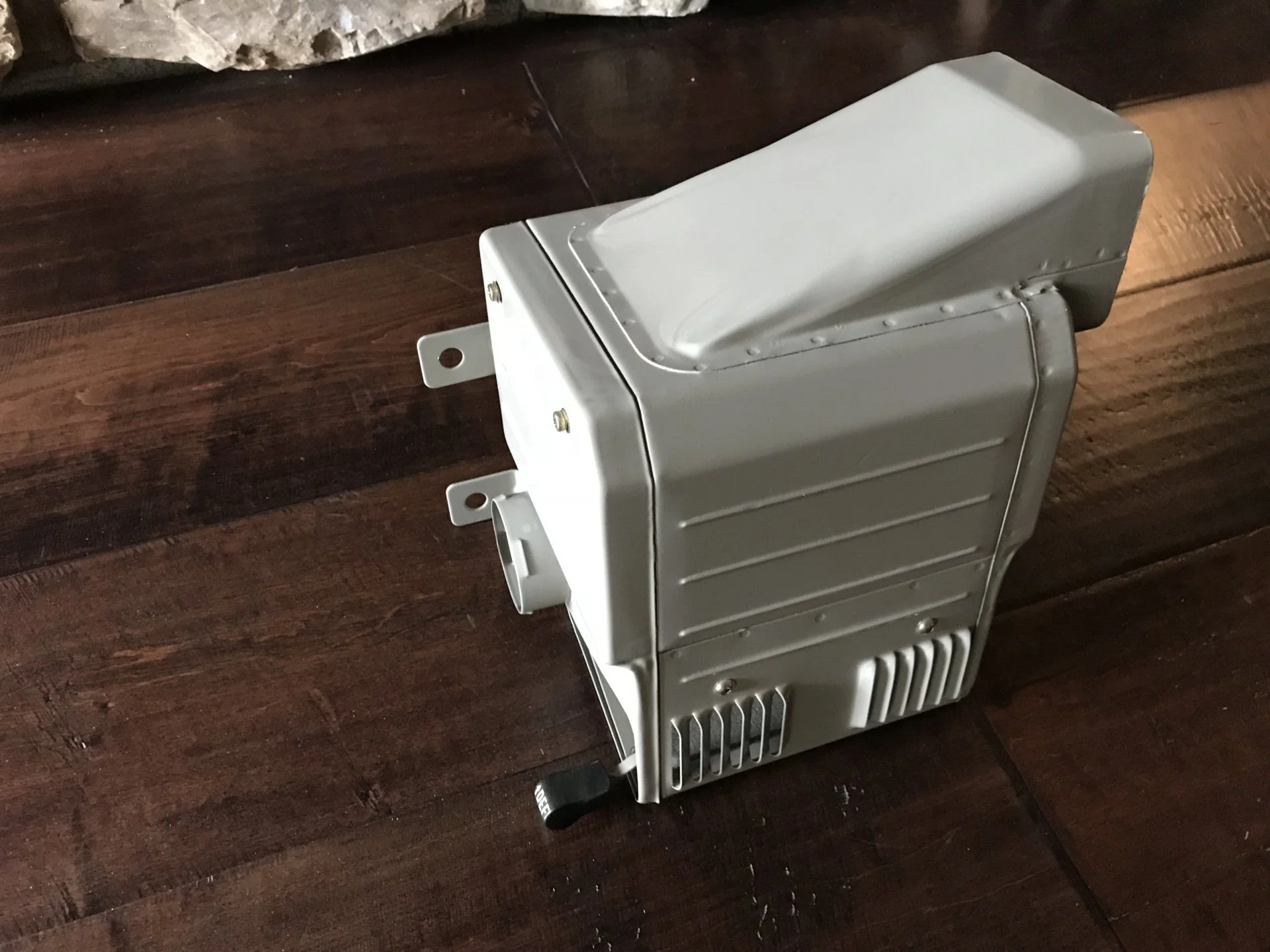

    thanks guys perfect, pics are super helpful. ill fix that tomorrow , and yes the instrument cluster cover , ash tray , glove box, heater and wiper motor were all powder coated.

  14. elgatoocho

    elgatoocho

    Messages:
    35
    Likes Received:
    18
    Joined:
    Apr 20, 2013
    Location:
    Redding California

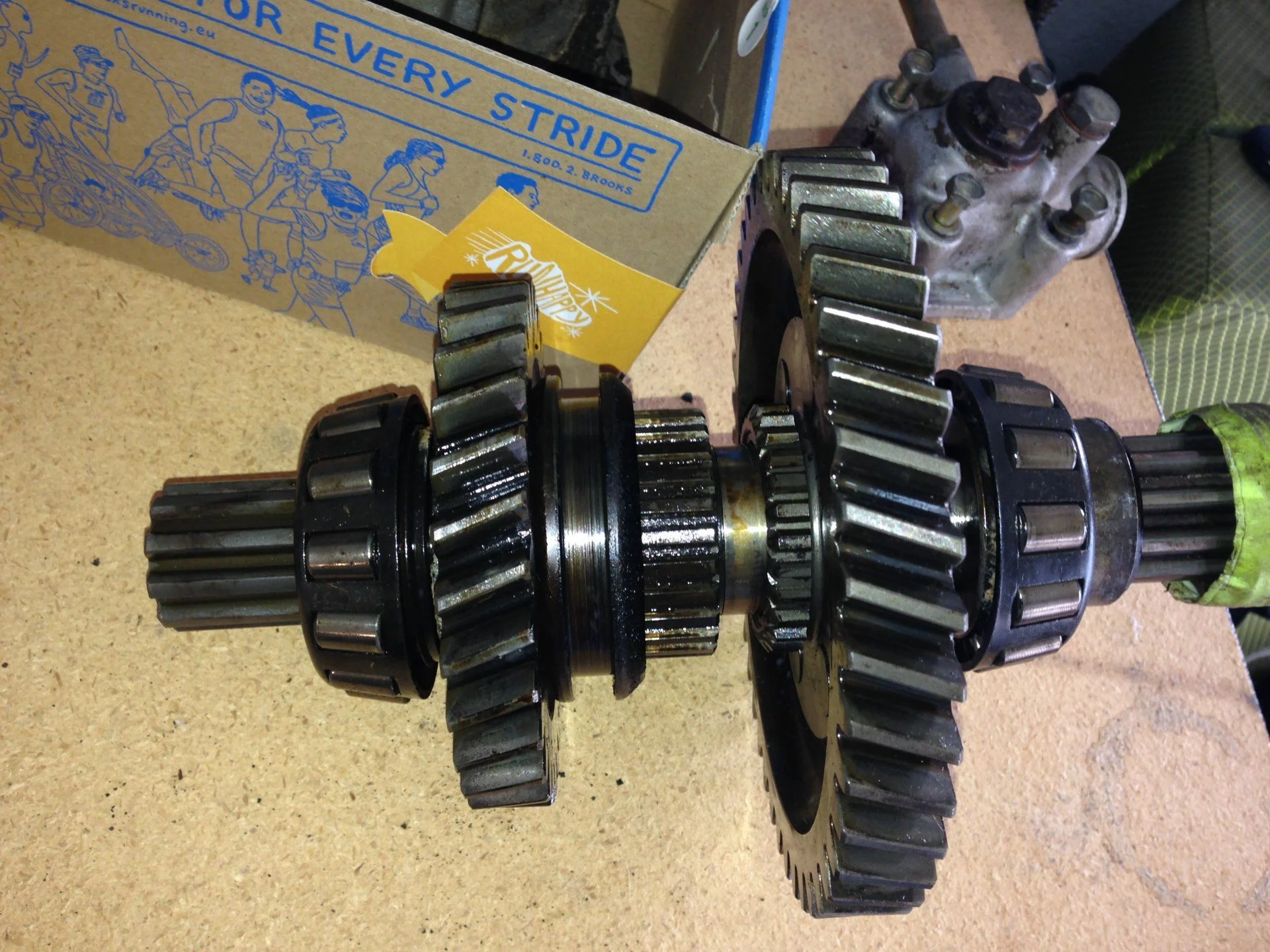

    and then, with the help of Coolerman's web sight, i took on the Tranny and transfer, removed it, tore it down, cleaned it, i felt like it was in good shape, the truck only had 77k and the bearings felt great, gave it a good cleaning.






    thebigredrocker likes this.
  15. elgatoocho

    elgatoocho

    Messages:
    35
    Likes Received:
    18
    Joined:
    Apr 20, 2013
    Location:
    Redding California

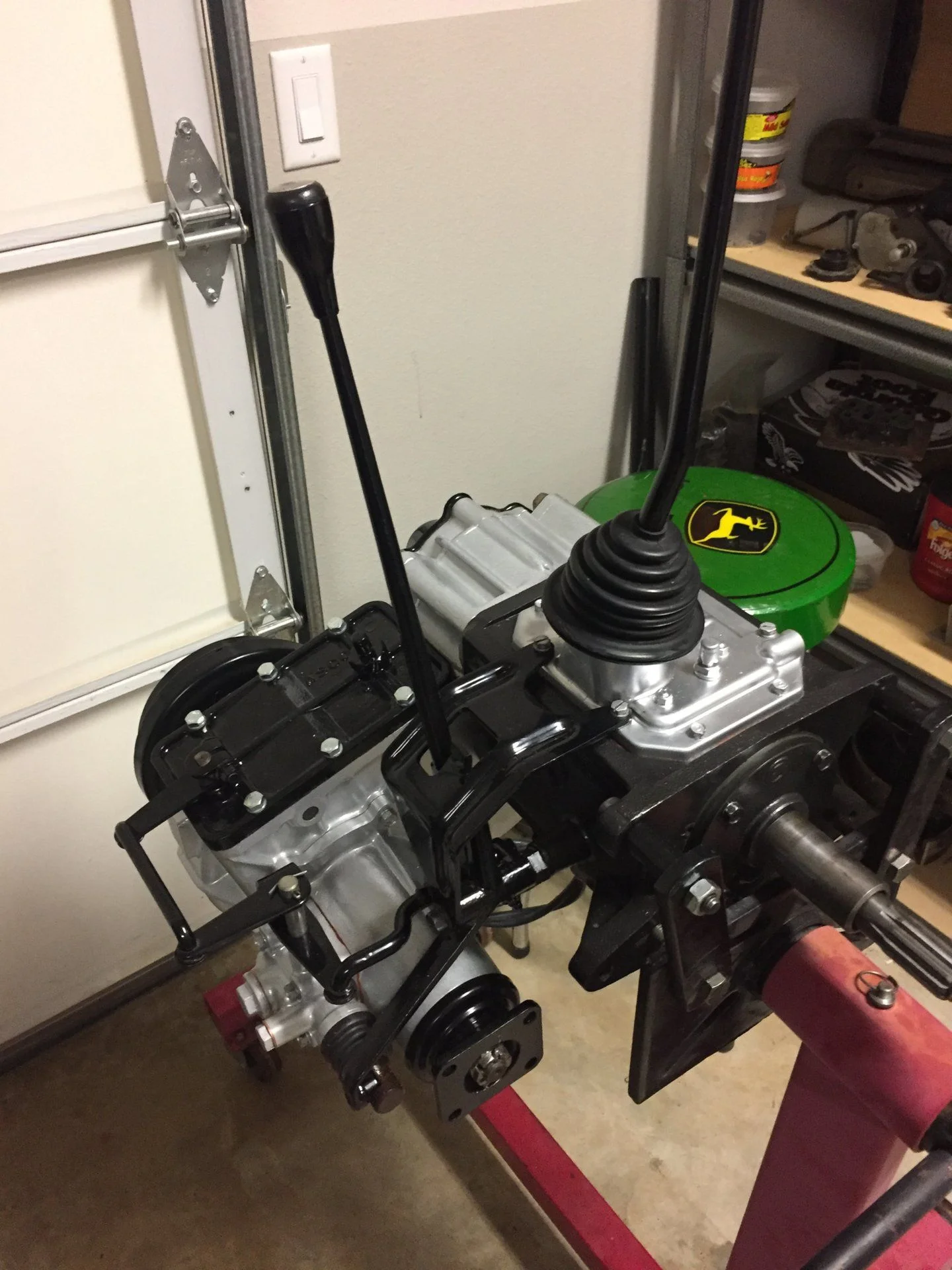

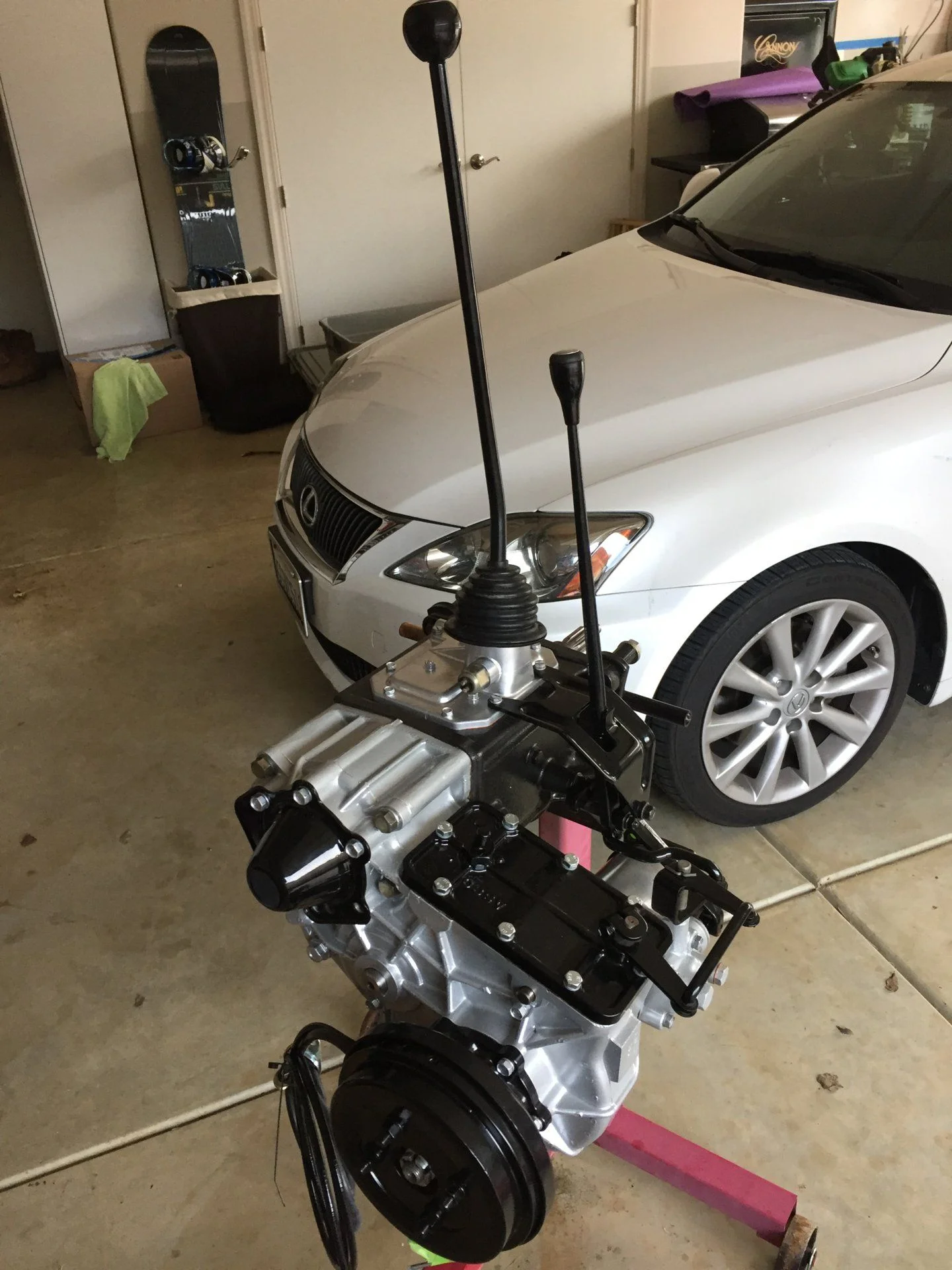

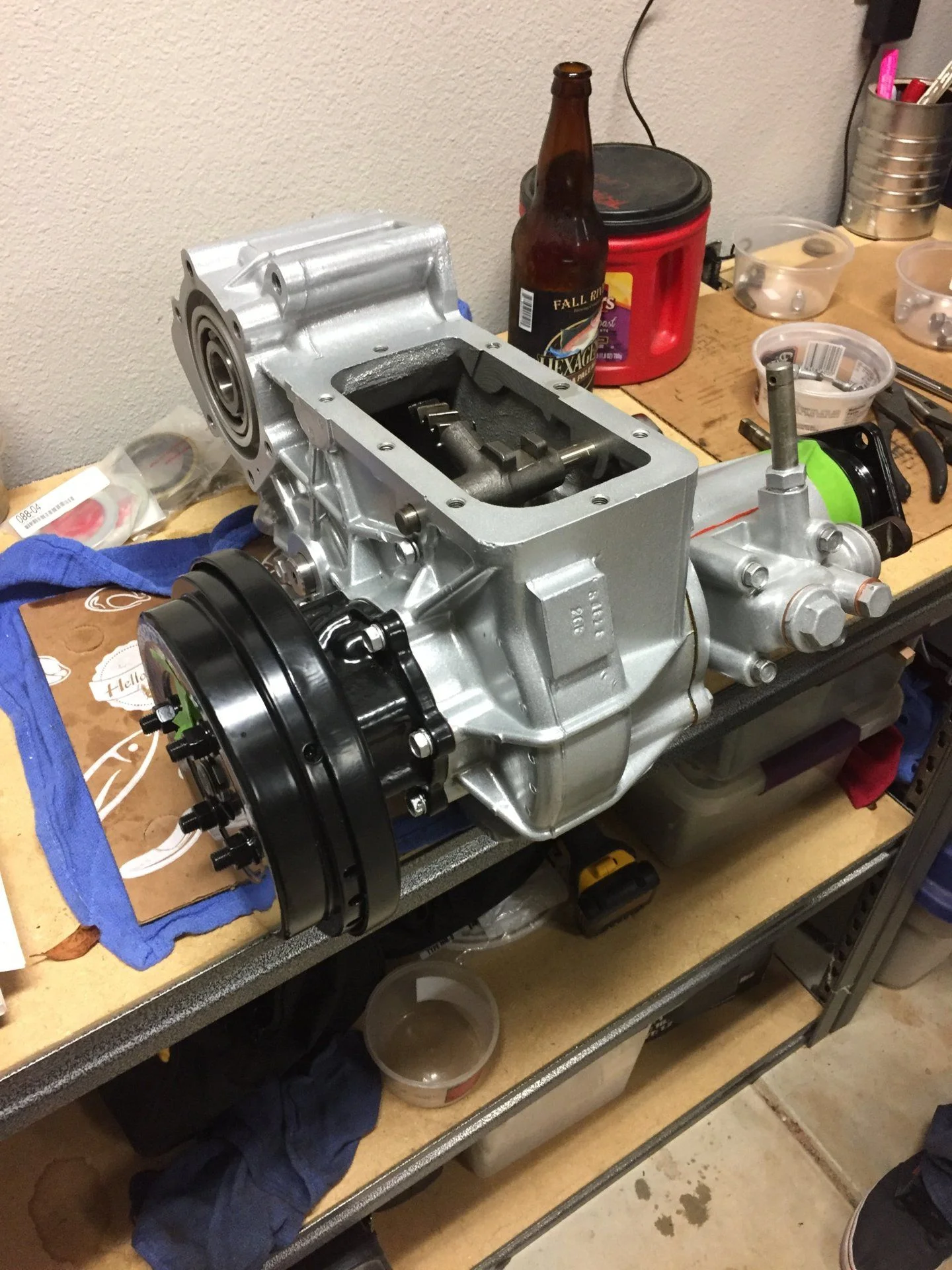

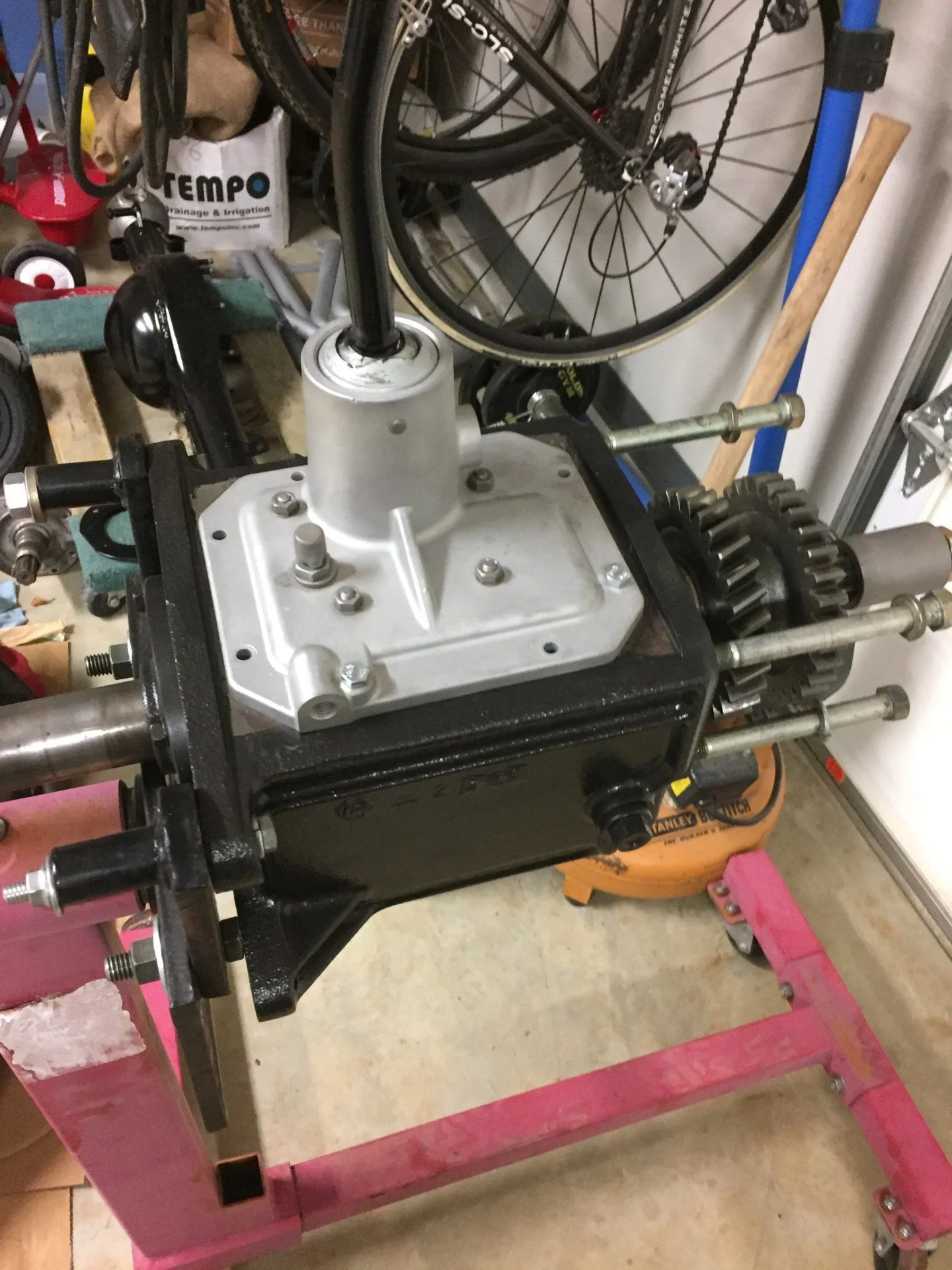

    powder coated the transfer case and linkage, paint on the tranny new seals a gaskets. and put it back together.
    it sat as seen for 8 months, no leaks, about 4 weeks ago i started noticing oil dripping out of the front output shaft seal? does that sound right? does that seal need movement to stay sealed?? i guess ill replace it but it seams odd.





    Jdc1 and thebigredrocker like this.
  16. elgatoocho

    elgatoocho

    Messages:
    35
    Likes Received:
    18
    Joined:
    Apr 20, 2013
    Location:
    Redding California
    oh and sorry, no the leafs are not new, stock and yes they do seem to be in great shape.

    BretwithoneT likes this.
  17. 73FJ40

    73FJ40 After another night of rust removal! SILVER Star

    Messages:
    784
    Media:
    4
    Albums:
    1
    Likes Received:
    508
    Joined:
    Dec 28, 2006
    Location:
    Western Massachusetts
    @Boaf 32 :
    The two wires in the third picture are for a "FD engaged" light on trucks with vacuum-actuated transfer cases.

    Boaf 32 likes this.
  18. Boaf 32

    Boaf 32

    Messages:
    431
    Likes Received:
    32
    Joined:
    Oct 1, 2015
    Location:
    PA
    Thank you 73FJ. Glad you chimed in!

  19. Dirtgypsy

    Dirtgypsy

    Messages:
    2,404
    Likes Received:
    55
    Joined:
    May 27, 2006
    Location:
    Dundee, Oregon
    Wow man. Super nice! What paint did you use on your wheels? Or did you powder coat those too?

    Clint

  20. elgatoocho

    elgatoocho

    Messages:
    35
    Likes Received:
    18
    Joined:
    Apr 20, 2013
    Location:
    Redding California
    the wheels came from coolcruisers.com, the originals were left flat, sitting out in a walnut orchard so long the bottom inch had almost rusted completely away, if memory serves, coolcruisers stated that the wheels came to them painted black and they powder coat them the original color, they are nice
