Spacer Install on OME Lift

Discussion in '80-Series Tech' started by Romer, Jul 10, 2005.

  1. Romer

    Romer fatherofdaughterofromer Moderator

    Messages:
    10,795
    Likes Received:
    2,003
    Joined:
    Sep 14, 2003
    Location:
    Centennial, Colorado
    My rig was raking to the front with the weight of the winch and ARB. I originally was thinking of switching to Heavy springs. But discovered there was no need per the following thread in the FAQ:

    https://forum.ih8mud.com/showthread.php?t=44674

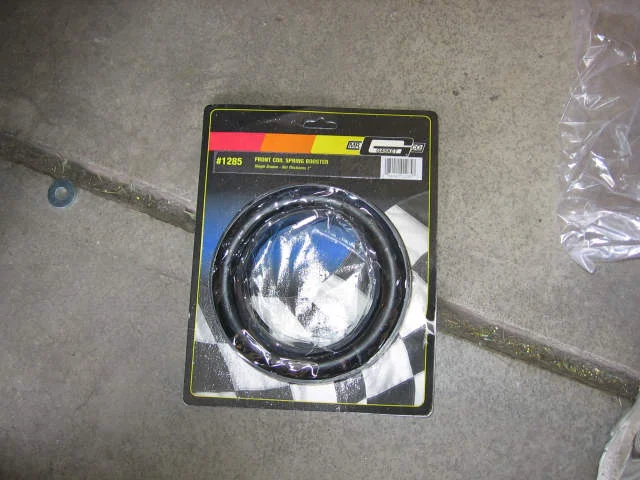

    So I bought some 1” Mr Gasket Spacers from www.summitracing.com Part number MRG-1285.

    I also bought a Coil spring Compressor from Harbor Freight for $12.

    Tools: 15/16 Socket (24mm works) Socket Wrench, Floor Jack
    1 Inch Space Install 001.jpg 1 Inch Space Install 008.jpg

  2. Romer

    Romer fatherofdaughterofromer Moderator

    Messages:
    10,795
    Likes Received:
    2,003
    Joined:
    Sep 14, 2003
    Location:
    Centennial, Colorado

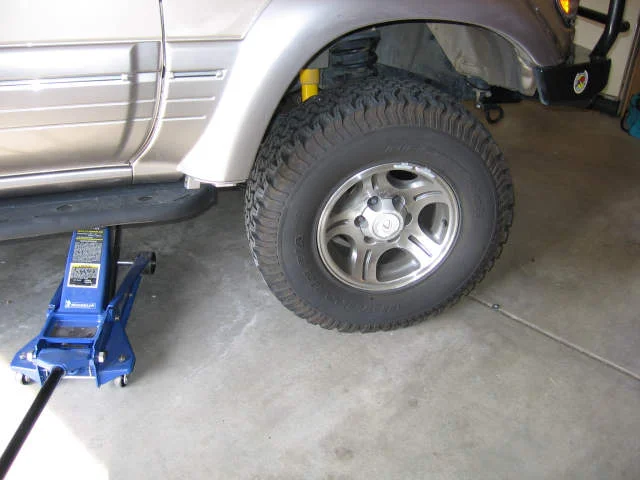

    First, Place the Jack under the frame (not axle). I used the Sway bar mount. If you do the axle, you will compress the spring rather than expand it. Make sure you put a block behind the rear tire.

    Jack up the vehicle just enough so you can get the Coil Spring Compressor on both sides. Learned it was easier to place the nut at the top after the first spring.

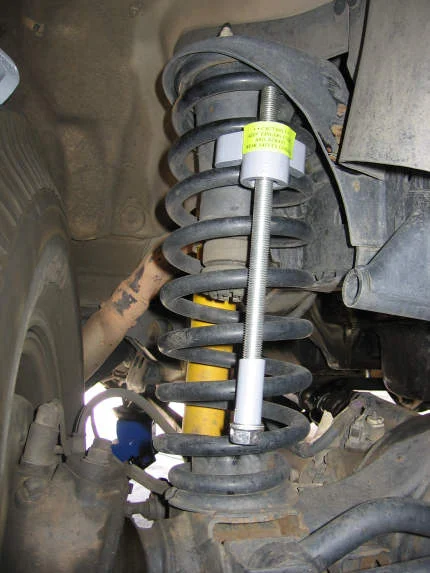

    1 Inch Space Install 002.jpg 1 Inch Space Install 005.jpg

  3. Romer

    Romer fatherofdaughterofromer Moderator

    Messages:
    10,795
    Likes Received:
    2,003
    Joined:
    Sep 14, 2003
    Location:
    Centennial, Colorado

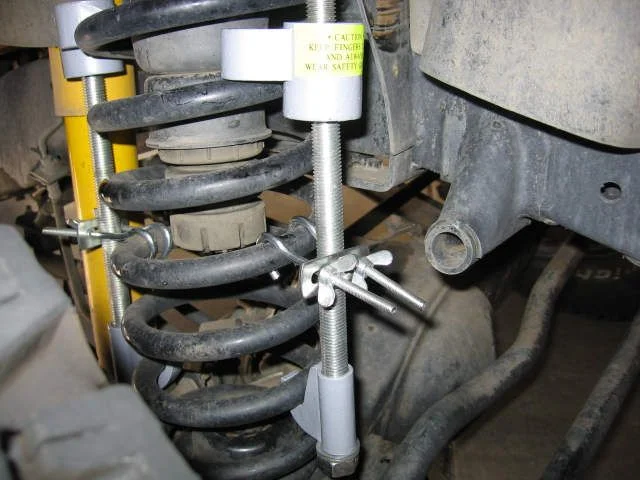

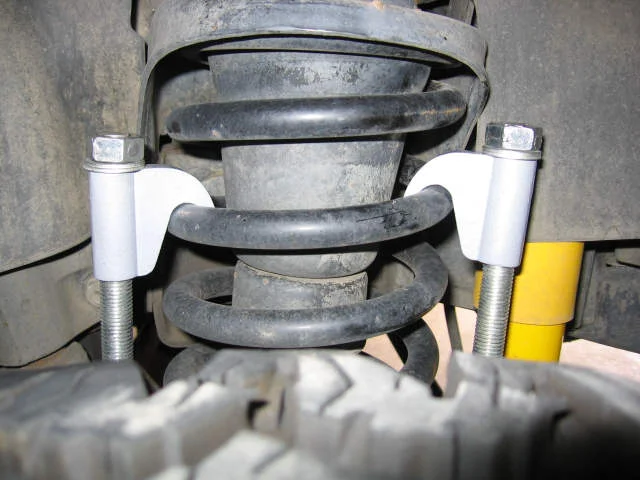

    Crank the bolts alternating sides until you compress the spring a bit. Now Jack up the vehicle more and the spring should pop out of the top. Then use the nuts to compress the spring more until you have about a 2 inch gap Use the jack a bit more if it helps.
    1 Inch Space Install 006.jpg 1 Inch Space Install 010.jpg

  4. Romer

    Romer fatherofdaughterofromer Moderator

    Messages:
    10,795
    Likes Received:
    2,003
    Joined:
    Sep 14, 2003
    Location:
    Centennial, Colorado

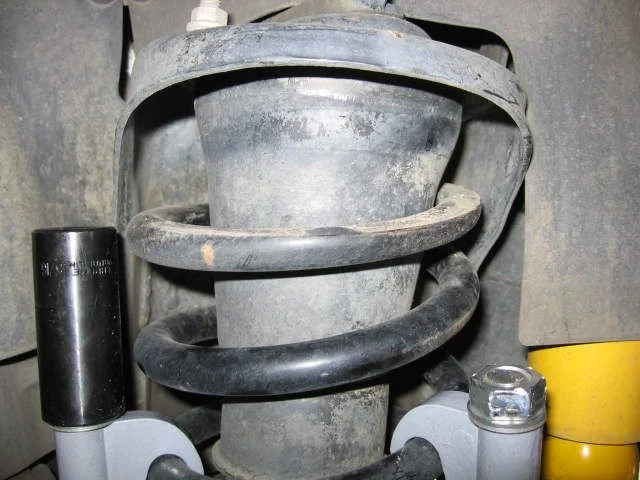

    Work the spacer in back and forth until it is all the way around and seated properly. Make sure you check around the back side for proper seating.

    Let off on the Jack a bit to get it pushed in and check the seating.

    Let the Jack down most of the way. If you let it down all the way, the coils will compress to the point you can’t get the compressors off.

    Take off the compressors and do the other side.

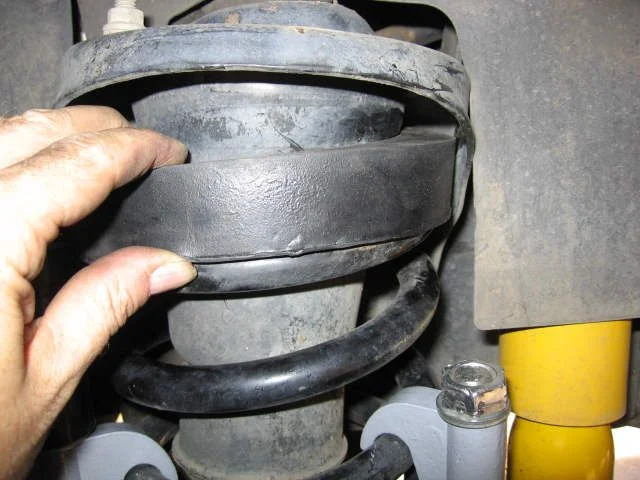

    1 Inch Space Install 011.jpg 1 Inch Space Install 013.jpg

  5. Bongani

    Bongani

    Messages:
    185
    Likes Received:
    1
    Joined:
    Mar 25, 2005
    Location:
    South Africa
    Excellent write up!

  6. Boston Mangler

    Boston Mangler

    Messages:
    3,589
    Likes Received:
    4
    Joined:
    May 21, 2004
    Location:
    San Diego
    Hey Ken

    How much lift did you gain for these spacers?? I just installed a set and they "Squished" considerably when all of the weight was put back on them. Did you notice this?

    Nice Write Up BTW

  7. T Y L E R

    T Y L E R

    Messages:
    2,597
    Likes Received:
    5
    Joined:
    Mar 27, 2003
    FatherofRomersDaughter,


    Do you have pics that you can post of a before and after? You probably have some good side shots you took after you put on the Slee slidersteps. Maybe you could take an identical angle with the Mr Gasket on now. It would probably be useful to guys trying to decide to make this mod or not.


    Also wanted to repeat what I've heard many a time. An 80 should probably have a bit of nose down attitude, as it will level out after you load up your cargo etc. To have a completely level truck might result in a sag after loading it down.



    TY

  8. Aussie cruiser

    Aussie cruiser

    Messages:
    469
    Likes Received:
    0
    Joined:
    Dec 20, 2004
    Location:
    Brisbane Australia
    I have spacers on my rear and the springs had to be removed to fit them.

    Are these a complete circle or do they have a break in them?

    Hey Ken

    How much lift did you gain for these spacers?? I just installed a set and they "Squished" considerably when all of the weight was put back on them. Did you notice this?

    Nice Write Up BTW

    Are these spacers a soft compond as the ones I have are made of hard neoprene I think

  9. Romer

    Romer fatherofdaughterofromer Moderator

    Messages:
    10,795
    Likes Received:
    2,003
    Joined:
    Sep 14, 2003
    Location:
    Centennial, Colorado
    These are soft material with a break in the middle as you can see from the photo where I was feeding it in.

    The Front is still lower than the rear and I did not get one inch of lift, the Rear is still higher than the front. I'll take a pic later.

    I was thinking after I did the first one that I should have taken a before. I'll see if I can find one with the winch and ARB from the same angle for a before and after.

  10. beno

    beno Gihee Arakawa Moderator GOLD Star

    Messages:
    23,884
    Media:
    382
    Albums:
    29
    Likes Received:
    19,150
    Joined:
    Aug 28, 2004
    Location:
    Woodstock, NY
    Nice Ken.

    Doing this as well this week. Thanks for the write up....

    The guy at Summit when I went to the store said that some guys like to put some Krazy Glue on the top side of the spacer before they put it in to hold it in place before the spring decompresses back into place.

    I guess with your method there is no need to do that.

    Thanks again.
    Best.
    -onur
    Akron, OH

  11. Rich

    Rich

    Messages:
    1,805
    Likes Received:
    5
    Joined:
    Jun 16, 2003
    Sometimes those spring compressors fail. I'd feel better unbolting the shock and dropping the axle than depending on the spring comrpressors to keep posssion of my fingers.

  12. Boston Mangler

    Boston Mangler

    Messages:
    3,589
    Likes Received:
    4
    Joined:
    May 21, 2004
    Location:
    San Diego
    Thats why i did and it worked pretty good. You need big TALL jackstand though, and also have to remove the tires, undo the shocks, swaybars and be VERY careful of the front brake line at the T

  13. Rich

    Rich

    Messages:
    1,805
    Likes Received:
    5
    Joined:
    Jun 16, 2003
    Yep, most of the same steps as required to install the springs to begin with. The compressors do make for a short cut.

  14. yellowchaosfj80

    yellowchaosfj80

    Messages:
    224
    Likes Received:
    0
    Joined:
    May 21, 2005
    Location:
    vancouver canada
    Cool Thread This is the same way I did my lift and the spring compressors is the best invesment for the 20 30$ you save so much time .. good to see I was knot alone in this coily situaion.. let see some pic when your done

  15. Romer

    Romer fatherofdaughterofromer Moderator

    Messages:
    10,795
    Likes Received:
    2,003
    Joined:
    Sep 14, 2003
    Location:
    Centennial, Colorado
    If you notice in Post #3, there is a sfaety bracket that helps keep the compressor in place. It's not foolproof, put your Jack stand could fail while your head is under there to.

  16. Romer

    Romer fatherofdaughterofromer Moderator

    Messages:
    10,795
    Likes Received:
    2,003
    Joined:
    Sep 14, 2003
    Location:
    Centennial, Colorado
    Well sad to say I removed my spacers today. I had that grinding noise even though I had changed the U joints and had the drive shaft balanced. Seems to be gone now. Based on what I read that should not have created too much a pinion angle problem, but every rig is different.

  17. Boston Mangler

    Boston Mangler

    Messages:
    3,589
    Likes Received:
    4
    Joined:
    May 21, 2004
    Location:
    San Diego
    Bizarre

    How does the rig sit now? Mine is still kinda raked even with the spacers!

  18. Romer

    Romer fatherofdaughterofromer Moderator

    Messages:
    10,795
    Likes Received:
    2,003
    Joined:
    Sep 14, 2003
    Location:
    Centennial, Colorado
    It was raked with the spacers. There isn't much difference without them.

    Look at the Build Up thread I updated.

  19. perk

    perk

    Messages:
    299
    Likes Received:
    5
    Joined:
    Jan 19, 2005
    Location:
    Redlands, CA
    Does this mean you'll go to the heavies now?

  20. Romer

    Romer fatherofdaughterofromer Moderator

    Messages:
    10,795
    Likes Received:
    2,003
    Joined:
    Sep 14, 2003
    Location:
    Centennial, Colorado
    Nope. I don't mind the way it sits. The heavies and the spacer would give me similar height. The height is impacting the pinion angle on the front drive shaft, so Heavies would do the same thing.

    I may end up getting one of the double cardon shafts eventually, if so I'll put the spacers back. It takes about 30 minutes to do both sides (After the first time)
