After gathering ideas from all you fine folks (Thank you)

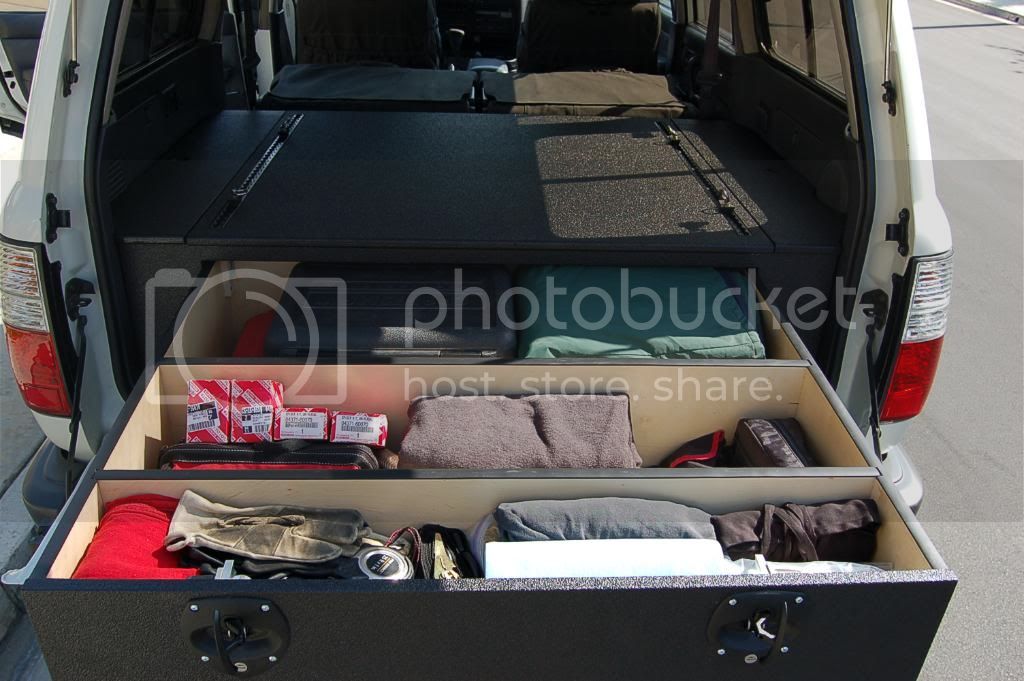

My goals were one large drawer for maximum storage space, level the 2nd row seats to incorporate them with the drawer system for sleeping, side storage, make it scratch resistant (bed liner), install separators for organization and be able to tie down items placed on top of the drawer system

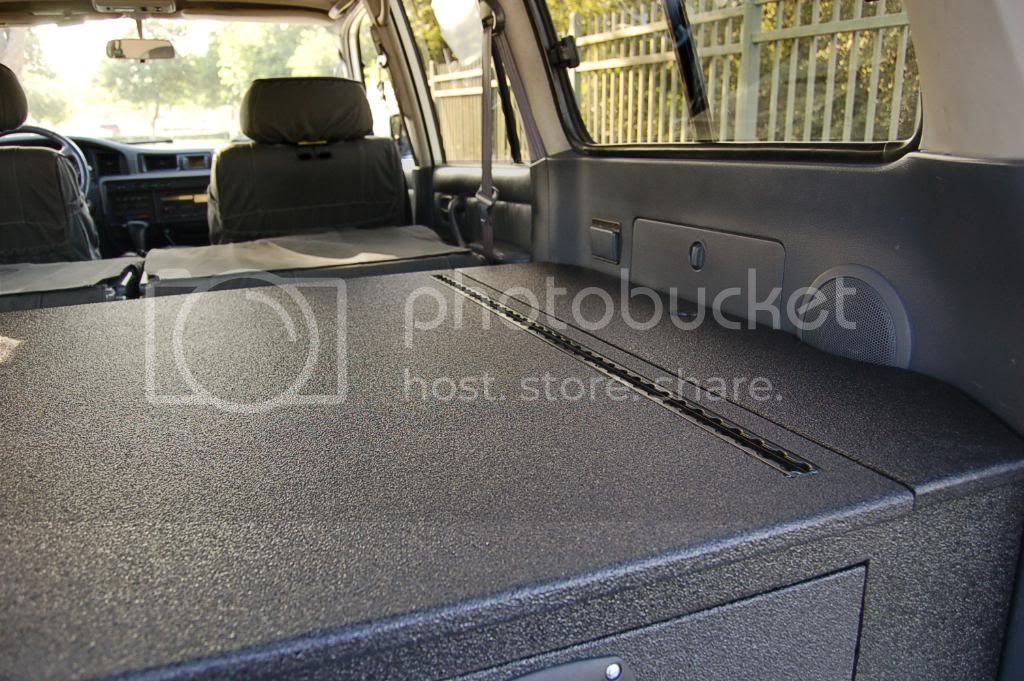

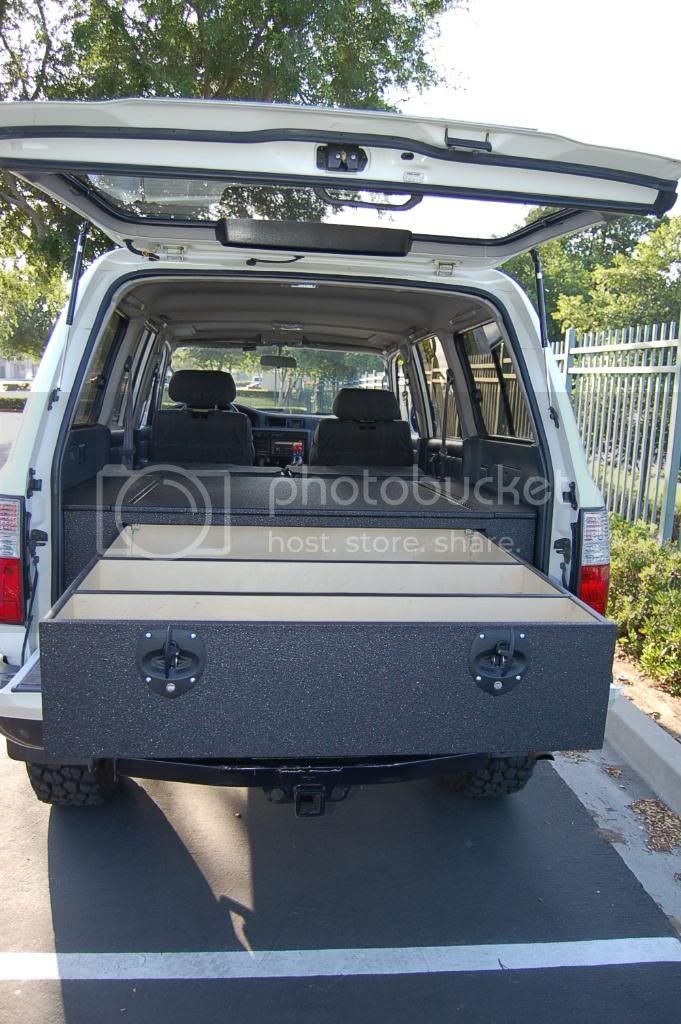

Here is the final project lined and installed.















yodaTEQ

Design,Build,EXPLORE
Supporting Vendor
SILVER Star
Joined
Feb 2, 2011
Messages
678
Location
SoCal
Thanks for the compliments. It was definitely a labor of love.

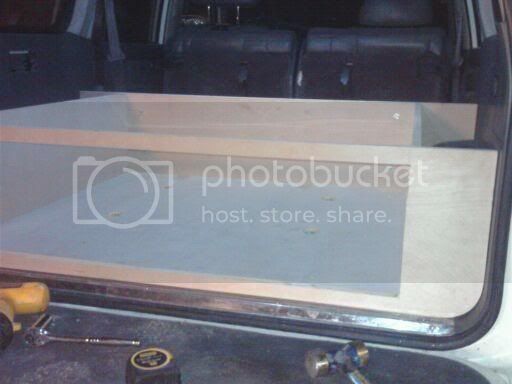

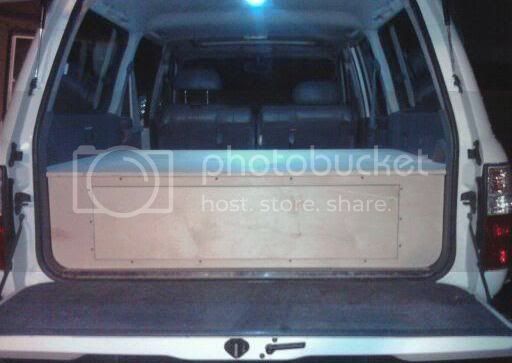

I used 3/4 Birch ply (sorry for the crappy photos)









yodaTEQ

Design,Build,EXPLORE
Supporting Vendor
SILVER Star
Joined
Feb 2, 2011
Messages
678
Location
SoCal

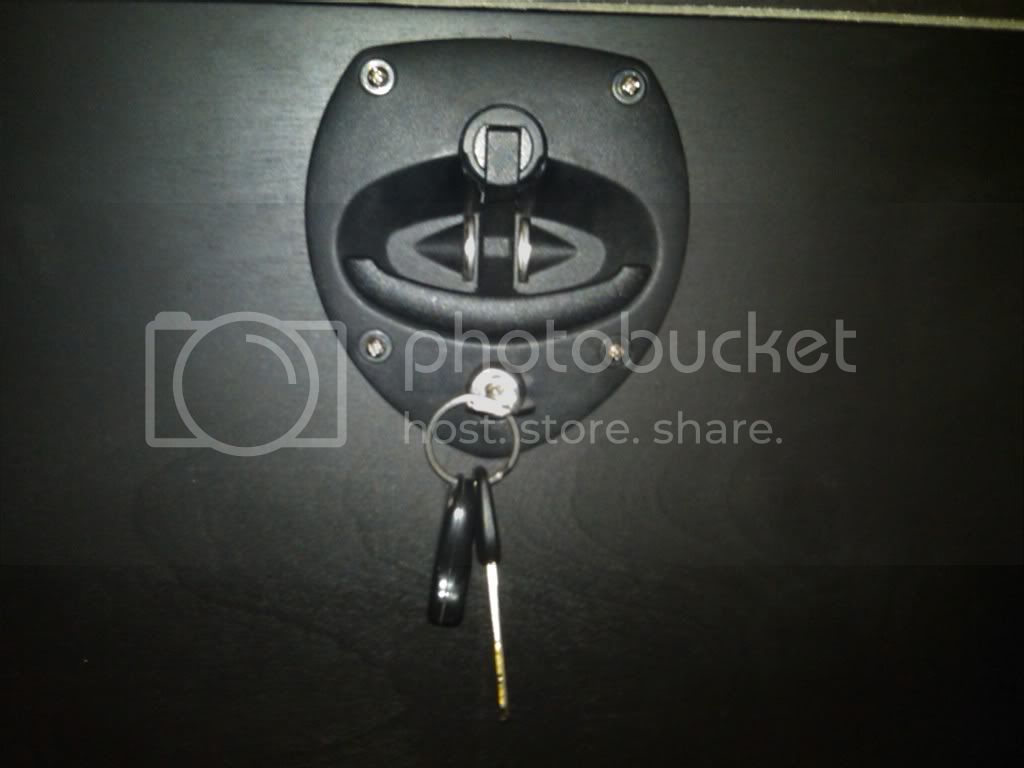

The latches are Allegis Compression T-Handle Latches



yodaTEQ

Design,Build,EXPLORE
Supporting Vendor
SILVER Star
Joined
Feb 2, 2011
Messages
678
Location
SoCal

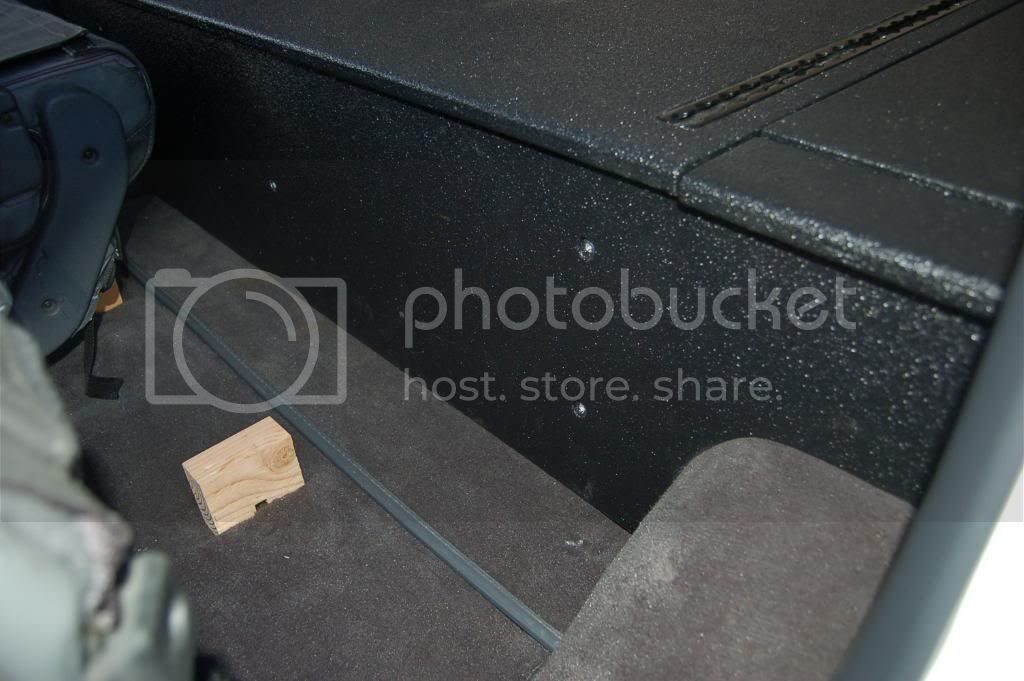

The cabinet is bolted to the truck bed using the 3rd row existing treaded holes



yodaTEQ

Design,Build,EXPLORE
Supporting Vendor
SILVER Star
Joined
Feb 2, 2011
Messages
678
Location
SoCal

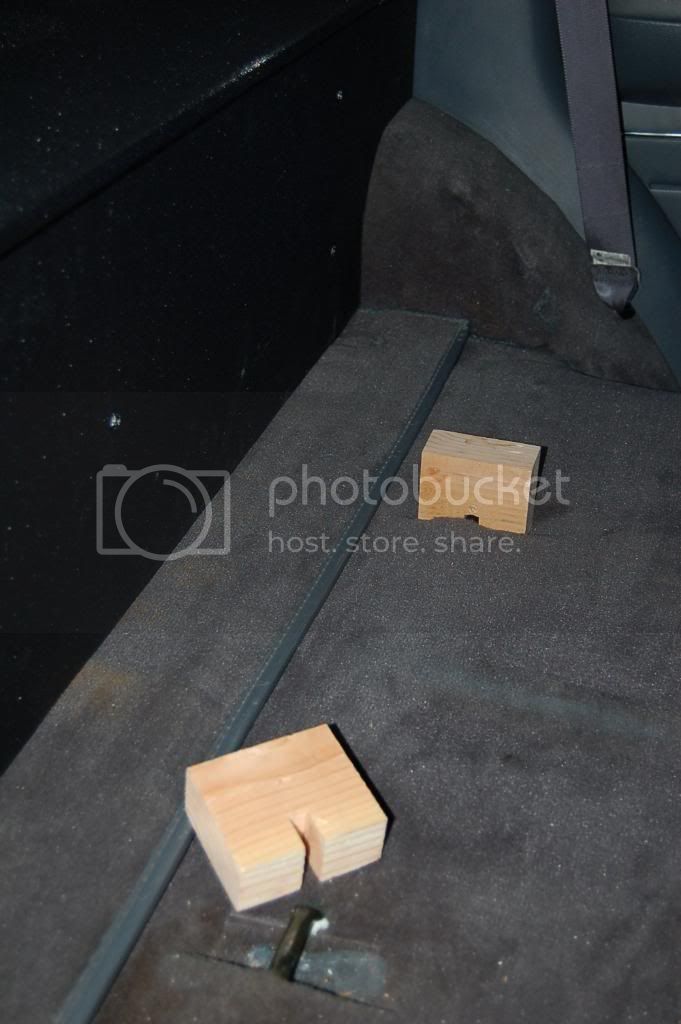

The 2nd row seat risers are cut and notched 2x4 to give the 2nd row the same height as the 13.5 in tall cabinet
