Slider Pics Homemade

lahar50


Joined
Feb 27, 2005
Messages
454
Location
Indiana

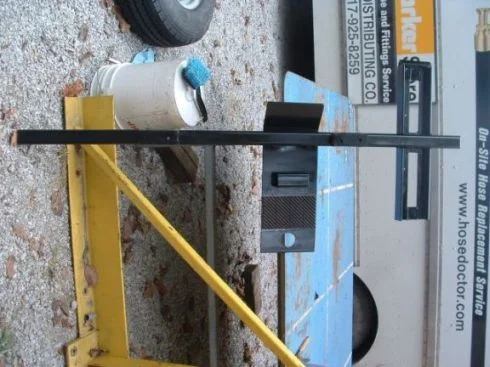

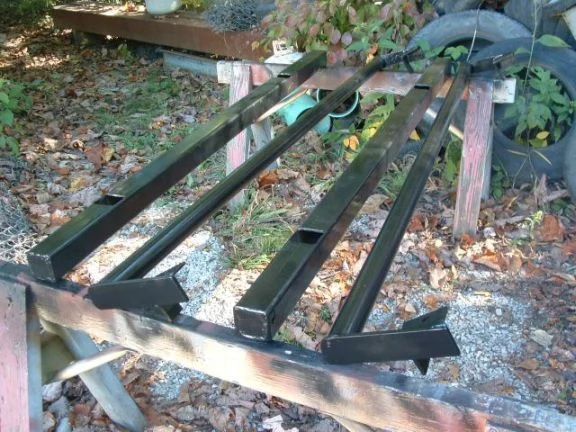

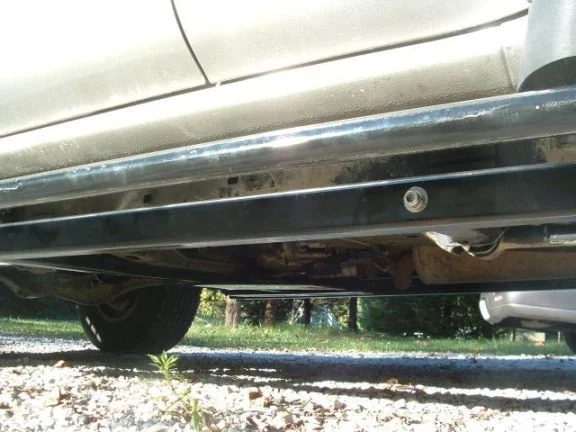

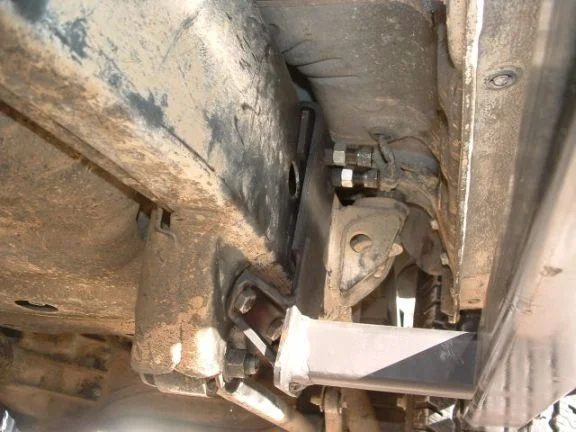

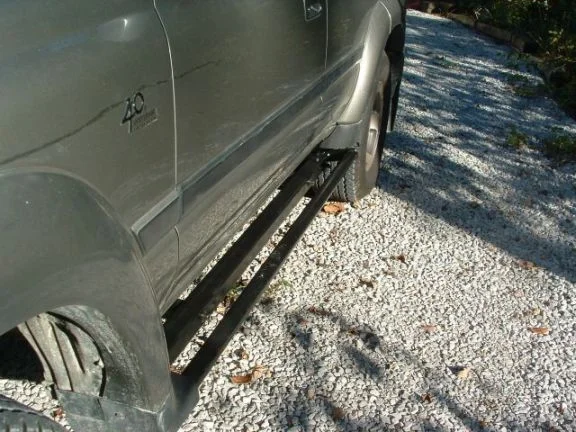

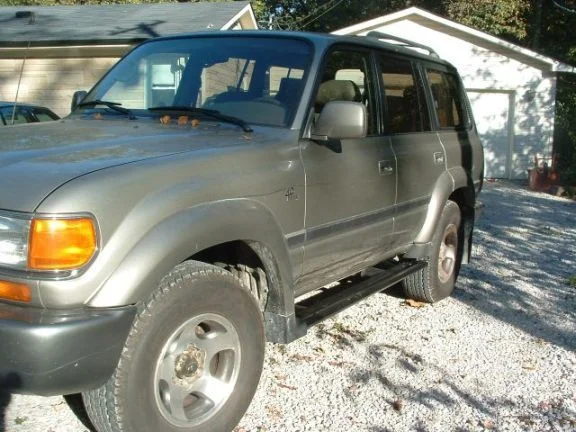

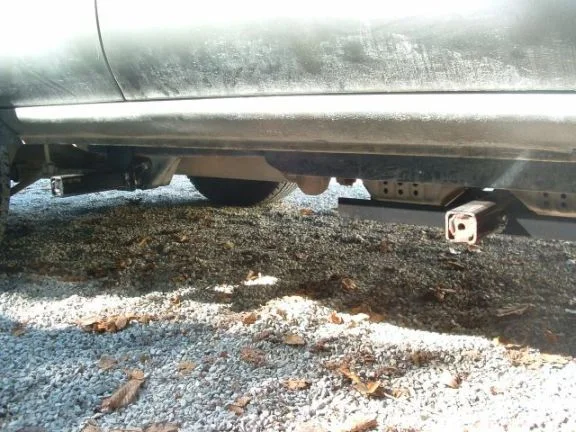

I finished my sliders with the help of my friend Dave.It took a while doinging it when we could find time.The cross bar is 2"x2"x3/16" square tube.I used 4 10x1.25x65 mm shcs and used the 4 front holes of the transfer case support.It has 2 1" spacers to make it level.The back support is bolted to the lower controll are bracket the pictures show it better than I can explain.The sliders are made of 2 1/2"x3/16" square tube.And the steps are 1 1/2" pipe.There is a transfer skid plate 8"x22"x 1/4" plate and cat protectors.They don't look like the ones you buy but all they cost me was time to do it.I haven't seen any mounted like this but there to many treads to read them all.


PKP80



Joined
Nov 16, 2004
Messages
2,742
Location
Los Angeles, CA
Nice, I'd like to see how they do on the trail. I like how they stick out to protect as well as serve as a step.


lahar50


Joined
Feb 27, 2005
Messages
454
Location
Indiana
Thanks guys I am ready to try them.I still need bumpers,lift and tires.The bumpers I will try to make the rest I will have to buy.
