SBC, Ram Horns, and Plug Wires

Discussion in '40- & 55-Series Tech' started by miker, Jul 12, 2005.

  1. miker

    miker

    Messages:
    2,610
    Likes Received:
    46
    Joined:
    Jan 29, 2003
    Location:
    Nil Sine Numine
    This isn't really a Cruiser questions except that the SBC is in the Cruiser.

    With a small block chevy and early points GM distributor and Ram Horn exhaust manifolds, I'm pretty sure GM routed the plug wires around the back sides of the heads and to the sides and then up to the plugs with 90 degree boots. The 2 front cylinder wires on each bank were even clipped to a holder on one of the oil pan bolts to keep them away from the exhaust pipe. These 2 wires on each bank were very long.

    So, is anyone using a shorter wire and running them OVER the Ram Horn manifolds? If so what wire set are you using and what kinds of clips, or holders are you using to keep them from burning up on the manifolds? And are you using 90, 120, or 180 boots?

    Last edited: Jul 12, 2005
  2. dgangle

    dgangle total rice SILVER Star

    Messages:
    4,002
    Likes Received:
    15
    Joined:
    Nov 24, 2004
    Location:
    Heart of Dixie

  3. Bennett

    Bennett

    Messages:
    627
    Likes Received:
    6
    Joined:
    Feb 1, 2002
    Location:
    Utah
    180* boots work well IMO.
    Big block chevy wires from the early 70's or BB vette will work. Several ways to do the loom... I used a loom from autozone $19 (second pic, not my rig tho). or attach the indiviual loom sets on top your valve cover. Straight boots work the best. If you have good wire set and they are in good shape you can order straight boots from summit for $10 and attach in place of your 90* The straight will hold the wire away from you rams and protect the plug .

  4. peesalot

    peesalot

    Messages:
    2,346
    Likes Received:
    72
    Joined:
    Sep 20, 2004
    Location:
    in a house
    IMO the routing on both those sucks.
    Run em back and up behind head. I believe Butch knows the part # for the BB set that works as far as length....

  5. miker

    miker

    Messages:
    2,610
    Likes Received:
    46
    Joined:
    Jan 29, 2003
    Location:
    Nil Sine Numine
    If anyone has a part number or can give me application (year, engine, model) that would be appreciated. Otherwise, I'm going to ruin some young punk part kids day by having him pull a bunch of sets from the back room. :D

  6. Bennett

    Bennett

    Messages:
    627
    Likes Received:
    6
    Joined:
    Feb 1, 2002
    Location:
    Utah

    if you don't want the wires to go over the Rams Horn manifolds then , a '75 vette had HEI with Rams horns. Earlier vettes without Hei are similar. The wires have 90ยบ boots and are routed down the back of the engine and up to the spark plugs. It's not as *cool* looking as over the top wire routing, but underneath routing easily prevents wires from making direct contact with the Rams Horns or
    ust buy a set of accel "cutsom fit" wires 20-30$. you can get straight or ninties,just cut to length. they will come with both hei and points ends..

    another method which looks pretty clean.

    Last edited: Jul 12, 2005
  7. cardinal fang

    cardinal fang

    Messages:
    786
    Likes Received:
    1
    Joined:
    Jul 13, 2003
    Location:
    Folsom, CA
    I like the idea of routing the wires around the back of the heads. Periodically, the heat shield for that type of wire routing pop up on ebay. They go pretty quick and for top $$. Does anyone have a year or stock number for the wire set that will rout the wires that way? Big block corvette? Are all years the same?

  8. Bennett

    Bennett

    Messages:
    627
    Likes Received:
    6
    Joined:
    Feb 1, 2002
    Location:
    Utah
  9. miker

    miker

    Messages:
    2,610
    Likes Received:
    46
    Joined:
    Jan 29, 2003
    Location:
    Nil Sine Numine
  10. 1Fine40

    1Fine40 Rust Buster SILVER Star

    Messages:
    959
    Media:
    5
    Albums:
    1
    Likes Received:
    105
    Joined:
    Aug 25, 2003
    Location:
    Wild Idaho

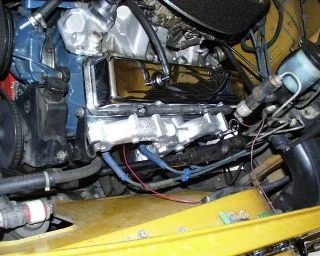

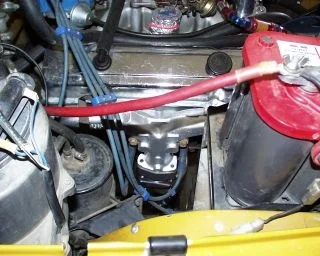

    I just routed the wires extra long, with wire separators. Got the Jacobs DIY setup. They have been fine for 8 yrs now...ymmv.

    Cheers!
    MyDsides.jpg MyPsideS.jpg

  11. cardinal fang

    cardinal fang

    Messages:
    786
    Likes Received:
    1
    Joined:
    Jul 13, 2003
    Location:
    Folsom, CA
    I can't view ebay at work here ;p The heat shields that I am referring to attach to the motor block and heads below the rams horn that protect the wires as they pass between the engine block and the exhaust pipe. They are flat metal with a slight bend and about 2" wide. I have several heat shields that will work with the rams horn, if the wires route under the rams horn, not over them. They attach to mount bolts for the rams horns. But I don't have any of the flat shields mentioned above.

    BTW, since we are talking about rams horns exhaust, I prefer the manifolds that came on 1980-1981 corvettes. They are more like headers than manifolds. Will post pic later.

  12. dgangle

    dgangle total rice SILVER Star

    Messages:
    4,002
    Likes Received:
    15
    Joined:
    Nov 24, 2004
    Location:
    Heart of Dixie
    Bill,
    I am very interested in the pictures you mention. Please post them as I am very interested.

  13. dgangle

    dgangle total rice SILVER Star

    Messages:
    4,002
    Likes Received:
    15
    Joined:
    Nov 24, 2004
    Location:
    Heart of Dixie
    Ditto. These aren't for the ramshorn-style manifolds.

  14. Bennett

    Bennett

    Messages:
    627
    Likes Received:
    6
    Joined:
    Feb 1, 2002
    Location:
    Utah
  15. dgangle

    dgangle total rice SILVER Star

    Messages:
    4,002
    Likes Received:
    15
    Joined:
    Nov 24, 2004
    Location:
    Heart of Dixie
    Here are a few pics of the way I route the wires behind head and up under ramshorn-type manifolds on my VJ40. I have tried several different ways of routing them and this works best for me. YMMV.
