Saginaw box mounting angle: level or...?

woytovich

Science...
SILVER Star
Joined
Sep 2, 2003
Messages
13,043
Location
Metro NY
So I am about to weld in the Sag box mounting plate and I got to thinking... (a bad idea generally). Should the box mount as level as possible? I have seen pictures where that appears to be the case and some where it looks like it is angled up towards the steering column.

Before I weld I'd like to get a little more input.

Pics for examples...

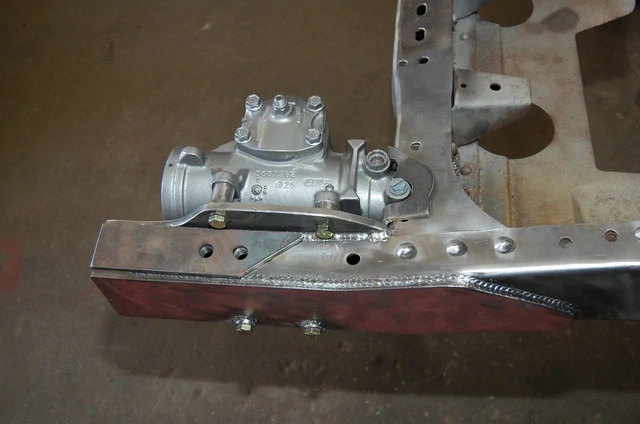

Level:

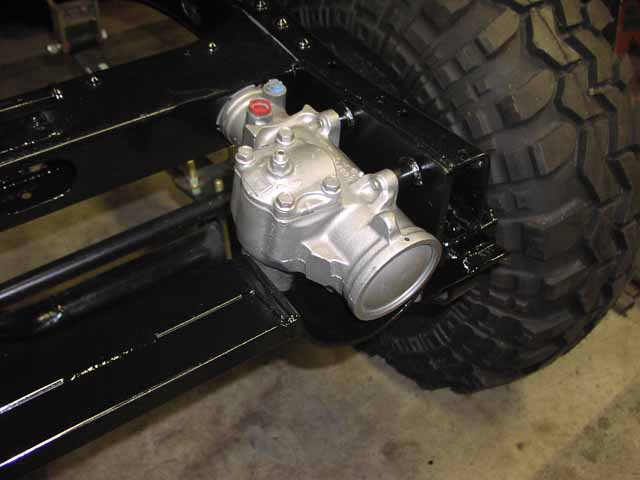

Angled up:



EWheeler

4 Cruisers, No Garage !
GOLD Star
Joined
Apr 5, 2008
Messages
2,055
Location
Menifee, CA
I angled mine up and mounted it pretty low relative to some others. Can't say why I did it that way, its been way too long. I used a Wagoneer pitman arm that was pretty flat. I have not had any issues, but the truck really hasn't seen years & years of use.

That first photo you posted looks like FC Fab. Anything that guy does is the right way to do things. I don't think you can go wrong here as long as you choose the right pitman arm and just make sure everything clears before burning in for good.

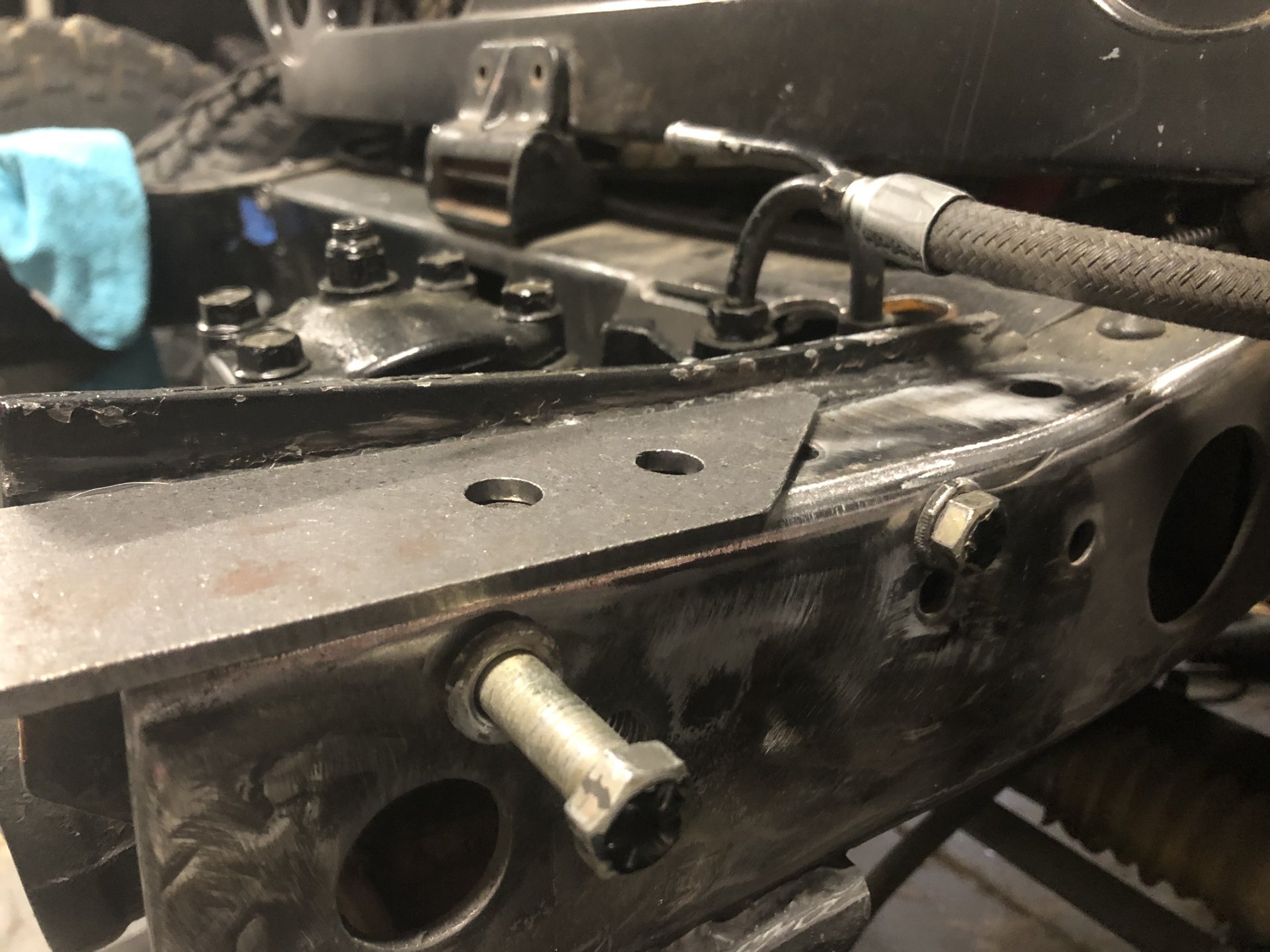

Another FC Fab install here:


C:\Users\Evan Whe\Pictures\Cruiser - Resized\FJ40-1535.JPG


C:\Users\Evan Whe\Pictures\Cruiser - Resized\FJ40-1648.JPG


C:\Users\Evan Whe\Pictures\Cruiser - Resized\FJ40-1570.JPG

Joined
Nov 24, 2017
Messages
790
Location
Oregon
The top looks like a 4x4labs mount kit . Mine is mounted lower like the other 2 but i have the 4x4 labs kit . On my 69 the front crossmember is at a angle like this / and my 71 its like this I i am not sure i can mount it higher because my steering box would be hitting the crossmember . I have tabled that project for now and will swing back lol


lcwizard

Supporting Vendor
Supporting Vendor
GOLD Star
Joined
Dec 5, 2004
Messages
5,028
Location
Miami, Arizona
Website
www.4plusproducts.com
whatever fits best. It's different for a V-8 than a six ( motor mount clearance ). A shackle reversal has more room to move about since you don't have
to worry about clearing the top shackle pin. You just want to make sure the bolt holes don't dead center the top or bottom horizontal legs of the frame rail







lcwizard

Supporting Vendor
Supporting Vendor
GOLD Star
Joined
Dec 5, 2004
Messages
5,028
Location
Miami, Arizona
Website
www.4plusproducts.com
SUA, small lift.
layout the steering shaft from the column before setting the angle. It sucks if it's all welded in and then you notice the steering shaft drags on a motor mount.
The other thing to watch is where the bolts that hold box on pass through the frame. It's nice if they clear the frame legs so you don't have to bisect the two
inches of frame leg with a drill bit. I'd worry less about a 5 ~10 degree pitch than the other install issues you might have trying to get a perfectly flat box.

Joined
Dec 13, 2012
Messages
1,878
Location
KY
So I am about to weld in the Sag box mounting plate and I got to thinking... (a bad idea generally). Should the box mount as level as possible? I have seen pictures where that appears to be the case and some where it looks like it is angled up towards the steering column.

Before I weld I'd like to get a little more input.

Pics for examples...

Level:

View attachment 2987613

Angled up:

View attachment 2987615

So what does your mounting plate look like, whos plate is it?

I ask because it might dictate how it needs to be mounted.

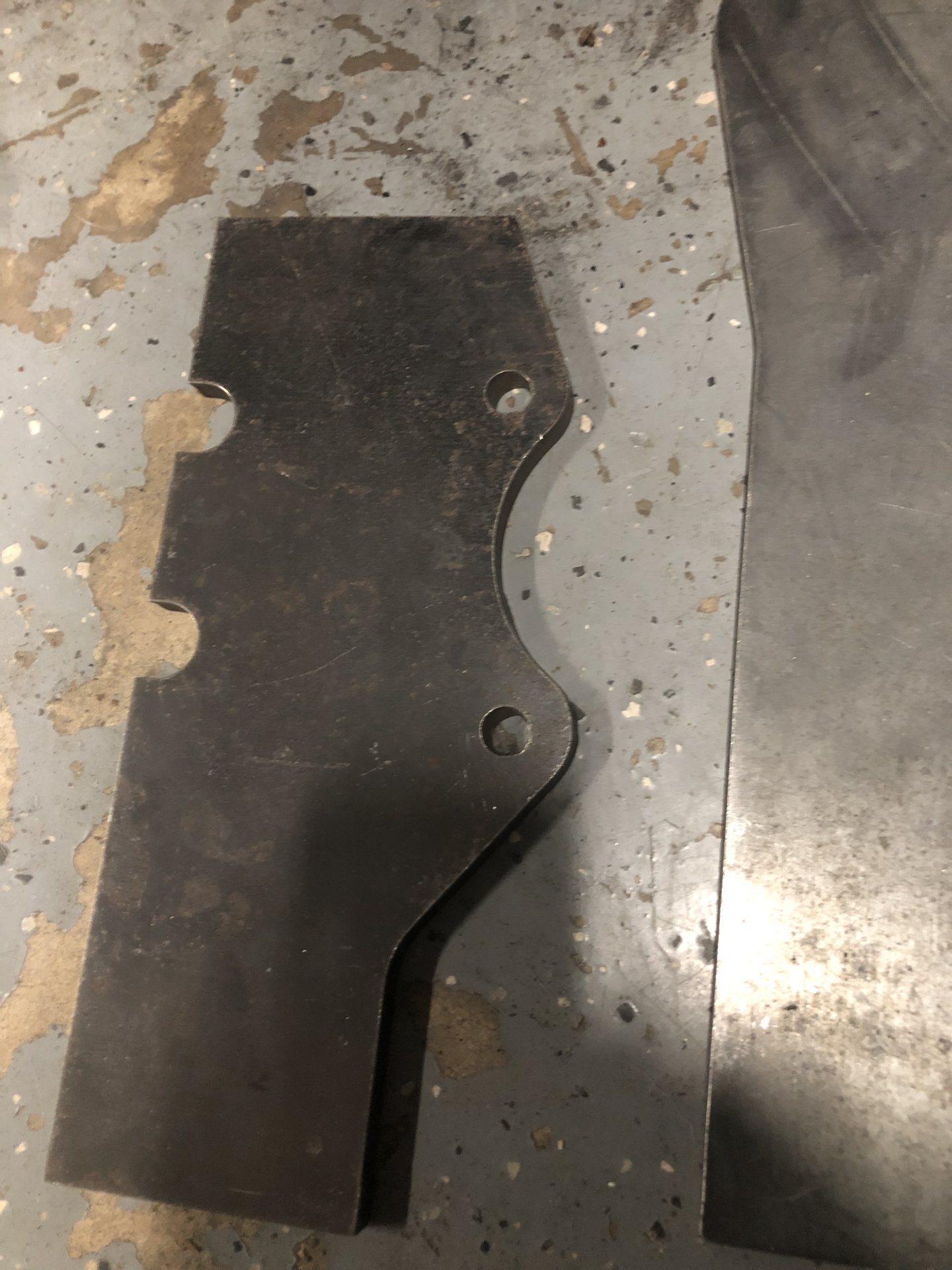

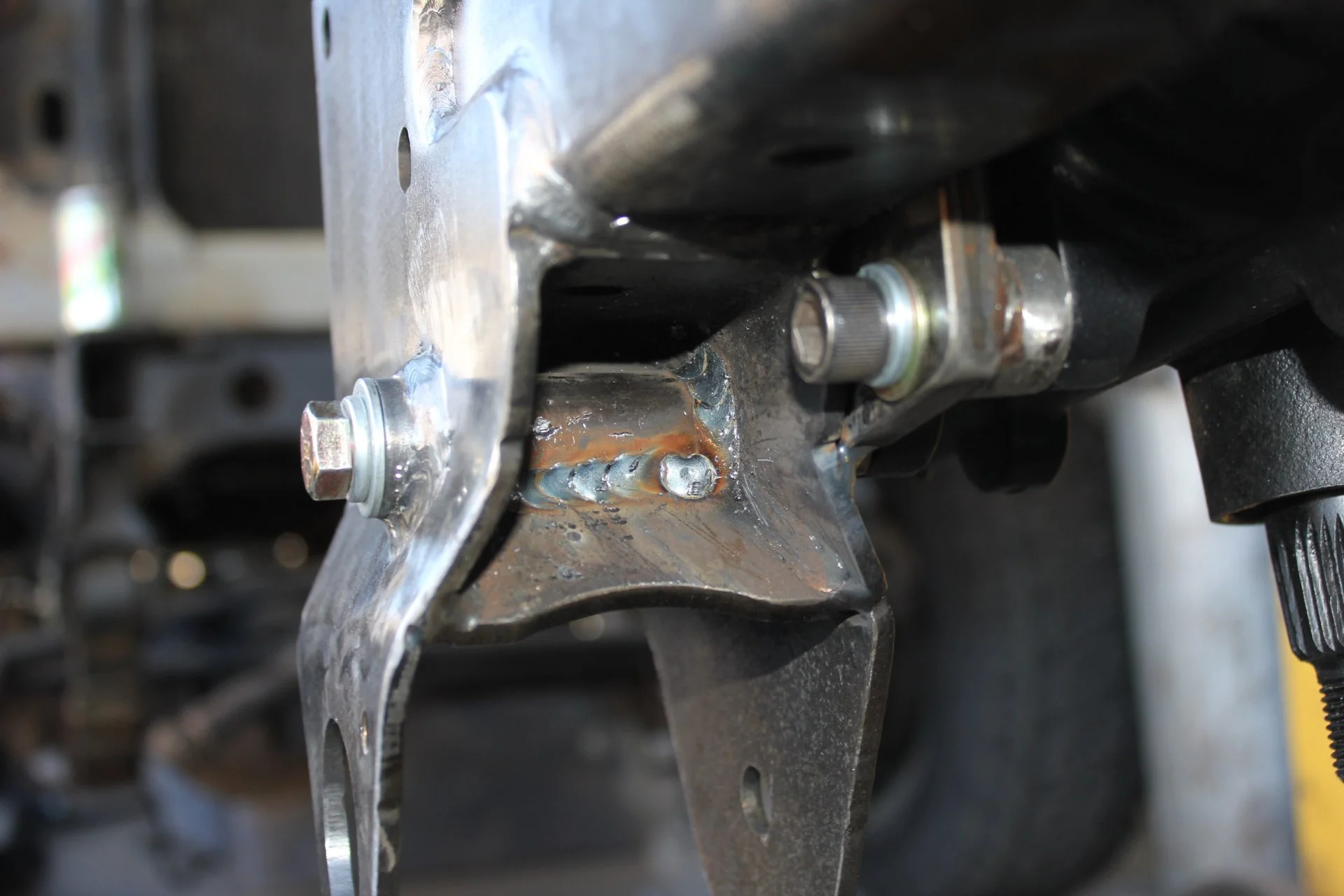

I took a slightly different route and wanted to keep as much ground clearance as possible. I also didn't want to weld on the frame.


woytovich

Science...
SILVER Star
Joined
Sep 2, 2003
Messages
13,043
Location
Metro NY
It is a kit I've had here for 10+years. it looks JUST like the 4x4labs kit, and I followed their pics (so far).

4x4labs:




Mine, at an early mock up:



Downey

SILVER Star
Joined
Jun 5, 2007
Messages
5,493
Location
Brea, Calif.
I always instructed guys to mount the gear box level/parallel to ground because if you mount the gear box too nose low/tail high, then the far end of the pitman arm angles upward too high, which not only puts a greater angle on the tie rod end, but then when your front diff drops down into full droop, you snap the tie rod end (or bend the tie rod tube) while out on the trail.

Last edited:
Joined
Nov 24, 2017
Messages
790
Location
Oregon

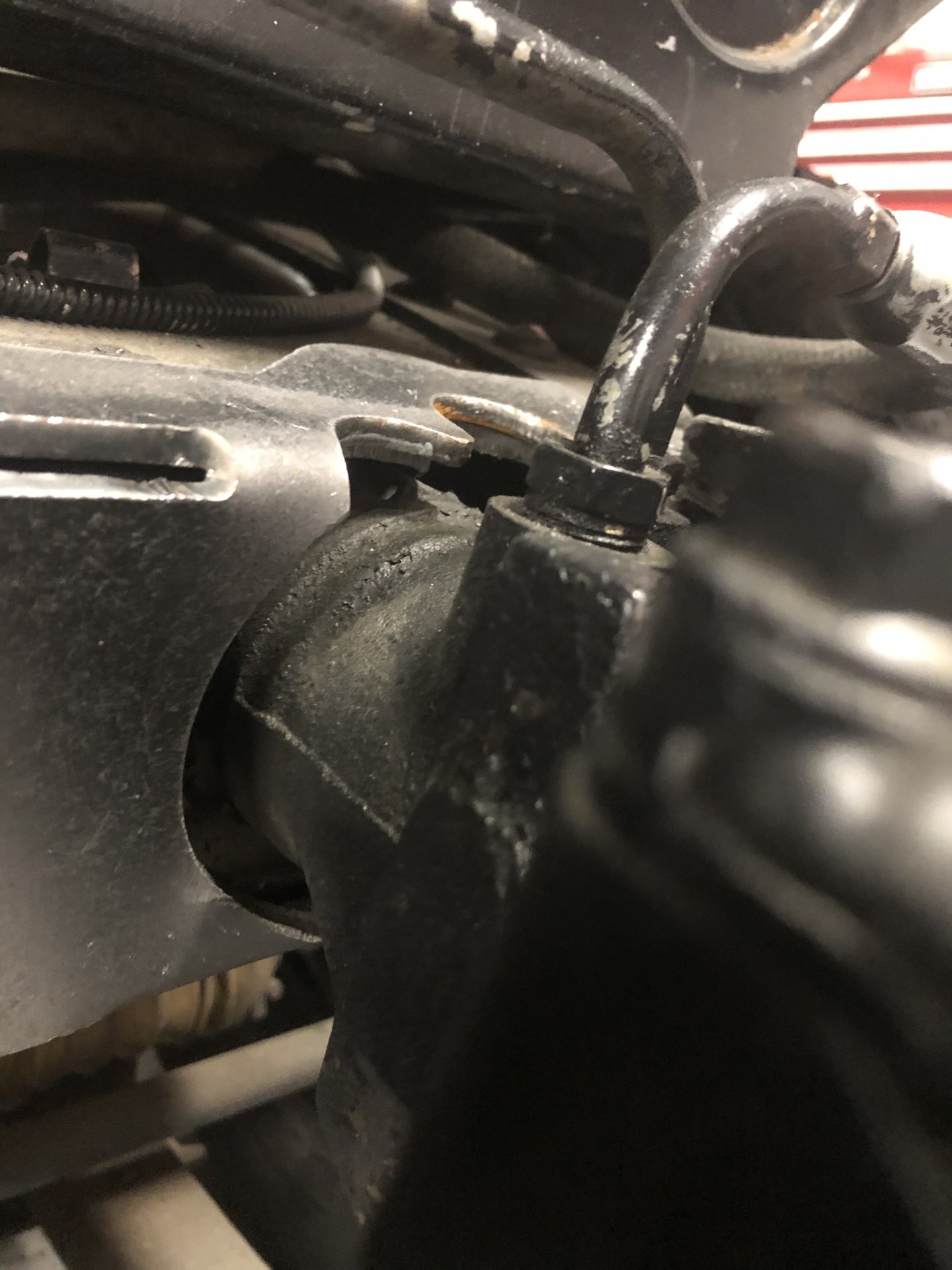

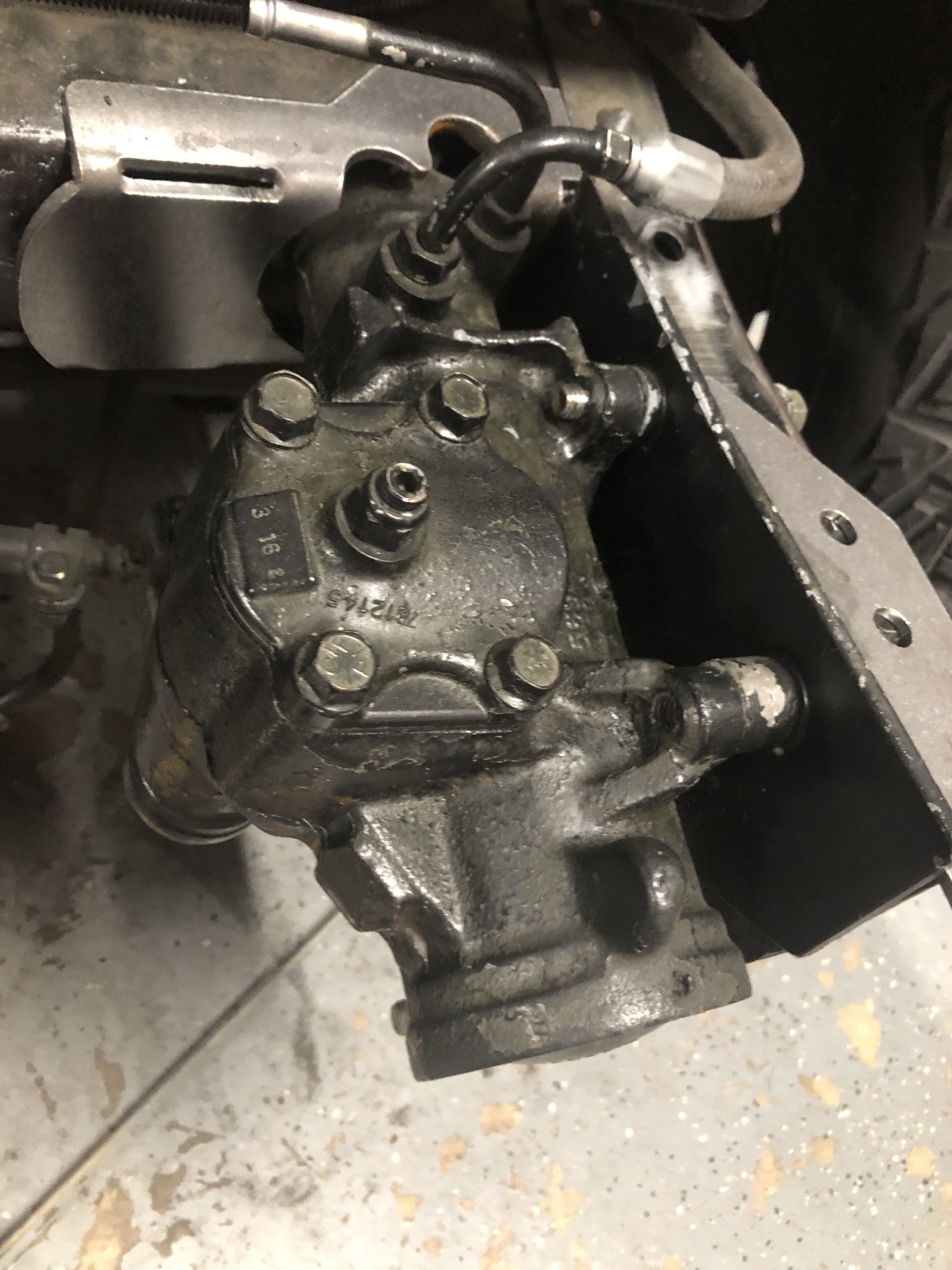

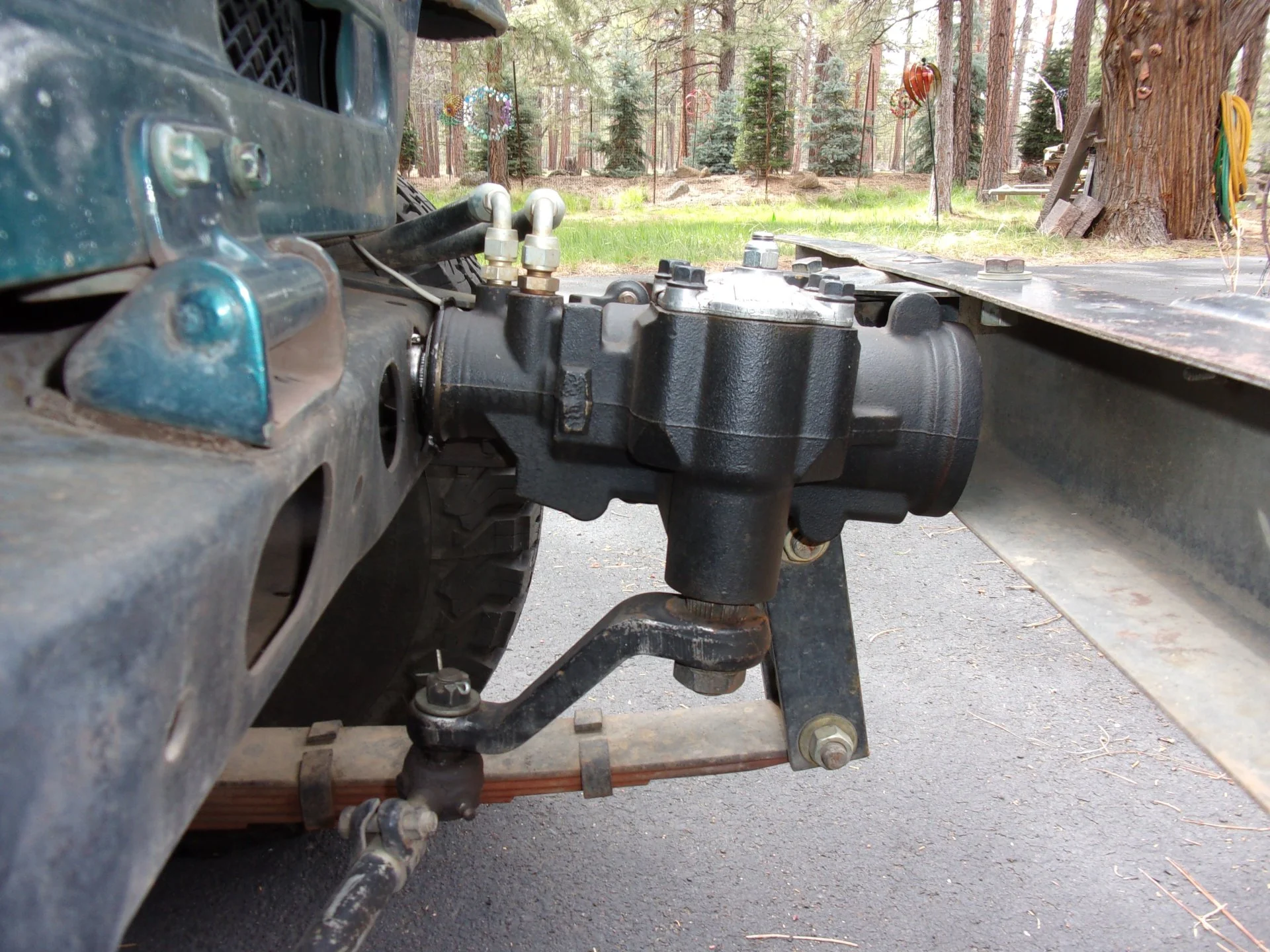

This is on my 69 I really can not raise it so I kinda have a Hybrid 4x4 labs set up










Joined
Dec 13, 2012
Messages
1,878
Location
KY
It is a kit I've had here for 10+years. it looks JUST like the 4x4labs kit, and I followed their pics (so far).

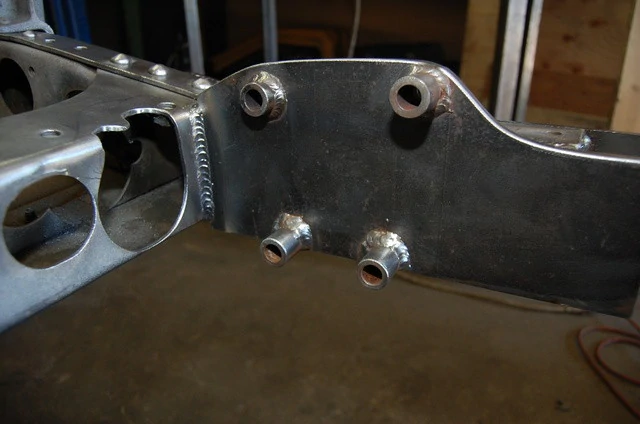

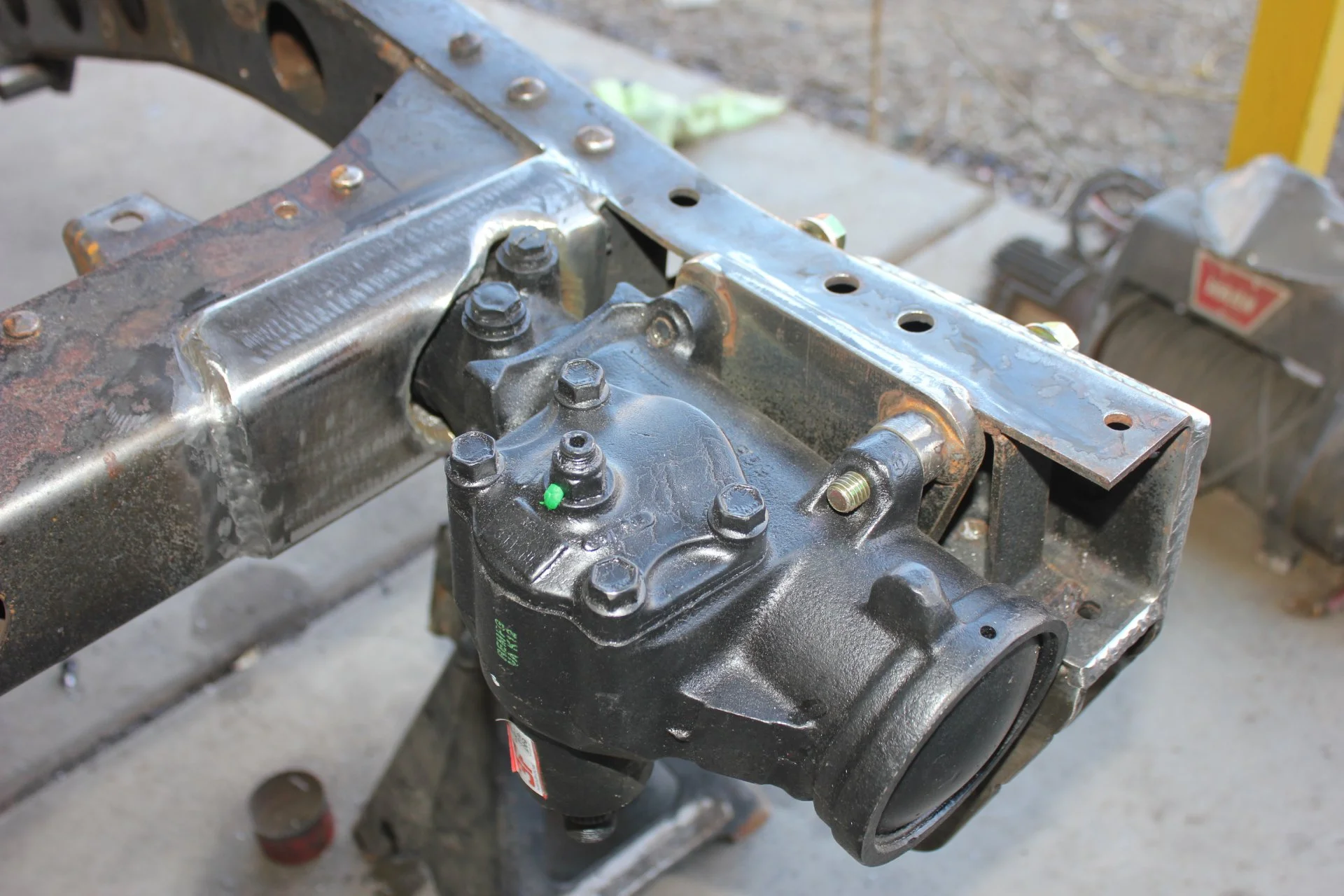

4x4labs:

View attachment 2988508

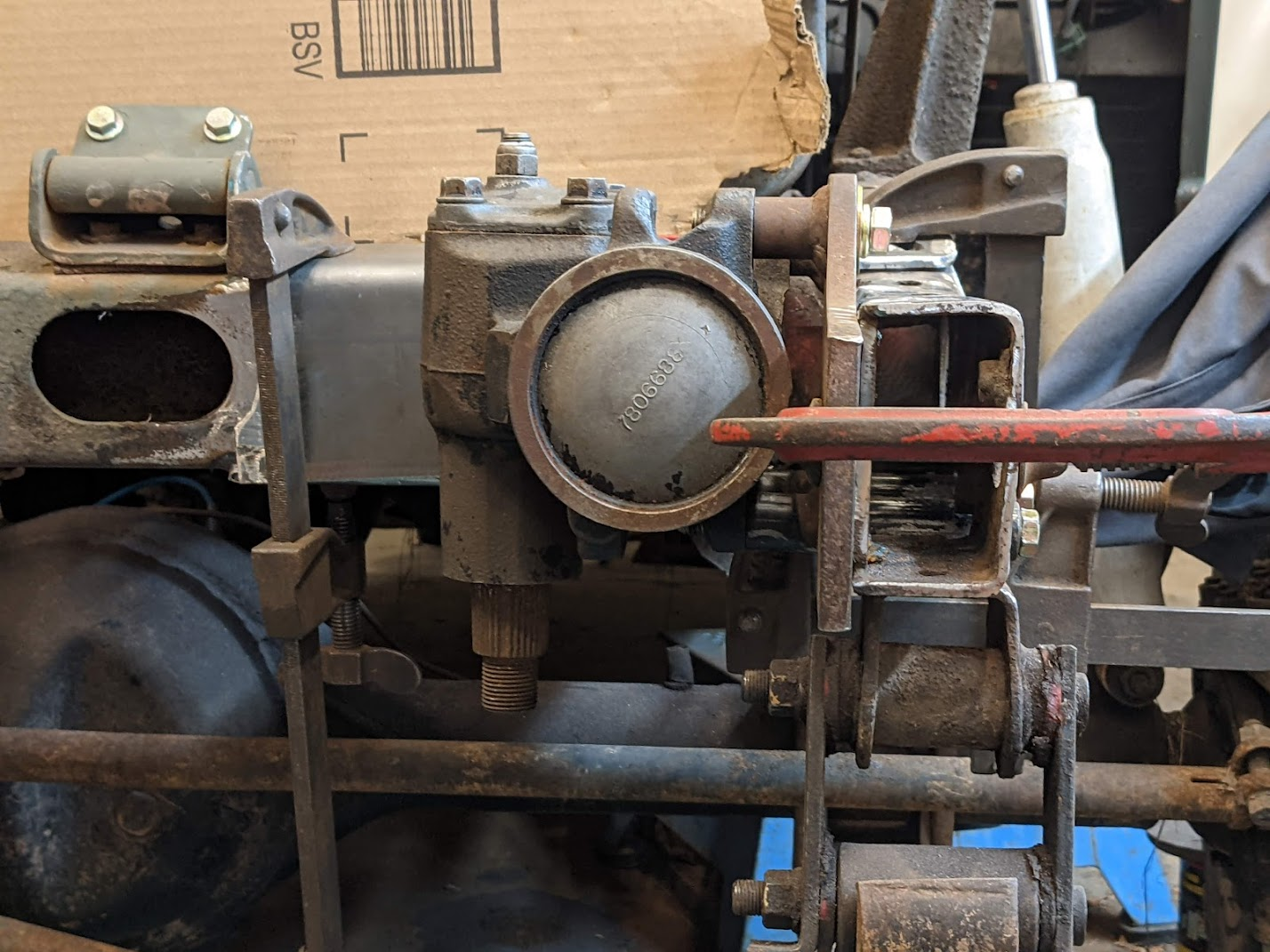

Mine, at an early mock up:

View attachment 2988509

So it looks like you've already notched the bottom of the frame rail to provide clearance for the lower power steering mounting bolts. Your box angle has already been determined.


woytovich

Science...
SILVER Star
Joined
Sep 2, 2003
Messages
13,043
Location
Metro NY
Yes, I was just making sure I hadn't gone down a wrong road. I would be willing to do whatever is needed to correct a problem, but it seems I'm fine where i am.


pbgbottle

Forum Lifer
Joined
Feb 8, 2004
Messages
5,218
Location
Cloverdale B.C. Canada
I did mine level ,set it up as level as I could get it
After making sure the ujoint didn’t rub and that the shaft didn’t rub on my motor mount.
