Rip off Flank's tire carrier: Complete (pics included)

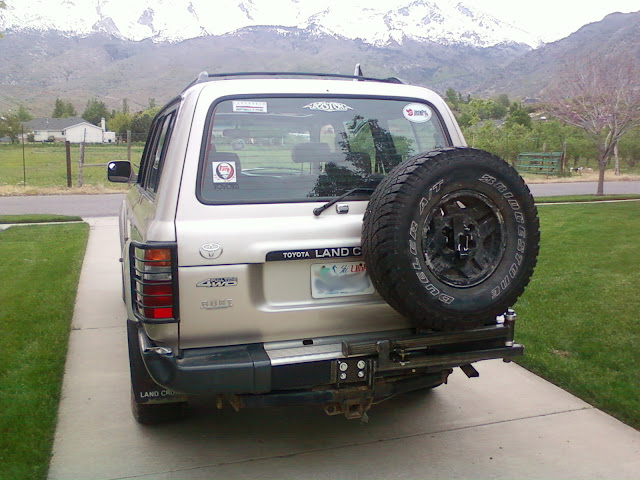

Not too bad for my first welding project. The tubing is 3/16" thick, 2" outside diameter, everything else is 1/4" plate. Everything is MIG welded and plasma cut (except the one plate that goes between the wheel and the padlock, some idiot ran the plasma cutter without the air feed filter and it got water in it, so I had to use the oxyacetylene caveman torch). Spindle from IPOR, decided to screw the latch and used a hitch pin design. Now I just have to paint the thing, maybe add a second hitch pin and a few support welds on the vertical piece. Total cost, $150. Borrowed ideas liberally from this design, credit to Flank. :cheers:

Measurements for my project can be found here.






Last edited:
Joined
Jan 15, 2010
Messages
439
Location
Moab, UT
hard to tell if you have this from the pics, but you might want to add a block for the end of the swing arm to sit on. It would keep the whole swing arm from bouncing and putting stress on the pin. UHMW cutting board?


Eicca

Professional Noob
Joined
Apr 26, 2009
Messages
2,379
Location
Utah
hard to tell if you have this from the pics, but you might want to add a block for the end of the swing arm to sit on. It would keep the whole swing arm from bouncing and putting stress on the pin. UHMW cutting board?

Yeah I need to do that too. So maybe I jumped the gun. It's almost finished :D

Joined
Dec 26, 2009
Messages
2,670
Location
808
Ditto on adding a gusset to the upright. Also, what i'm in the process of doing for my 4x4labs swing out is tapping a hole for a 1/2-13 bolt in the bottom of the swing arm. This way the swing arm will rest on the bolt and you can adjust it. I purchased UHMW for the bolt head to ride on.

Also, what welder are you using? Make sure you are getting penetration on the 1/4" plate. I'm using a lincoln 110v with fluxcore wire. I beveled all my edges. However, i'm gonna take the swing arms to a welding shop since the welder i'm using is too small to get penetration on the spindle housings.


Eicca

Professional Noob
Joined
Apr 26, 2009
Messages
2,379
Location
Utah

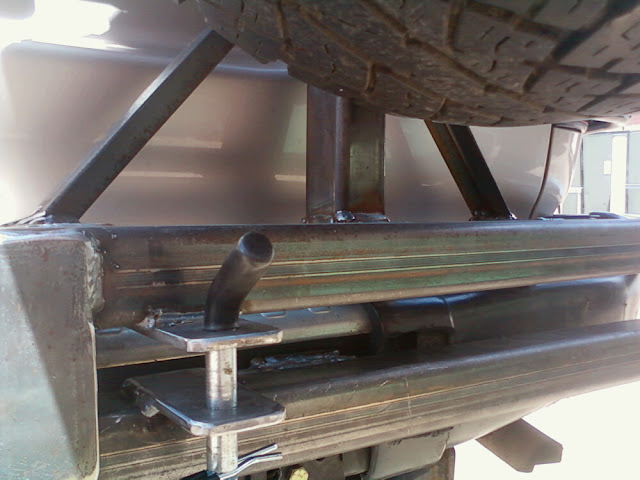

Added the gussets and got a proper hitch pin. Also added the stop the upper arm rests on when closed (not visible in this pic). Took a flapper wheel to all the rough edges, cleaned it all up, now all that's left is paint.



Eicca

Professional Noob
Joined
Apr 26, 2009
Messages
2,379
Location
Utah
Also, what welder are you using? Make sure you are getting penetration on the 1/4" plate.

Our school just picked up a few Miller 907321's so I thought I'd give them a try. Max 200 amps, 60% duty cycle, real nice welds (aside from the fact I kind of suck). BUT, slow and steady was the pace, used slightly higher settings than necessary just to ensure everything was penetrated good and deep.

Joined
Feb 17, 2011
Messages
1,091
Location
South of Beale
Nice work. Now, hurry up and post up a parts list and source for that stuff... oh, and some measurements on the parts, so's we can rip off your rip off! I need one of these, and as you said, it'd make a nice first project to work on.


Polar Bear

Is it supposed to sound like that?
Joined
Oct 17, 2009
Messages
639
Location
Cle Elum, WA
Nice work. Now, hurry up and post up a parts list and source for that stuff... oh, and some measurements on the parts, so's we can rip off your rip off! I need one of these, and as you said, it'd make a nice first project to work on.

X2!!:popcorn:


Eicca

Professional Noob
Joined
Apr 26, 2009
Messages
2,379
Location
Utah
I just got done painting the thing. Rattle can black, primed nicely. Considering how well my primer-less rims have held up for the last two years, this should stay looking nice for a while.


NorCalDoug

problems solved daily...
Joined
Oct 27, 2003
Messages
6,217
Location
uhhhh...duh...Northern CA
Added the gussets and got a proper hitch pin. Also added the stop the upper arm rests on when closed (not visible in this pic). Took a flapper wheel to all the rough edges, cleaned it all up, now all that's left is paint.


nice lookin' bumper.

you might want to rethink the hitch pin w/cotter for latching the tire swing. as much as I've open and closed my tire swing in the past, personally, I'd get tired of that solution rather quickly...just sayin'

way cool though
:cheers:
