Rear bumper on a 45L Truck

Discussion in 'FJ45 Owners Club' started by arnott1t, Nov 2, 2005.

  1. arnott1t

    arnott1t SILVER Star

    Messages:
    1,561
    Media:
    3
    Likes Received:
    341
    Joined:
    Jan 5, 2005
    Looking for some rear bumper ideas on a 45 truck. Just finished my front one up and want something for the rear. Lets see what you folks have done.

    Thanks,
    Tyler

  2. Owyhee Jackass

    Owyhee Jackass

    Messages:
    2,097
    Likes Received:
    383
    Joined:
    Apr 1, 2004
    Location:
    Boise, Id
    First, lets see your front one.

  3. arnott1t

    arnott1t SILVER Star

    Messages:
    1,561
    Media:
    3
    Likes Received:
    341
    Joined:
    Jan 5, 2005

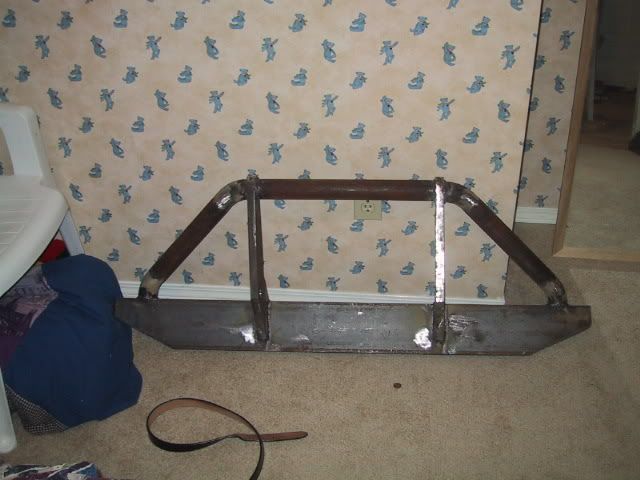

    Here is the front one

    Please pardon the sweet wallpaper in my room. I'm renting and this was the last room availible. Here are some pics.
    [​IMG]

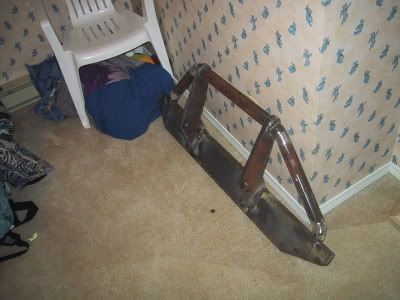

    Side View
    [​IMG]
    extra
    [​IMG]

    Made using 5" channel that has been beveled on the ends. Its 48" wide.
    The two upright plates are 3/4" thick with 1.5" sch80 tube.
    Its heavier than i hoped but all the metal was scrap from work. Needs a little more clean up then some paint. Waiting to build a back one first though before paint. Paint everything at once. Including my new shackles.

    Thanks,
    Tyler

  4. Owyhee Jackass

    Owyhee Jackass

    Messages:
    2,097
    Likes Received:
    383
    Joined:
    Apr 1, 2004
    Location:
    Boise, Id
    Looks good, now let's see the truck it belongs to...

  5. Owyhee Jackass

    Owyhee Jackass

    Messages:
    2,097
    Likes Received:
    383
    Joined:
    Apr 1, 2004
    Location:
    Boise, Id
    Here's the only picture I have of a rear bumper on this computer. It's a TLC one. I think a swing out is not necessary if you have a pick-up bed. I am planning on sticking an FJ60 or FJ55 tire carrier up under the bed of mine.

    Last edited: Oct 26, 2006
  6. 74fj40

    74fj40

    Messages:
    2,702
    Likes Received:
    499
    Joined:
    Mar 12, 2005
    Location:
    Littleton, Colorado
  7. Junk

    Junk

    Messages:
    6,177
    Likes Received:
    30
    Joined:
    Dec 13, 2002
    Location:
    buggerville nj
    This was on it when I bought it and I actually kind of like it
    [​IMG]

  8. arnott1t

    arnott1t SILVER Star

    Messages:
    1,561
    Media:
    3
    Likes Received:
    341
    Joined:
    Jan 5, 2005
    I like em so far. Looks good. Real good. I'm thinking of something like the last one. Keep it tight up to the bottom of the bed. I like the wrap around stuff too. Maybe 3" channel with some angles. Have to see. With a reciever hitch.

    Should be good
    Thanks,
    Tyler

  9. nuclearlemon

    nuclearlemon not an addict Moderator

    Messages:
    16,192
    Media:
    87
    Albums:
    4
    Likes Received:
    1,040
    Joined:
    Jan 30, 2003
    Location:
    meh-ico, colorado
    here's my shorty's bumper...i like it
    k

  10. Owyhee Jackass

    Owyhee Jackass

    Messages:
    2,097
    Likes Received:
    383
    Joined:
    Apr 1, 2004
    Location:
    Boise, Id
    I just pull a similar step bumper off of my LV last night. I think I'm gonna keep it and stick it on my 45-trailer.

  11. BDP

    BDP

    Messages:
    58
    Likes Received:
    3
    Joined:
    Feb 17, 2005
    Location:
    Orangevale, CA
    Picture of mine

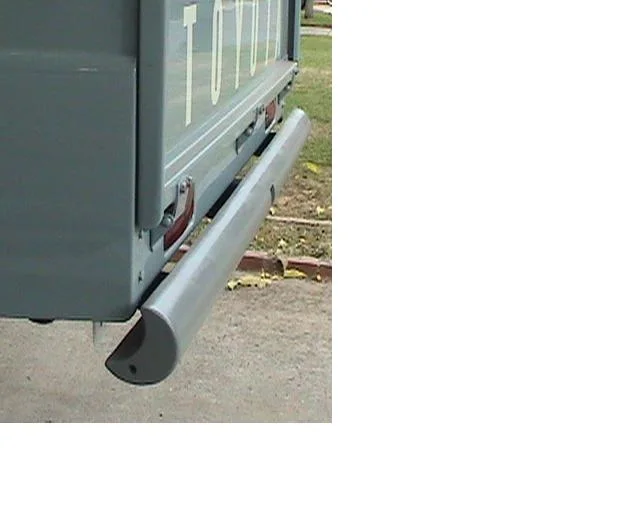

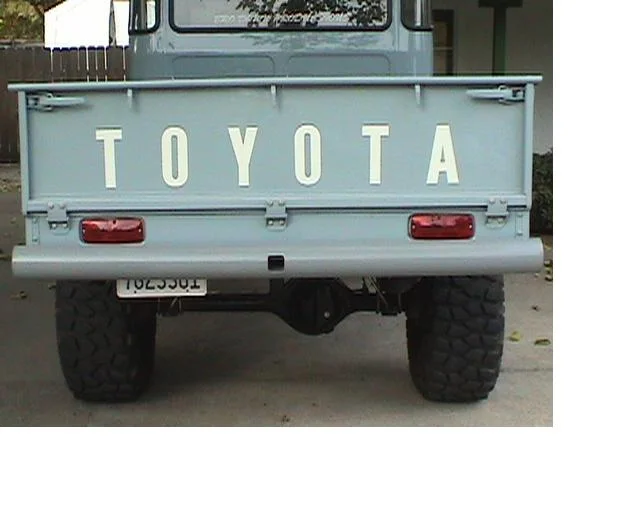

    Here's a picture of the one that I recently built for my 1967 FJ45LPB. Made out of 4" OD Sch 40 pipe. Plasma cut down the seam and another one parrallel. Flipped the moonshape and wled back up in jigged stages to prevent warping. The wall on this piece is 3/8". The rest of the mounting frame is cut and fabbed out of 3"8" flat stock. It boxes the rear seaction of the frame completely with counter sunk holes on the inside to fit snuggly against the frame with the buck rivets. Built in receiver, with hole punched gussets for chains. The single holes on either side are where the bolt on rock sliders attach. (I will upload pictures of them next time I go wheeling and throw them on).
    H8mud pics.JPG H8mud pics1.JPG bumper.JPG

  12. BDP

    BDP

    Messages:
    58
    Likes Received:
    3
    Joined:
    Feb 17, 2005
    Location:
    Orangevale, CA
    Some more pics

    The bolt on rear rock sliders bolt up to the frame of the bumper. 2 front mounts, and one rear mount via 1/2" grade 8 hardware.
    bumper2.JPG bumper 3.JPG

  13. kellyo

    kellyo

    Messages:
    1,235
    Likes Received:
    2
    Joined:
    Dec 9, 2003
    "BDP" -- I like that. Looks bad ass.

  14. SteveH

    SteveH

    Messages:
    3,788
    Likes Received:
    1,142
    Joined:
    Jan 17, 2005
    Location:
    Southern Colorado
    FJ45 Rear bumper

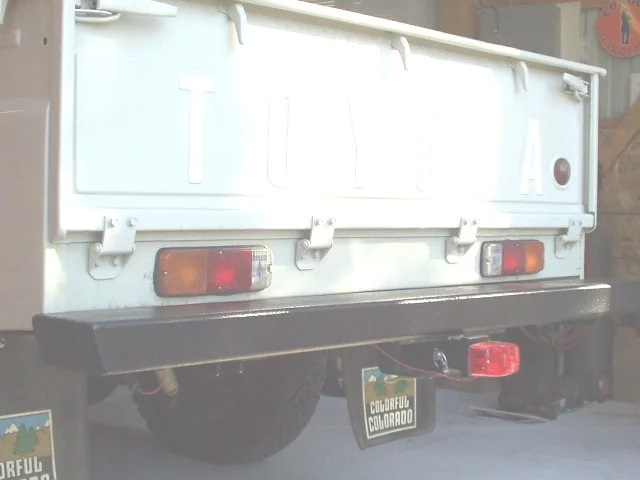

    I used 3x6 box section, with tapered/welded end caps and a step-bumper receiver hitch welded to the bottom. It's braced against the rear crossmember and to the frame rails. Coated with cheapie roll on bedliner. See (hopefully) attached picture.

    Steve

  15. cruiser ken

    cruiser ken

    Messages:
    647
    Likes Received:
    3
    Joined:
    Jan 15, 2005
    Location:
    Saratoga Springs, UT
    Nice bumper, too bad your tailgate wasn't in better shape.

  16. cruiserbrett

    cruiserbrett Moderator

    Messages:
    2,512
    Likes Received:
    70
    Joined:
    Feb 19, 2002
    Location:
    San Diego
    All this bumper talk, so I got busy last night and today fabbing one up. been meaning to for a while so I had some ideas and a few things I wanted to incorporate...fj40 rear reflectors(since there are none on the LWB 45's), bumperettes(like the retro look and the truck doesnt get wheeled). Also in the process of adding the reciever hitch, and using an early FJ40 license plate light that will be in a little 'doghouse' above the plate.
    bumper1-rs.JPG bumper2-rs.JPG

  17. Owyhee Jackass

    Owyhee Jackass

    Messages:
    2,097
    Likes Received:
    383
    Joined:
    Apr 1, 2004
    Location:
    Boise, Id
    Brett, I like that. Did you change your hinges over to the newer style? I thought that style of hinge was only on the 4-hinge gates?

  18. cruiserbrett

    cruiserbrett Moderator

    Messages:
    2,512
    Likes Received:
    70
    Joined:
    Feb 19, 2002
    Location:
    San Diego
    what are the differences in late vs early hinges(aside from 3 vs 4)

  19. Owyhee Jackass

    Owyhee Jackass

    Messages:
    2,097
    Likes Received:
    383
    Joined:
    Apr 1, 2004
    Location:
    Boise, Id
    Mine have two vertical holes on the lower half of the hinge. The "new" ones are like yours, two horizontal holes.

  20. Medusa

    Medusa

    Messages:
    416
    Likes Received:
    1
    Joined:
    Jun 17, 2002
    Go BIG or go home :grinpimp:
    [​IMG]
