Rear A/C ‘18 LCX 200

Joined
May 18, 2021
Messages
44
Location
San Antonio, Texas
I noticed the other day that the blower in the rear of my LC is much louder than before. It sounds like it is obstructed or something. There is little to no air coming out of the vents in the headliner. Is there a filter back there? Thought I’d ask the question before I start pulling panels. Thank you.


tbisaacs

It's basically a Land Cruiser
SILVER Star
Joined
Dec 22, 2015
Messages
2,788
Location
Renton, WA
Website
instagram.com
I noticed the other day that the blower in the rear of my LC is much louder than before. It sounds like it is obstructed or something. There is little to no air coming out of the vents in the headliner. Is there a filter back there? Thought I’d ask the question before I start pulling panels. Thank you.
Pulling panels is super super easy.

  1. Unbolt rear seatbelt
  2. Pull up screw cover on step in the door sill and unbolt with 10 mm
  3. Pull up the door sill
  4. By the rear tailgate there will be a net holder on the edge of the door, pop it out and unscrew it
  5. If you have third row might be easier to remove seat
  6. Start pulling on panel from the rear door by the sill you just removed

Rear climate is in the driver Side.


bloc

SILVER Star
Joined
Sep 19, 2008
Messages
9,659
Location
Central Texas
I noticed the other day that the blower in the rear of my LC is much louder than before. It sounds like it is obstructed or something. There is little to no air coming out of the vents in the headliner. Is there a filter back there? Thought I’d ask the question before I start pulling panels. Thank you.
There isn't a filter. The grate behind the left wheel well is the inlet.. you should be able to see up into that with a flashlight to look for obstruction.

Joined
May 18, 2021
Messages
44
Location
San Antonio, Texas

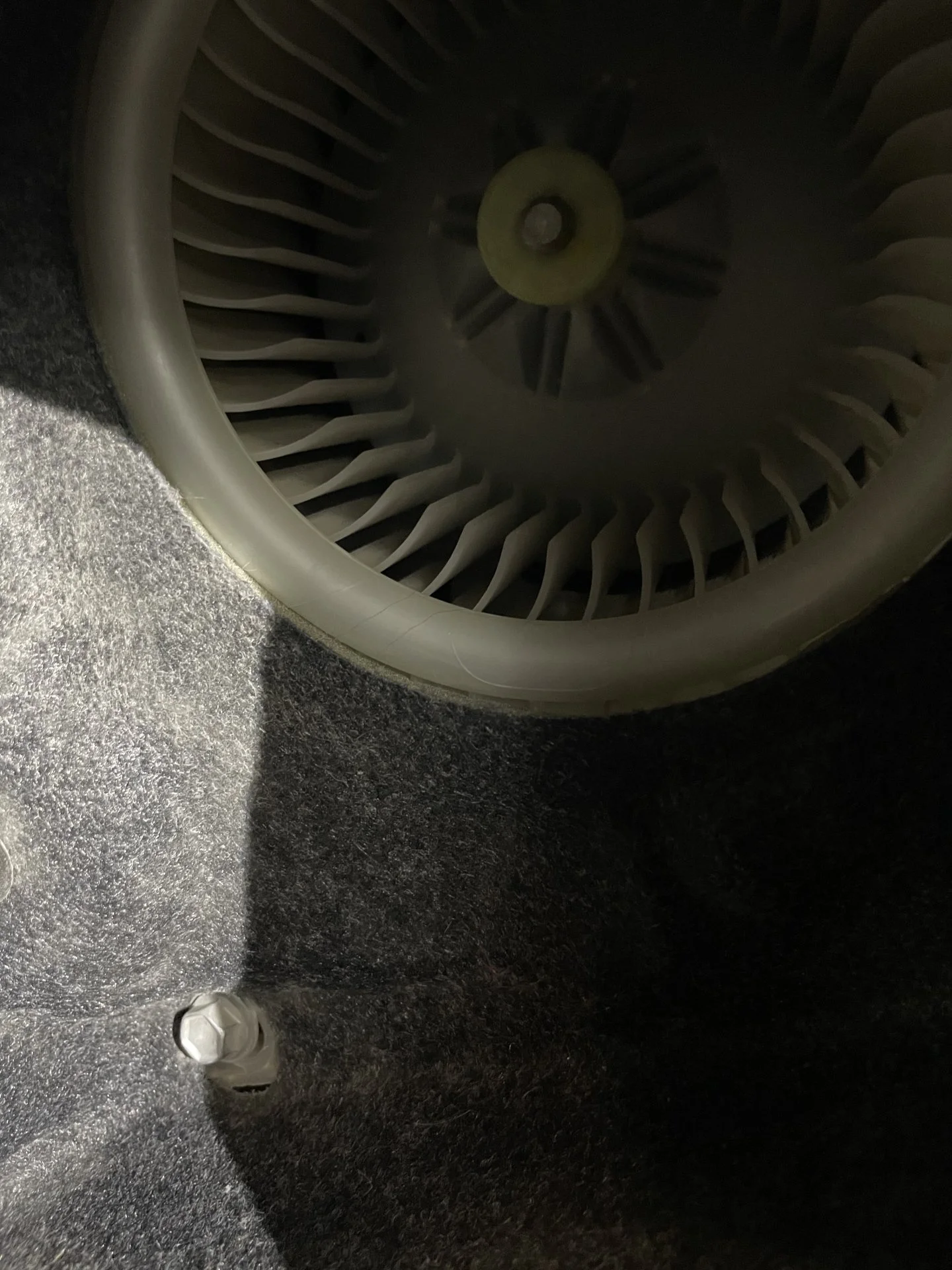

Pulled the panel cold air is coming out from blower box but no air out of vents in headliner. Are there blend doors in the headliner?




Joined
May 18, 2021
Messages
44
Location
San Antonio, Texas
Thank you for your help. I put it all back together and it started blowing air out of the headliner. Not sure what I did but its fixed. Thanks

Joined
May 18, 2021
Messages
44
Location
San Antonio, Texas
The actuator/blend doors are within the mechanism/white plastic gears.
I pulled the panel off and ran the system and watched the gears move all worked perfectly. Must have been some alignment issue with the vent pipes. I drive on long spans of dirt road a lot and usually at 40+mph so I’m sure something in there got jarred out of position. Thanks for the help!
