Real Time Tech: Trouble Getting Axle Out of 80 Series

Discussion in 'VA/DC/MD- Capital Land Cruiser Club' started by Felix, Aug 24, 2018.

  1. Felix

    Felix

    Messages:
    2,325
    Likes Received:
    478
    Joined:
    Jan 15, 2005
    Location:
    Alexandria, VA
    Almost a year on, and I'm finally getting the chance to pull the diff and see what I broke on my way back from Fall Crawl last year.

    I need advice on getting the short side axle out.

    The birf comes out but gets wedged. I'm sure this is because I don't have the flat sides of the birf perfectly lined up top and bottom. But I can't turn the axle the 10 degrees or so that I need.

    The long side axle is out. The diff is locked (I'm pretty sure - got the solid red light but that was just from turning the steering wheel and driving a foot or two in the driveway). Haven't pulled an 80 third before, but I understand that I need to have the diff locked to do so.

    What's the trick?

    Should I unlock the diff, and relock it once the axle shaft is out prior to diff removal? Will that cause issues?

  2. Felix

    Felix

    Messages:
    2,325
    Likes Received:
    478
    Joined:
    Jan 15, 2005
    Location:
    Alexandria, VA
    Never mind! I came to my senses and pulled the drive shaft.

    Duh.

    Carry on.

    Von Hayek, bkfj40, fjdemon and 4 others like this.
  3. Felix

    Felix

    Messages:
    2,325
    Likes Received:
    478
    Joined:
    Jan 15, 2005
    Location:
    Alexandria, VA
    Okay, another question. Does the locker actuator need to be removed before pulling the diff out?

  4. iptman

    iptman

    Messages:
    3,307
    Likes Received:
    1,678
    Joined:
    Nov 22, 2008
    Location:
    Northern VA
    I've never pulled the 3rdbut I have removed and replaced the locker actuator. It's easy enough to do whether you have to or not idk. I'll check my fsm in a sec and see what it says and post back.

    Felix likes this.
  5. iptman

    iptman

    Messages:
    3,307
    Likes Received:
    1,678
    Joined:
    Nov 22, 2008
    Location:
    Northern VA
    Looks like a negative on removing the actuator. You just have to disconnect it.

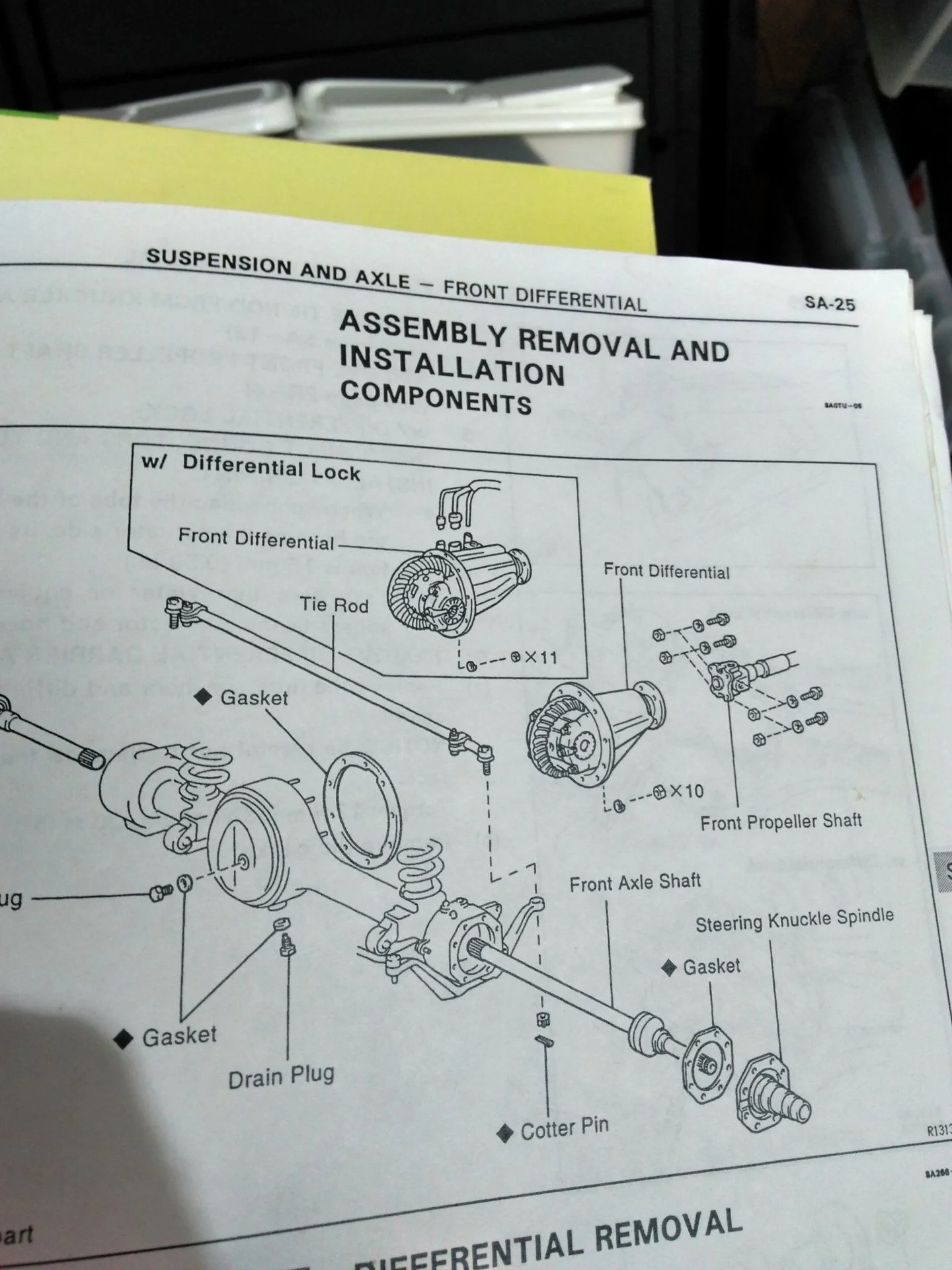

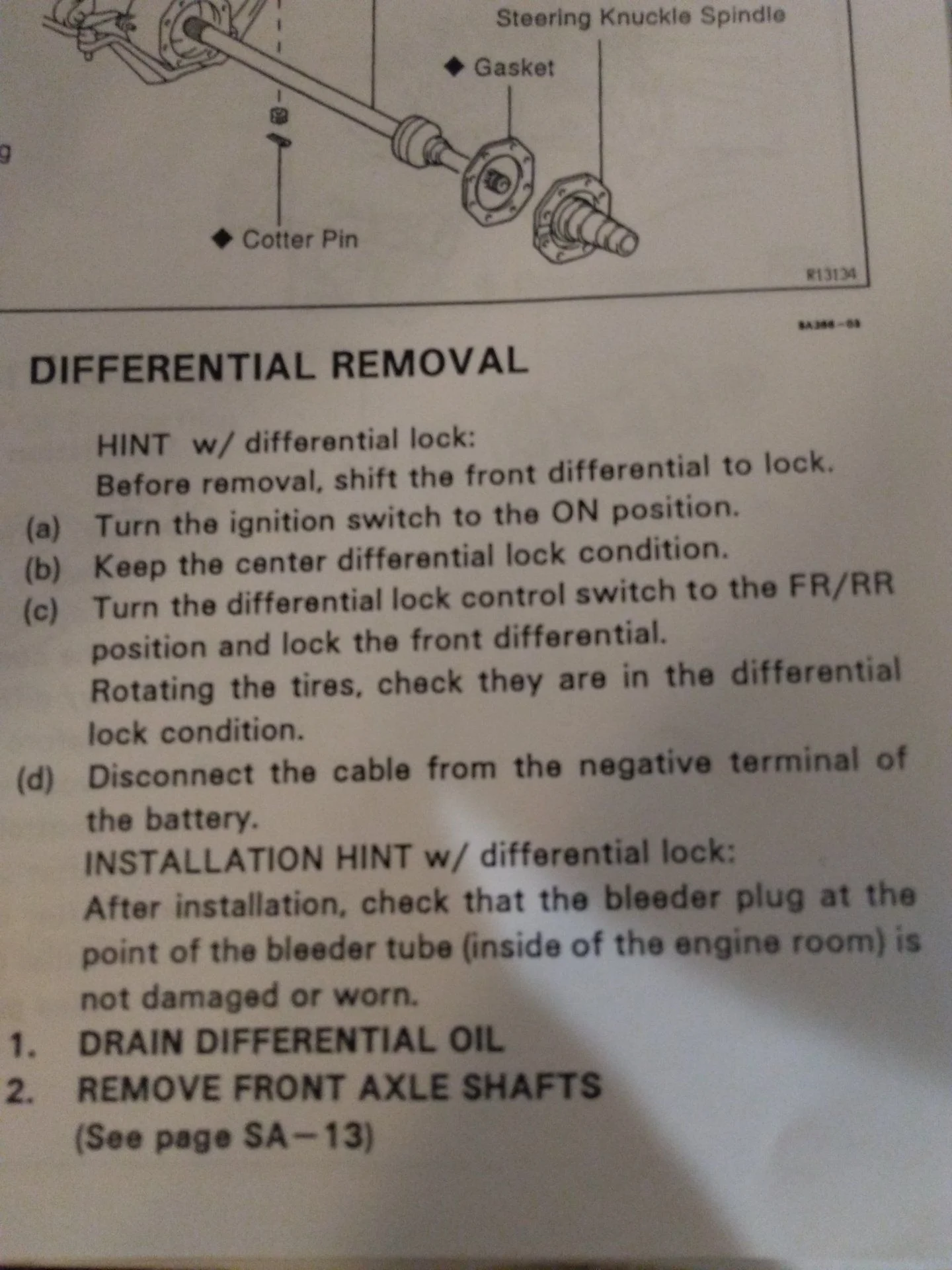

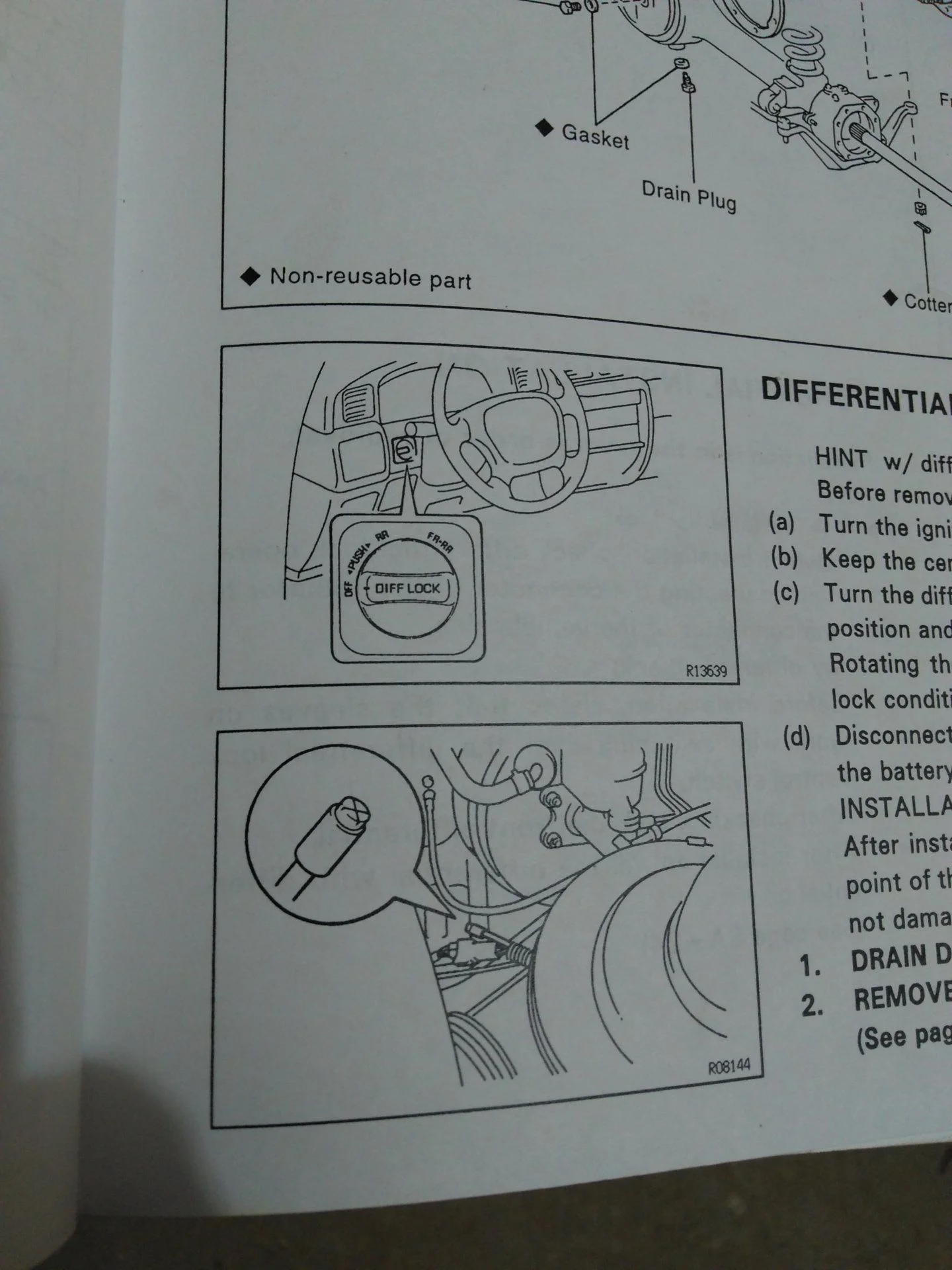

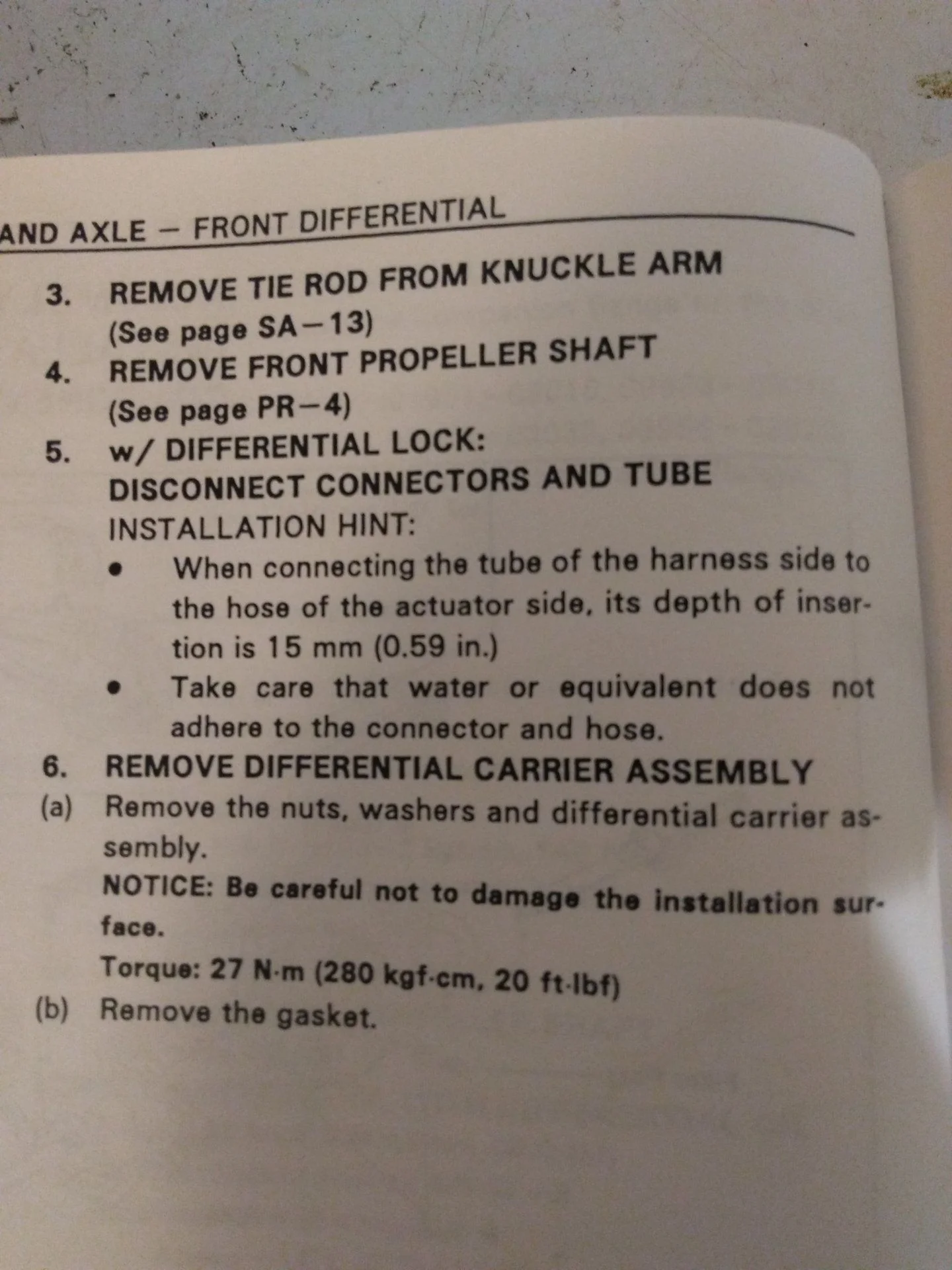

    IMG_20180824_215240325.jpg IMG_20180824_215203646.jpg IMG_20180824_215422477_HDR.jpg IMG_20180824_215443946.jpg IMG_20180824_215515478.jpg

    Felix likes this.
  6. Felix

    Felix

    Messages:
    2,325
    Likes Received:
    478
    Joined:
    Jan 15, 2005
    Location:
    Alexandria, VA
    Thanks, Patrick!

  7. bkfj40

    bkfj40 SILVER Star

    Messages:
    2,930
    Media:
    20
    Albums:
    3
    Likes Received:
    532
    Joined:
    Apr 5, 2002
    Location:
    shenandoah valley, va
    Hope you don’t find what I found in my diff !

    Felix likes this.
  8. Felix

    Felix

    Messages:
    2,325
    Likes Received:
    478
    Joined:
    Jan 15, 2005
    Location:
    Alexandria, VA

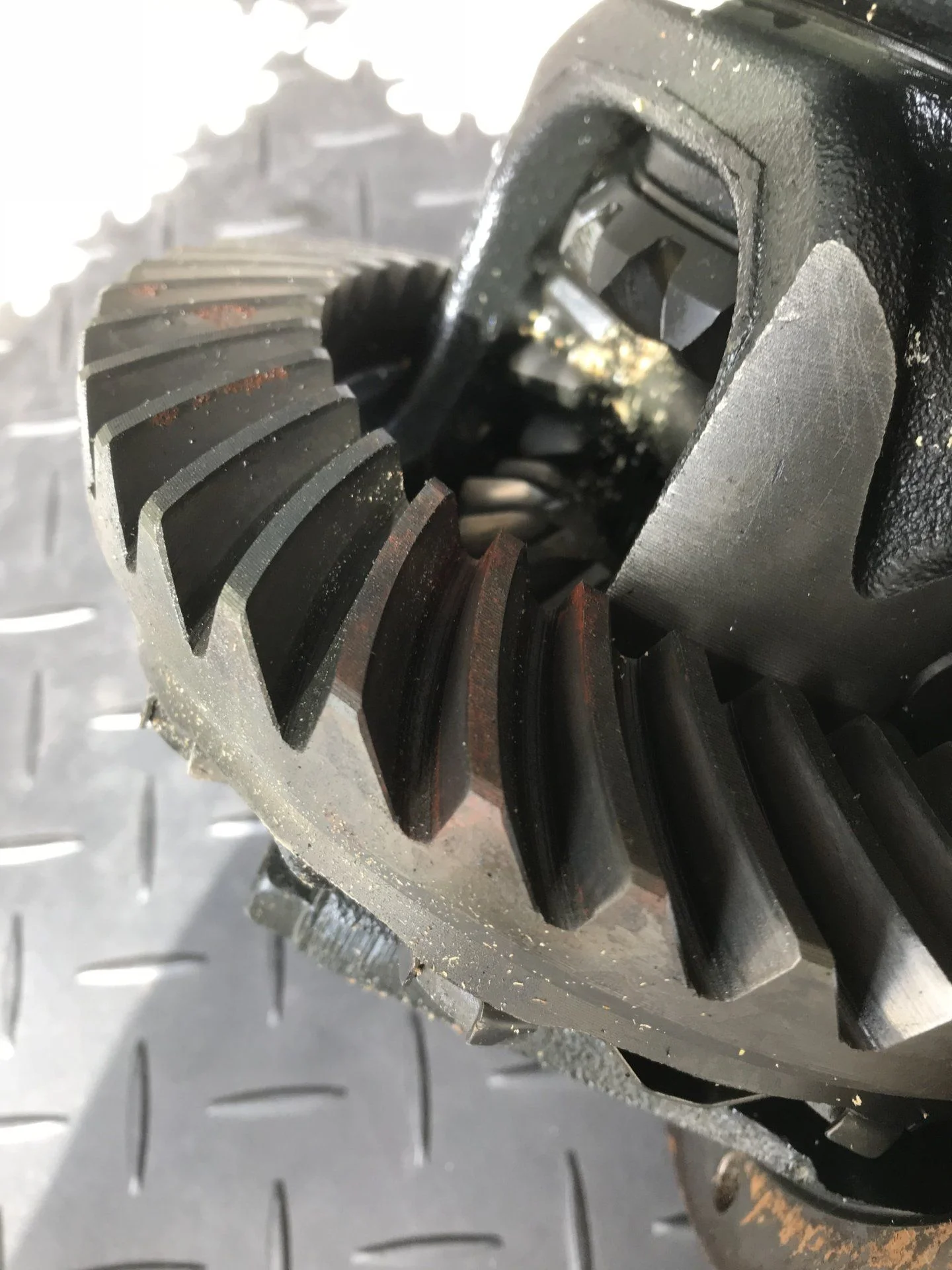

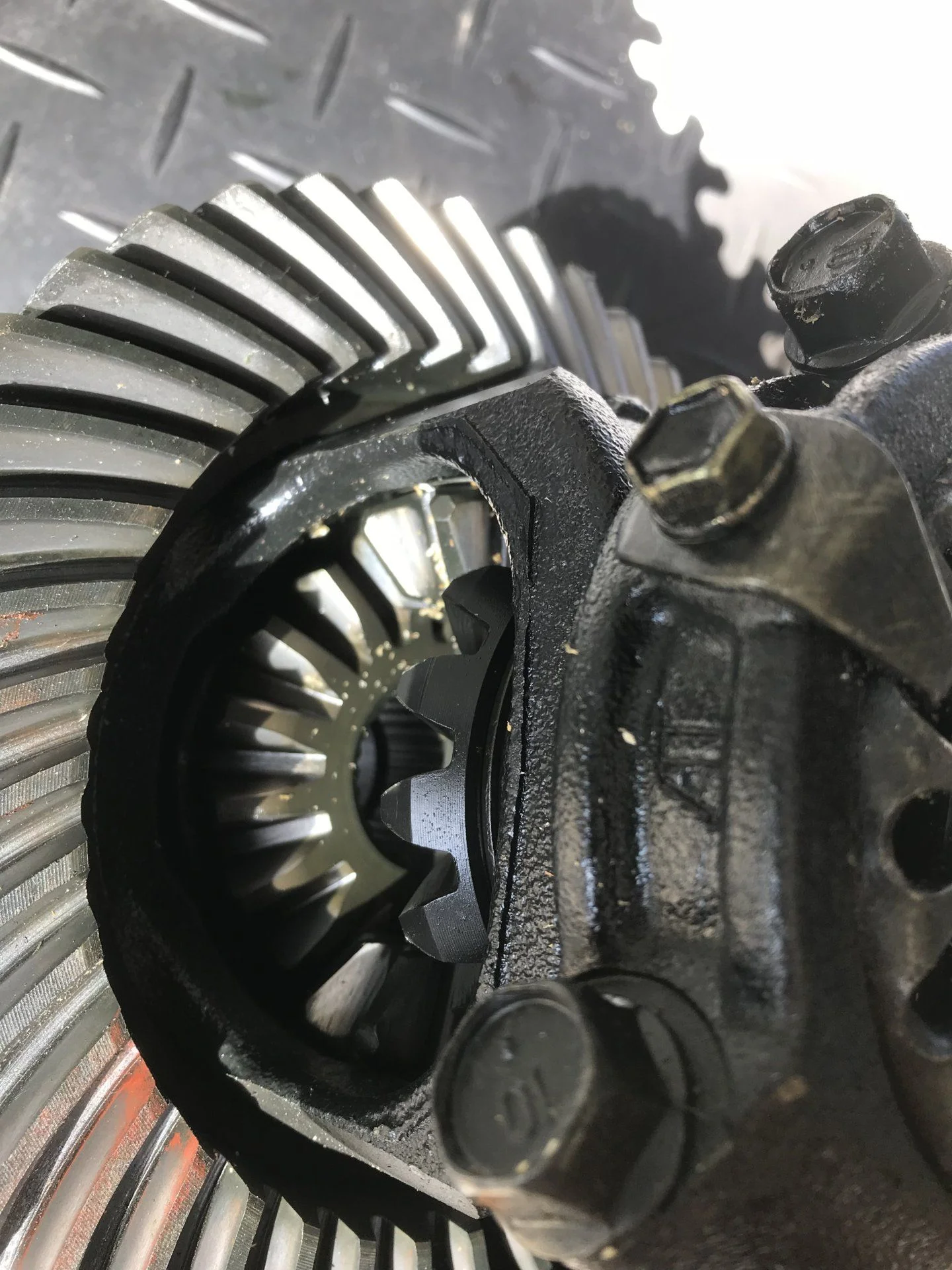

    Well, it wasn’t as bad as I expected. But, then again, I don’t know the difference between normal wear and catastrophic damage. What I do know is that there a no huge chucks missing from teeth.

    What do you think?

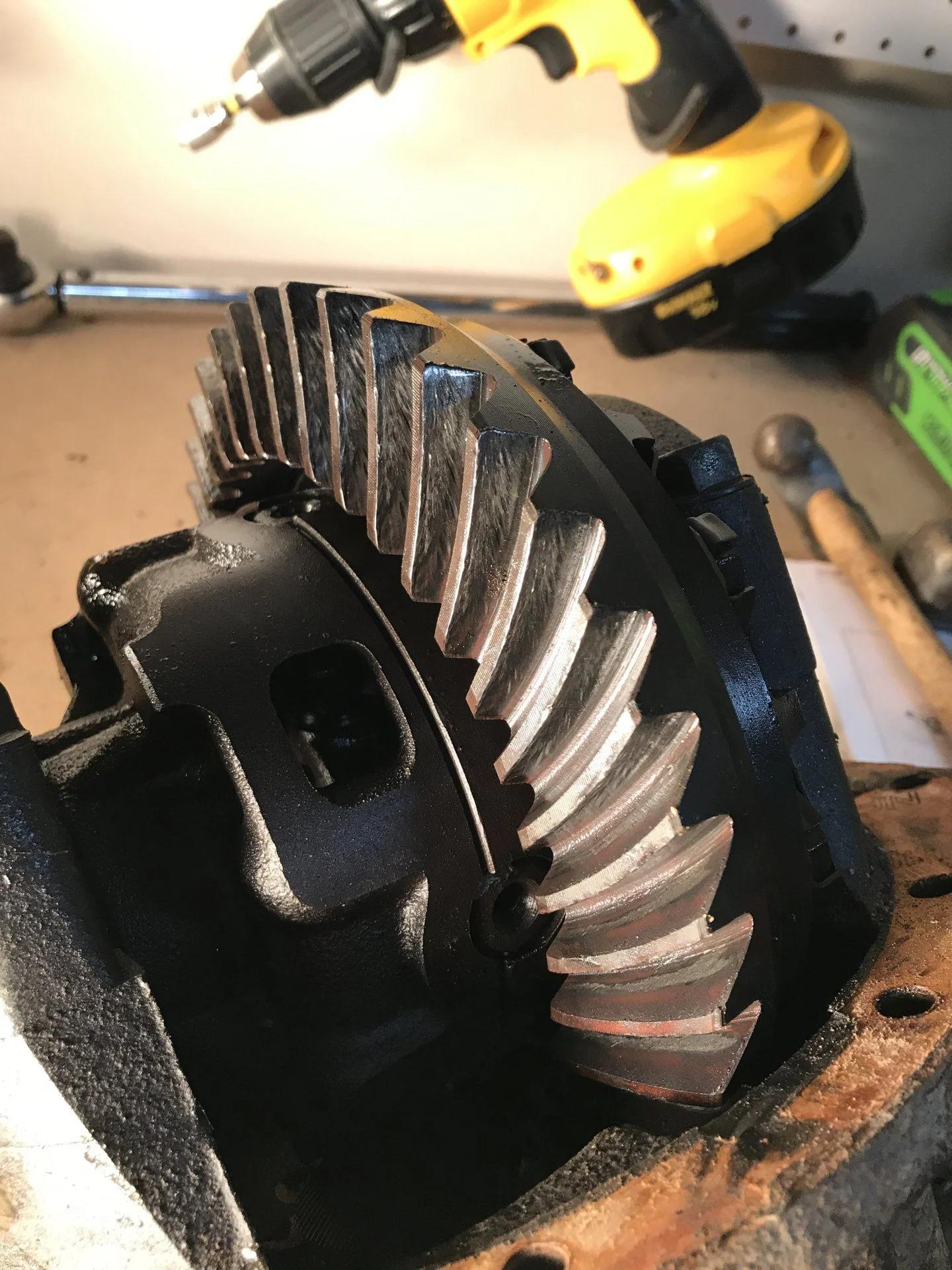

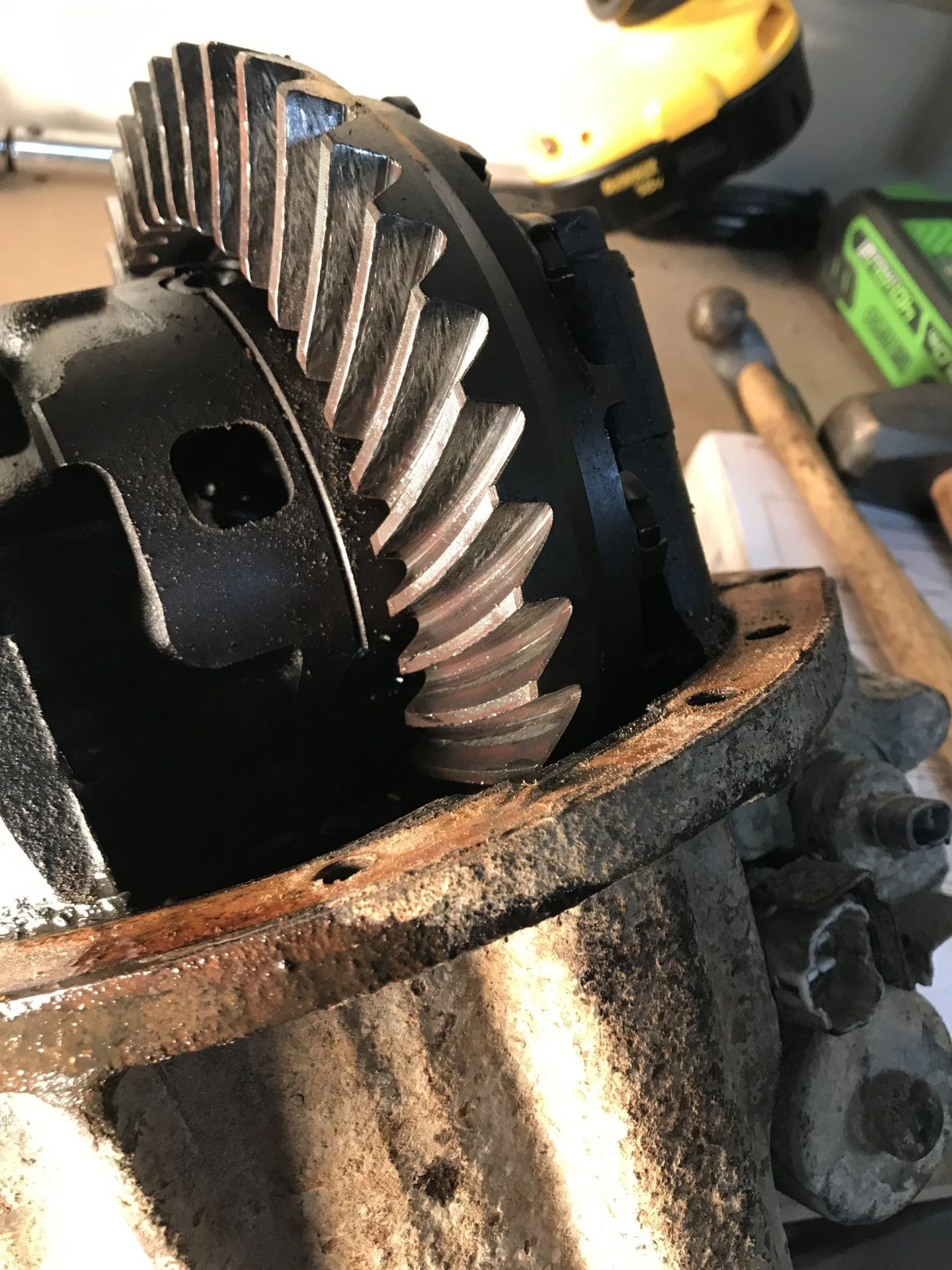

    D2FDD8AD-2113-4135-AF7D-1E5EA79960B4.jpeg EBE58220-AA0D-4927-9743-19725CC04607.jpeg

  9. Felix

    Felix

    Messages:
    2,325
    Likes Received:
    478
    Joined:
    Jan 15, 2005
    Location:
    Alexandria, VA
    All the teeth on the ring hear have that scoring on the mating surface.

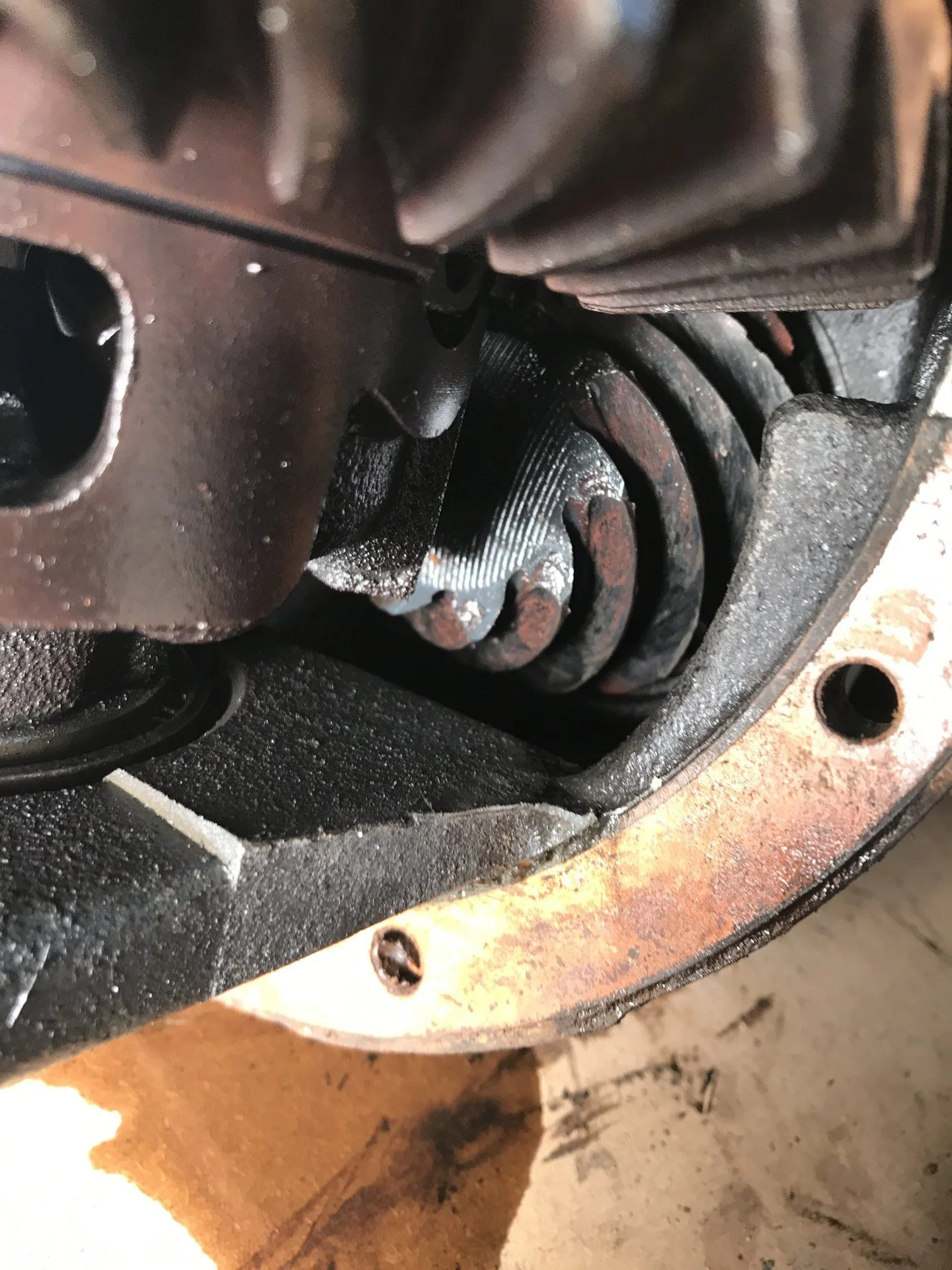

    Didn’t take it apart, but here’s a shot of the pinion. What looks like a dab of grease at the end of each tooth is actually almost like a bit of slag. If that’s not normal, then Did I shave and then melt a bit off each tooth and then deposited it on the nose end surface?


    4199AABB-8ECC-454F-8906-4B528F373987.jpeg 486B542A-AA28-4AE3-9374-466FF1C7A7E2.jpeg

  10. 76FJ40

    76FJ40 Old Fart SILVER Star

    Messages:
    3,856
    Likes Received:
    2,355
    Joined:
    Mar 1, 2002
    Location:
    NOVA
    No bueno.

    bkfj40 and Felix like this.
  11. Jakes40

    Jakes40 IH8MUD Poser

    Messages:
    2,793
    Media:
    13
    Albums:
    1
    Likes Received:
    1,519
    Joined:
    Dec 10, 2004
    Location:
    Winchester,Va
    Those gears are trashed!! Was there oil in there?

    bkfj40 and Felix like this.
  12. Cruiserdrew

    Cruiserdrew On the way there SILVER Star

    Messages:
    15,501
    Likes Received:
    4,447
    Joined:
    Mar 15, 2003
    Location:
    Sacramento, CA
    Ya-Gears are shot. Looks like they were run low on oil, but regardless, you can't put them back in. Bearings likely trashed too. No big deal, just get it rebuilt. I can recommend @gearinstalls.com but you could get it rebuilt locally too.

    Felix likes this.
  13. iptman

    iptman

    Messages:
    3,307
    Likes Received:
    1,678
    Joined:
    Nov 22, 2008
    Location:
    Northern VA
    Meh.... @OTRAMM is the sheriff in these here parts. :D

    Does Stump still have the front axle in his parts 80?

    76FJ40 and OTRAMM like this.
  14. Jakes40

    Jakes40 IH8MUD Poser

    Messages:
    2,793
    Media:
    13
    Albums:
    1
    Likes Received:
    1,519
    Joined:
    Dec 10, 2004
    Location:
    Winchester,Va
    Paging @Stumpalama
    Still have the front diff for your parts 80?

  15. iptman

    iptman

    Messages:
    3,307
    Likes Received:
    1,678
    Joined:
    Nov 22, 2008
    Location:
    Northern VA
    Or maybe someone who regeared to 4.88s has the 4.10s sitting on a shelf? Ryan, what do you do with swapped out ring and pinion gears?

    Felix likes this.
  16. Felix

    Felix

    Messages:
    2,325
    Likes Received:
    478
    Joined:
    Jan 15, 2005
    Location:
    Alexandria, VA
    Well, there was when I left Rausch Creek. But by the time I got to the Baltimore Beltway the drain plug was gone, the oil was sprayed across the undercarriage (a rust preventative!), and smoke was coming out of the drain hole.

    So, I knew it was bad. I just didn’t know what bad looks like.

    Thanks, everyone. I’m sure I’ll have more questions once a get a new diff or gears.

    Jakes40 and Stumpalama like this.
  17. OTRAMM

    OTRAMM Supporting Vendor

    Messages:
    857
    Media:
    1
    Albums:
    1
    Likes Received:
    1,189
    Joined:
    Jul 31, 2006
    Location:
    Warrenton, VA
    Generally we toss the gears. They don't really set up well in new housings after they've been run for a lifetime in another housing. I keep the carriers around for when the pinion eats them but that's it.

    Jakes40 and bkfj40 like this.
  18. Cruiser804

    Cruiser804 SILVER Star

    Messages:
    1,601
    Media:
    6
    Albums:
    1
    Likes Received:
    85
    Joined:
    Mar 11, 2006
    i have an 80's diff in my shed from when I installed factory lockers. Good when I took it out. But, ahh, I can't remember if it is front or rear. i
    'll check and let you know. if its what you need its yours

    Jakes40, Stumpalama, 76FJ40 and 2 others like this.
  19. Cruiser804

    Cruiser804 SILVER Star

    Messages:
    1,601
    Media:
    6
    Albums:
    1
    Likes Received:
    85
    Joined:
    Mar 11, 2006

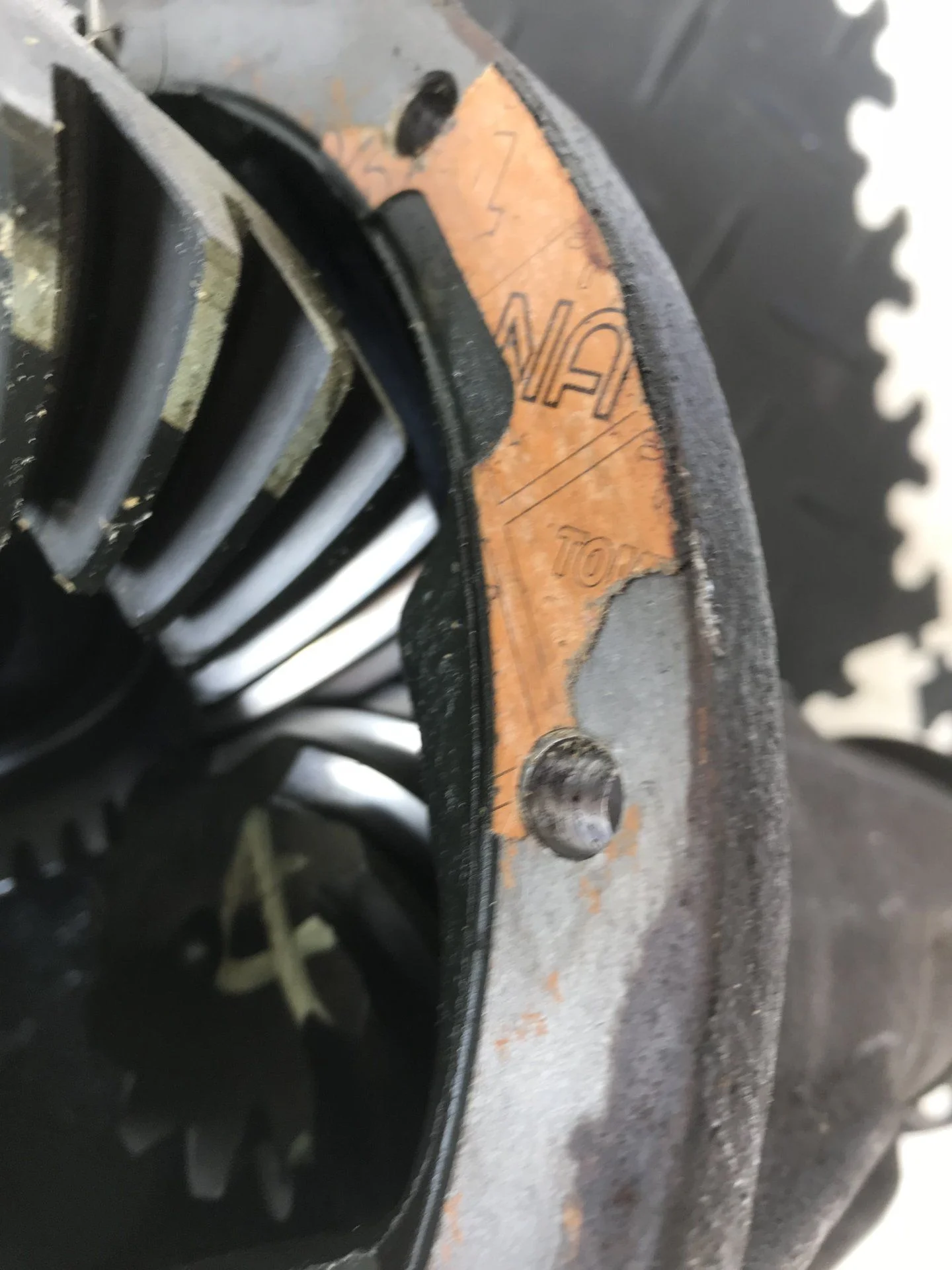

    Here it is. Can some confirm this is a front. I think it is. There's a little sawdust in there but otherwise it looks really good. I think it has about 130k on it.





    iptman likes this.
  20. Cruiserdrew

    Cruiserdrew On the way there SILVER Star

    Messages:
    15,501
    Likes Received:
    4,447
    Joined:
    Mar 15, 2003
    Location:
    Sacramento, CA
    Sure looks like a high pinion front.
