Q's RE using new style fuel filter from 70/200 series on 1Hz/60 swap

erics

erics

Joined
Nov 1, 2004
Messages
1,577
Location
Iowa
Any thoughts/advice on using this newer/cannister style OEM filter setup from 70/200 series cruisers on a 1HZ/60 swap? I've been advised that it is less prone to leaking air in over time as well as the that the replacement filter media elements are smaller/lighter/cheaper, while overall being at least as effective at its job as the older priming cap assemblie using the spin on element 23303-64010.

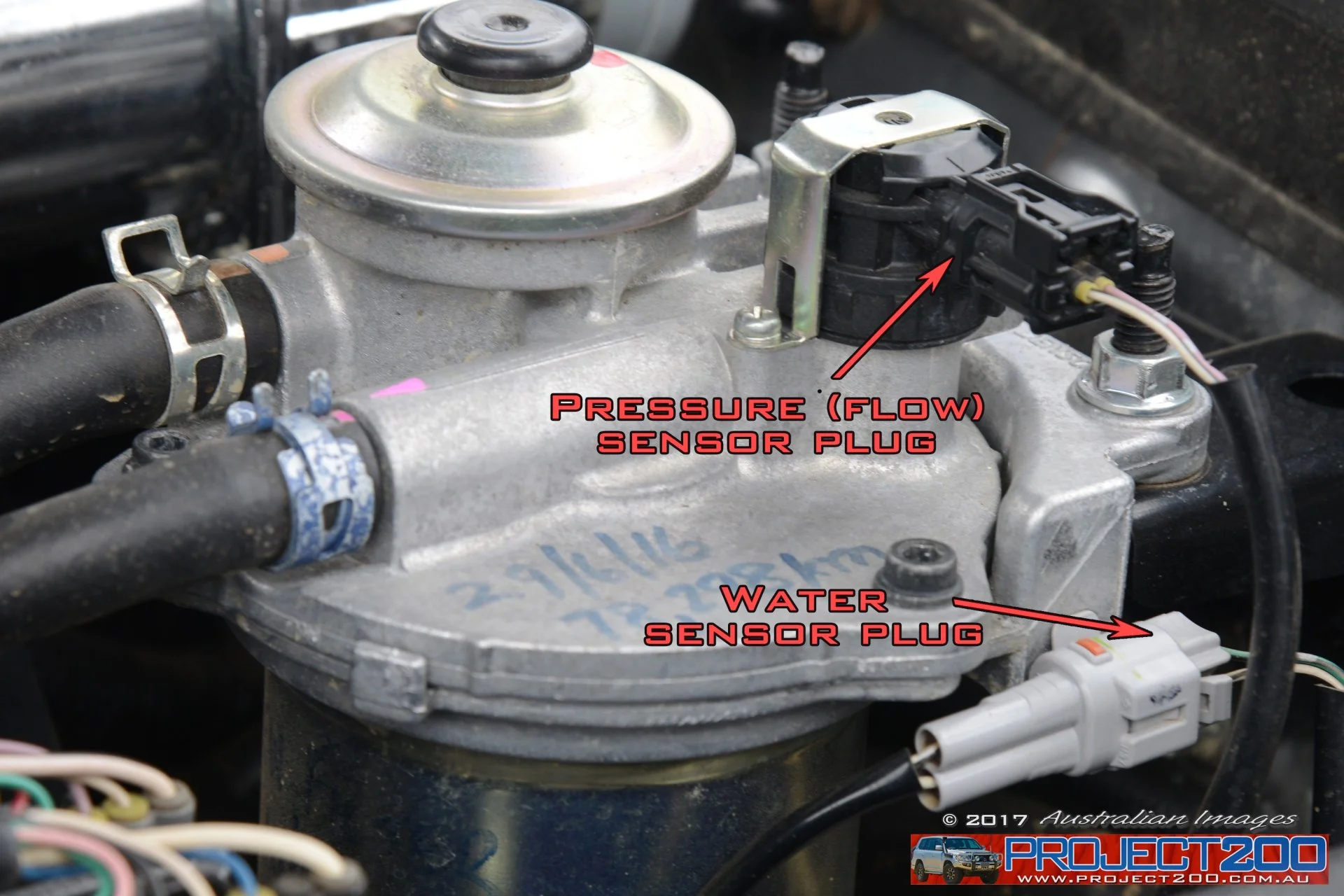

Also, can anyone provide details on how the flow switch operates? Doe it close when increased level of negative pressure (ie "suck") is detected in line to the IP, thus indicating restricted flow? Assuming so, what's that spec?

Finally, can someone confirm which port is in and out? the near port in the pic appears to have an outward pointing arrow (in pink),,, interesting that that port is smaller (8mm) than the other at 10mm.

Appreciate your thoughts...


roscoFJ73

roscoFJ73

Joined
Jul 22, 2003
Messages
18,924
Location
Perth Western Australia
I had the old style on a number of 1HZ. It was only a problem once and it was easy to fix.
The difference size ports is probably to stop the hoses being fitted the wrong way. The 8mm would be to the injection pump.
My guess is the fuel pressure sensor tells the computer to shut the pump down as you can damage the common rail pumps very easily if they run out of fuel .

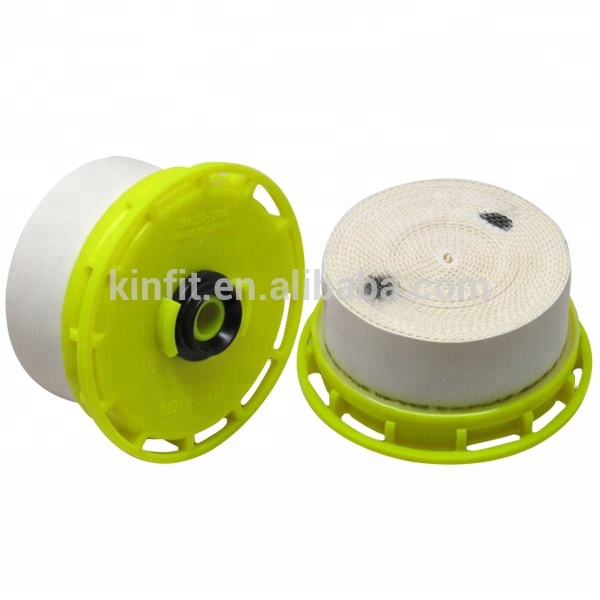

The new filter is a replaceable cartridge filter 23390-51020. Its used on the Hilux as well

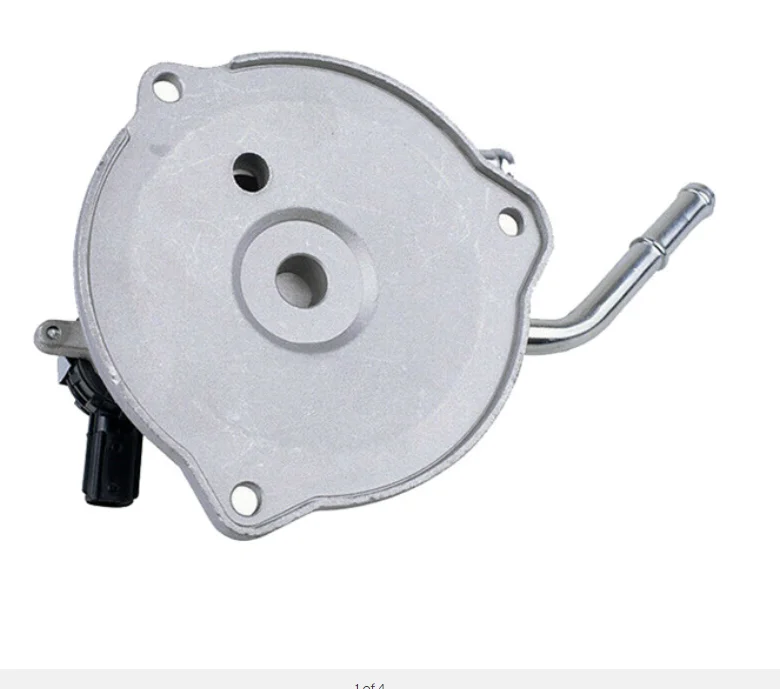

Another view



1635628860898







erics

erics

Joined
Nov 1, 2004
Messages
1,577
Location
Iowa
thanks for the post Rosco - anyone have detailed info on the flow sensor?

erics

erics

Joined
Nov 1, 2004
Messages
1,577
Location
Iowa
Anyone know more on the flow sensor? Didn't expect this would be too obscure/detailed for this crowd...

roscoFJ73

roscoFJ73

Joined
Jul 22, 2003
Messages
18,924
Location
Perth Western Australia
I saw some talk on exploroz, but it was an old post. It might be something to do with a fuel economy gauge, like those that tell you how much fuel you are using in real time. And I saw some aftermarket fuel flow sensors that looked similar but are fitted in line.

erics

erics

Joined
Nov 1, 2004
Messages
1,577
Location
Iowa
Thanks BreckenridgeCruiser - can easily just run setup and ignore the sensor and wouldnt expect any issues, but interested to understand how it works in consideration whether rigging a warning light might be an easy and practical addition (particularly if a low flow would be indicative of good time to change a clogging filter element).

BreckenridgeCruiser

BreckenridgeCruiser

I break things.
SILVER Star
Joined
Aug 14, 2006
Messages
4,178
Location
Oceanside and Encinitas, CA
Website
www.doublehelixcreative.com
If you can determine what the signal is (full on and off, or variable voltage) then you can hook up the proper light/gauge. If it's a simple on and off, you can just run a small LED as an unobtrusive warning light. I am doing this on my current project for the low oil sensor and the sedimenter.

erics

erics

Joined
Nov 1, 2004
Messages
1,577
Location
Iowa
If you can determine what the signal is (full on and off, or variable voltage) then you can hook up the proper light/gauge. If it's a simple on and off, you can just run a small LED as an unobtrusive warning light. I am doing this on my current project for the low oil sensor and the sedimenter.

yes exactly... was thinking someone would know but I'm gonna start digging to find FSM for newer models that would come equipped with this style filter
