Post your Gauge Install Photos! (1 Viewer)

[ForealBoreal]

I am going to be installing a EGT/Boost/Trans Temp Gauges in my 81 soon.
I want to get some pictures of people set ups in their landcruisers. All models welcome!



[ukaviator]

Here ya go, sorry for the ****py pic, you get the idea tho

Water Temp, Oil Pressure, Pyro and boost

Can be better seen in my latest YouTube vid
YouTube - Driving my new turbo 3B



[Splittilps]

Here is My post when I did mine. Post #18 shows the gauges.

https://forum.ih8mud.com/diesel-tech-24-volts-systems/298196-hdj81-pryo-probe-pics.html

cheers



[mainlander]

Here's mine. I like that the gauges are "UP" so I don't have to take my eyes off the road. The pillar pod came from a group buy here on MUD about 3 years ago (found in the 60 series forum).

Water Temp, Boost, EGT from top to bottom.



[ElectricDyck]

Here's mine, tranny temp, boost and pyro.



[BreckenridgeCruiser]

Mimimal

Here's mine. Westach dual EGT and Boost gauge.

I liked it for the stock-ish look.



[ForealBoreal]

Electricdyck thats something similiar to what i am thinking about



[pathfinder_88]

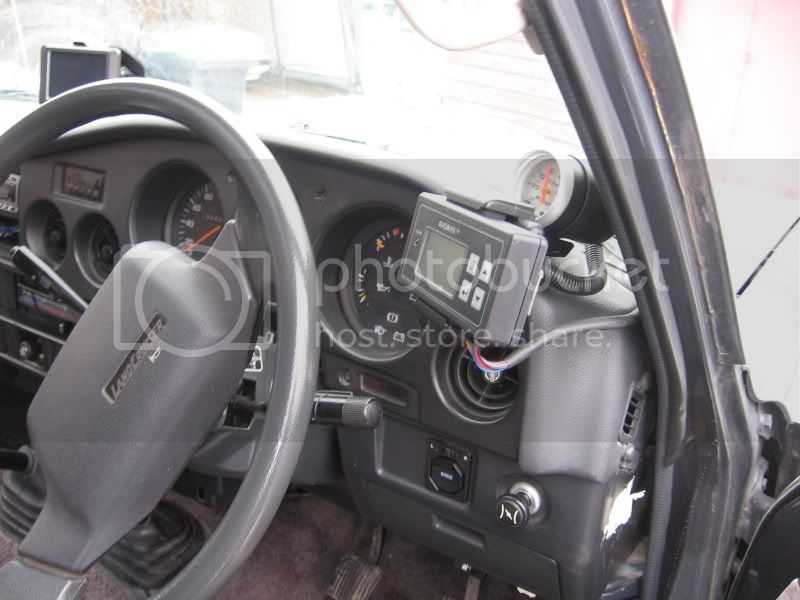

I have a procomp boost gauge and madman ems1 which is currently monitoring: volts, oil pressure, coolant temp/coolant loss alarm, and egt's...all have programmable alarms. I am using a "device holder" that I bought from Staples to hold the madman...works ok but jiggles a bit. I wanted the gauges up near the windshield to avoid having to take my eyes too far off the road.



[ForealBoreal]

the only thing i don't like about the mad max is you can't install a trans temp gauge for it...



[bj70_guy]

Maybe you can adapt the oil temp probe for the tranny instead?
Might be worth an email to Dave at Roving Recovery...



[9180ltd]

All im doing for my mad man is getting an extra pressure sending unit and temp sender and running them through 2 -3 position switches. That way the unit in pressure mode will read oil or flick the switch and get boost, for temp one side is coolant then flick and you have trans temp.



[70sguy]

Sunk into the vents.
A pain in the A$$ to do but I am really pleased with the results.



[ElectricDyck]

Sunk into the vents.
A pain in the A$$ to do but I am really pleased with the results.

Great job, that looks nice.



[ElectricDyck]

Electricdyck thats something similiar to what i am thinking about

You should talk to a stereo guy and get a proper filler plate to mount them in, mine looks kinda hack. And when you find one post your results and I'll clean mine up too.



[Splittilps]

not the best pic but it looks close to factory



[ElectricDyck]

not the best pic but it looks close to factory

That looks nice, any info on the plate you used? I like the penny mod on the air vents too.



[Splittilps]

Check out the 3rd post. I made it myself using 2" ABS pipe and some plexiglass. I just wish that the dash wasn't cracked when I got it.



[bigbrowndog]

HJ75 Dashboard



[sailor]

HDJ 81 specific. I have posted this before. The trans temp gauge has the wrong scale.



[Enigma]

Where did you get that gauge pod Graham?
