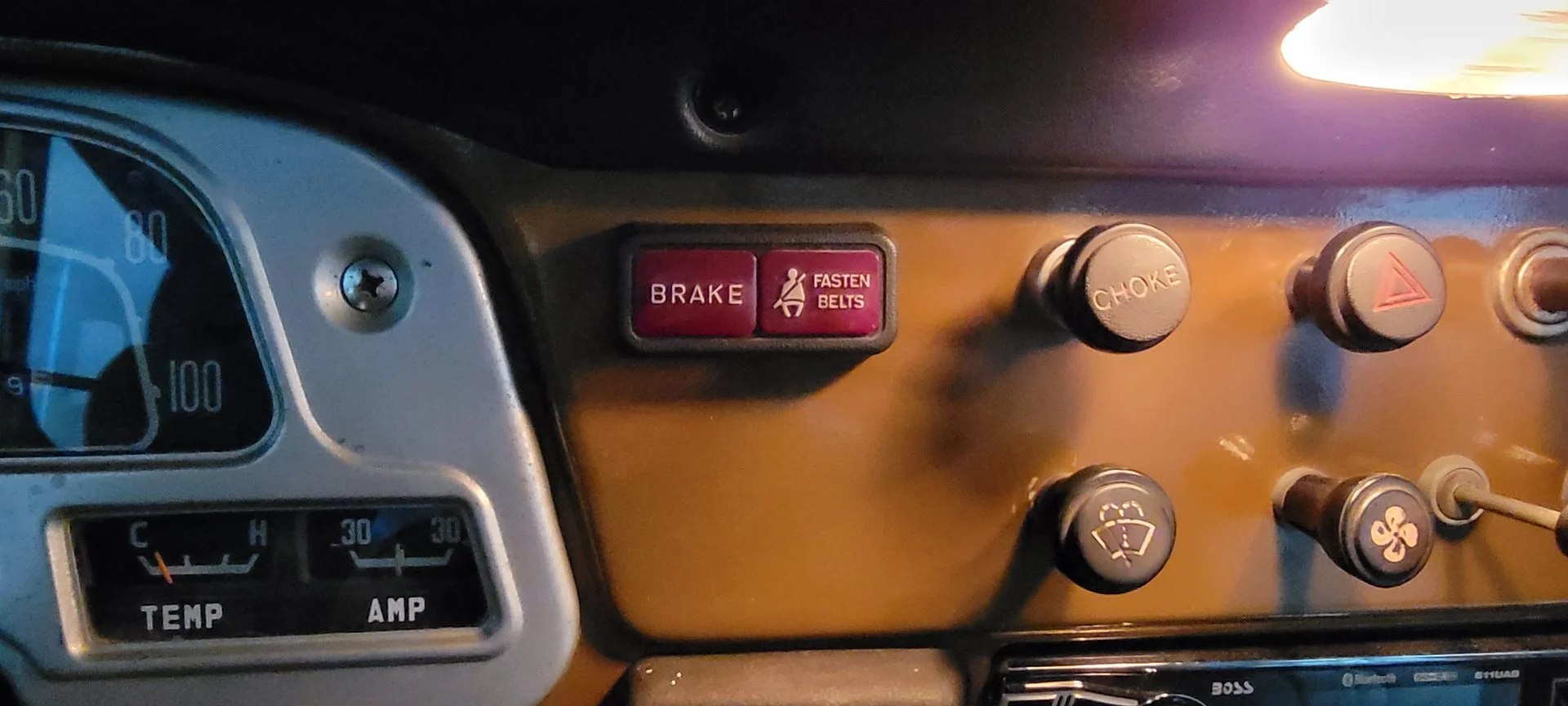

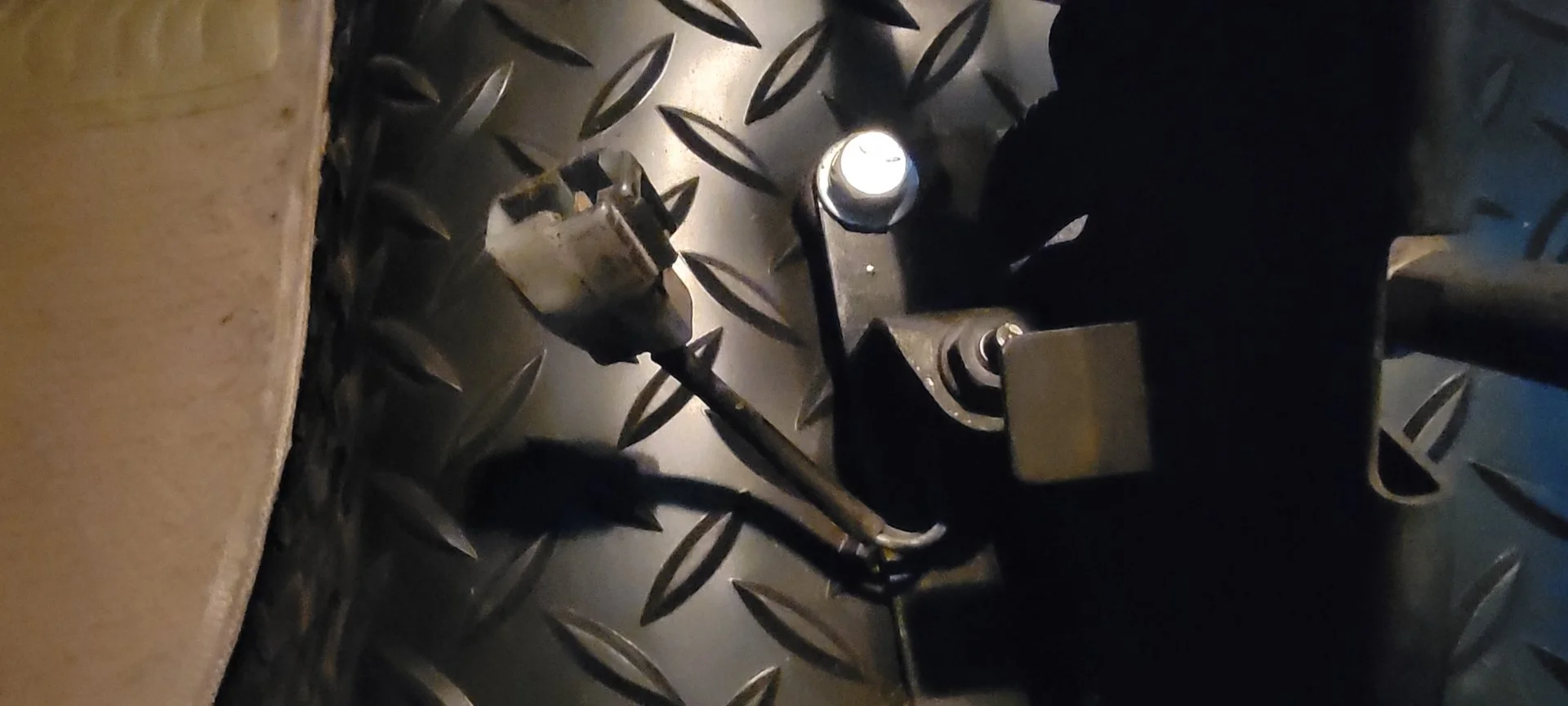

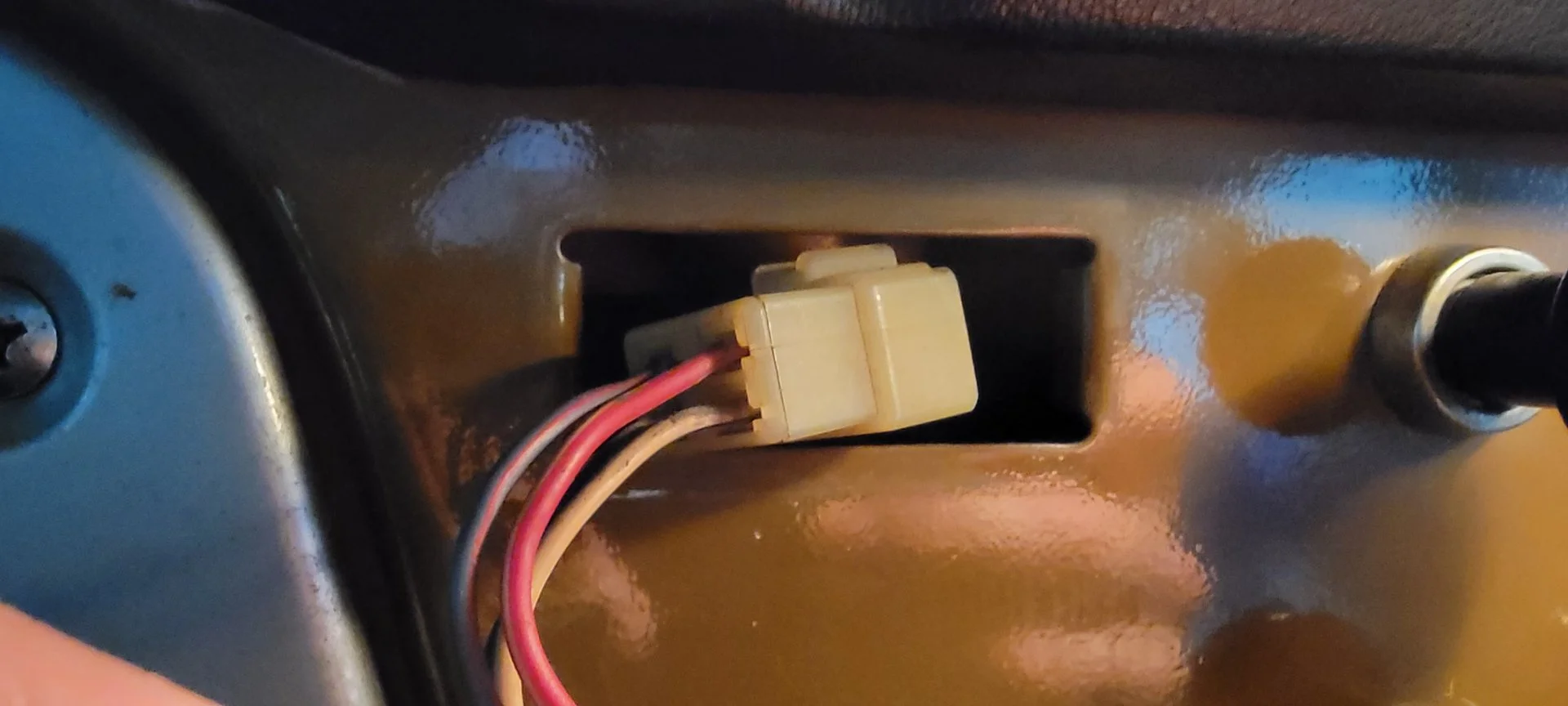

Hi all, Land Cruiser newbie and proud owner of a "fully restored" 1982 FJ40. I love it and overall is in great shape, but I have learned that "fully restored" does not always mean everything was done correctly. Shortly after I got it, I noticed the brake warning light/seat belt light did not illuminate. I pulled it out of the dash, thinking it might be the bulbs, only to find it wasn't connected to anything. I did some research and found that it should illuminate when the parking brake is engaged. Well, looking at the parking brake switch, it does not appear to be connected to anything either (see pics below)

I have the FSM and though I am not an expert on wiring diagrams, looks to be on same circuit as heater and these should be connected, as well as to the brake warning switch and stop light switch.

My question is: do i just need to directly connect the brake warning light and the parking brake switch, or is there more to it?

Thanks in advance

20211110 132427


20211110 132437


20211110 132451

3

3_puppies

SILVER Star
Joined
Dec 2, 2002
Messages
16,077
Location
Helena MT
terms get thrown around frequently and we all have our own definition of them

there is more to the wiring, I think the brake master float also will illuminate the brake light, if the fluid gets low.

any idea who went thru the rig?

jmbridges91

jmbridges91

Joined
Nov 10, 2021
Messages
7
Location
Birmingham, AL
terms get thrown around frequently and we all have our own definition of them

there is more to the wiring, I think the brake master float also will illuminate the brake light, if the fluid gets low.

any idea who went thru the rig?
I don't know who worked on the truck, I purchased it from a guy in Illinois. It's a US truck. You're right, i think the brake warning switch is attached to the master cylinder and illuminates this light if there is a problem

1MOA

1MOA

SILVER Star
Joined
Nov 7, 2017
Messages
1,919
Location
Luray VA ( Lou-Ray)
It's probably disconnected either because they forgot to hook it up during the restoration or they got tired of it just constantly being illuminated unless the parking brake handle is in the exactly perfect position and it will flicker on and off. The other end of the harness it plugs into should be at or just off the top of the wiring harness above your steering column behind your dash

ToyotaMatt

ToyotaMatt

Factory Focus-Point Mind-Set Approach
Supporting Vendor
GOLD Star
Joined
Aug 12, 2007
Messages
19,698
Location
EAST COAST
Website
vintageteqparts.com
No one knows how these should be wired?
terms get thrown around frequently and we all have our own definition of them

there is more to the wiring, I think the brake master float also will illuminate the brake light, if the fluid gets low.

any idea who went thru the rig?
It's probably disconnected either because they forgot to hook it up during the restoration or they got tired of it just constantly being illuminated unless the parking brake handle is in the exactly perfect position and it will flicker on and off. The other end of the harness it plugs into should be at or just off the top of the wiring harness above your steering column behind your dash


i do know they go bad often and require replacement ?

a simple Continuity Test can help determine if the PIN SWITCH Box is faulty or not ?

if it is , then you have a TOYOTA Genuine parts JAPAN Sourced solution LINK Below ........ :)















Engineer8000

Engineer8000

CAPE FEAR ELECTRONICS
Supporting Vendor
Joined
Aug 16, 2019
Messages
1,054
Location
SOUTHPORT NC
Website
forum.ih8mud.com

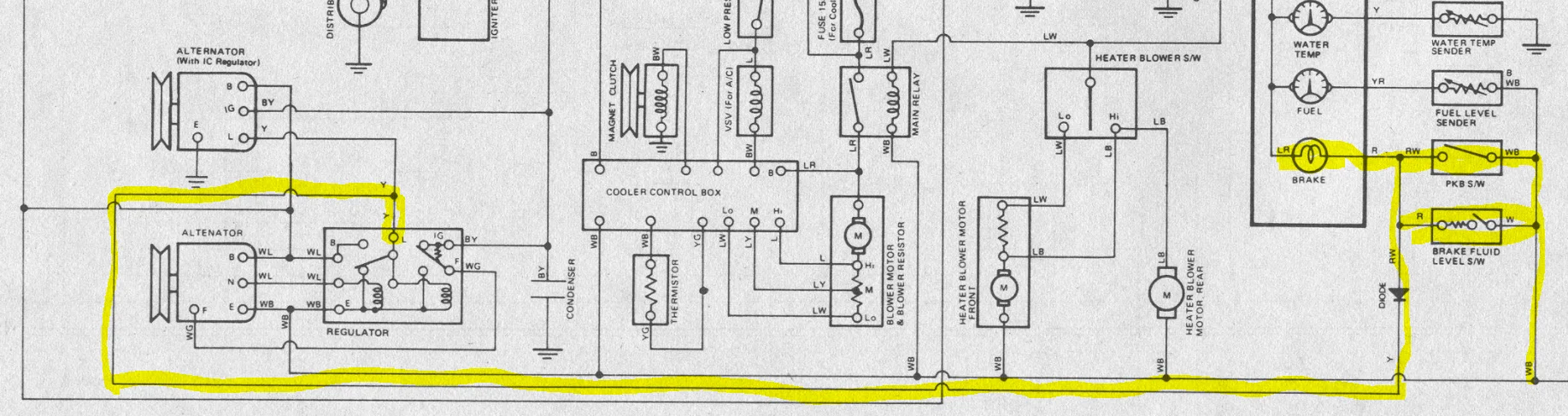

The brake light on the dash is grounded by the PB switch, brake fluid reservoir float or the alternator "L" terminal.

1636913406557

jmbridges91

jmbridges91

Joined
Nov 10, 2021
Messages
7
Location
Birmingham, AL

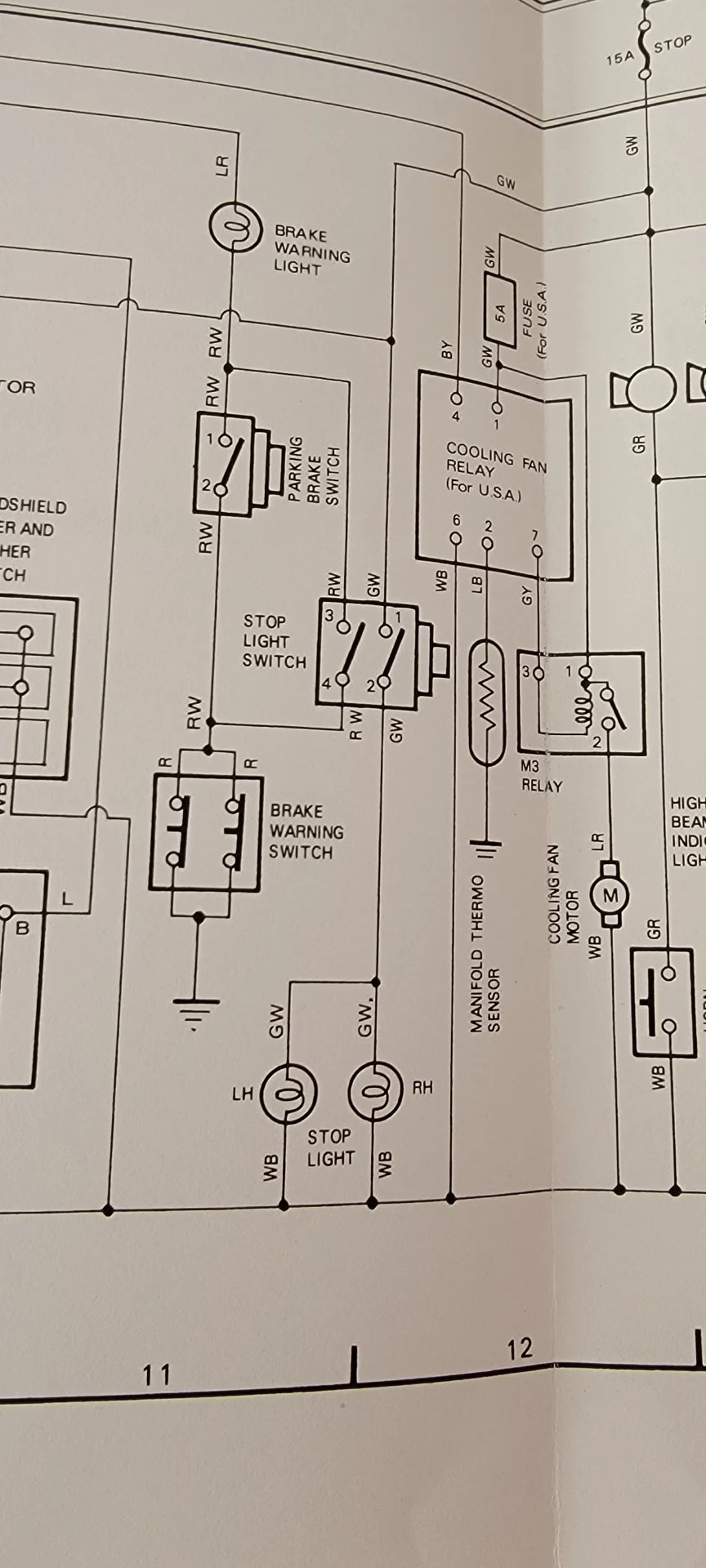

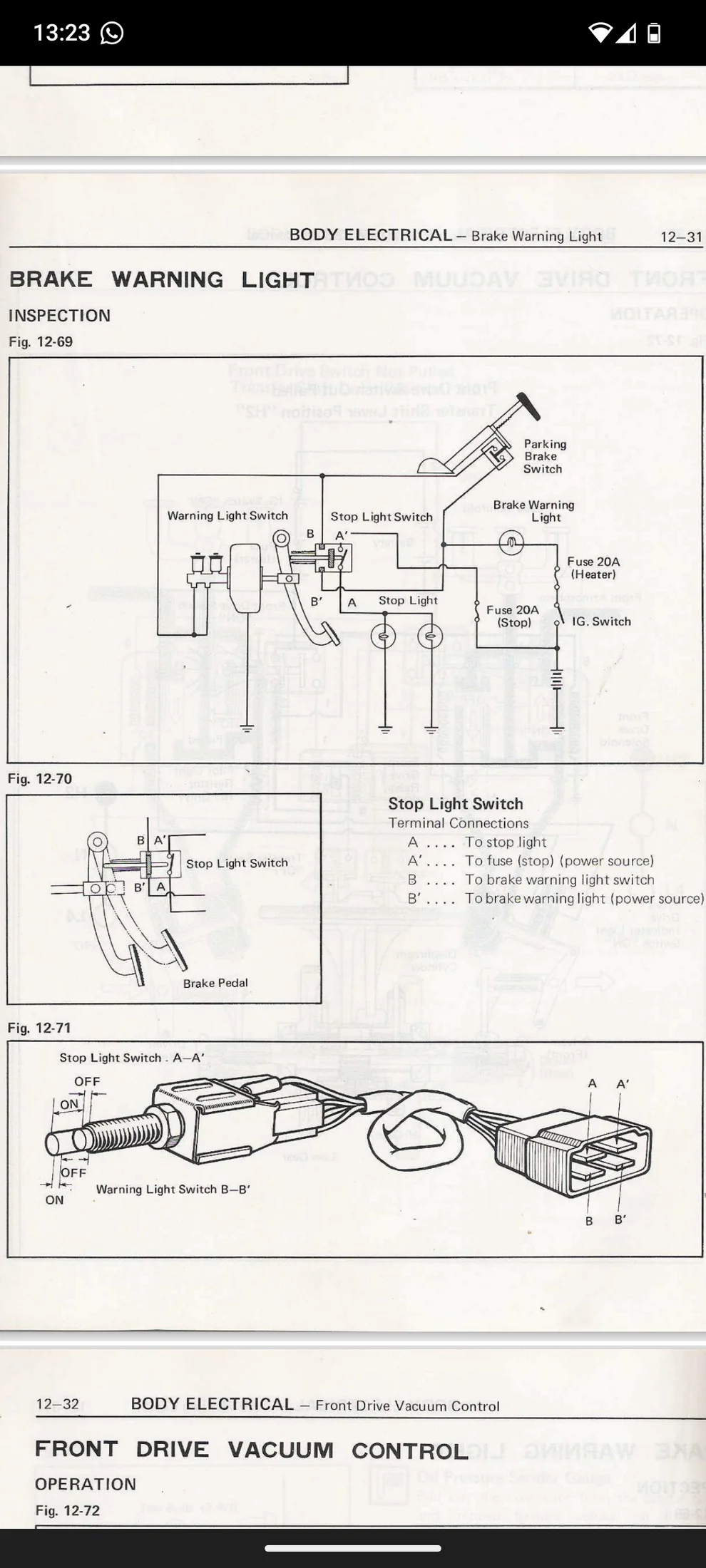

Thanks for the replies. the wiring diagram i have (from 1980 FSM) looks a little different - see below - looks like brake warning light and parking brake switch are both grounded through the brake warning switch (which i think i on the master cylinder). But, sounds y'all are telling me there should be a direct connection between the parking brake switch and the warning light on the dash, and that may have been disconnected due to a faulty parking brake switch causing the light to be constantly on? do i have that right? if so, i should be good to go.

20211114 124456

Engineer8000

Engineer8000

CAPE FEAR ELECTRONICS
Supporting Vendor
Joined
Aug 16, 2019
Messages
1,054
Location
SOUTHPORT NC
Website
forum.ih8mud.com
That schematic is for a MC equipped with pressure switches, do you have that or the reservoir float switch?

jmbridges91

jmbridges91

Joined
Nov 10, 2021
Messages
7
Location
Birmingham, AL

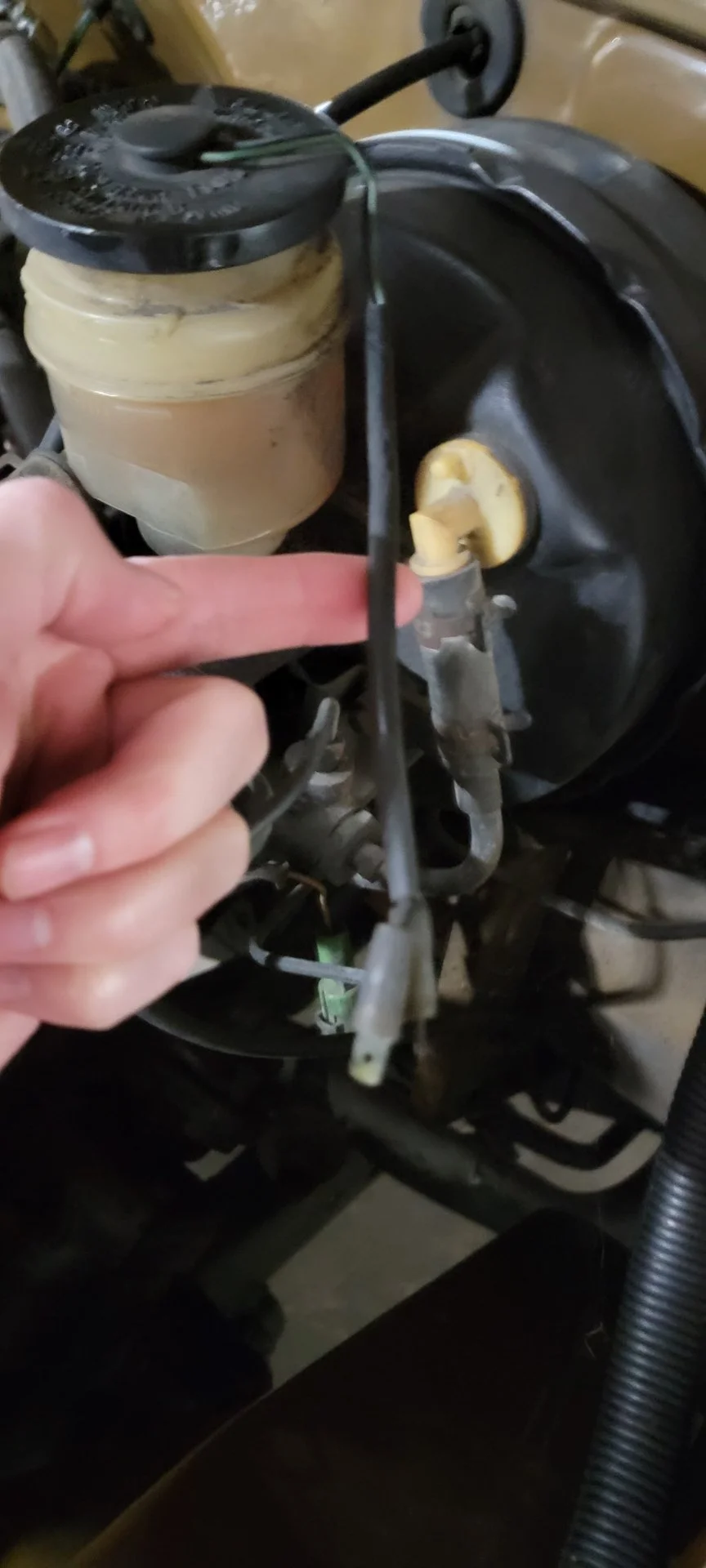

Looks like I do have the float switch, see attached but i guess unsurprisingly, it is not connected to anything either. What year did they change from the pressure switch to the float switch, or could it be either in any year?

20211115 134508

Engineer8000

Engineer8000

CAPE FEAR ELECTRONICS
Supporting Vendor
Joined
Aug 16, 2019
Messages
1,054
Location
SOUTHPORT NC
Website
forum.ih8mud.com
Not sure when the change was made. You may have a connector dangling that this connects to. Look around the harness that comes out of the firewall on the driver side.

3

3_puppies

SILVER Star
Joined
Dec 2, 2002
Messages
16,077
Location
Helena MT
Not sure when the change was made. You may have a connector dangling that this connects to. Look around the harness that comes out of the firewall on the driver side.


for some reason I'm thinking the change was 1981? when it went from 2 resevoirs to 1 resevoir
