Unfortunately, life has a funny way of reminding you that you things can change in a hurry. Circumstances in my life have changed and I am in the need to sell my beloved cruiser. I have put countless hours and money into this unique wheeler only to never get it out on the trail. Here is most of the components on it:
front axle
dana 60 $1,000.00
superior 35 spline outers $500.00
bobby long u joints $340.00
ten factory inners $500.00
great lakes offroad diff cover $110.00
Arb $700.00
4.88s $-
Greaseable External Drive Flanges $100.00
braided extended brake lines $-
1410 yoke $100.00
Rear Axle
Dana 70 $200.00
Detroit locker $475.00
Great Lakes offroad Diff cover $110.00
braided extended brake lines $-
1410 yoke $110.00
Drivetrain
Rebuilt th-400 $500.00
NWF doubler $650.00
203/205 clocked nearly flat $250.00
TMR rear support mount $100.00
High Angle Flanged Drive lines $1,500.00
Art Carr Shifter $225.00
Offroad design shift rails $100.00
NWF triple stick kit $350.00
Suspension
3-link
2 5/8th" .500 DOM lower links $200.00
1/4 square upper $-
Ballistic Fab 3.0 joints/bushed $300.00
14" FOA triple Rate coilovers (Front) with springs $1,200.00
63" Chevy rears with pro-comp add a leafs $200.00
14" FOA shocks that can be used as coilovers in the future
Misc Ballistic Fab brackets $-
Engine/fuel--- Comp cam desktop dyno has it right about 475hp/525ft lbs
Chevy Big Block 454/recent rings/hone/etc
bored .30 over $2,500.00
decked block .
compression ~ 9.5/1
049 heads that have been shaved and pocket ported
2.19 1.88 stainless valves
Edlebrock performer 2 machined and ported to fit block $180.00
Speedway ceramic headers $150.00
MSD HEI distributor/plug wires $150.00
Comp cams 4x4 262 cam kit
Comp cam Roller tip rockers $100.00
Powerjection 3 tunable fuel injection $1,750.00
Summit street and strip muffler $40.00
20 gallon Summit fuel cell $249.00
1 litre surge tank $90.00
Holley Red lift pump $100.00
Professional Products "blue" fuel injection pump $-
Braided fuel lines $-
Glowshift Guages
Oil pressure $50.00
Tranny temp $50.00
Fuel $50.00
RPM $50.00
Water Temp $50.00
Volt meter $50.00
Vacuum $50.00
Misc
DOM crossember for doubler
DOM Shock hoops
HREW Front seat mount/shifter console
HREW Fuel Cell/shock hoop
Dakota Digtal Fan Controller $120.00
Taruas Cooling fan $50.00
Hydraulics/Steering/Braking
Hydroboost unit ported by Vanco $450.00
PSC steering resevoir $194.00
PSC steering cooler $75.00
POS steering Ram (full hydro steering) $275.00
POS Orbital $450.00
mostly braided lines
PSC power steering pump $190.00
tranny cooler $150.00
wheels/tires
Re-centered H1 rims $750.00
42" pitbull Rockers $1,900.00
Total $20,083.00
this total does not include shipping, labor, blood, sweat or tears... I've also left out things like the hundreds of dollars in fittings, hardware, wire, etc.
I also know that I'll never recover the cost of this build so I am trying to be realistic on my price. I am VERY VERY open to trades but the trade needs to be a vehicle that is oriented to Daily Driving duties... it DOES NOT HAVE TO BE A LANDCRUISER or even a 4x4.
My price is $ 18,500 obo.

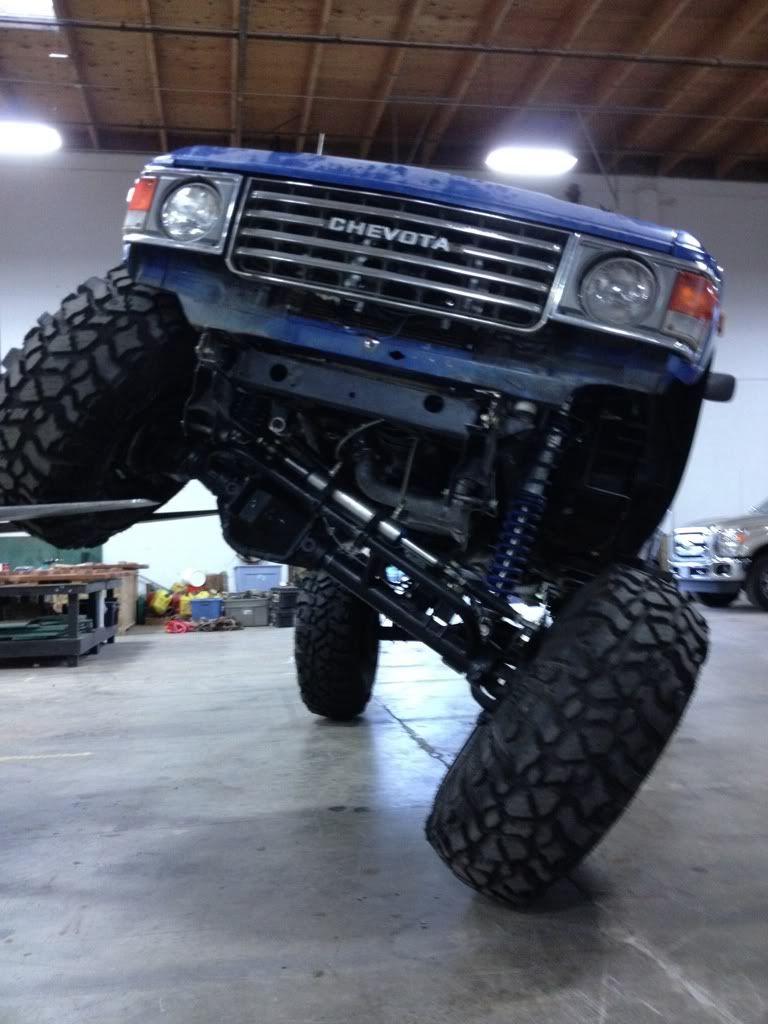

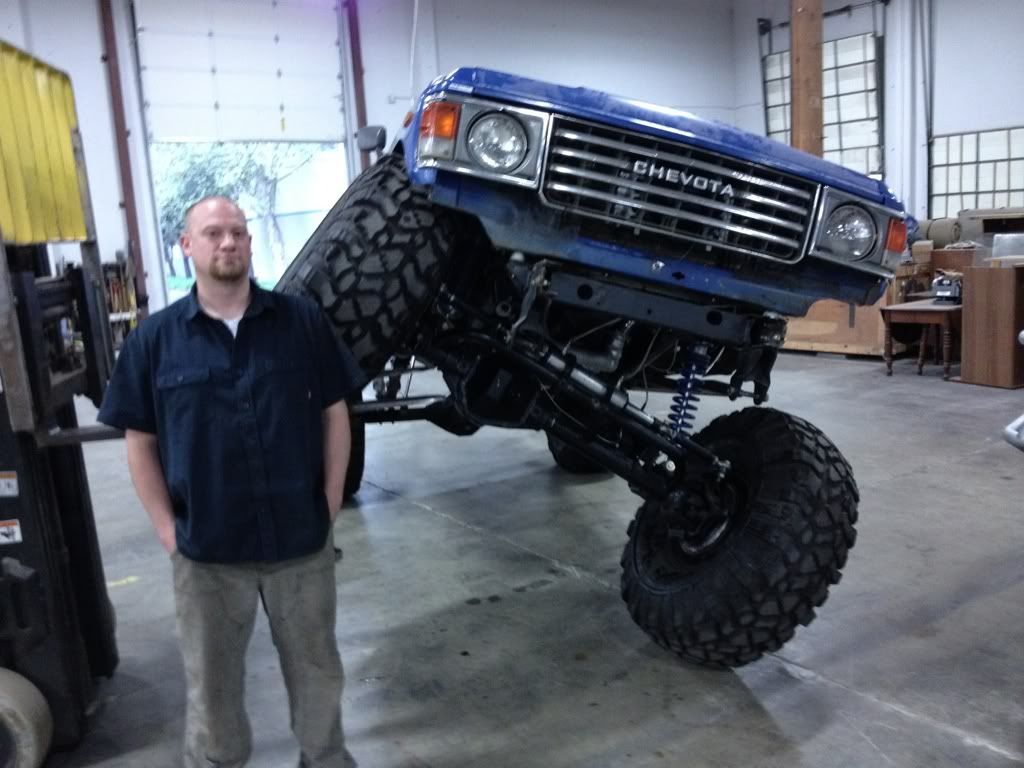

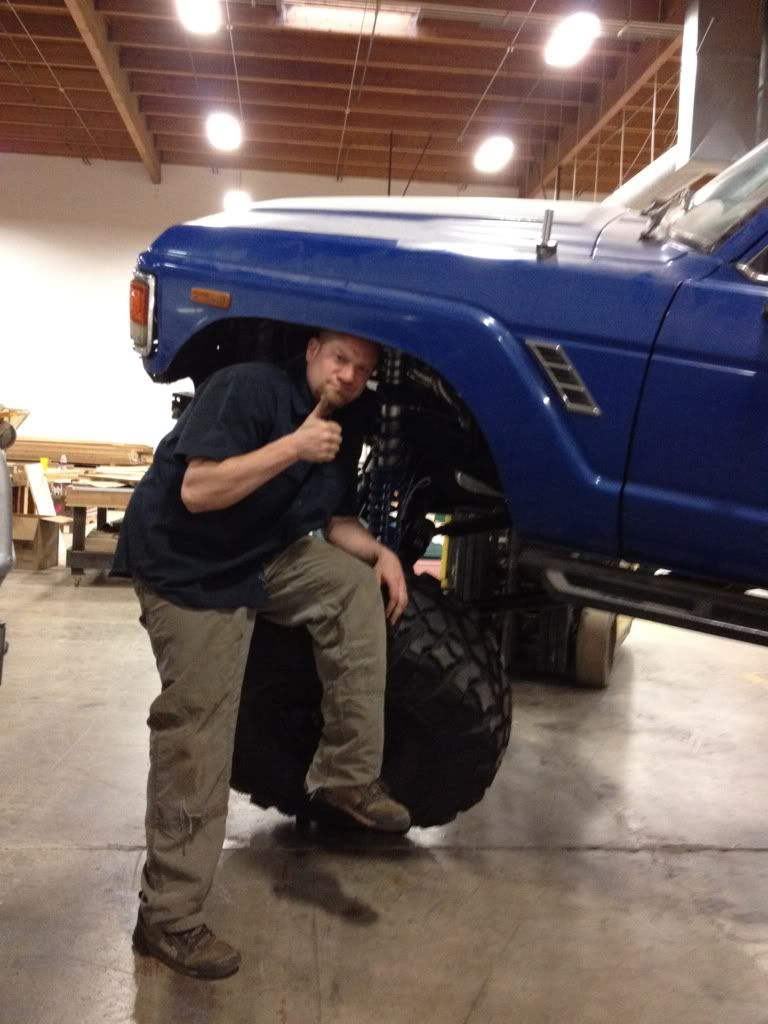

pics:
video:
Many many more pictures available on request.
Build threads:
https://forum.ih8mud.com/60-series-wagons/198064-rotw-brokenparts-fj-60-a.html
