Options for discontinued window weather strip (1 Viewer)

[cruiser enthuiser]

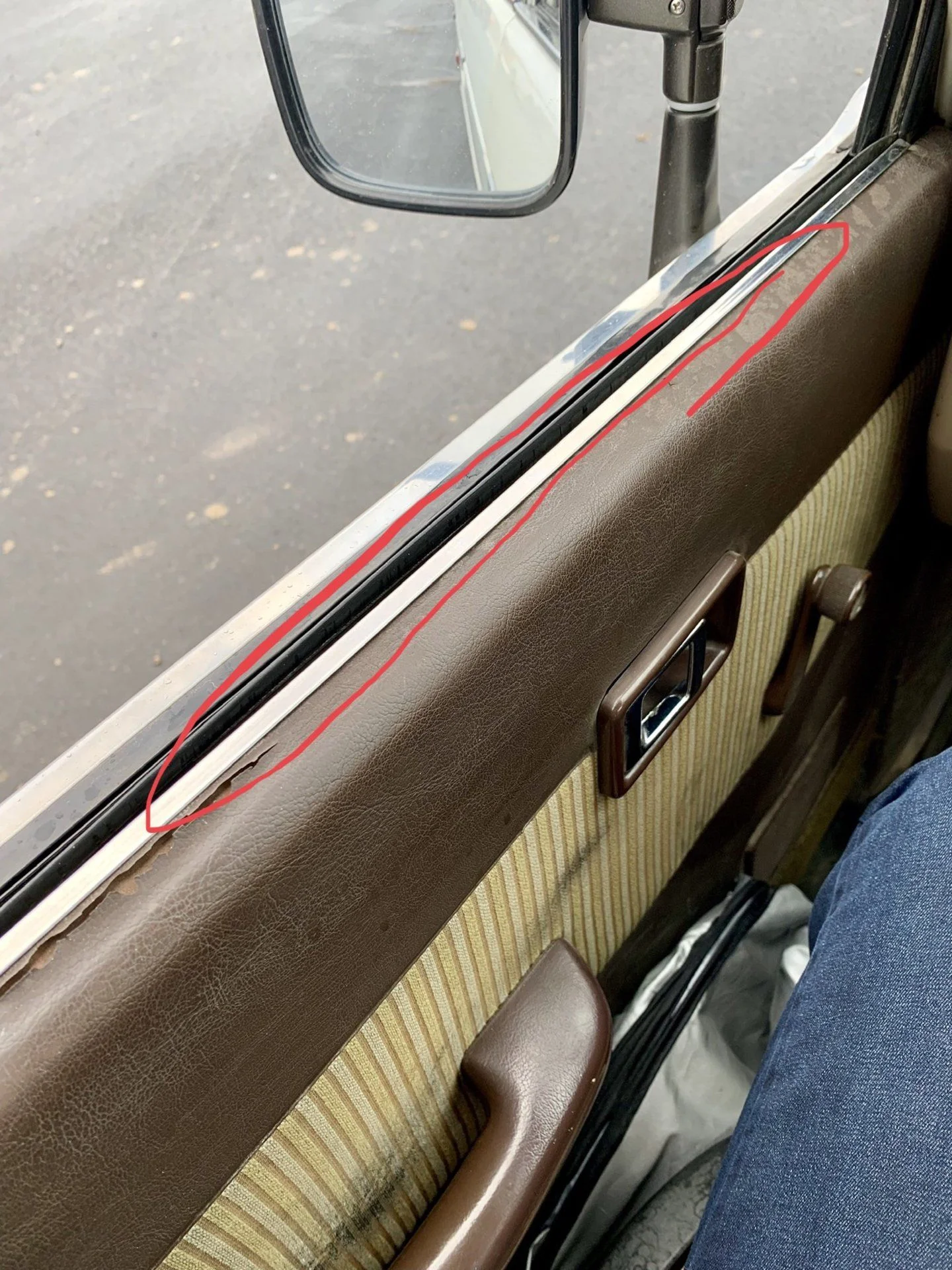

I’m getting ready to paint my truck and will be replacing all the weather stripping at the same time. I’ve tracked down almost everything (thanks @Racer65 ) with the exception of the inner window piece. See pic below.

Apologies if this had been answered somewhere else on the forum but can you guys suggest an alternative source for this piece? I don’t see anything aftermarket. I vaguely remember someone using something from the 70 series??

Thanks in advance!

-Ed



[mattressking]

Still alive and well. Below is for the chrome weatherstripping (factory).

68170-90A01 - Left or Right side front
68190-90A01 - Left or Right side rear

Not sure anything was found for inner without chrome, just the outers (and I like chrome, so I haven't hunted).



[MrMacdugal]

Where I work we use something that may be of use to you. We use it to butt up against the long stretch window on the outside of a limo on the back side of the belt molding. ITs a stationary window and we use it on the outside, but achieves the same thing.

Could likely be trimmed or affixed to the door panel to achieve what you are looking to do. I am literally getting ready to do the same thing. My 62 is in the body shop but will need to replace a couple of these strips when I go to put the door panels back on. Where that piece of paper backing is, its supposed to be sticky, but no longer is. We just use industrial super glue. Let me know if you want some and I will send it to you.
Also, I think I remember OutputShaft mentioning that he was able to use some with a little doctoring off an older toyota corolla? possibly
Maybe he will see this and chime in



[NeverGiveUpYota]

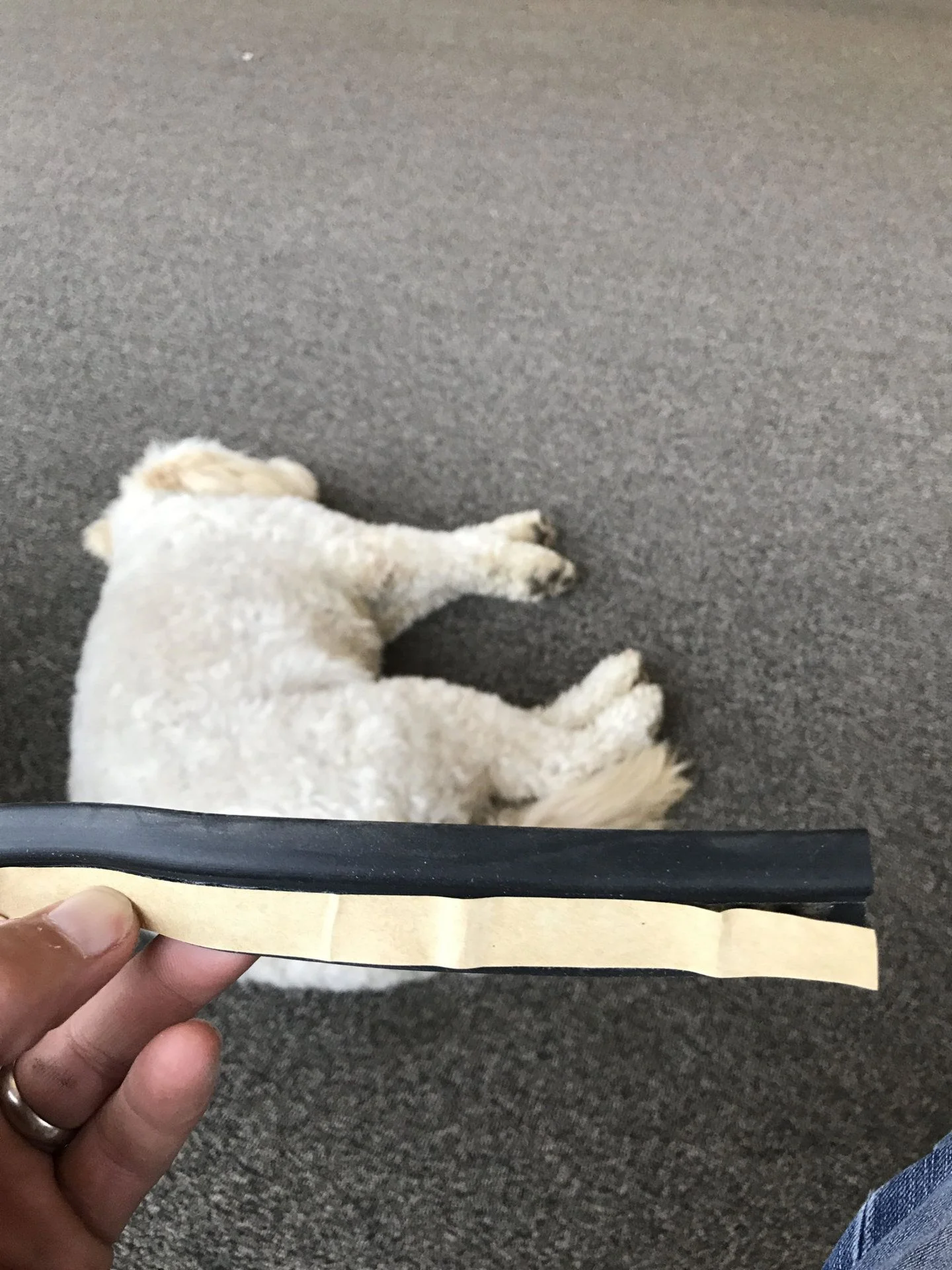

Where I work we use something that may be of use to you. We use it to butt up against the long stretch window on the outside of a limo on the back side of the belt molding. ITs a stationary window and we use it on the outside, but achieves the same thing.View attachment 1841800 Could likely be trimmed or affixed to the door panel to achieve what you are looking to do. I am literally getting ready to do the same thing. My 62 is in the body shop but will need to replace a couple of these strips when I go to put the door panels back on. Where that piece of paper backing is, its supposed to be sticky, but no longer is. We just use industrial super glue. Let me know if you want some and I will send it to you.
Also, I think I remember OutputShaft mentioning that he was able to use some with a little doctoring off an older toyota corolla? possibly
Maybe he will see this and chime in

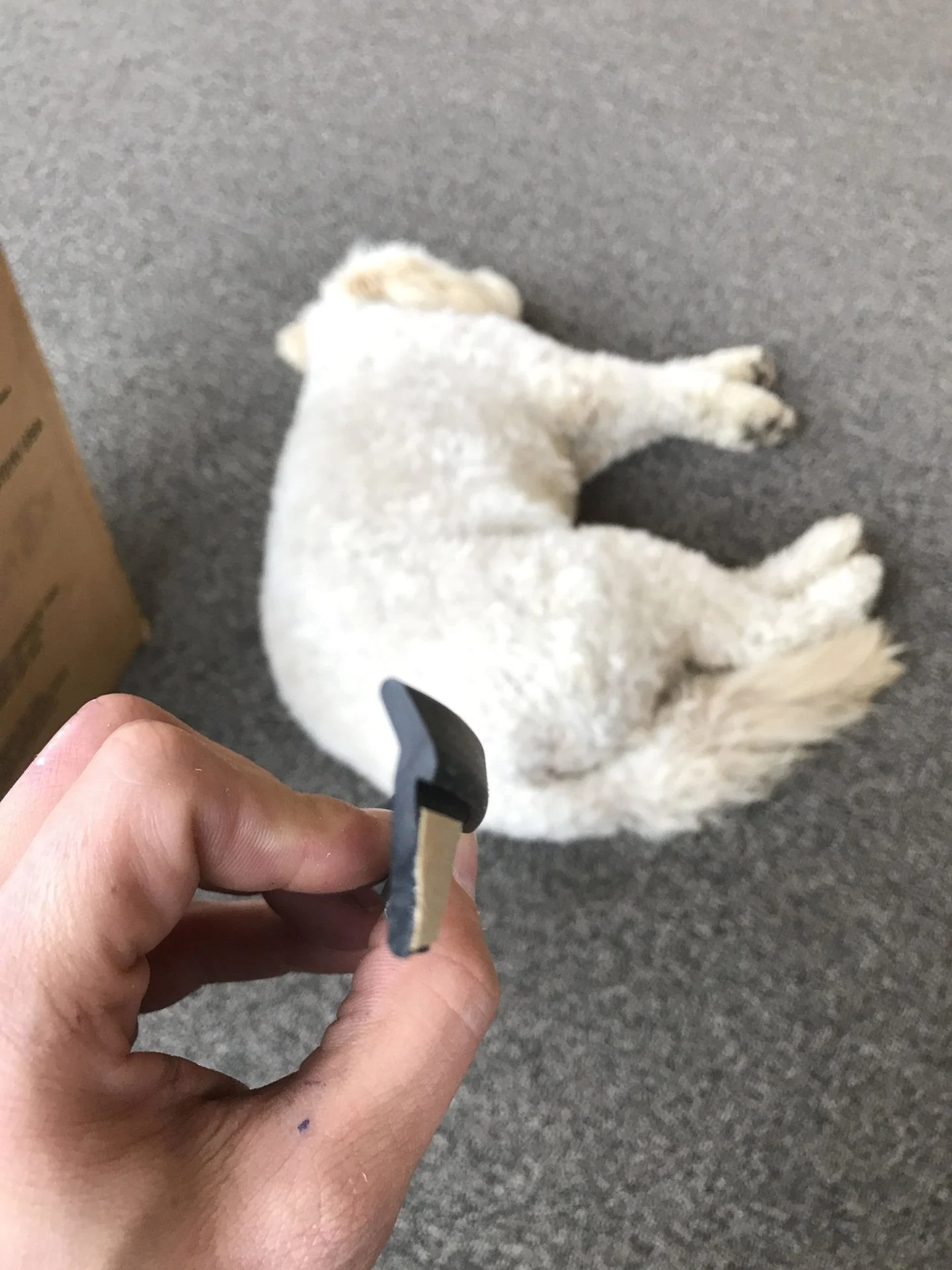

View attachment 1841801

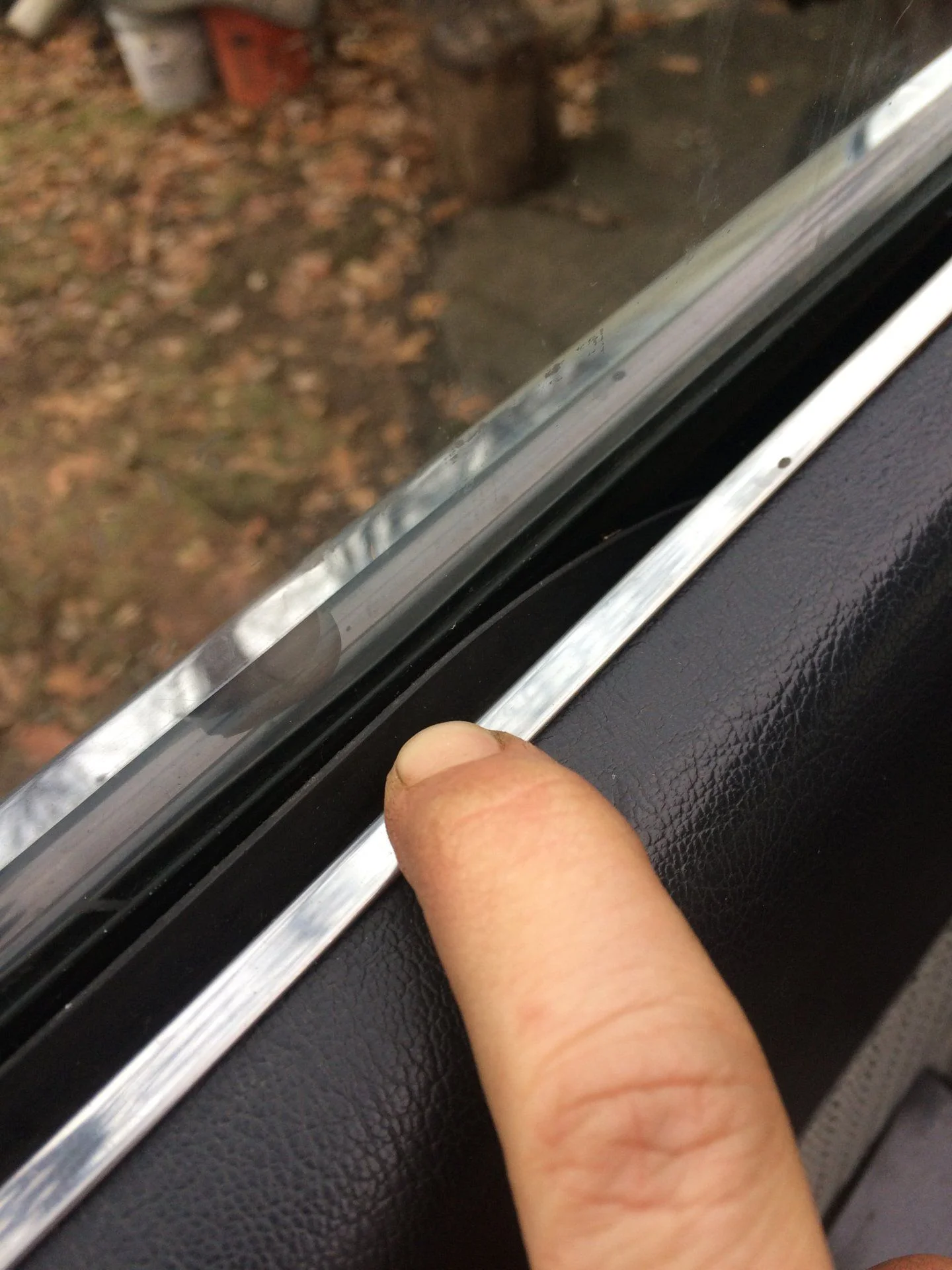

I might if it’ll take the place of the inner felt? Mine has fallen inward. @OSS he tagged you.... can you chime in?



[gregnash]

Yeah mine is doing same F. I need to replace or renew when time comes to mess with the door cards.



[mattressking]

Yeah mine is doing same F. I need to replace or renew when time comes to mess with the door cards.

They're cheap from Toyota...it's easier to replace than make a funky solution currently. Plus it keeps the part number somewhat active if people continue to buy.



[OSS]

It was someone else who mentioned window sealing trickery. I'm a window seal moron



[gregnash]

So I take it this is just the rubber felt that gets replaced, not the entire top portion of the door card correct? Someone needs to purchase and post pics!



[NeverGiveUpYota]

So I take it this is just the rubber felt that gets replaced, not the entire top portion of the door card correct? Someone needs to purchase and post pics!

It’s just a simple piece to change out but I think I’ve read it can be a tad tricky. TOYOTA LAND CRUISER 60FJ60LG-KA - BODY - FRONT DOOR PANEL GLASS | Japan Parts EU



[John Staton]

I would like to see a thread where someone takes door cards out and replaces as well. I need to refresh my doors (clean, lubricate windows, replace felt, etc...) and I just have a couple more things on my list before I get to that. I also have the replacement speakers that will go in. I have not found good snaps that I like to secure the door card. The ones I ordered have a blue side female and do not snap in tight. Anyone have a good part number for those that they like???



[NeverGiveUpYota]

I would like to see a thread where someone takes door cards out and replaces as well. I need to refresh my doors (clean, lubricate windows, replace felt, etc...) and I just have a couple more things on my list before I get to that. I also have the replacement speakers that will go in. I have not found good snaps that I like to secure the door card. The ones I ordered have a blue side female and do not snap in tight. Anyone have a good part number for those that they like???

@Ian Crawford didnt you replace your clips w/ some hardware store brand?



[MrMacdugal]

You can buy the correct clips from cruiserparts.net.
Pack of 25 Door Panel Clips 81-newer Type A [67771-12010-U/67771-22010-U] - $15.00 : CruiserParts.net, Toyota Landcruiser Parts
A little strange that they can sell you a pack of 25 clips but they do not all necessarily have the seat part.
Also you will find the weatherstrip for the door cars on the same page



[Ian Crawford]

I bought these! Worked well and includes both sides.

https://www.amazon.com/Retainer-894...coding=UTF8&psc=1&refRID=63QFA1NMDBH84333EQ2H



[MrMacdugal]

Cheaper, more complete and new. Cant beat that.



[cruiser enthuiser]

Still alive and well. Below is for the chrome weatherstripping (factory).

68170-90A01 - Left or Right side front
68190-90A01 - Left or Right side rear

Not sure anything was found for inner without chrome, just the outers (and I like chrome, so I haven't hunted).

Awesome! Ordered 2x front and 2x rear!

And for the record I like chrome too =)

Cheers!

-Ed



[Dr. John]

Still alive and well. Below is for the chrome weatherstripping (factory).

68170-90A01 - Left or Right side front
68190-90A01 - Left or Right side rear

Not sure anything was found for inner without chrome, just the outers (and I like chrome, so I haven't hunted).

While preparing to order these bits, I see that the front ones are listed as for "up to 4/86" and the rears listed as for "from 4/86". Since I have an '87 I'm a bit hesitant at ordering the fronts. Anyone know how they differ?



[gregnash]

While preparing to order these bits, I see that the front ones are listed as for "up to 4/86" and the rears listed as for "from 4/86". Since I have an '87 I'm a bit hesitant at ordering the fronts. Anyone know how they differ?

@beno Onur can you describe?
