Now this … Is the OEM radiator drain plug plastic?

fyton2v

SILVER Star
Joined
Jan 7, 2004
Messages
606
Location
Santa Rosa Valley, CA
I‘ve lost the plug for my radiator. I’m 99% certain the radiator isn’t original, but looks OEM-ish. The plug on this unit is a white plastic tab that screws in with a rubber gasket. You can unscrew it by hand. OEM or no for a 2F? I kinda need a new one and I’m hoping I can just pick one up from a local auto-zone or something. I’d post a pic, but it’s in a parallel universe.

Thanks.


ToyotaMatt

Factory Focus-Point Mind-Set Approach
Supporting Vendor
GOLD Star
Joined
Aug 12, 2007
Messages
19,727
Location
EAST COAST
Website
vintageteqparts.com
I‘ve lost the plug for my radiator. I’m 99% certain the radiator isn’t original, but looks OEM-ish. The plug on this unit is a white plastic tab that screws in with a rubber gasket. You can unscrew it by hand. OEM or no for a 2F? I kinda need a new one and I’m hoping I can just pick one up from a local auto-zone or something. I’d post a pic, but it’s in a parallel universe.

Thanks.

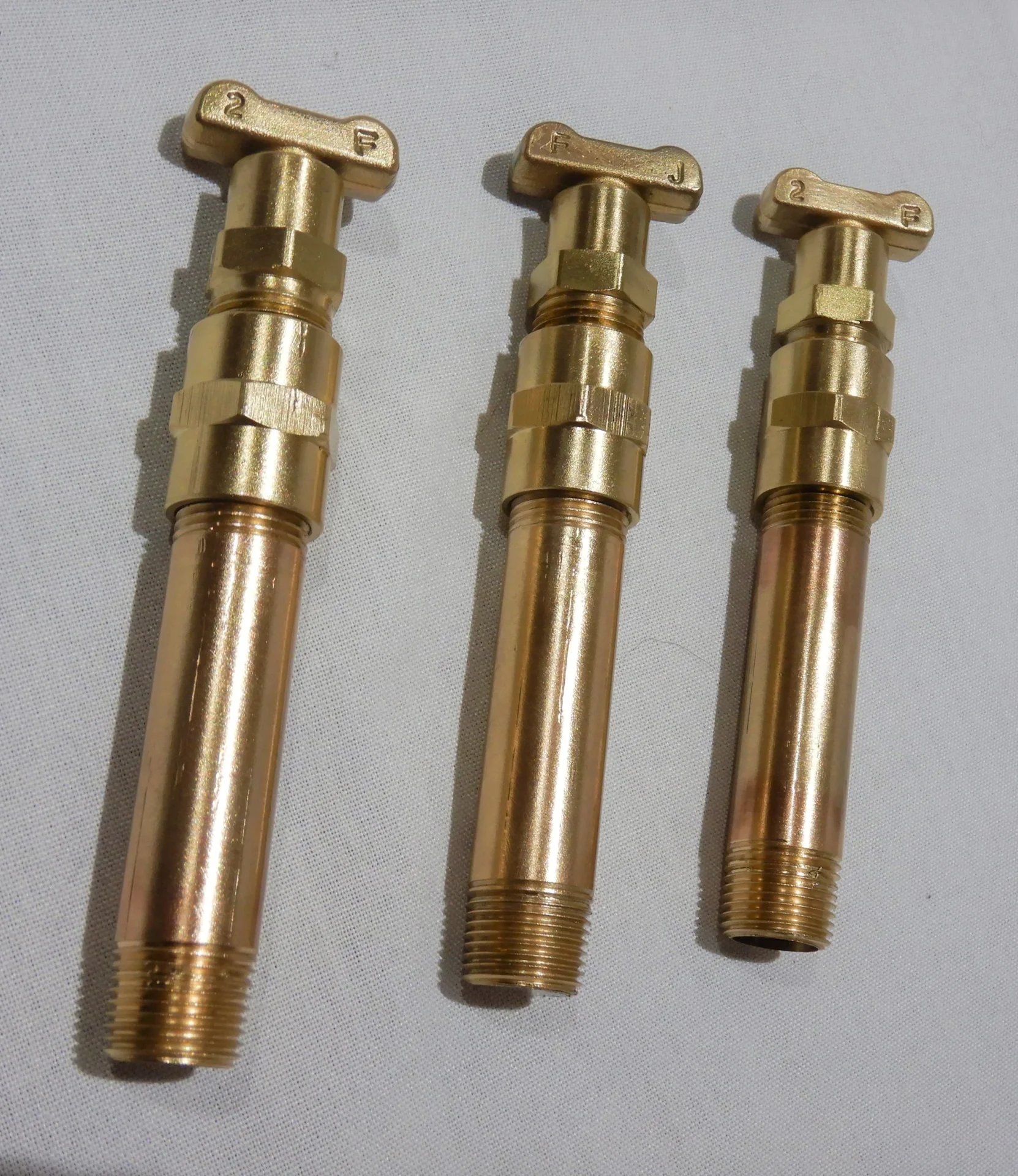

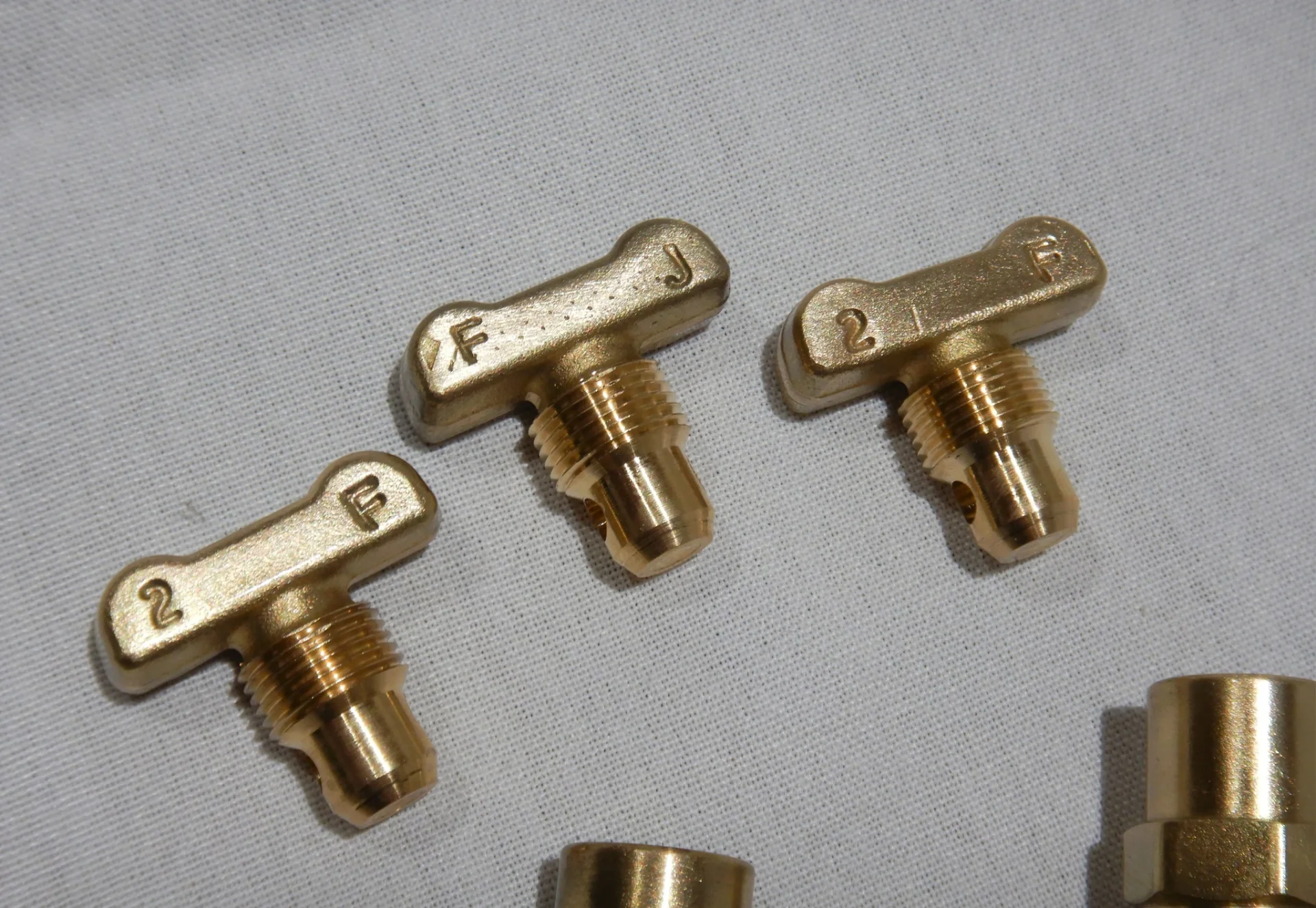

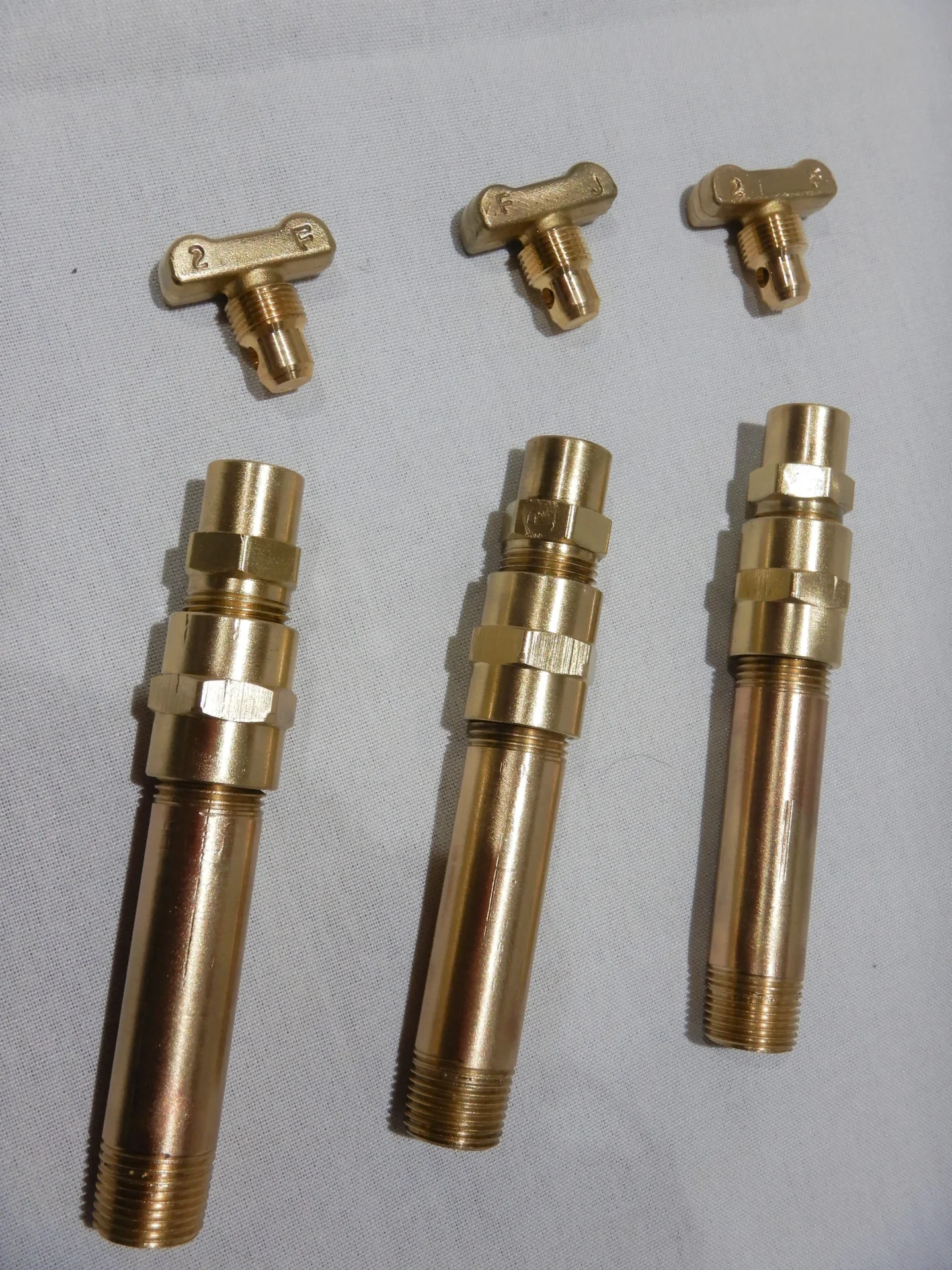

An original ‘74 rad has pipe thread at the bottom with a pipe with a shutoff at the bottom.


Like this right :D

96431-03873











Steamer

SILVER Star
Joined
Jul 20, 2009
Messages
1,739
Location
Miami, FL
Good luck finding a plug to match up with those goofy threads on some of those after market radiators. I had one snap off and had to pull the radiator. I couldn’t match it up, so I had a radiator shop solder in a 1/4" pipe thread bung. Then it was easy to find 1/4" brass nipples, caps, plugs or valves.


ToyotaMatt

Factory Focus-Point Mind-Set Approach
Supporting Vendor
GOLD Star
Joined
Aug 12, 2007
Messages
19,727
Location
EAST COAST
Website
vintageteqparts.com
Good luck finding a plug to match up with those goofy threads on some of those after market radiators. I had one snap off and had to pull the radiator. I couldn’t match it up, so I had a radiator shop solder in a 1/4" pipe thread bung. Then it was easy to find 1/4" brass nipples, caps, plugs or valves.


excellent idea steamer !

Joined
Apr 2, 2008
Messages
10,848
Location
Victoria, BC

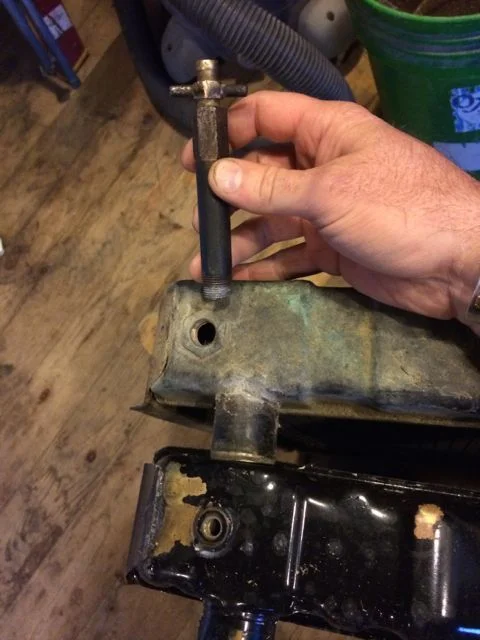

Same function, but mine was more like a pipe with a hole that went to the side with a bolt coming out of the bottom. When moved my rad during my SBC conversion, I replaced it with a brass plug so that it would not stick down and get caught on things.

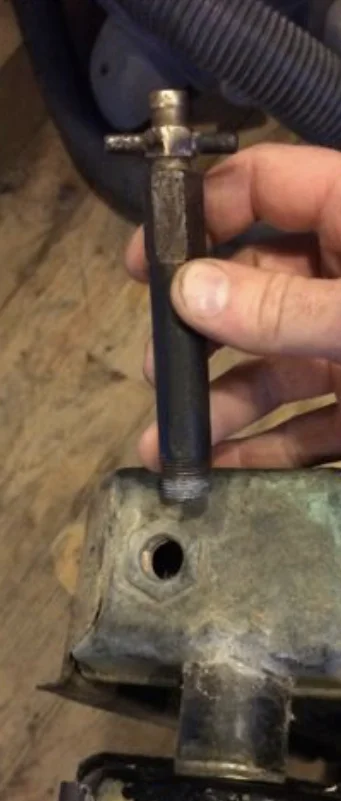

I found a pic here:


Once again Matt you’ve improved on the original.

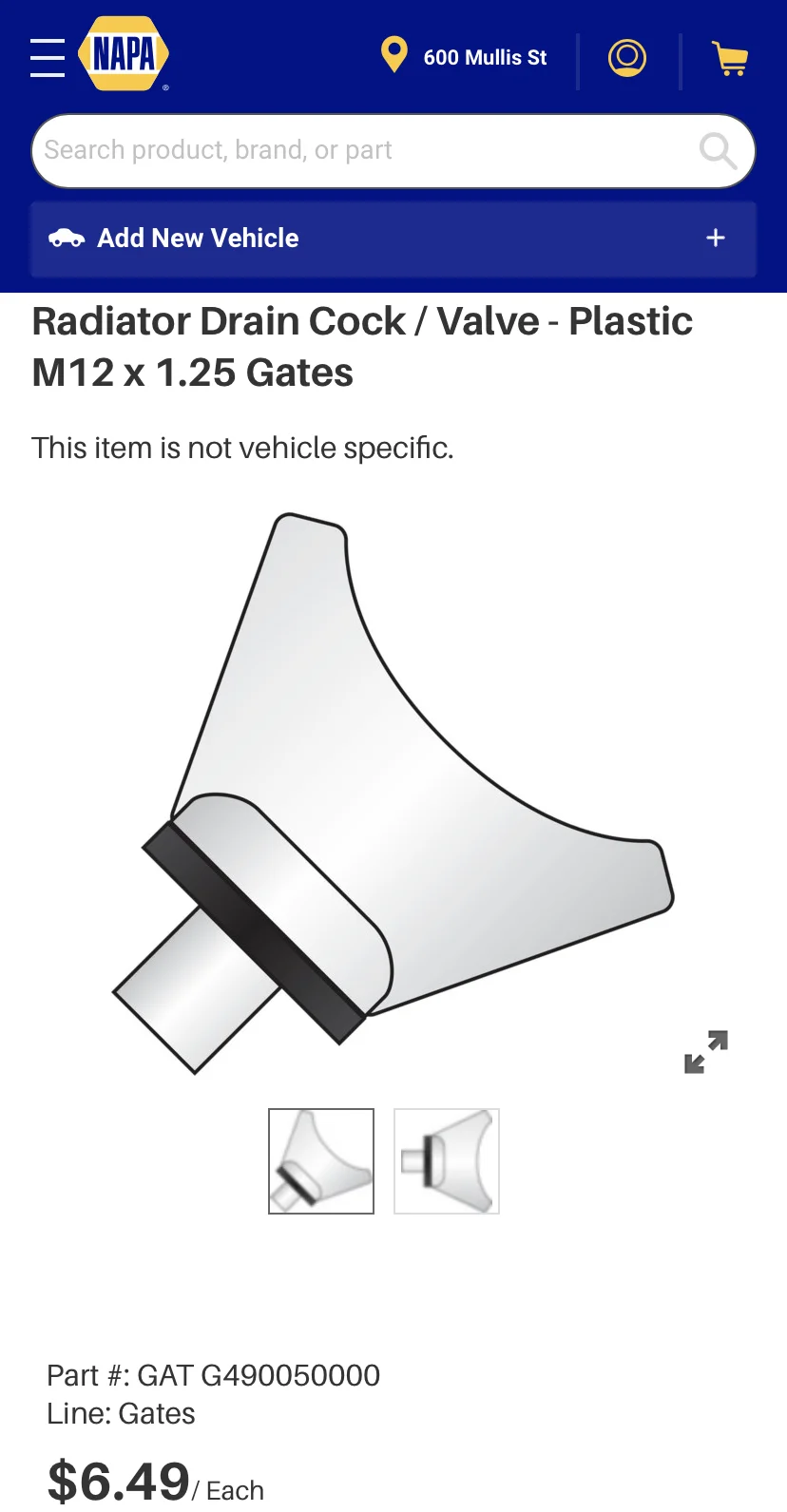

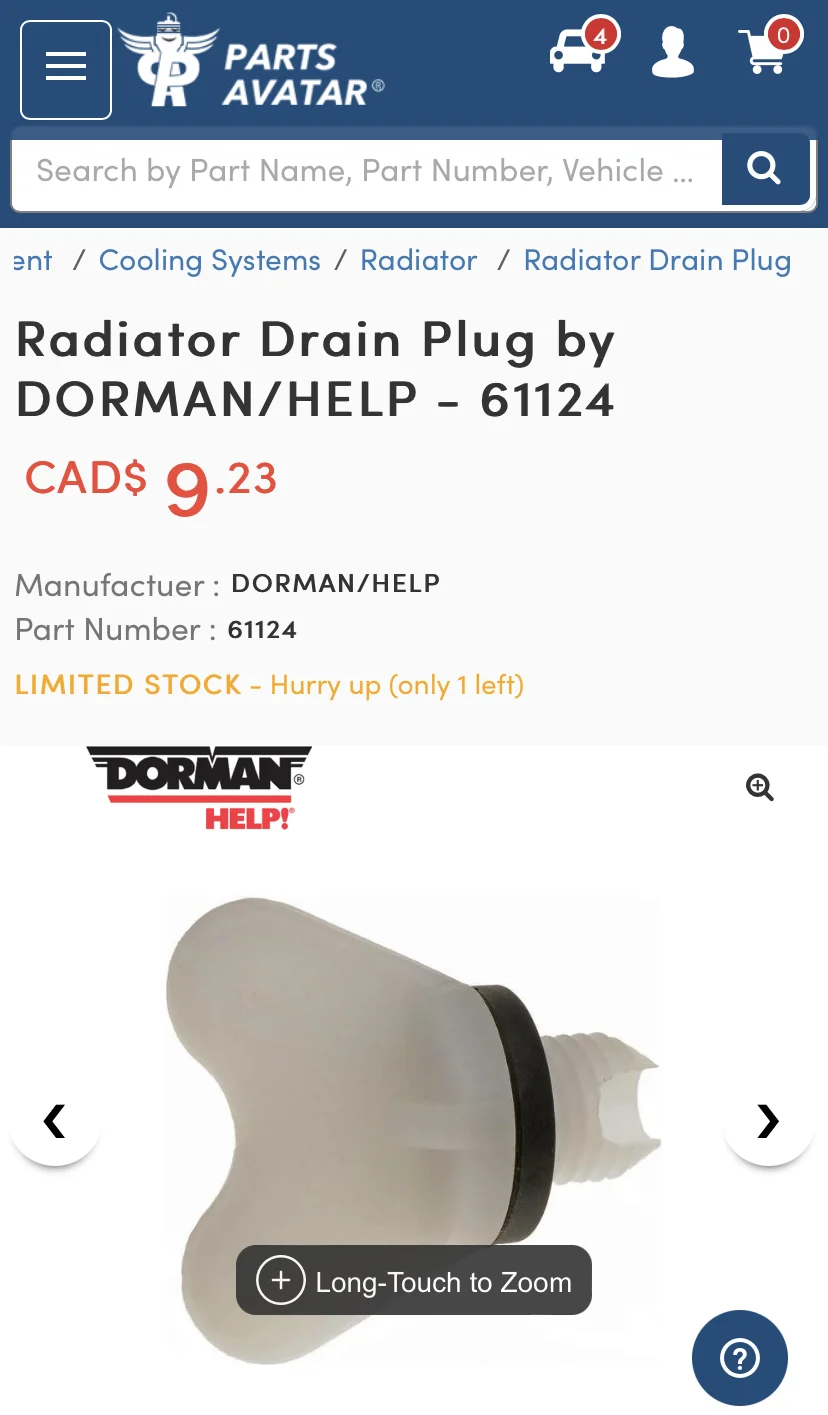

Sounds like the OP is looking for something like this:

Hopefully he’ll get lucky.


fyton2v

SILVER Star
Joined
Jan 7, 2004
Messages
606
Location
Santa Rosa Valley, CA
Matt, what size are those things? I've just learned that the plug I'm missing is size M12-1.25. Found an oil drain plug at autozone that looked to be about right ... and it was exactly the right size. The only luck I've had today.

Last edited:
Joined
Aug 21, 2003
Messages
87
Location
Back in Chandler, AZ
Matt, what size are those things? I've just learned that the plug I'm missing is size M12-1.25. Found an oil drain plug at autozone that looked to be about right ... and it was exactly the right size. The only luck I've had today.
I have an aftermarket (CSF) radiator in my 78 FJ40 and had the exact problem you are having. Plastic plug effectively fell apart and I was never able to find an exact replacement. I ended up using a stainless M12 button head socket cap screw and a rubber o-ring. No issues, no leaks.
