New ARB BASE roof rack

[jonnydeez]

I don’t plan to use my sunroof much, so I opted for the 84” Base Rack. Took a bunch of little tweaks to get it mounted just right. Only thing I don’t like is the proximity of the gutter clamp to the front doors. It’s a tight fit...if you don’t get it secured just right, you may not be able to open your doors. Not sure why I didn’t receive a wind defector with mine? I contacted ARB Customer service and awaiting their response. Part number is ARB BASE81.



[Retro LC]

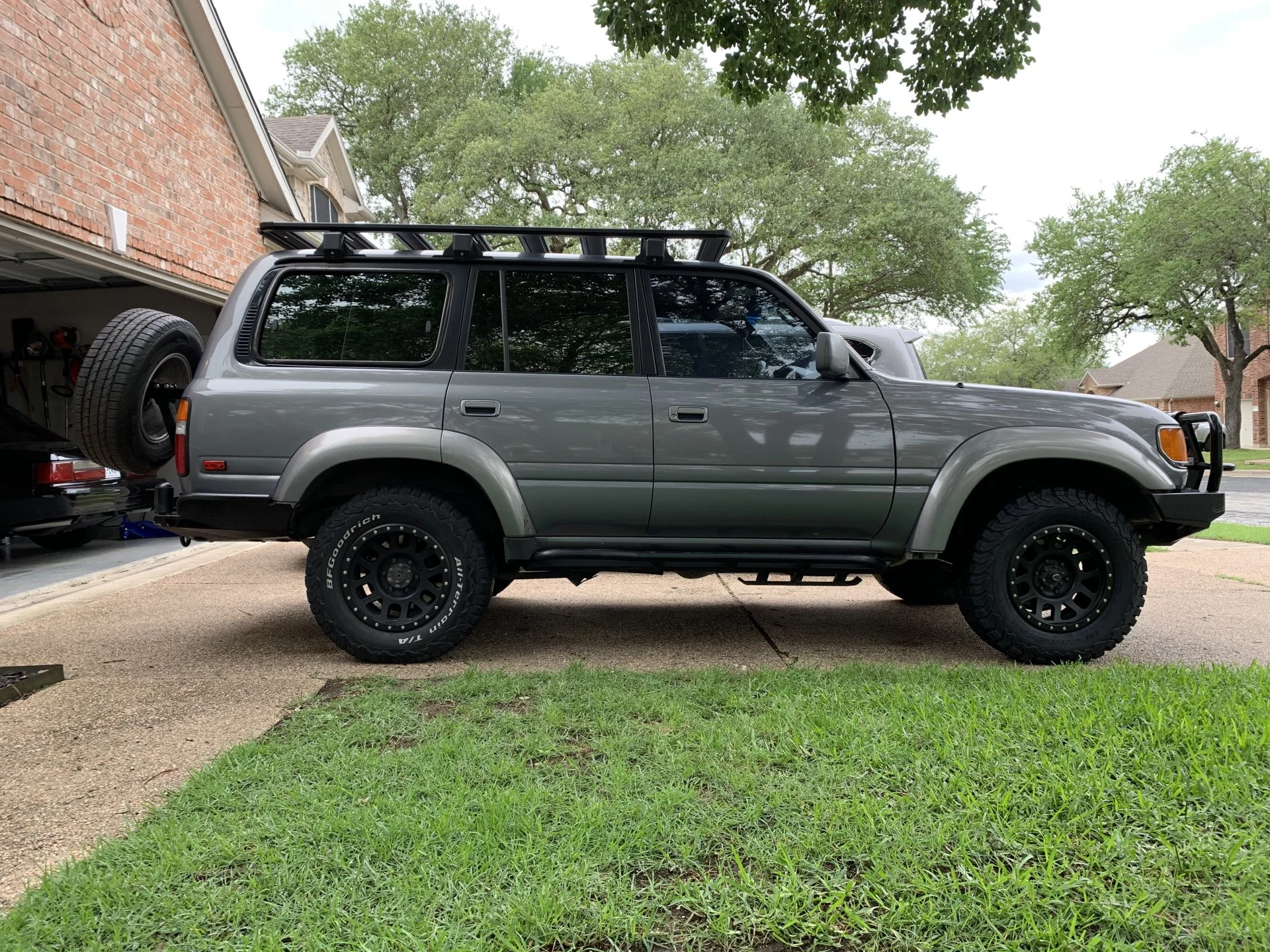

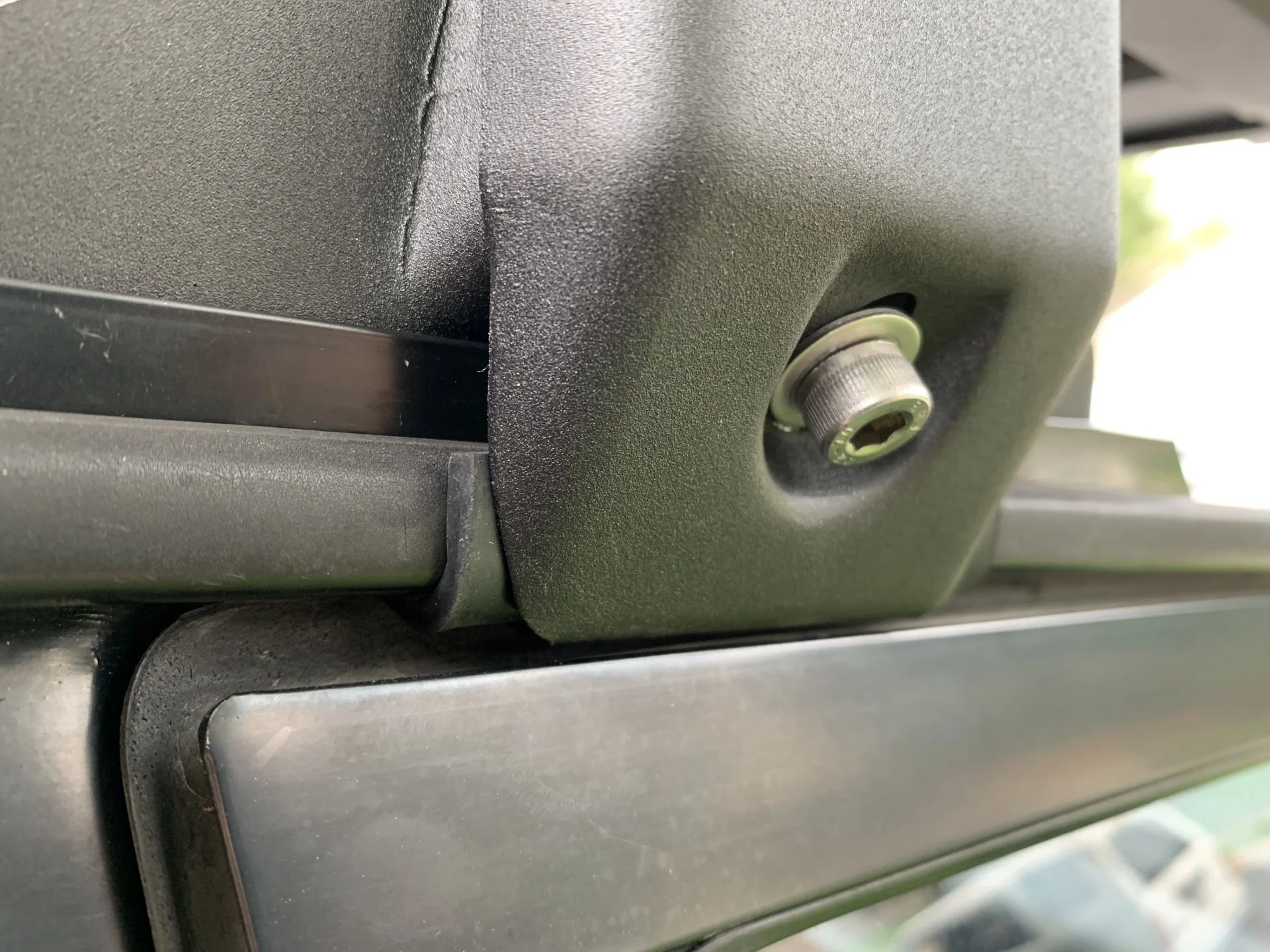

I don’t plan to use my sunroof much, so I opted for the 84” Base Rack. Took a bunch of little tweaks to get it mounted just right. Only thing I don’t like is the proximity of the gutter clamp to the front doors. It’s a tight fit...if you don’t get it secured just right, you may not be able to open your doors. Not sure why I didn’t receive a wind defector with mine? I contacted ARB Customer service and awaiting their response. Part number is ARB BASE81. View attachment 2678622View attachment 2678623View attachment 2678624

Looks good. I didn’t get a wind deflector with mine either. Called ARB’s superb customer service and they shipped one right out. I see you got the roller attachment accessory for the rear of the rack—nice.



[Retro LC]

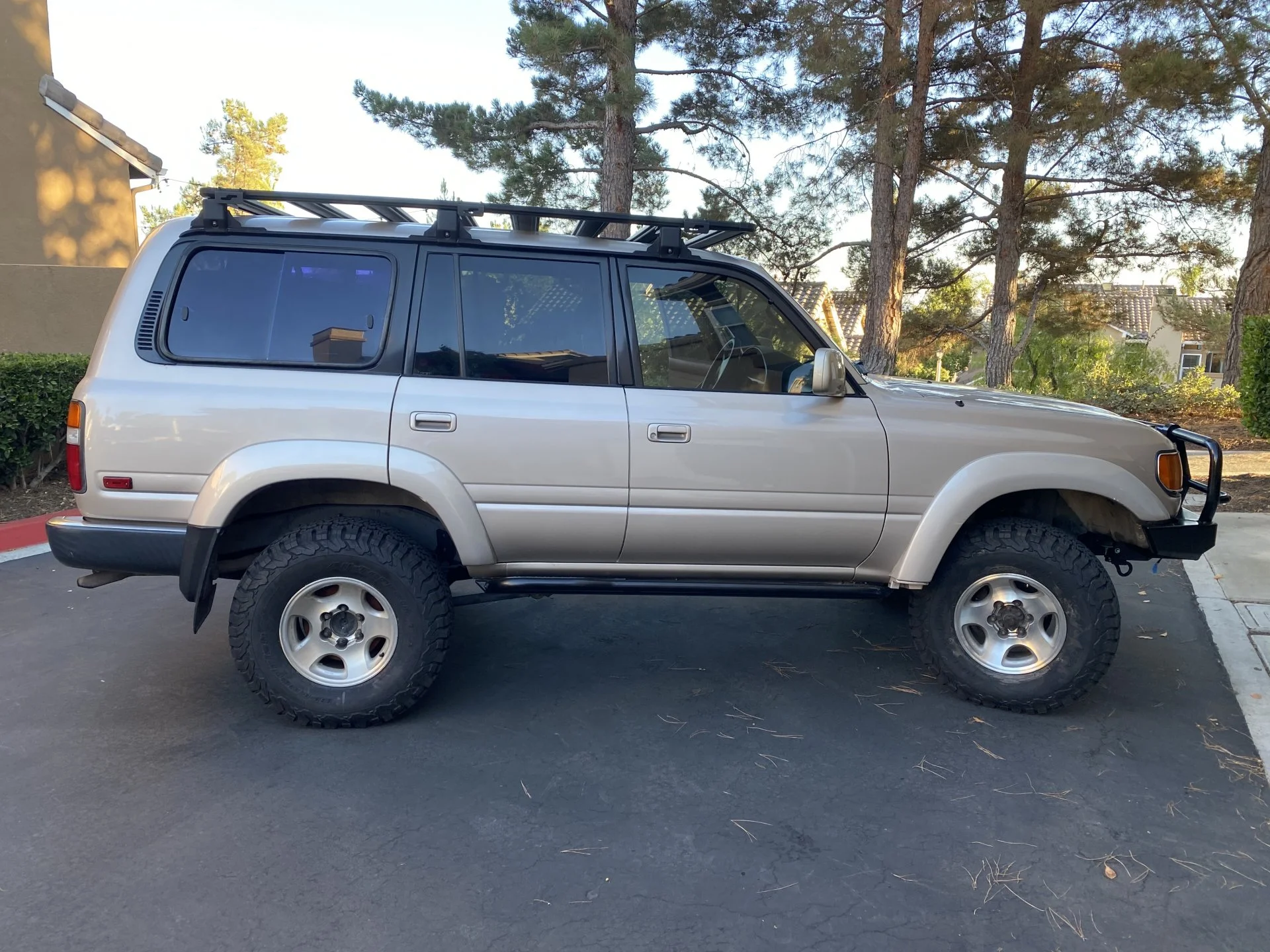

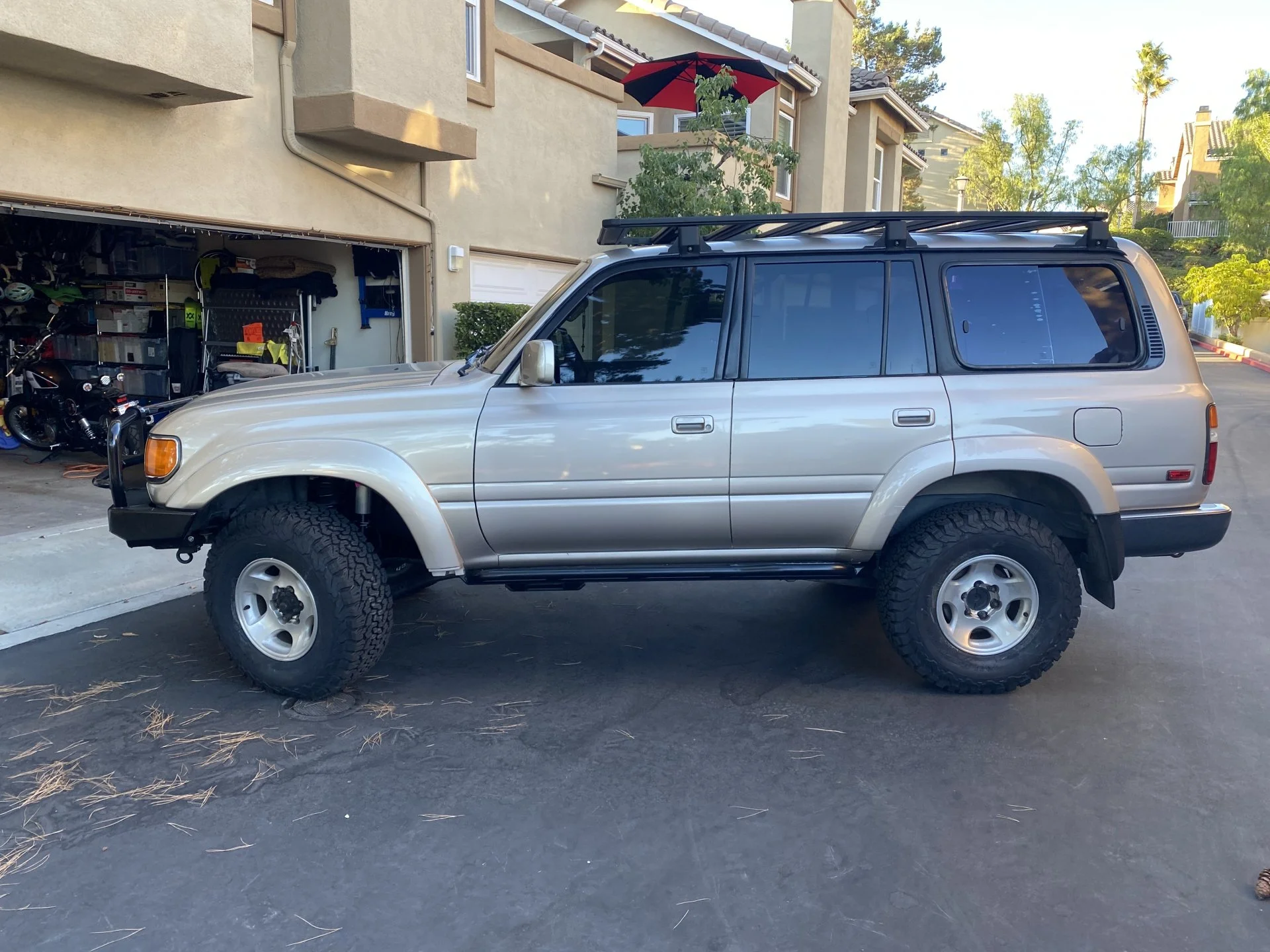

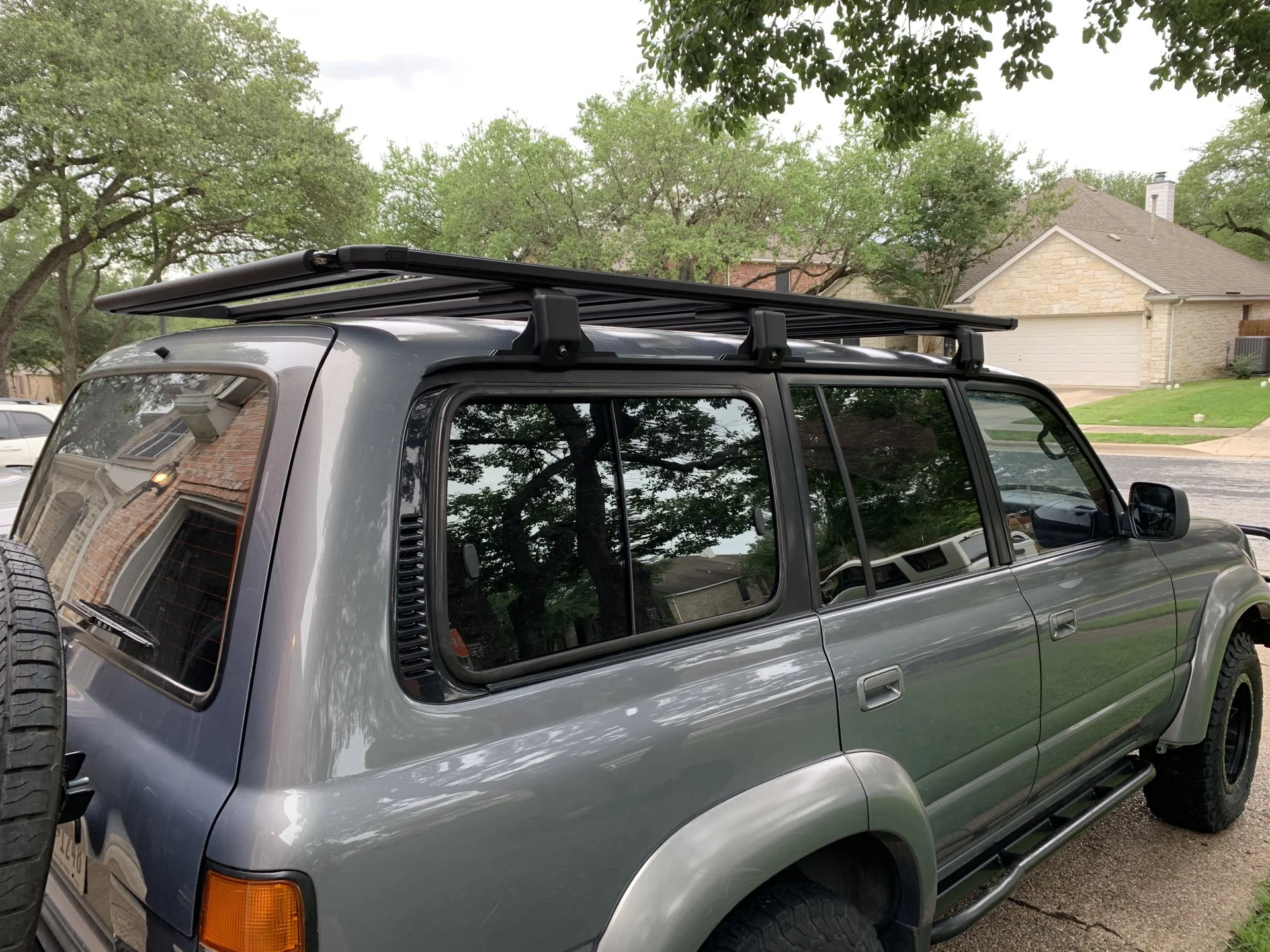

Here's pics of mine. Finally got around to installing it. Better late than never!



[nextuniverse]

Could someone post the torque specs for the various fasteners? I lost my printed manual and cannot seem to find the install pdf anywhere online..

Thanks in advance.



[Retro LC]

Could someone post the torque specs for the various fasteners? I lost my printed manual and cannot seem to find the install pdf anywhere online..

Thanks in advance.

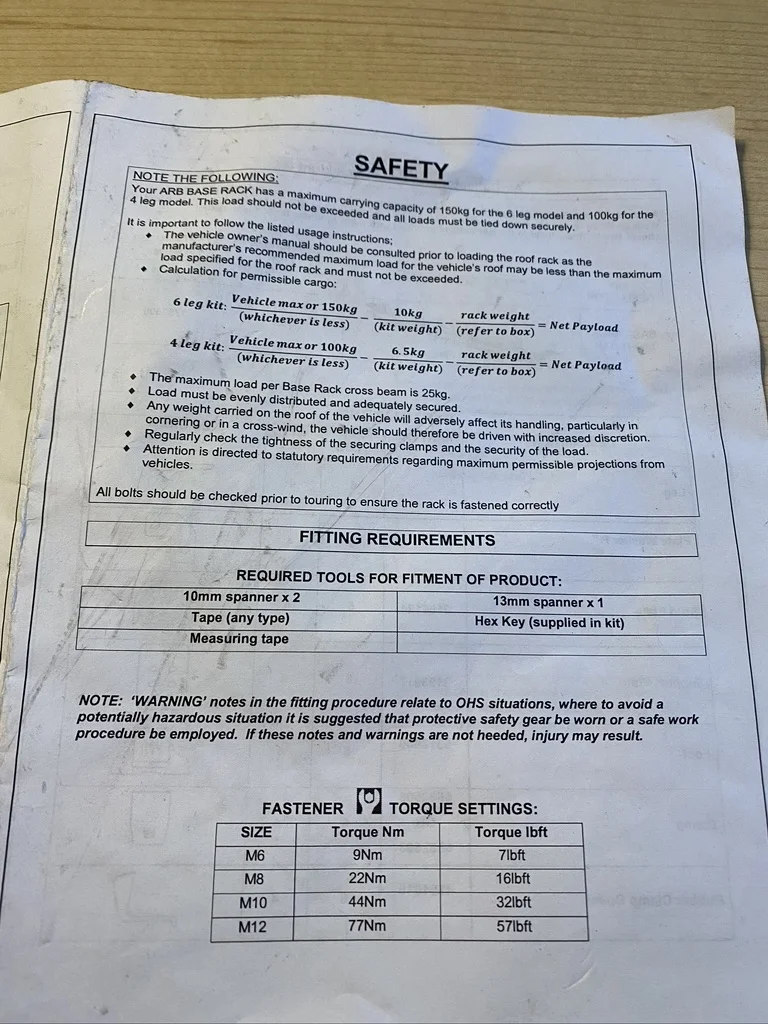

Just saw this—I’m up in the mountains for a few days and can send pics of the manual with all torque specs when I get back. Just don’t do what I did and try to use loctite torqued to the settings in the manual. Or at least be aware of the difference between wet and dry torque settings.



[FJ40 that green thing]

Any chance one of you could measure the clearance of the gutter mounts to the bottom of the platform on these 80 series ARB base racks? Looking to verify fitment for a 70 series wagon. Thanks



[Retro LC]

Any chance one of you could measure the clearance of the gutter mounts to the bottom of the platform on these 80 series ARB base racks? Looking to verify fitment for a 70 series wagon. Thanks

Yes I can no problem. I am getting my rig back from the shop tonight so I’ll send over later.



[Retro LC]

Yes I can no problem. I am getting my rig back from the shop tonight so I’ll send over later.

In the meantime, here are some pics showing details of the adjustability, etc...



[Retro LC]

Could someone post the torque specs for the various fasteners? I lost my printed manual and cannot seem to find the install pdf anywhere online..

Thanks in advance.

Please see pics below and apologies on the delay.



[nextuniverse]

Please see pics below and apologies on the delay.

Thanks so much for following up! I really appreciate it.



[Retro LC]

Any chance one of you could measure the clearance of the gutter mounts to the bottom of the platform on these 80 series ARB base racks? Looking to verify fitment for a 70 series wagon. Thanks

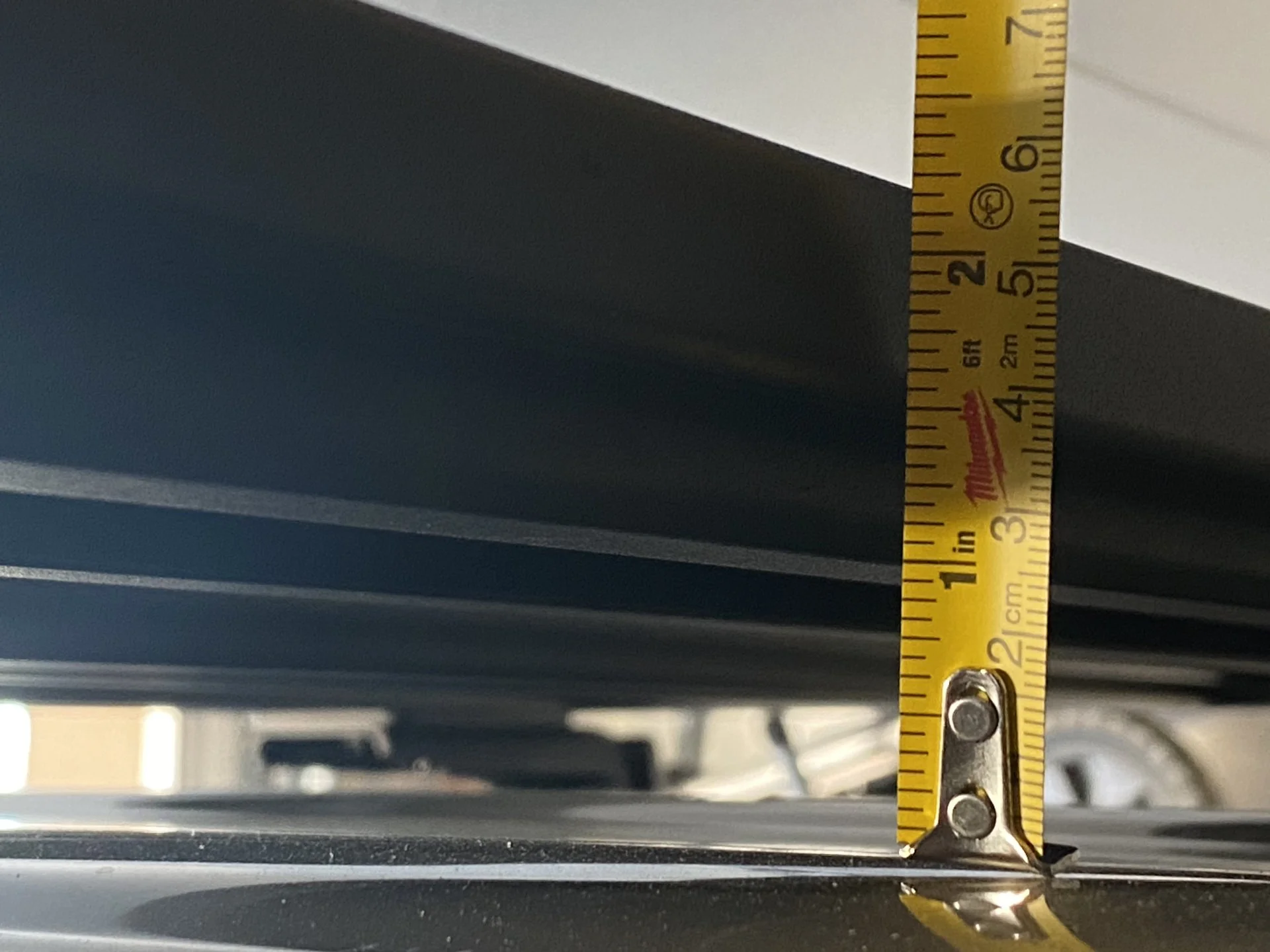

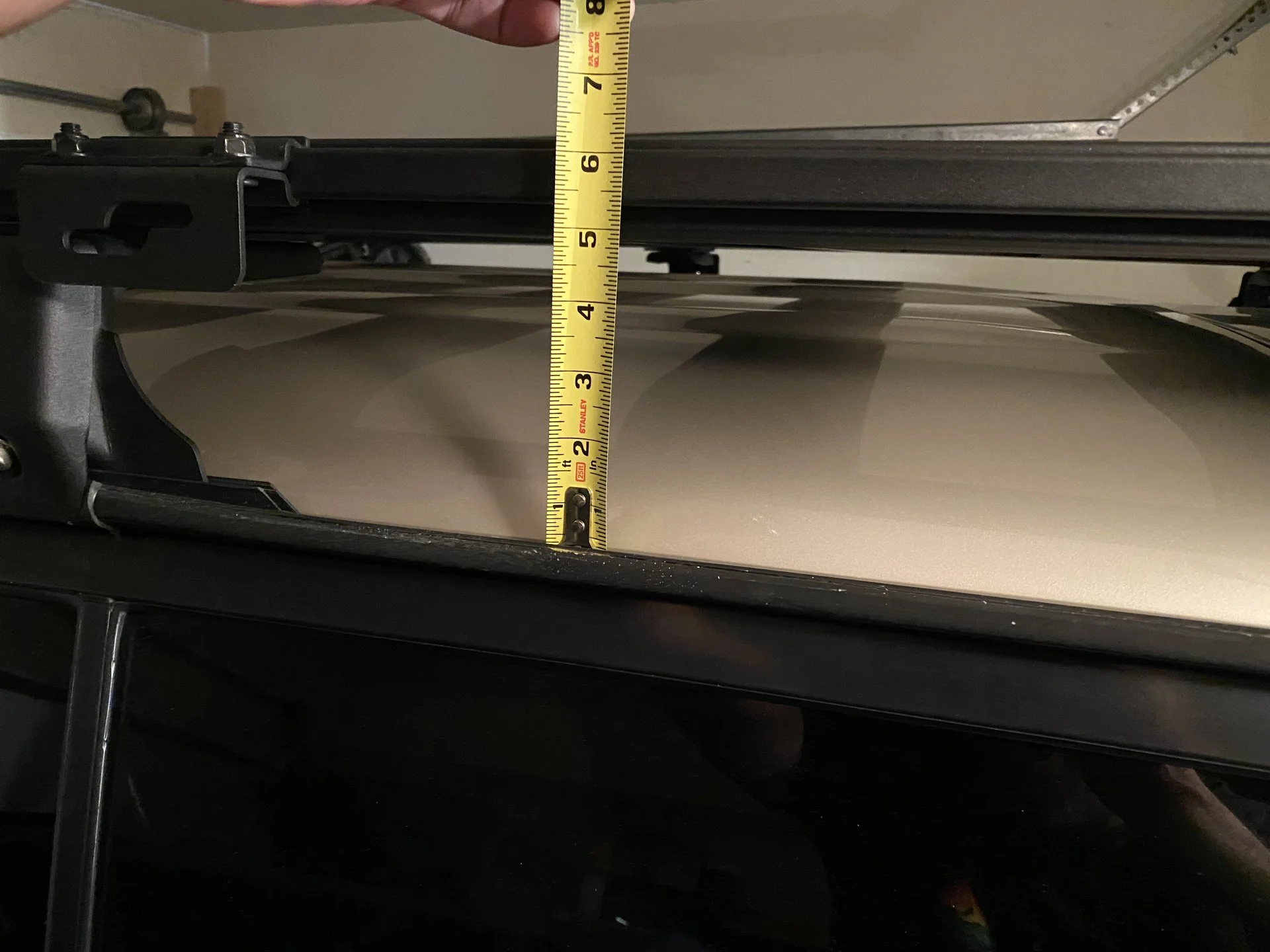

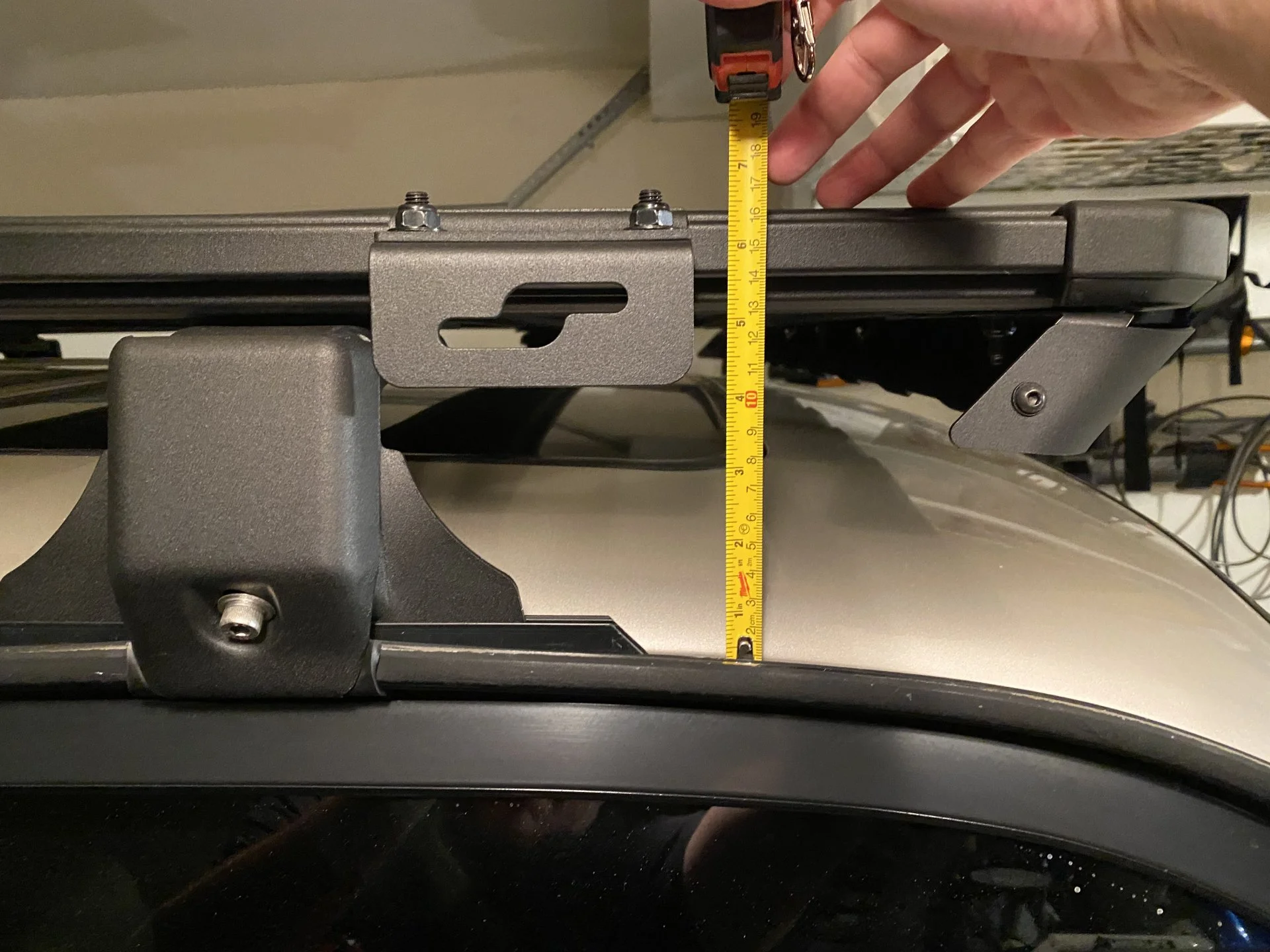

Here you go. It's exactly 4 7/8" from the bottom of the gutter to the bottom lowest point on the rack. It's about 1 1/8" from the highest point on the sheet metal of the roof to the bottom lowest point on the rack. The pictures don't exactly show those measurements because of the interplay of optics / angles and such, but you get the idea.



[MtnAddict]

So looking at your pics, is 6 to 6 1/2” from gutter rails to top of rack a fair measurement?



[eric90503]

Thanks JonnyDeez and Retro for sharing these pics. Clean rigs btw. I looking at this base rack as a possible means
for a clamshell type RTT.
Anyone stuff a RTT on theirs yet?



[FJ40 that green thing]

@Retro LC

Thank You!!!



[Retro LC]

So looking at your pics, is 6 to 6 1/2” from gutter rails to top of rack a fair measurement?

Yes that's more or less correct. It's exactly 6 1/4" from bottom of the gutter to the highest point on the rack--I took this measurement at several points along the gutter. Note, toward the front gutter portion though on an 80 series where the gutter tapers downward toward the front of the vehicle, that 6 1/4" number naturally goes up because the gutter tapers downward for drainage (down and away from the rack) while the top elevation of the rack remains constant.



[MtnAddict]

Yes that's more or less correct. It's exactly 6 1/4" from bottom of the gutter to the highest point on the rack--I took this measurement at several points along the gutter. Note, toward the front gutter portion though on an 80 series where the gutter tapers downward toward the front of the vehicle, that 6 1/4" number naturally goes up because the gutter tapers downward for drainage (down and away from the rack) while the top elevation of the rack remains constant.

Great, thanks.



[wesley993]

Reviving old thread for information. I’ve got a base81 installed on my 93 LC. Wondering what the wind deflector side holes attach to? I don’t see anything on either edge to attach to? Tia.



[Retro LC]

Reviving old thread for information. I’ve got a base81 installed on my 93 LC. Wondering what the wind deflector side holes attach to? I don’t see anything on either edge to attach to? Tia.

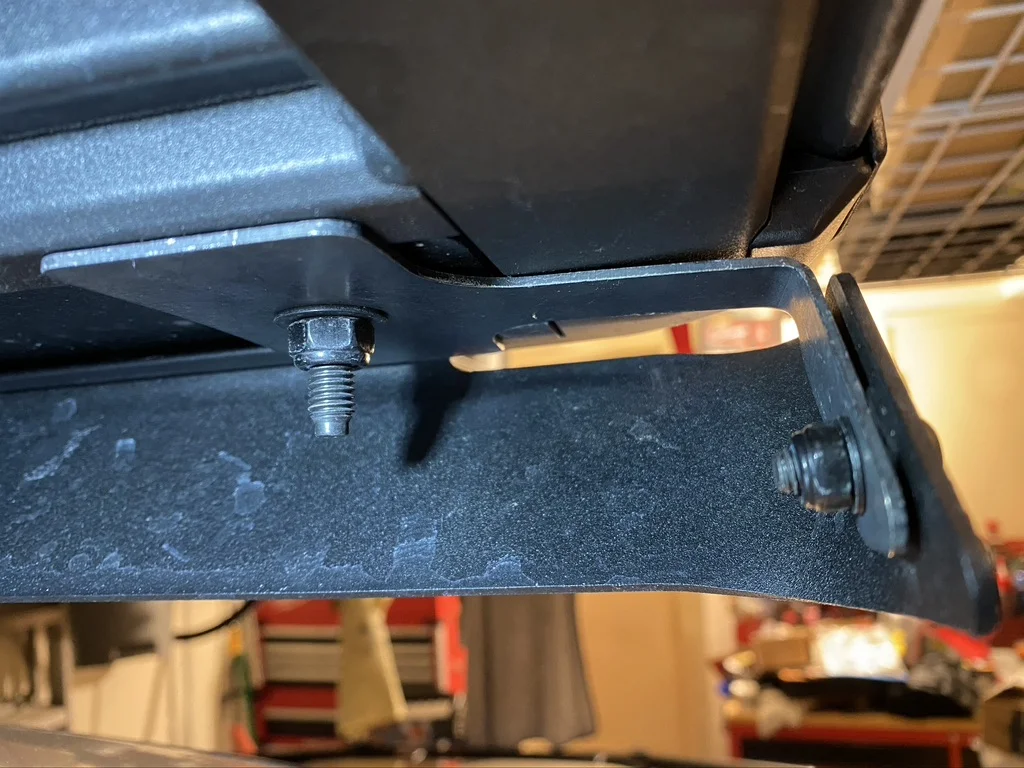

Here's some pics for how it attaches. Per ARB mine is a Universal Wind Deflector for the ARB Base Rack. You should have this bracket and hardware that attaches the Base Rack to the outer edges of the wind deflector. My rack is also BASE81 part#.



[wesley993]

Here's some pics for how it attaches. Per ARB mine is a Universal Wind Deflector for the ARB Base Rack. You should have this bracket and hardware that attaches the Base Rack to the outer edges of the wind deflector. My rack is also BASE81 part#.

View attachment 2994167View attachment 2994168

Thanks for responding. I didn’t get those outermost pieces with my wind deflector kit. Which I had to buy separately. Guess I better contact ARB



[Scotch]

for those who have installed - how are you liking the base rack? anyone else running it?
