60 Series Replacement Door Panel Sets NOW IN STOCK at orikawa.net

send a message if you have any questions ! spenser@orikawa.net or Instagram @orikawajdm
60 Series manual windows only, but 62 and more series coming ASAP.

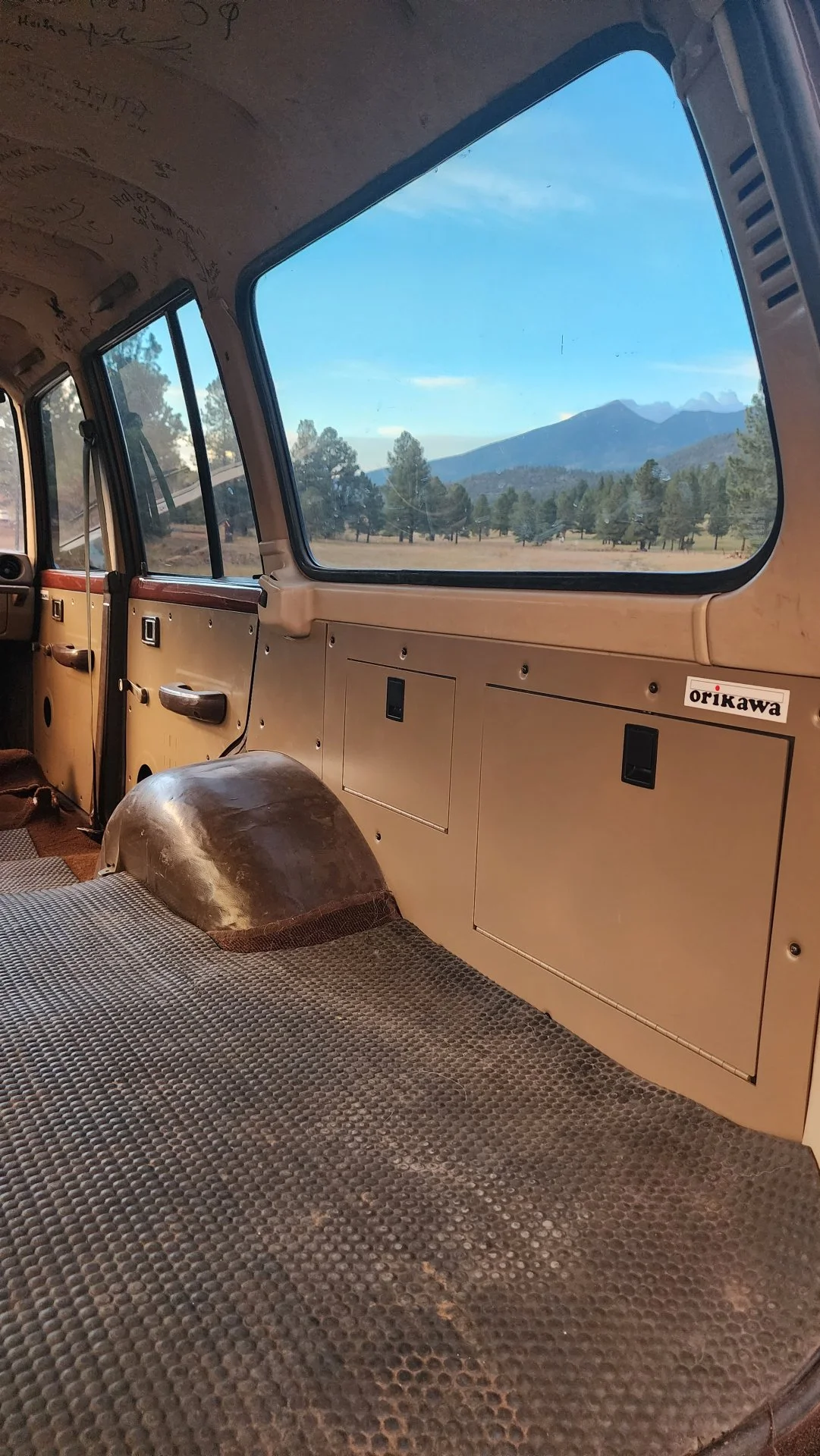

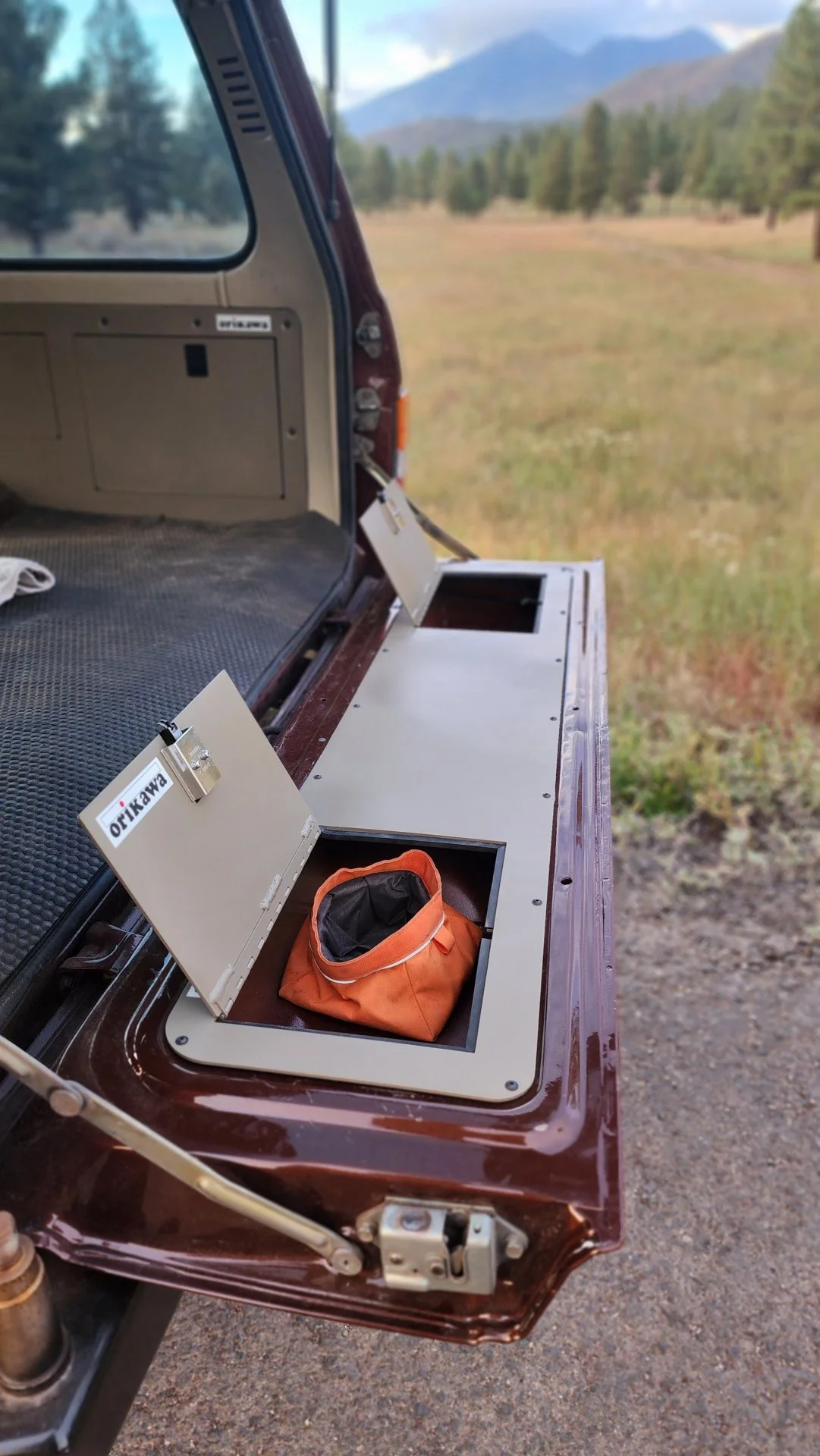

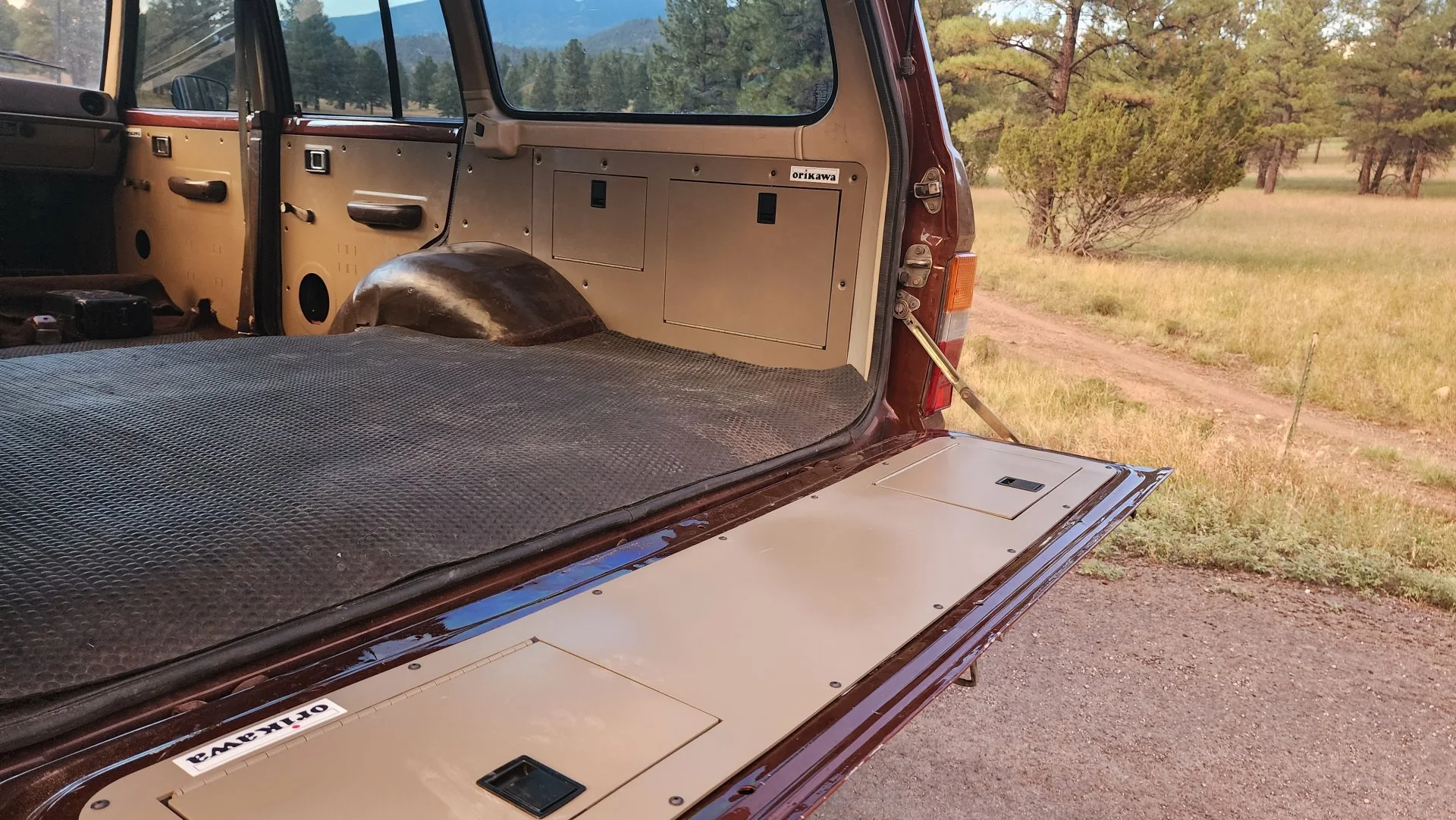

this is a COMPLETE solution to upgrade Audio, Worn out Door Cards, Inner Window Belt Weatherstripping, and Storage

PRODUCT INFORMATION​

  • All Aluminum Construction
  • Speaker Ready
  • PALS Standard Attachment Points
  • Inner Window Felt Replacement Included
  • OEM Color Matched Powder Coat
  • Sunco Made In Japan Hardware

TECHNICAL SPECIFICATIONS​

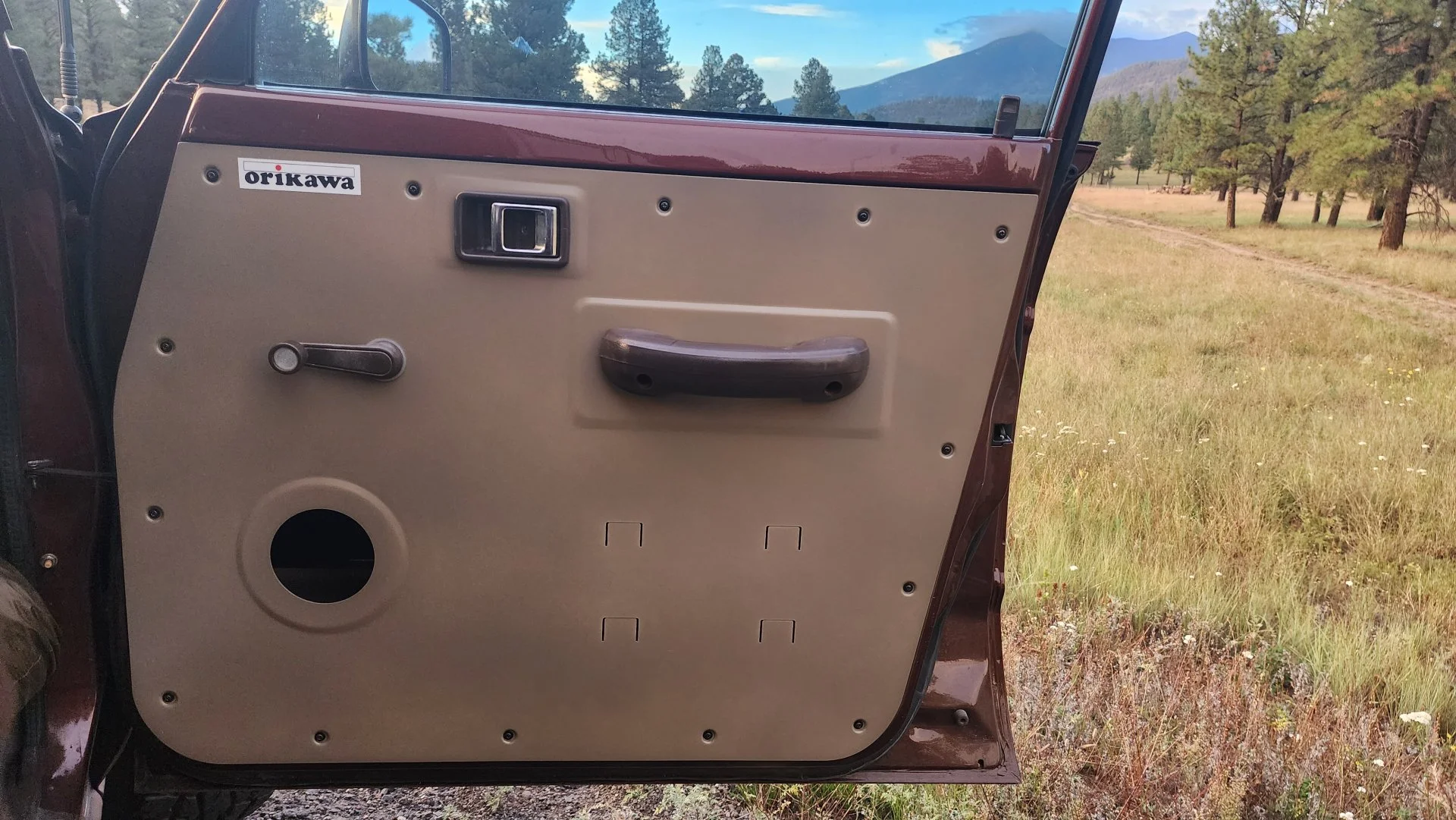

Front Door Panel
  • 4" Speaker Ready via 3.75" Cutout
    • 2" Maximum Recommended Speaker Top Mount Depth
  • Die Pressed Reinforcement Features
  • 5x5 PALS Standard Mounts for most large MOLLE pouches
  • 2mm 5052 Aluminum for Low Weight and Corrosion Resistance
  • Window Felt / Belt Weatherstrip replaces Toyota 68170-90A01

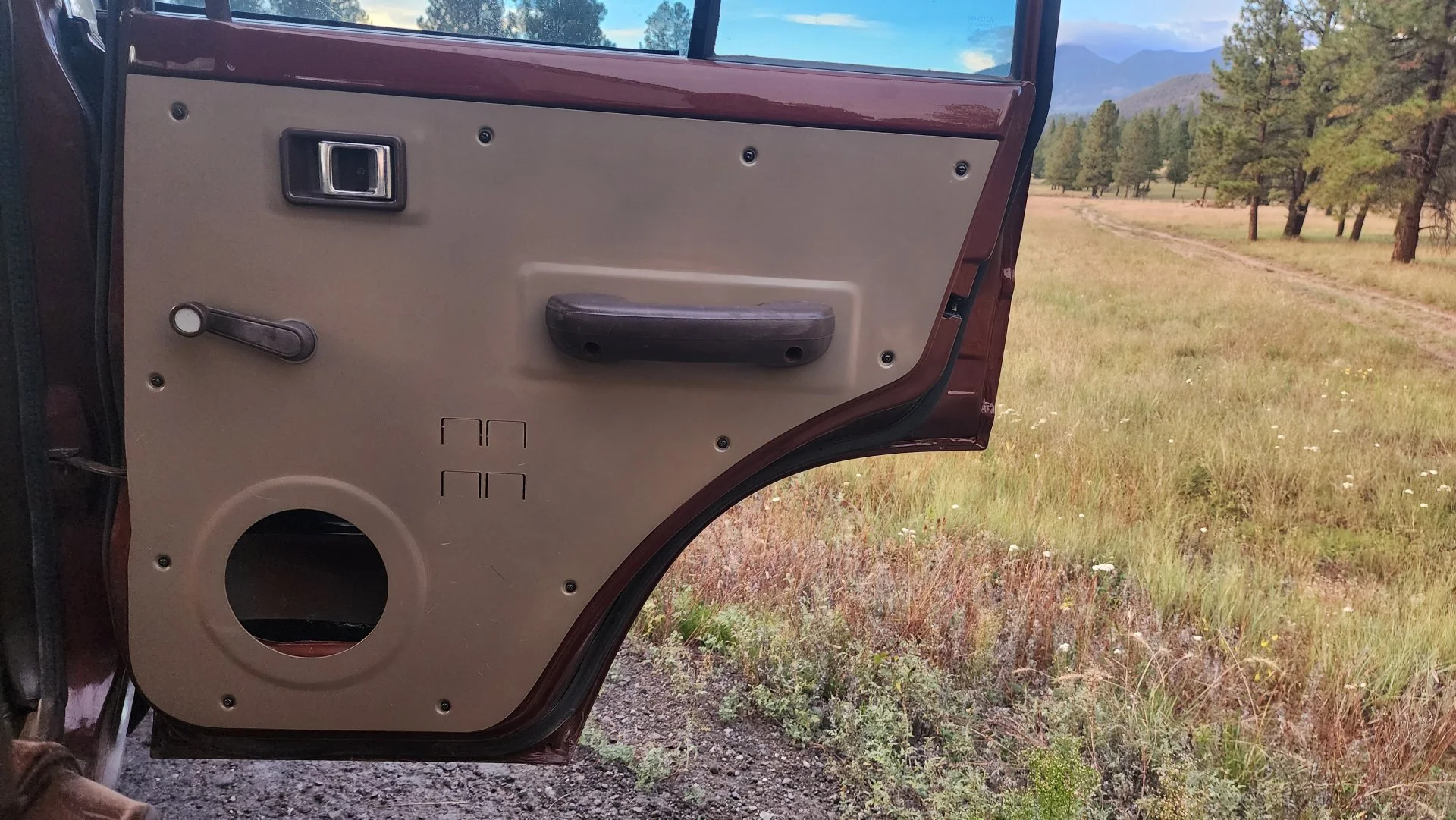

Rear Door Panel
  • 6.5" Speaker Ready via 5.75" Cutout
    • 2.25" Maximum Recommended Speaker Top Mount Depth
  • 2x2 PALS Standard Mounts for most small MOLLE pouches
  • Window Felt / Belt Weatherstrip replaces Toyota 68190-90A01
  • What's In The Box?​

    Two Front and Two Rear Door Panels w/ rear rubber gasket
    Front and Rear Inner Window Belt Weatherstripping w/ 3M VHB double-sided tape
    Mounting Hardware: 50 Screws, 50 Well-Nuts
