Need help finding a part number, 3b venturi hose to injection line clip

This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.

Joined
Apr 30, 2021
Threads
19
Messages
152
Location
Utah

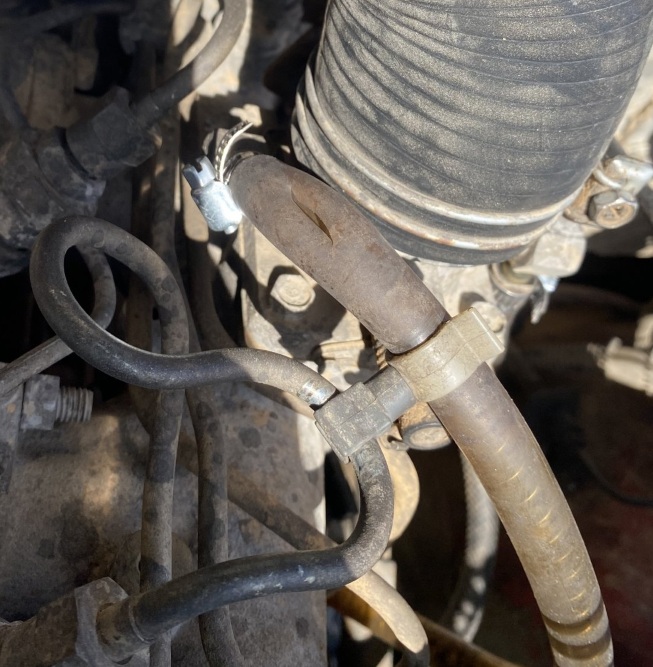

I tried searching some diagrams and had no luck. it's in this picture

I'm also having trouble finding a part number for the bracket that holds the AC line away from the fuel filter housing (though I doubt the part is available, I wanna check just in case)
ac hose bracket.png

Thanks guys!

Venturi hose clip on the HJ47 is 90464-00271.. likely the same part?


Shoot it does look discontinued, but at least I know now! Thanks guys. The diagram for my engine didn't picture the venturi clips.
Edit: it might have been replaced with part number 90464-00618 I'm gonna get one and find out if it's right
