Howdy,

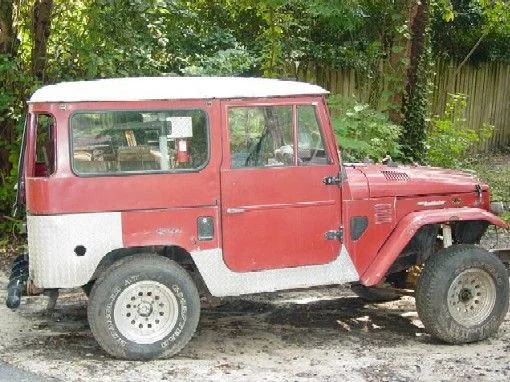

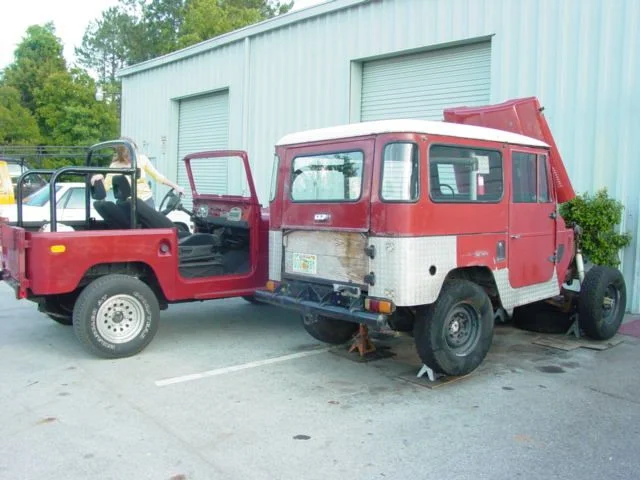

Here is my rusty 74 fj40. It has a great drivetrain and very serious rust issues. I have been looking into a new tub....... yet they are too EXPENSIVE. For that much loot, I'll could buy a 2nd truck and sell off the leftovers. So that is what I am doin' :idea:

here is the ad from the ebay auction:

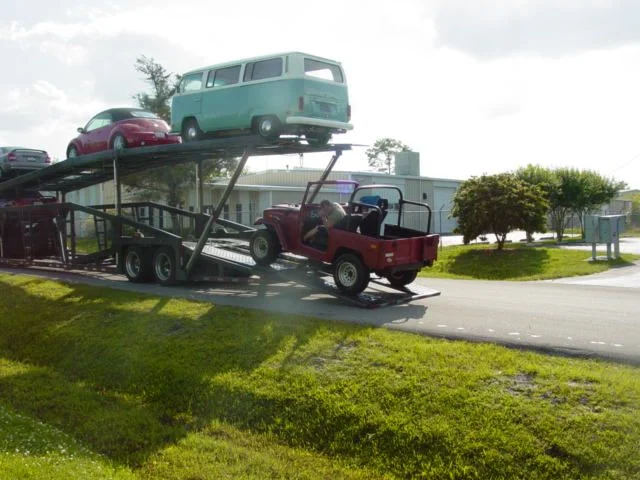

"You are bidding on a 1971 Toyota Landcruiser fj40, and is being sold with NO RESERVE! The body is in excellent condition, with few imperfections. There is no rust to my knowledge anywhere on the vehicle. The cruiser was bought as a project, and most of it was completed until I got too busy with other obligations to finish it. The motor runs, but needs either carburetor work, or a new carburetor, as there is an internal spring that needs to be replaced. There is also an exhaust leak. It also needs a windshield, but is sold with all of the windshield gaskets. The interior could use some work cosmetically, the bucket seats are out of an acura integra. Please email me with any questions. Here is a list of features that have been installed. -Intake manifold -New Filters -Acura bucket seats -Muffler -New cap/rotor/plugs and wires -New bikini top -New half doors -Original emblems -No need to smog! Needs: -Carburetor internal fuel pump -windshield(gaskets included) -electrical system work -Mirrors

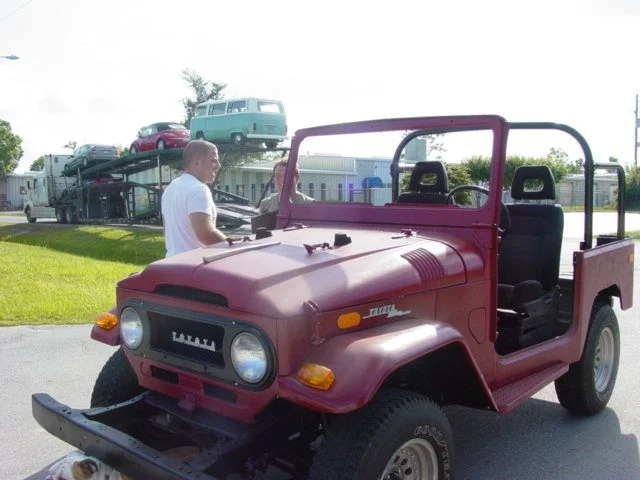

Previous owner says NO RUST NO BONDO....... . 1st to go reflectors, JEEP tail lights & black bezel

:cool:

Mel
fj40 tlc 967.jpg
fj40 tlc 897.jpg
fj40 tlc 282.jpg

Last edited:
Joined
Sep 16, 2004
Messages
1,400



I'm gonna go a head and say he lied about the rust. look at the front fender. congrats on the cruiser


cruiserjunktion

Cruiserjunktion@gmail.com
Supporting Vendor
GOLD Star
Joined
May 19, 2005
Messages
6,072
Location
North Florida



Hello,

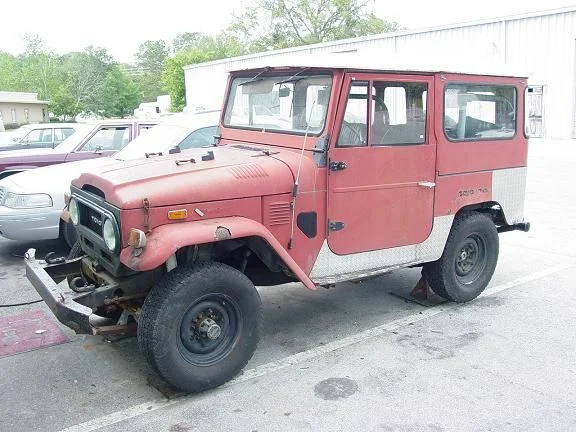

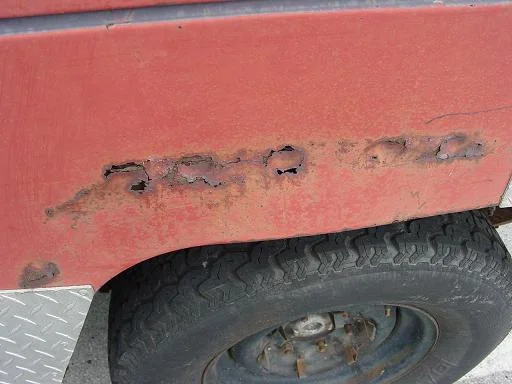

Yes the 1974 is rusty.......I am in the SWAMP GAINESVILLE FLA

I plan on swapping the low mile drivetrain into the no rust body.
fj40 tlc 185.jpg
fj40 tlc 230.jpg
fj40 tlc 203.jpg

Last edited:

cruiserjunktion

Cruiserjunktion@gmail.com
Supporting Vendor
GOLD Star
Joined
May 19, 2005
Messages
6,072
Location
North Florida



1st jto front disc brakes & bezel

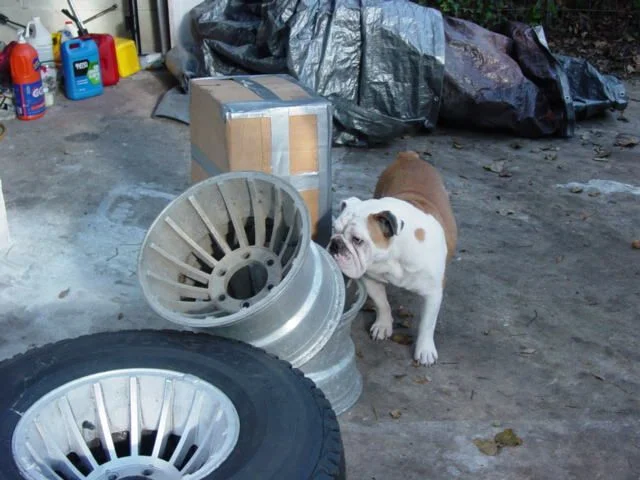

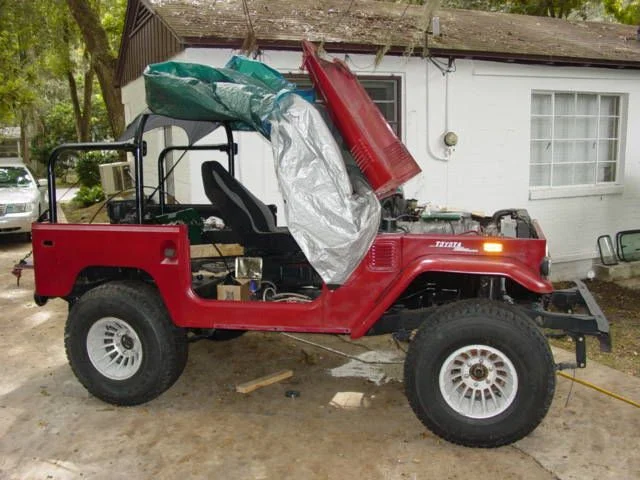

Picked up a set of longer shakles and some vintage vector 15 x 10 wheels from ebay. You may recognize the style from the buick gnx or the general lee they also have vectors. I like them because they look period correct for the fj. I exchanged the stock tires I purchased for a set of firestone 33 x 12.5s. The guy at tires plus assured me they won't blow up ala ford explorer. The wheels fit nicely over the gm calipers



https://forum.ih8mud.com/showthread.php?t=46661
resto 054.jpg

Last edited:

cruiserjunktion

Cruiserjunktion@gmail.com
Supporting Vendor
GOLD Star
Joined
May 19, 2005
Messages
6,072
Location
North Florida

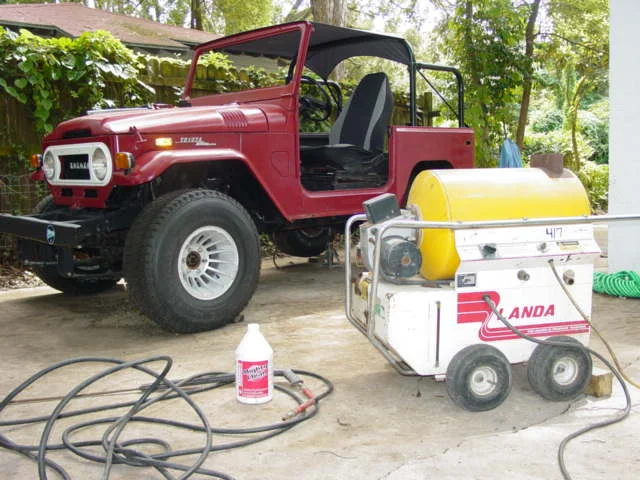

rented steam cleaner to remove caked on mud from undercarrige......

200* h20 gets the mud out
fj40 tlc 055.jpg
fj40 tlc 087.jpg

Last edited:

cruiserjunktion

Cruiserjunktion@gmail.com
Supporting Vendor
GOLD Star
Joined
May 19, 2005
Messages
6,072
Location
North Florida

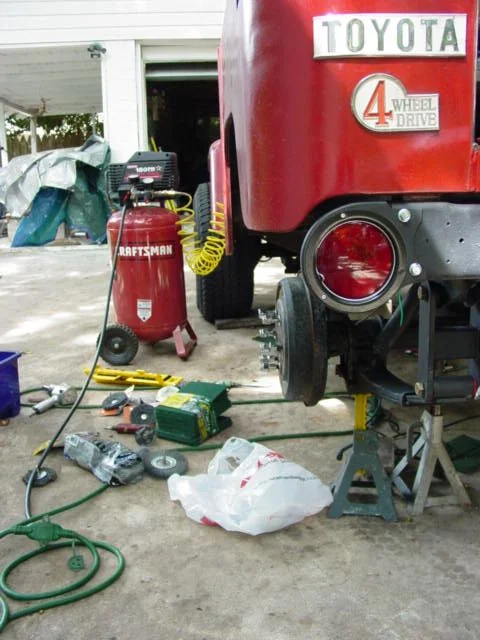

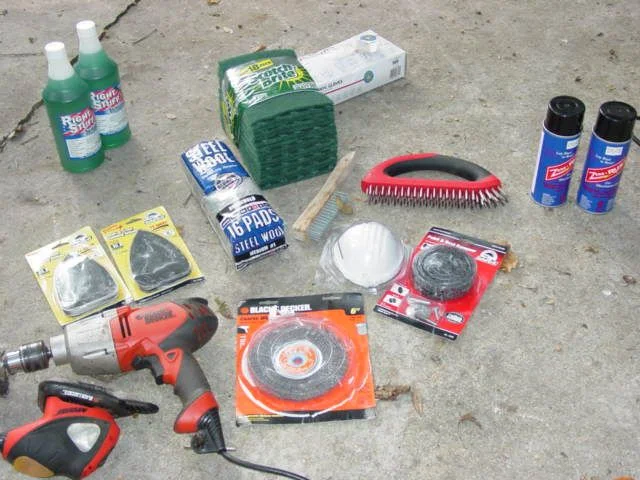

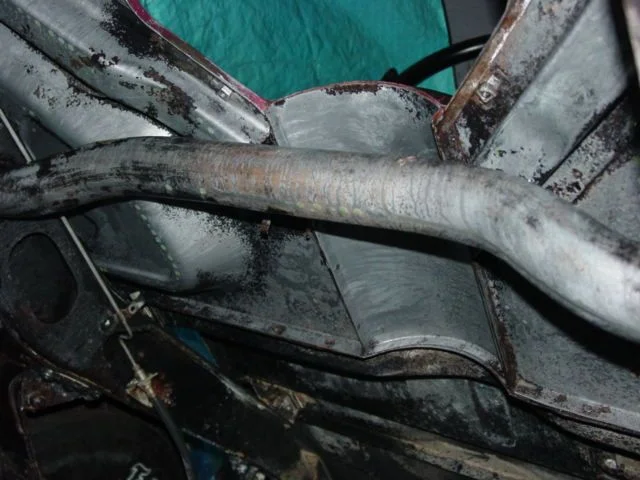

Began preserving the rust free tub. Removed paint from underbody.........
fj40 tlc 016.jpg
fj40 tlc 115.jpg
fj40 tlc 109.jpg

Last edited:

cruiserjunktion

Cruiserjunktion@gmail.com
Supporting Vendor
GOLD Star
Joined
May 19, 2005
Messages
6,072
Location
North Florida

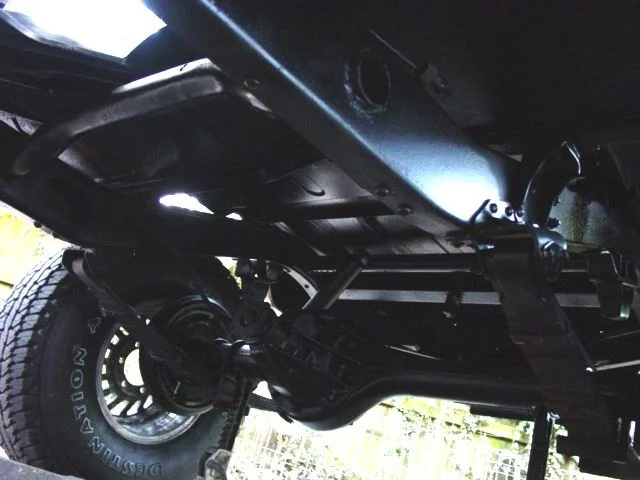

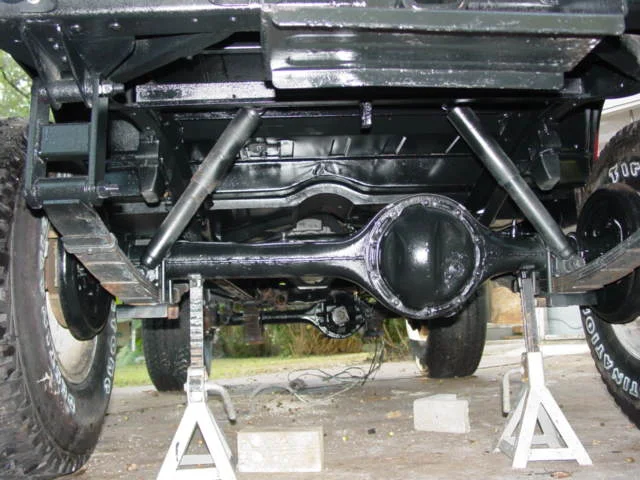

Purchased a wal mart $20 spray gun.... I am done with spray cans FOREVER. Oil painted underbody rustolum satin $7 quart 1.5 quarts

FUN!!!!

I have new shox, ubolts, sprins etc so I didnt refinish these parts
fj40 toyota 042.jpg
fj40 toyota 038.jpg

Last edited:

cruiserjunktion

Cruiserjunktion@gmail.com
Supporting Vendor
GOLD Star
Joined
May 19, 2005
Messages
6,072
Location
North Florida

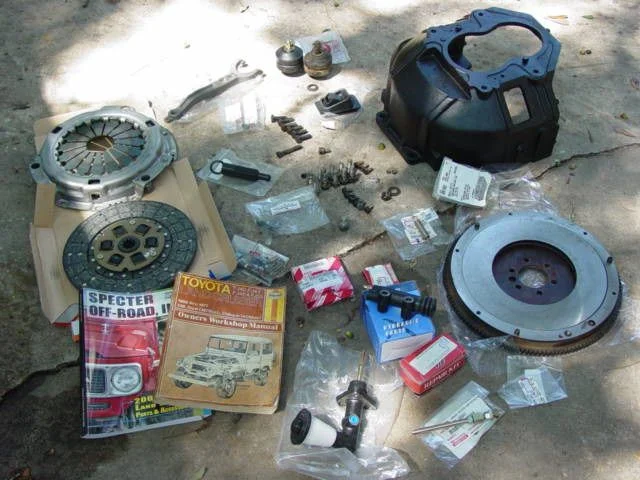

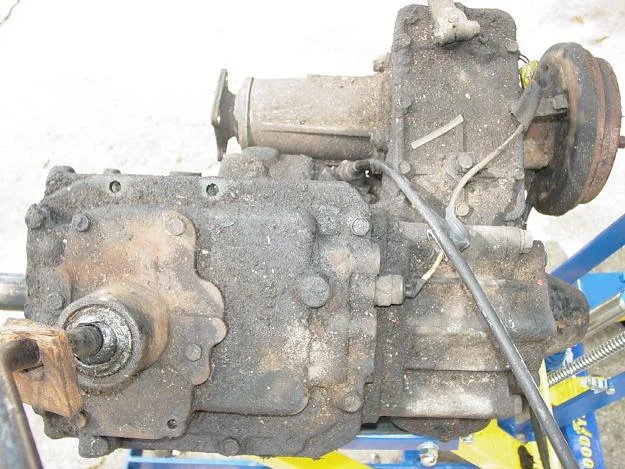

Dirty 4 speed before and after cleaning, new seals, bearings, transfer saver, some new xfer internals, pbrake rebuild and paint.

Note high tech transmission stand


Thanks Poser for the saver.....
fj40 tlc 748.jpg
fj40 tlc 125.jpg
resto 030.jpg

Last edited:

cruiserjunktion

Cruiserjunktion@gmail.com
Supporting Vendor
GOLD Star
Joined
May 19, 2005
Messages
6,072
Location
North Florida

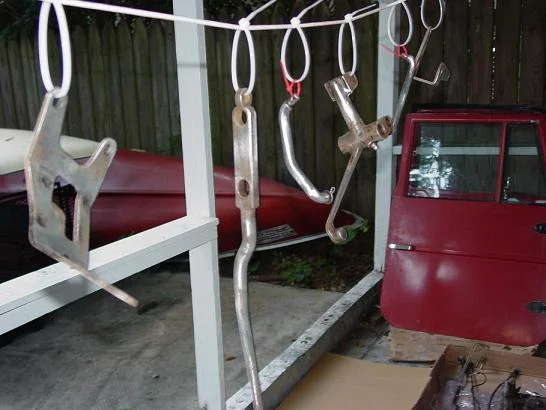

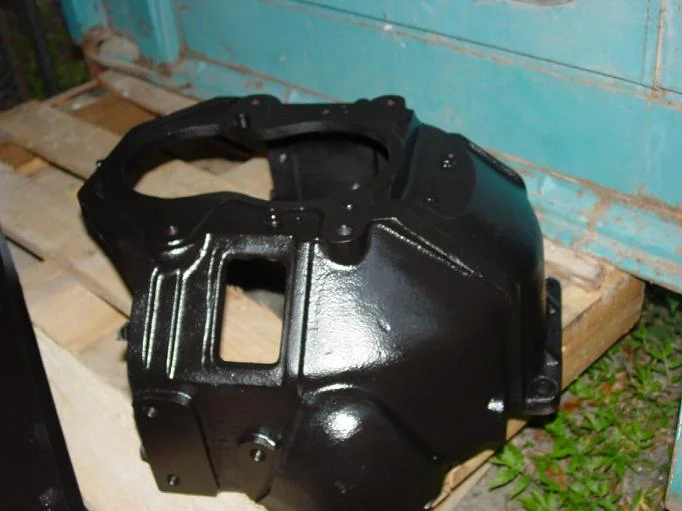

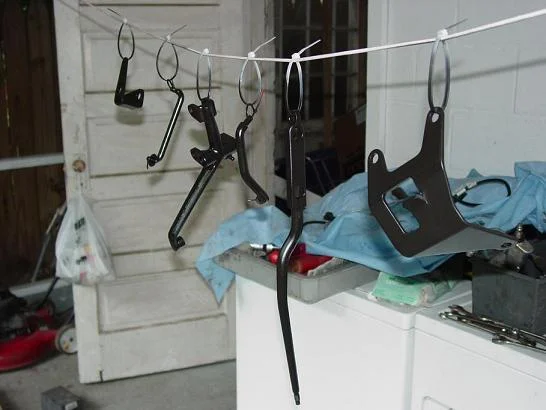

cleaning and painting

pilot bearing removal tool

1st fill cavity with grease

2nd insert tapered tape bolt

3rd whack w/ hammer

done
fj40 tlc 390.jpg
resto 017.jpg

Last edited:

cruiserjunktion

Cruiserjunktion@gmail.com
Supporting Vendor
GOLD Star
Joined
May 19, 2005
Messages
6,072
Location
North Florida

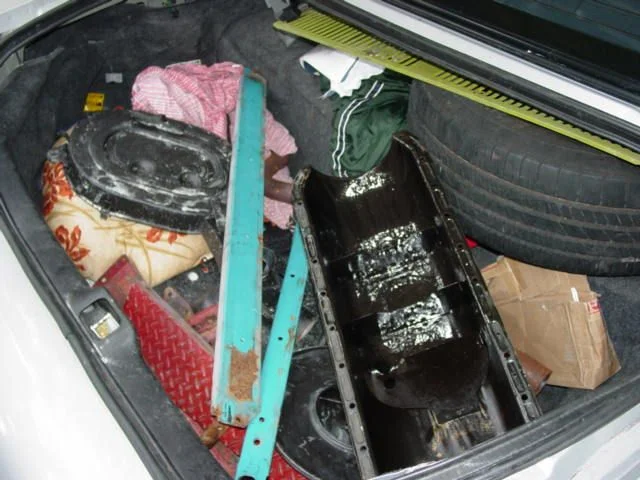

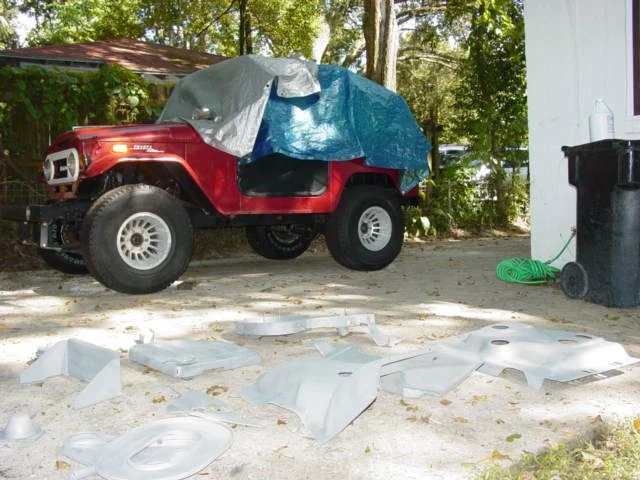

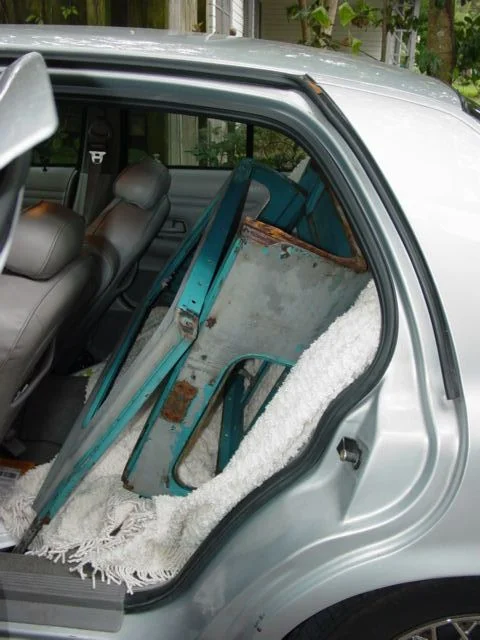

Discovered Sandblasting. A local guy charges 80 per hour and it is well worth it.

He does about 10 pieces per hour depending on sizes. Look closely at the 3rd pic
resto 045.jpg
resto 046.jpg
fj40 tlc 033.jpg

Last edited:
