My garage made axe & shovel bracket

Discussion in 'Camping & Outdoor Gear' started by wantatlc, Jan 9, 2006.

  1. wantatlc

    wantatlc

    Messages:
    1,495
    Likes Received:
    1
    Joined:
    Jun 15, 2005
    Location:
    SoCal - westsiiiide
    So, I made another device for my rig.

    (some have seen the bracket for the on board air compressor made of a cookie pan seen here)

    my new project was axe & shovel mount for my rig. in doing research, store bought specific mounts ran from $55-100.00. I did it for about $9.50! And it works awesome. Huge money savings!

    I used (from the wood/construction department of Home Depot) 2 - 12" brackets and 2 - 8" brackets, 2 3/8 wing nuts, 2 3/8x2.5"bolts, electrical tape.

    As seen below, animated images of the actual brackets and them mounted.

    [​IMG]

    I used a piece of pipe to lay the brackets over to pound them into the required shape. took about 1 hour to make them both. In the end, I wrapped them in electrical tape to make them fit in with the black of my rig.

    BTW, this is mounted hanging under a gear basket that is made for Jeeps that I also altered to fit my FJ40 swing out Con-Ferr tire/gas can carrier. however, they could be mounted really anywhere.

    Last edited: Jun 1, 2007
  2. HawkDriver

    HawkDriver

    Messages:
    3,218
    Media:
    64
    Albums:
    5
    Likes Received:
    9
    Joined:
    Feb 1, 2002
    Location:
    No. Ogden, Utah
    64 views and not a single reply? Don't ya love that. :rolleyes: Where's the love? I think they're skeered. :D

    Nice job there man, and way cool flashing pics, first I've seen on mud. Now what type of cage you got that mounted to? Looks like it works great and who doesn't like savin cash?

    :beer:

  3. Brentbba

    Brentbba Former Golfer SILVER Star

    Messages:
    9,931
    Likes Received:
    374
    Joined:
    Mar 27, 2003
    Location:
    OC, CA
    Hard to get a good look with the pics flashing by as quickly as they are. I'd like to get something fabed up to have welded onto the DS 3rd row seat bracket for a shovel, axe, hi-lift (if possible) fire extinguisher and mag light. I can easily put maglite clips or the other holder from my thread on this to my CO2 tank bracket.

  4. wantatlc

    wantatlc

    Messages:
    1,495
    Likes Received:
    1
    Joined:
    Jun 15, 2005
    Location:
    SoCal - westsiiiide
    thanks. seems a lot of people looking, but nobody talking. either they are so lame, they warrant no response, or people are stunned into walking away from their computers to comtemplate their $90 version.

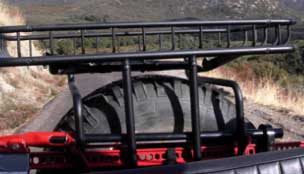

    anyway, as seen here at the rack, it is an Outland brand "Trail Rack" meant for Yeeps that is mounted to my Con-Ferr swing away rear rack (that was a modification effort in itself). I mounted these up under the Trail Rack between it and the spare tire. So, still 100% access to rack, tools, tire.
