More Detailed Snorkle Pics...

Discussion in 'FJ55 Iron Pig Preservation Society' started by FJBen, Oct 28, 2005.

  1. FJBen

    FJBen

    Messages:
    2,636
    Media:
    1
    Albums:
    1
    Likes Received:
    8
    Joined:
    Apr 1, 2004
    Location:
    Greeley, Colorado

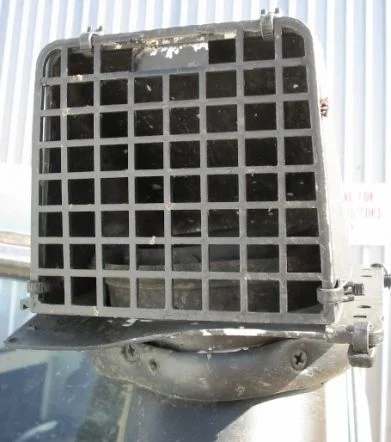

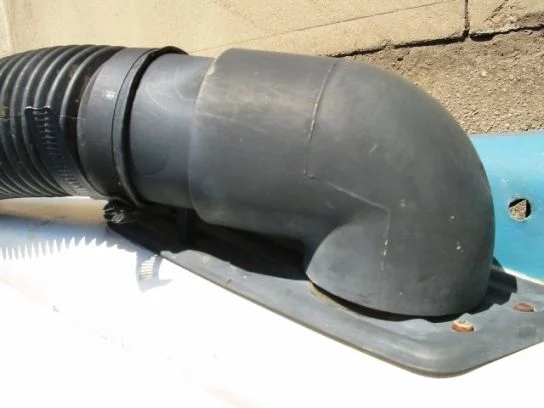

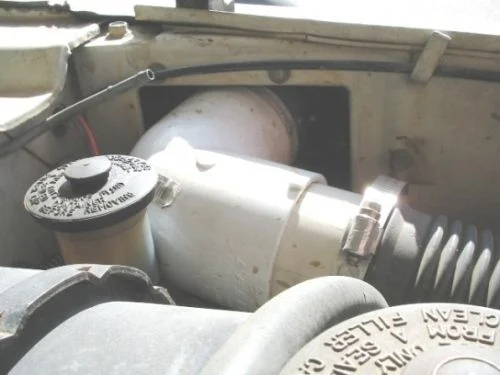

    If I remember correctly, when Patrick Wilson (of 4x4 Customs here in GA) built that snorkel on FJBen's truck we used PVC for the pass through. We simply put PVC elbows with a smaller diameter straight piece through the vent plate DS fender. The hose is from an Astrovan. The outer is all Astrovan and PVC with a ghetto dryer vent top (which works great!)
    snork1.jpg snork2.jpg snork4.jpg

  2. bonzai

    bonzai

    Messages:
    341
    Likes Received:
    0
    Joined:
    Jun 28, 2005
    Location:
    Colorado springs
    Thanks for sharing the pics and info.

    Do they make pvc pipeing in a rectangular shape?

  3. lingo

    lingo

    Messages:
    778
    Likes Received:
    2
    Joined:
    Apr 8, 2005
    Location:
    atlanta, ga
    Has anyone just run there air intake into the fender to pull air? I was pulling mine down the other day thought that might be viable alternative to the traditional snorkle.

  4. poseidon

    poseidon

    Messages:
    464
    Media:
    12
    Albums:
    5
    Likes Received:
    36
    Joined:
    May 21, 2004
    Location:
    Bend, OR
    I would be hesitant to pull air from the fender because part of the reason to get a snorkle is to ensure that no water/mud gets sucked in.

    My fj40s intake is piped back through the firewall to under the dash. It works good because I have no top on it. Don't think it would work on a pig unless you kept a window or 2 rolled down.

    E

  5. yooper

    yooper SILVER Star

    Messages:
    4,132
    Media:
    6
    Albums:
    1
    Likes Received:
    284
    Joined:
    Sep 17, 2002
    Location:
    Da Yoop
    FJ62's come from the factory taking air from inside the fender. On a 62 it makes sense - it hardly ever gets wet in there, and it also doesn't get hot, as most of the air comes from outside, not from the engine bay. Might make sense on a piggy too.

    Thanks FJBen for the pics, but I still can't quite tell: how is the upper part of the snorkel attached to the A-pillar?

  6. beaufort-fj60

    beaufort-fj60

    Messages:
    4,511
    Media:
    10
    Albums:
    1
    Likes Received:
    11
    Joined:
    Feb 5, 2005
    raingutter pipe

  7. yooper

    yooper SILVER Star

    Messages:
    4,132
    Media:
    6
    Albums:
    1
    Likes Received:
    284
    Joined:
    Sep 17, 2002
    Location:
    Da Yoop

    oooh, good idea. I'm gonna go look at that stuff - usually only in white, ivory, or brown though I think...

    I think flexible drain pipe might work for the flex parts, and you can get couplers and such that allow you to cut the pipe to any length and have a clean connection...

  8. lingo

    lingo

    Messages:
    778
    Likes Received:
    2
    Joined:
    Apr 8, 2005
    Location:
    atlanta, ga

    This shouldn't be a problem because that is where the fresh air vent pull air from. It has a cable actuated door that opens under the dash for air. So if water/mud was a concern I don't think that would had the vents run that way
