LX570 Towing - Why Did it Change from 8,500 to 7,000???

Joined
May 9, 2008
Messages
99
Location
Phoenix Metro, Arizona, USA
Migrating over from the 60 forum as I'm looking at the LX570 - I need the towing capacity of the 5.7, but don't want a Tundra and the Lexus versions appear a lot cheaper, more vehicles for sale with less miles. I found this site (Lexus LX 570 Towing Capacity Table - 2009-2018 - Axle Advisor) which shows the towing capacity at 8,500 for early models and then 7,000 starting in 2011. That seemed really odd since I believe it is the same motor so I looked in the Lexus manuals which seems to confirm that. Anyone know why that would be? Would love some feedback from anyone who has towed with the LX570.

Joined
Apr 27, 2011
Messages
7,778
Location
San Diego
Because SAE J2807

A standards based methodology was voluntarily adopted by manufacturers around 2011, Lexus and Toyota being among the first, which caused many models to receive revised ratings. This allowed an apples to apples comparison between manufacturers based on SAE standard performance criteria.

A hallmark of SAE required that tow ratings can no longer be based on stripped base-model vehicle with a single driver. Vehicles must be representatively fitted according to typical configurations. On a heavily optioned vehicle like the LX, would take a hit.

That said, I tow regularly at and above that limit. I also exceed GVWR with 6 passengers while towing. Exceedingly stable and capable.

The LX can also be modified to handle more weight still. With LT type tires. And augmenting the suspension - LX570 Augmenting for Load


Markuson

SILVER Star
Joined
Jun 15, 2008
Messages
11,308
Location
San Diego via all over-
Migrating over from the 60 forum as I'm looking at the LX570 - I need the towing capacity of the 5.7, but don't want a Tundra and the Lexus versions appear a lot cheaper, more vehicles for sale with less miles. I found this site (Lexus LX 570 Towing Capacity Table - 2009-2018 - Axle Advisor) which shows the towing capacity at 8,500 for early models and then 7,000 starting in 2011. That seemed really odd since I believe it is the same motor so I looked in the Lexus manuals which seems to confirm that. Anyone know why that would be? Would love some feedback from anyone who has towed with the LX570.

Perhaps the more interesting question is...

Why does the Land Cruiser RETAIN its tow rating to this day...(I just checked)... while the LX’s tow rating dropped like that...?

Joined
May 15, 2018
Messages
303
Location
Round Rock, TX
Just a guess but rear suspension height adjustment and electronic controlled shocks compared to fixed spring and fixed shock is difference between LX and LC tow rating. Electronics on LX get down grade on tow weight due to complexity of configuring the electronics to deal with added weight.
Just a guess.

Joined
Apr 27, 2011
Messages
7,778
Location
San Diego
Just a guess but rear suspension height adjustment and electronic controlled shocks compared to fixed spring and fixed shock is difference between LX and LC tow rating. Electronics on LX get down grade on tow weight due to complexity of configuring the electronics to deal with added weight.
Just a guess.

Negative. AHC is well up to the task and has proven to be an asset for those of us that tow really heavy. Where it does not help is that the system adds weight to the overall vehicle. That added weight, along with the many more upgrades as fitted to the LX (vs LC), is the core reason why the LX gets downgraded significantly. Not that the LC is a base model in any sense, but the LX has upwards of 300-400lbs more worth of accouterments, which subtracts from the chassis rated load capacities.

As I said earlier, SAE J2807 testing requires a representatively configured weight vehicle for the test. Previously, manufacturers used internal methodologies. Many of which based numbers on stripper chassis, and did not honor the highly optioned vehicles true weight.

An example that may help understanding is the Tundra. Within the 5.7L motor range, towing capacity spans 10,200 to 8800 lbs. A closer example might be comparing the same bodystyle, but SR5 to a well optioned 1794 Edition:
SR5 4x4 CrewMax 5.7L - tow capacity 9800lbs
1794 Edition 4x4 Crewmax 5.7 - tow capacity 8800lbs

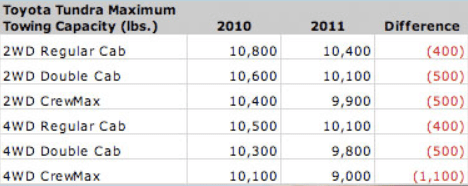

SAE J2807 more greatly impacts vehicle configurations with higher weights:


TL;DR more highly optioned vehicles based on the same chassis will have less towing capacity.

Joined
Feb 25, 2017
Messages
522
Location
VA
Lexus is only in the US. So they had to use the weight of the average American -- times four passengers, it really adds up. The LC is global, so the impact of us 'Mercans on the *ahem* weighted average is much less.


bloc

SILVER Star
Joined
Sep 19, 2008
Messages
10,016
Location
Central Texas
Lol, great answer. However, I do concur. Americans are generally some fat lazy people. I can say that, I am one myself. I sat next to an overweight person on a plane a few weeks ago. Pigged out on an entire sandwich and chips, and happily ate whatever flight attendant brought for snacks/cookies. These are the same people that claim to have gland/hormone/age related weight problems. It is a disgusting display of apathetic failure to accept responsibility of one's own health, and I think the current trendy body positive movement is bulls***. I could go on about impact on health care, medical insurance, eating more than one's share/food supply resource demand, etc. But to be safe, I'll end my rant here.

Great answer.

You do realize this is a forum for 200-series landcruiser "tech", don't you?

Joined
Jan 6, 2011
Messages
881
Location
Boise, ID
I've towed at and above the rated GVWR and the LX really is a great tow vehicle for its wheelbase ie not a truck. I've put 2,200+ lbs in the back and the rear was sitting on the bump stops. Closed the rear hatch and AHC had no issue leveling out the truck and drove amazingly well considering I was carrying an early 90's Honda Civic worth of weight in the cargo area.

Joined
Sep 22, 2015
Messages
184
Location
Littleton / Fairplay, CO
A few questions I hope you all can answer.
i have a 2010 and SAE testing aside is tongue weight considered generally 10% of trailer weight? Is AHC able to handle 700 lbs tongue weight For a 7000 lb trailer? Also I live in the Rockies and with my 2200 lb camper now I use the engine braking of the vehicle as much as I can along with trailer brakes as needed. Does the extra weight of a 7000 lb trailer put a lot more stress on the engine using engine braking or should I just plan to use brakes more (understand I would be towing in 4th gear max). Looking at a larger camper - dual axle Lance 2375. One more thing I assume a WD antisway setup is a must have?

thanks

Joined
Apr 27, 2011
Messages
7,778
Location
San Diego
Tongue weight is targeted to be 10-15% trailer weight. It's not always advisable to shoot for the lower end of that depending on other stability factors of the trailer, i.e. more tongue weight may actually help stability.

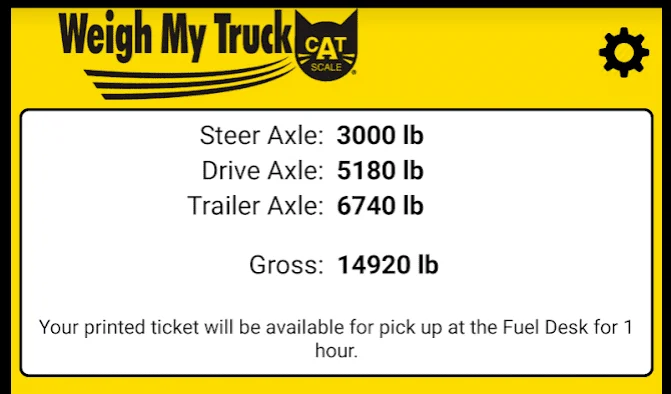

AHC is well up to the task of 700lbs of tongue weight. I recently sensor lifted my AHC and have yet to reset my WD bars for more tension to move more weight back to the front axle and trailer axles. You can see that I'm roughly at ~1150lbs tongue in this weigh in, for my ~7900lb travel trailer. 1500mile trip at 2000lb payload (between occupants, gear, and tongue weight) and no sagging no problemo.



I travel the mountains often. You want to use engine braking like it's going out of style. Even if that means having the engine rev up high in the band, where the most engine braking will be had. It won't stress the motor as it's far less stress than making power up hills. Save the brakes as much as possible on long downhills. Still use them, braking in a straight line before corners to stabilize the rig and make sure trailer is not pushing on the tow vehicle to much. Or when you need to scrub speed faster.

Yes, absolutely always use WD when towing travel trailers. It should not be looked upon as a crutch and would be bad form not to use one, and need one when that emergency maneuver or gust of wind happens.
