Keeping my FJ40 & Starting 3FE RestoMod

GeoW5

SILVER Star
Joined
Jul 31, 2019
Messages
217
Location
Swansboro, NC.

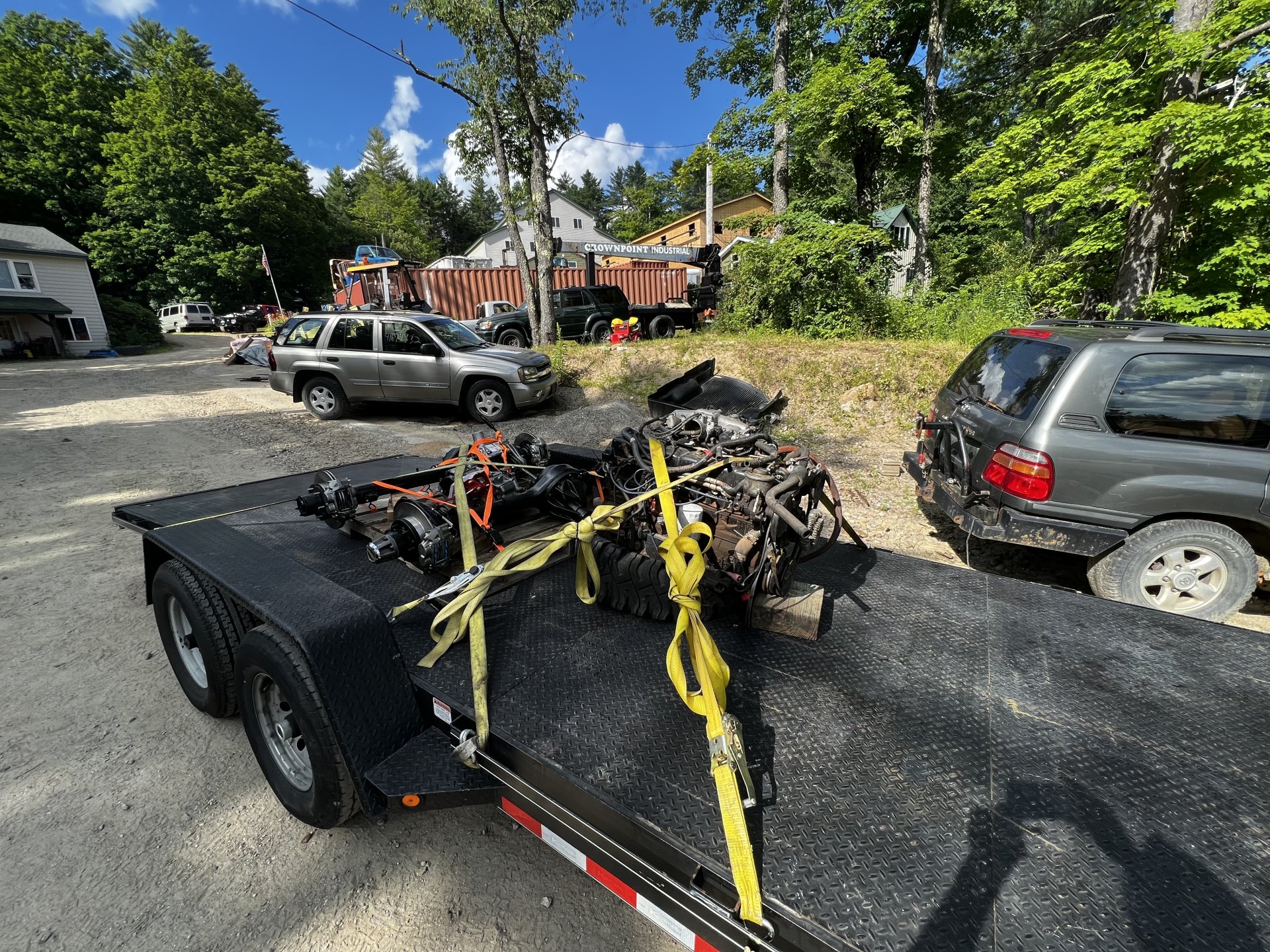

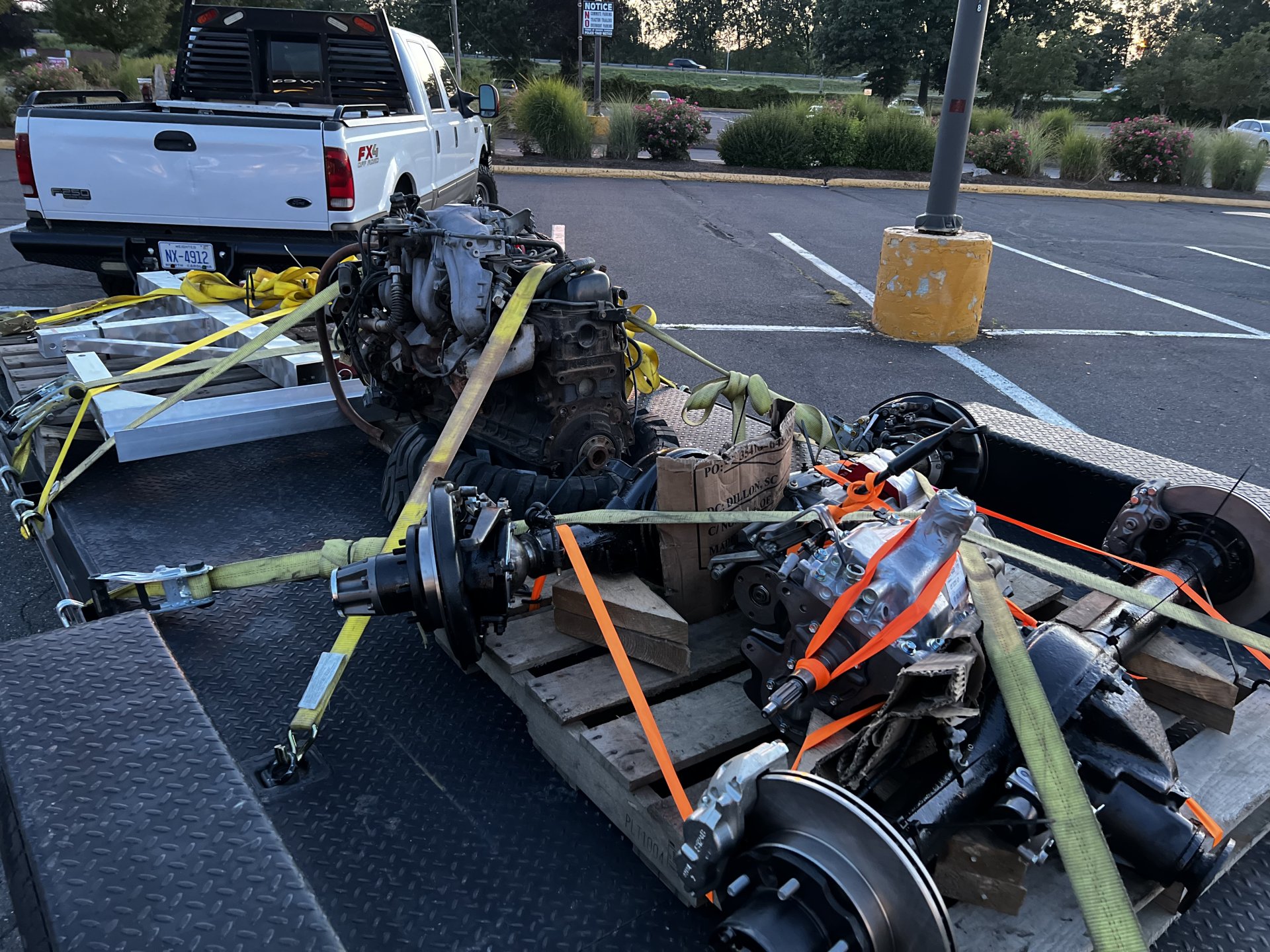

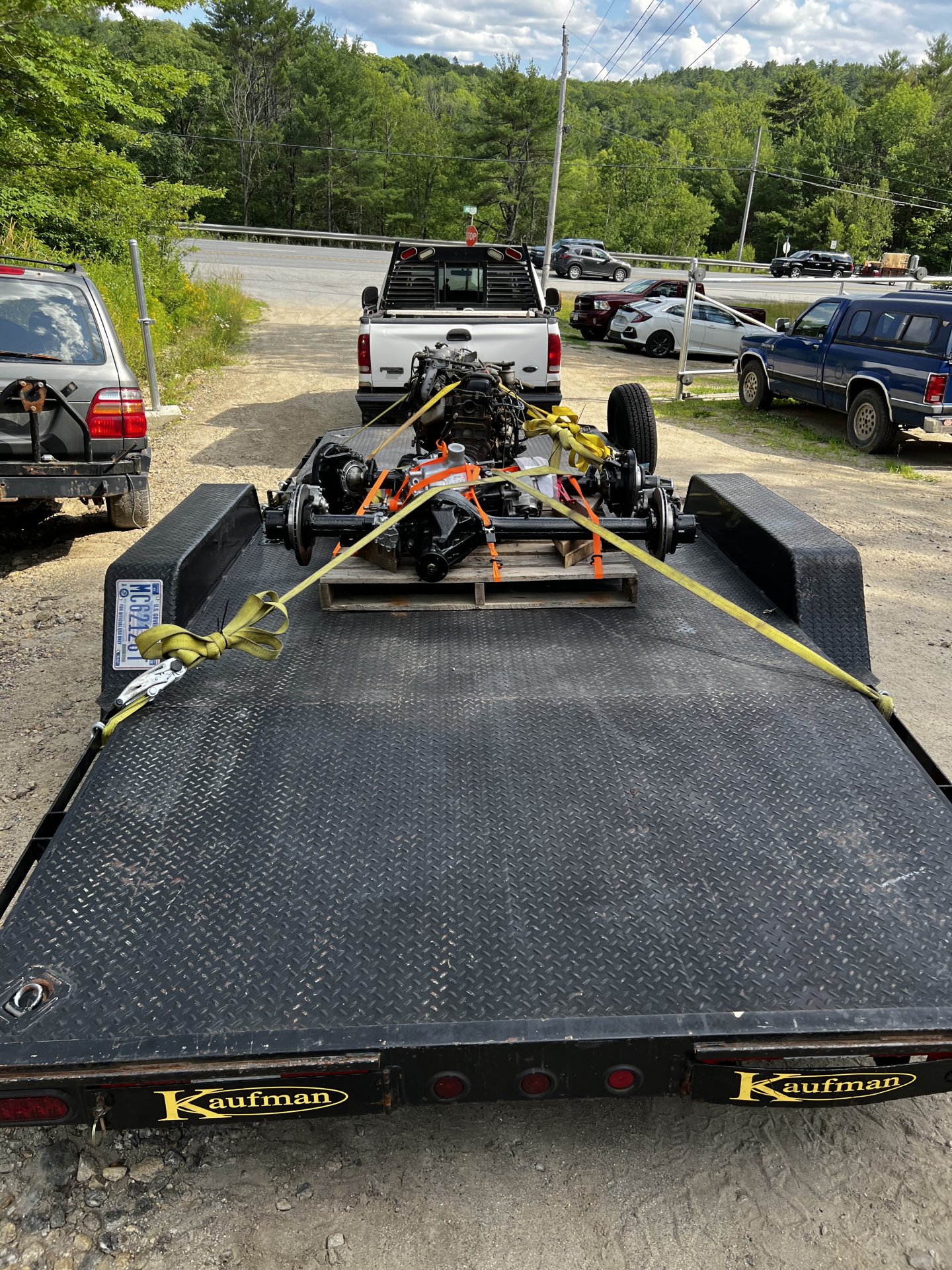

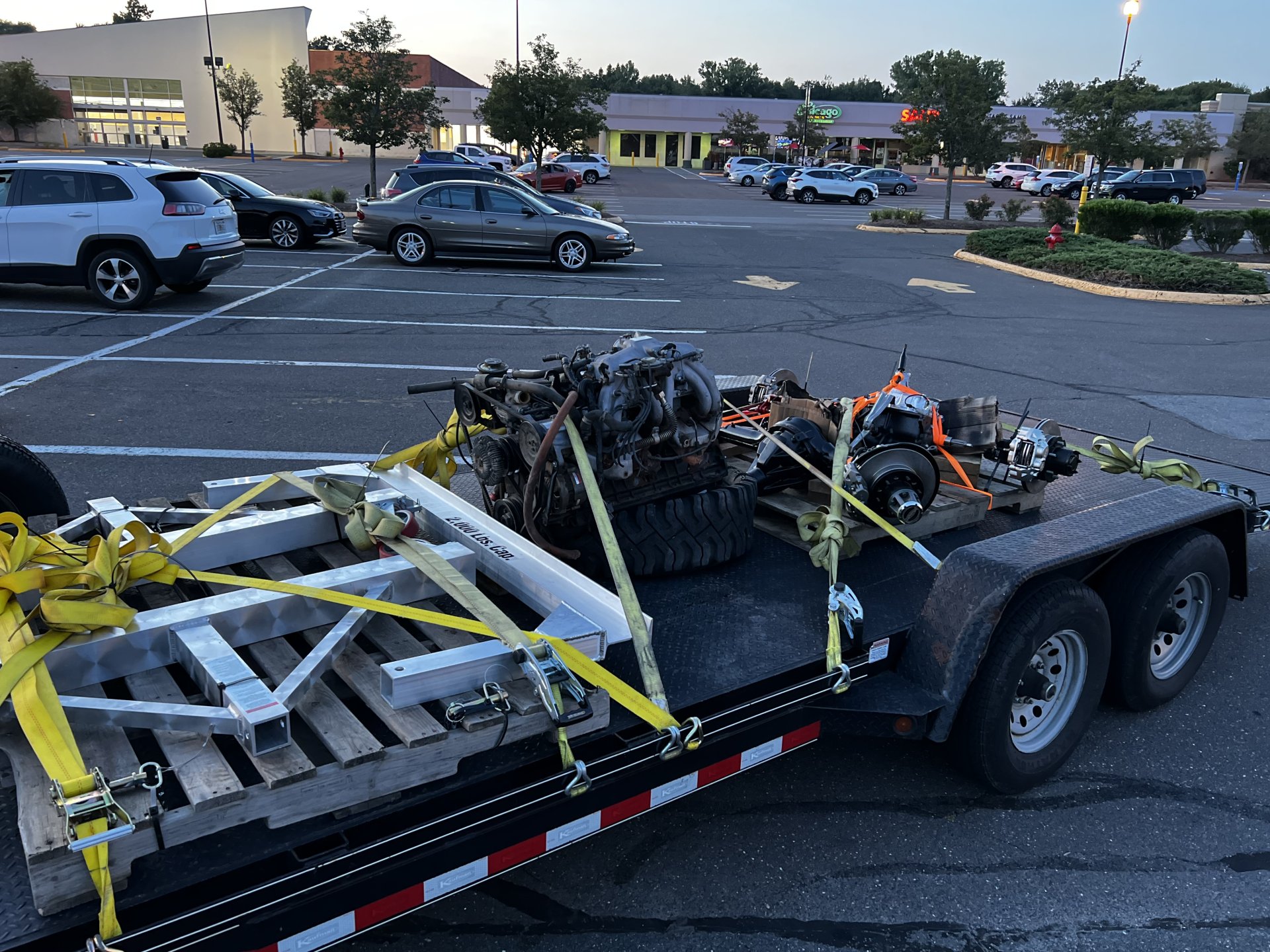

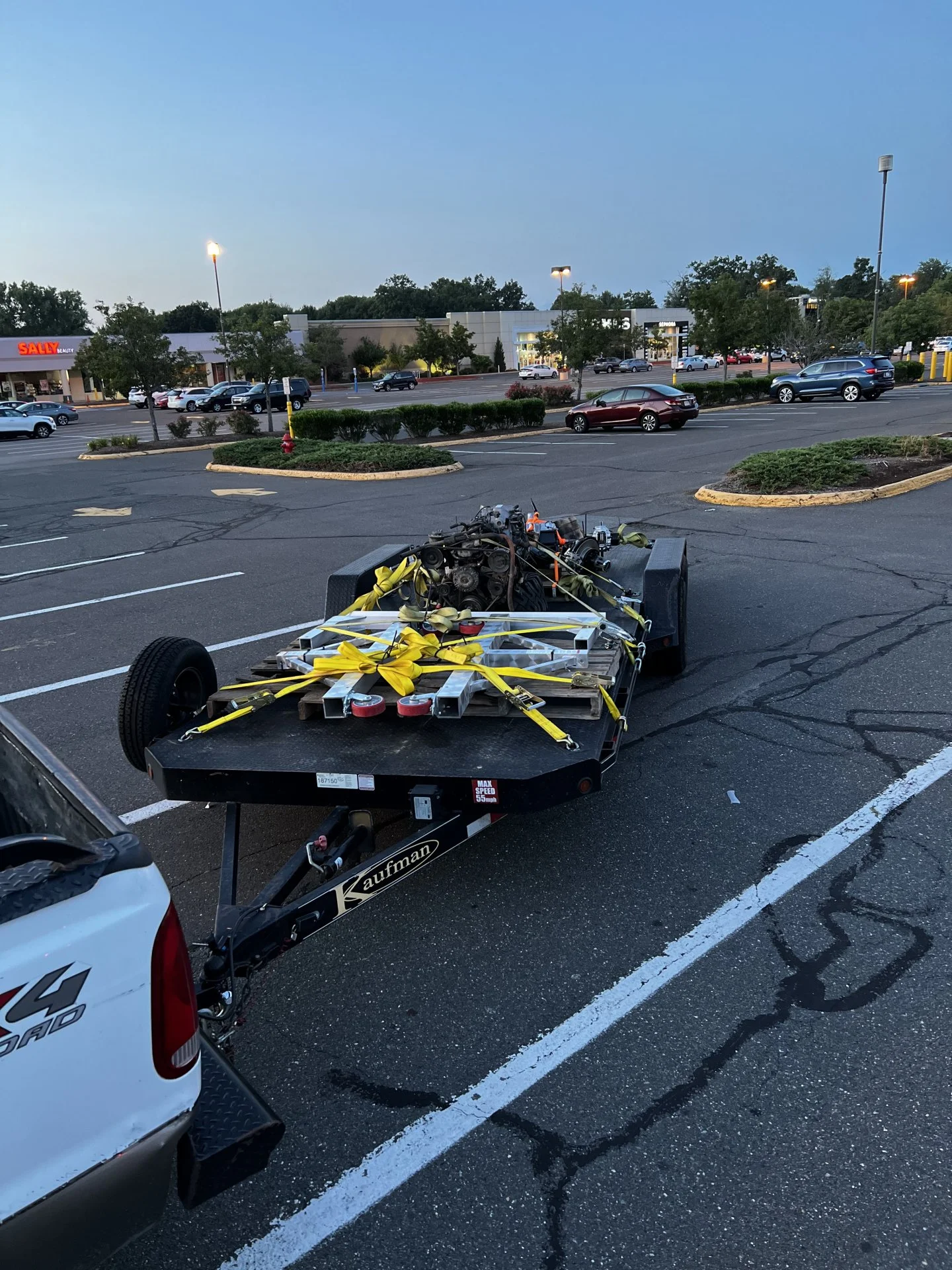

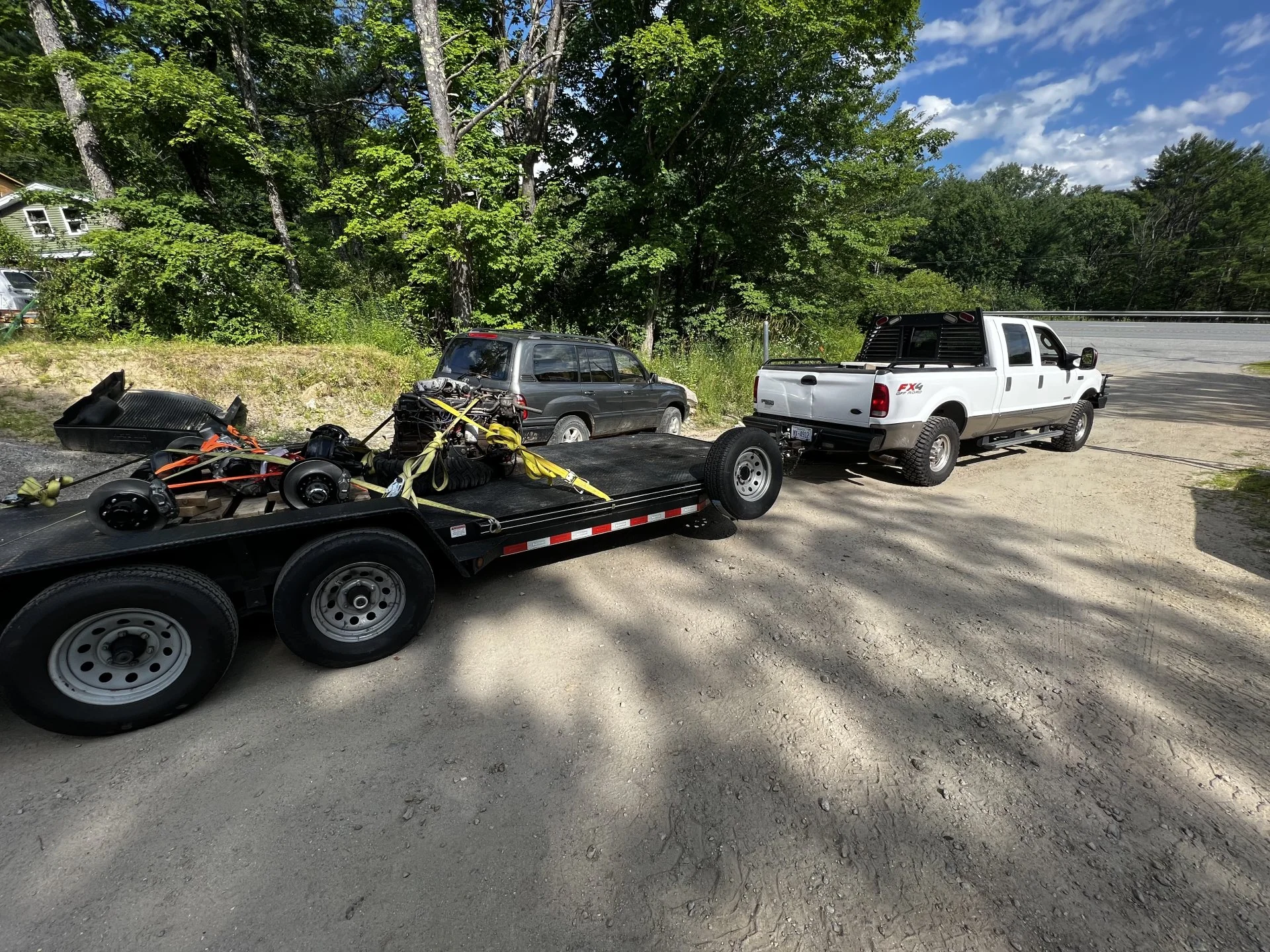

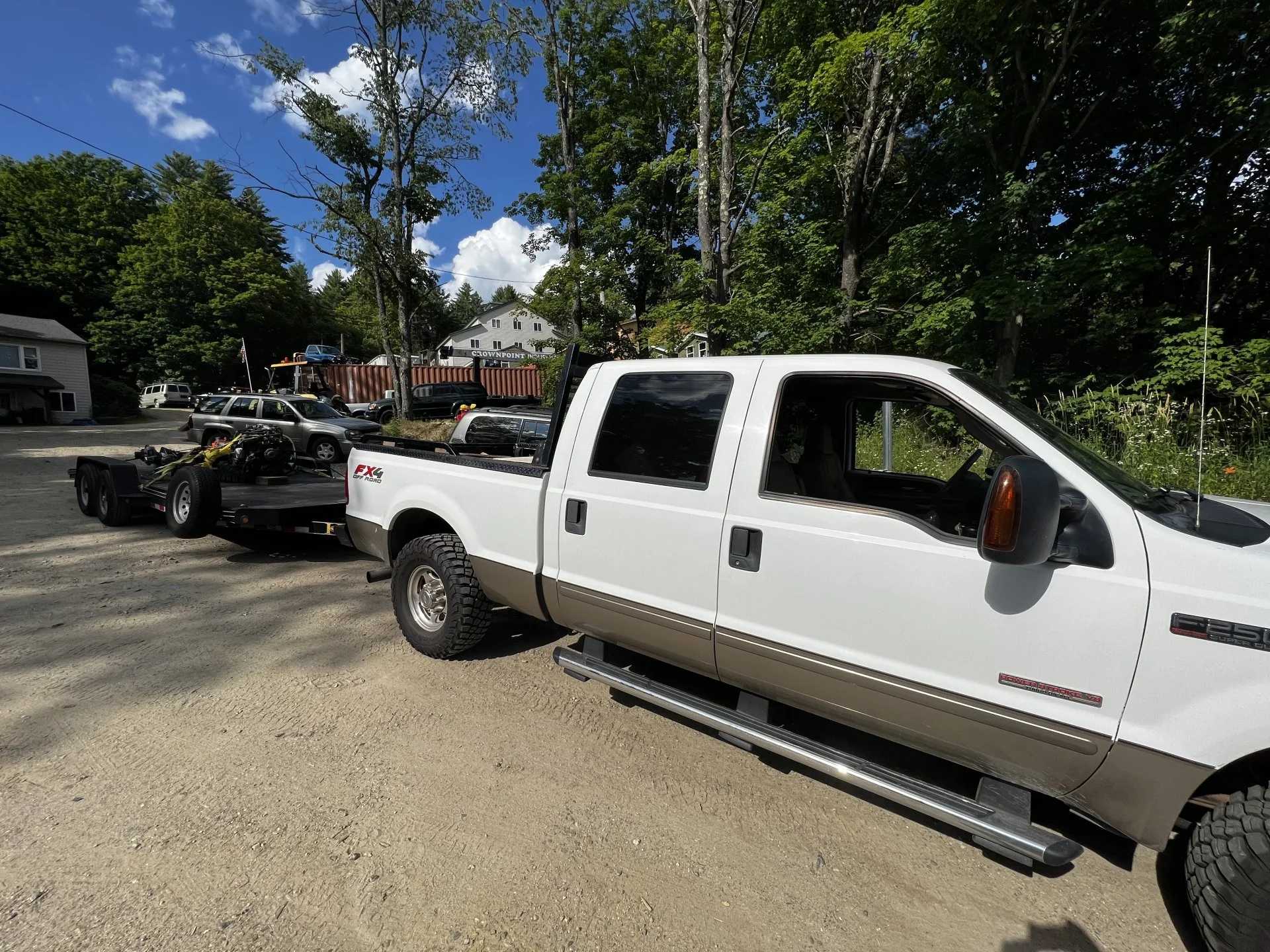

Wife & I decided to keep FJ40 and are doing the restomod using the 3FE engine, 5 speed transmission, and 60 series axles with disc brakes! I just got back from a trip from NC to VT to Cruiser Parts to get my stuff; see pics.

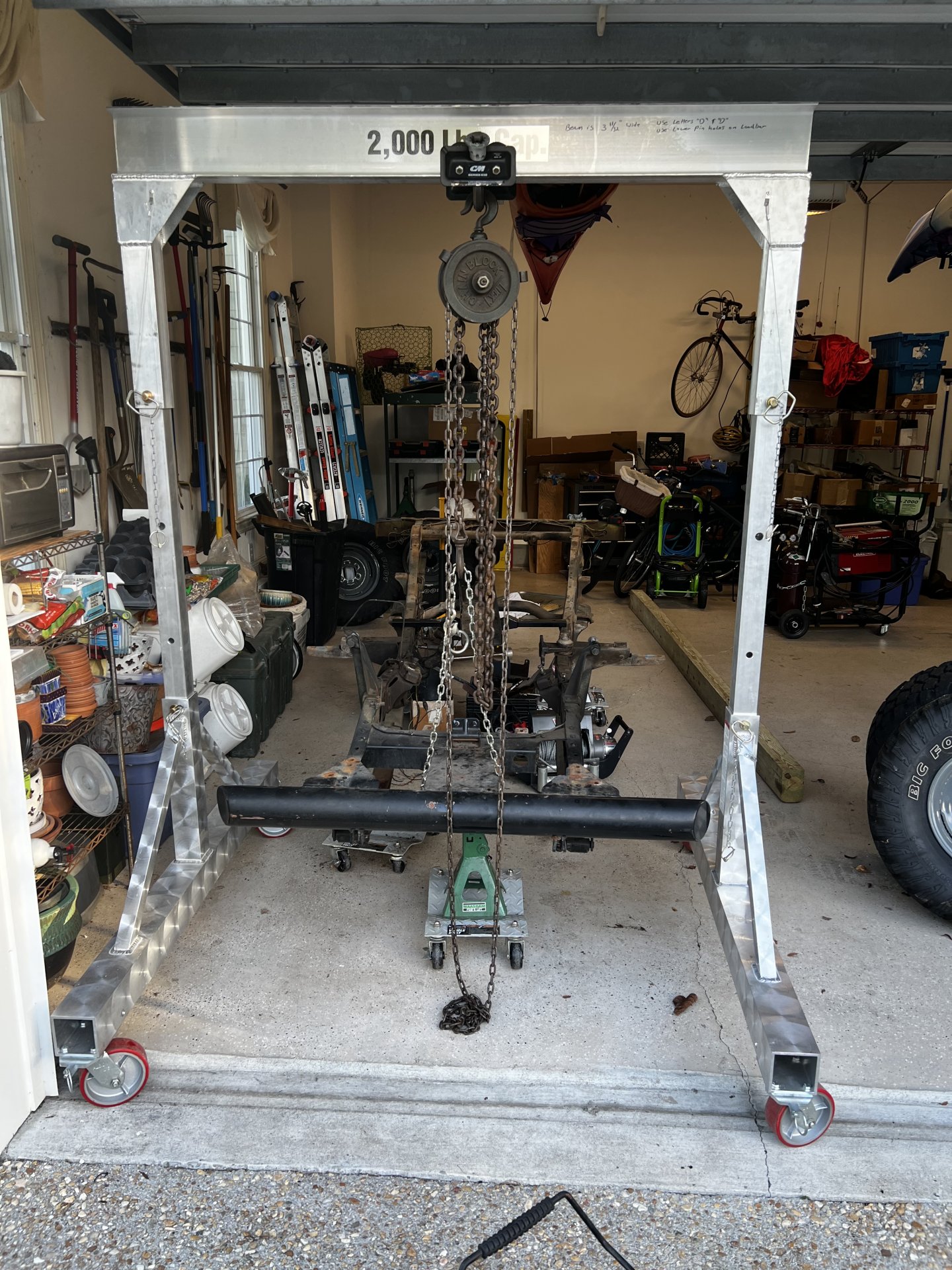

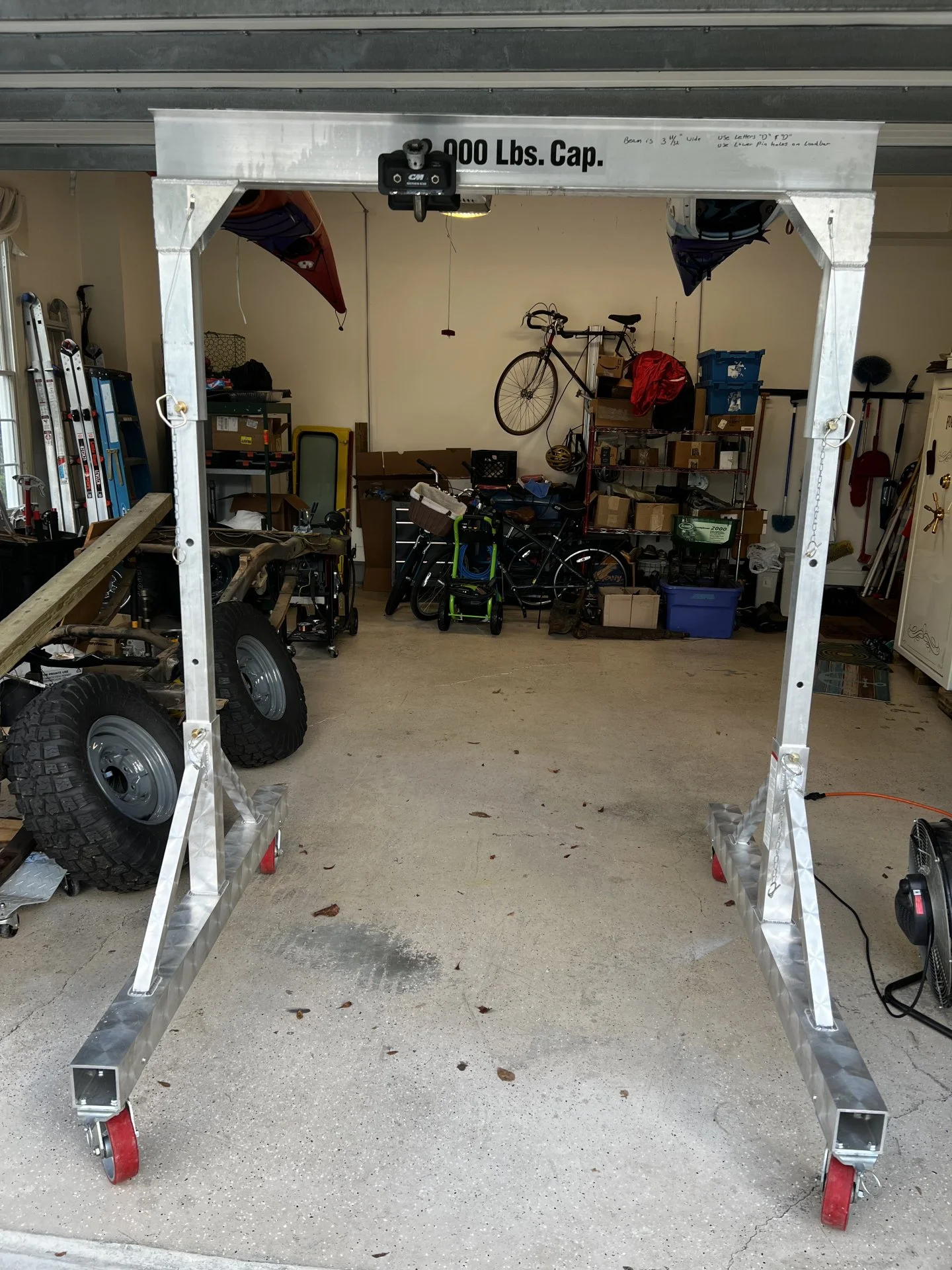

I also picked up a small AL gantry crane to roll in and out of my garage.

What easily obtainable engine works for a fully assembled 6 cylinder?

How do you guys assemble the drive train? I need to mock up the drive train to the frame to ensure all the mounts work and move the cross member aft. I heard that you have to put the engine on the ground and slide transmission and transfer case together?

Any tips or hard lessons learned on the 3FE will be appreciated.

George


tornadoalleycruiser

Erik TLCA #5303
SILVER Star
Joined
Aug 2, 2004
Messages
5,506
Location
KC Mo
Website
www.tornadoalleycruisers.com
Step 1, put axles under vehicle, step 2, bolt bellhousing to engine, step 3 assemble clutch and flywheel, step 4 install transmission, in vehicle or on floor or in air, somewhere in there you set motor in chassis. Then clearance for the 5spd shift tower. 3fe's are wiring nightmares but not impossible. Planning to reuse 40 engine mounts? Or try and retain 62 mounts? There is a width difference. I think I assembled it all then stabbed the whole drivetrain. Swapped to the h55f later in the frame before I set the cab on for the last time. Good luck, nice pile of parts, good start


GeoW5

SILVER Star
Joined
Jul 31, 2019
Messages
217
Location
Swansboro, NC.
Step 1, put axles under vehicle, step 2, bolt bellhousing to engine, step 3 assemble clutch and flywheel, step 4 install transmission, in vehicle or on floor or in air, somewhere in there you set motor in chassis. Then clearance for the 5spd shift tower. 3fe's are wiring nightmares but not impossible. Planning to reuse 40 engine mounts? Or try and retain 62 mounts? There is a width difference. I think I assembled it all then stabbed the whole drivetrain. Swapped to the h55f later in the frame before I set the cab on for the last time. Good luck, nice pile of parts, good start
That’sa good sequence of steps. Thank You.


tornadoalleycruiser

Erik TLCA #5303
SILVER Star
Joined
Aug 2, 2004
Messages
5,506
Location
KC Mo
Website
www.tornadoalleycruisers.com

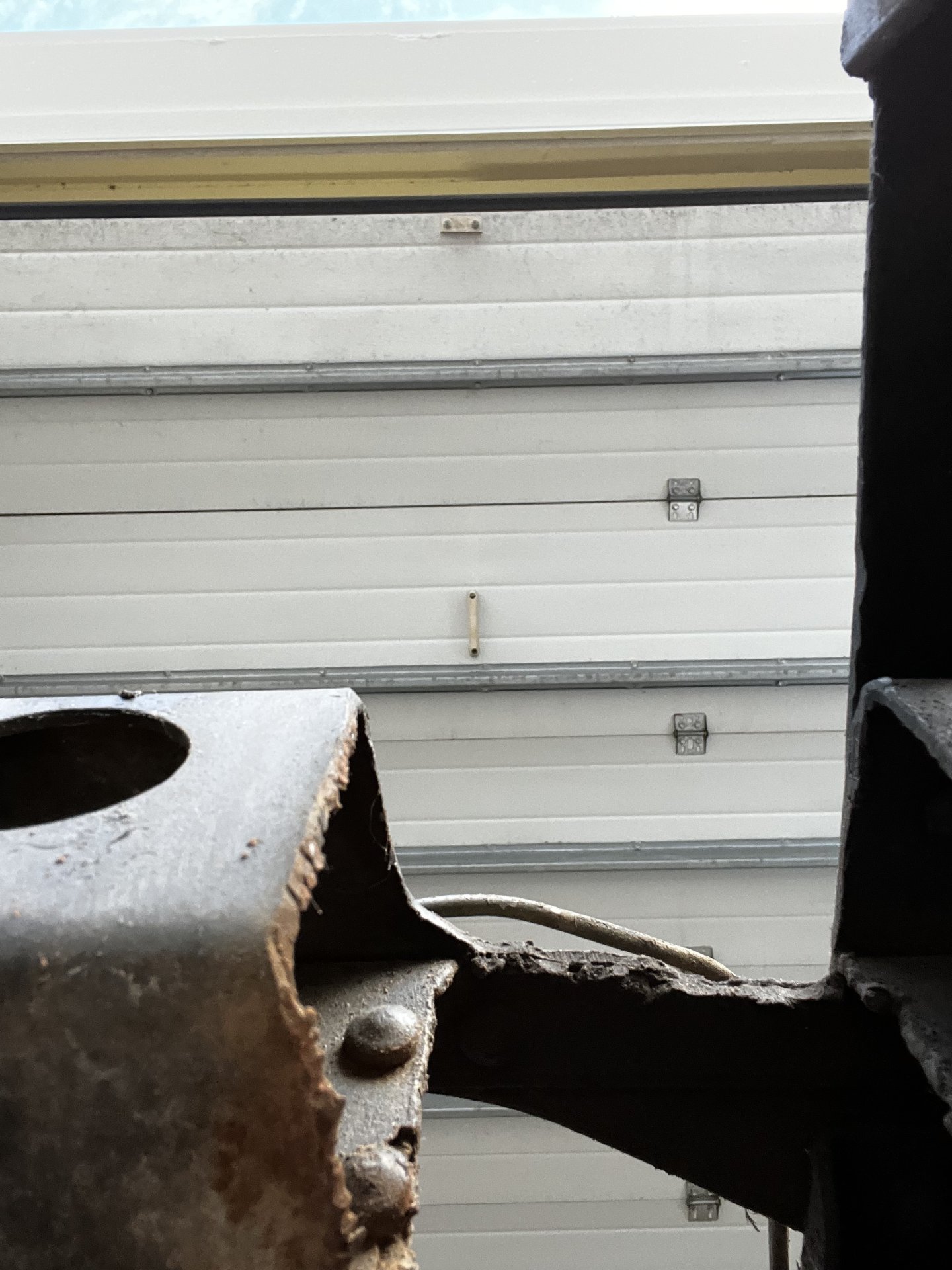

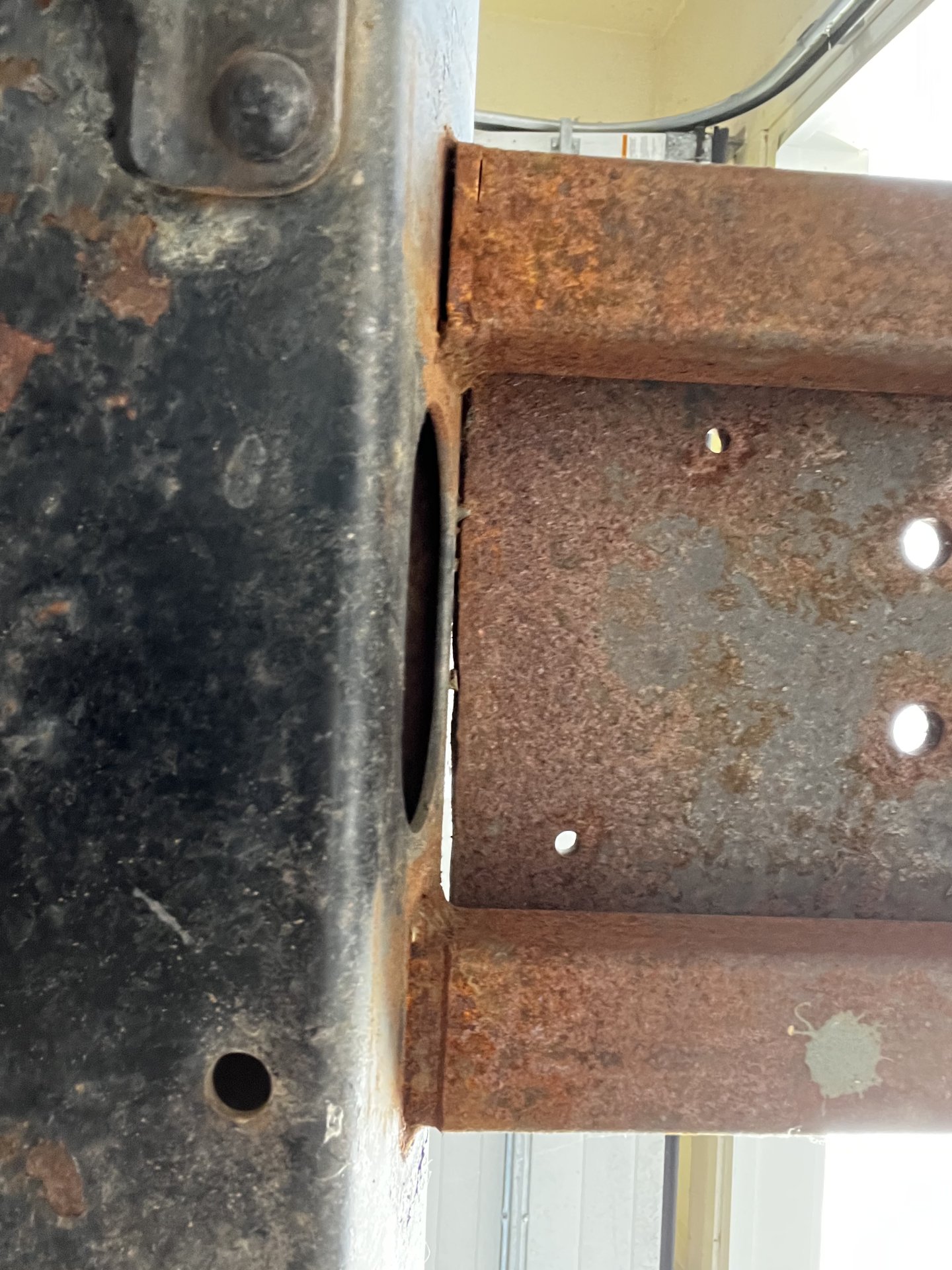

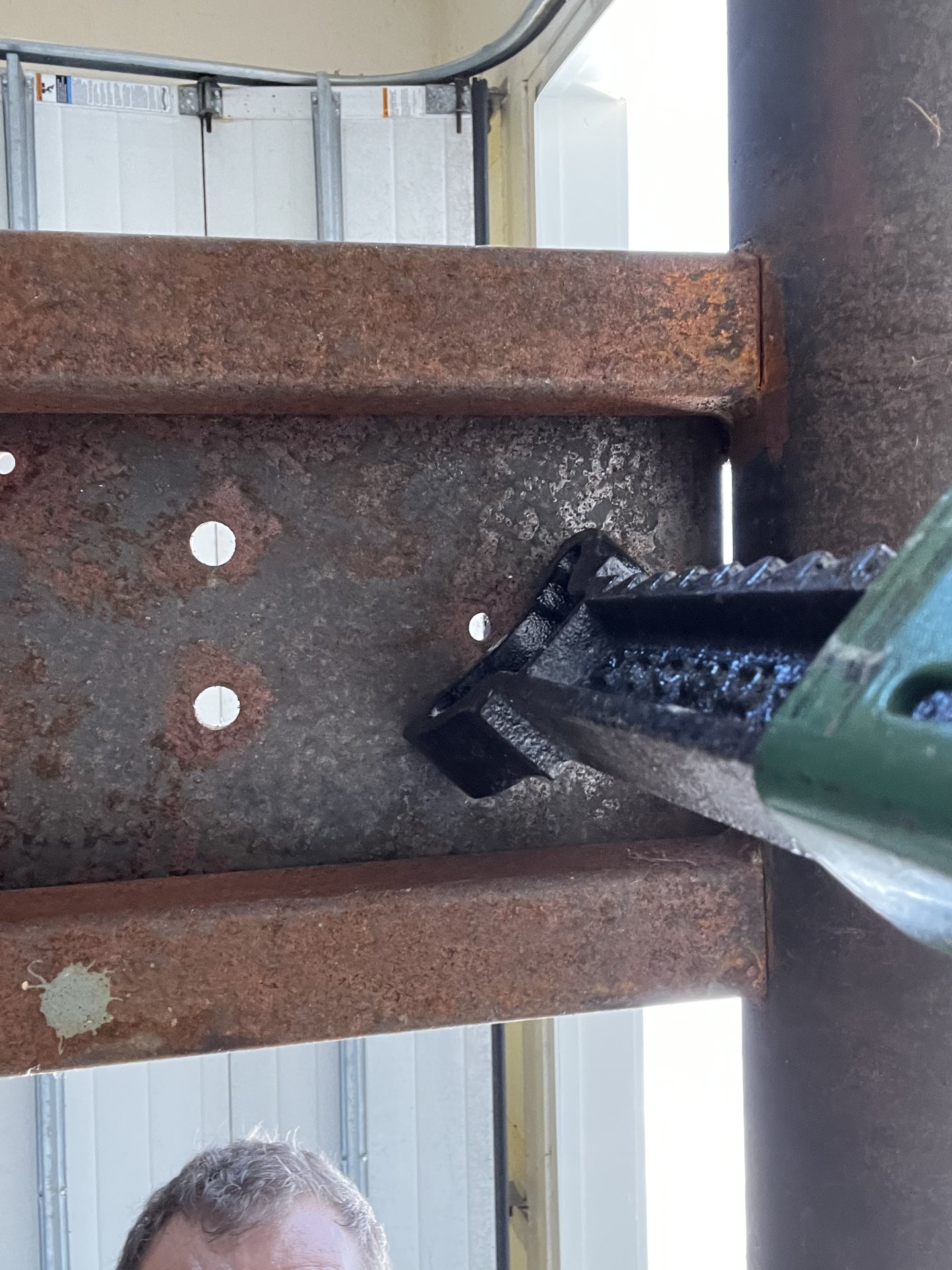

can you zoom in on this section? Looks like you might need a bit of frame repair for safety depending on what style of steering you plan on going with.


Joined
Apr 21, 2005
Messages
22,066
Curious your plans for a hand brake? Frame looks to be a E-72 based on the torque tube behind the where the transfer case sits. I was able to get an H42 into my 68 FJ40 without cutting the torque tube or the tub.

Joined
May 23, 2019
Messages
38
Location
Middleton
The biggest pain when I did mine was the wiring, it will test your patience. The second biggest pain is the exhaust. The problem I have with my 3FE is alot of the parts are very hard to get. I figured by modernizing my 73 to an engine almost 20 years newer would make it easier to get parts, wrong. When you have it in and you turn the key and it starts instantly everytime it is worth the effort. Cruises at highway speeds effortlessly and it's a cruiser motor not some off brand thing.


GeoW5

SILVER Star
Joined
Jul 31, 2019
Messages
217
Location
Swansboro, NC.

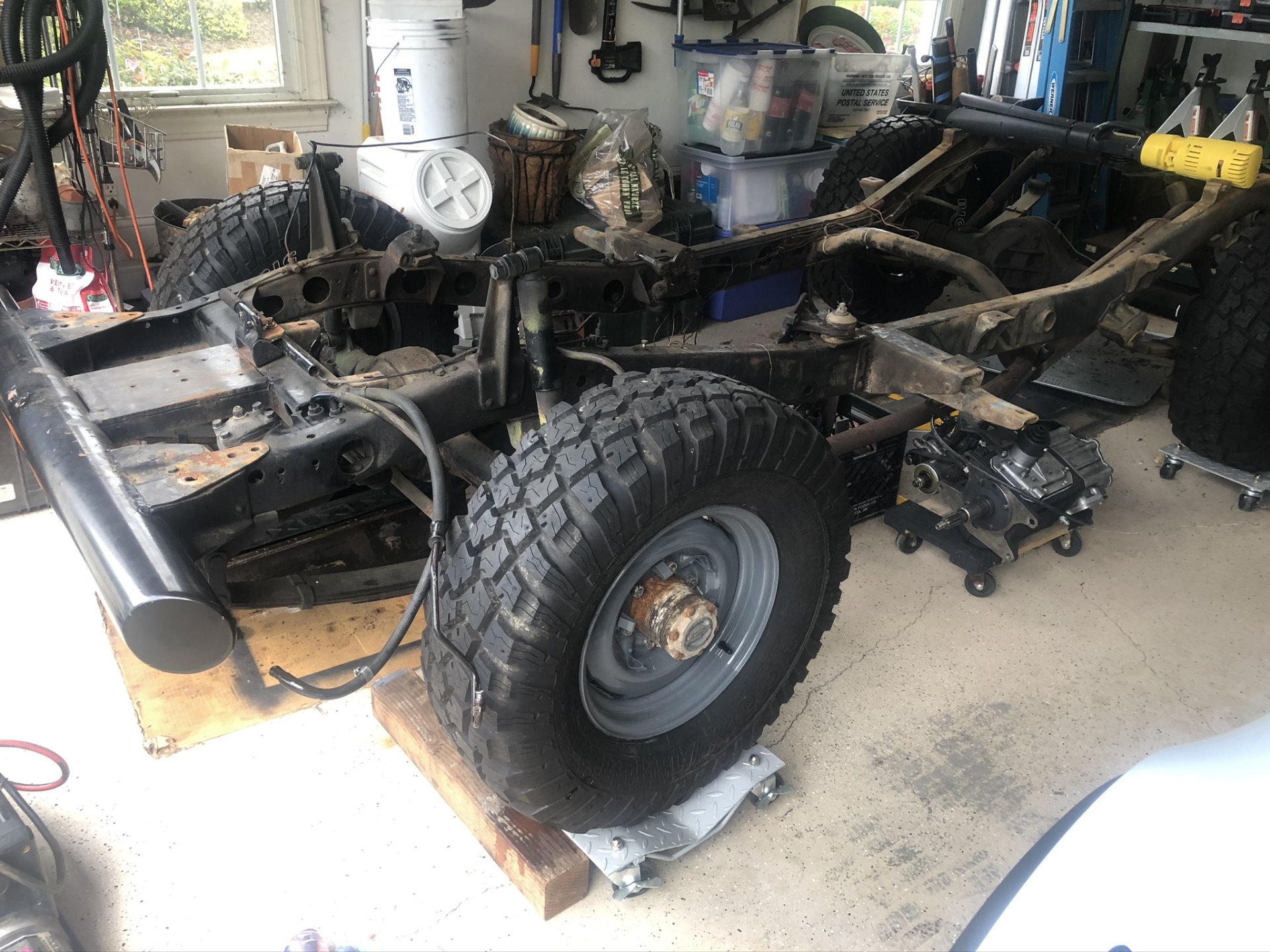

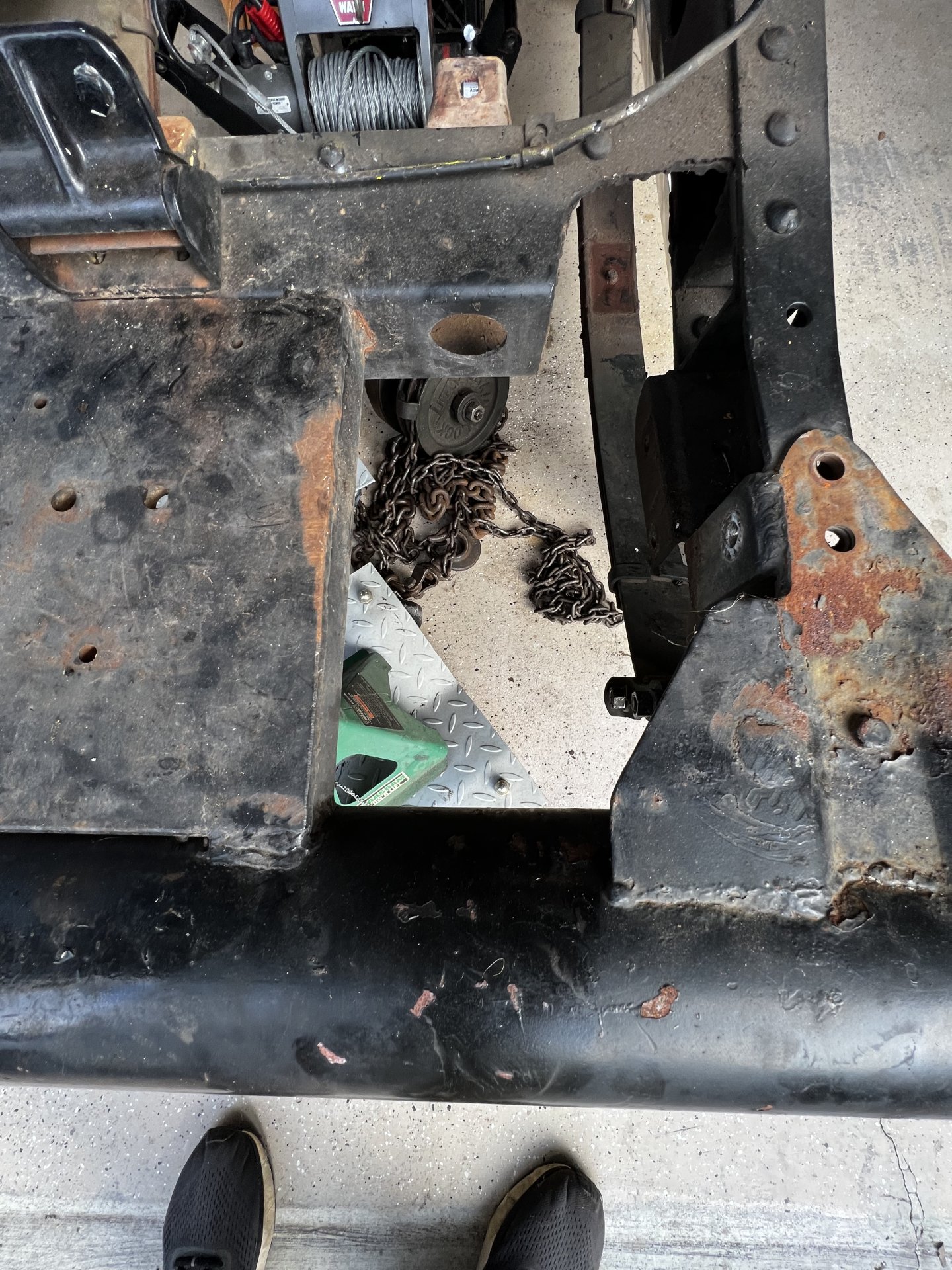

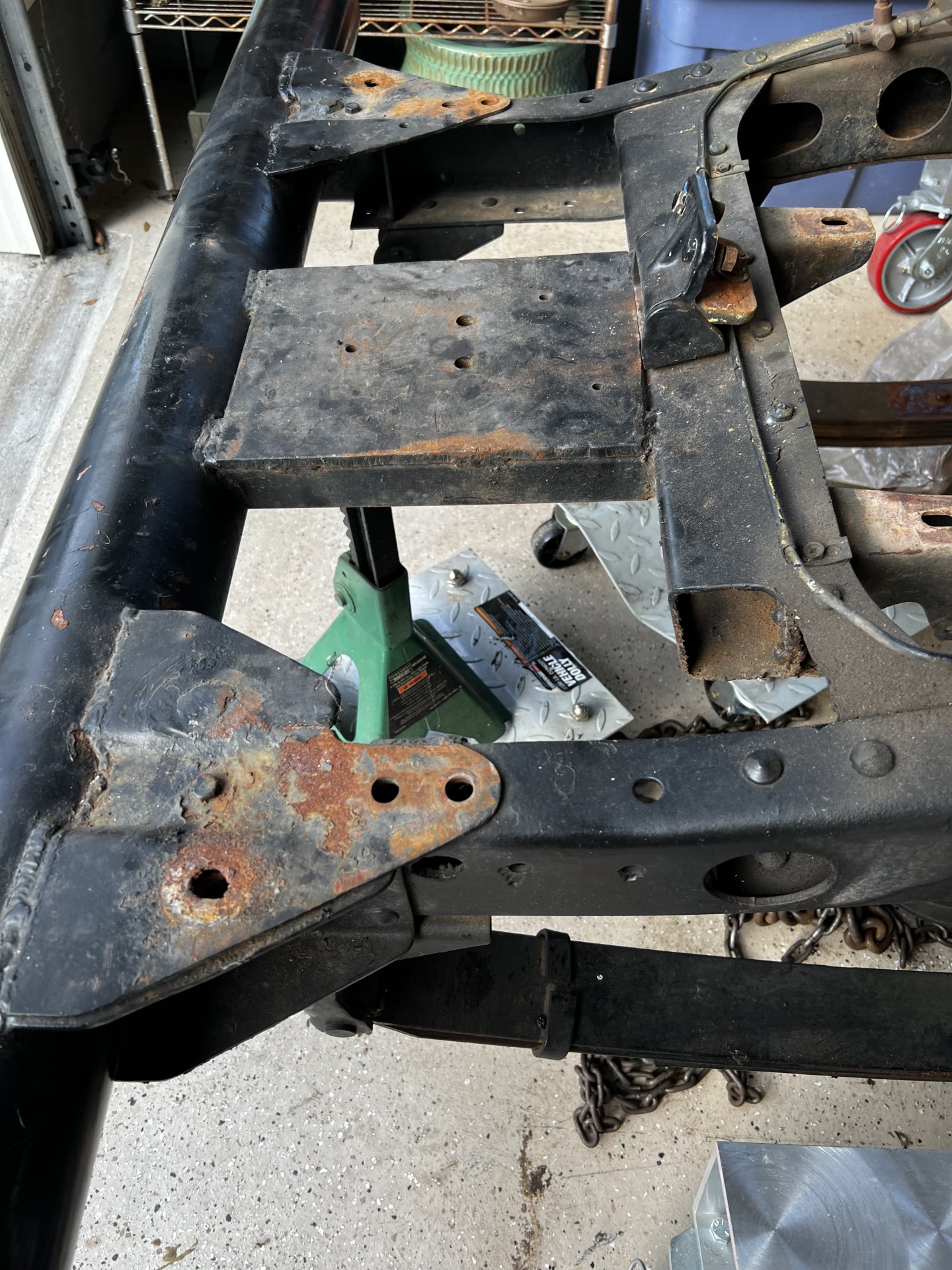

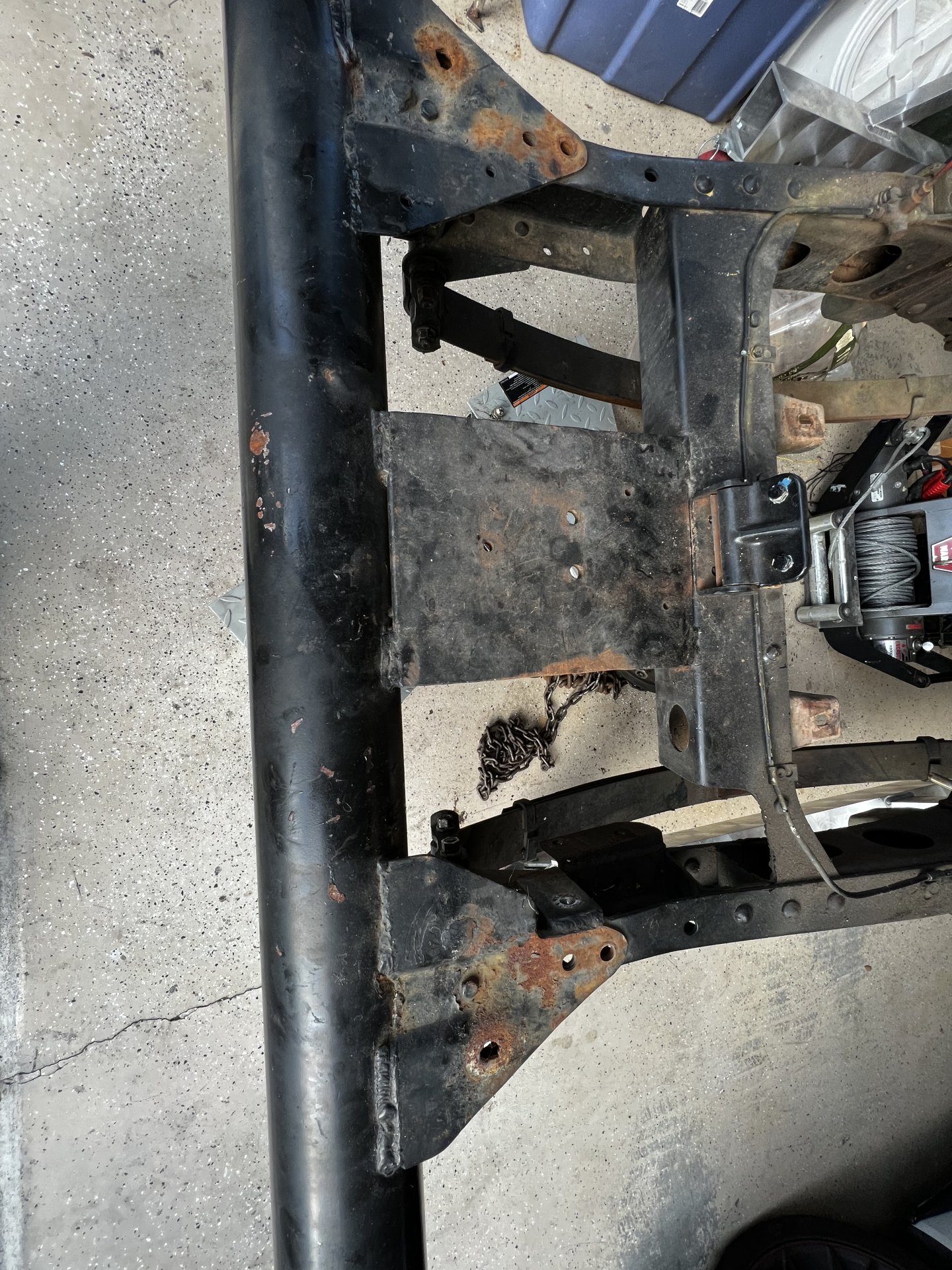

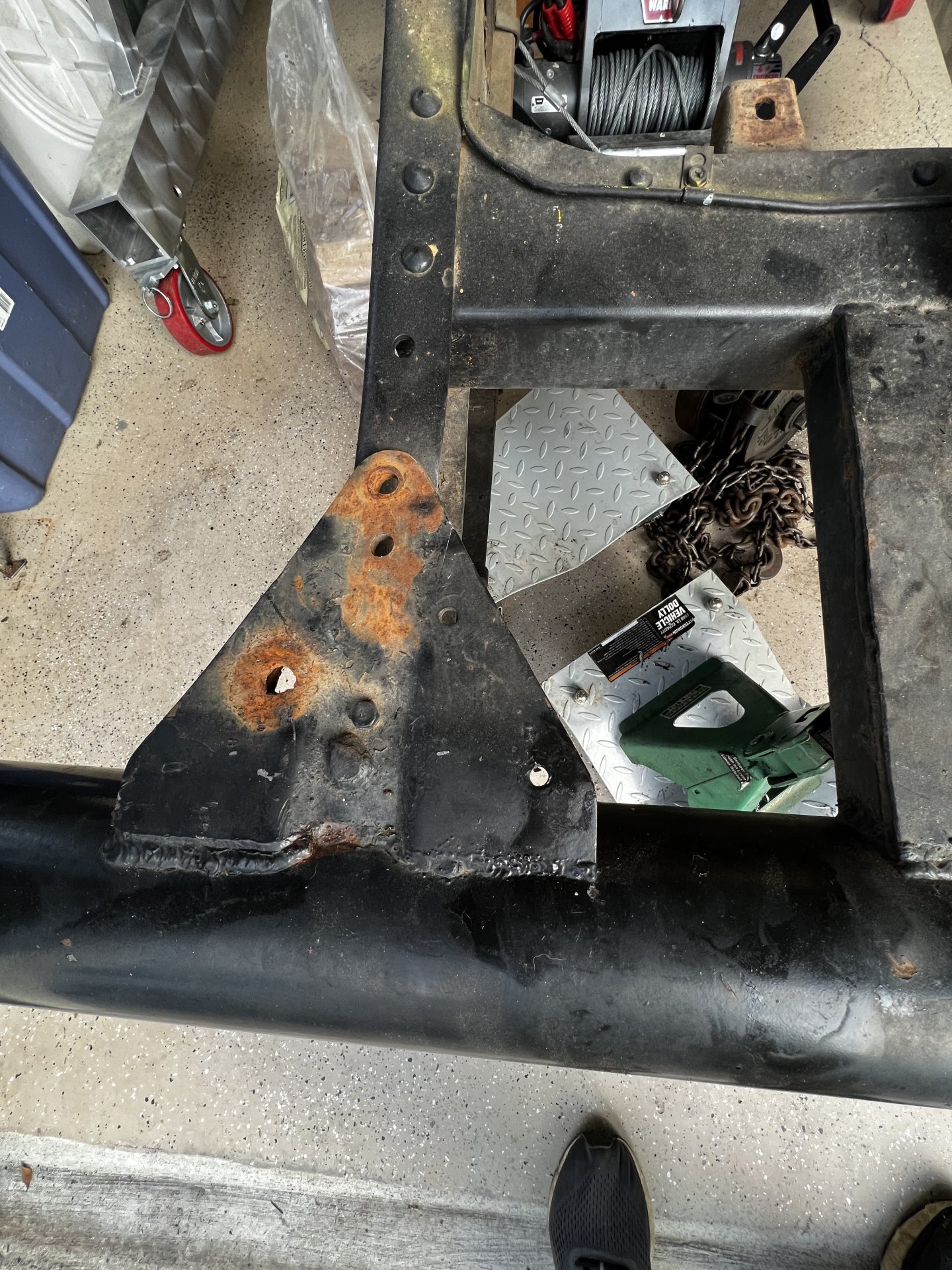

can you zoom in on this section? Looks like you might need a bit of frame repair for safety depending on what style of steering you plan on going with.

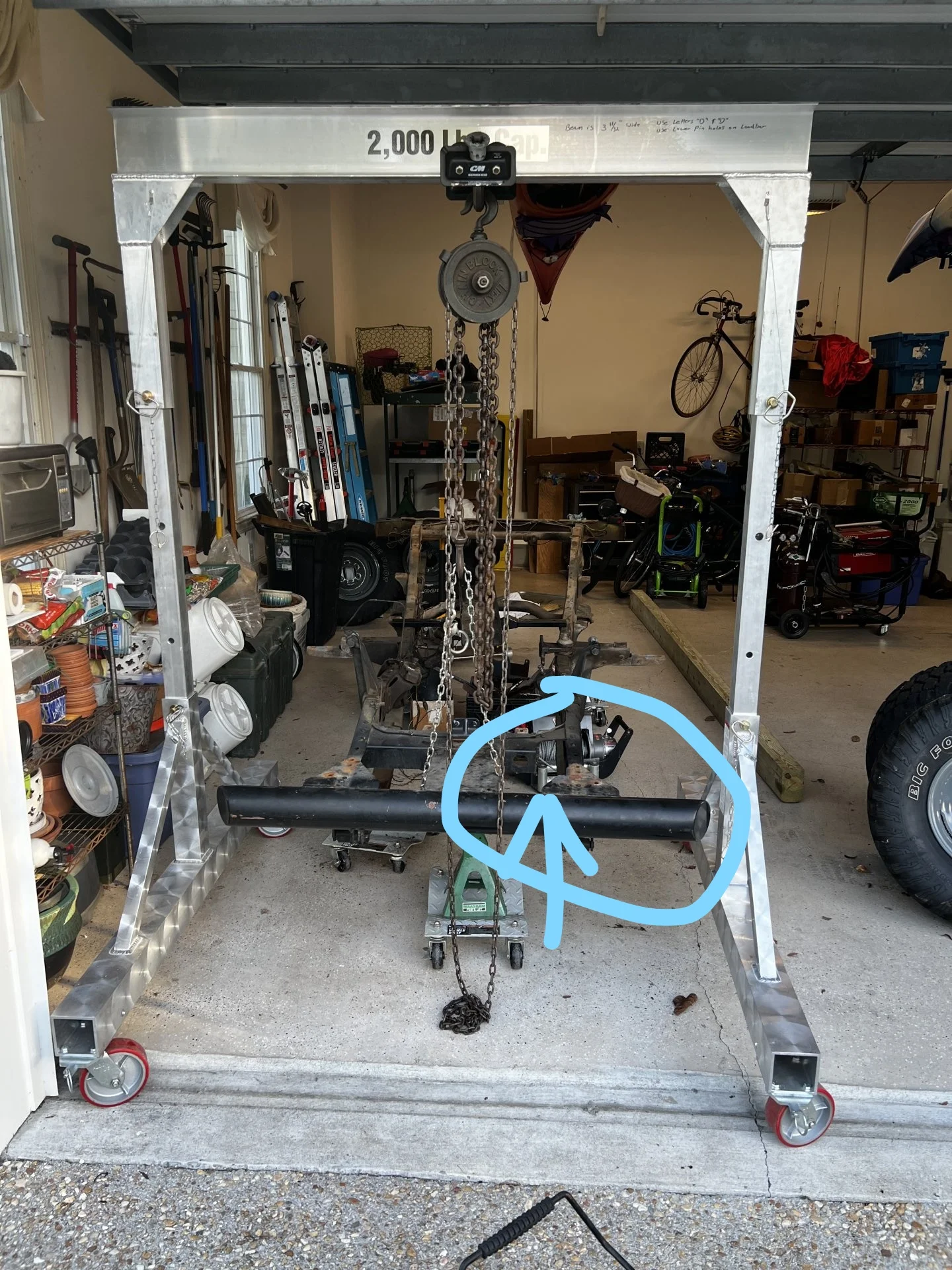

View attachment 3062233

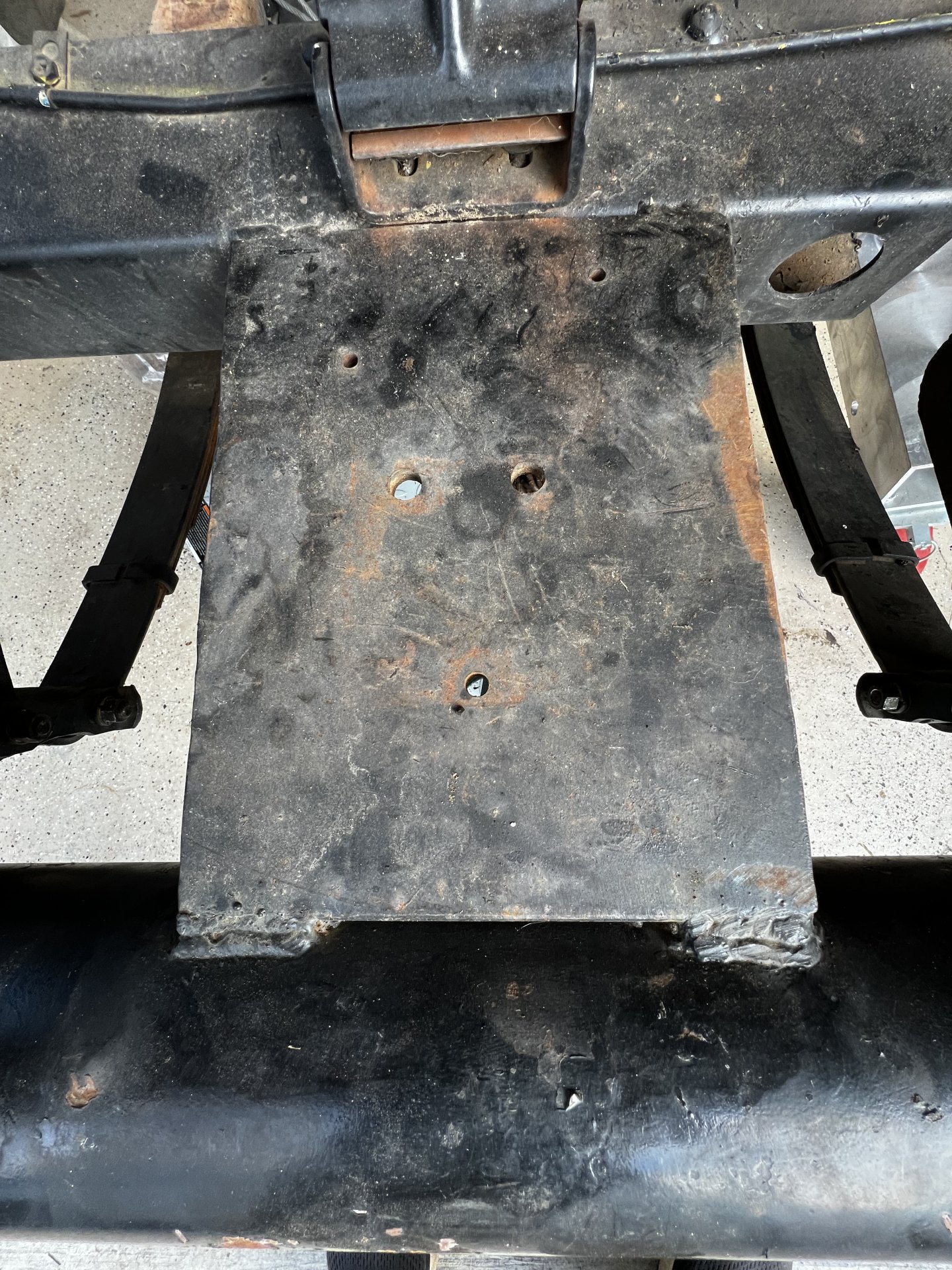

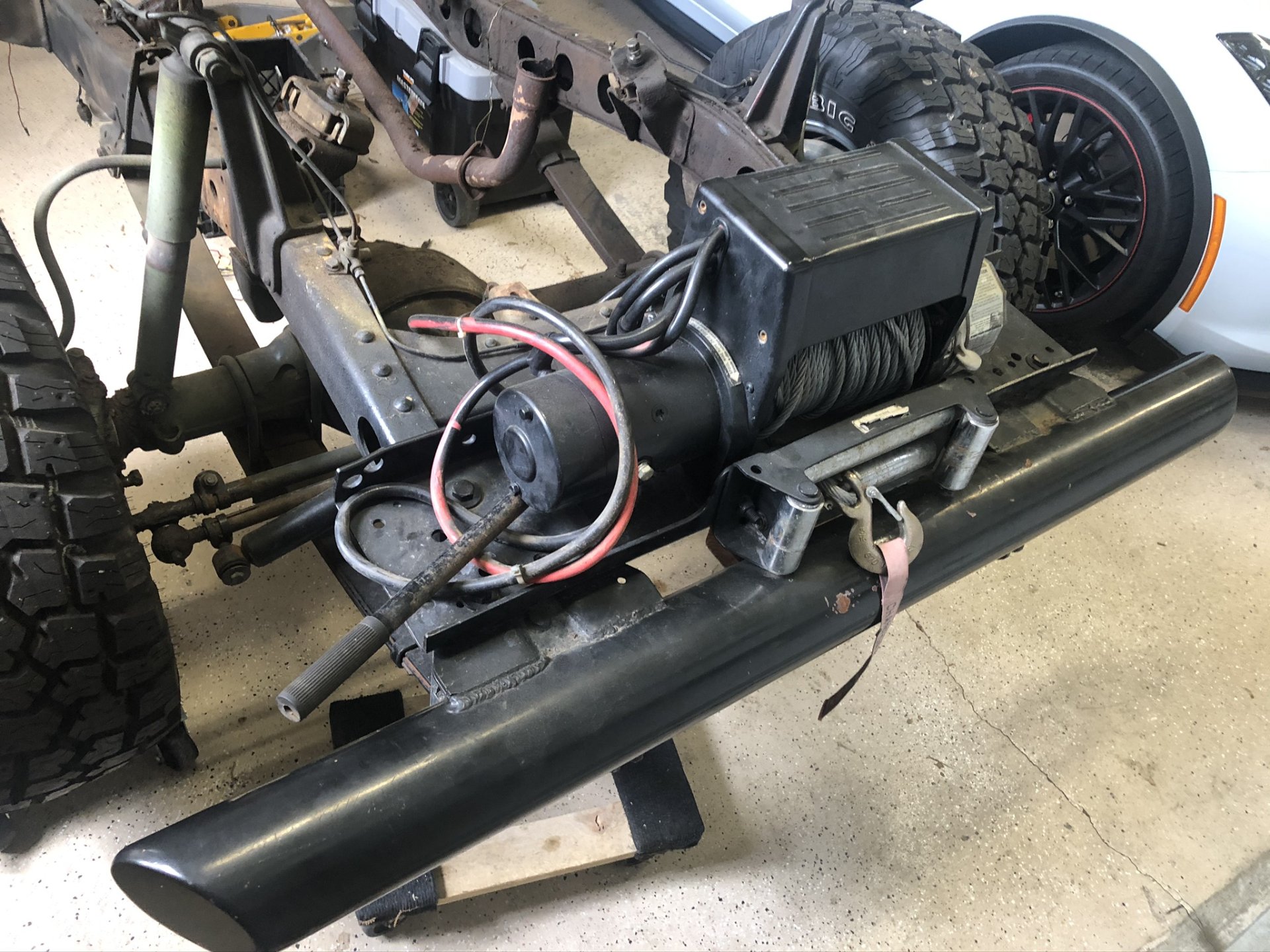

Thank You for noticing that. That is where the Saginaw gear box was placed. It seems they compensated by using the plate to connect the bumper to the lower radiator cross member. They also used a 3/16” winch plate/Trey that bolts all of that together.

I am considering boxing in that missing section by using 1/4” plate steel to go under the steering gear box if it doesn’t hit the pitman arm.





















tornadoalleycruiser

Erik TLCA #5303
SILVER Star
Joined
Aug 2, 2004
Messages
5,506
Location
KC Mo
Website
www.tornadoalleycruisers.com
I would start the search for a new front frame cross-member now. That looks like an angry beaver attacked it and took out all structural integrity. Saginaw can be invasive if done incorrectly. Can also be wonderful if done correctly. If you decide to go back with Saginaw, there are many options that are less invasive than what someone did to the front of that frame.


cruisermatt

Un-manufacturable
Supporting Vendor
SILVER Star
Joined
Jul 22, 2012
Messages
11,927
Location
Winter Park, Florida
Website
www.facebook.com
I’d get a carb 3f manifold and use a Holly sniper

That won't work on a 3FE head.

What rear axle is that? looks like OEM locker, disc, full float? 70 series?


GeoW5

SILVER Star
Joined
Jul 31, 2019
Messages
217
Location
Swansboro, NC.
I would start the search for a new front frame cross-member now. That looks like an angry beaver attacked it and took out all structural integrity. Saginaw can be invasive if done incorrectly. Can also be wonderful if done correctly. If you decide to go back with Saginaw, there are many options that are less invasive than what someone did to the front of that frame.
Do you have any pics of a better way to mount the Saginaw steering box?


tornadoalleycruiser

Erik TLCA #5303
SILVER Star
Joined
Aug 2, 2004
Messages
5,506
Location
KC Mo
Website
www.tornadoalleycruisers.com
one of the best ones out there for a saginaw mount (in my opinion)
different version
a different version
and the cheap cast version, i am not a fan and have seen them break off the frame at times that are very inconvenient. many people have great luck with them

Plenty of saginaw conversions documented here in this forum if you use the search button at the top right hand corner of the page.

Other types of power steering conversions are fully documented. FJ60/80 style


Minitruck power steering option

Plenty of options out there to meet the end goals of your vehicle. Time, money, fab skill are the only things that will change on the different versions.


GeoW5

SILVER Star
Joined
Jul 31, 2019
Messages
217
Location
Swansboro, NC.
one of the best ones out there for a saginaw mount (in my opinion)
different version
a different version
and the cheap cast version, i am not a fan and have seen them break off the frame at times that are very inconvenient. many people have great luck with them

Plenty of saginaw conversions documented here in this forum if you use the search button at the top right hand corner of the page.

Other types of power steering conversions are fully documented. FJ60/80 style


Minitruck power steering option

Plenty of options out there to meet the end goals of your vehicle. Time, money, fab skill are the only things that will change on the different versions.
I really like that first one you sent me from 4 x 4 labs.


Dynosoar

Slightly Disturbed
SILVER Star
Joined
Feb 3, 2006
Messages
4,121
Location
SoCal
I did the same swap a few years ago FJ62 Axels, 3FE, H55 and split case, FJ 60 power steering. It is a great combo. nothing is too difficult. Just time and patience. I did move my rear crossmember back a bit to aid in clearance. (4+ has a relocation kit, not advertised but send an email or call). Feel free to reach out with questions.


GeoW5

SILVER Star
Joined
Jul 31, 2019
Messages
217
Location
Swansboro, NC.
I did the same swap a few years ago FJ62 Axels, 3FE, H55 and split case, FJ 60 power steering. It is a great combo. nothing is too difficult. Just time and patience. I did move my rear crossmember back a bit to aid in clearance. (4+ has a relocation kit, not advertised but send an email or call). Feel free to reach out with questions.
Thank You so much!


GeoW5

SILVER Star
Joined
Jul 31, 2019
Messages
217
Location
Swansboro, NC.
What did you guys do to rebuild your existing leaf springs? I plan to keep stock height as I have no interest in trying to climb into a vehicle. My springs are rusty but still have a good arch. I have no idea of how to take them apart and open the clips without breaking something. I did by new shackles with grease fittings and poly bushings.
