HZJ75 front left wheel bearing working loose?

Joined
Jun 20, 2009
Messages
53
Location
Brisbane Australia
Has anyone had this issue and what was the cause?

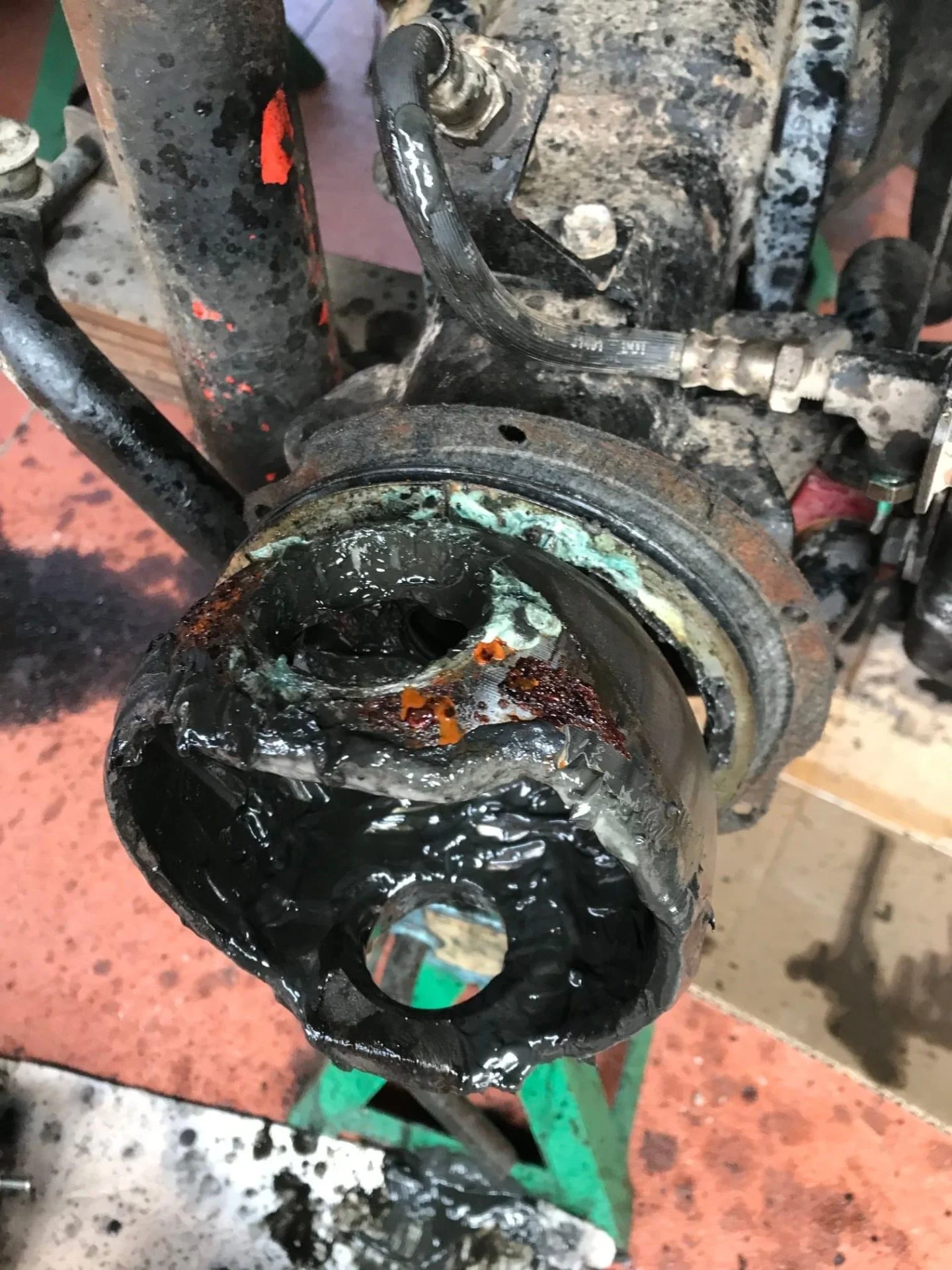

The problem initially started after getting water in the swivel housing which intern ended up in the hub ceasing the outer bearing. The bearing spun on the stub axl, thust washer broke the tab off and in-turn loosened the bearing.

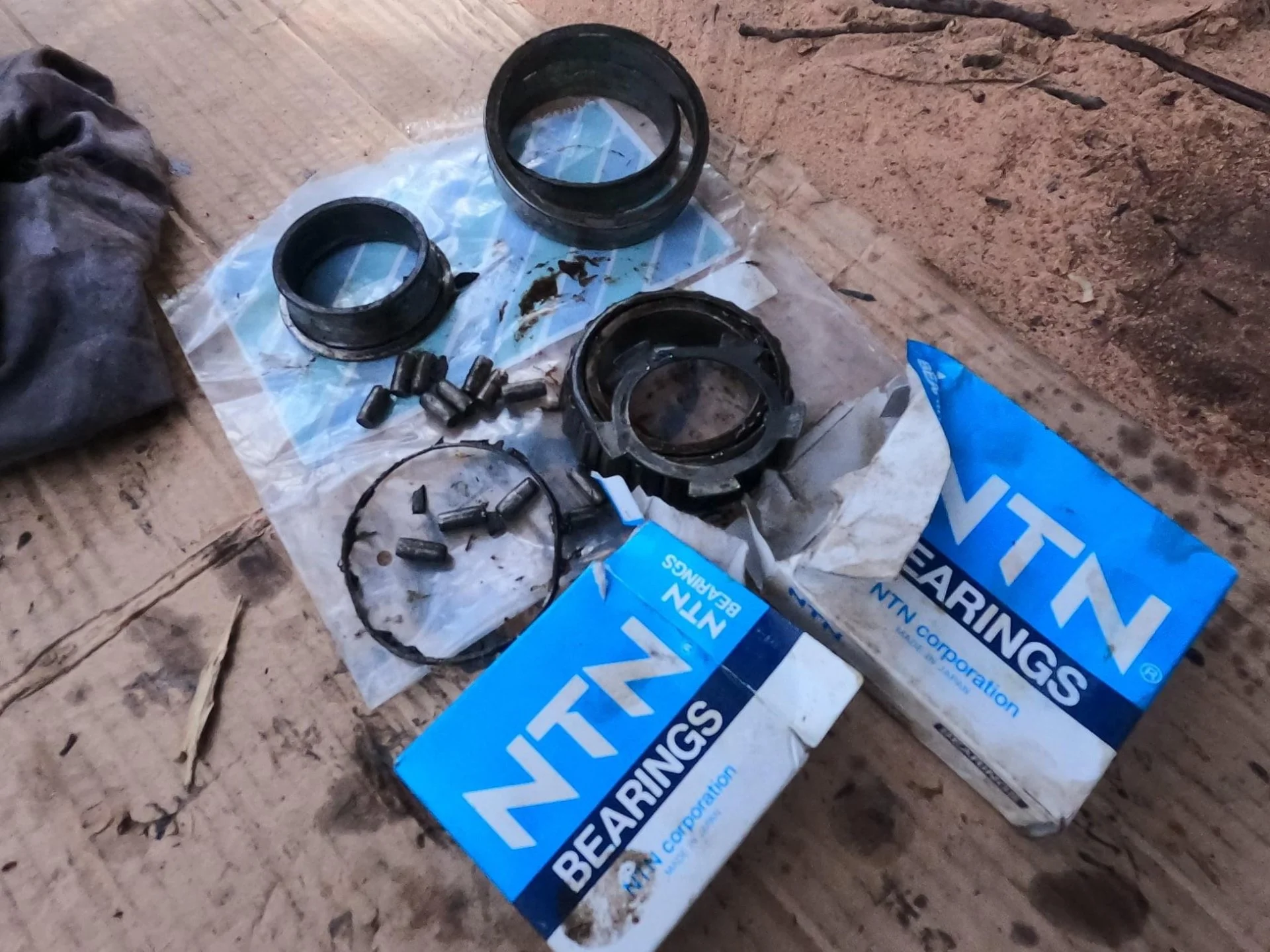

I replaced the bearing out in the middle of no where whith a new one. At the time I didn’t have a replacement thust washer and for the next 1000 klm to get home I had to retighten it 4-5 times on the side of the road.

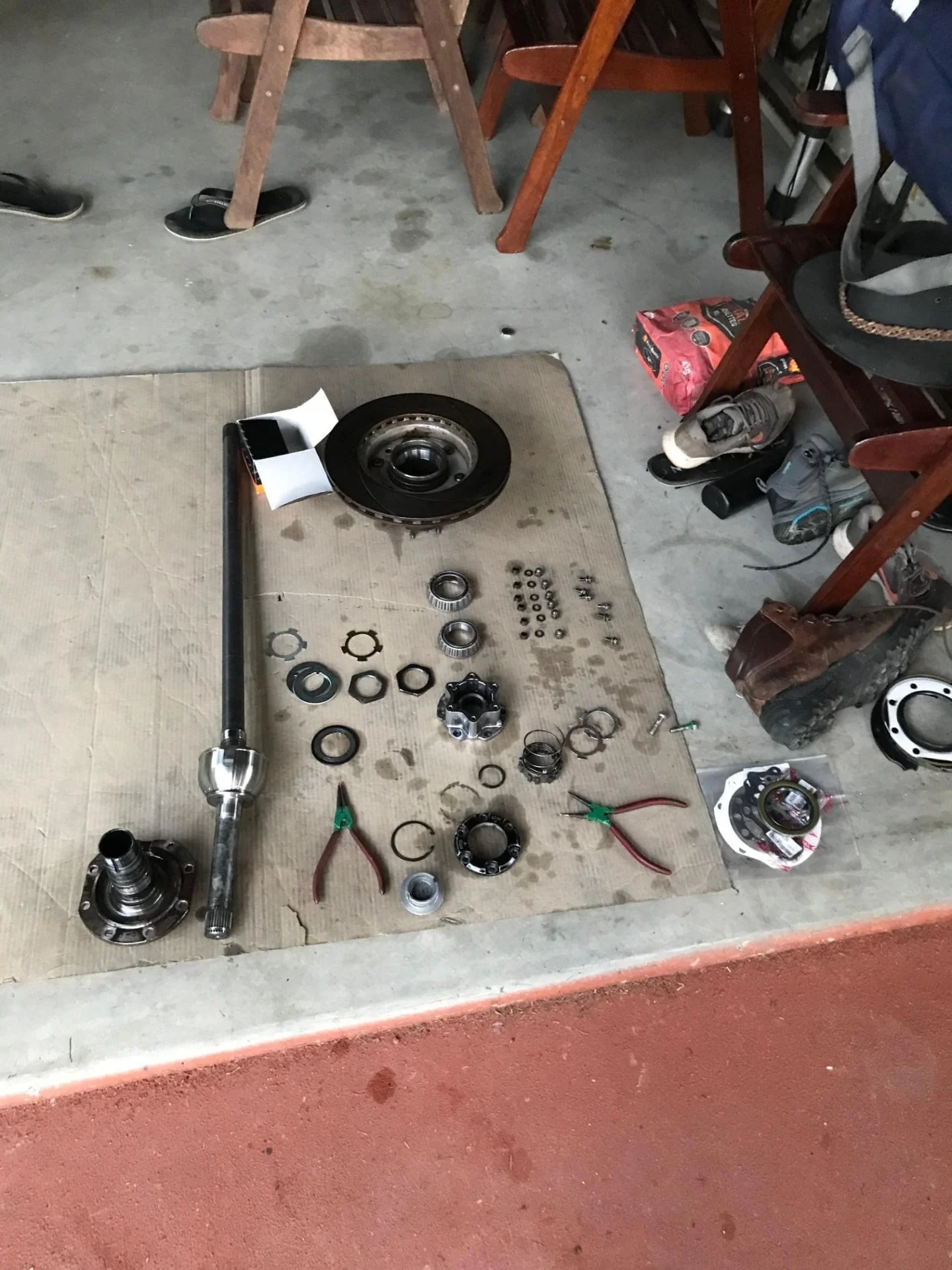

After getting home I pulled it all down replaced all the seals in the swivel housing, re greased all the bearings.

Just been away again on a little bit of corrugated road and again it has come loose.

I have my suspicions of what may be causing it but want to hear from other experience.

Thanks in advance






Joined
Dec 22, 2015
Messages
1,648
Location
Whitefish/Bozeman, MT
I'm (mostly) guessing here but if the tab was broken off the thrust washer there's nothing stable for the adjusting nut to lock against. Improper preload could also cause the bearings to loosen up after a few hundred k's.

Joined
Jun 20, 2009
Messages
53
Location
Brisbane Australia
I'm (mostly) guessing here but if the tab was broken off the thrust washer there's nothing stable for the adjusting nut to lock against. Improper preload could also cause the bearings to loosen up after a few hundred k's.
That was my initial thought. But when I got home and did the overhaul I replaced the thust washer and it has come loose again.


Squash

SILVER Star
Joined
Dec 8, 2006
Messages
1,682
Location
Sudbury, Ont. CA
Interesting that one of my manuals tells us to pre-load to 65ft/lbs vs 48, I then loosen and torque inner nut to 20ftlbs rather than factory spec... especially with bigger tires. Make certain your thrust washer is in decent shape and bend the serated washer tabs in and out over your second lock nut.

Joined
Jun 20, 2009
Messages
53
Location
Brisbane Australia
The 48ft/Lbs is about 68Nm.Yes preload the bearing to spec and then back it off. Haven’t seen the 20ft/Lbs before but that is about it. We would always preload and give the wheel a good spin. Then back it off to just tighter than had tight which would be around the 20 mark.

my book says 59Nm. Then talks about using a spring gauge to measure the effort to turn the hub

Last edited:

Squash

SILVER Star
Joined
Dec 8, 2006
Messages
1,682
Location
Sudbury, Ont. CA
Do the pre-load as per FSM then tighten inner nut to 20ft/lbs. Outer nut to 48ft/lbs.
Then go for a drive!
I currently have 3 land cruisers on the road and all get the same treatment.
All three have driven across Canada with no bearing issues.
