How to read the torque specs???

jbee

Thank God for the deserts
SILVER Star
Joined
May 18, 2011
Messages
1,040
Location
Gilbert, AZ
These torque specs seem awful high, I have several different FSM’s that I have downloaded over the years, am I reading this wrong?
It would appear that the foot pound numbers are bonkers.
It’s page SR-47 of whichever manual this is.
1,800 ft lbs on the pitman arm nut?


Joined
Jan 19, 2005
Messages
3,665
Location
South west utah
Something is certainly wrong with the #'s. 177kg-cm is approximately 17NM or 12.8 ft lbs according to a quick google conversion....

I personally would get that thing as tight as I could by hand using a normal length wrench and call it day.

Joined
Nov 9, 2012
Messages
13,230
Location
Olathe, KS, USA
These torque specs seem awful high, I have several different FSM’s that I have downloaded over the years, am I reading this wrong?
It would appear that the foot pound numbers are bonkers.
It’s page SR-47 of whichever manual this is.
1,800 ft lbs on the pitman arm nut?

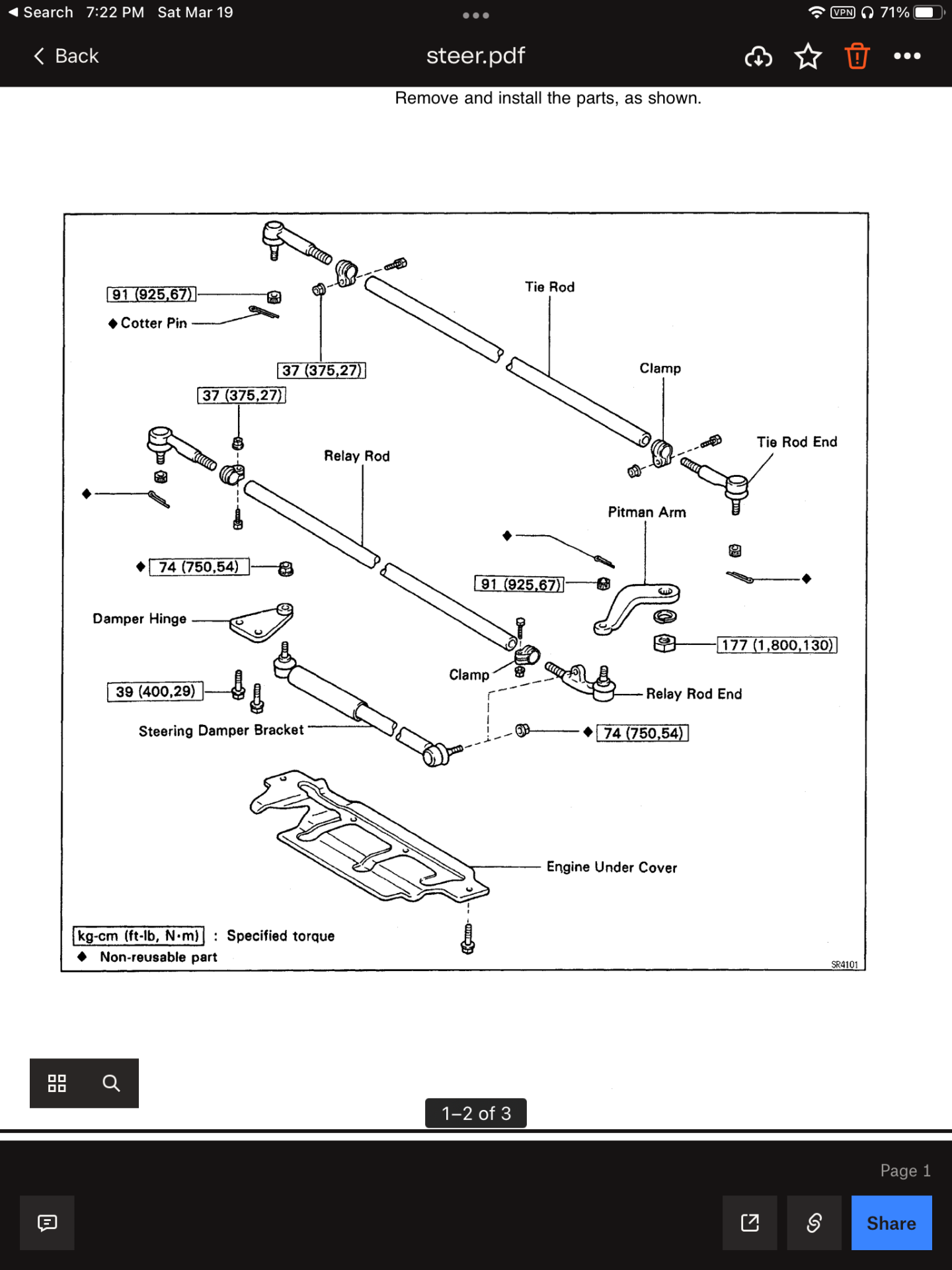

View attachment 2957441
Their legend is incorrect.

It should read N-m (kgf-cm, lb-ft)

This really is a similar reason the wheel bearing torque is wrong in the FSM in the USA.
