How not to rewire your alternator

[1962fj40]

After a serious brain malfunction of reversing the connection from the regulator to alternator, this is the result. Luckily it appears so far that just the one wire between the starter and ignition was fried.



[1962fj40]

One more



[ToyotaMatt]



[1962fj40]

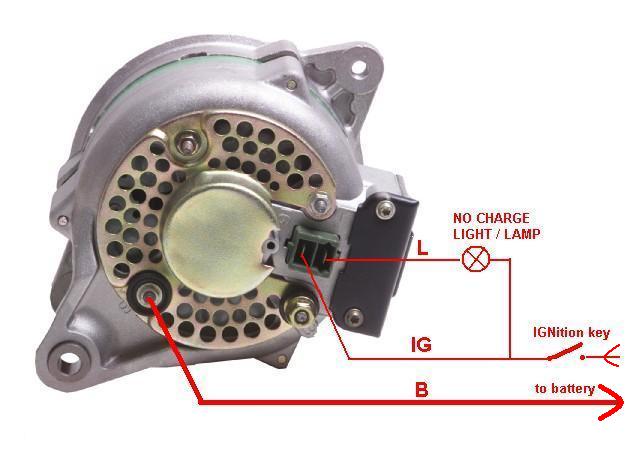

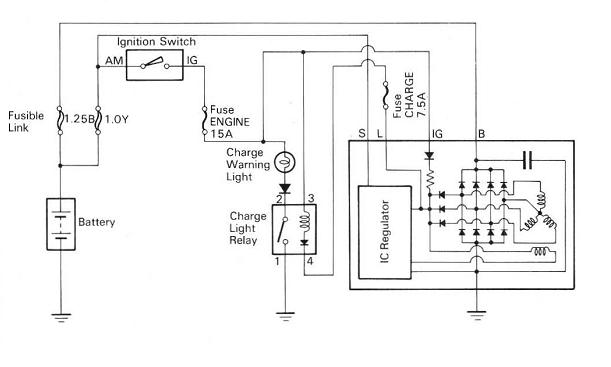

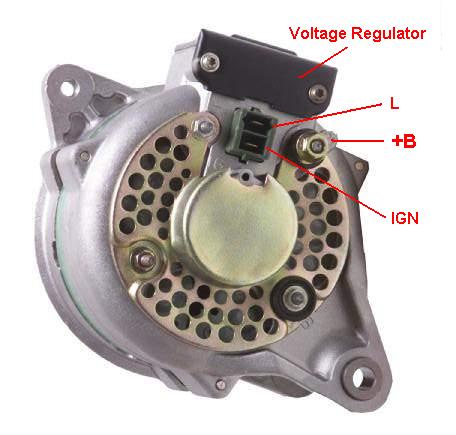

View attachment 2995678View attachment 2995679View attachment 2995680

Matt,

As my screen name dictates, I have a 1962 FJ40 the original generator upgraded with a Alternator. I never had the correct plug for the Alternator until this week. While installing the new plug and replacing the wires, I connected the two wires backwards to the external regulator. And the end result was lots of smoke and at least one burned wire.



[ToyotaMatt]

Matt,

As my screen name dictates, I have a 1962 FJ40 the original generator upgraded with a Alternator. I never had the correct plug for the Alternator until this week. While installing the new plug and replacing the wires, I connected the two wires backwards to the external regulator. And the end result was lots of smoke and at least one burned wire.

i am sorry to hear this ?

is there anything i can do to help ?



so you have a FEN alternator ?

and a 40010 Regulator ?


IG
F
E

F= Field

E= Earth

N= Neutral

IG =on the Regulator TAB = Ignition

@HelloKitty65 / kieth is a expert on the 1962 era trucks like you have , perhaps he can chime in ?


if it helps at all ill send you out one of these in the Mail tomorrow ?

no cost involved , i have a bucket full of them and would be happy to contribute to your speedy repair


PM me your shipping address , MUDSHIP rules apply here , nothing else matters .........

matt

NOS OEM Genuine TOYOTA Parts Maker NipponDenso Voltage Regulator 27700-40010 Fits 1962 - 9/72 FJ40 , FJ55 - VintageTEqParts.com

NOS OEM Genuine TOYOTA 100% PARTS NEW Parts Maker NipponDenso Voltage Regulator 27700-40010 Fits : 1962-9/72 FJ40, FJ55 3 -...

vintageteqparts.com



[1962fj40]

i am sorry to hear this ?

is there anything i can do to help ?



so you have a FEN alternator ?

and a 40010 Regulator ?


IG
F
E

F= Field

E= Earth

N= Neutral

IG =on the Regulator TAB = Ignition

@HelloKitty65 / kieth is a expert on the 1962 era trucks like you have , perhaps he can chime in ?


if it helps at all ill send you out one of these in the Mail tomorrow ?

no cost involved , i have a bucket full of them and would be happy to contribute to your speedy repair


PM me your shipping address , MUDSHIP rules apply here , nothing else matters .........

matt

NOS OEM Genuine TOYOTA Parts Maker NipponDenso Voltage Regulator 27700-40010 Fits 1962 - 9/72 FJ40 , FJ55 - VintageTEqParts.com

NOS OEM Genuine TOYOTA 100% PARTS NEW Parts Maker NipponDenso Voltage Regulator 27700-40010 Fits : 1962-9/72 FJ40, FJ55 3 -...

vintageteqparts.com

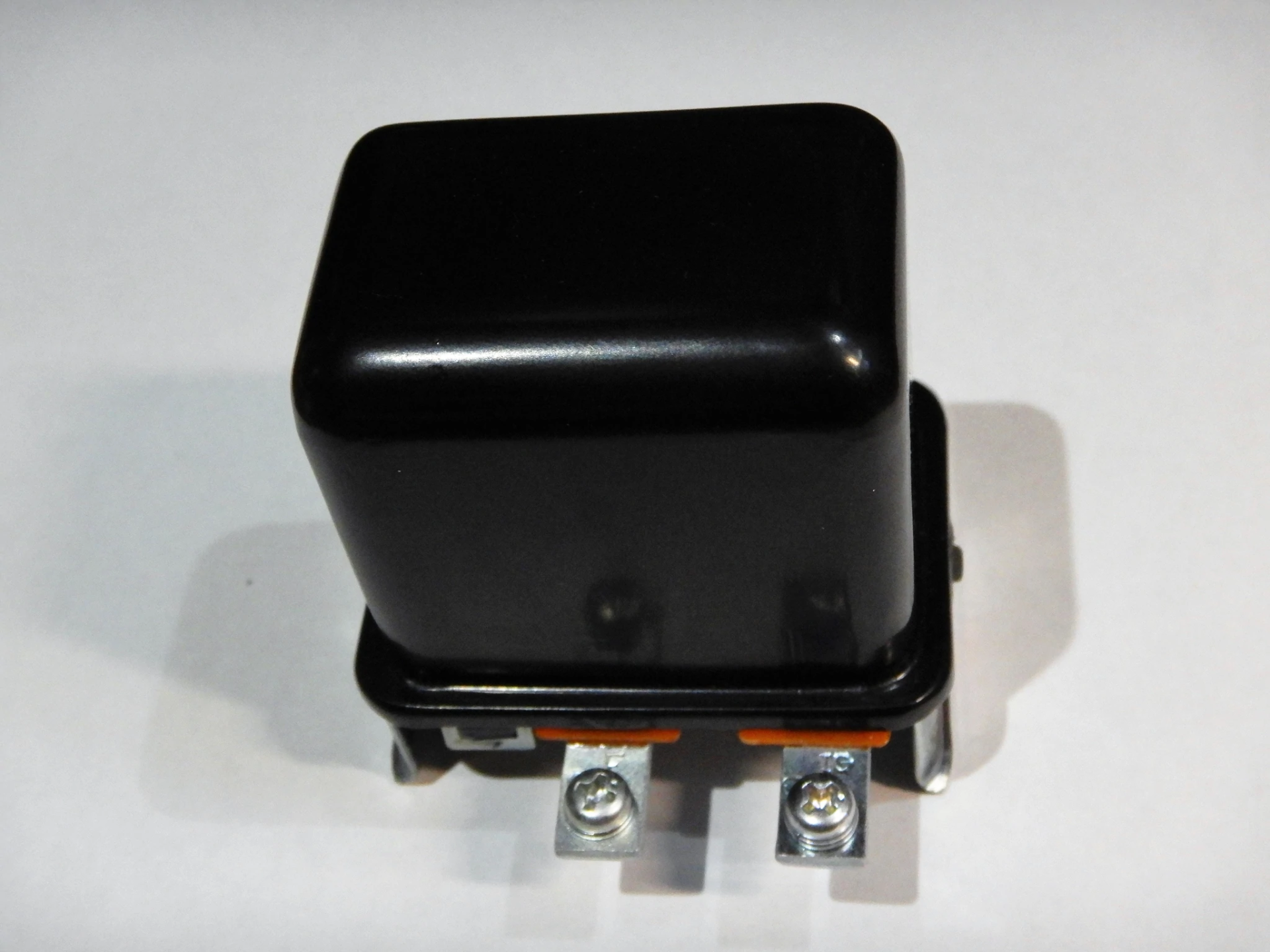

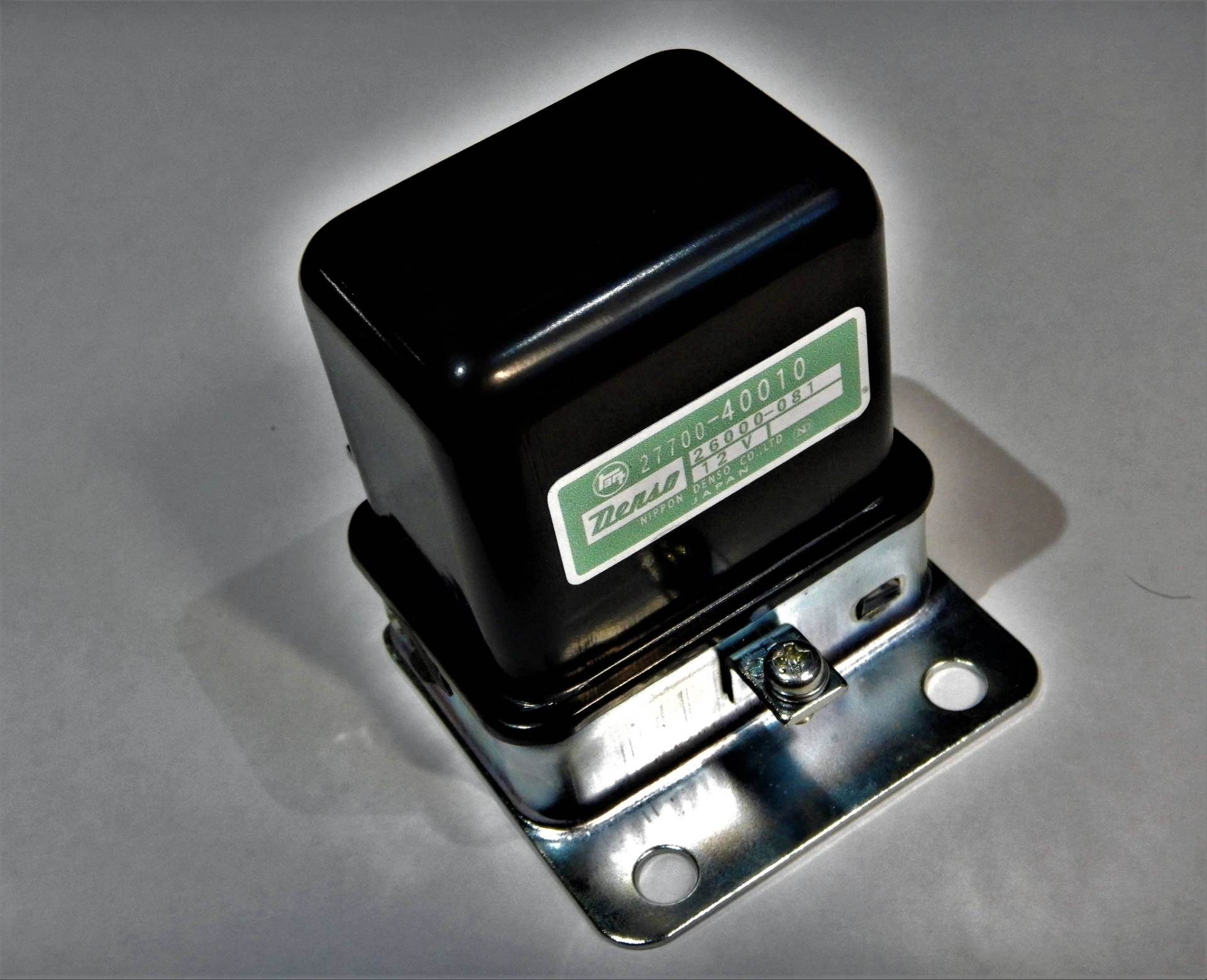

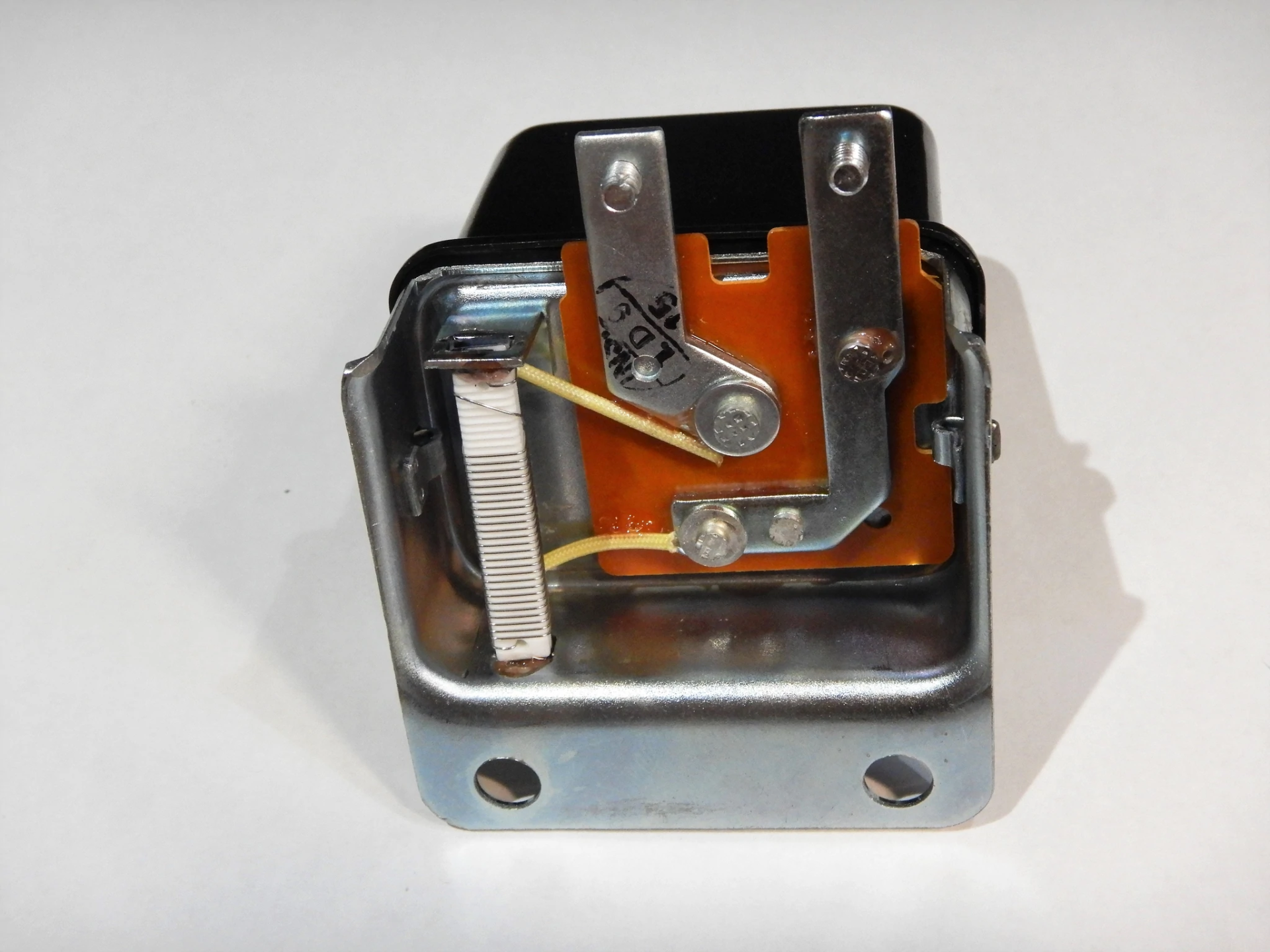

View attachment 2995729




View attachment 2995730

View attachment 2995733

Thanks Matt, that would really be helpful. I'm not sure at this point if any other damage happened or not. Just keeping my fingers crossed. I will PM you shortly.

Robert



[ToyotaMatt]

ill i

Thanks Matt, that would really be helpful. I'm not sure at this point if any other damage happened or not. Just keeping my fingers crossed. I will PM you shortly.

Robert

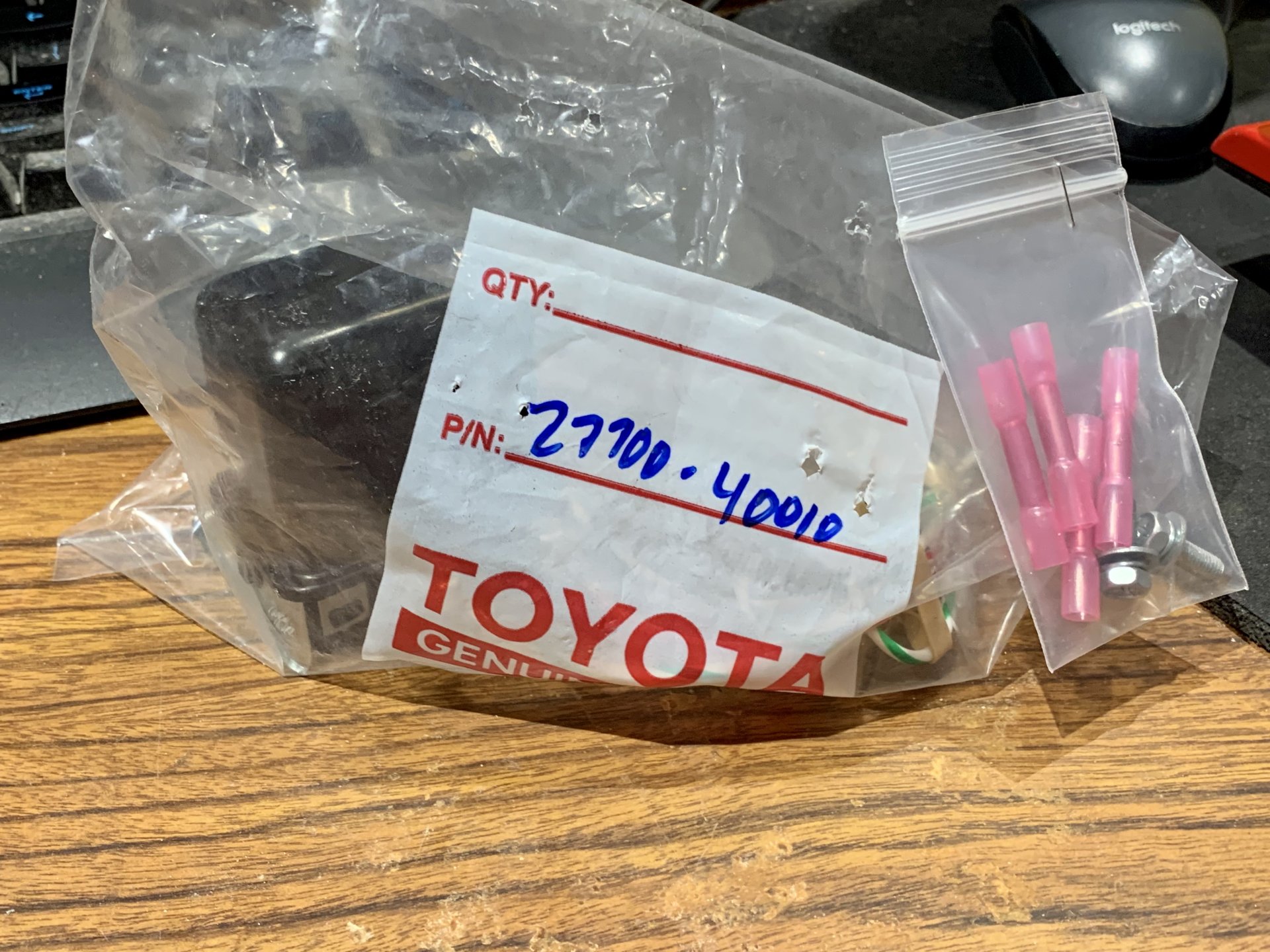

ill include the needed ring terminal and some color coded tracer stripes wires leeds


white w/ green tracer

white w / red tracer

white w/ black tracer

2 mounting screws oem
'
and some 3-M heat shrink BUTT connectors ..............



[ToyotaMatt]

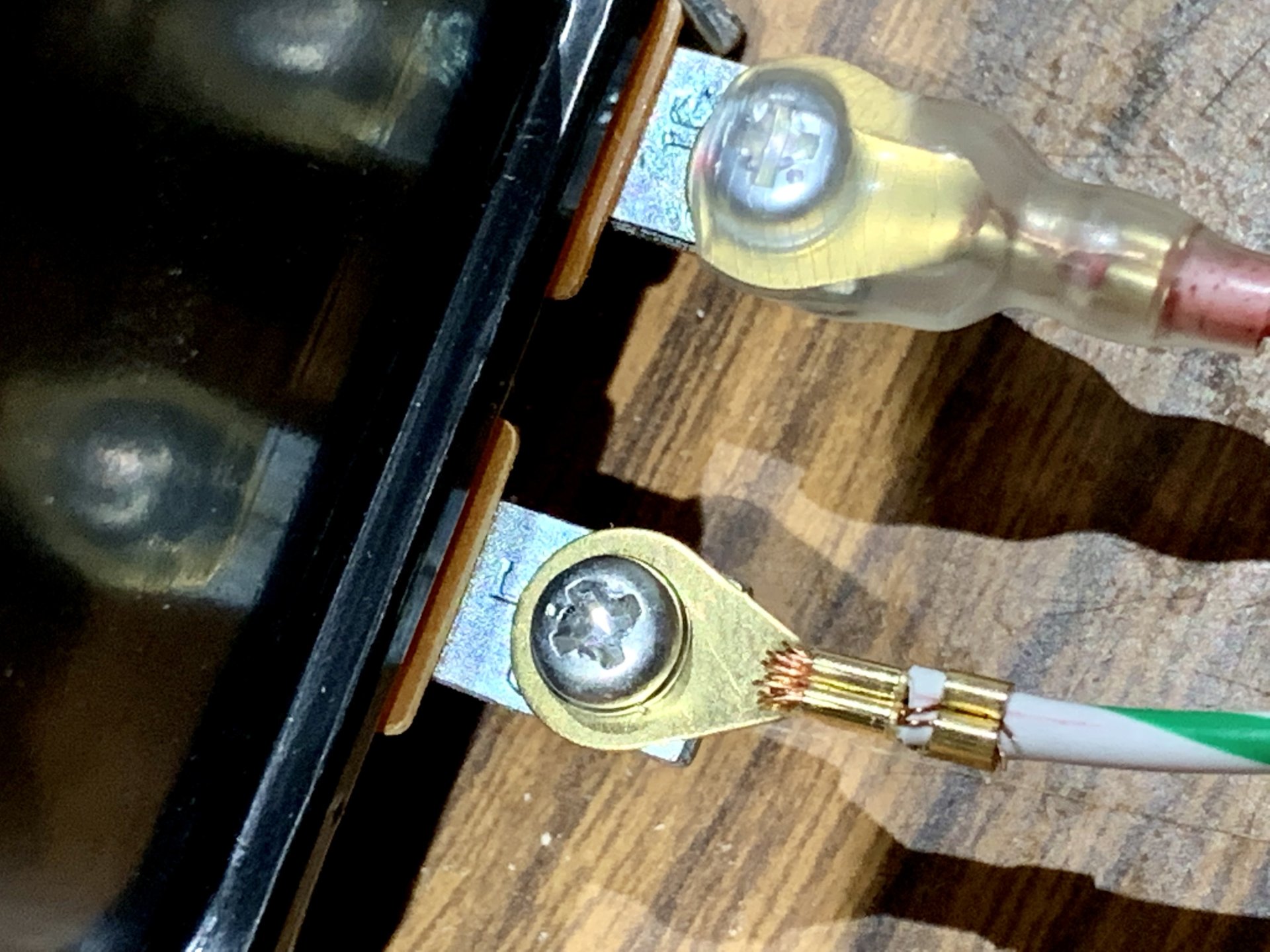

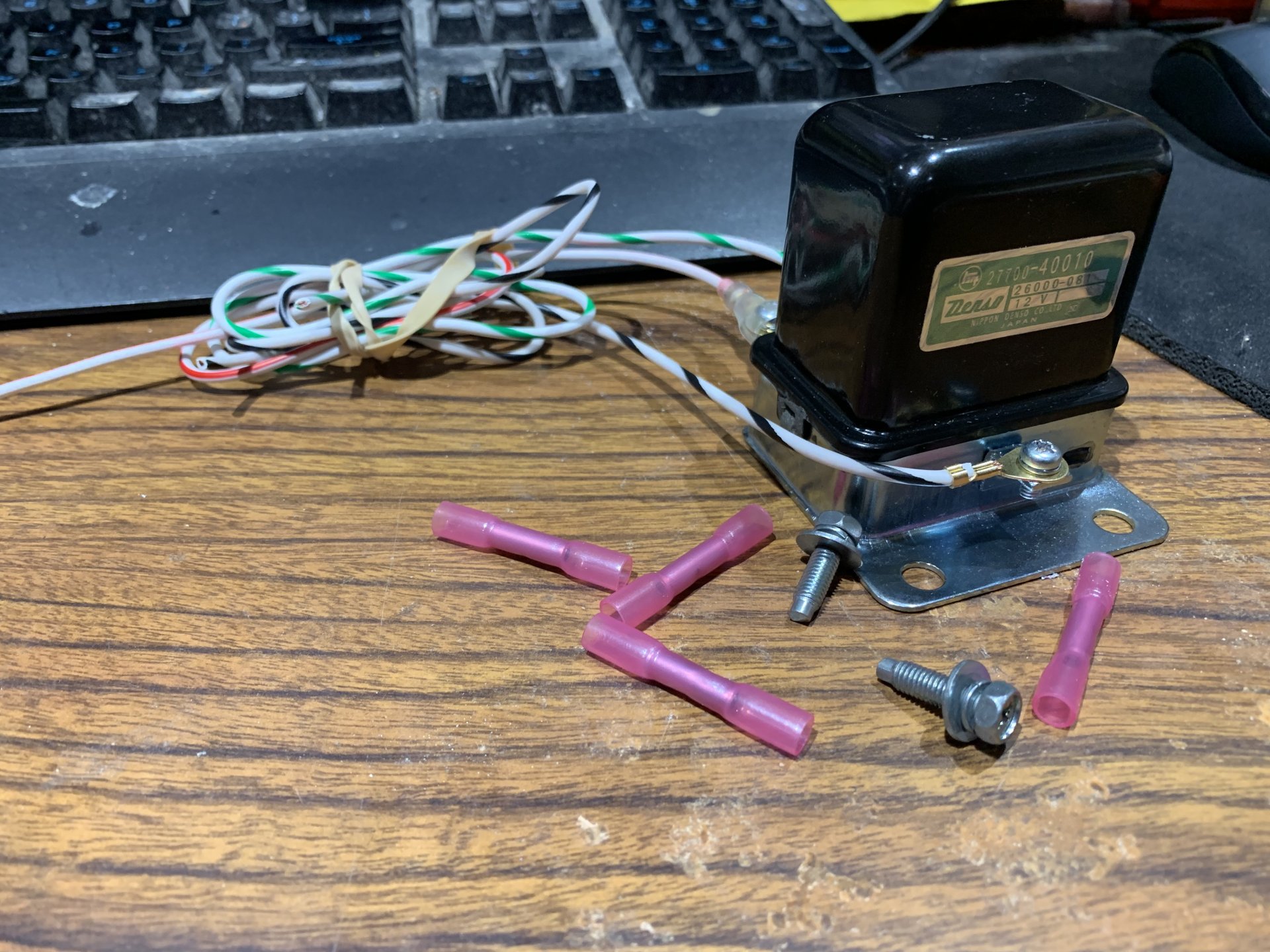

I pre- wired the 40010 for u and added a insulation boot to the B+ IG terminal too


F = Field goes to the F terminal on the Alternator it self

White / green tracer

If u need me to post a more detailed ewd please let me know



Matt



[1962fj40]

I pre- wired the 40010 for u and added a insulation boot to the B+ IG terminal too


F = Field goes to the F terminal on the Alternator it self

White / green tracer

If u need me to post a more detailed ewd please let me know



Matt

View attachment 2995758View attachment 2995759View attachment 2995760

Thanks Matt, I appreciate all that you have done. I'm sure I will be fine getting this back together


Robert



[1962fj40]

Pulled the main burned wire going from the starter to the ignition yesterday. Notice something missing?



[65swb45]

Pulled the main burned wire going from the starter to the ignition yesterday. Notice something missing?

…like a fusible link?
