PurpleFJ62 has a problem: the Cummins 6BTA Engine is out of the 99 Ram but has no way of mounting to the piddly little piece of s*** engine stand you buy at autozone crapo. This little thing is rated at 1250 lbs, and the Cummins weighs approx that (1170).

So, I design this using CAD software NX3 and FEA'd it to ensure is rigiidity and durability. According to the software. the base structure (not the head tube or the caster wheels) can support approx. 10000lbs before the structure yields.

Pictures:

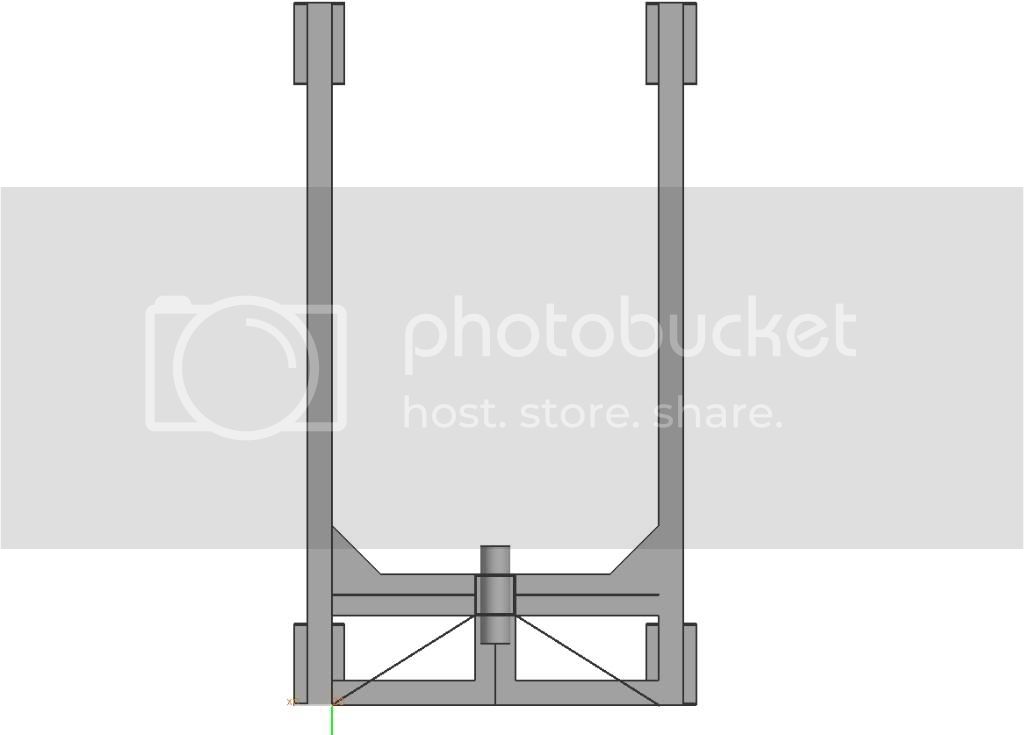

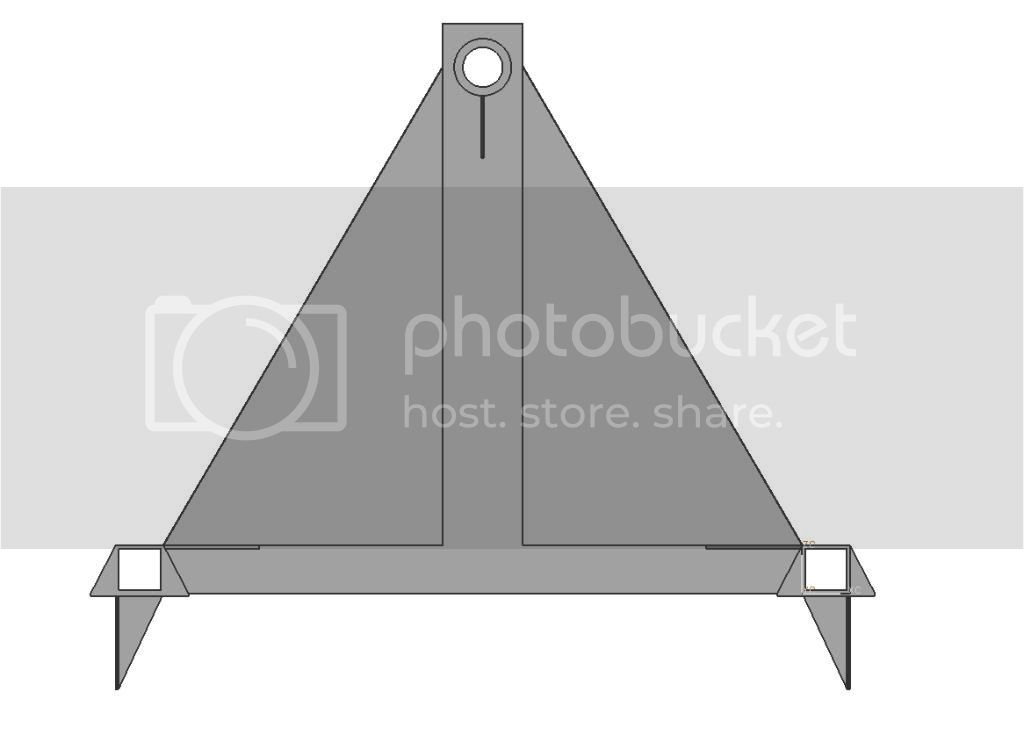

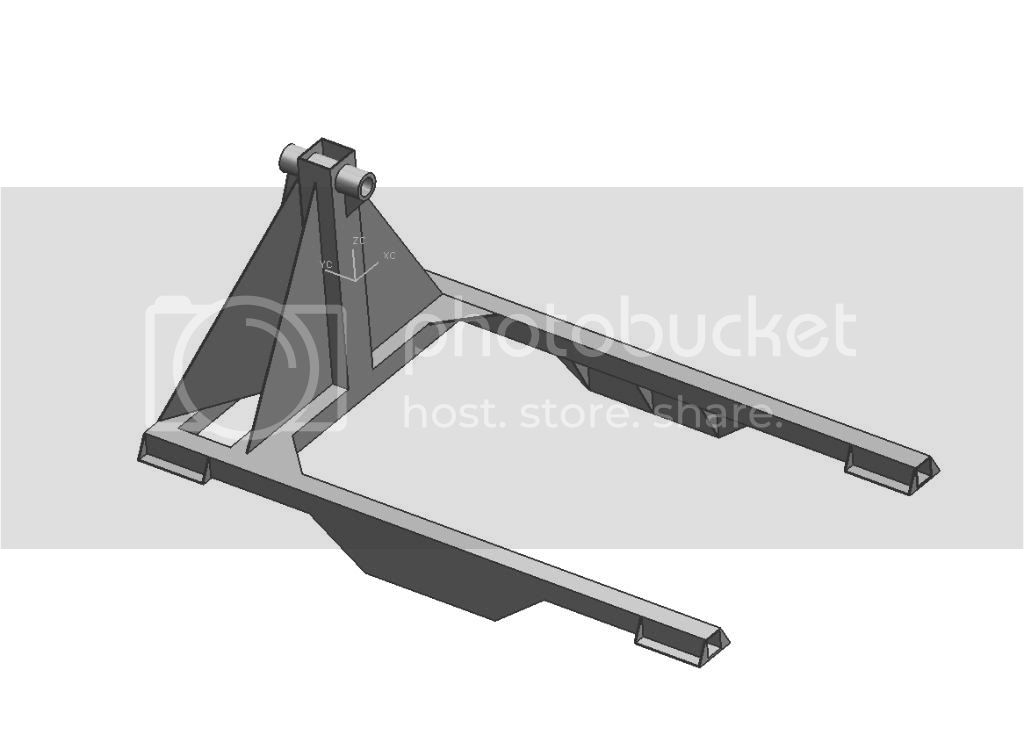

CAD Model










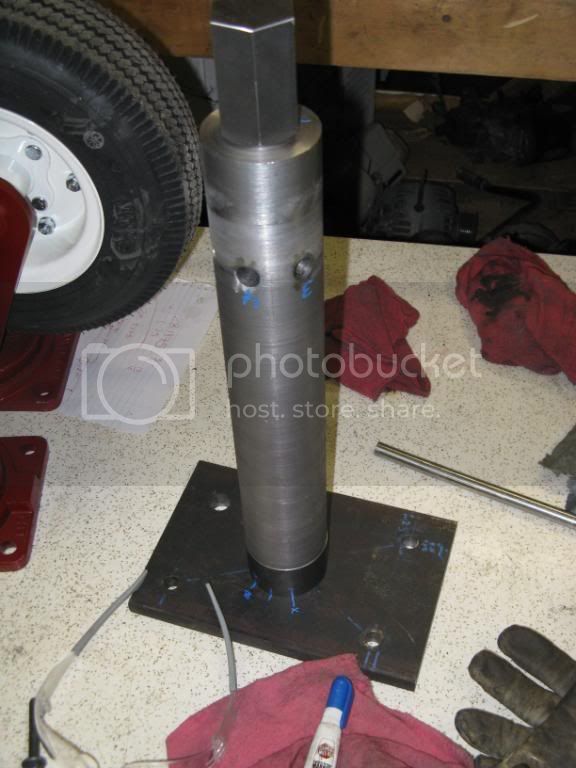

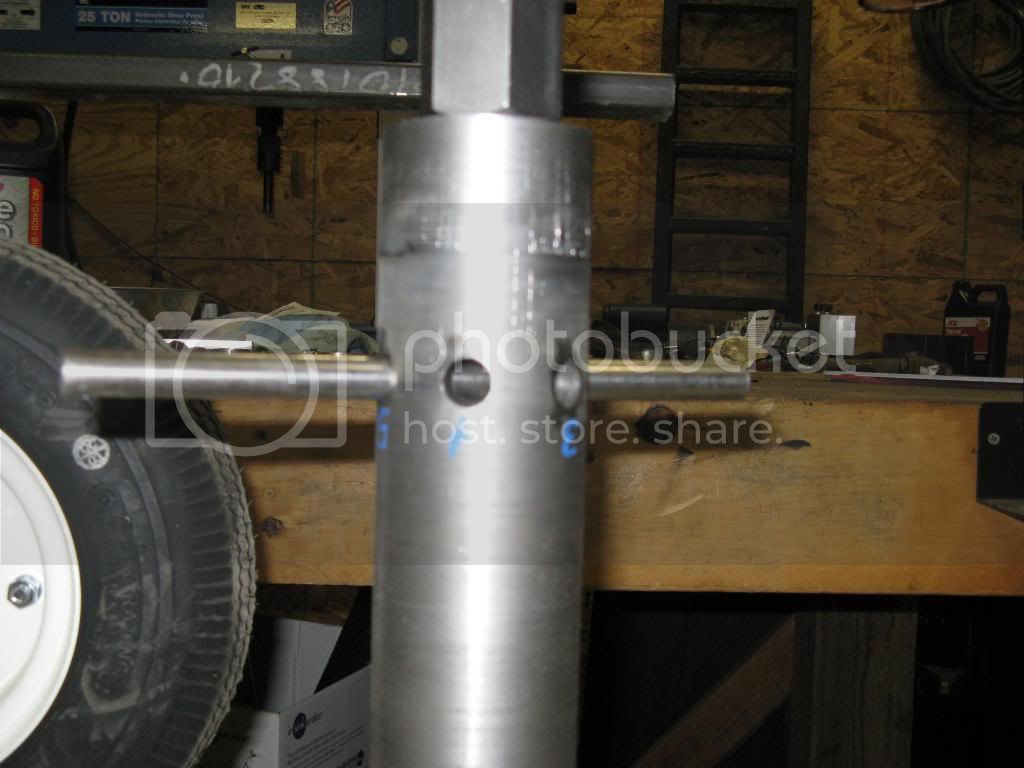

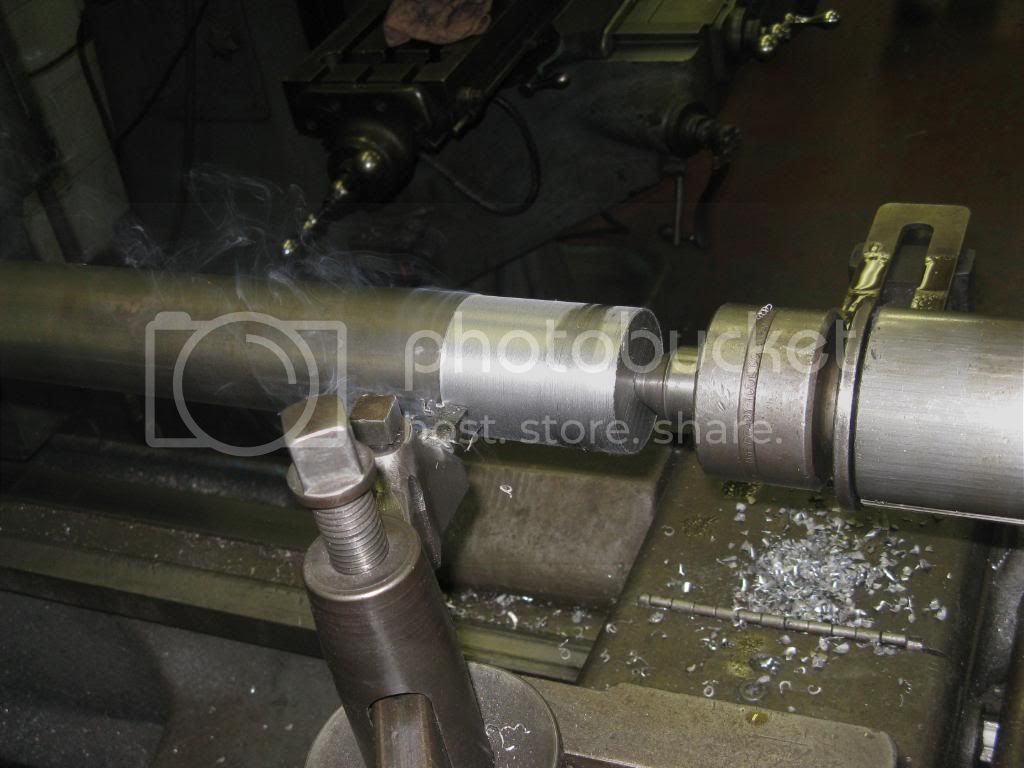

Fabricating the Inner Tube:

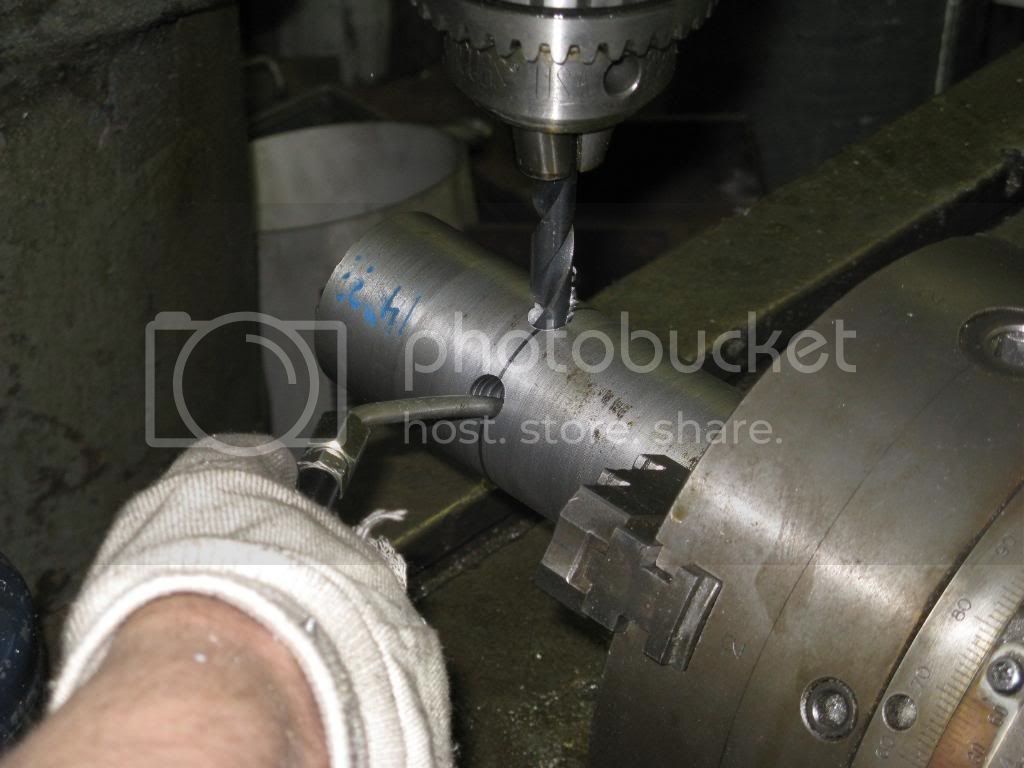

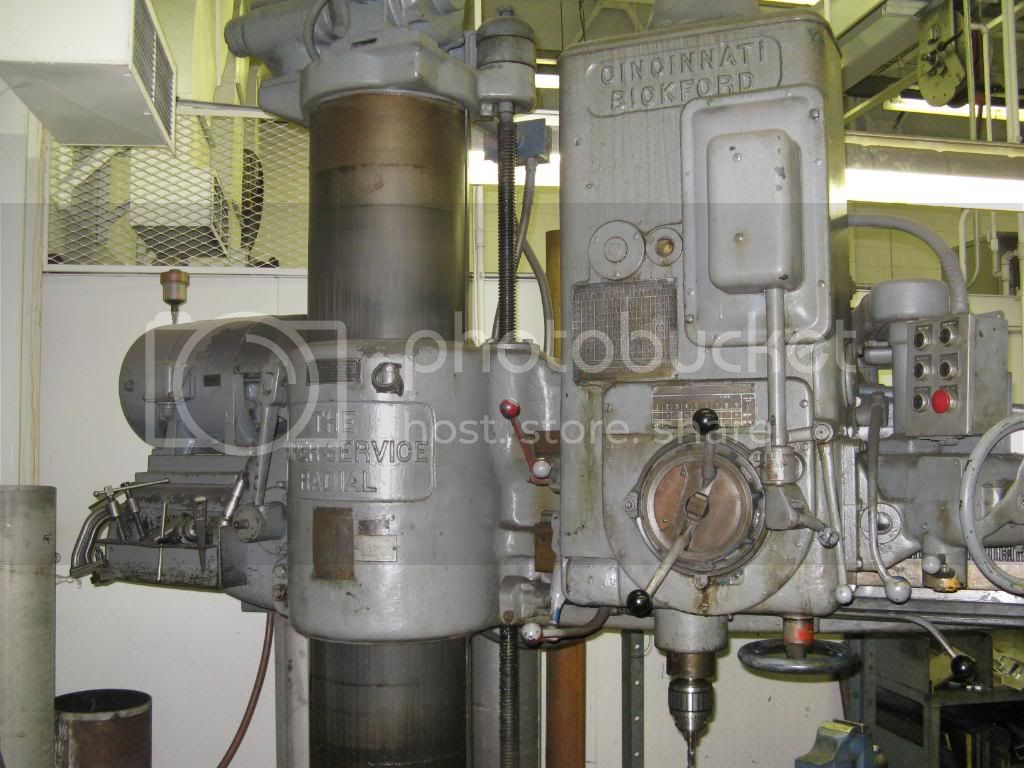

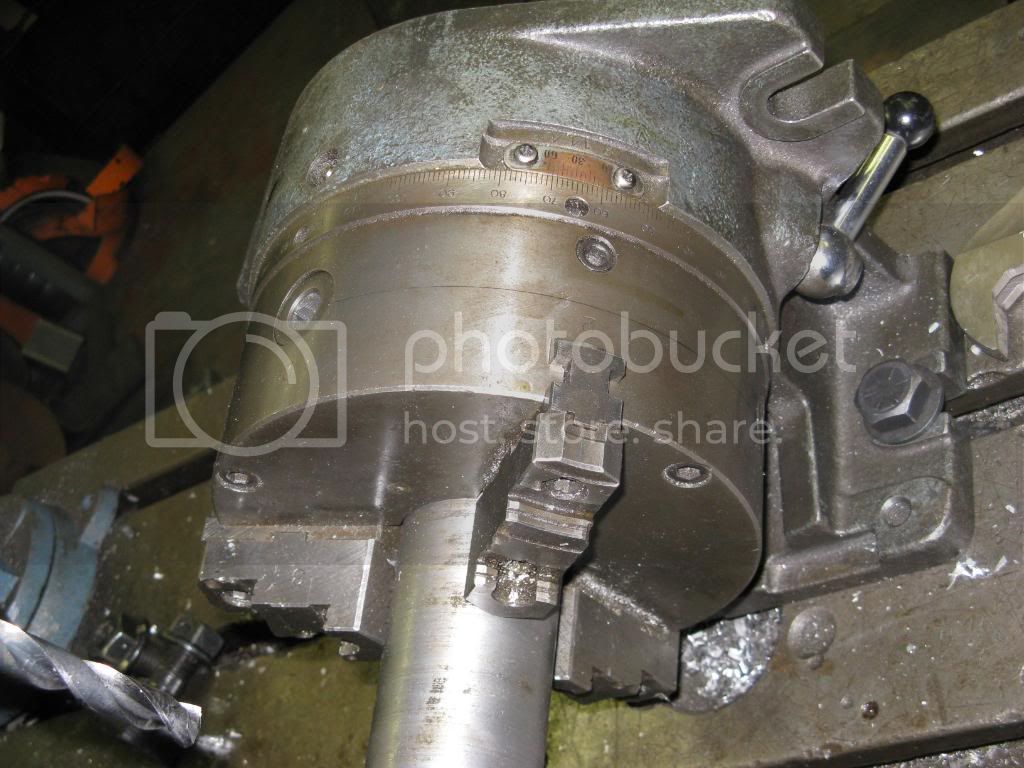

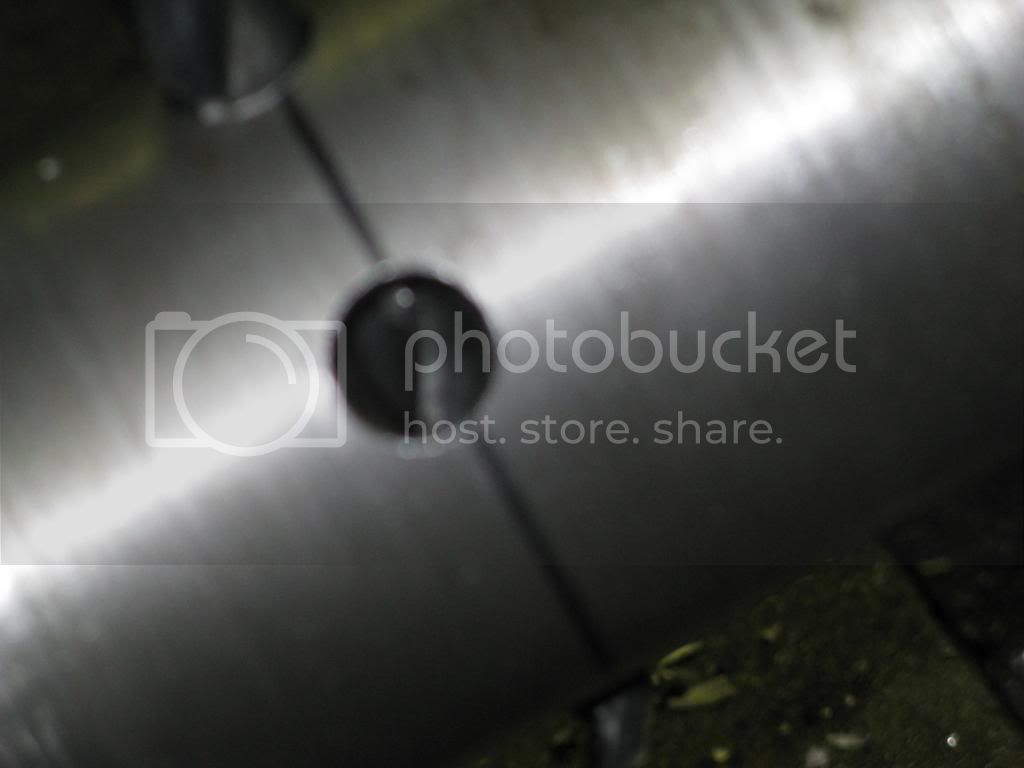

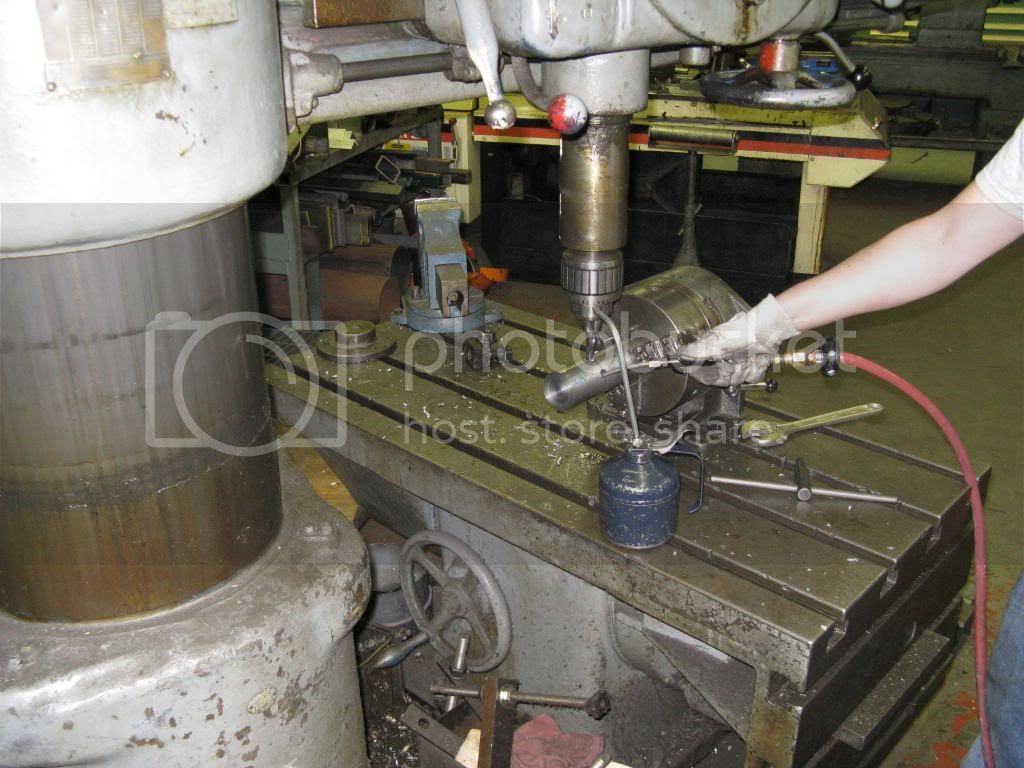

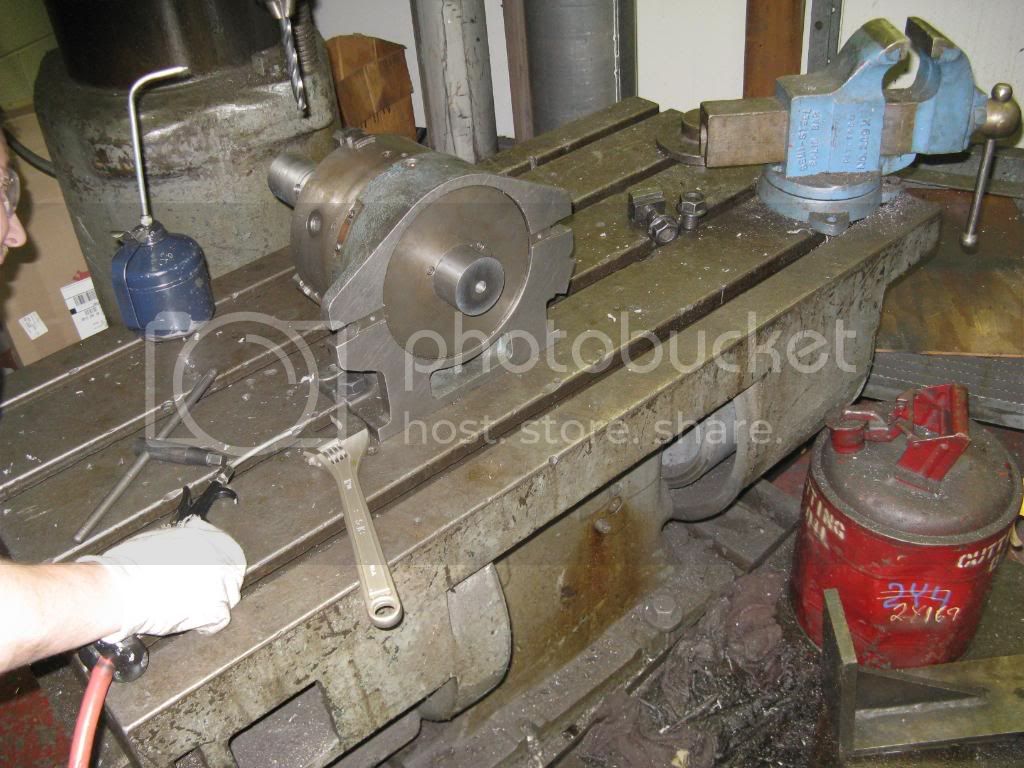

Used a Rotary Table and a HUGE drill press (Radial Super Service Machine) at Detroit Diesel to make the radial holes for the locking pin:
















Joined
Dec 5, 2007
Messages
90
Just so you guys know, we have NO machining skills whatsoever, just intuition...


Me welding:






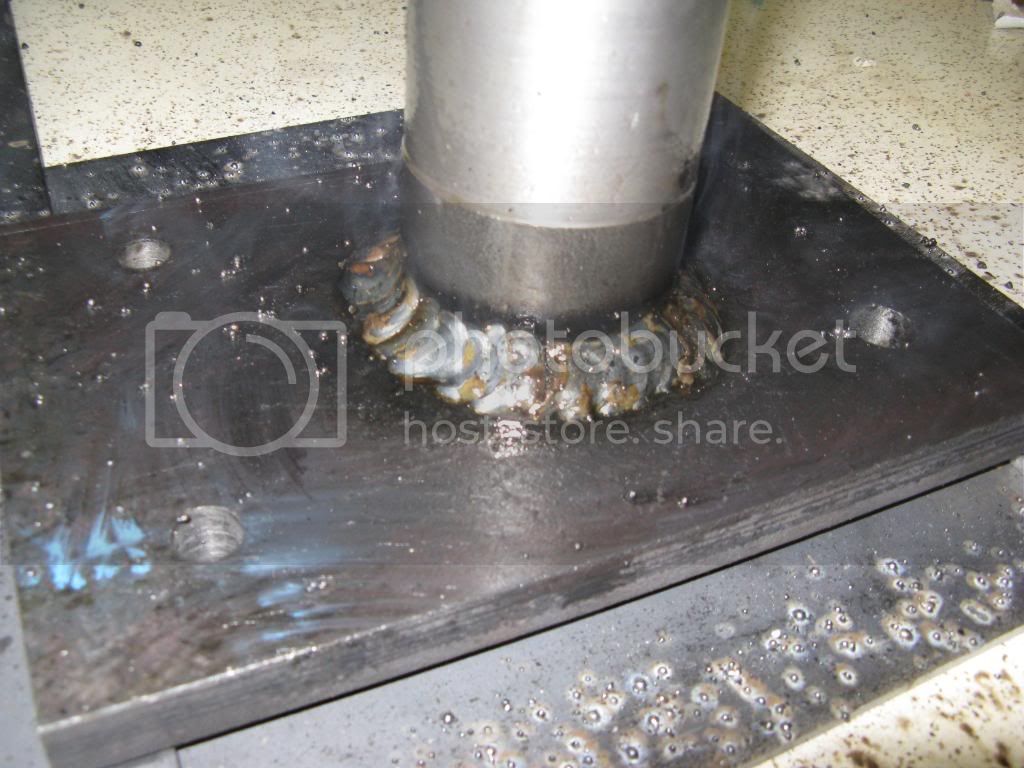

Nate Welding:

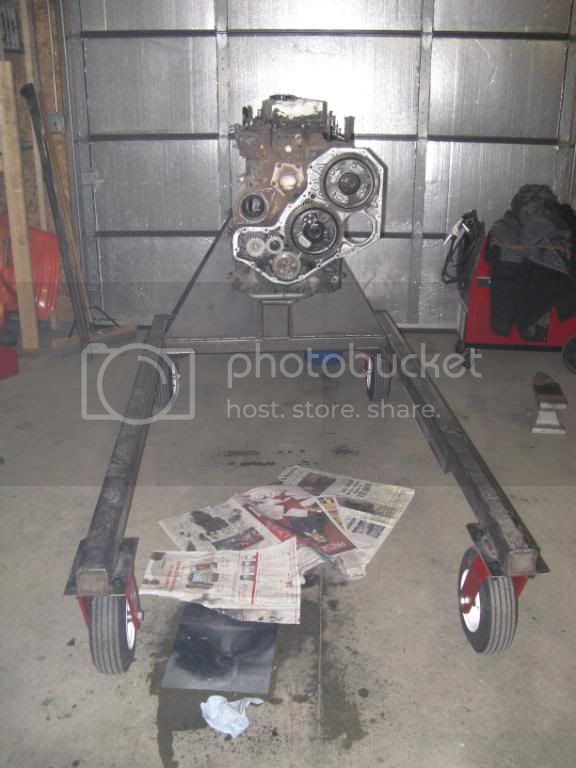

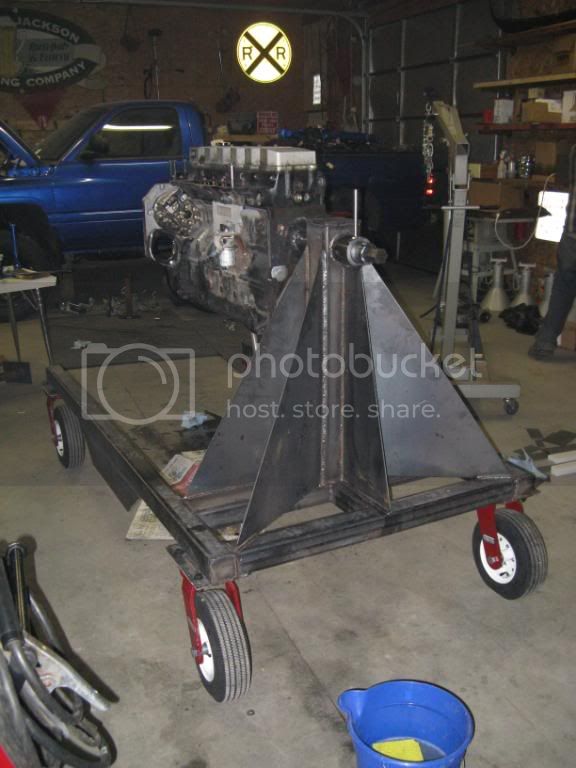

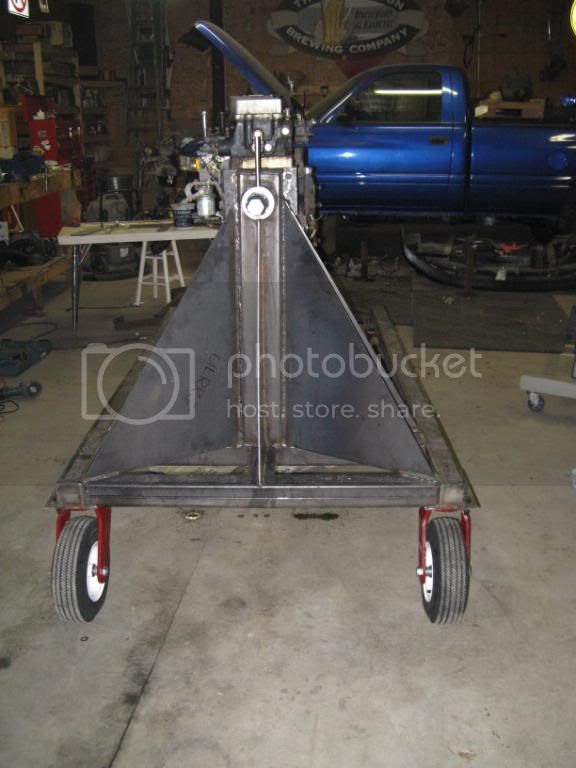

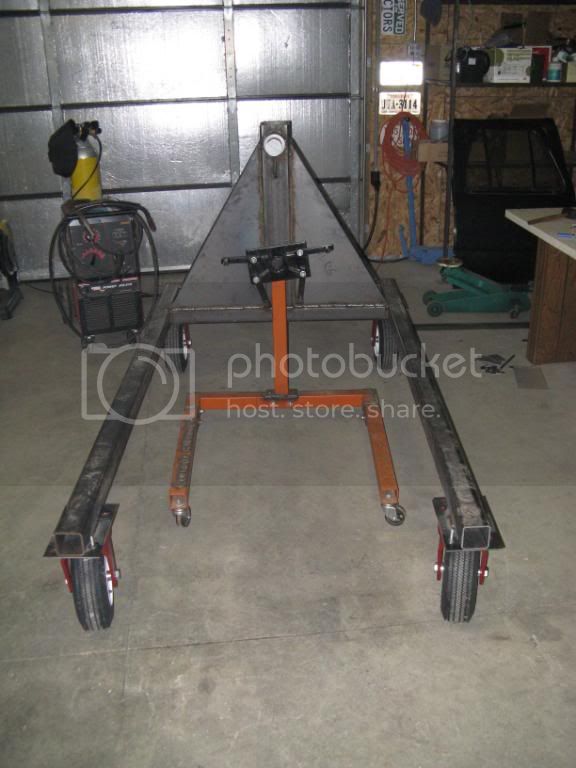

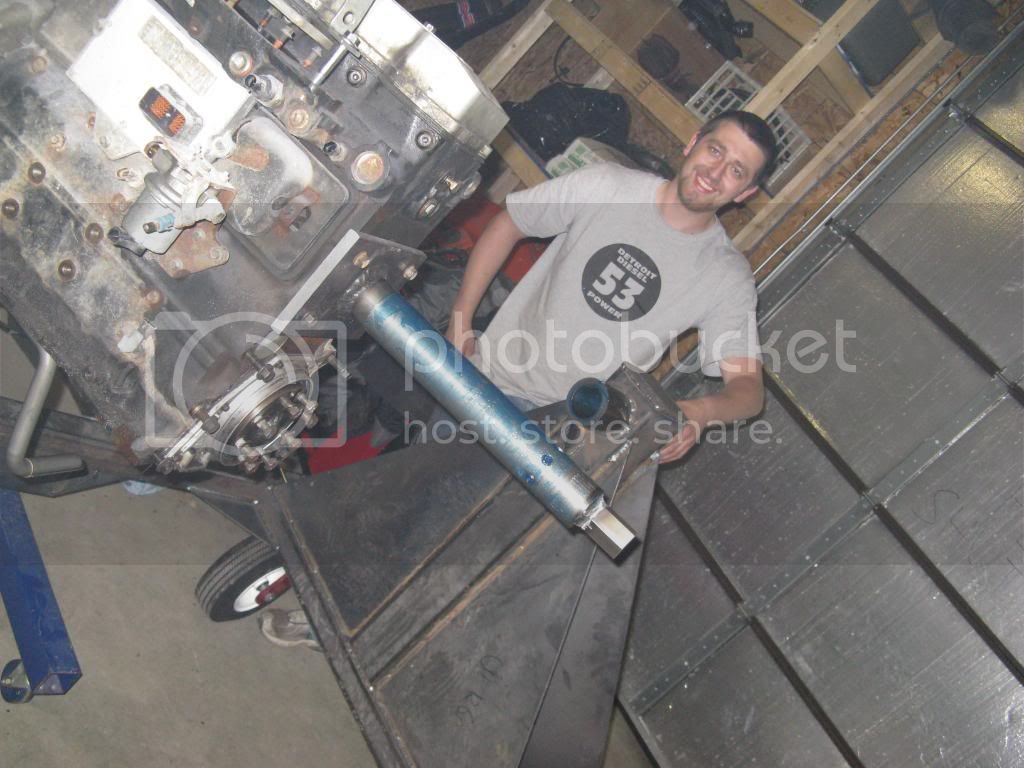

Old POS engine stand vs new one:




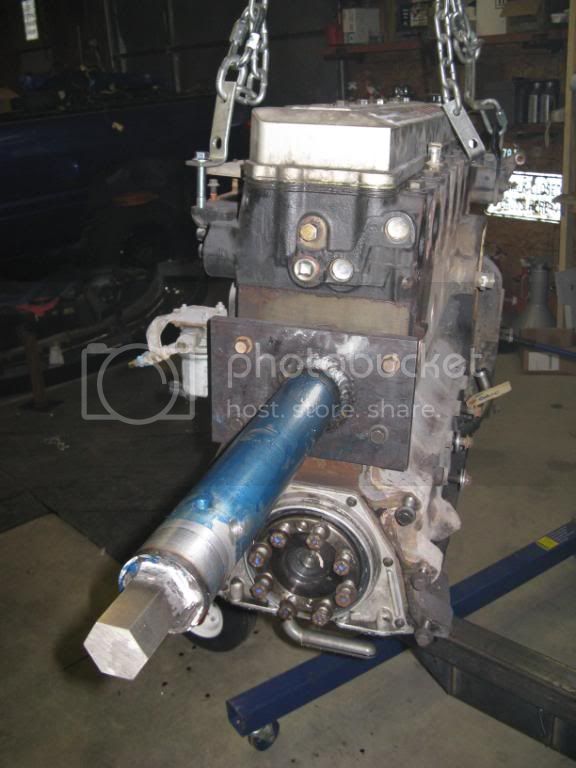

Moutning the Engine












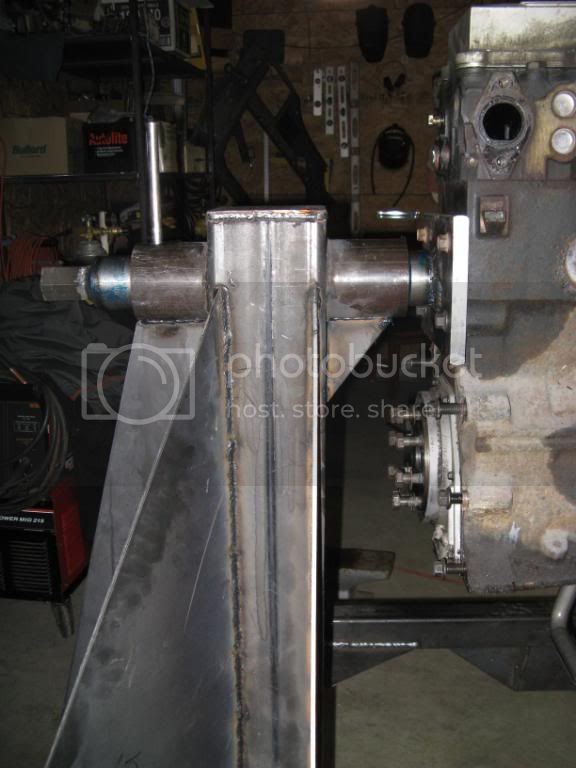

The rotating tool, I think it's a bit overkill, but then again, so is the whole stand:




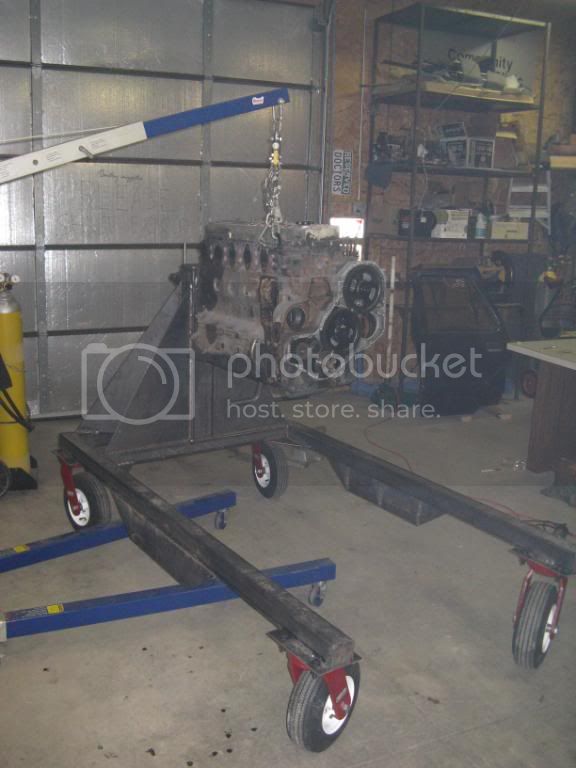

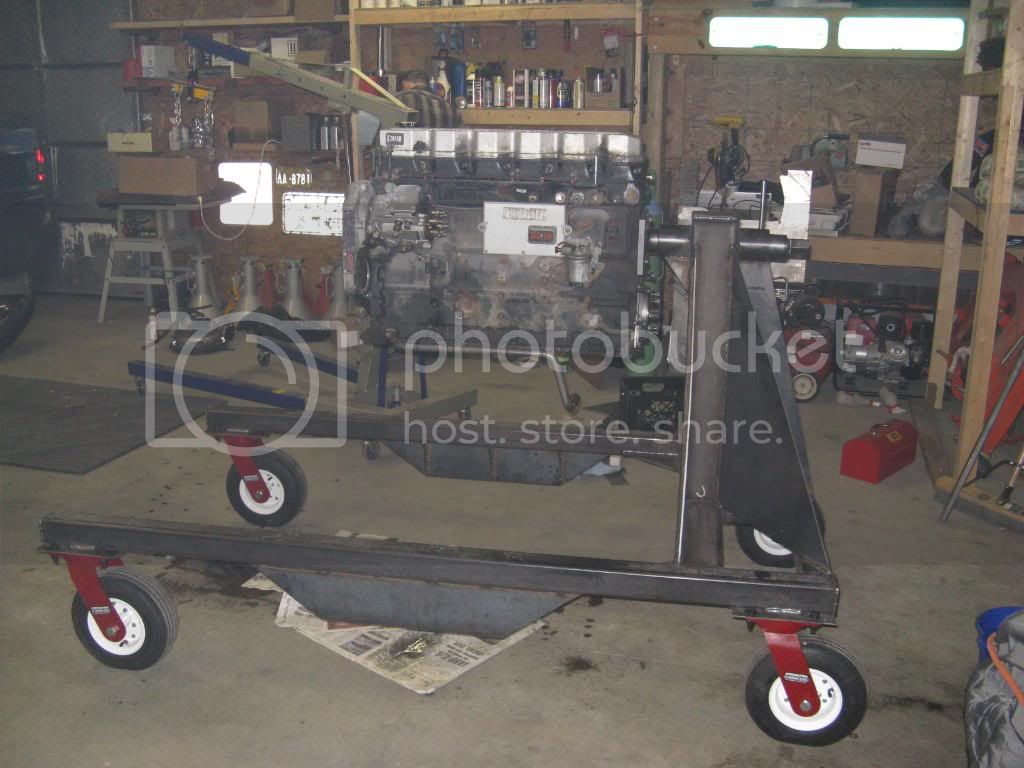

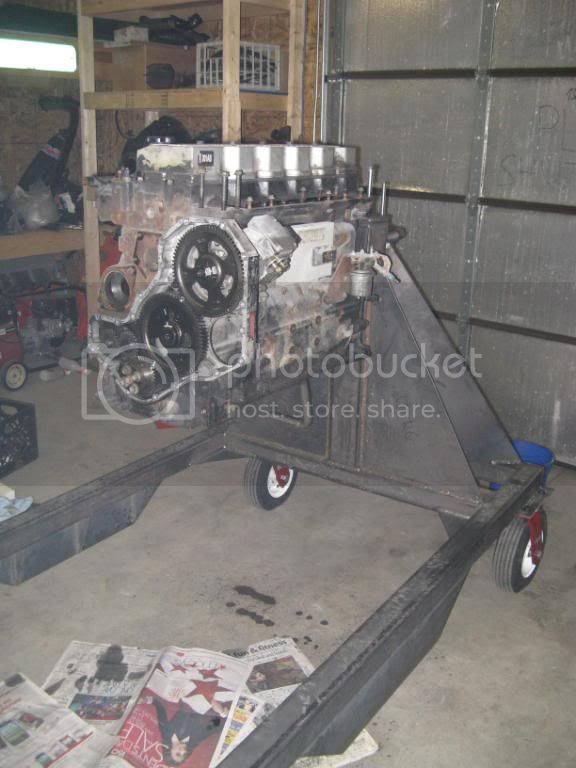

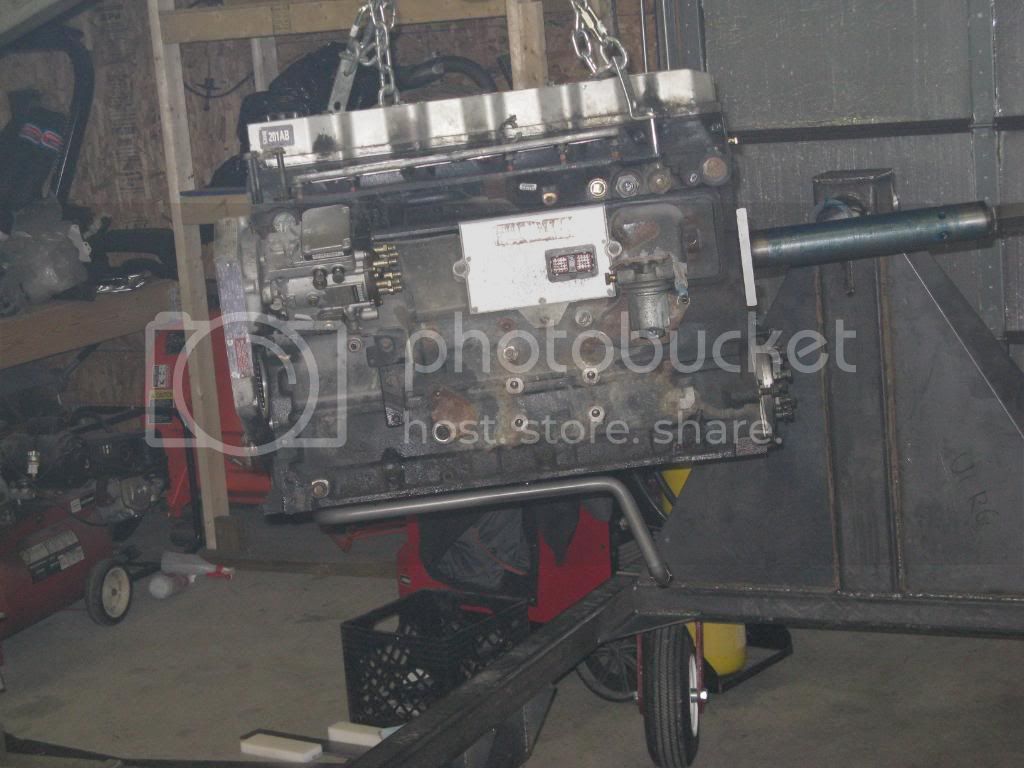

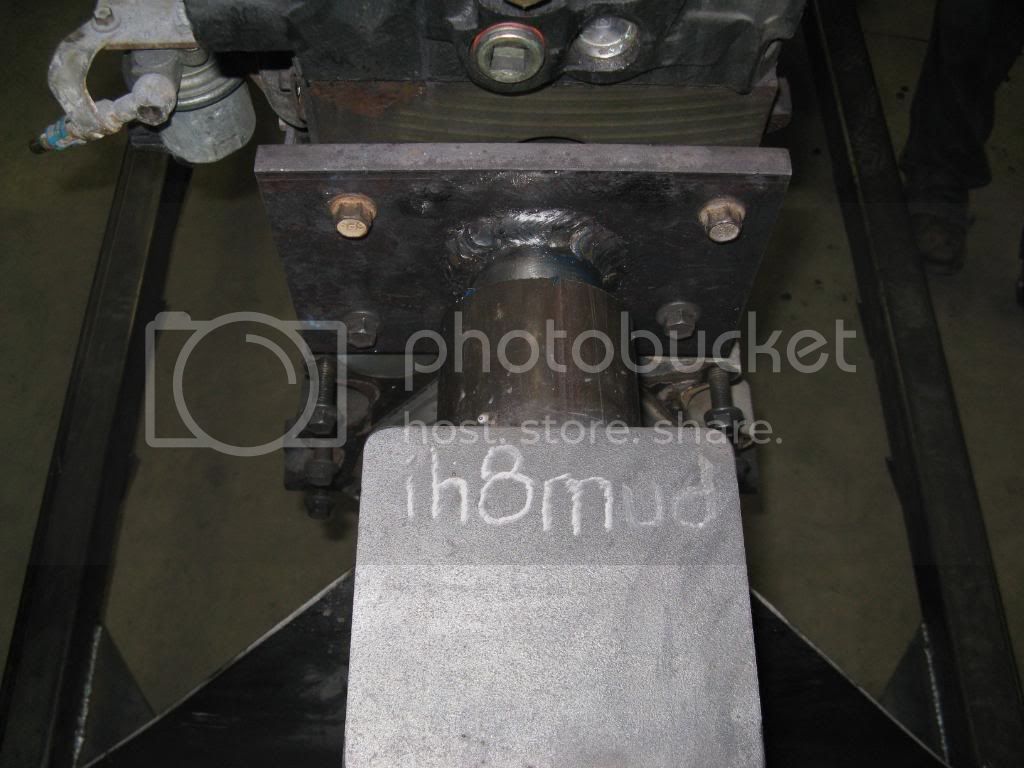

Engine Moutned:
















We like mud:




MUD SALUTE!!!!!!!


Joined
May 31, 2008
Messages
3,528
Location
the NJ word..
Holy smokes, nice job.
The engine stand itself should hold a 12V71, but hopefully those four bolts holding on to the Cummins aren't made in China.:hillbilly:


e9999

Gotta get outta here...
Moderator
Joined
Sep 20, 2003
Messages
18,108
Location
US
nice job and nice pics (well except for the last ugly one... :D)



even with good bolts, I am always amazed that engines will hang on fully cantilevered on just a few bolts like that.

Joined
Dec 5, 2007
Messages
90
Finite Element Analysis showed the 2.5" solid tube being the weakest part of the structure, specifically, where it meets the outer tube on the engine side.

We did a "shake" test - shaking the engine while mounted to the stand. There is NO noticable deflection, it just moves the whole stand on the caster wheels.


sandcruiser

....back in the saddle again....
Joined
Sep 29, 2004
Messages
3,636
Location
Truckee, CA
droool

I've got no room, and only the most miniscule "need" for such a beast.... but I still want one! :)
better still, I wish my neighbor had one I could use!

Joined
Nov 23, 2006
Messages
798
Location
DFW
I have to offically say thanks to seth for all his help on this project. Without him and his knowledge of FEA and NX3 this stand would still be a wet dream. I am greatful to have a friend that dosent mind giving up 4 days of his time to help me with this.

But lets just say that payback is going to be a bitch, be on the lookout for our 1FZ install into an 80.

Joined
Dec 5, 2007
Messages
90
I have to offically say thanks to seth for all his help on this project. Without him and his knowledge of FEA and NX3 this stand would still be a wet dream. I am greatful to have a friend that dosent mind giving up 4 days of his time to help me with this.

But lets just say that payback is going to be a *****, be on the lookout for our 1FZ install into an 80.

Nate, its all good!!! It was cool to build this thing, see a design come to life, especially in such a short time!!!

Joined
Dec 5, 2007
Messages
90
Where did you get your casters? Most from the easy sources (Northern, etc) are such poor quality you can hardly roll any weight.

McMaster, and you don't want to know what they cost. They are pneumatic so it can be rolled outside on dirt and gravel for cleaning, etc. They list swivel and wheel bearing type, load capacity, etc, so it made it fairly easy for choosing the correct ones. But, they are a bit on the expensive side.

Joined
Nov 23, 2006
Messages
798
Location
DFW
yea, a bit on the expensive side is an understatment. But i did roll the engine outside right over a piece of plywood, and dident even bother moving it.
