Help with front driveshaft hitting crossmember

Joined
May 17, 2022
Messages
7
Location
Houston Texas
I am new to this forum and just purchased my first Land Cruiser. I have a 1977 BJ40. The question I have is that it has a 4" lift with 35" tires and the front driveshaft is almost hitting the front crossmember. I will try to post some pictures. I have considered modifying the crossmember but with the transmission mount attached I am not sure how to do this or if this is the best option. What other options are available? Is this a common problem when lifting an FJ40 4"?





3_puppies

SILVER Star
Joined
Dec 2, 2002
Messages
16,443
Location
Helena MT
is this a central American rig?
the crossmember is not OEM and not for a 77
the crossmember is too far forward
some clearer pics would help,

Joined
May 17, 2022
Messages
7
Location
Houston Texas
is this a central American rig?
the crossmember is not OEM and not for a 77
the crossmember is too far forward
some clearer pics would help,
I don’t have much background at all on this rig but I believe it is an import from Central America. I will try to get some better pictures for you to see. I will attach a couple of pictures of the BJ itself for reference.



Joined
Apr 21, 2005
Messages
21,815
The lift is your problem. The BJ40 rear motor mount crossemember was not designed for that much lift. The FJ40 did not use this style until 8/80. Then in 10/82 the crossmember was redesigned for the H55F to allow more clearance for the front driveshaft. I am not familiar with the pre BJ40 crossmember verses the 8/80+ BJ42/FJ40 crossmembers verses the earlier BJ40. I do know the 10/82+ crossmember can replace the 8/80-9/82 crossmember for better clearance. You may be looking at an aftermarket crossmember or custom made. Or could get creative and figure a way to lower the crossmember and the figure add a spacer to the bottom of the isolator between the crossmember and transmission.

Joined
Dec 13, 2012
Messages
1,949
Location
KY
If you are worried about possibly hitting the crossmember simply jack up the front of the vehicle until the front tires are off the ground, full droop. Spin the driveshaft and see if it hits or not. If it does hit you can jack up the axle a little at a time until it doesn't hit. Now take some measurements for limiter straps. Simply buy a couple of limiter straps and set them to the needed length. Now you can wheel with confidence as the limiter straps will prevent the axle from dropping far enough for the driveshaft to hit the crossmember.

Joined
Dec 20, 2021
Messages
33
Location
Oklahoma
Can't tell by pictures for sure, but is drop down in transmission support closer to one side then the other? possible need turned end to end putting drop area under drive shafts???


POPO AGIE

SILVER Star
Joined
Mar 16, 2021
Messages
419
Location
Riverton, Wyoming
I am new to this forum and just purchased my first Land Cruiser. I have a 1977 BJ40. The question I have is that it has a 4" lift with 35" tires and the front driveshaft is almost hitting the front crossmember. I will try to post some pictures. I have considered modifying the crossmember but with the transmission mount attached I am not sure how to do this or if this is the best option. What other options are available? Is this a common problem when lifting an FJ40 4"?

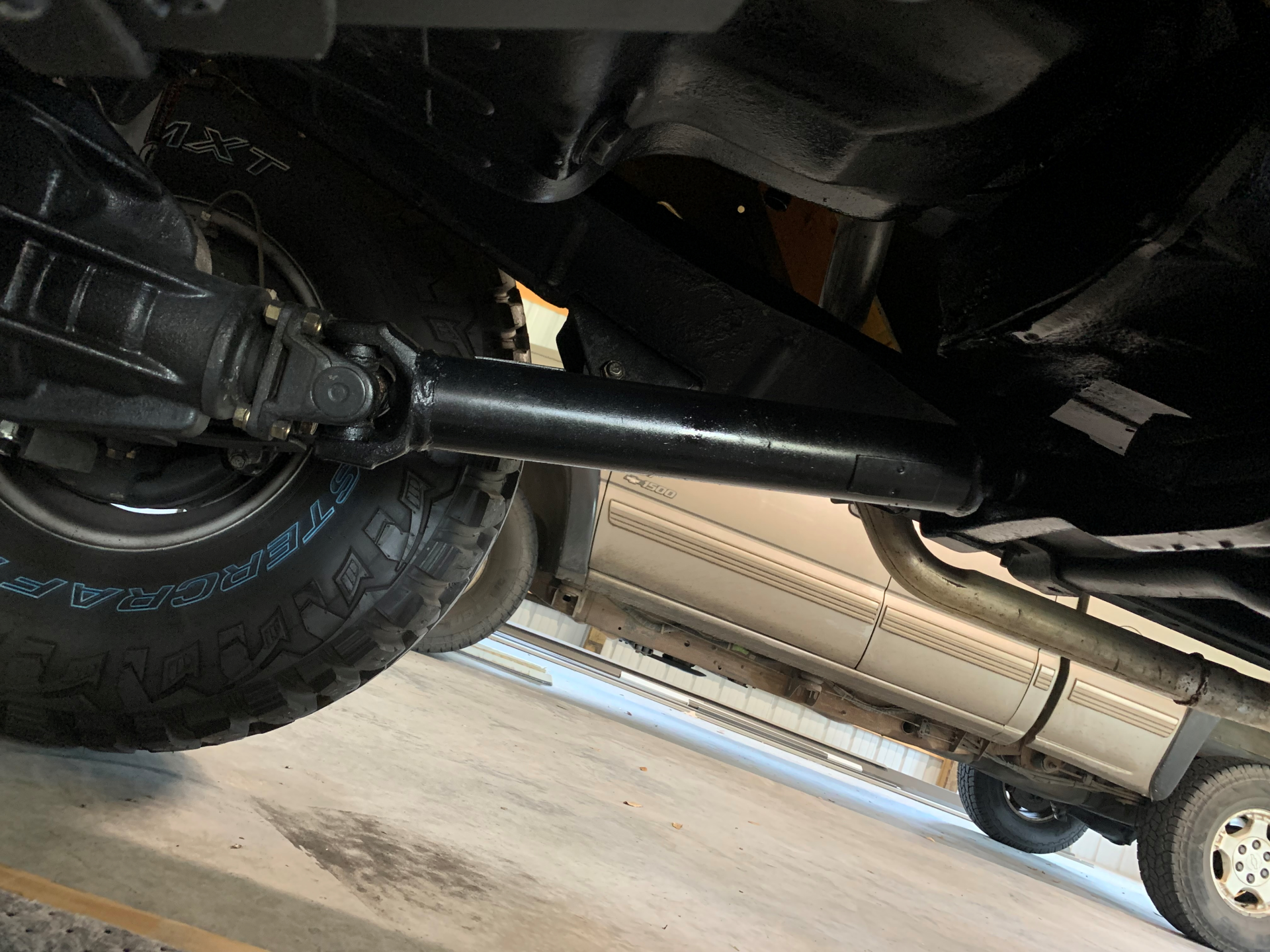

View attachment 3033759

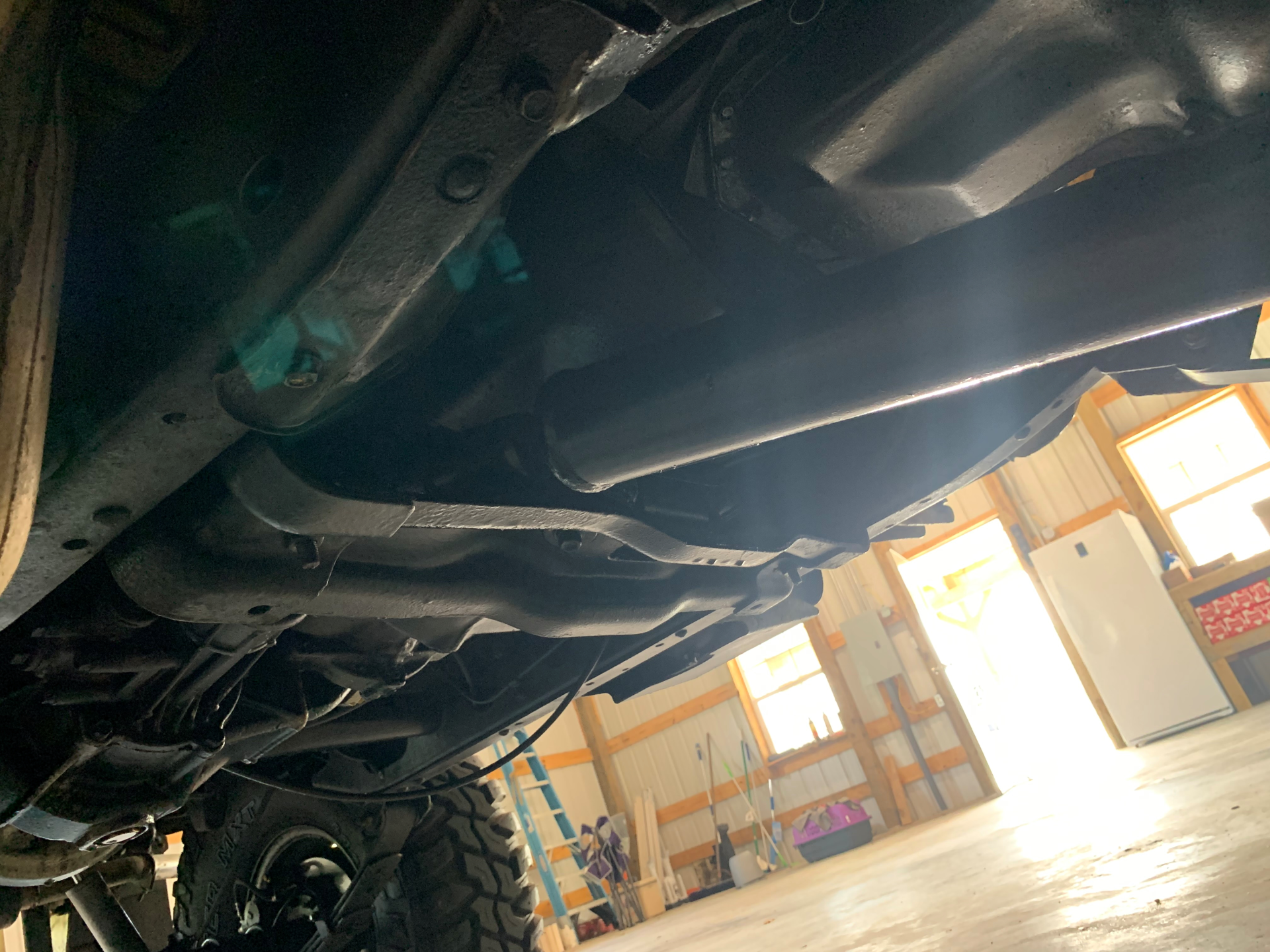

View attachment 3033761
It also looks like the pinion gear angle is not right and pointing a lot lower then the transfer case out put flange.


John McVicker

SILVER Star
Joined
Jul 11, 2005
Messages
3,796
Location
Big Pine, CA
@byron in post 5 has your answer. Do that & you’re done.👍

Joined
May 17, 2022
Messages
7
Location
Houston Texas
If you are worried about possibly hitting the crossmember simply jack up the front of the vehicle until the front tires are off the ground, full droop. Spin the driveshaft and see if it hits or not. If it does hit you can jack up the axle a little at a time until it doesn't hit. Now take some measurements for limiter straps. Simply buy a couple of limiter straps and set them to the needed length. Now you can wheel with confidence as the limiter straps will prevent the axle from dropping far enough for the driveshaft to hit the crossmember.
This sounds like my best option for now. Thanks for the info. I had not concurred this before.

Joined
May 17, 2022
Messages
7
Location
Houston Texas
The lift is your problem. The BJ40 rear motor mount crossemember was not designed for that much lift. The FJ40 did not use this style until 8/80. Then in 10/82 the crossmember was redesigned for the H55F to allow more clearance for the front driveshaft. I am not familiar with the pre BJ40 crossmember verses the 8/80+ BJ42/FJ40 crossmembers verses the earlier BJ40. I do know the 10/82+ crossmember can replace the 8/80-9/82 crossmember for better clearance. You may be looking at an aftermarket crossmember or custom made. Or could get creative and figure a way to lower the crossmember and the figure add a spacer to the bottom of the isolator between the crossmember and transmission.
I think a custom built crossmember is the route I will go long term. I will try the limiter straps for now but will look into a custom cross member for a final fix.


3_puppies

SILVER Star
Joined
Dec 2, 2002
Messages
16,443
Location
Helena MT
Can't tell by pictures for sure, but is drop down in transmission support closer to one side then the other? possible need turned end to end putting drop area under drive shafts???

Transmission support is pretty much in the center.


the driver side of the crossmember has a dip down in it, I think what @River Bend is saying, remove the crossmember and install the driver side on the passenger side so the low spot of the crossmember is under the driveshaft

it is hard to see in your pics if this is possible

it also looks too far forward, the crossmember in stock 40's or 60's seems to be under the u=joint off the transfer, your's looks like it is under the slip joint

Joined
May 17, 2022
Messages
7
Location
Houston Texas
the driver side of the crossmember has a dip down in it, I think what @River Bend is saying, remove the crossmember and install the driver side on the passenger side so the low spot of the crossmember is under the driveshaft

it is hard to see in your pics if this is possible
Oh I got ya. I will look at it tomorrow and see. Thanks
