HD Skid Plate

Discussion in 'HardCore Corner' started by bsevans, May 16, 2006.

  1. bsevans

    bsevans Focus on the Journey

    Messages:
    2,008
    Media:
    50
    Albums:
    1
    Likes Received:
    31
    Joined:
    Jun 9, 2005
    Location:
    Southern Arizona

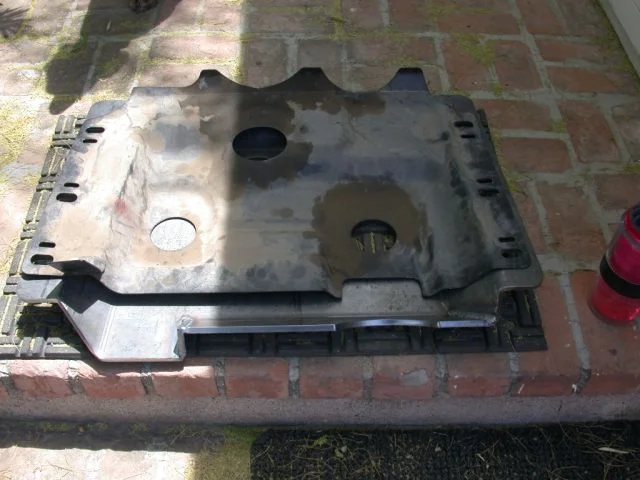

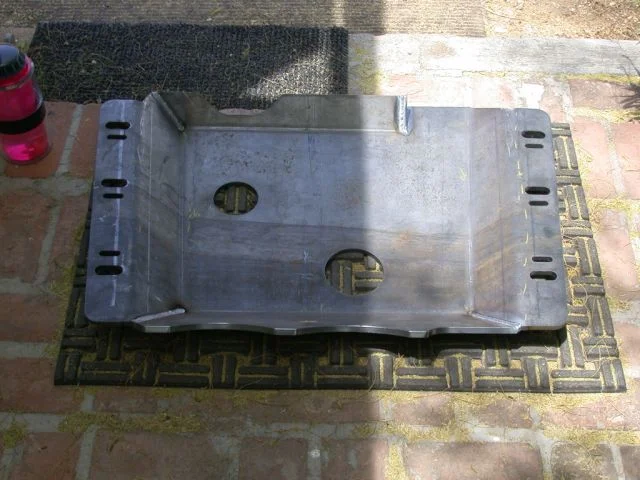

    I just wanted to share some photos of the FJ40 skid plate I just had fabricated here in Tucson. Except for one small triangular gusset it is made from one piece of 3/8" steel plate using a CNC precision plasma cutter. All the slots, holes and outer edges are smooth to the touch and need no secondary finish work. As you can see from the photo, I extended the skid plate back to fully protect the emergency brake.
    Skid Plate 10.jpg Skid Plate 11.jpg

    Last edited: May 18, 2006
    oldschool4wheeling likes this.
  2. concretejungle

    concretejungle

    Messages:
    9,568
    Likes Received:
    771
    Joined:
    Oct 27, 2003
    Location:
    North Cadillac
    Wow, that's tough looking. I am thinking of trying to make as much of a full belly skid as i can by the end of the summer.

  3. bandy rooster

    bandy rooster

    Messages:
    1,935
    Likes Received:
    3
    Joined:
    Aug 11, 2005
    Location:
    Sunny South
    def. nice... looks like alot of thought and work went into it.



    any pics of it on the rig?

  4. bsevans

    bsevans Focus on the Journey

    Messages:
    2,008
    Media:
    50
    Albums:
    1
    Likes Received:
    31
    Joined:
    Jun 9, 2005
    Location:
    Southern Arizona

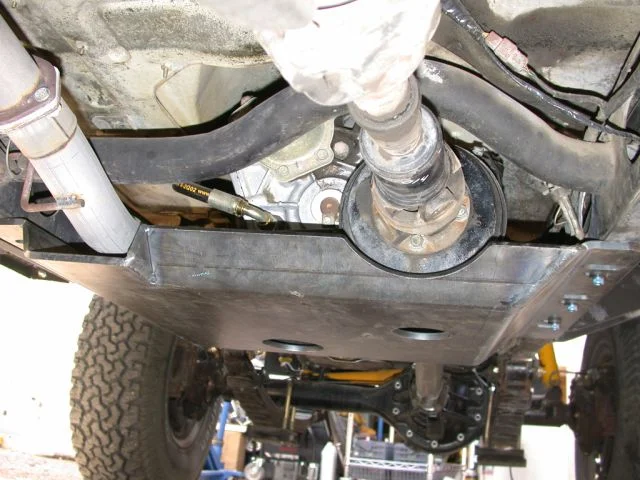

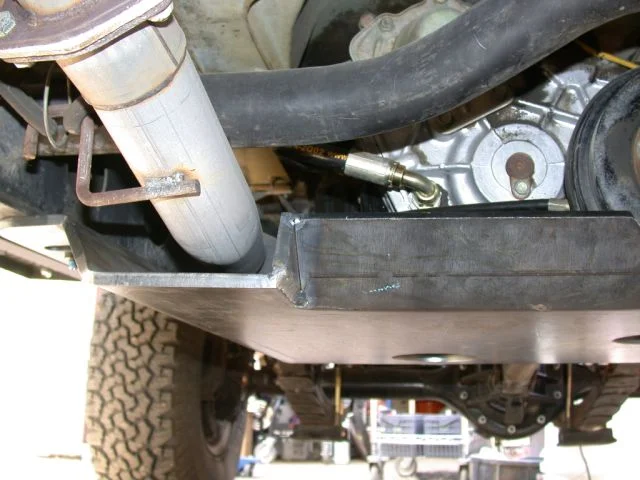

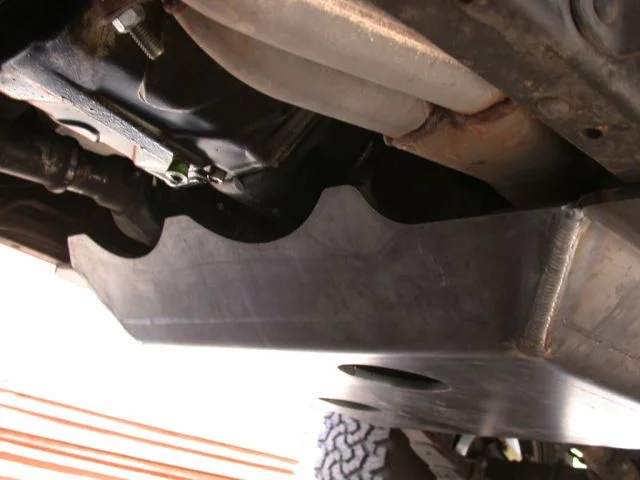

    HD Skid Plate Mounted

    I forgot to post that this is a 78 FJ40 that after 15 years of rock crawling and general 4-wheeling has been restored. I've owned this beast for 20 years I have designed numerous modifications that are purely functional. I will post additonal threads for each item I have designed so others can use it if they so desire. I also should point out that the company that worked with me to fabricate this proto-type will build additional ones if you contact them. If anyone wants to call them, let me know and I will give you the engineer's name and phone number.
    Skid Plate 14R.jpg Skid Plate 15R.jpg Skid Plate 16R.jpg

    Last edited: May 18, 2006
  5. bandy rooster

    bandy rooster

    Messages:
    1,935
    Likes Received:
    3
    Joined:
    Aug 11, 2005
    Location:
    Sunny South
    you have to buy a star in order to post more pictures, best 20 bucks i ever spent that wasn't on anything ilegal... lol jk


    email them to me at wheelsandwater@hotmail.com and i'll post them up for you for the time being.

  6. bandy rooster

    bandy rooster

    Messages:
    1,935
    Likes Received:
    3
    Joined:
    Aug 11, 2005
    Location:
    Sunny South
  7. awp_cruiser

    awp_cruiser

    Messages:
    302
    Likes Received:
    0
    Joined:
    Jan 18, 2005
    Location:
    Seattle
    What does that thing weigh? Pretty cool.

    awp

  8. bsevans

    bsevans Focus on the Journey

    Messages:
    2,008
    Media:
    50
    Albums:
    1
    Likes Received:
    31
    Joined:
    Jun 9, 2005
    Location:
    Southern Arizona
    HD Skid Plate Weight

    80-85 pounds. You can high center the vehicle on the skid plate and it will not flex enough to touch either the transfer case or the transmission.

    Last edited: May 18, 2006
    oldschool4wheeling likes this.
  9. bsevans

    bsevans Focus on the Journey

    Messages:
    2,008
    Media:
    50
    Albums:
    1
    Likes Received:
    31
    Joined:
    Jun 9, 2005
    Location:
    Southern Arizona

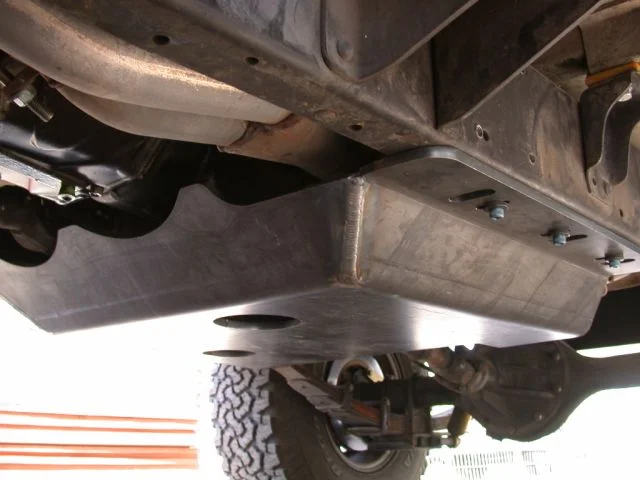

    Another Photo of it Mounted

    Here is another photo that shows how the skid plate marries to the edge of the frame.

    Contact information if your interested in purchasing one:
    Caid Industries
    Dave Watson
    NEW NUMBER as of 01/31/07 - 520-889-7775
    The prototype was under $400
    Skid Plate 13R.jpg

    Last edited: Jan 31, 2007
    oldschool4wheeling likes this.
  10. awp_cruiser

    awp_cruiser

    Messages:
    302
    Likes Received:
    0
    Joined:
    Jan 18, 2005
    Location:
    Seattle
    I'd be afraid of bending one of those little allen heads over. One small rock and good luck getting a allen wrench in there and those are small enough that pliers won't be much help. You might want to look for some hardware that is a little more stout at the head.

    It is going in my idea folder for later review....

  11. rusty_tlc

    rusty_tlc Dain Bramaged Member

    Messages:
    13,443
    Media:
    3
    Albums:
    2
    Likes Received:
    950
    Joined:
    Jun 23, 2005
    Location:
    Reno, NV
    Very stout looking.
    What's the hose going into your t-case for?

  12. bandy rooster

    bandy rooster

    Messages:
    1,935
    Likes Received:
    3
    Joined:
    Aug 11, 2005
    Location:
    Sunny South
    A common problem on pre 1988 Land Cruisers is the failure of the oil seal between the transmission and transfer case. When this occurs the transfer case tends to pump gear oil into the transmission, starving the transfer case of oil. it connects the two filler holes, so the transmission can return oil to the transfer case as needed.



    or i could be way off... but i dunno... it seems like a goofy mod. wouldn't you just replace the seal?

    oldschool4wheeling likes this.
  13. Mace

    Mace rock scientist.. Staff Member s-Moderator

    Messages:
    21,655
    Likes Received:
    2,094
    Joined:
    Feb 17, 2002
    Location:
    Las Vegas
    Consider the difficults of splitting the tranny and tcase Vs installing a hose ;)


    BTW, you cut that statement from somewhere huh ;)

  14. bandy rooster

    bandy rooster

    Messages:
    1,935
    Likes Received:
    3
    Joined:
    Aug 11, 2005
    Location:
    Sunny South
    I'm starting not to like you mace.

  15. Mace

    Mace rock scientist.. Staff Member s-Moderator

    Messages:
    21,655
    Likes Received:
    2,094
    Joined:
    Feb 17, 2002
    Location:
    Las Vegas
  16. bsevans

    bsevans Focus on the Journey

    Messages:
    2,008
    Media:
    50
    Albums:
    1
    Likes Received:
    31
    Joined:
    Jun 9, 2005
    Location:
    Southern Arizona
    Allen Head Bolts & Hose

    The allen head bolts you see are 12.9 rated. When and if I bend one over, I'll install the 10.9 hex heads I have in my shop. The "bent" allen heads can be removed with vice grips.
    As far as the hose is concerened, I've had my seal go out 3 times over the course of 20 years. My experience as a mechanical engineer is that the hoses' primary purpose is to allow the pressure differential between the tranny and the transfer case that causes the fluid pumping past the bad seal to be minimized thus reducuing the amount of fluid being pumped and allowing for any fluid that is pumped into the tranny to drain back down and not eventually cause the tranny front seal to fail from over pressure due to eccessive fluid in the tranny. That hose is a steel braided -08 Parker Tough Cover with crimped fittings and adapters from McMaster-Carr. Far superior to the kits you can find at Specter Off Road or Man-A-Fre.
    When I put the new Centerforce clutch in I will replace the seal. The hose will stay installed, as I believe that it will extend the life of the seal.

    Last edited: May 25, 2006
  17. 4WD Toyota Owner Magazine

    4WD Toyota Owner Magazine SILVER Star

    Messages:
    1,717
    Media:
    24
    Albums:
    1
    Likes Received:
    86
    Joined:
    Apr 12, 2005
    Location:
    Seattle, WA
    Sa-weet!

    That is one BURLY plate and very nicely done! Wow!

  18. Mace

    Mace rock scientist.. Staff Member s-Moderator

    Messages:
    21,655
    Likes Received:
    2,094
    Joined:
    Feb 17, 2002
    Location:
    Las Vegas
    You experience as a mechanical engineer should also tell you that if you have a pressure difference between the tranny and tcase you have an issue. They are both vented to the atmosphere....

    I would check the vents next time you rebuild it..

    And that is a Very nice plate..

  19. bsevans

    bsevans Focus on the Journey

    Messages:
    2,008
    Media:
    50
    Albums:
    1
    Likes Received:
    31
    Joined:
    Jun 9, 2005
    Location:
    Southern Arizona
    Vents

    That is a very valid point. My intention is to convert the vent ports on both and run them to the vent canister on the upper firewall where I already have vent lines for both axles. I've already done this on the Australian transfer case I've rebuilt. I need to find the time to do the clutch job. You would think that when you retire you have all the time in the world – NOT SO! I’ve spent the last 4 months working on my turbo diesel 4x4.

  20. Mace

    Mace rock scientist.. Staff Member s-Moderator

    Messages:
    21,655
    Likes Received:
    2,094
    Joined:
    Feb 17, 2002
    Location:
    Las Vegas
    Life has a nasty habit of not givig you enough time to do what you want, ever...


    Enjoy retirement.. You deserve it!!
