Harness shield near EGR

Joined
Jan 14, 2012
Messages
834
Location
Vacaville, CA
Just curious what you guys are using to protect the harness for those of you still running an EGR? Is there a bolt in plate or what wrap do you guys like?

I’m seeing some damage to the harness but it’s on the exterior only. Also, I believe there is plastic clip that should hold the harness tucked away from the EGR pipe that I think I should have. I’ll try to get a pic posted later today.


bpenn1980

SILVER Star
Joined
Nov 15, 2007
Messages
1,109
Location
Los Angeles
Just curious what you guys are using to protect the harness for those of you still running an EGR? Is there a bolt in plate or what wrap do you guys like?

I’m seeing some damage to the harness but it’s on the exterior only. Also, I believe there is plastic clip that should hold the harness tucked away from the EGR pipe that I think I should have. I’ll try to get a pic posted later today.
Was just thinking about this. I think i'd like a piece of sheet metal pressed to accept hose clamps or with clamps welded in on the backside. Kinda like below. My thought is it would clamp to harness, not EGR.

In fact i'm surprised nobody sells something like this since this is a pervasive US 80 issue across years.

For now I have heat tape and header wrap hose clamped on and replaced the plastic harness retention clip with bailing wire.

PS- if anyone is selling a new engine harness, please let me know!


Godwin

Resident Herpetologist
SILVER Star
Joined
Dec 4, 2004
Messages
5,973
Location
Alabama

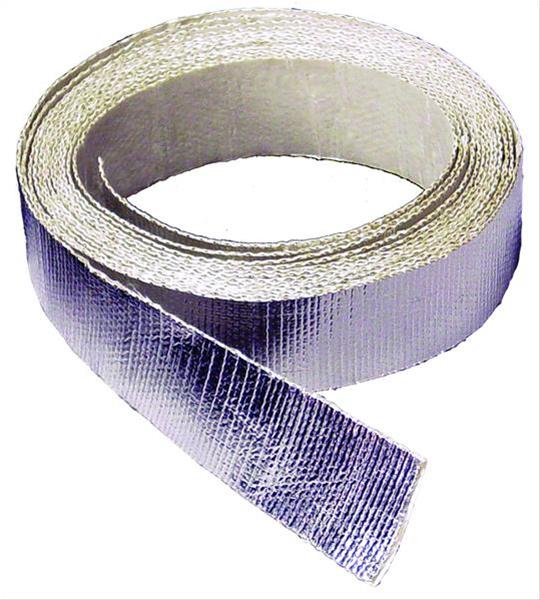

Recently went through this while swapping engines. The outer covering of the harness had some heat damage but luckily no wires were affected. I wrapped the affected portion of the harness with this


The plastic housing that supports the harness at the firewall too broken to be used so I left that off and routed the wiring harness as best I could over the engine.

Joined
Jan 14, 2012
Messages
834
Location
Vacaville, CA
Was just thinking about this. I think i'd like a piece of sheet metal pressed to accept hose clamps or with clamps welded in on the backside. Kinda like below. My thought is it would clamp to harness, not EGR.

In fact i'm surprised nobody sells something like this since this is a pervasive US 80 issue across years.

For now I have heat tape and header wrap hose clamped on and replaced the plastic harness retention clip with bailing wire.

PS- if anyone is selling a new engine harness, please let me know!

Paging @NLXTACY.


FMC80

SILVER Star
Joined
Sep 30, 2017
Messages
2,220
Location
Beyond
Was just thinking about this. I think i'd like a piece of sheet metal pressed to accept hose clamps or with clamps welded in on the backside. Kinda like below. My thought is it would clamp to harness, not EGR.

In fact i'm surprised nobody sells something like this since this is a pervasive US 80 issue across years.

For now I have heat tape and header wrap hose clamped on and replaced the plastic harness retention clip with bailing wire.

PS- if anyone is selling a new engine harness, please let me know!
View attachment 2895610
I wouldn’t use this due to it being a great conductor of heat. It won’t protect the harness well at all. I went with the firesleeve from Aircraft Spruce. I got the idea from Overland Cruiser out of AZ, it’s tried and proven: Eaton Aeroquip Fire Sleeves | Aircraft Spruce - https://www.aircraftspruce.com/catalog/appages/aqfiresleeve.php

I went with the 7/8 ID but on my other cruiser im going with 1” ID


NLXTACY

Wits' End
Supporting Vendor
Joined
Dec 7, 2007
Messages
28,082
Location
Medford, OR
Website
absolute-wits-end.com
Naw. Thermo tech wrap around that area is proven. Adding a metal piece of heat soak isn’t the answer.

New OEM engine harness has that area protected and new harness clip to prevent it happening again.

I have 8 harness because someone fat fingered my order 🙄



Joined
Jan 14, 2012
Messages
834
Location
Vacaville, CA
Naw. Thermo tech wrap around that area is proven. Adding a metal piece of heat soak isn’t the answer.

New OEM engine harness has that area protected and new harness clip to prevent it happening again.

I have 8 harness because someone fat fingered my order 🙄


View attachment 2895671

So effectively the other methods are just work arounds or preventive when the clips for the harness fail? I should just focusing on replacing the clips then?


bpenn1980

SILVER Star
Joined
Nov 15, 2007
Messages
1,109
Location
Los Angeles
Naw. Thermo tech wrap around that area is proven. Adding a metal piece of heat soak isn’t the answer.

New OEM engine harness has that area protected and new harness clip to prevent it happening again.

I have 8 harness because someone fat fingered my order 🙄


View attachment 2895671
Not OBD1 though, right? I didnt think they were cross compatible

Joined
Dec 10, 2007
Messages
8,371
Previous thread about the clip on the firewall for the main engine harness (FZJ80):


Here's another option to protect the FZJ80 engine harness near the EGR pipe; the split tube with velcro helps to more easily wrap it around that section of the harness. There are other brands (don't know which is good, better, or best).


---------------------------------------------------------------------

FWIW/IMHO everyone with a FZJ80 should consider picking up a new 1FZFE engine harness to put on the shelf while they're still available, the originals are all 25+ years old and IME are getting crunchy. Everytime I touch any part of the harness the insulation will crack a bit more, the connectors will break, ---. In a few years that pile of harnesses in the photo above might be unobtainium.

Last edited:

Bambusiero

SILVER Star
Joined
Apr 11, 2005
Messages
811
Location
Chandler, AZ
For a long time, I had a DIY thing made of thin aluminum roof flashing - preventing direct contact between the EGR tube, and the OEM (I guess) thermotech wrapped harness. Just got rid of it, after installing the 1" body lift - now there's air space between - no contact.


Joined
Jul 24, 2006
Messages
184
Location
Fairfax, VA
i double checked this recently, and discovered the plastic clip still there but not seated on the male metal barb. so the factory heat wrap was touching the EGR pipe.

once i wrestled the clip back on, i now have an air gap; about a pinky's width worth.

should be enough? i've been thinking about over wrapping it w/ one of these products for extra protection. or i have the Hudd EGR kit in my parts pile.

Joined
Oct 2, 2008
Messages
632
Location
Newport, OR
The silver thermo tape is what I used. I had read on here that the 1997s (or just later FJZ80s in general) had an improvement made that kept the harness safer and that appeared to be the case. When I removed the old heat shielding from the harness near the EGR port, I noticed no heat damage to any of the wires. I even went so far as to carefully cut out a short section of the wire closest to the EGR pipe to look at it internally. The shielding and conductors of the individual wire were all perfect. I carefully resliced the wire back in, of course.

My truck had about 240,000 miles on it at the time.

Joined
Apr 9, 2013
Messages
1,555

Thermo-Tec 14002 Thermo-Shield Radiant Heat Protection, 1.5" x 15' Roll​


Amazon product

This stuff has been in place since 2014 with no problems at all. It is stiff enough and tacky enough to stay put, and pliable enough to be easy enough to put on. I just wrapped it pretty thick (1/2 width overlap or so) and put a zip tie on each end to hold it all in. There's also a spot down there (can't recall whereabouts exactly) where a factory tie is supposed to hold the harness back from the EGR pipe. After you're done wrapping, put a good thick zip tie through that and around your wrapped harness, and you'll get a good finger width gap between the pipe and the wrapped harness. Easy-peasy, 15 minute job and you're done.

Joined
Feb 12, 2021
Messages
86
Location
95037
Naw. Thermo tech wrap around that area is proven. Adding a metal piece of heat soak isn’t the answer.

New OEM engine harness has that area protected and new harness clip to prevent it happening again.

I have 8 harness because someone fat fingered my order 🙄


View attachment 2895671
how involved is the disassembly, if one would be inclined to replace the harness? upper and lower intake?
