Fuse panel diagram for an FJ60?

Discussion in '60-Series Wagons' started by Mike S, Feb 4, 2005.

  1. Mike S

    Mike S

    Messages:
    2,537
    Likes Received:
    13
    Joined:
    Aug 19, 2003
    I have the diagram on the fuse panel cover, but it was printed in YELLOW (what were they thinking?) and with fading and the paper discolored, I CAN"T READ IT!

    Did a search here, and checked the FSM. No diagrams found. Anybody know where I can find one on line?? Anywhere?

    Thanks for any help...

    Mike S

  2. Landpimp

    Landpimp

    Messages:
    15,825
    Media:
    1
    Likes Received:
    1,817
    Joined:
    Mar 14, 2003
    Location:
    Gig Harbor WA
    its in the FSM someplace.

    Oddly, if you buy a new fusepanel cover........it comes without the label.

    If no luck today, i can take a pic of the diagram on my 60, its still readible.


  3. Mike S

    Mike S

    Messages:
    2,537
    Likes Received:
    13
    Joined:
    Aug 19, 2003
    Pimp

    I went through the FSM pretty carefully, and could not find the panel diagram. I really appreciate your offer of help. When I get the data, I will make a new label and glue it in.

    I could pull and replace every fuse, but in the end, I would still not know what is wrong...

    Thanks

    Mike

  4. lovetoski

    lovetoski SILVER Star

    Messages:
    4,507
    Likes Received:
    174
    Joined:
    Jul 13, 2003
    I took a pic, but it's not too clear...so here they are, top to bottom, left to right...

    Head - RH/10a
    Head - LH/10a
    Cig - 15a
    Door - 15a
    blank

    Tail -15
    Stop - 15
    Haz/Horn - 15
    Engine - 10
    blank

    Turn - 7.5
    Wiper - 20
    A/C - 10
    blank
    Defog - 20

    Dome - 7.5
    charge - 7.5
    Guages - 7.5
    Spare - 7.5
    Spare - 15

    Heater - 30
    Power - 30

  5. Mike S

    Mike S

    Messages:
    2,537
    Likes Received:
    13
    Joined:
    Aug 19, 2003
    Doug - Thanks, man! I will make a table with PDF for download, and see if I can find a way to insert it into the FAQ. Very useful.

    Thanks, again.

    Mike

  6. lovetoski

    lovetoski SILVER Star

    Messages:
    4,507
    Likes Received:
    174
    Joined:
    Jul 13, 2003
    It's funny - I can read mine outside, in sunlight. But inside the faded yellow is nearly invisible.

  7. Landpimp

    Landpimp

    Messages:
    15,825
    Media:
    1
    Likes Received:
    1,817
    Joined:
    Mar 14, 2003
    Location:
    Gig Harbor WA
    the yellow comments have me baffeled, mine is white with black letters.

    But here ya go, the camera flash was making whiting it out, so I scaned it.

    [​IMG]

    NeverGiveUpYota likes this.
  8. NocalFJ60

    NocalFJ60

    Messages:
    3,549
    Media:
    6
    Albums:
    1
    Likes Received:
    4
    Joined:
    Aug 2, 2004
    Location:
    San Francisco Bay Area
    Mine is wearing off too on the cover. It is in your owners manual too if you still have that.

  9. JDay

    JDay

    Messages:
    172
    Likes Received:
    2
    Joined:
    Feb 1, 2002
    Location:
    Henderson, NV
    My panel is white with yellow letters too.

    I found a pic on Ebay of another for sale.

    Matt W likes this.
  10. Mike S

    Mike S

    Messages:
    2,537
    Likes Received:
    13
    Joined:
    Aug 19, 2003
    Thanks, all, especially Pimp!

    The ebay image posted does NOT look like the One on my 87. The cover itself is different, and the label is yellow on white - stained, wrinkled and faded. Can't read it to save my ass.

    Thanks again.

    M

  11. Landpimp

    Landpimp

    Messages:
    15,825
    Media:
    1
    Likes Received:
    1,817
    Joined:
    Mar 14, 2003
    Location:
    Gig Harbor WA
    put that in the faq someplace please.

    but the Ebay one looks just like mine..........doesn't it?

    and I think, Like Norcal said, its in the owner manual not the FSM..... :whoops:

    wonder if these can still be had from Toyota, the decal that is. Hmmm I'll have to check.

    and no problem :)

    John

  12. lovetoski

    lovetoski SILVER Star

    Messages:
    4,507
    Likes Received:
    174
    Joined:
    Jul 13, 2003
    My sticker was pretty faded, like Mikes. So, I made a "sticker" in excel, looks nearly the same as the orginal, and is sized to fit perfectly into the cover. I glued it into the cover, and sprayed it with clear lacquer. Easier on my aging eyes.

    The excel file doesn't upload onto this BB, but if you want me to email it to you I can do that. Just shoot me a PM with your email address.

  13. sandcruiser

    sandcruiser

    Messages:
    3,582
    Media:
    19
    Albums:
    1
    Likes Received:
    13
    Joined:
    Sep 29, 2004
    Location:
    San Francisco, CA
    anyone have the same for an hj60?

  14. 87CRUSR

    87CRUSR SILVER Star

    Messages:
    1,851
    Media:
    10
    Albums:
    1
    Likes Received:
    419
    Joined:
    Apr 11, 2003
    Location:
    So Cal
    Lovetoski sent me the excel file a few months back. Worked great and looks god as new.

    Thanks again Doug!

  15. MANUCHAO

    MANUCHAO omnea mea mecum porto

    Messages:
    4,571
    Media:
    272
    Albums:
    6
    Likes Received:
    1,707
    Joined:
    Nov 8, 2004
    Location:
    Sur Cal
    Im missing the Fuse that says Power 30... on the far lower right corner of the fuse box.

    My truck runs fine...
    If it is missing and the truck runs fine what is it for ?
    Can someone explain?

    Cheers, :beer: :beer: :beer:

  16. PUR CRUISER

    PUR CRUISER

    Messages:
    2
    Likes Received:
    0
    Joined:
    Feb 8, 2008
    Location:
    PUERTO RICO
    does some can send the data for a fj62 1989

  17. PhilC64

    PhilC64

    Messages:
    2,575
    Media:
    4
    Albums:
    3
    Likes Received:
    6
    Joined:
    Apr 1, 2007
    Location:
    Peoples Socialist Republic of Chicago
    What type of "data" are you looking for? If it's not in the FAQ, then search the 60's section.

  18. leafscorpion

    leafscorpion

    Messages:
    21
    Likes Received:
    0
    Joined:
    Oct 8, 2009
    my fuse panel does not match this. it is a 1983 fj60. has anybody noticed a different configuration

  19. FJake60

    FJake60

    Messages:
    43
    Likes Received:
    10
    Joined:
    Mar 20, 2016
    Location:
    Washington

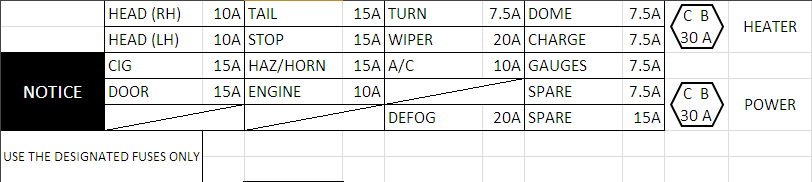

    Had the same issue. Made up a quick spreadsheet to print out for mine. 1987 FJ60 (born on 12/86):


    gregnash likes this.
