Fuel separator routing on an '82-need line routing pics from 79 + (1 Viewer)
- Thread starter 40Man
- Start date
This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.
is this the diagram you have?
- Thread starter
- #3
Yep. Just trying to figure out what hose 77002A connects to. I don't seem to have any built in tubes near the tank going towards the charcoal canister. Is that just a long hose going directly to the canister?
- Thread starter
- #4
Just trying to figure out the chassis routing for the hose between "vapor separator" and "check valve" in the attached. Is there supposed to be a hard line, or is it a rubber hose from separator to the tank?
The metal tube in the picture actually terminates into the frame. The open end pictured connects to the charcoal canister. I guess its thru this tube that excess gas and fumes are routed.

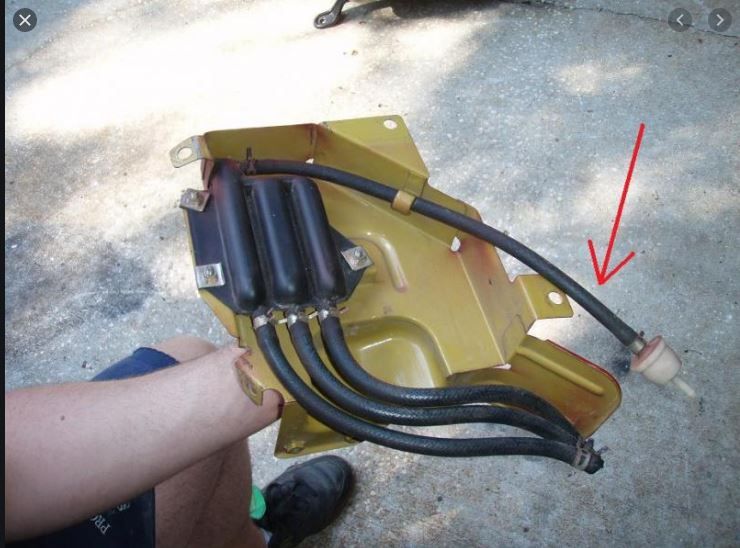

Does this help? Google has a bunch of pics I just grabbed this one quickly
I think on mine it's a soft line to the check valve then it's a hard line under the vehicle which goes back to a soft line into the charcoal canister.
I think on mine it's a soft line to the check valve then it's a hard line under the vehicle which goes back to a soft line into the charcoal canister.
- Thread starter
- #7
Thanks. It would be helpful to see a pic where the check valve meets the hardline. I can't seem to locate it.

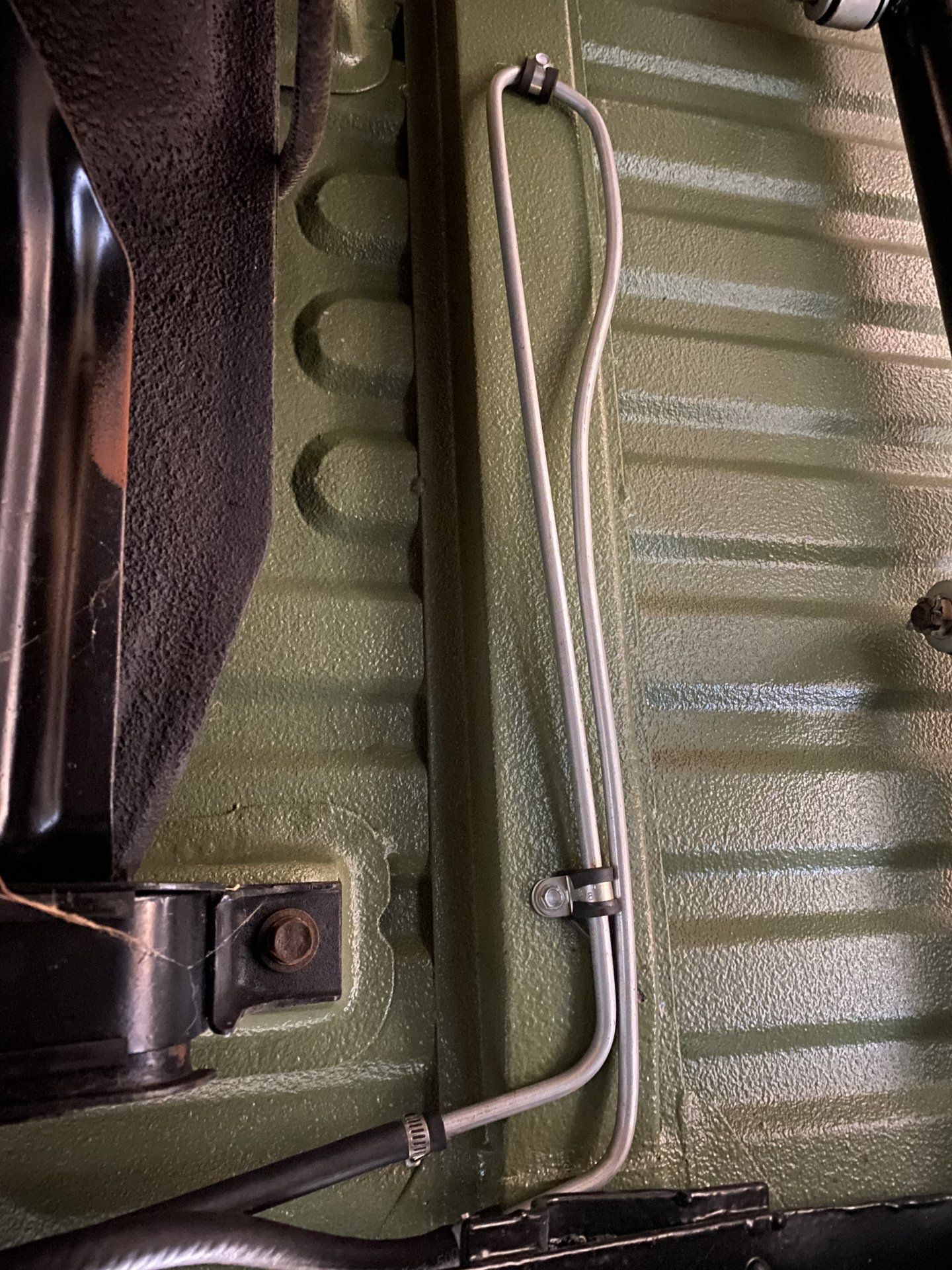

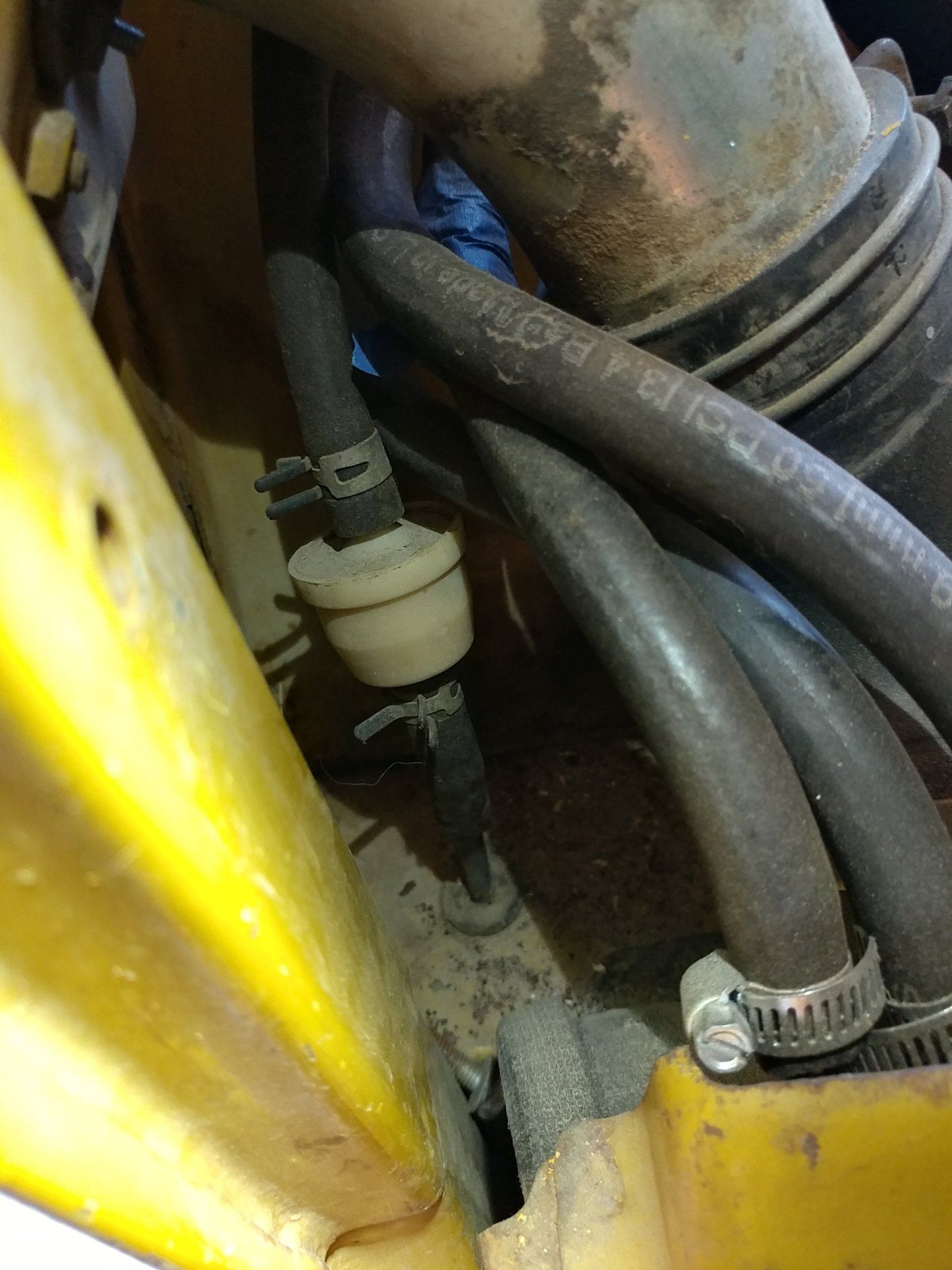

Just took this pic, mine's not an 82 but it comes up through the floor right under the filler neck area.
- Thread starter
- #9
Thanks. I don't have anything like that. Is your tank under the bed or passenger seat?
It's in the stock location under the passenger seat
- Thread starter
- #11
Thanks, I have a feeling the 82, with its tank under the rear bed, may have a metal hose somewhere else (if there is one). Hopefully someone can confirm with a pic.
1981 FJ40
I can’t verify it’s 100% correct but oem steel line ran along inner Rocker Panel, up the firewall then to Charcoal Canister vía short piece of rubber hose.
I can’t verify it’s 100% correct but oem steel line ran along inner Rocker Panel, up the firewall then to Charcoal Canister vía short piece of rubber hose.
Not quite right. The metal tube that's bolted to your firewall support from your first pic connects to the rubber adapter on the bottom of the charcoal cannister and then runs down and ends inside the cross-boby support just below where the floorboard transitions to the 45º portion of the firewall. It just ends inside that support about an inch past the grommet in your pic. It's a drain in case too much fuel condenses in the cannister. Not sure why Toyota ended it there but likely some safety code requirement that they were able to finagle.
The check valve indicated in the diagram in post #4 is in the top of the tank inlet port. That's just a generic pic used in many fj40 factory service manuals regardless of yesr. You may also need the inline valve shown in bhsdriller's posts. If your model year has a separator inside the cab then there's still got to be a way for the line from the separater to get out from the interior and run up to the "to Tank" port on the charcoal cannister. Must be a hole there somewhere... plus the holes for lines running into the separater from the exterior tank. Sorry but I don't know the routing underneath for the '79 and later fuel tanks but "yes", you'll need to run a line from the separator to the charcoal cannister. As this line builds pressure to some extent I'd think you'll need to make a hard line for most of it. It was mostly metal for earlier years but does have short sections of rubber tubbing at the connection points.
If no one posts any pics start searching out undercarriage images from high-end (i.e. - overpriced) low mileage landcruiser sales ads like bring-a-trailer, etc. Hopefully you can get enough to make a reasonable facsimile.
Last edited:

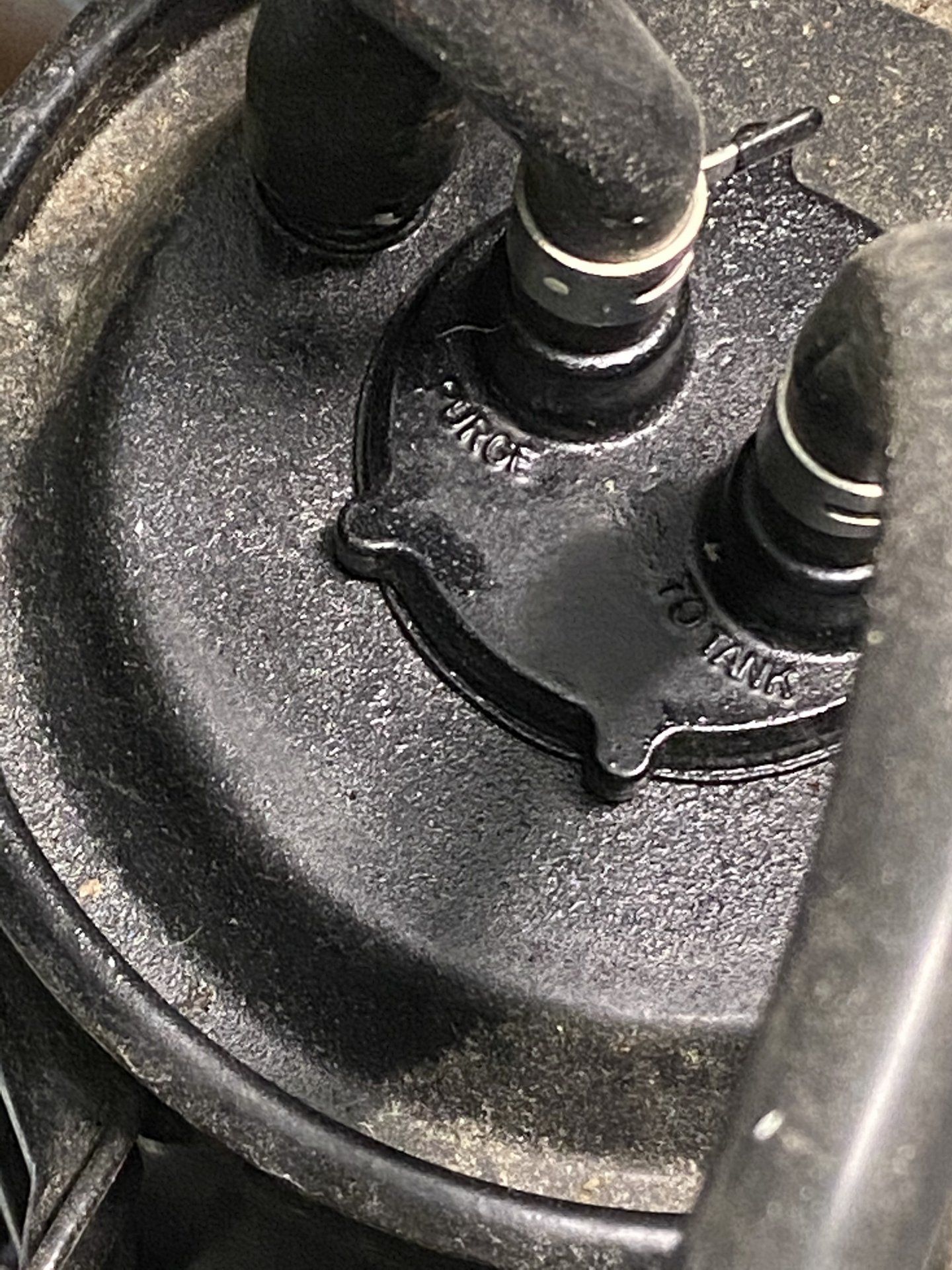

{edit} I have the rubber hose coming out of the bottom of Charcoal Canister I left open to atmosphere. I have an aftermarket tub therefore never had that tube that terminates in body mount.

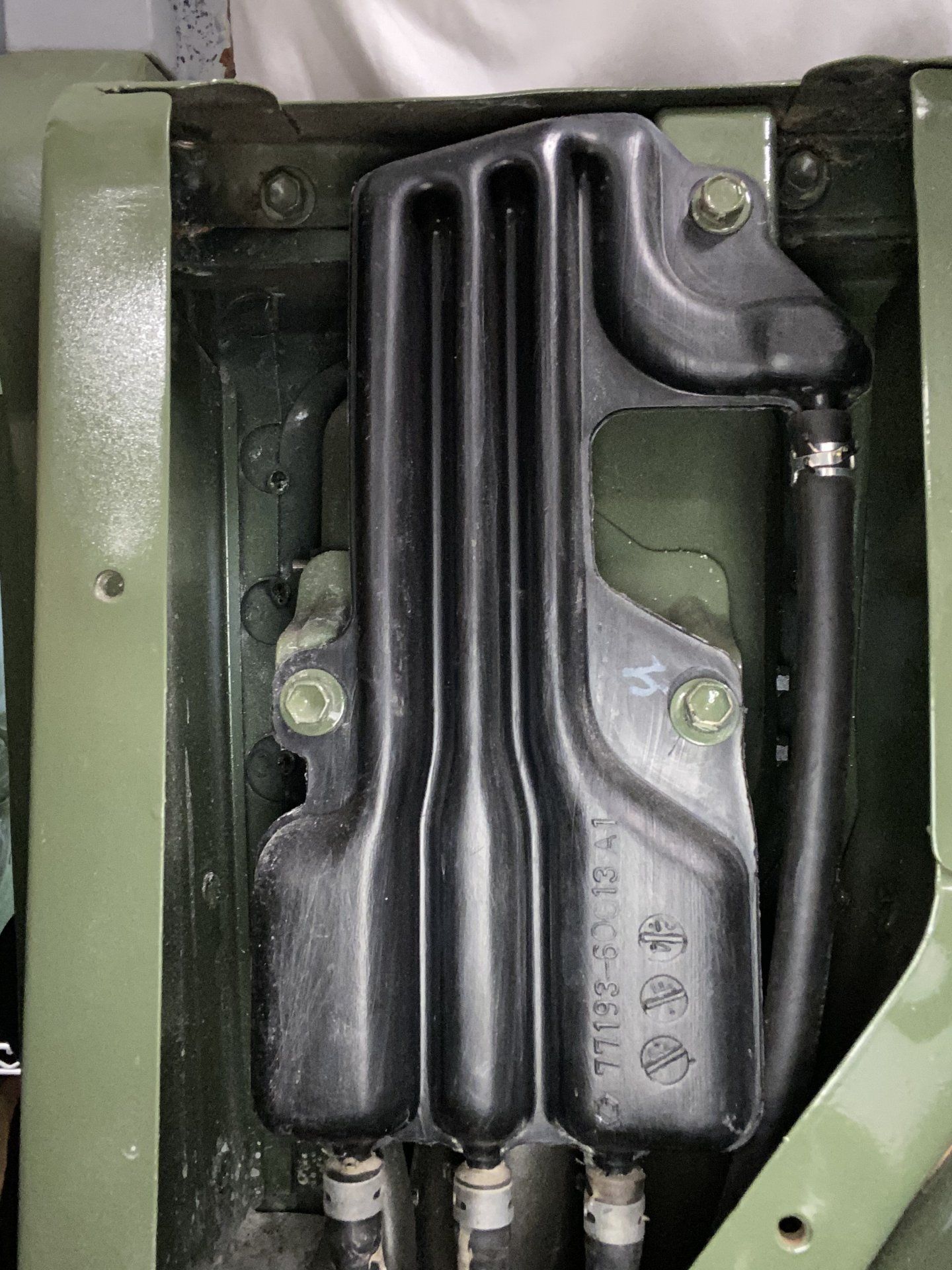

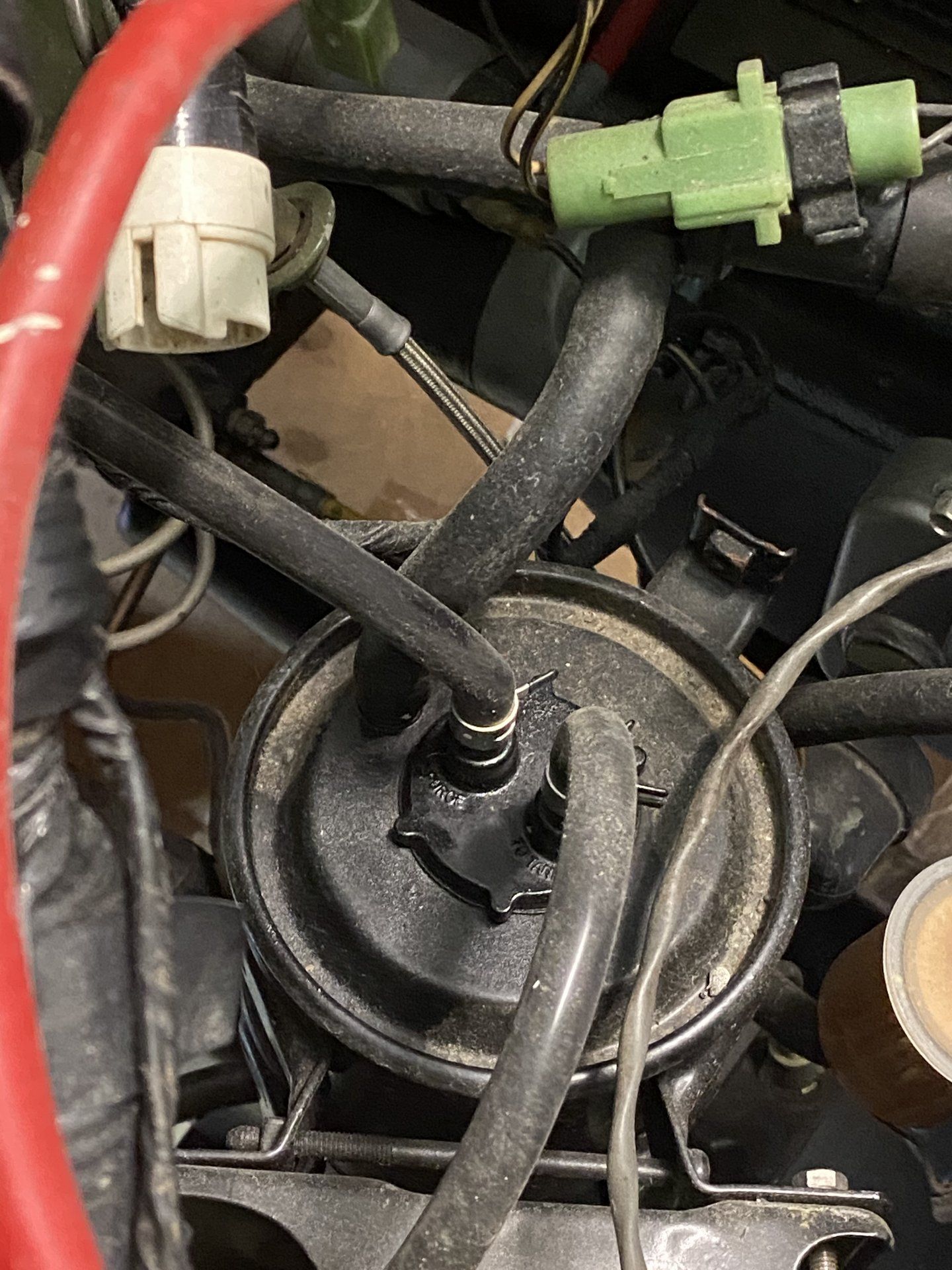

Here’s some pics from my ‘81 setup (again not certain it’s correct).
Here’s some pics from my ‘81 setup (again not certain it’s correct).
Last edited:
Uh, maybe this is your problem. Most 79+ tanks are still under the passenger seat but under the floorboard. If your tank is really under the rear bed then you've likely got and aftermarket tank... and no original.
- Thread starter
- #17
No, the 79+ tank is in front of the rear axle below the bed, and there is an access port in the bed to access the sending unit. It is OEM.
Your fuel tank is NOT in the cab, but under the front seats mid-chassis. Just like my ‘81
- Thread starter
- #19
Correct, I never said it was (assuming you are talking to me?)
I was confirming your statement, but I’ll drop out. This is your thread, not mine. My apologies.
