Hi all,

Price: free if you pick them up locally Seattle eastside, WA. Actual shipping cost if not.
Condition: used, some perfect functional, some missing clips

I switched from LX to LC roof rack by using parts from two racks and now I have LC rack left over parts.
All are free for local pickup.

All bolts are reused from your ride. I reused mine. I do have 8 spare long bolts from the LC racks but no washers for them.

I reused my LX cross bars after modifying them. FYI the end of the cross bars for both LC and LX is plastic. Yes, it looks like aluminum but it is plastic so easy to drill/enlarge holes. You also need to drill one new hole in the bar end for reposition one of the screws. I can post what I did if you need to. I'm using the OEM crossbars for just in case/climbing on the roof as they are not easy to take off and put back. For any real load I'm using a Thule square bar rack that I trust for hundreds of pounds. I remove it when not in use to keep the noise down - very easy to do.

What I have

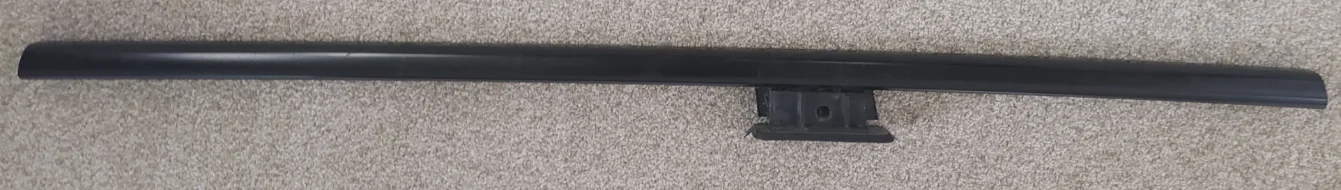

- left bar
- right bar
- rear rubber pads for both
- front rubber pad for left

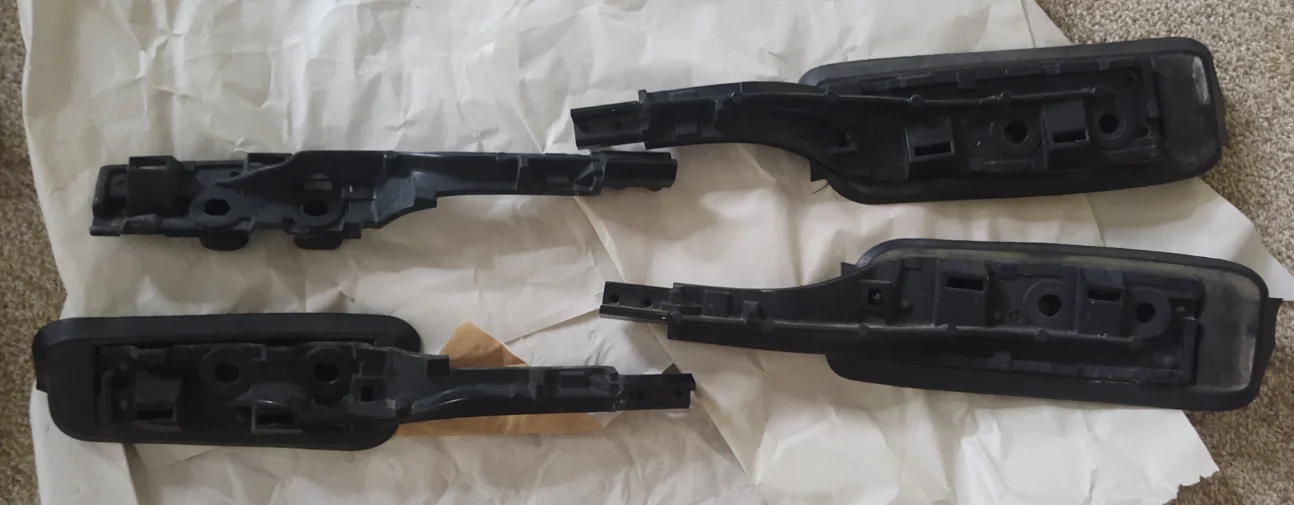

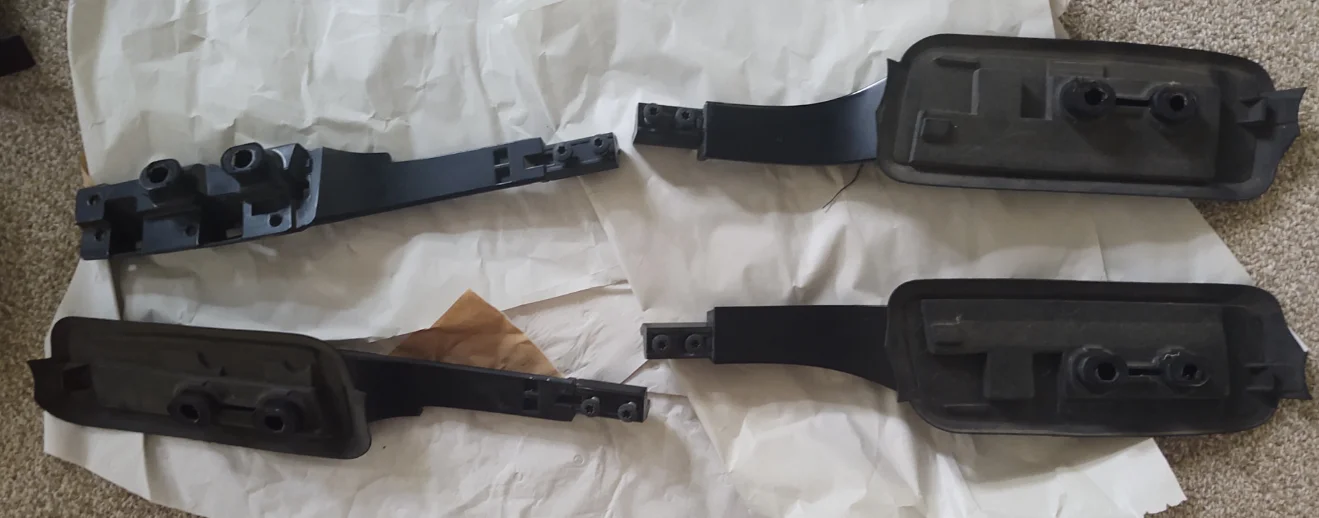

- plastic underside for rear end for both

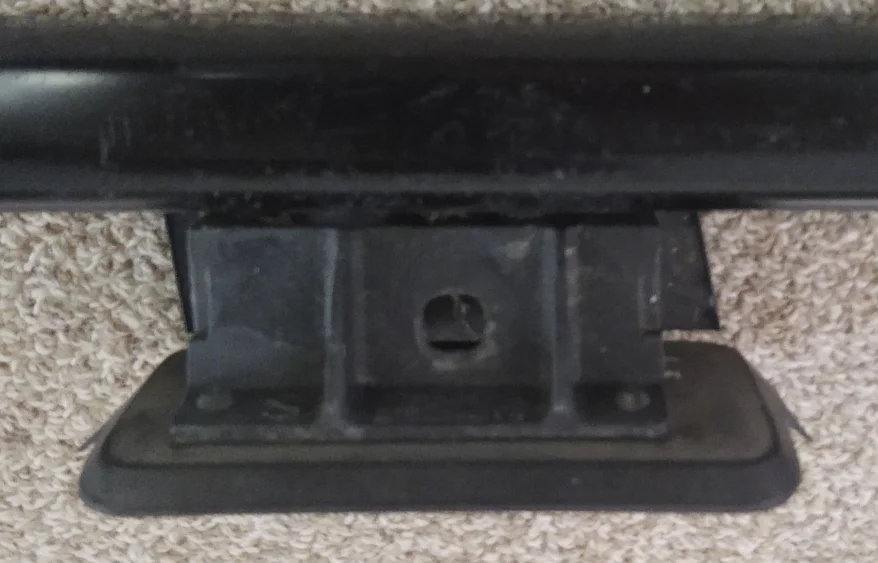

- plastic rear for central leg for both
- center rubber pad for left side

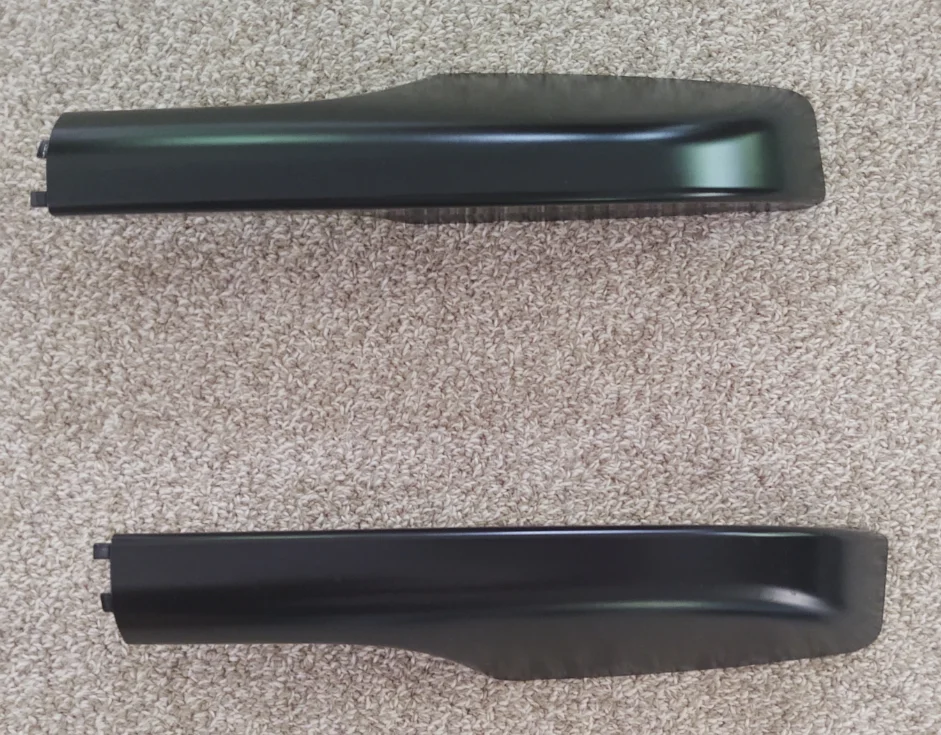

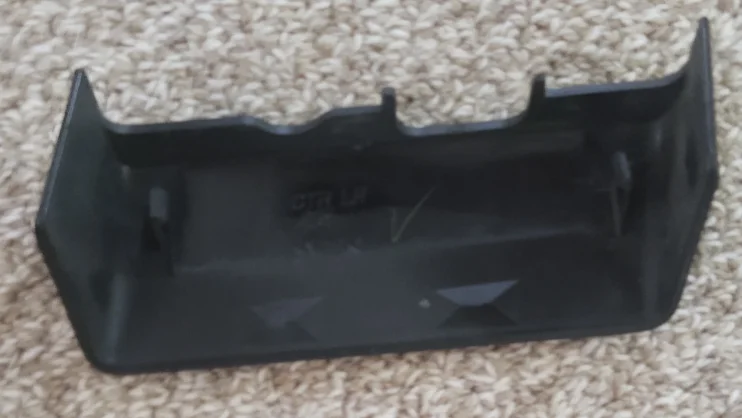

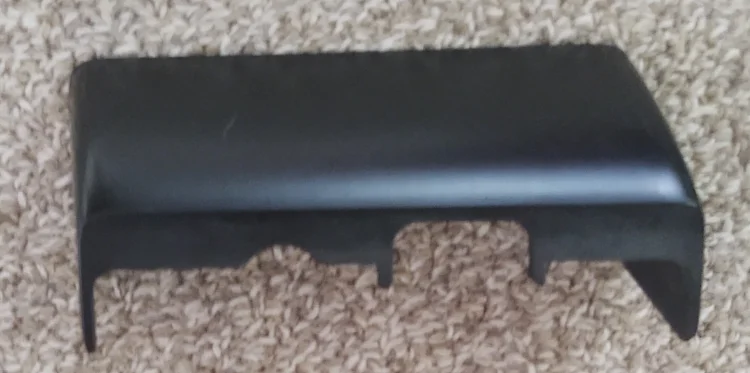

- rear covers with all clips intact

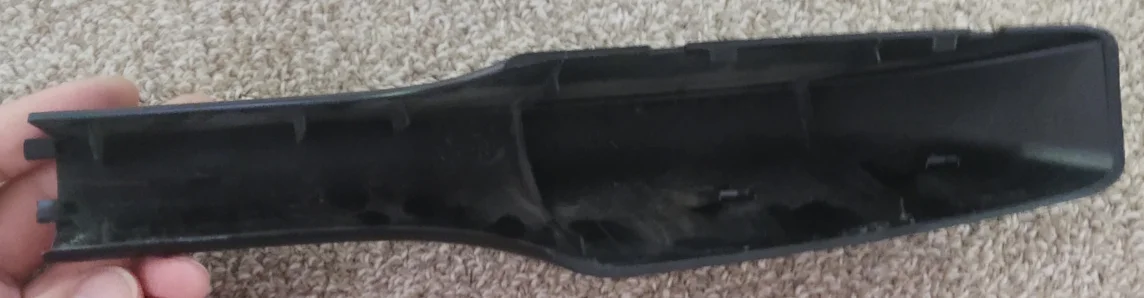

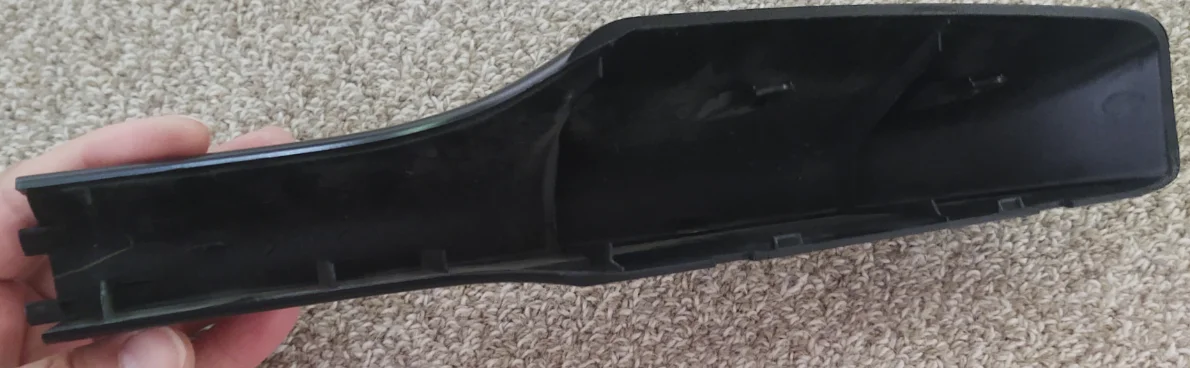

- center left cover with clips intact

What you need
- 6348660110 $8 front rubber pad for right
- 6348460090 $5.50 center rubber pad for right side
- 2x 7556460040 $6.50/ea center brackets that attaches to the roof
- 2x 91511C0818 $1.22/ea center brackets bolt that attaches the bracket to the rail leg
- 6349560080C0 $19 center right cover (the one I have has both clips broken)
- 6349260090C0 $45 front cover left ( the one I have has the front small and big clips missing and one tail clip missing)
- plastic underside for front ends - this is not available by itself only with the full rack

What you might want to replace

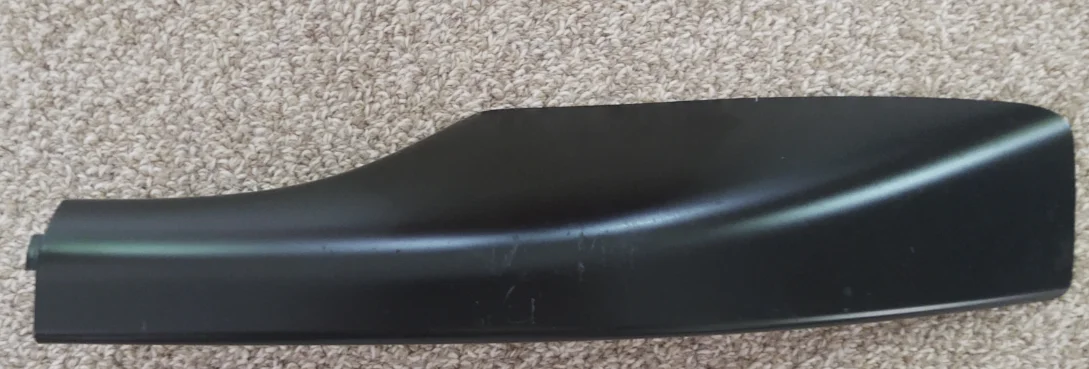

- 6349160110C0 $45 front cover right - I have two, one has the front small clip missing, the other has one tail clips missing

Last edited:
Joined
Aug 13, 2021
Messages
405
Location
The Great PNW
- left bar


- right bar


- rear rubber pads for both
- front rubber pad for left


- plastic underside for rear end for both
- plastic rear for central leg for both


- center rubber pad for left side

Joined
Aug 13, 2021
Messages
405
Location
The Great PNW
Broken parts

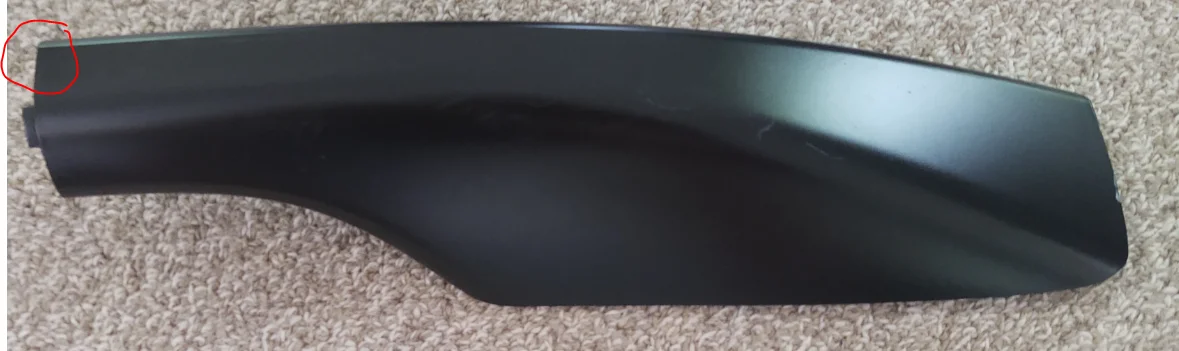

- center right cover has both clips broken

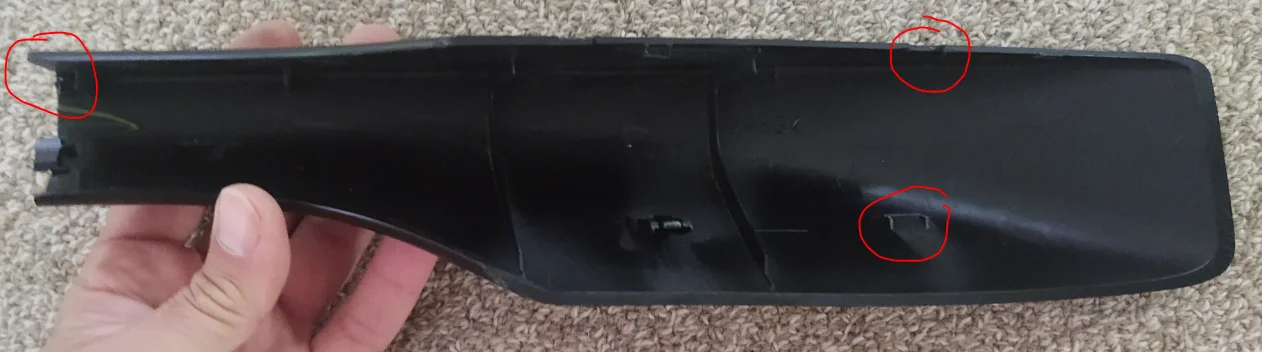

- front left cover front small and big clips missing and one tail clip missing


Last edited:
Joined
Aug 13, 2021
Messages
405
Location
The Great PNW
Partially broken parts

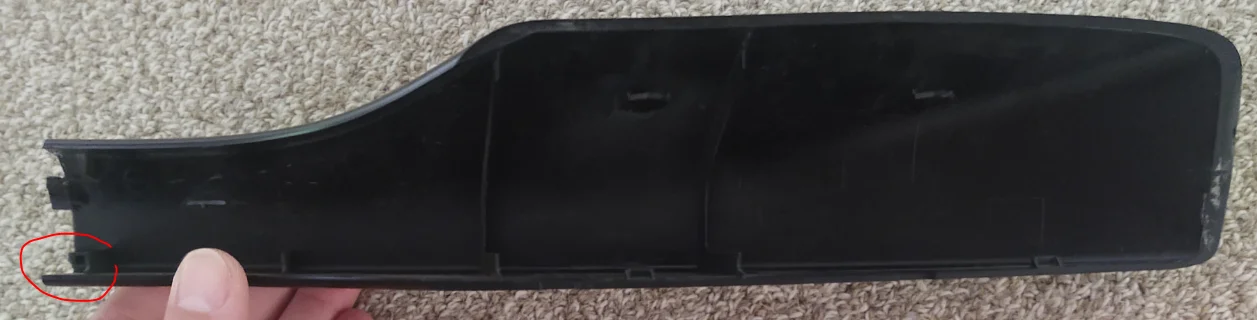

- front right cover has the front small clip missing

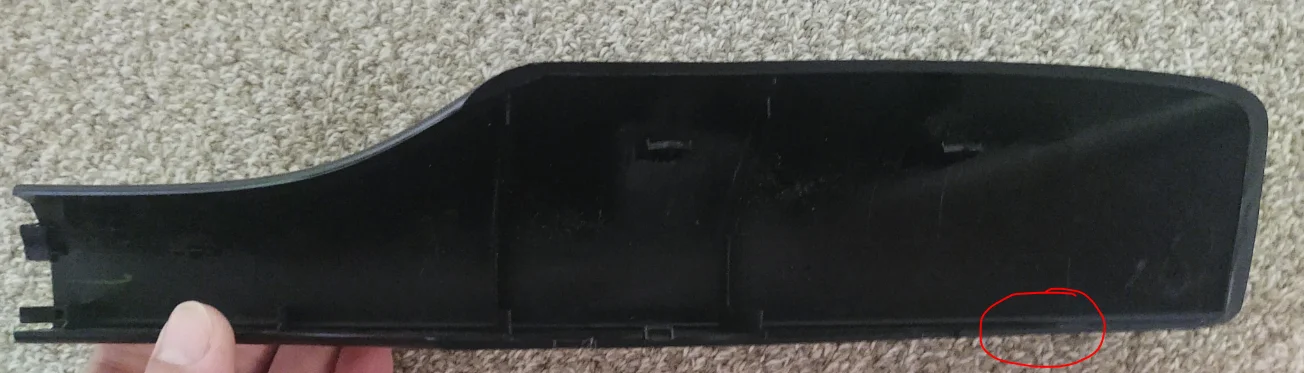

- front right cover has one tail clips missing


Joined
Jan 10, 2021
Messages
99
Location
Seattle
@doru I'm out of town until mid next week, but would love to meet up and grab both the rear covers if they are still available. DM sent.
