For Those Of You With The SLEE Rear Bumper

Joined
May 21, 2004
Messages
3,566
Location
San Diego
Website
www.motobasedadventures.com
Can you please give me some of these dimensions (rough is fine) on the latch assembly?



NorCalDoug

problems solved daily...
Joined
Oct 27, 2003
Messages
6,217
Location
uhhhh...duh...Northern CA
I would...but my latch don't look like that.



What do you want? "A" or "B"?


NorCalDoug

problems solved daily...
Joined
Oct 27, 2003
Messages
6,217
Location
uhhhh...duh...Northern CA
Boston Mangler said:
thanks, but is this the clamp that is on the slee rear bumpers?

sure looks it, i notice a 341 in the pics on his site and i think i found it on that website

thanks

not necessarily...but neither is the one in your pic.

Joined
Nov 29, 2004
Messages
1,584
Location
Tempe, AZ
Boston Mangler said:
Can you please give me some of these dimensions (rough is fine) on the latch assembly?


A = 3 1/4
B = 8 1/4
C ?

G & H = 1 5/8
J = 7/8

There are only 2 holes in my lower plate so there isn't a K just a J.

All are in inches, and my slee rear bumper is one of the newer ones.

Why the need for the measurements??

Joined
May 21, 2004
Messages
3,566
Location
San Diego
Website
www.motobasedadventures.com
clarkrw3 said:
A = 3 1/4
B = 8 1/4
C ?

G & H = 1 5/8
J = 7/8

Thanks a bunch Rob!

clarkrw3 said:
Why the need for the measurements??

I am toying with the idea of building a bumper and was curious exactly what latch he used.

Everyone seems to love the "Rattle Free Slee" and comments on how stout it is.

Thanks

Joined
Jan 12, 2006
Messages
1,172
Location
San Diego
Does anyone have the weight of the slee bumpers? I'm actually intersted in both front and rear bumpers, but am cringing at the potential load.

Tom

Joined
Nov 29, 2004
Messages
1,584
Location
Tempe, AZ
No problem Kevin

email or pm Christo


MoGas

Central Scrutinizer
GOLD Star
Joined
Jan 26, 2004
Messages
2,113
Location
Air Mobile
Boston Mangler said:
kinda looks like it, can you get the pic bigger?

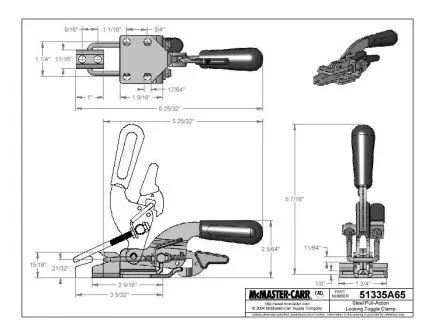

Just go to www.mcmaster.com and type in the p/n (51335A65) and click on "technical drawing"


:cheers:
Dave

Joined
Apr 25, 2005
Messages
229
guys,
just about any toggle clamp will keep it rattle free. The key to a good tire carrier is trianglation and a tight hinge. The hinge that SOR sells is arguably the stoutest out there. Once you eliminate bearing flex, the bumper itself is the next flex point, followed then by the frame.

On my bumpers, I use the 1200# latch from Carr-lane. If you if you use tube, make sure you have an x and a y axis tie down.

Joined
Apr 25, 2005
Messages
229
sleeoffroad said:
If you do not use the 2000lb latch, then the U bolt part will break eventually. Seen that happen on a number of carriers.


true.

especially if "mis-alligned"..


cruiserdan

SupportingVendor Emeritus
Moderator
Joined
Mar 27, 2003
Messages
25,413
Location
Land Cruiser Heritage Museum broom closet
The latches illustrated have a safety catch. Mine does not. It has two bolts holding the "hook", not four. As Chriso mentioned the U-bolt or "bail" needs to be very strong. There is a helluva lot of load on that thing.


sleeoffroad

Supporting Vendor
Joined
Mar 27, 2003
Messages
6,384
Website
www.sleeoffroad.com
Not as much that, as the metal is to thin and it just snaps when you put tension on it. The first picture shows, is simmilar to the ones we use, but that one has a optional safety clip to stop it from opening. Problem is, due to the desing, when you close it and you have your hand around the handle, the clip moves back and pinches your fingers. That is why we use the one without the clip.
