FJ60 Air cleaner assembly - diaphragm

Joined
Feb 14, 2013
Messages
865
Location
Wake Forest, NC
Hi All -

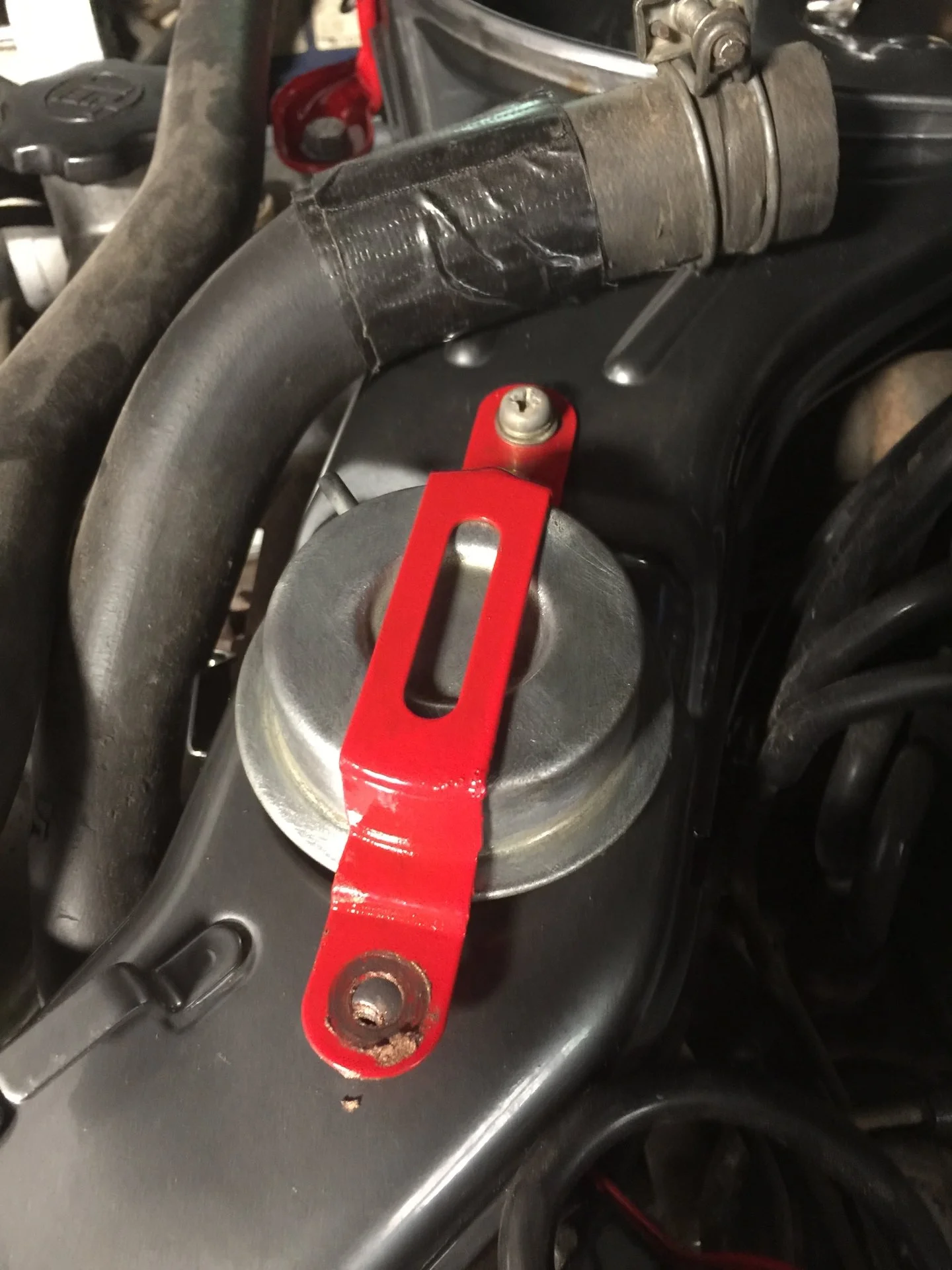

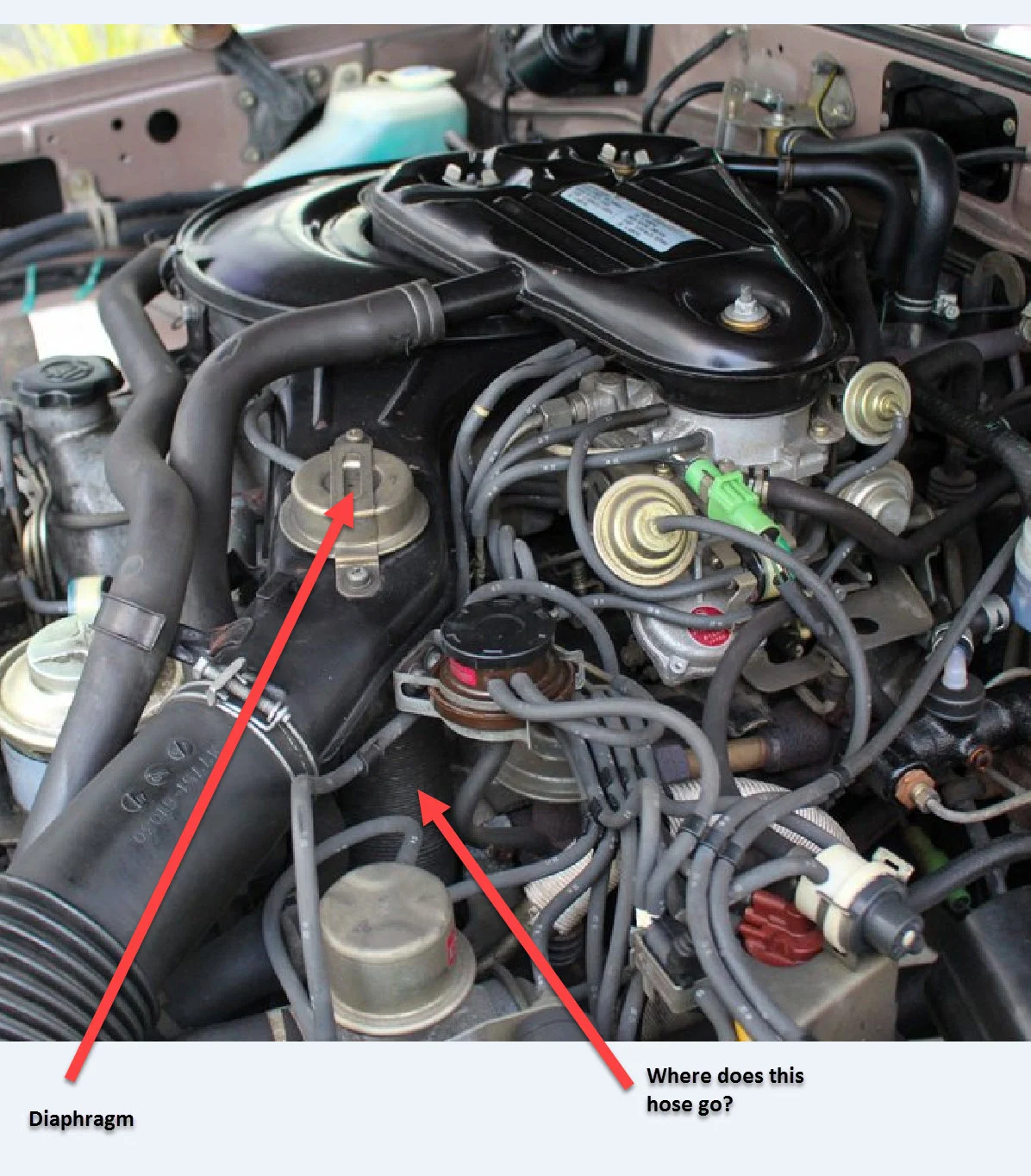

I posted this classified listing for a air cleaner assembly diaphragm. Found out that mine did not hold vacuum when restoring the air cleaner assembly.


Can someone tell me the purpose of this? I see that it opens a bottom side vent when under vacuum.

Also, mine is open to ambient air. Is it suppose to connect via hose somewhere else?

Thanks


2mbb

SILVER Star
Joined
Sep 1, 2003
Messages
5,579
Location
WC, CA

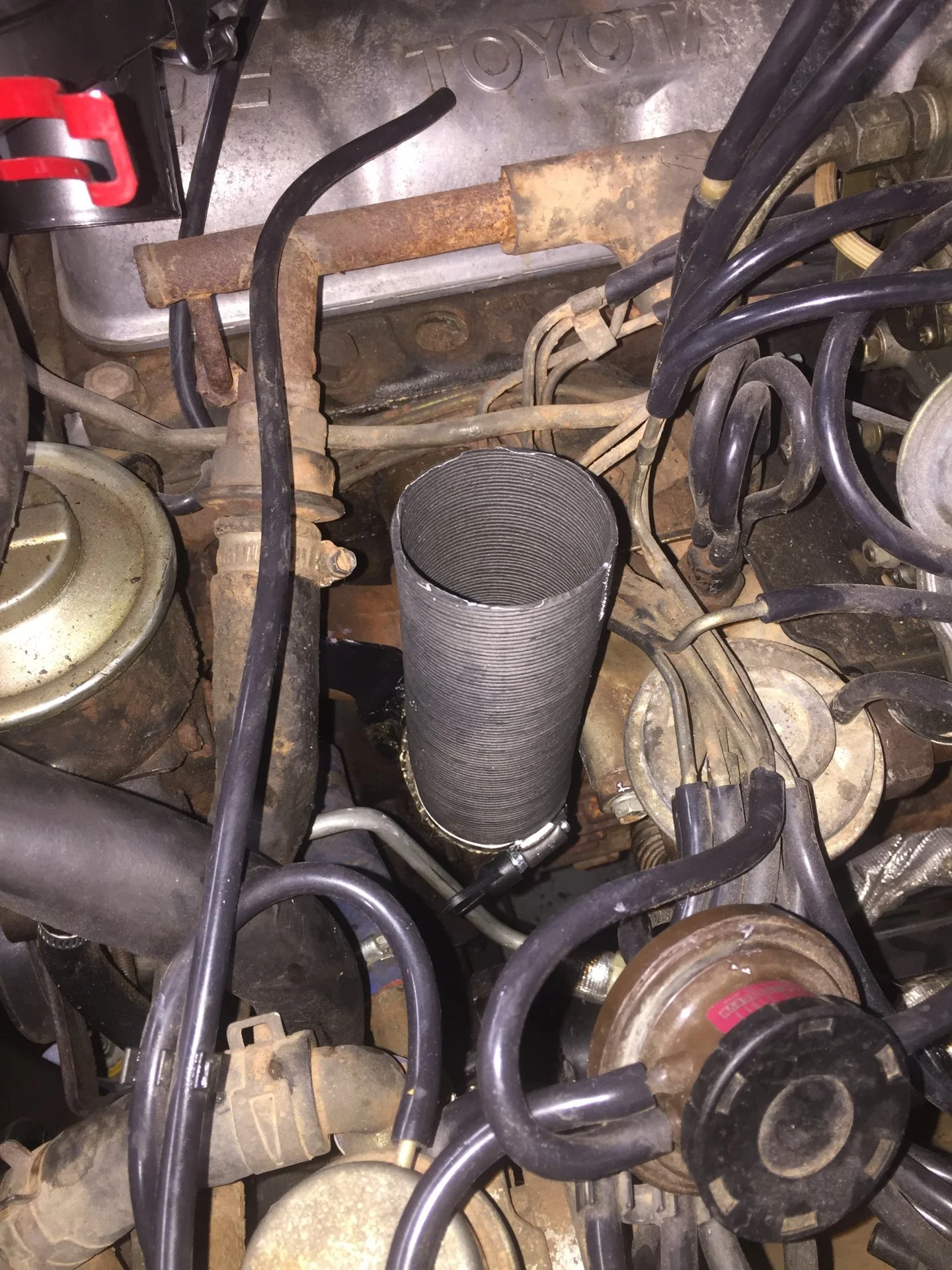

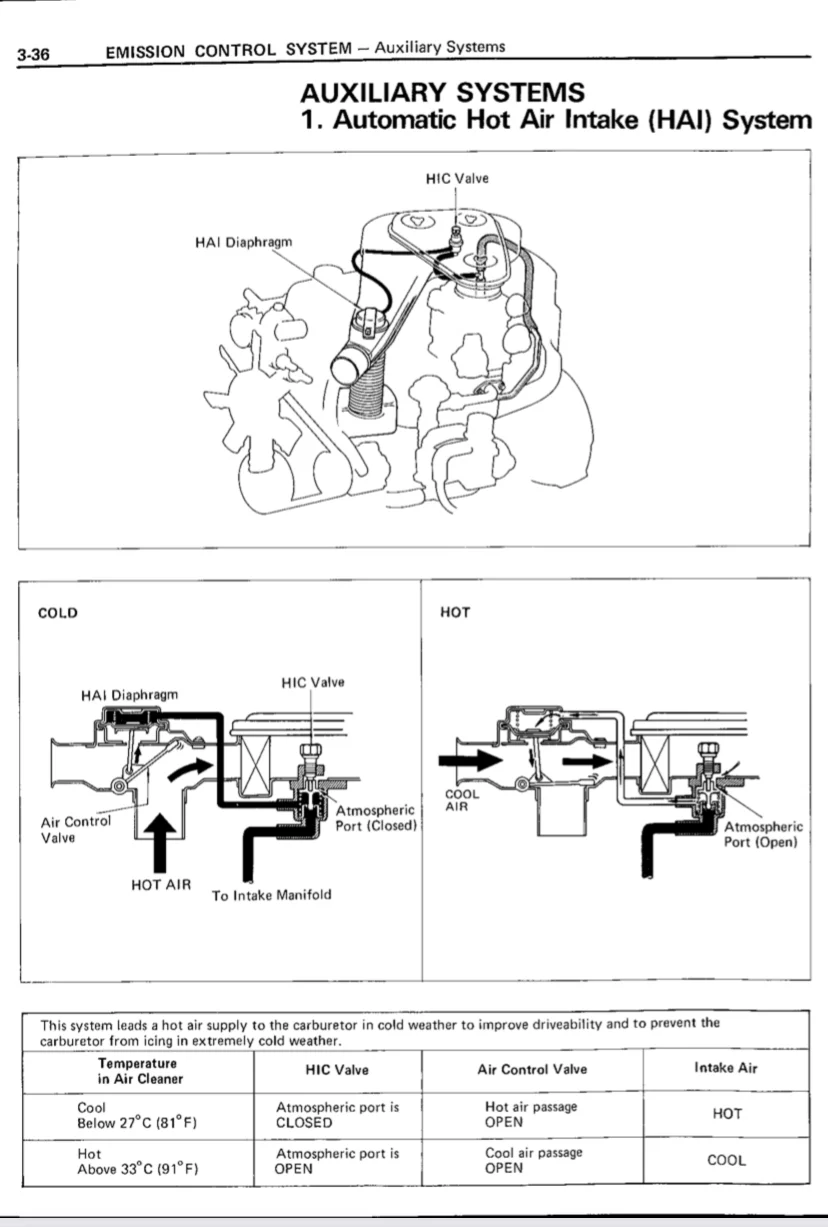

When starting cold the vacuum pulls a door that pulls “warm air” from around the exhaust manifold. Once the engine heats up the door closes and “cold air is pulled from the front of the engine bay. This is called the hot air intake system in the 2F emissions manual.

Joined
Feb 14, 2013
Messages
865
Location
Wake Forest, NC
When starting cold the vacuum pulls a door that pulls “warm air” from around the exhaust manifold. Once the engine heats up the door closes and “cold air is pulled from the front of the engine bay. This is called the hot air intake system in the 2F emissions manual.
Wow - thanks for the quick reply


2mbb

SILVER Star
Joined
Sep 1, 2003
Messages
5,579
Location
WC, CA

Last edited:

fjc-man

SILVER Star
Joined
Mar 21, 2014
Messages
1,436
Location
Commerce City, Colorado

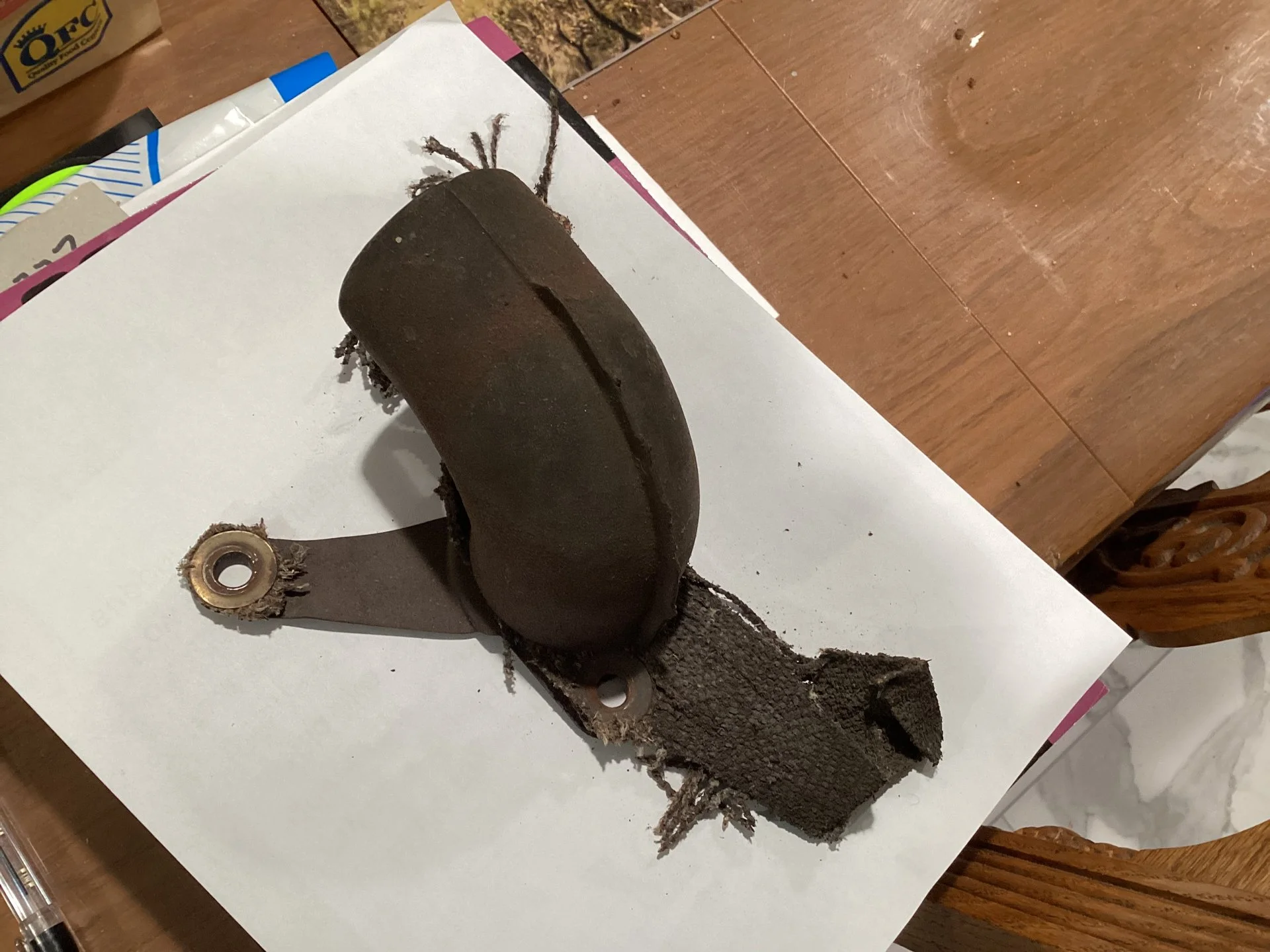

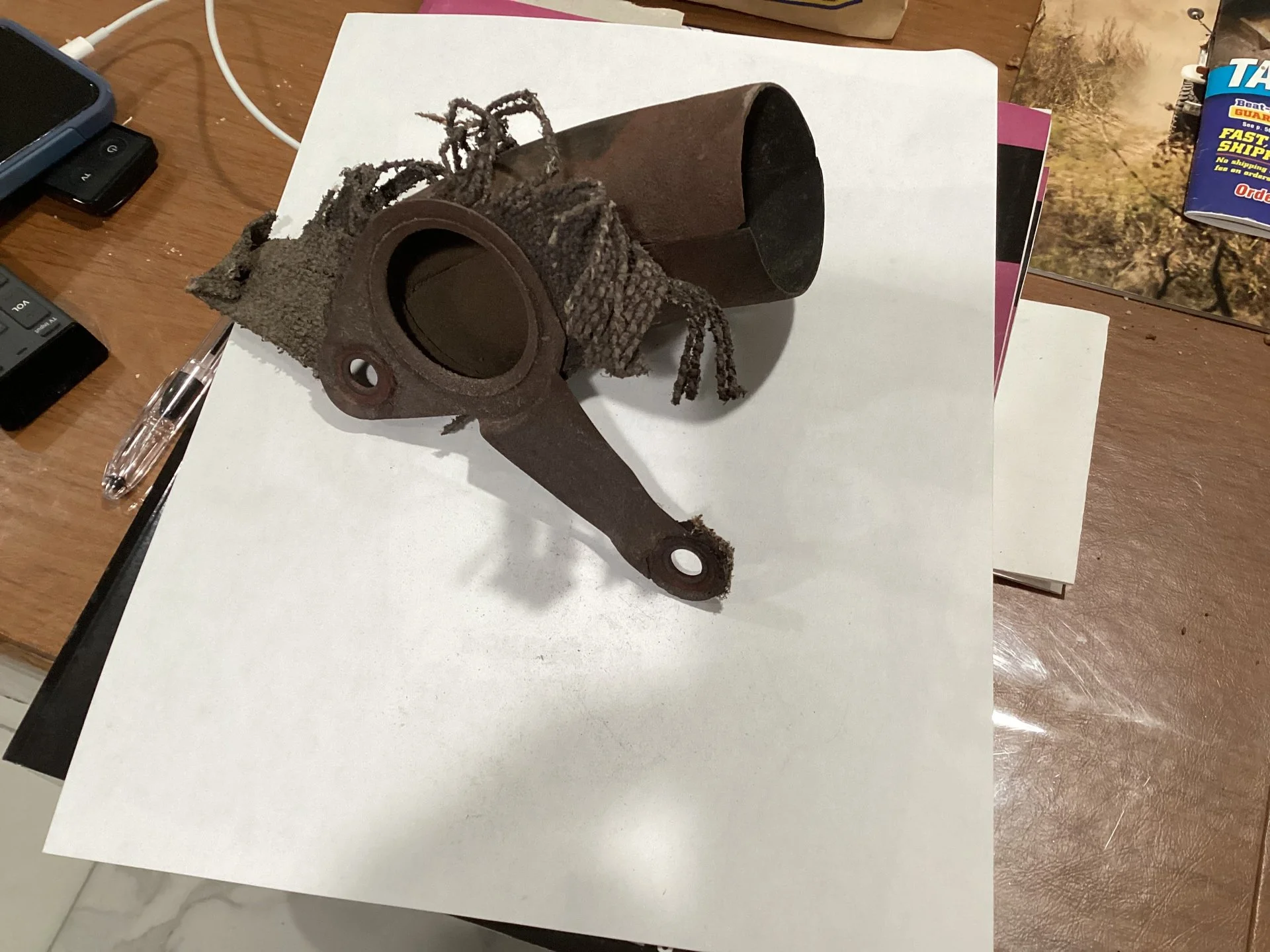

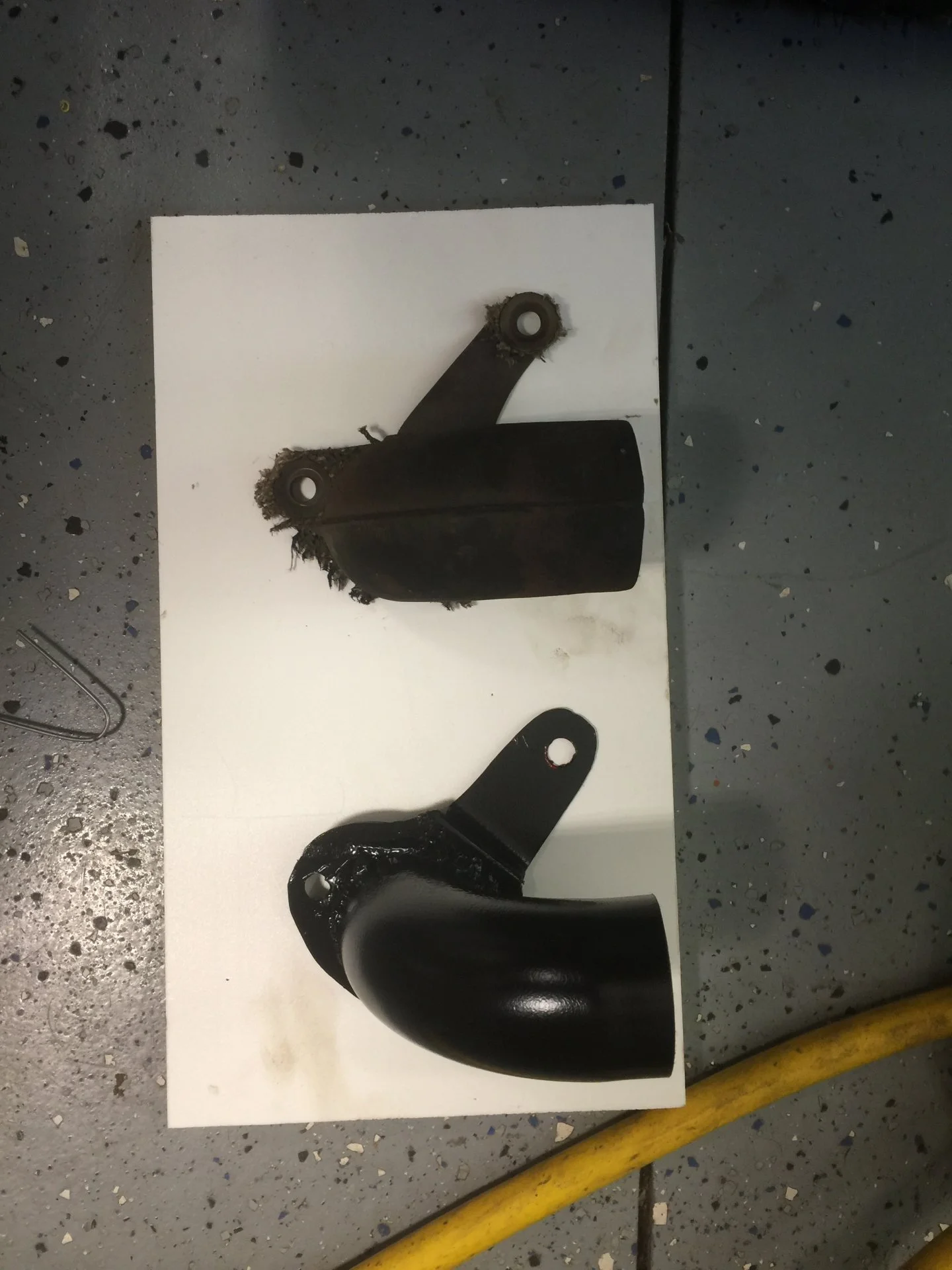

This is what is left of a preheat flange that was on a exhaust manifold I acquired a couple of years ago. Most have rusted / disintegrated over time. With a little sheet metal fab work you could make something that would work.


CruiserTrash

SILVER Star
Joined
Jul 15, 2020
Messages
901
Location
Denver
In addition to controlling the Hot Air Intake (HAI) system, that valve also regulates the Hot Idle Compensation (HIC) system. You’ll see a hose running to a tee on the PCV line just above the PCV valve itself. It allows cooler fresh air into the intake below the carb in order to “cool off” the hot engine and lean the mixture out. Probably futile effort, but hey, Toyota was trying to hit US EPA regs.


CruiserTrash

SILVER Star
Joined
Jul 15, 2020
Messages
901
Location
Denver
@stoshzack after sleeping on this thread, I figured I should come back around to say … I don’t think any of those valves work any more. I haven’t found one anyway. A while back I started a whole thread about how either Toyota diagrammed the valve wrong in the FSM or it was never meant to work as intended. I hate to question the wisdom of Mr. T, but it’s completely suspect in my book.
