For Sale FJ55 Cargo Area Vent Covers

Content may include affiliate links. Please see terms for details.

DoubleNickels

SILVER Star
Joined
Jan 21, 2014
Messages
1,180
Location
Ketchum, Idaho
MUD!

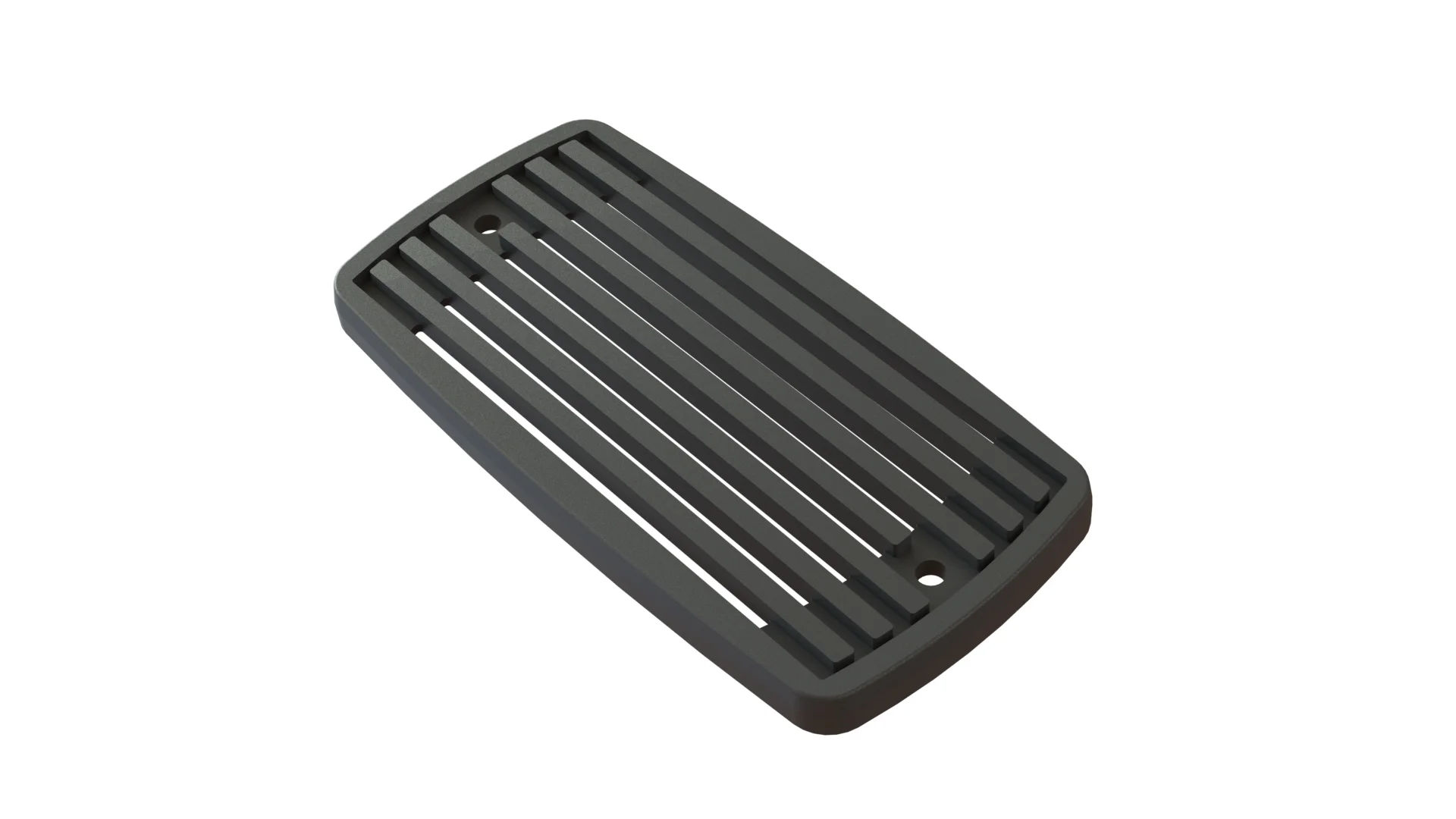

Thanks to a collaborative effort from @DieselFJ and @bobm , I've successfully re-created the rear (cargo area) vent covers for our 55's. This one:



I've gone through a couple design & prototype cycles to dial in the geometry. Currently, a 3D print vendor is fabricating a few dozen for me in the same black Nylon 12 we use in the glove box handles for @PabloCruise . I expect to have these in-hand early next week.

To cover my costs, pricing will be $15 each or two for $25, plus $5 shipping. I'll update this post with pictures of the parts when they arrive. Thanks everyone!

Calvin


DoubleNickels

SILVER Star
Joined
Jan 21, 2014
Messages
1,180
Location
Ketchum, Idaho
Great interest from everyone, thanks so much. Again I'll post pics when they arrive and I test fit. Cheers!

Joined
Apr 1, 2004
Messages
2,906
Location
Boise, Id
How much for just the .stl file Calvin?


DoubleNickels

SILVER Star
Joined
Jan 21, 2014
Messages
1,180
Location
Ketchum, Idaho
I guess the exterior vents are next model and print?

There are a few exterior vents. Which ones are you talking about? Glad to investigate.


WarDamnEagle

SILVER Star
Joined
May 20, 2007
Messages
6,492
Location
Auburn

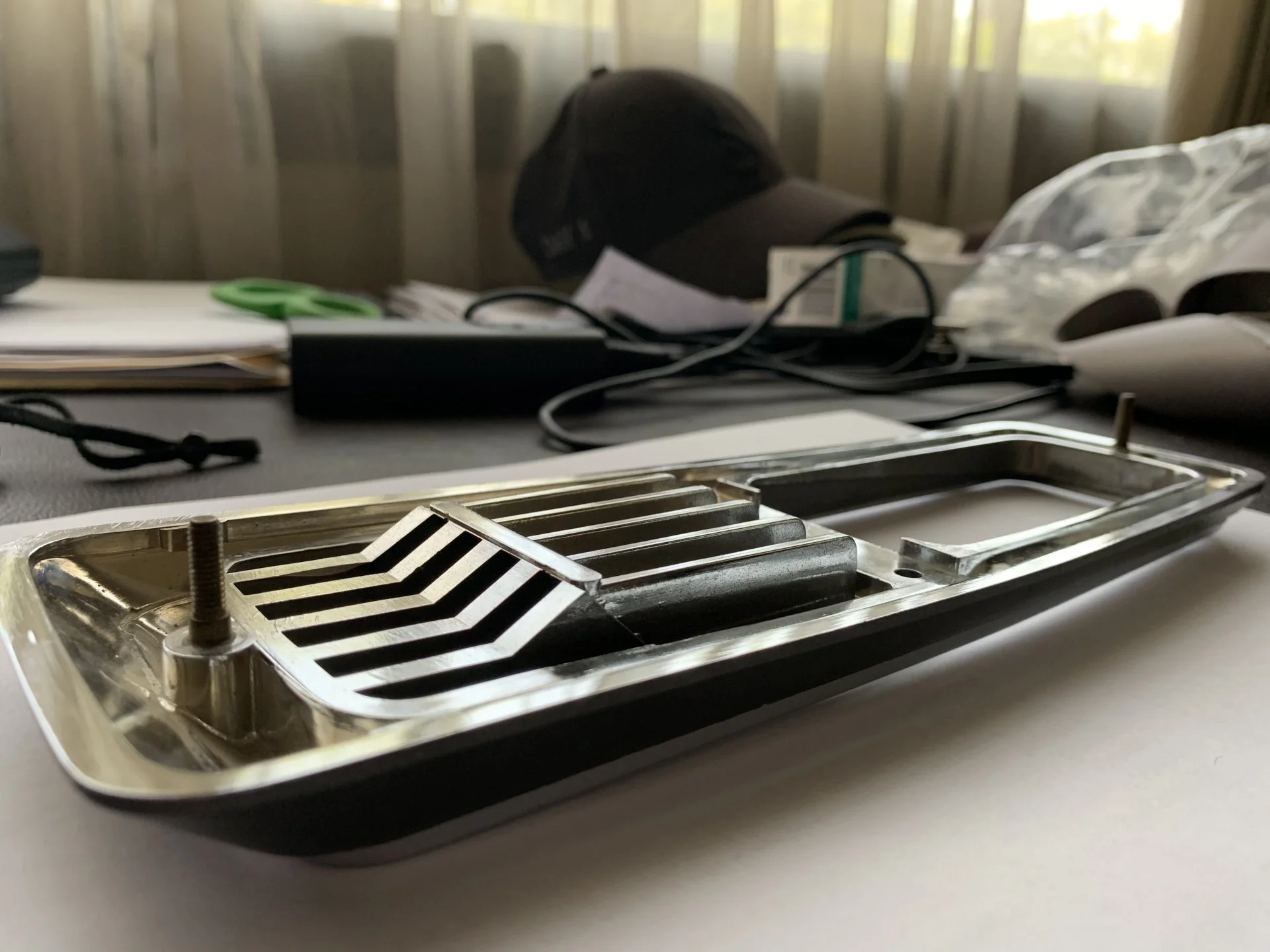

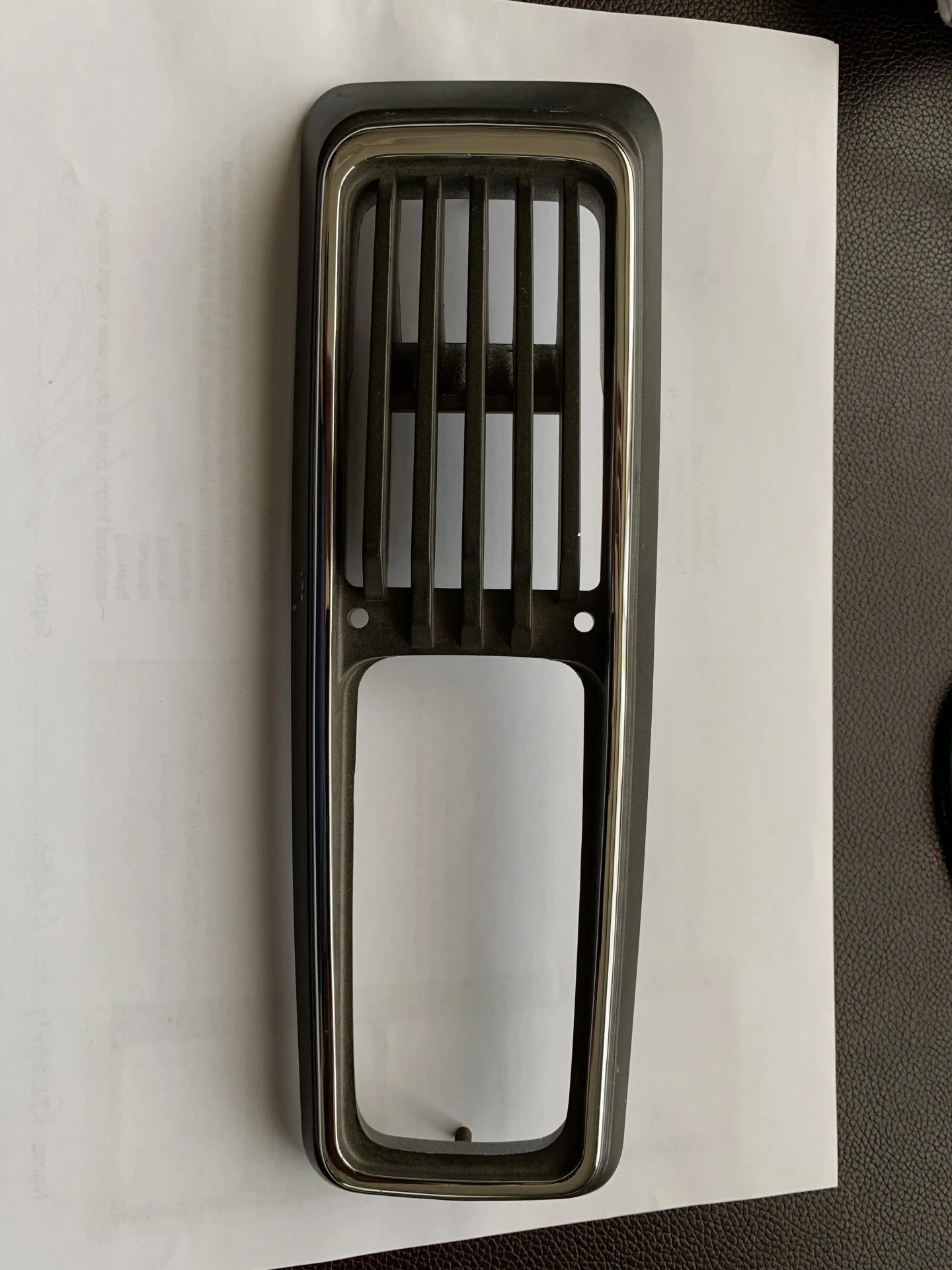

There are a few exterior vents. Which ones are you talking about? Glad to investigate.
I have an NOS pair to use as a pattern but they do not look trivial or inexpensive to replicate.







DoubleNickels

SILVER Star
Joined
Jan 21, 2014
Messages
1,180
Location
Ketchum, Idaho

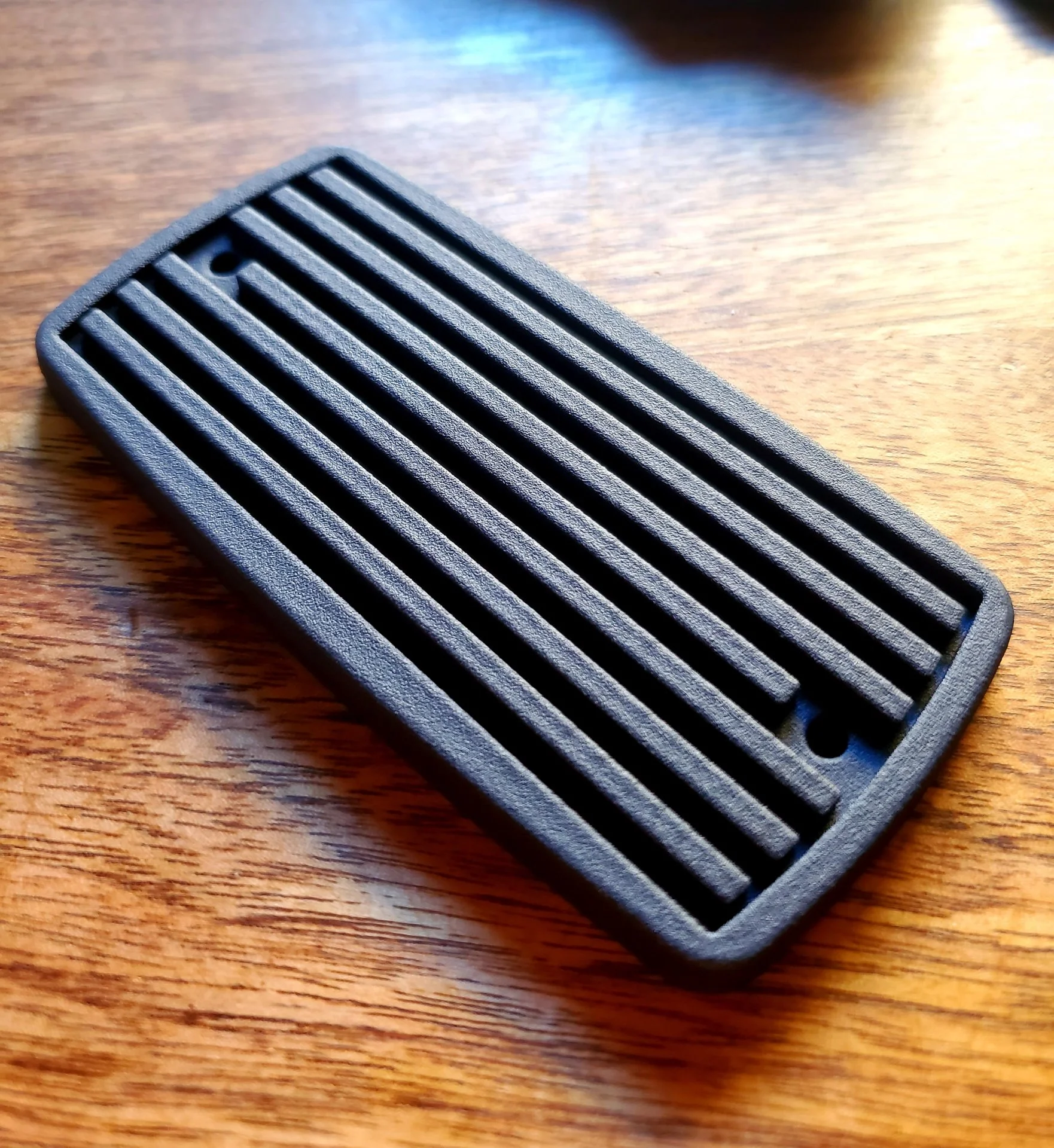

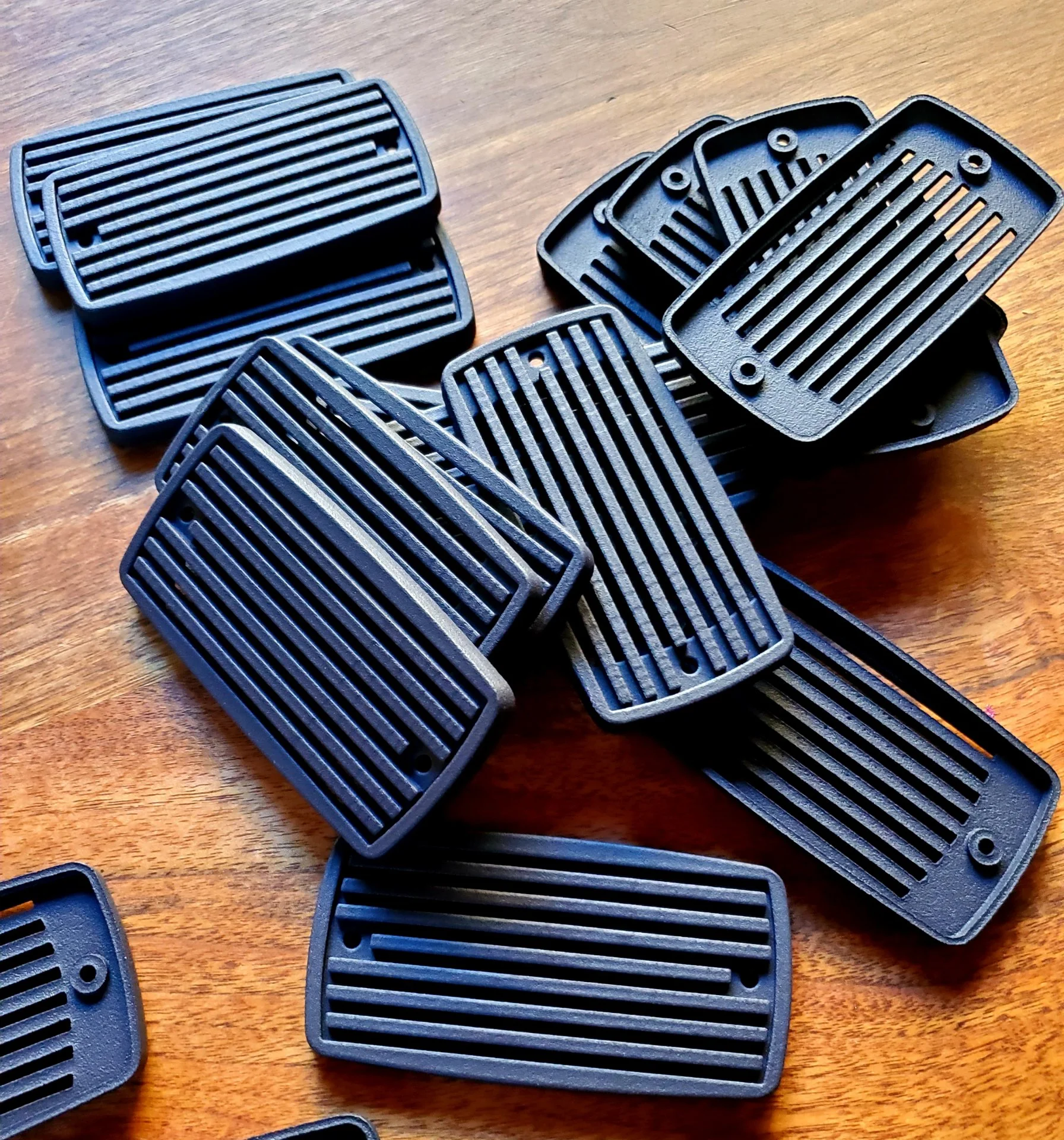

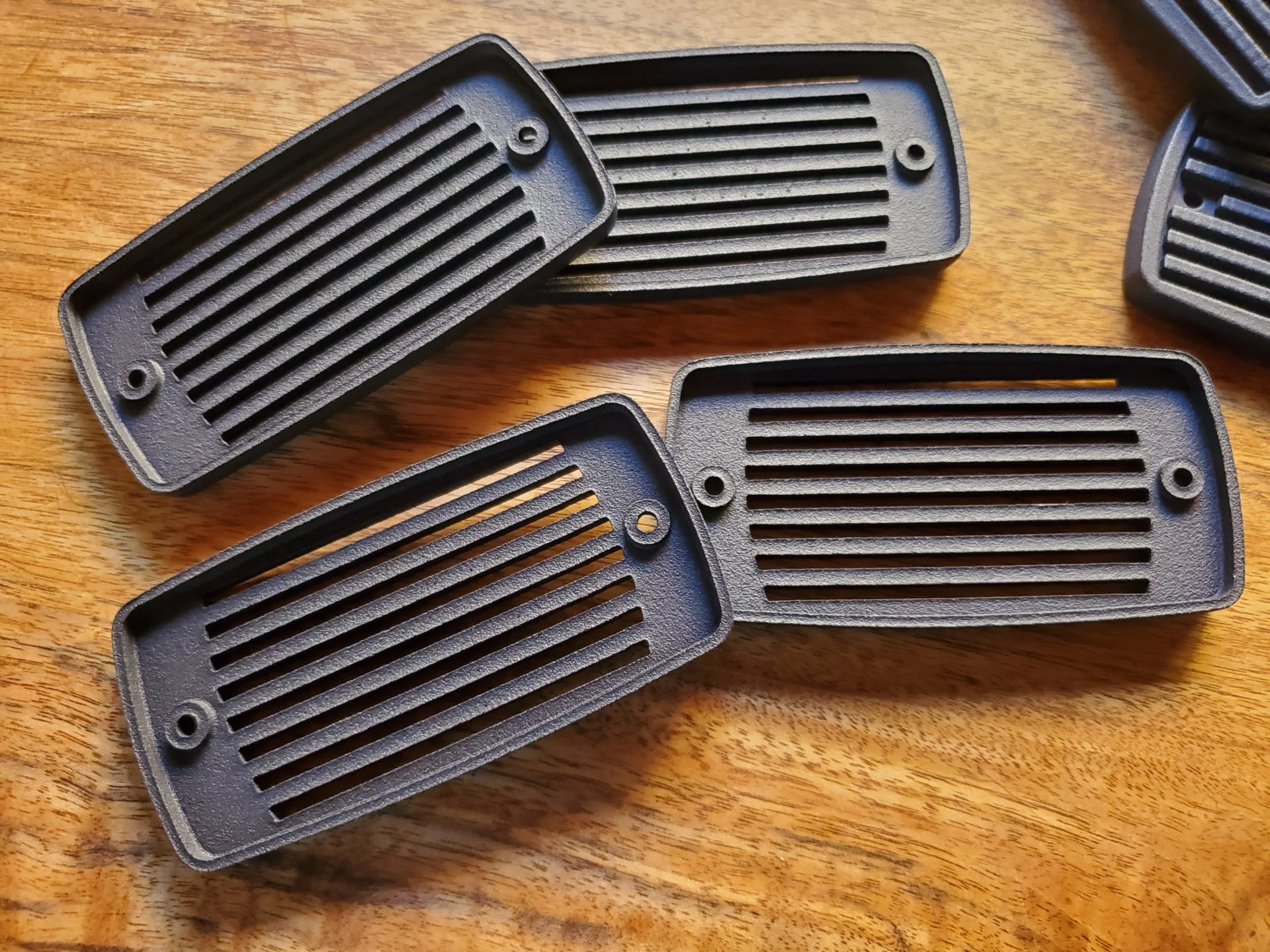

All right, these are good to go. I'll send a PM to each of you that's expressed interest to exchange details. Thanks again, everyone.

@mtnpig and @WarDamnEagle , I can reproduce those! Too tricky to just eyeball with calipers - fortunately I just re-established my connection with a high-resolution scanner. Scanning then reverse engineering is how I re-created the handle internals and it worked out great.

Do either of you have a spare you can loan me? In all honesty, I'll probably have it for 4-6 weeks based on other work/life commitments. Let me know if you're game.


WarDamnEagle

SILVER Star
Joined
May 20, 2007
Messages
6,492
Location
Auburn
Are these right and left handed or not? I can't seem to find them on the parts diagrams. Also not sure if they changed any over the years.

@DoubleNickels you can keep mine for as long as you want but they are currently with me in Saudi Arabia. I have employees that rotate in and out and can get one of them to drop them in the mail next trip home.
