Fj40 One Ton Buildup

Discussion in 'HardCore Corner' started by JRFJ4-, Jun 29, 2005.

  1. JRFJ4-

    JRFJ4-

    Messages:
    696
    Likes Received:
    1
    Joined:
    May 11, 2005
    Location:
    NORTH ALABAMA
    Ok here goes my buildup thread. 1976 FJ40 that I've had for 16 years. My buddies and I were driving this around before I turned 16.

    350 Chevy, Edelbrock Air-Gap Intake, 750 Edelbrock, Vortec Heads, 262 Comp Extreme Energy Cam, Aluminum Radiator. This was all bolted up to factory running gear with Advance Adapters kit.



    This project includes a Dana 60/14 Bolt. Full width axles out of 79 one ton chevy, single rear wheel.

    Rear disc brakes with all new wheel bearings and seals.

    New bearings and seals and all new brake parts on front also.

    SM465/NP205.

    Used 2.5" lift springs with factory springs as the buggy leafs.

    39.5" tsl/bogger on 32 bolt beadlocks.

    Stripped down to frame/sandblasted and build a jig to roll the frame over. No overhead welding.

    So take a look, tell me what you like and don't like.

    :cheers:
    J.R.

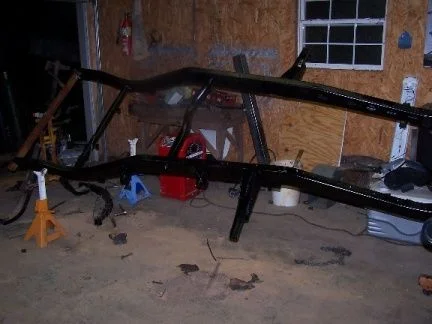

    start.jpg rustframe.jpg jig.jpg

    Last edited: Jul 7, 2006
  2. bustanutley

    bustanutley

    Messages:
    2,285
    Likes Received:
    4
    Joined:
    Apr 10, 2004
    Location:
    denver
    Stick welder, that my freind is gangsta :cool: :beer:

    Delancy likes this.
  3. Eskimo

    Eskimo SILVER Star

    Messages:
    1,358
    Likes Received:
    0
    Joined:
    Sep 6, 2002
    Location:
    Danville, PA
    You asked... buggy leafs... blah. Personally, I would use the stock leafs SOA, use some longer ones in the rear. (I like stock 7-leaf Waggy's)

    I'm assuming you're going SOA with those springs, and stretching the wheelbase, right?

  4. JRFJ4-

    JRFJ4-

    Messages:
    696
    Likes Received:
    1
    Joined:
    May 11, 2005
    Location:
    NORTH ALABAMA
    Soa

    Yes, SOA, moved back axle about 7-8 inches and front about the same. Moved the hangers all the way out to the bumpers.

    I know alot of people don't like the buggy leafs, but you can clamp then unlike double shackle/hypershackle/revolvers.

    I'm building this up like my buddies HEEP. They buggy leafs flex up good, for little $$$$. If I had the cash I would have done coils at the corners.


    I still like the old stick welders.

    :cheers:
    J.R.

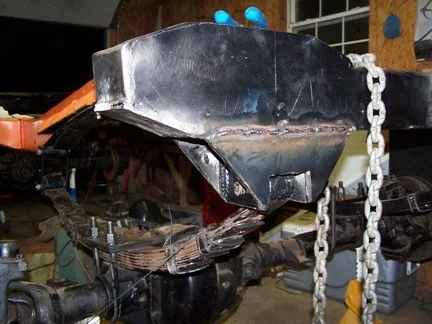

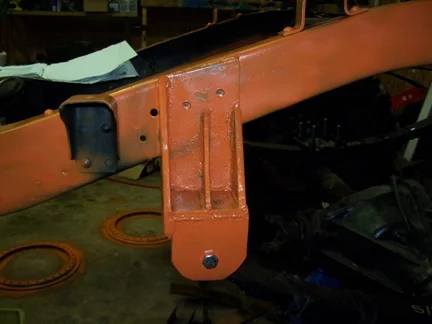

    fronthanger.jpg rear hanger.jpg rearshackle.jpg

  5. Mace

    Mace rock scientist.. Staff Member s-Moderator

    Messages:
    21,616
    Likes Received:
    2,058
    Joined:
    Feb 17, 2002
    Location:
    Las Vegas
    How tall are you planning on making this thing??

  6. JRFJ4-

    JRFJ4-

    Messages:
    696
    Likes Received:
    1
    Joined:
    May 11, 2005
    Location:
    NORTH ALABAMA
    Not that tall

    It's not as tall as you think. The rear spring hangers look long because I moved the axle back. So those hangers are pretty much the same level as before, in relation to the frame. This will help with spring wrap.


    But with 39.5 tires, it's gotta be tall. I'll still have to pretty much cut off the front fenders, and cut a bunch out of the back. I think it's got about 8-9 inches total lift. I took a couple of springs out of the spring packs to make them softer.

    Oh, the shackles may not be that long. That's just some 1/4" plate I had lying around. I have 3/8" for the real ones. I'll make them the length I need if the cruiser doesn't sit level.

    Here are the lift springs next to the old ones.

    J.R.

  7. 71-CRUISER

    71-CRUISER

    Messages:
    1,906
    Media:
    1
    Likes Received:
    221
    Joined:
    May 26, 2004
    Location:
    Atlanta, GA
  8. JRFJ4-

    JRFJ4-

    Messages:
    696
    Likes Received:
    1
    Joined:
    May 11, 2005
    Location:
    NORTH ALABAMA
    I'll be there!!!!!!!!

    I am 1 hour North of Birmingham Alabama. Around Snead Crossroads. I will be there October 7th. Getting more cash from the wife may be my only hold-up. How many folks do you think will show?

    I got my motor/trans/xfr in last night. I had it in and had to take it back out because of transmission leak.

    My wife is dragging me to the beach this weekend, so no working this weekend.

    J.R.

  9. JRFJ4-

    JRFJ4-

    Messages:
    696
    Likes Received:
    1
    Joined:
    May 11, 2005
    Location:
    NORTH ALABAMA
    Can't post pics. What do I do?

    :confused: :confused: :confused:

    Won't let me post any more pics. What do I need to do?

    Screen says exceeds your quota


    What do I do?

    J.R.

  10. Mace

    Mace rock scientist.. Staff Member s-Moderator

    Messages:
    21,616
    Likes Received:
    2,058
    Joined:
    Feb 17, 2002
    Location:
    Las Vegas
    It does not have to be tall to fit 40" tires.

    Woody has a standard SO with 39.5's and I have about 22" to the bottom of my frame with 39.5" (linked)

    I would not use the 2.5" lift springs if I were you.

  11. Poser

    Poser Oh...Durka Durka Durka. s-Moderator Supporting Vendor

    Messages:
    20,397
    Media:
    17
    Albums:
    1
    Likes Received:
    808
    Joined:
    Oct 1, 2003
    Location:
    MN


    Purchase a silver star silly....


    :rolleyes:

  12. JRFJ4-

    JRFJ4-

    Messages:
    696
    Likes Received:
    1
    Joined:
    May 11, 2005
    Location:
    NORTH ALABAMA
    Too late now.

    It's too late to change my mind now. My factory springs are cut up.

    Alot of folks around here run 4" springs on Heeps, but when they settle they are good to go.

    We'll see when I get the body back on. Like I said I took out some leafs, so they are not too tall.

    J.R.

  13. woody

    woody unhelpful spotter Staff Member Admin

    Messages:
    10,890
    Media:
    317
    Albums:
    8
    Likes Received:
    2,808
    Joined:
    Jan 15, 2002
    Location:
    Toquerville UT
    from the pics, you outta have enuf extra weight in the frame to help them settle...I know cruiserrg ran OME springs SOA with 35" tires....he was pretty tall tho, and it flexed ok but not great...

    From a $$ for $$ standpoint, you may save some by picking up a set of stockers and selling these....you CAN keep them quite low and run large tires, I've got 39.5's on mine, SOA, and 23" to the frame rail bottom.

    just add sawzall :D

  14. 71-CRUISER

    71-CRUISER

    Messages:
    1,906
    Media:
    1
    Likes Received:
    221
    Joined:
    May 26, 2004
    Location:
    Atlanta, GA
    Just curious because I am origonaly from Huntsville.

    I would guess there will be around 15 trucks, maybe more.

  15. JRFJ4-

    JRFJ4-

    Messages:
    696
    Likes Received:
    1
    Joined:
    May 11, 2005
    Location:
    NORTH ALABAMA
    Leaf Springs/

    Can't switch back to cruiser leafs anyway. These 2.5" came off another vehicle. Not gonna tell you what. They are a little big longer.

    I poured my crossover arms out of stainless steel and am going to run the WOTR Red Neck Ram. Got some pics to post. Gotta get my silver star first.

    On vacation for the rest of the week, so I'll catch everybody Tuesday.

    Be careful over the weekend.

    :cheers: J.R.

  16. SWERVIN

    SWERVIN

    Messages:
    47
    Likes Received:
    1
    Joined:
    Nov 6, 2003
    Location:
    Birmingham, AL
    Here is mine on 42's w/ ton axles sprung over on 2.5" front springs, before I parted it out. I ran 39.5 boggers w/ stock springs and very little rubbing after all the sawsall action. I ran 1/2 ton chevy rear springs w/ buggy leafs. It did pretty well.

    [​IMG]

  17. 4alarm

    4alarm

    Messages:
    251
    Likes Received:
    0
    Joined:
    Sep 19, 2004
    Location:
    Sierra Vista AZ
    Mine just barely cleared the garage door opening with just spring over and 33's I couldn't imagine going any taller. With the 38.5's I'm hoping letting the air out of the tires will allow me to get it in and out of the garage.

  18. Josie'sLandCruiser

    Josie'sLandCruiser Stop calling it a "FJ."

    Messages:
    5,175
    Media:
    10
    Albums:
    1
    Likes Received:
    183
    Joined:
    Feb 4, 2005
    Location:
    Seattle, USA
    Hi All:

    You might consider adding a NP203 GRB in between that SM465 and the NP205, for added gearing flexibility. I believe it addes about ten inches with adaptors to the drivetrain length.

    Sounds like it is gonna be quite the rig when you are finished!

    Regards,

    Alan
    Seattle

  19. Jonathan_Ferguson

    Jonathan_Ferguson ★ is in the wrong locale SILVER Star

    Messages:
    1,005
    Likes Received:
    111
    Joined:
    Jul 2, 2003
    Location:
    Glen Waverley, Victoria, Australia
    What is the point in changing to 1 ton Axles? :confused: My Hilux is a 1 Tonne(1.1 ton) :flamingo:

  20. woody

    woody unhelpful spotter Staff Member Admin

    Messages:
    10,890
    Media:
    317
    Albums:
    8
    Likes Received:
    2,808
    Joined:
    Jan 15, 2002
    Location:
    Toquerville UT
    from a height standpoint, mine on 39.5's is under 7' tall and the cage squeeks under the garage door....don't air up too much tho. Would not fit with a top on tho....

    New topic likely Jonathan, but the "Aussie" definition of a 1-ton truck doesn't compare much to the US definition....your "1-ton" axles are still 30-spline aren't they, just full floaters? Around here, 1-ton usually equates to a 35+ spline size axle, larger housings, larger ring-pinion setups, much larger joints, etc....
