FJ40- help identifying parts and electrical

Joined
Oct 5, 2020
Messages
33
Location
pottstown, Pa
working on my ‘65 FJ40 and hoping someone can help me with a few questions.

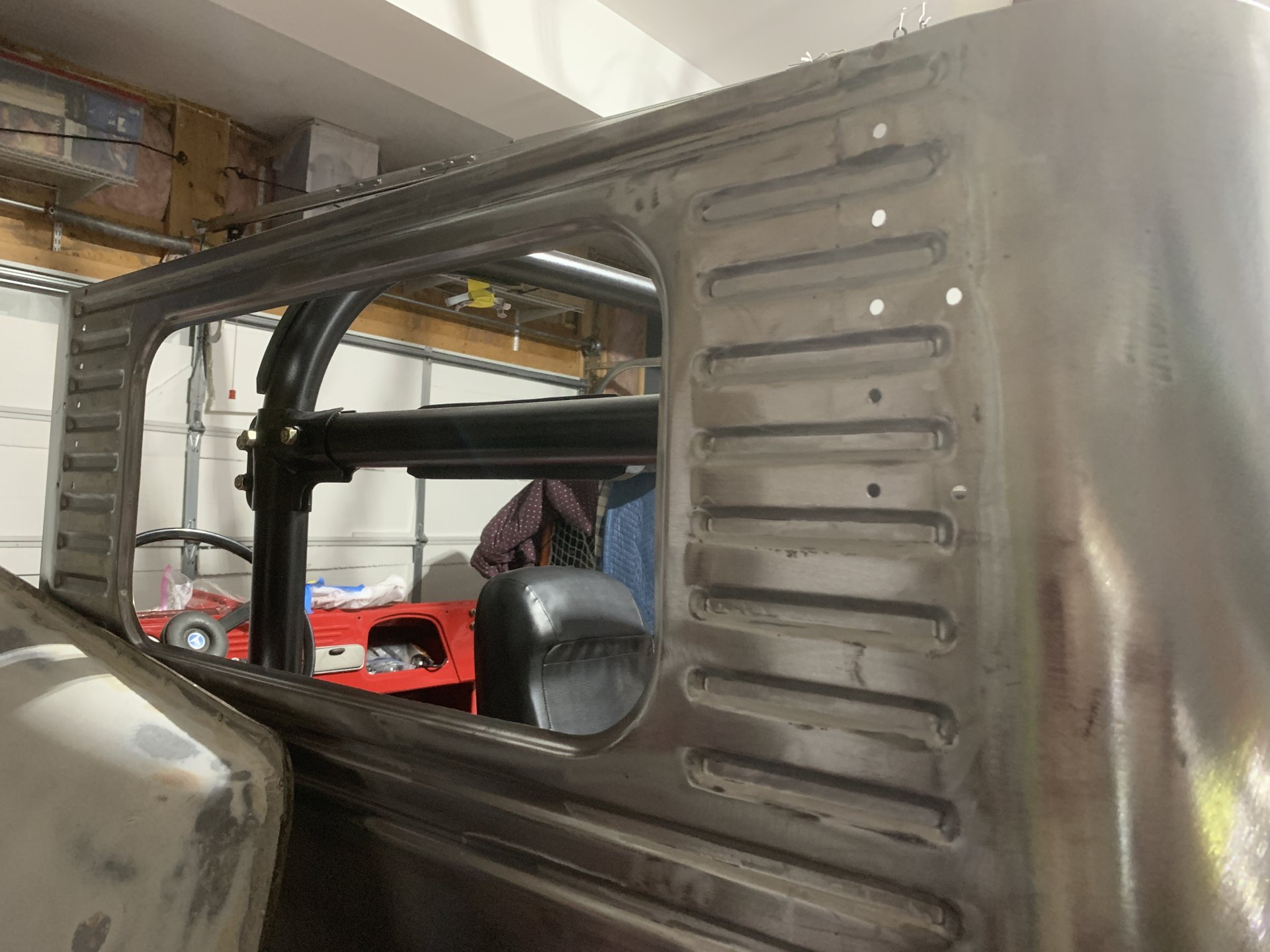

1. I have these wholes on the side of my upper side panels. Any idea if this is original or did someone want basic air flow?

2. I am looking to get exhaust system. Any recommendations and what parts I need (bolts, seal,..)

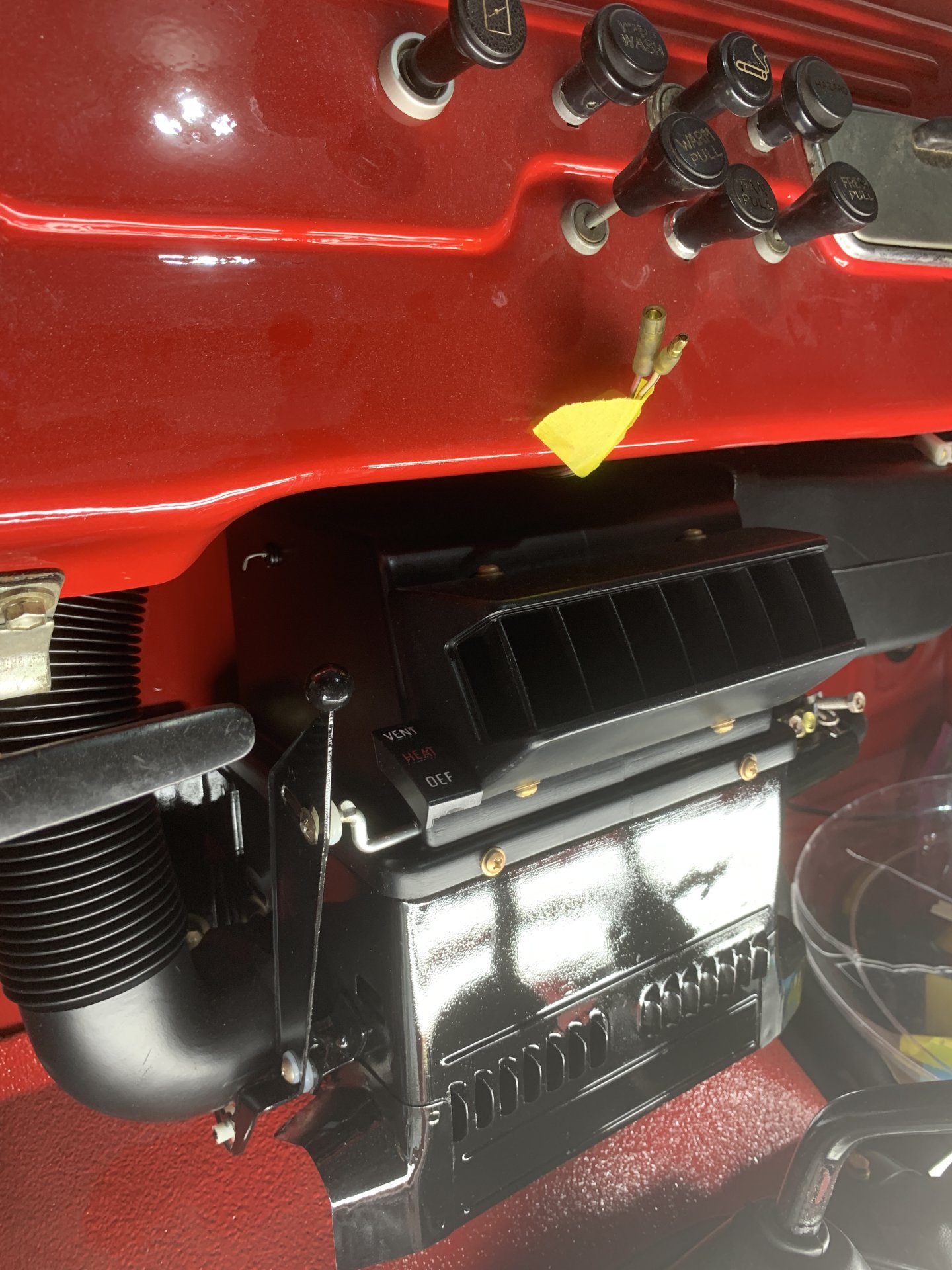

3. I rebuilt my heater but I found out it was never hooked up. Any photo reference on how it should connect with the electric?

Thanks!










Joined
May 15, 2008
Messages
3,848
Location
Phoenix
Holes in top are not original.

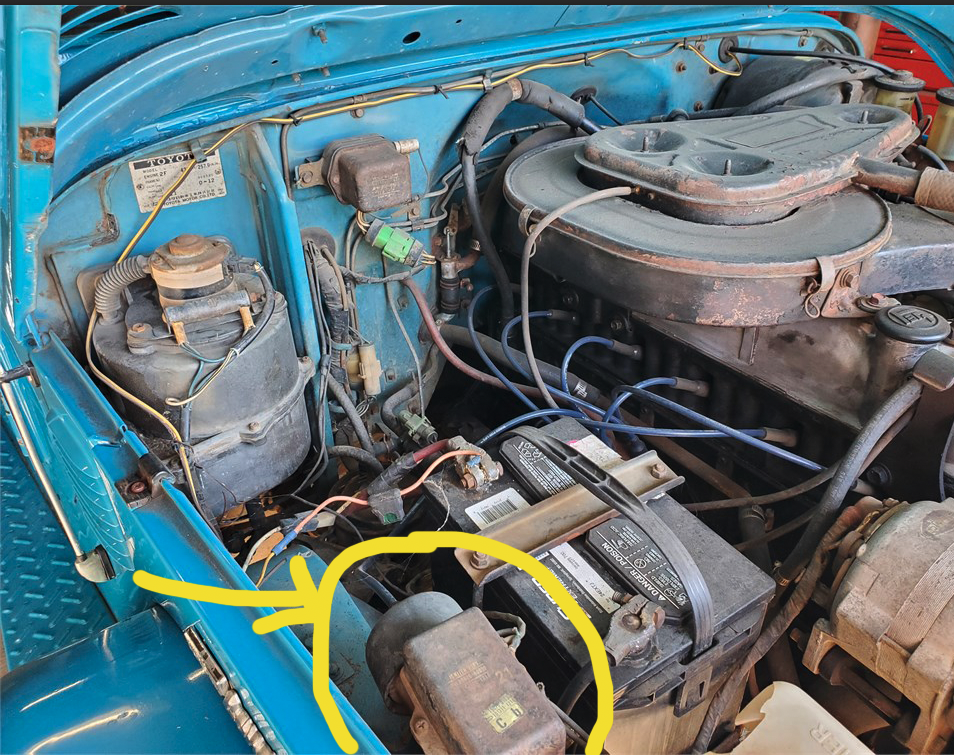

Your interior heater box is from a later model 40. It has no electrical connections. Under the hood is the blower motor that gets an electrical connection.
Nothing special for exhaust. I just got a whole new exhaust from header back for less than $400.

Joined
Apr 26, 2020
Messages
314
Location
South Africa
Judging by the steering wheel, centre button, dash knobs, the heater, the 4 speed shift cane and the 2F intake manifold showing above the header collector, amongst others, you have a '75+ model Cruiser and incorrect early corrugated sides with a bunch of holes drilled into it (which it should not have). I would get the correct later sides and hard top to match your year and sell the early stuff (if without rot at a good price) to a person who has an early Fj40.

Joined
Apr 26, 2020
Messages
314
Location
South Africa
The ribbed dash indicates a 67 or earlier tub.
No. Lasted until at least '72. I have an untouched survivor '72 FJ40 and and untouched '72 FJ43 which is being restored, both have ribbed dashes -

FJ40



FJ43



With that said, the two bolt holes on the side suggest an earlier latch for the windscreen. So i was wrong on that account. Ultimately, seems we have parts of different years mixed up.

Joined
Apr 21, 2005
Messages
21,861
No. Lasted until at least '72. I have an untouched survivor '72 FJ40 and and untouched '72 FJ43 which is being restored, both have ribbed dashes -

FJ40

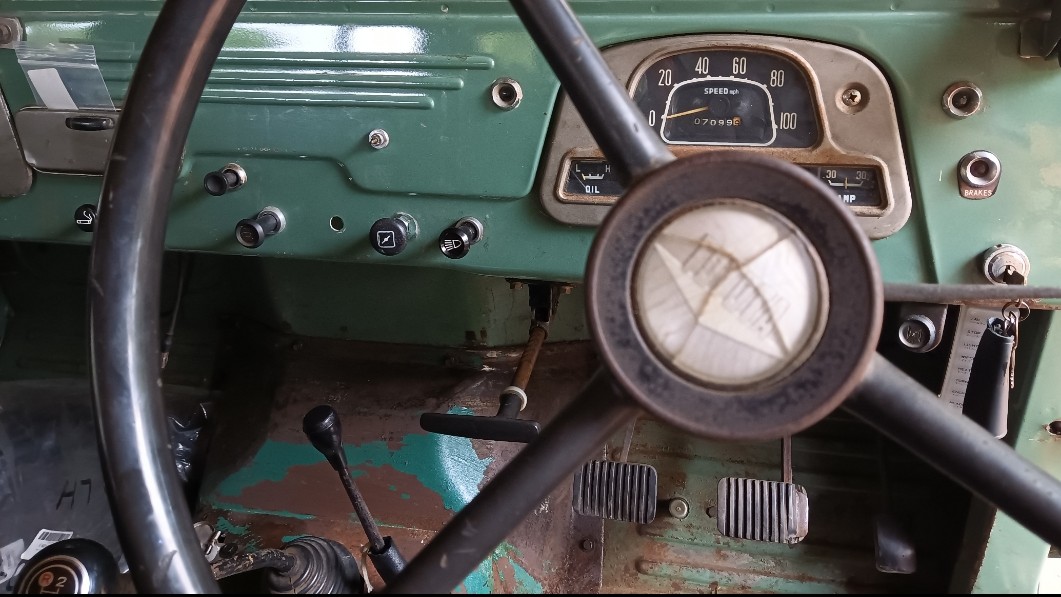

View attachment 3080385

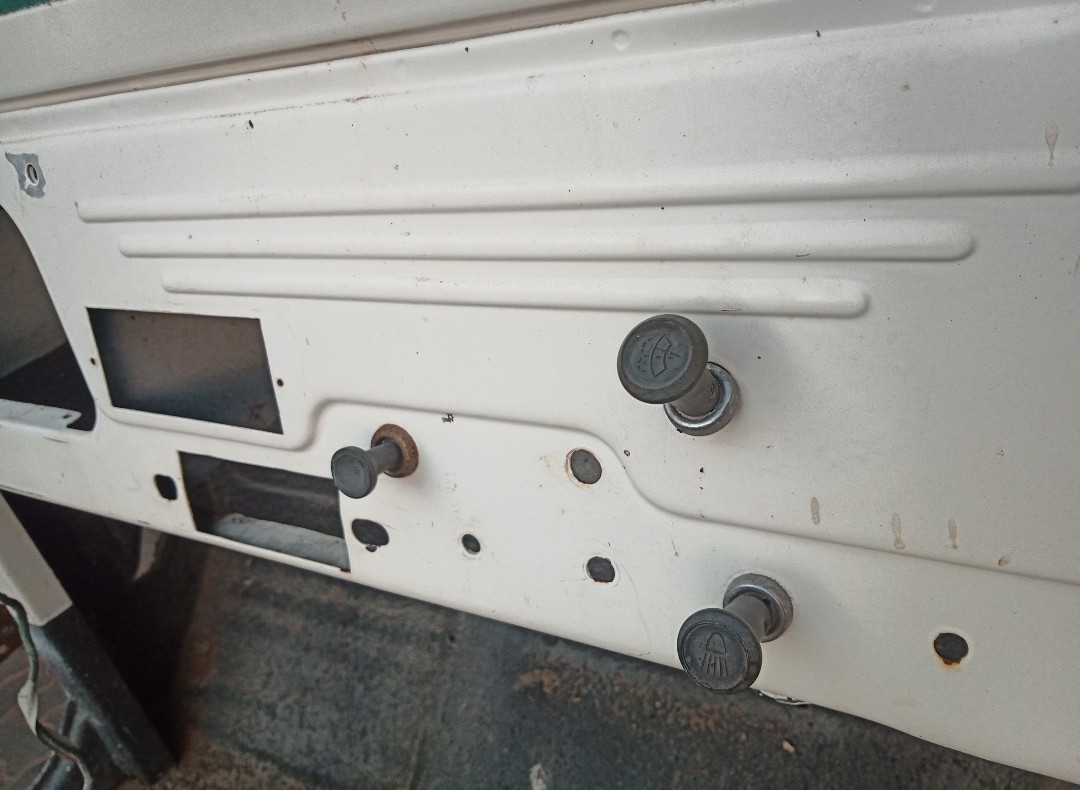

FJ43

View attachment 3080386

With that said, the two bolt holes on the side suggest an earlier latch for the windscreen. So i was wrong on that account. Ultimately, seems we have parts of different years mixed up.

US market ribs on the dash ended with the 67 model. My 9/67 first month of the 68 model has no ribs and a padded dash. The later ribbed dashes are different 68 on and used the same threaded bolts to hold up the windshield not the earlier latch.

Joined
May 14, 2016
Messages
2,115
Location
Arizona
US market ribs on the dash ended with the 67 model. My 9/67 first month of the 68 model has no ribs and a padded dash. The later ribbed dashes are different 68 on and used the same threaded bolts to hold up the windshield not the earlier latch.

Correct. 1966/1967 was a big change year for vehicles in USA. Padded dash was one of them. Toyota probably had stock of ribbed and used them up for rest of world that did not have that requirement.


Joined
Apr 26, 2020
Messages
314
Location
South Africa
US market ribs on the dash ended with the 67 model. My 9/67 first month of the 68 model has no ribs and a padded dash. The later ribbed dashes are different 68 on and used the same threaded bolts to hold up the windshield not the earlier latch.
I would not agree. Ribs are the same throughout up to the '72 at least in the rest of the world markets, compare my 64 Fj40 and the '66 FJ45V's dashes as a reference -



and you will see all is the same, even the layout of the knobs in a row low down, save for the room light knob's position which moved towards the middle and the fresh air vent control which came in.

Joined
Oct 5, 2020
Messages
33
Location
pottstown, Pa
Holes in top are not original.
Your interior heater box is from a later model 40. It has no electrical connections. Under the hood is the blower motor that gets an electrical connection.
Nothing special for exhaust. I just got a whole new exhaust from header back for less than $400.
Where did you get your exhaust from?

Joined
Apr 21, 2005
Messages
21,861
I would not agree. Ribs are the same throughout up to the '72 at least in the rest of the world markets, compare my 64 Fj40 and the '66 FJ45V's dashes as a reference -

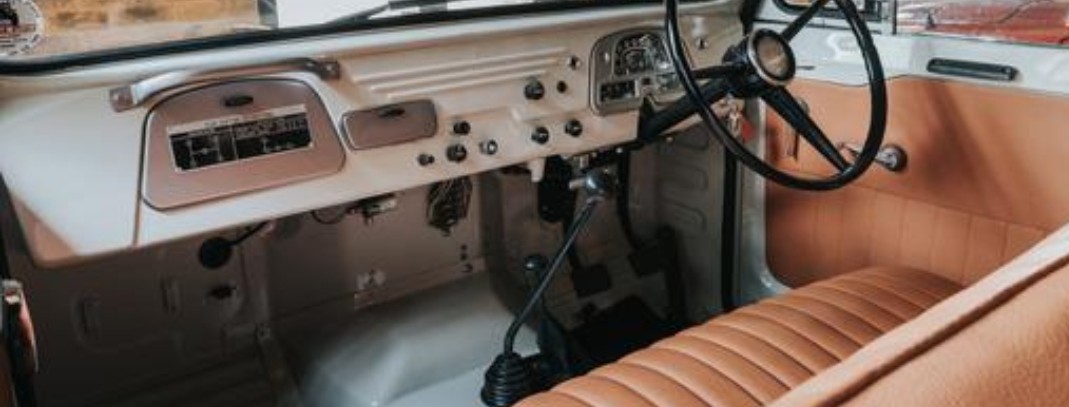

View attachment 3080435
and you will see all is the same, even the layout of the knobs in a row low down, save for the room light knob's position which moved towards the middle and the fresh air vent control which came in.


Was referring to system used to hold the windshield upright. That would not apply to the FJ45LV. This is the latch on my 65 FJ45LP-B.

Which is.different than the system used on the 68+ system. Here is the bracket on the dash of a 82 FJ40 which stayed the same

Different is on models without a padded dash there is a cover where the bolt with a knob was to cover the threads.

The four door FJ45LV sas replaced on the 68 model with the FJ55. 68 FJ40 used different switches/knobs for headlight and wipers. Believe that wiring changed in other markets still using a ribbed dash. Same with the choke and throttle knobs.

Joined
Apr 26, 2020
Messages
314
Location
South Africa

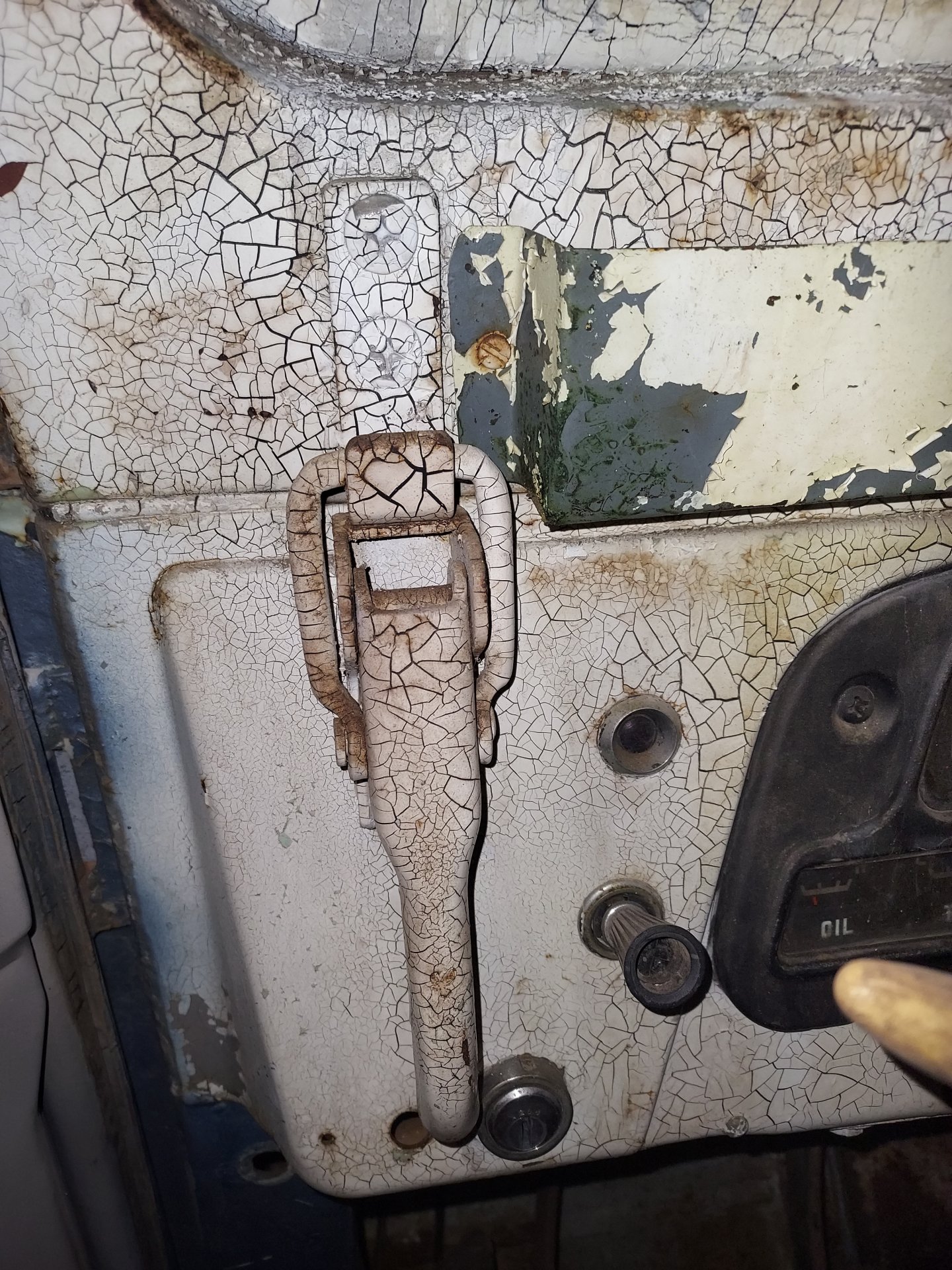

Was referring to system used to hold the windshield upright. That would not apply to the FJ45LV. This is the latch on my 65 FJ45LP-B.
View attachment 3080480

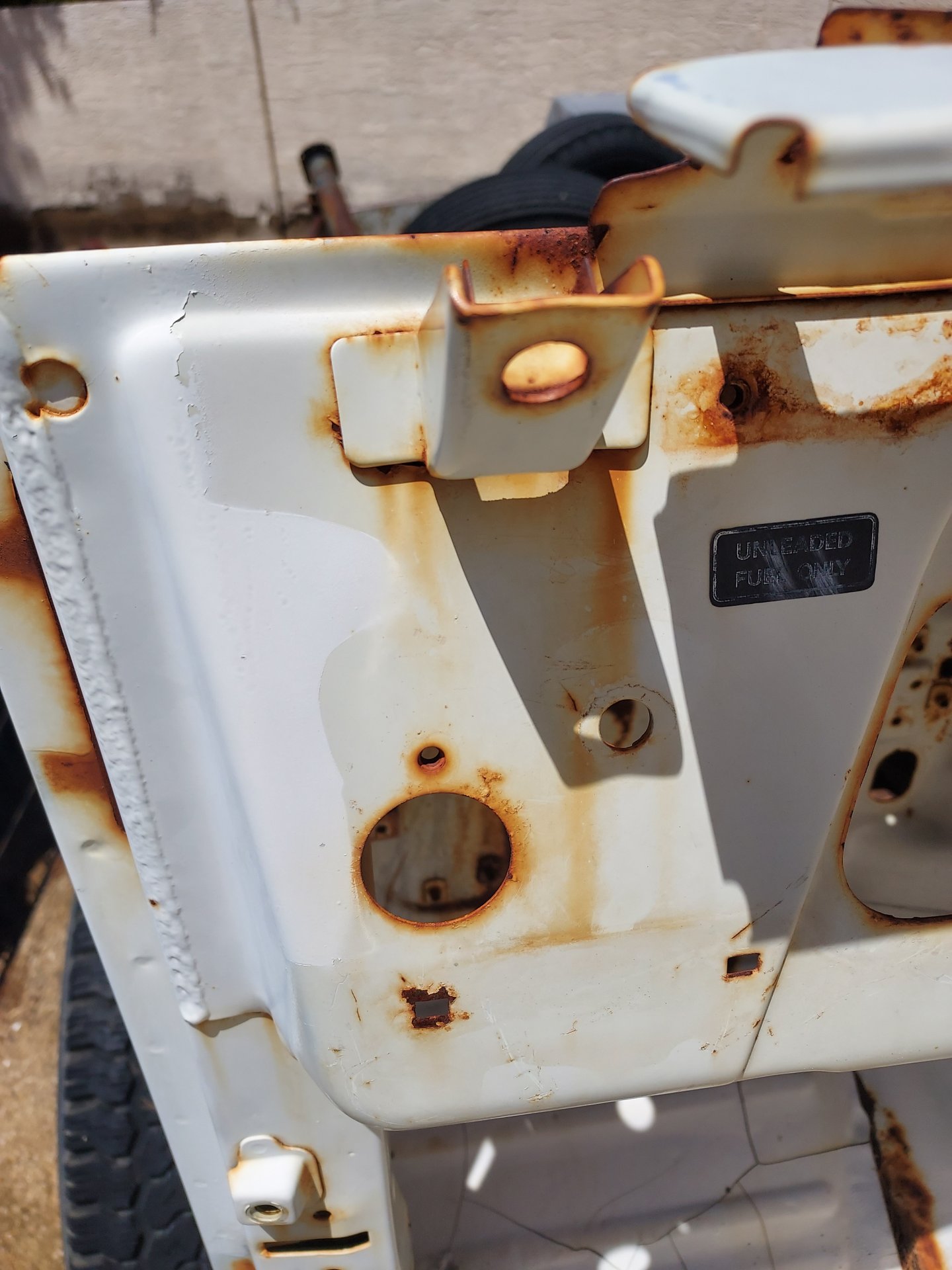

Which is.different than the system used on the 68+ system. Here is the bracket on the dash of a 82 FJ40 which stayed the same
View attachment 3080481
Different is on models without a padded dash there is a cover where the bolt with a knob was to cover the threads.

The four door FJ45LV sas replaced on the 68 model with the FJ55. 68 FJ40 used different switches/knobs for headlight and wipers. Believe that wiring changed in other markets still using a ribbed dash. Same with the choke and throttle knobs.
Yes, the latches I know of and mentioned earlier. Also, keep in mind that RHD 45 wagons are designated FJ45V. The L designates LHD, a deviation from the standard RHD as is used in Japan to this day.

Knobs, wiring and connectors also changed around '68 and then again around '74 again before the final change in around '80/81.

But we are now really messing up the OP's thread. My apologies for my part in this


ToyotaMatt

Factory Focus-Point Mind-Set Approach
Supporting Vendor
GOLD Star
Joined
Aug 12, 2007
Messages
21,724
Location
EAST COAST
Website
vintageteqparts.com


ToyotaMatt

Factory Focus-Point Mind-Set Approach
Supporting Vendor
GOLD Star
Joined
Aug 12, 2007
Messages
21,724
Location
EAST COAST
Website
vintageteqparts.com
It's OK, there are a bunch of new ones and the ones pictured were just stuck into random holes for the trip. The correct room light switch and Vader light cover (the mounting ring can just about be seen) were safely packed away
