Wanted FJ40 4speed BH inspection cover (1 Viewer)

[69 FJ40]

Location

United States

Hi, I am looking for a 4speed bell-housing inspection cover. Thank you.



[69 FJ40]

Bump..



[69 FJ40]

Bump



[ToyotaMatt]

Hi, I am looking for a 4speed bell-housing inspection cover. Thank you.

as in Timing Light BB inspection cover / Door ?



[69 FJ40]

as in Timing Light BB inspection cover / Door ?

Thank you, just purchased one. I was looking for the flywheel/clutch inspection cover



[ToyotaMatt]

Ok

Glad u found what u needed



[ToyotaMatt]

@FJ40GURU



[FJ40GURU]

Thanks @RAGINGMATT
@69 FJ40 I have the gasket kit for that as well if you’re keen - NOS OEM.



[3_puppies]

Thank you, just purchased one. I was looking for the flywheel/clutch inspection cover

hope you got the correct one, as there are 3 or 4 versions of the cover.



[65swb45]

hope you got the correct one, as there are 3 or 4 versions of the cover.

There are three kinds here.



[69 FJ40]

hope you got the correct one, as there are 3 or 4 versions of the cover.

I hope so! Wasn't aware of the different versions for a 4 speed BH?



[69 FJ40]

Thanks @RAGINGMATT
@69 FJ40 I have the gasket kit for that as well if you’re keen - NOS OEM.

PM sent



[69 FJ40]

Ok, so the inspection cover I got is the wrong one. How do I determine, which one I need?



[69 FJ40]

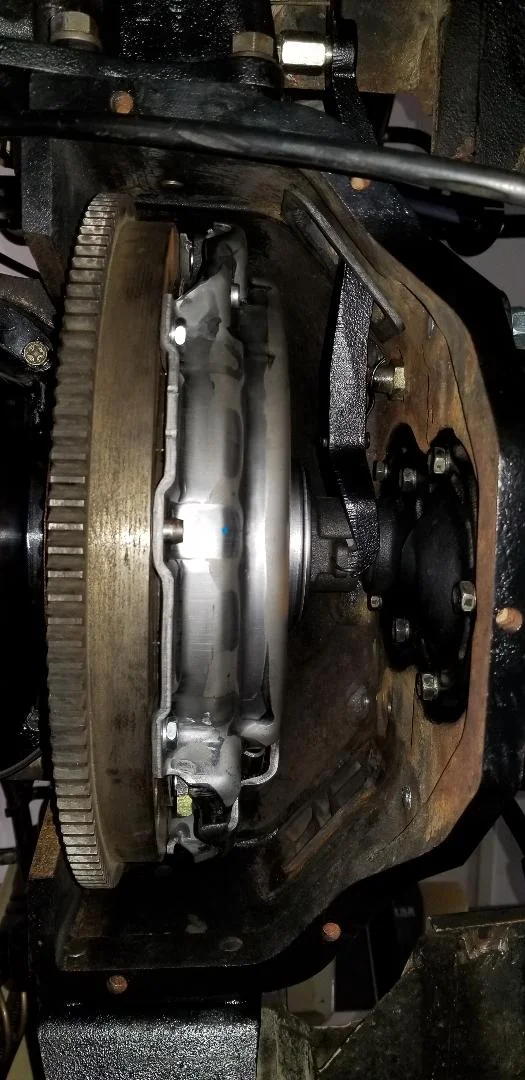

This is the BH on my 40

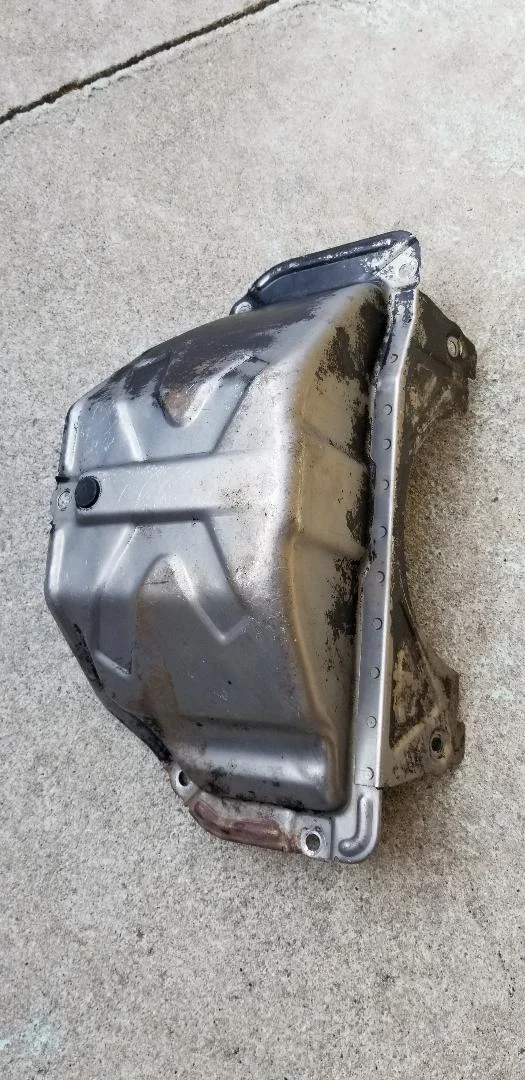

This is the one I got



[troy scott]

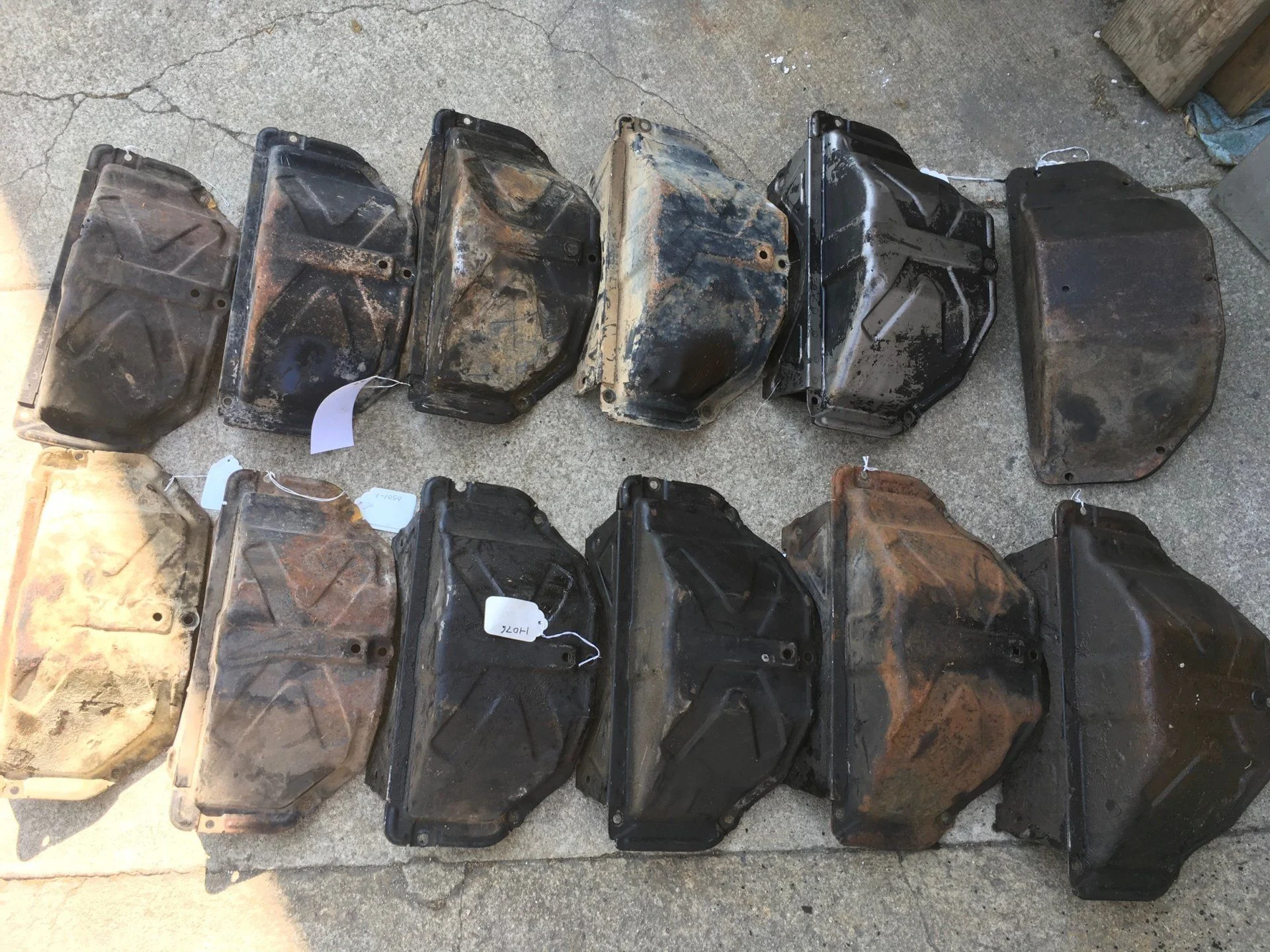

View attachment 1828498 There are three kinds here.

i may need one of those to cant seem to find mine how can i tell what i need i have a 4 speed 12/73



[69 FJ40]

bump



[65swb45]

You can drill a hole in the tin you have. No biggie. And cheaper than buying a second cover.

if you look closely at the pic I posted, you will see that the forward passenger hole changed from the side to the front of the BH. That's the difference, along with whether it was a one or two piece cover.



[69 FJ40]

@65swb45 Mark, thank you I will try that.
