FJ40 2F 4 Speed Engine Mounts/Bracket Identification?

Ackcruisers

SILVER Star
Joined
Nov 24, 2019
Messages
1,023
Location
MA
Just finished blasting these engine mounts but have no idea what year the brackets are from. They were pulled off 4 speed bell housing. Can anyone identify these? In particular, what is the bracket with the blue arrow?



Drake2

SILVER Star
Joined
Oct 11, 2017
Messages
4,198
Location
Utah - 2023 (not soon enough)
Does anyone know if the bracket shown with blue arrow is for the exhaust down pipe? I’m stumped.
@Drake2 @brian @3_puppies ?
Pretty sure I've never seen that bracket before, but most of the cruisers I buy/find are missing more pcs than are left. :). The other 2 brackets I have small piles of.

Joined
Apr 21, 2005
Messages
22,063
Look on the left side of the engine block. See if there is a place that the bracket would bolt to and them clamp to the exhaust pip.


Ackcruisers

SILVER Star
Joined
Nov 24, 2019
Messages
1,023
Location
MA
Look on the left side of the engine block. See if there is a place that the bracket would bolt to and them clamp to the exhaust pip.

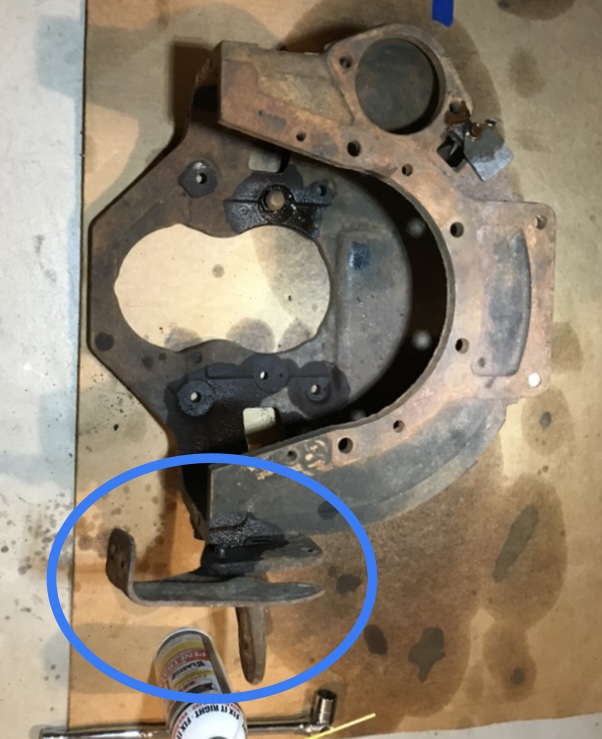

I went through my photo archive and found the bellhousing I removed this bracket from. it was attached to the drivers side of the bell housing as shown. No schematics have shown this style bracket for exhaust.


It is likely not OE as @brian mentioned.


Joined
Apr 21, 2005
Messages
22,063
I went through my photo archive and found the bellhousing I removed this bracket from. it was attached to the drivers side of the bell housing as shown. No schematics have shown this style bracket for exhaust.

View attachment 2941925

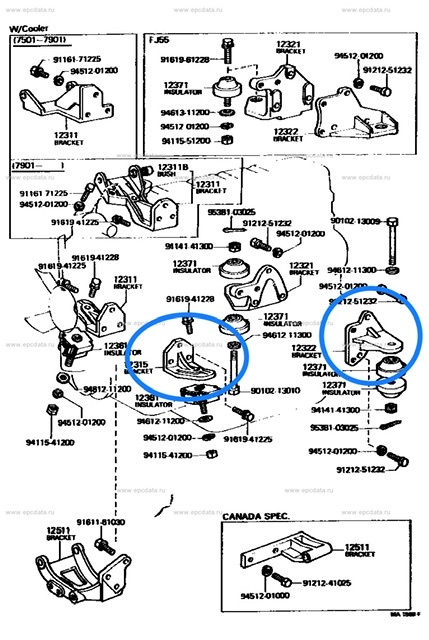

It is likely not OE as @brian mentioned.

View attachment 2941927

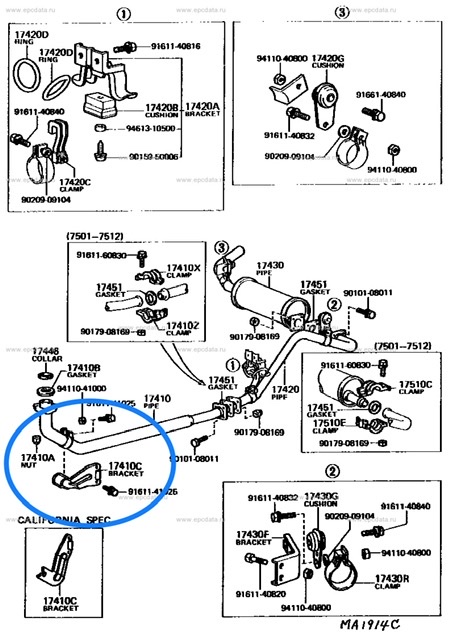

Check the exhaust diagrams. I show a bracket closer to the exhaust manifold. Do you have that one?


Ackcruisers

SILVER Star
Joined
Nov 24, 2019
Messages
1,023
Location
MA
Thanks.I have that schematic but it’s a different shape. Must be aftermarket.

Joined
Apr 21, 2005
Messages
22,063
Was that on the four speed bellhousing you bought for the three speed to four speed conversion? Doubt it's aftermarket with that stamped rib. May be from a different vehicle.

Do you have the bracket show in the diagram already. In my pile of exhaust parts have two first section of exhaust that have a bracket still attached. This were off cruisers getting a V8 at a shop.


Ackcruisers

SILVER Star
Joined
Nov 24, 2019
Messages
1,023
Location
MA
Yes, the image above is the actual bellhousing I used for my H42 upgrade. When I got it, I removed the engine mount that had the bracket attached. Was not sure what truck this came off of. My schematic of a 1976 FJ40 exhaust down pipe showing bracket is attached. My setup currently has no bracket.

Joined
Apr 21, 2005
Messages
22,063
I have a 10/75 (76 model) and a 10/79 70 model with a very early 2F installed. Neither are here and can't verify the bracket. The two early 2F I have in sixties cruisers both have been switched to headers. I switched my 68 to a header years ago but kept the stock manifold and switched back later.

Here are the two brackets I have currently still attached to the exhaust pipe they came with.

The one with the EGR tube must be from a 60 series. The 8/80+ 40 with the EGR tube are bent to go over the top of the frame.
Believe the other one was from a 60 series as well. I show two different brackets used. Change was 4/85 when Toyota added a dummy spacer to the back of the H42 to equal the length of the H55F.

Joined
Apr 21, 2005
Messages
22,063
Okay I think I have identified your bracket. Believe that is for the US market 1/79-7/80. That one splits into two smaller pipes and runs under the frame where the CAT is mounted below the driver's floorboard. Not even sure my 3/79 still has it. Does have the stock pipes which surprisingly are not that smashed. Bought it from a friend in 1997 and know the few years he had it he used very hard. If you not going to used the bracket I would be interested.


Ackcruisers

SILVER Star
Joined
Nov 24, 2019
Messages
1,023
Location
MA
Awesome work. I’m interested to see if you or anyone can post up a 1/79 - 7/80 exhaust schematic or image of this rare bracket. Having this part documented for future mudders along with part numbers would be great.


Ackcruisers

SILVER Star
Joined
Nov 24, 2019
Messages
1,023
Location
MA
I found the schematic and you are correct. This is OE exhaust bracket for a 1979-1980 FJ40. The part number is 17571-61060. The schematic is below with the bracket circled.
