Fitting hub caps on 17 inch rims

Tank5

Tank5

SILVER Star
Joined
Nov 15, 2009
Messages
3,337
I have considered various options to get a 17 inch steel wheel that I can put the early acorn style hub caps on. I have decided the most economical way to do this it to find a way to attach hub cap clips to the OEM FJ Cruiser 17” steel rims. I bought some clips and one rim to play with to try and figure out how to accomplish it consistently, so I don’t have any balance issues.

I know some where on this site another member welded clips on a steel wheel to accomplish it but I can’t find that thread. I think they may have used a 16” rim.

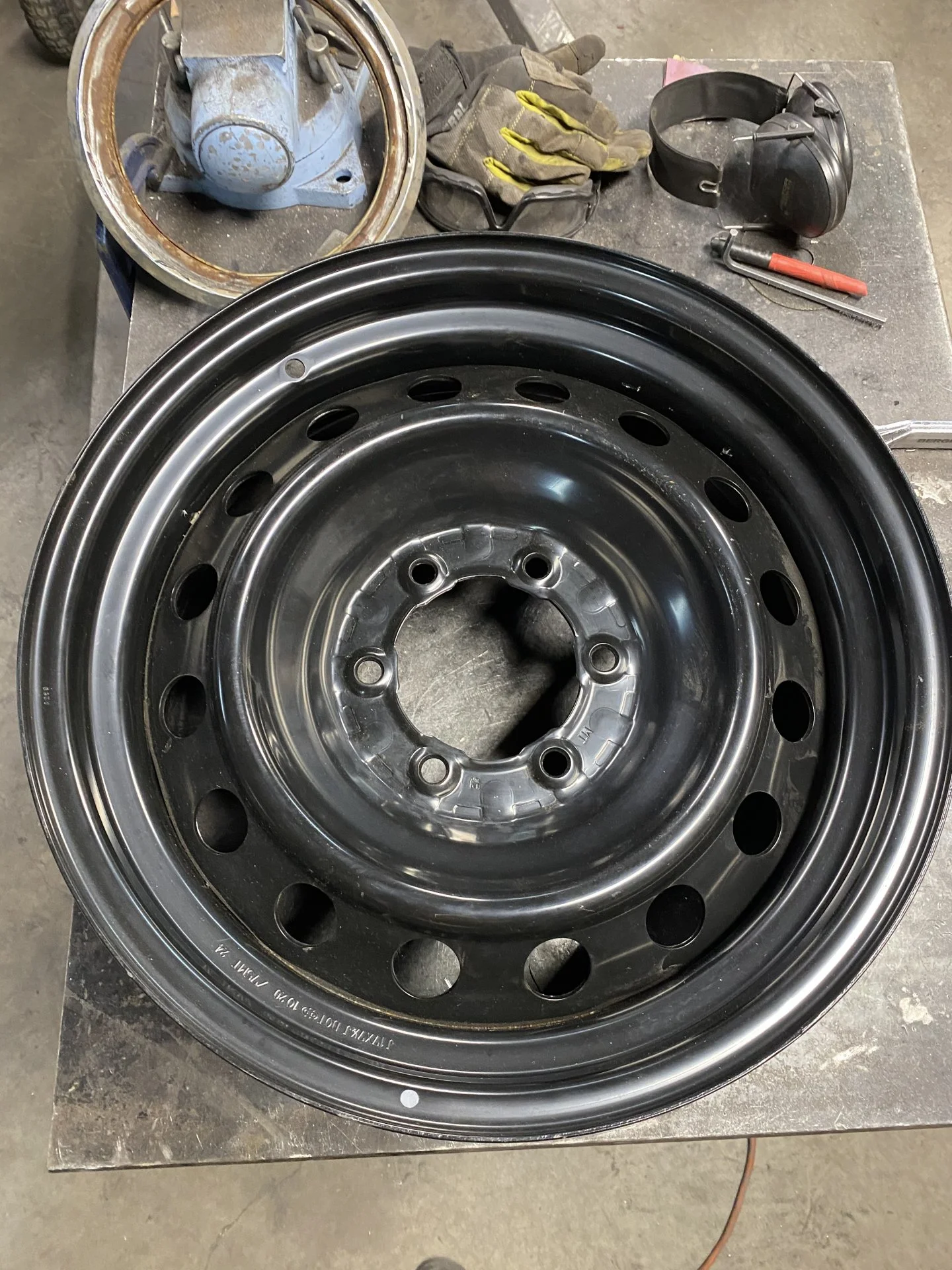

I am phishing for ideas if anyone has some. This is the 17 rim I am starting with.
DB20F6B7 A3C0 4527 BC79 09D04362401F

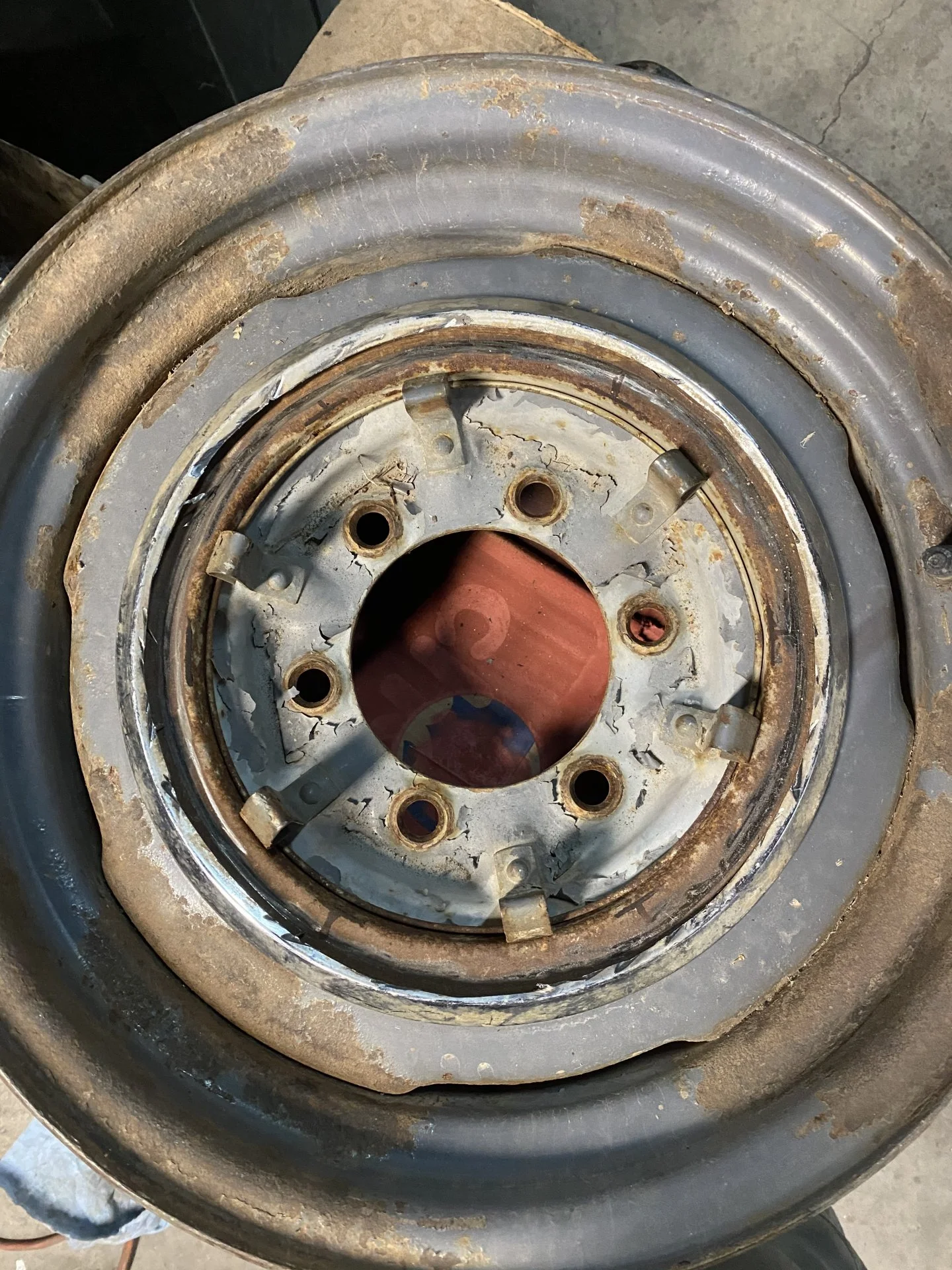

For comparison this is an OEM rim.
83758A54 0881 4962 BE4C E0AC5798CF95

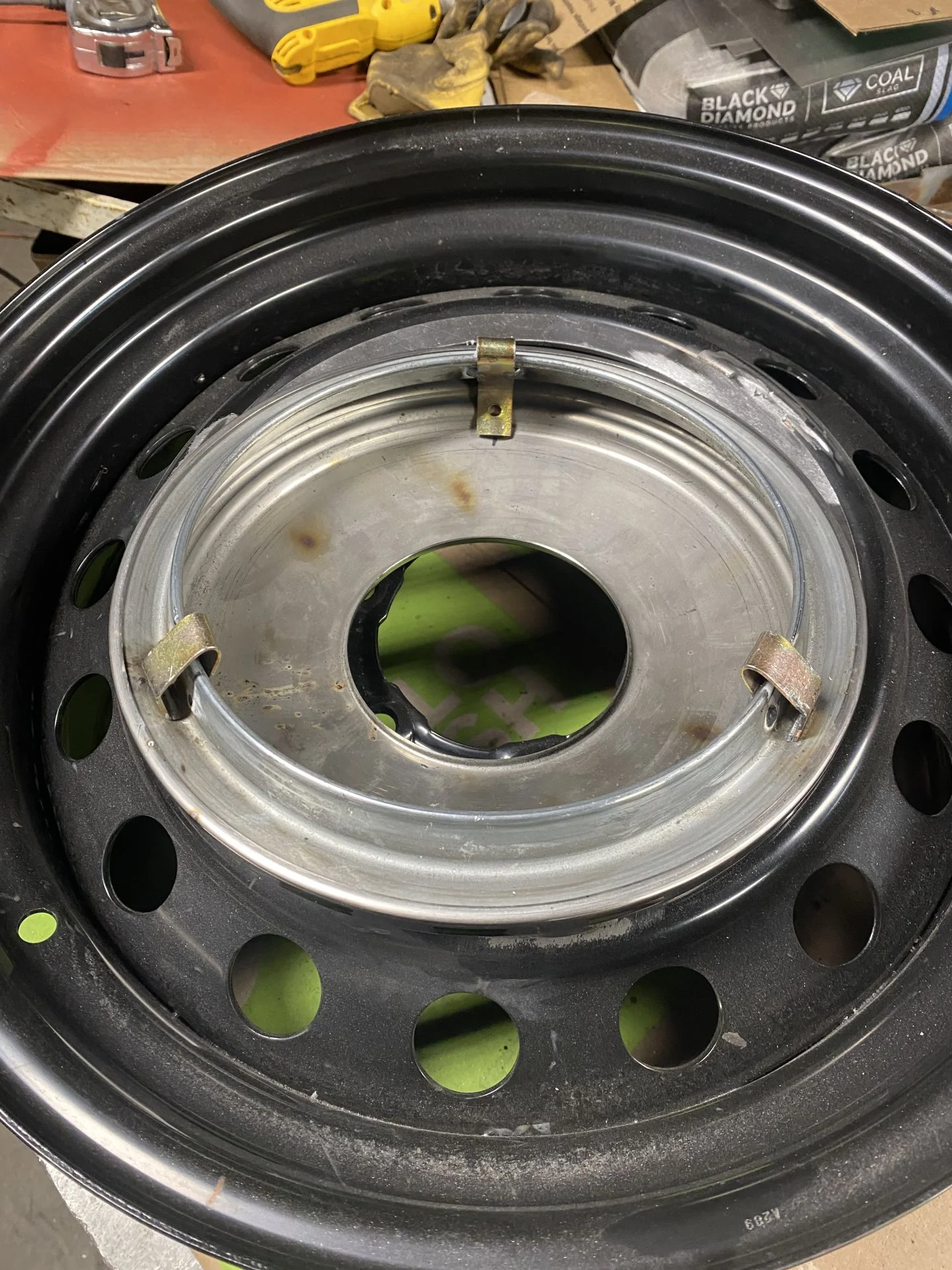

This is the 17 inch rim with a hubcap ring I cut the top off of the use as a guide for clip placement. It may be hard to see in the picture but the rim surface under the hubcap sits farther in on the 17” rim which also doesn’t have the raised ridges the clips mount on - on the OEM rim. There is a significant gap I have to make up to get the clips to mount in a functional position to retain the hub cap.
F757BE01 2B10 4A3C 9E5D 80C53C8F9C1C

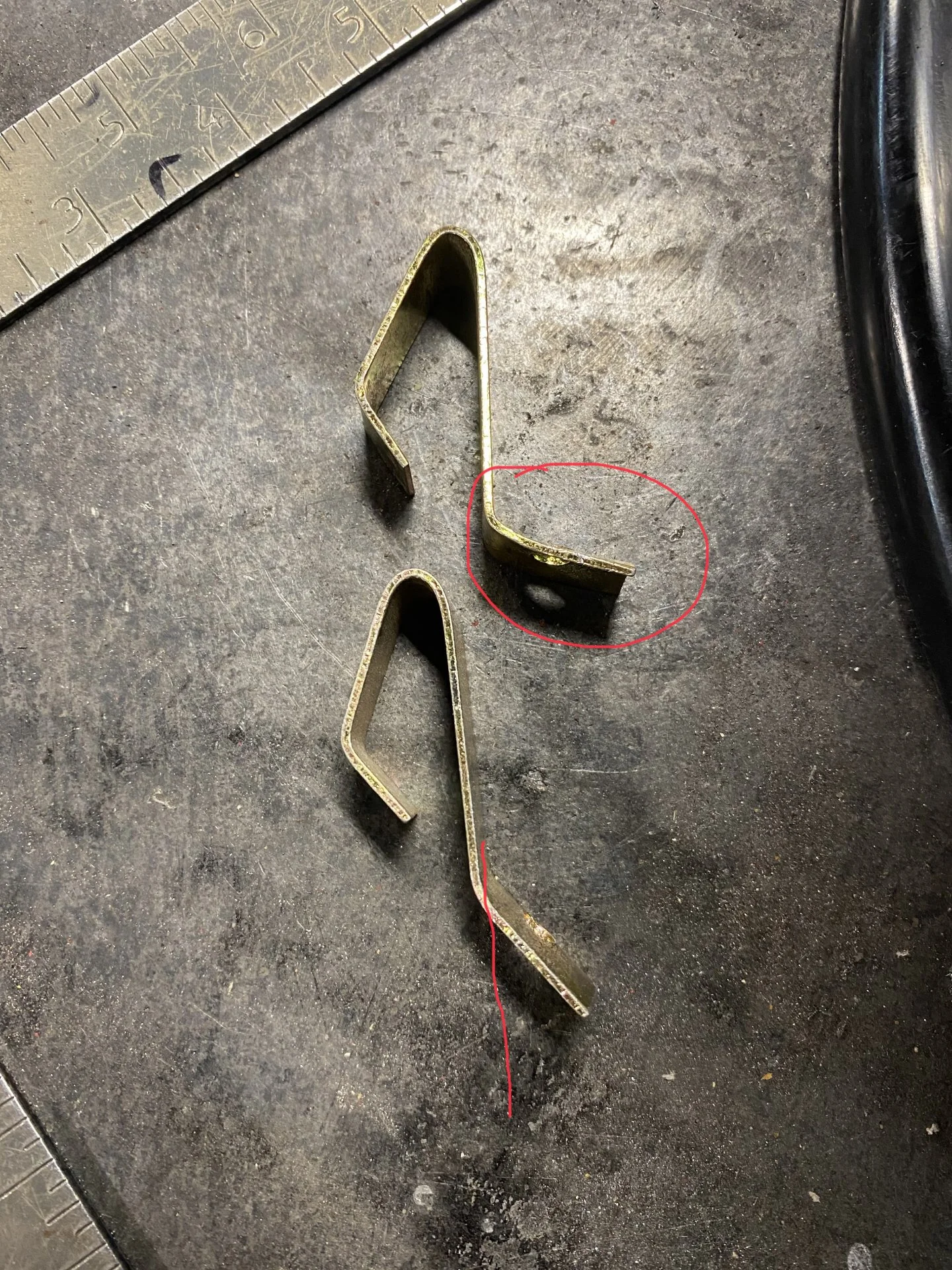

I put the clip picture on the bottom in a vice and bent it to make up for some of the gap. It still left about a half inch distance from clip mounting surface to the rim surface.
6F15460A 6ECC 4B62 A4B0 BCD826F5E72E

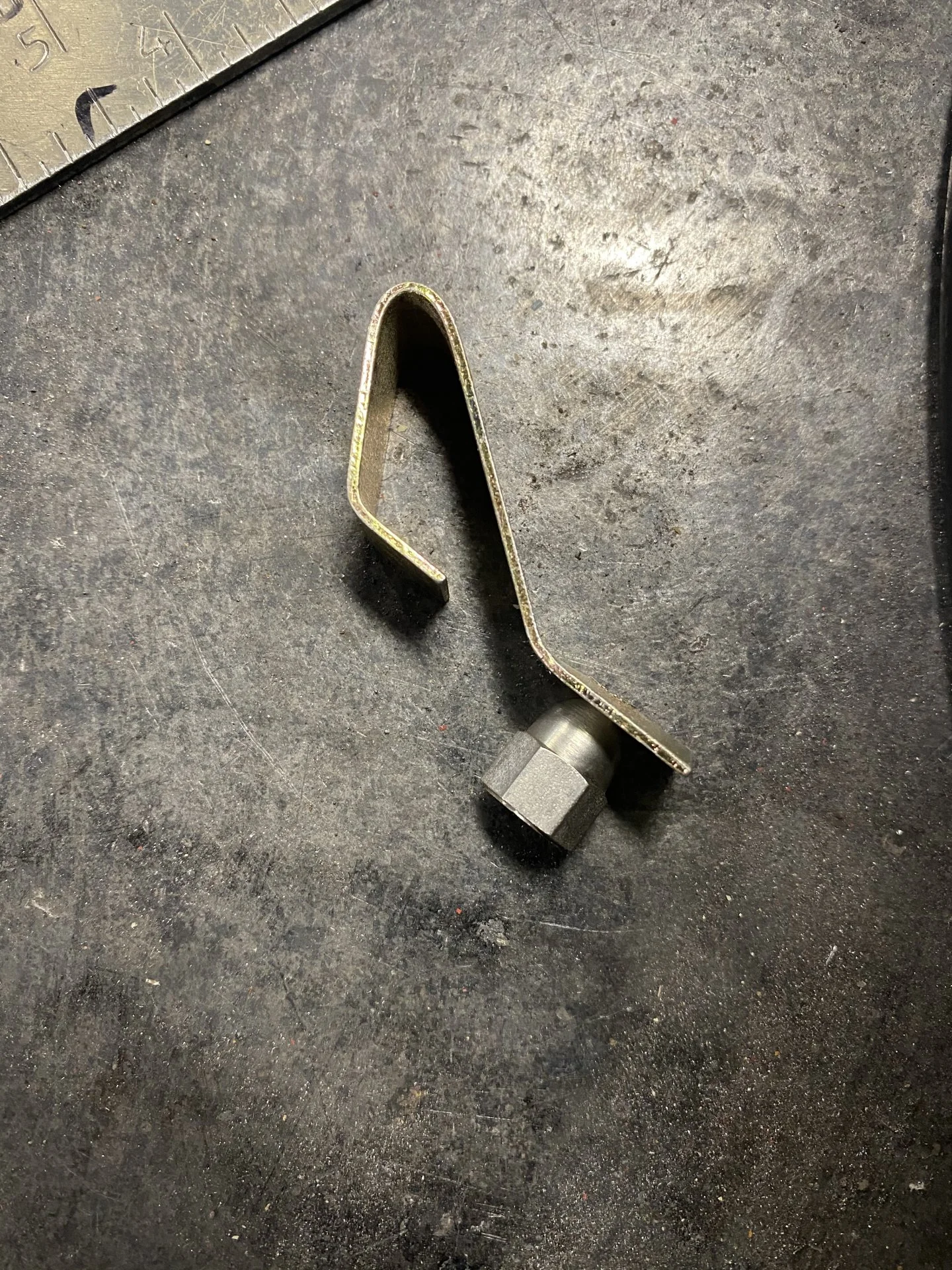

The best idea I have at the moment is to weld the clip to the acorn nut pictured which spaces it perfectly from the rim. I would drill a hole and run a bolt from the back side to mount the clip. I am also considering just doing three clips per wheel.
6CAB57DE BCF7 4D90 A612 04E341BB9546

I am not in a hurry to get this done, so figured I would solicit ideas to see if there is a better way accomplish this for the DIY crowd.

I am willing to bet someone has already done this and if so please post up your details or a link.

5C688880 A3B0 4B68 8E1F 720765732D9B

Jdc1

Jdc1

SILVER Star
Joined
Sep 9, 2013
Messages
4,038
Location
Akron, OH
What’s the backspacing on the FJ rim? Have you tried mounting into the 40?

Tank5

Tank5

SILVER Star
Joined
Nov 15, 2009
Messages
3,337
What’s the backspacing on the FJ rim? Have you tried mounting into the 40?
I am not sure what the back spacing is. The rim is 7.5” wide, so I expect it is 4.5 or less. I planning to mount them on my 45 build which uses modified 80 series axles. I am not worried about the rim fitting. The biggest let down I expect is I am running a full float rear and selectable hubs in the front I will likely have to run 4 hubcaps with holes in the center to clear the hubs.

Tank5

Tank5

SILVER Star
Joined
Nov 15, 2009
Messages
3,337
I suppose another option I could go with to mount the clips is run a bolt through the clip with a 1/2 spacer behind it with a nut on the back side of the rim. I think I like this idea better than the first.

thecrazygreek

thecrazygreek

A.K.A. TheCraftyGreek
GOLD Star
Joined
Sep 26, 2005
Messages
4,580
Location
Oregon
I would do the reverse. Modify the caps to fit 17” steelies.

theres a couple places that. can do it iirc. Wheelsmith is one..

or buy a hubcap adapter.

Last edited:
Tank5

Tank5

SILVER Star
Joined
Nov 15, 2009
Messages
3,337
I would do the reverse. Modify the caps to fit 17” steelies.

theres a couple places that. can do it iirc.

Interesting. Since the rim does not have a way to mount the caps now. Are you suggesting mounting the clips to the rim without a spacer and have the inside edge of the hub cap modified to fit? What shops do this work?

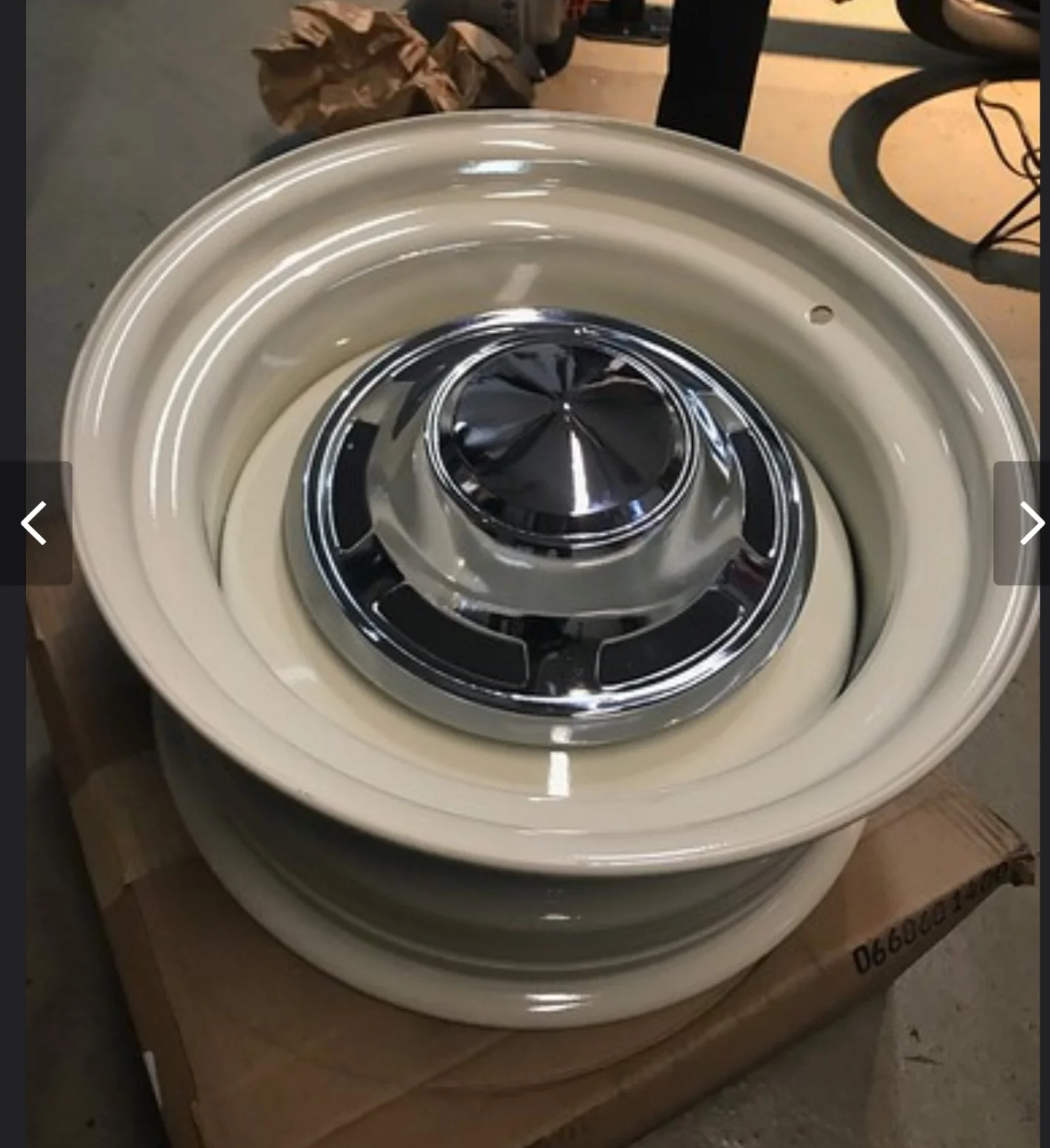

I had previously purchased and owned a set of vintique steel 17” rims and had the thought to simply weld the Back of their cap to the acorn to fit but the profile of the vintique center was more narrow and the hub cap sat too high for my liking.

middlecalf

middlecalf

SILVER Star
Joined
Jul 20, 2004
Messages
3,703
Location
Sweet, Idaho

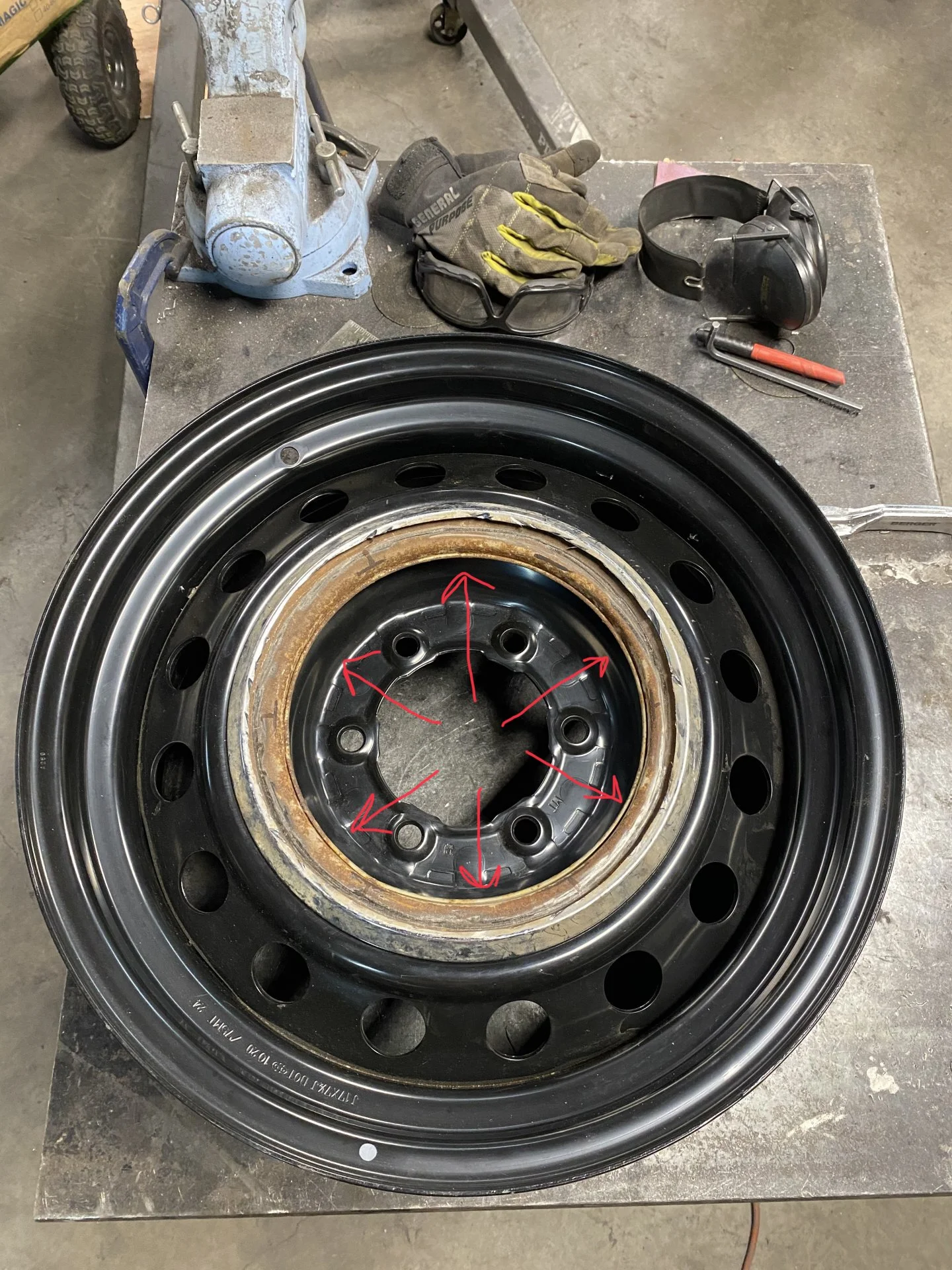

Hard to check without stuff in hand, but what about straightening the clips (or making ones which are straight) and welding them to the vertical part of the wheel in your pic?
EB71F1C7 5223 499F AF80 1F6C5FD339AA
1AC70CE9 B3BC 41C7 B715 62A18B0EBC40

Tank5

Tank5

SILVER Star
Joined
Nov 15, 2009
Messages
3,337
Hard to check without stuff in hand, but what about straightening the clips (or making ones which are straight) and welding them to the vertical part of the wheel in your pic?
View attachment 2687026View attachment 2687027
It might reach if you bent them strait or the other direction some but the contact point would be the very end of the clip. I would be concerned it would not be substantial enough not to bend reducing the tension the clip needs to secure the hubcap.

flx

flx

Joined
Jan 4, 2019
Messages
424
Location
France
I already find that the complete hub caps on 16" wheels look a bit small so the extruded version of the hub cap on 17" wheel won't it looks like a weird chrome ring in the middle of your wheels ?

cruisermatt

cruisermatt

Un-manufacturable
Supporting Vendor
SILVER Star
Joined
Jul 22, 2012
Messages
10,822
Location
Winter Park, Florida
Website
www.facebook.com

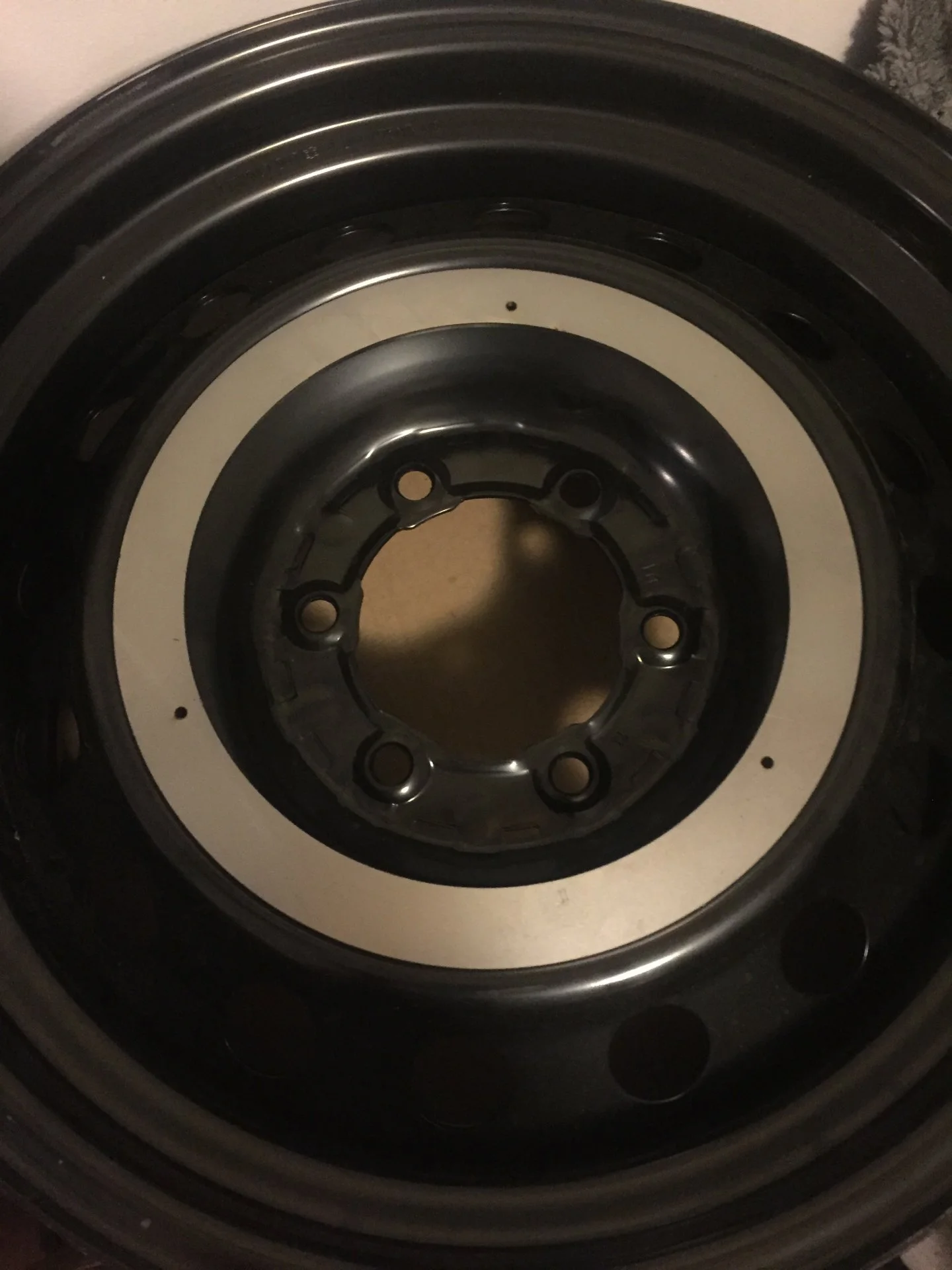

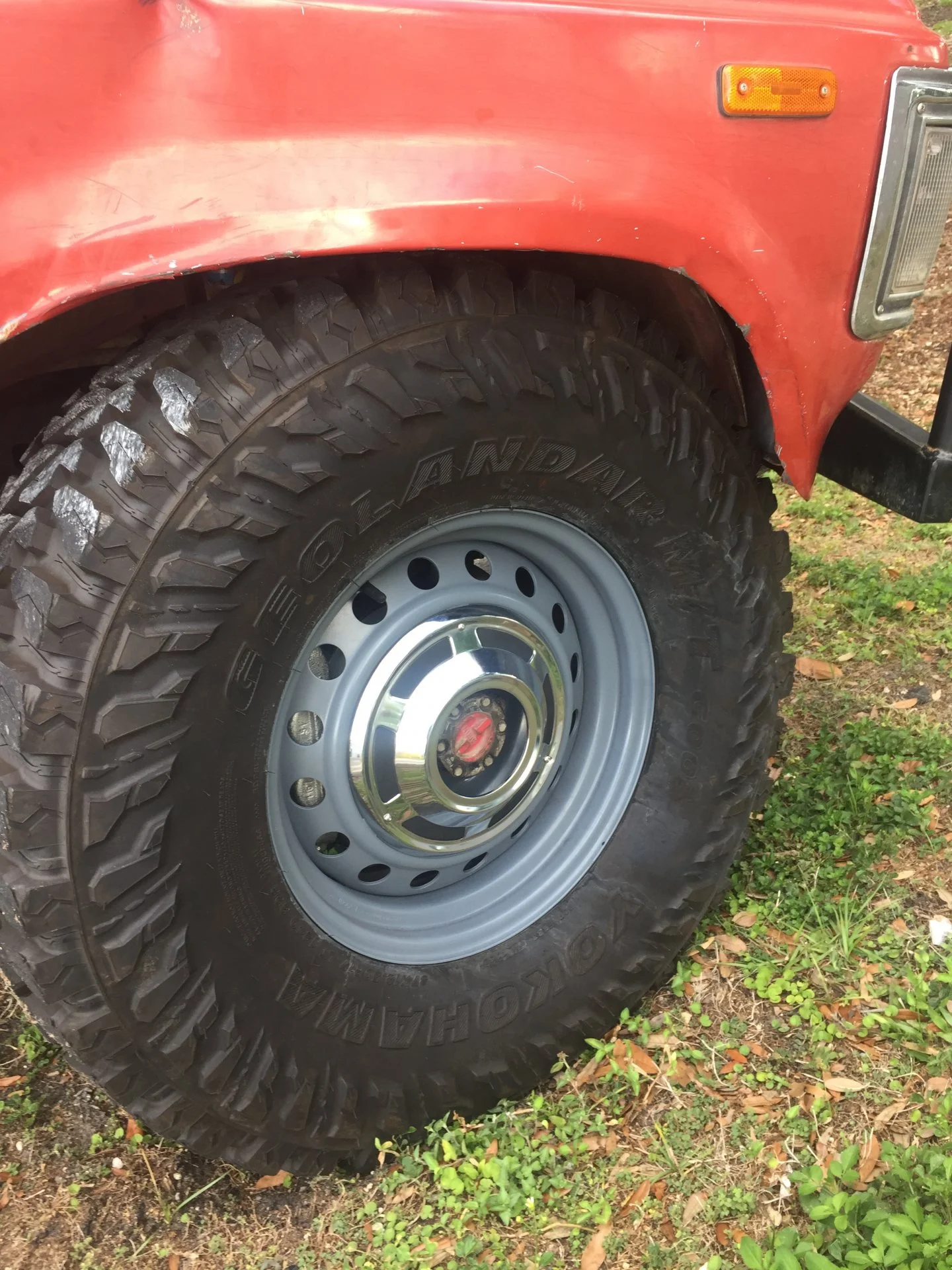

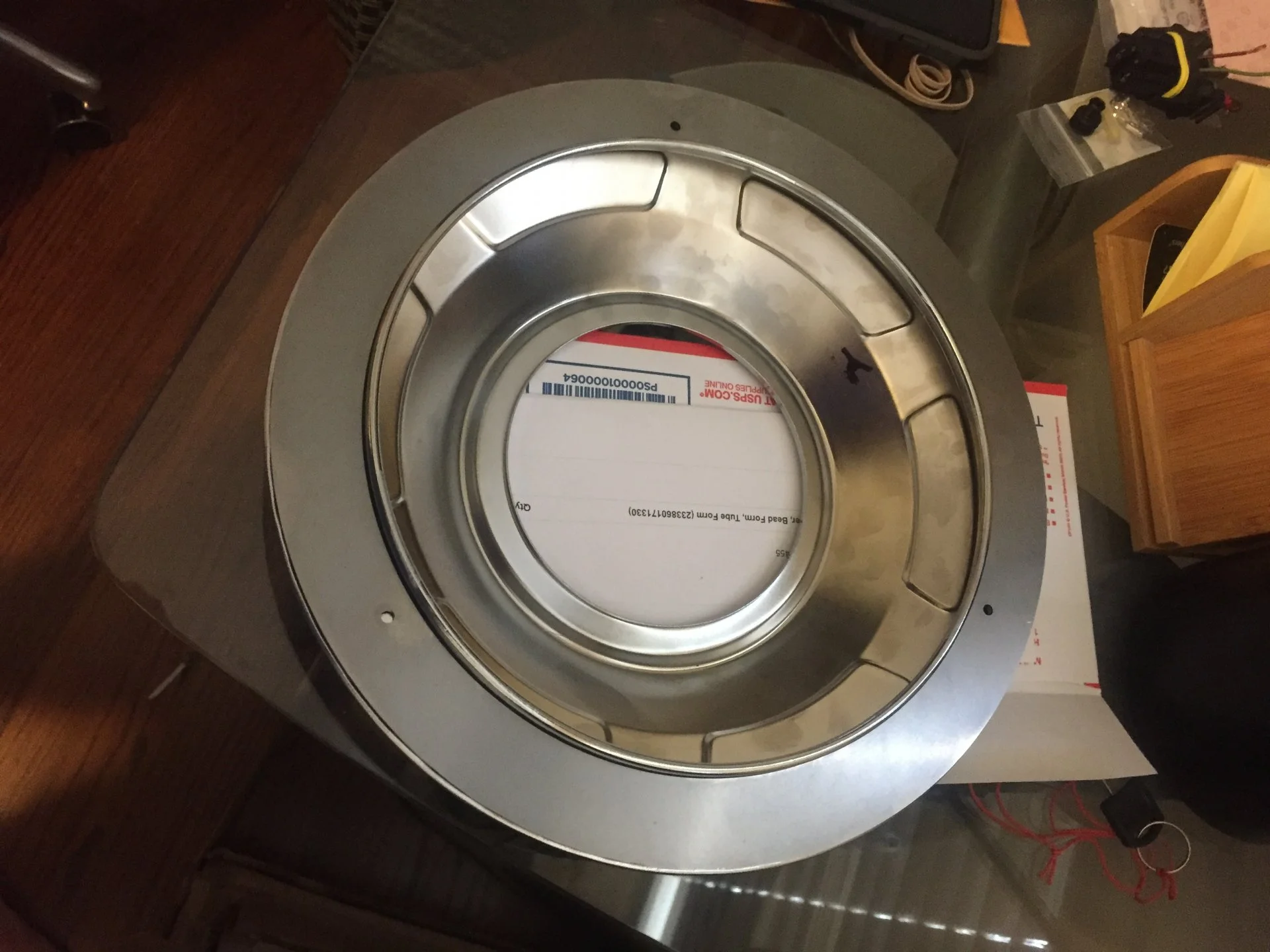

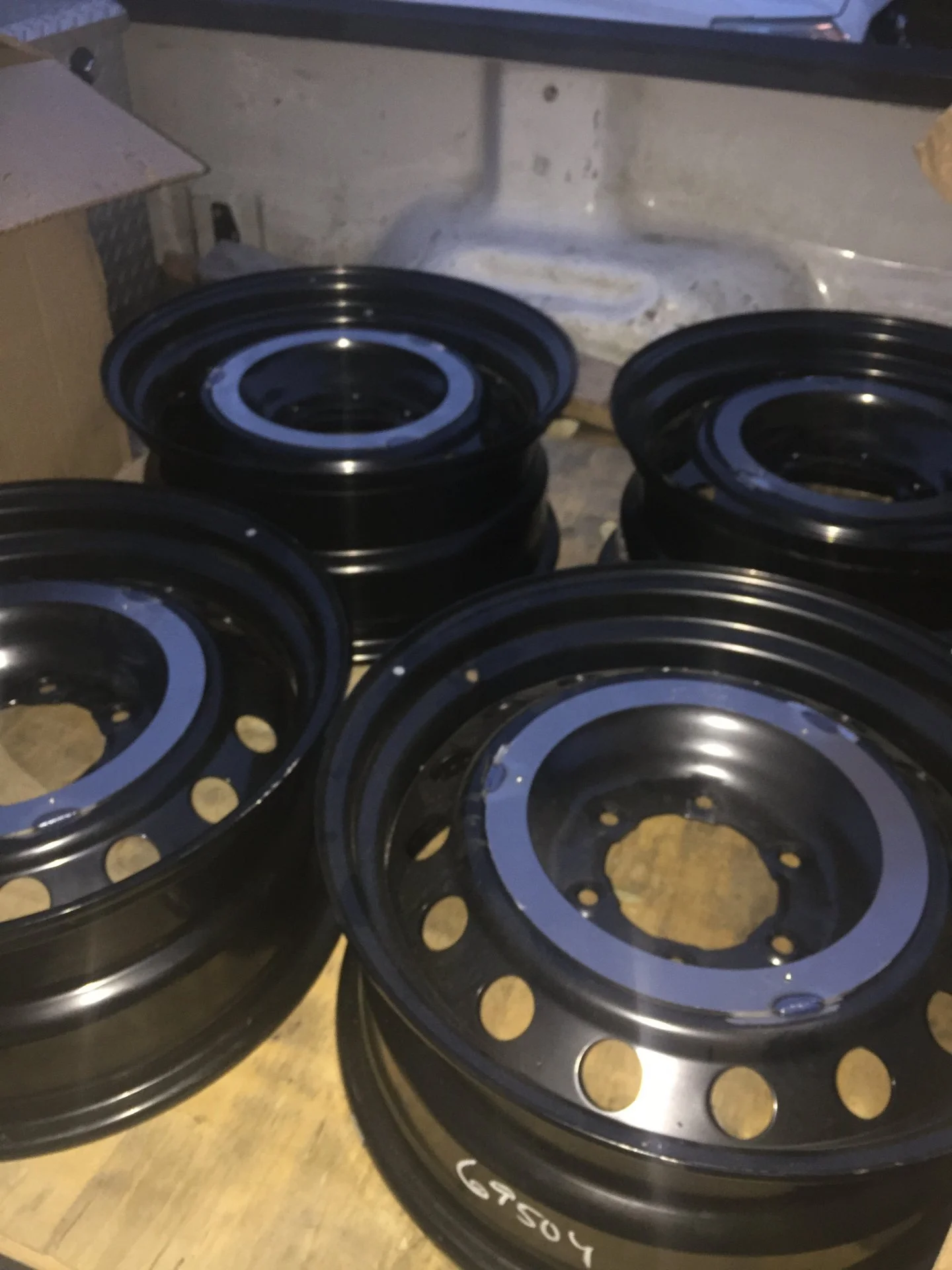

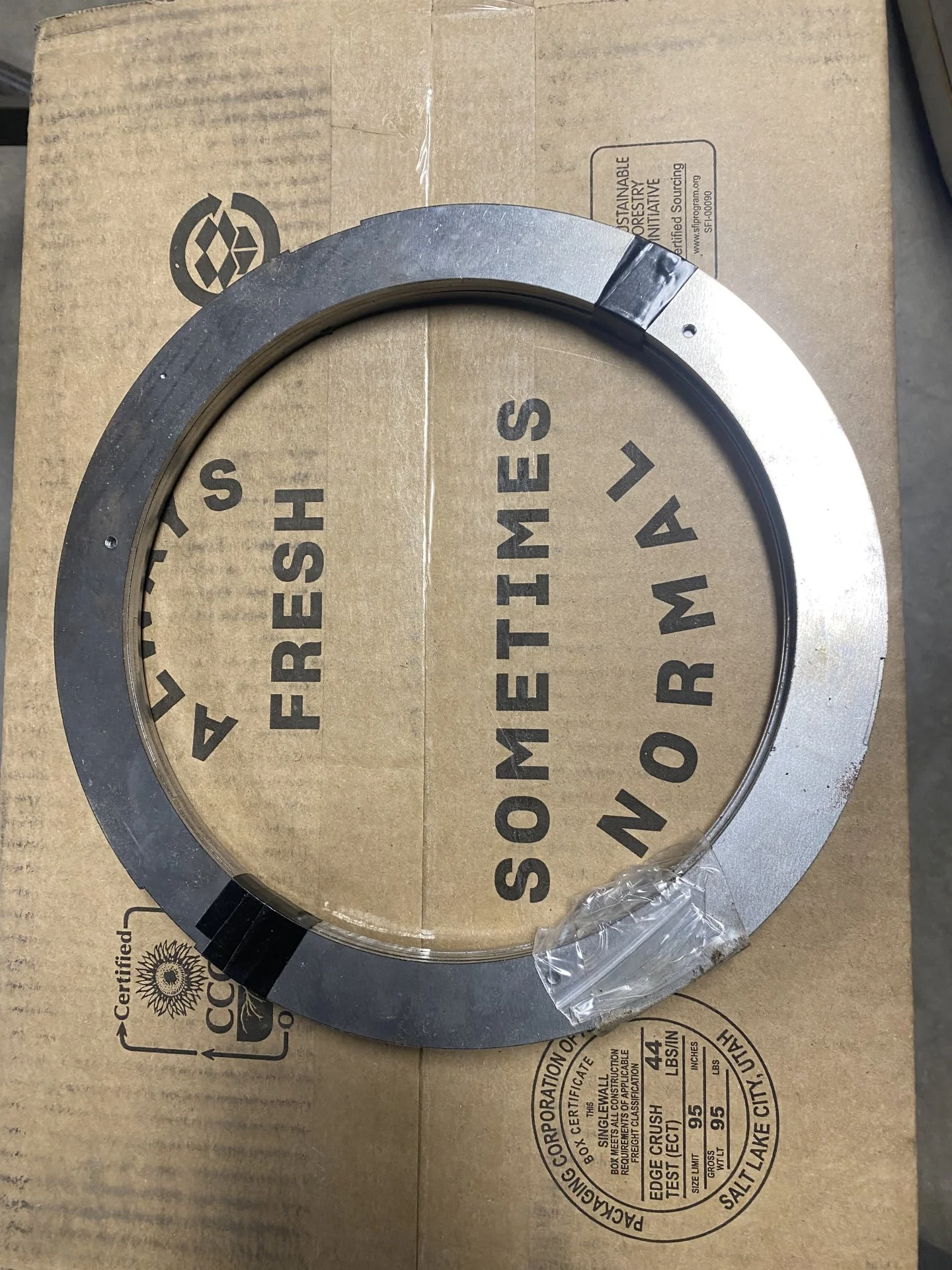

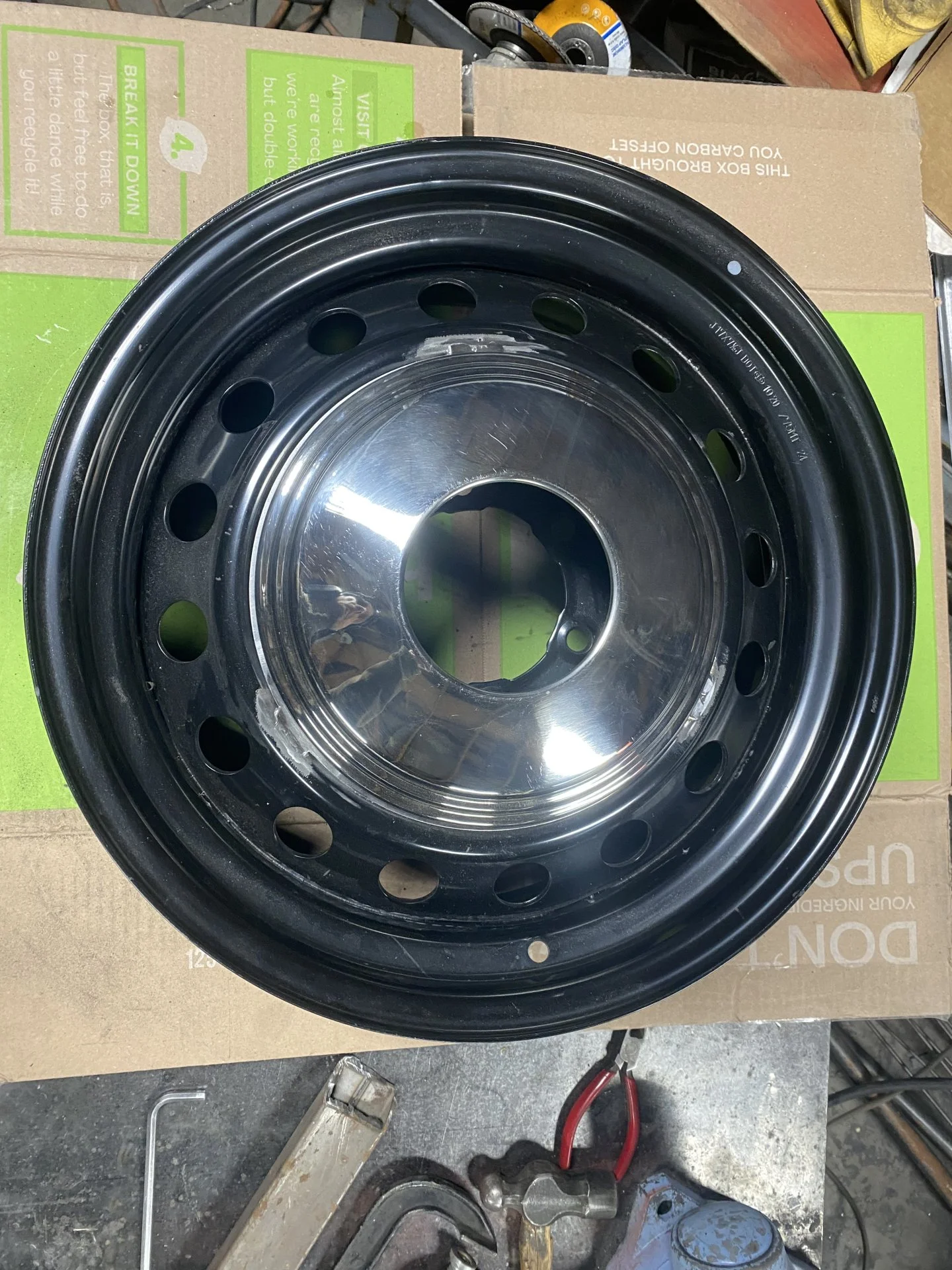

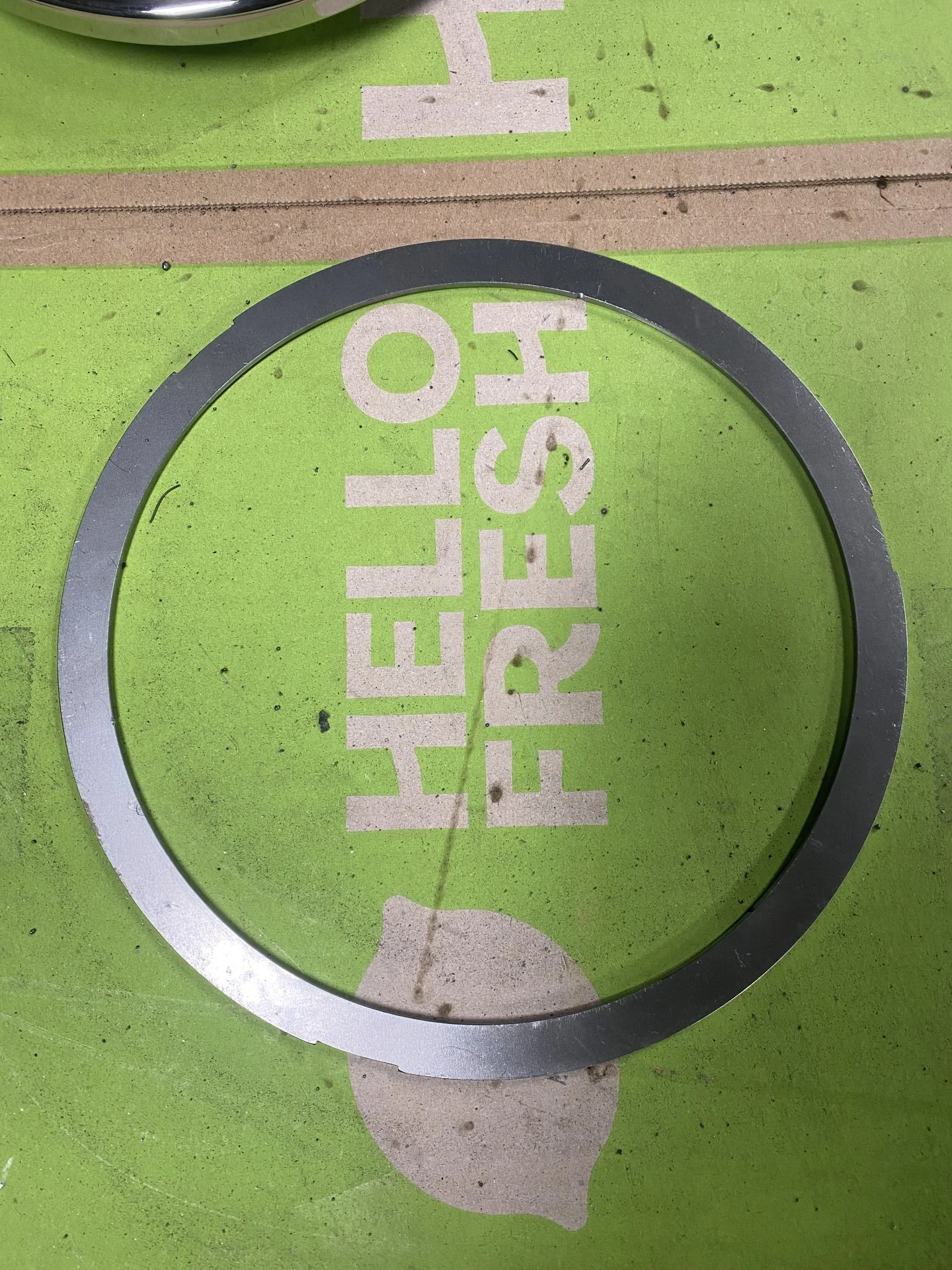

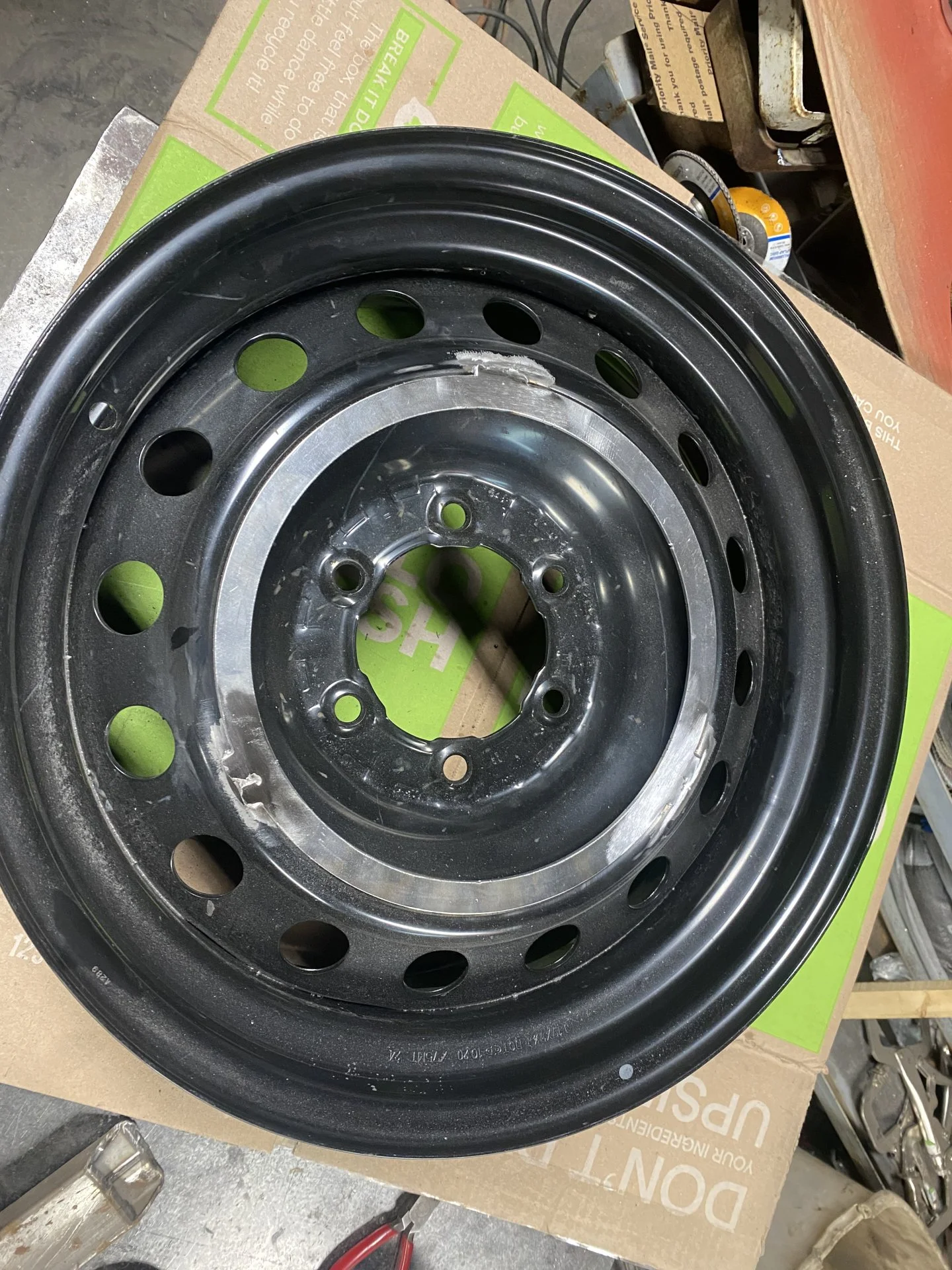

This is what I did. I couldn’t think of a good easy way to align six tabs and don’t feel like having to claw hammer my hub caps on and off. I have three #8 stainless button head screws holding them on.

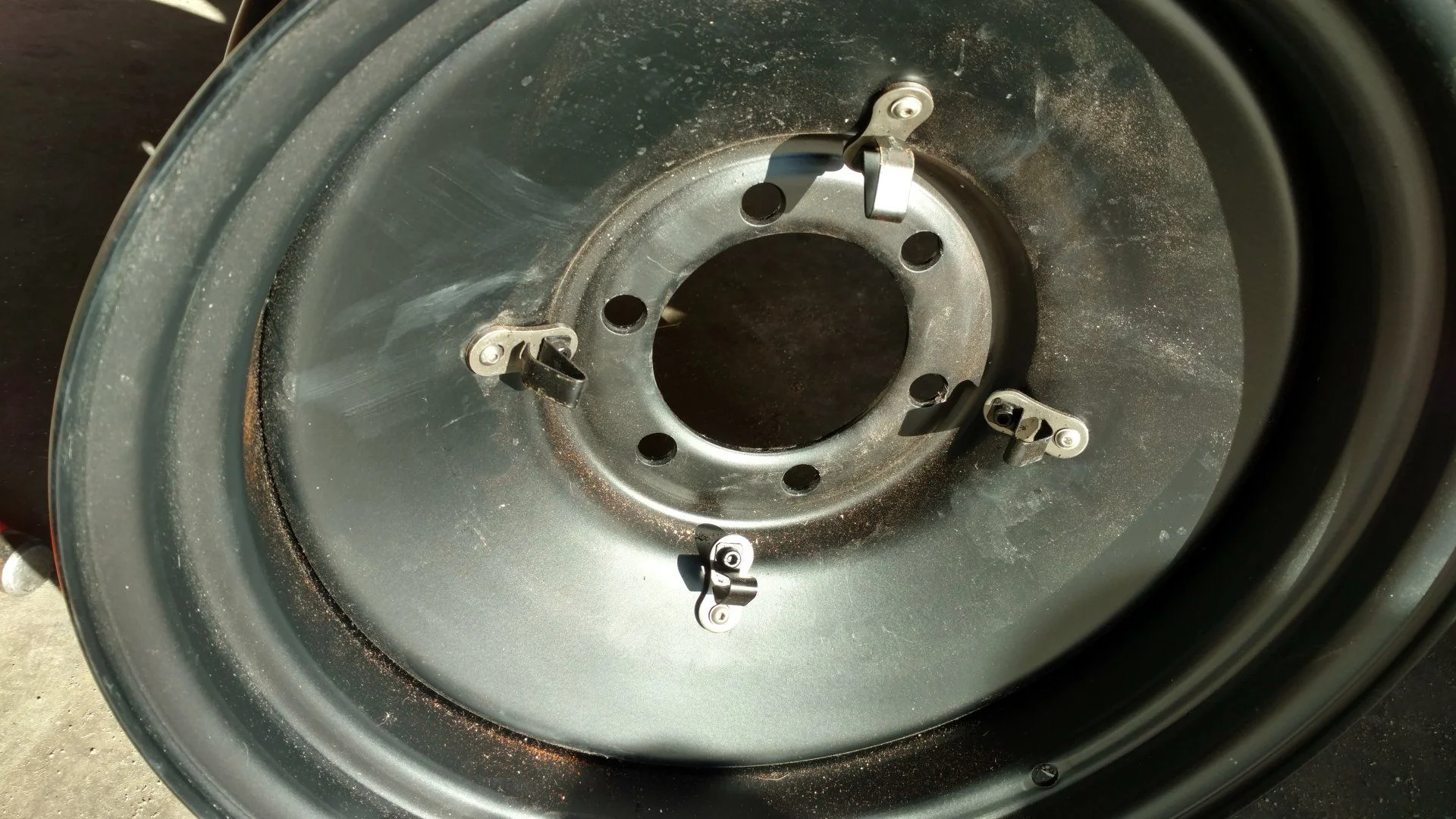

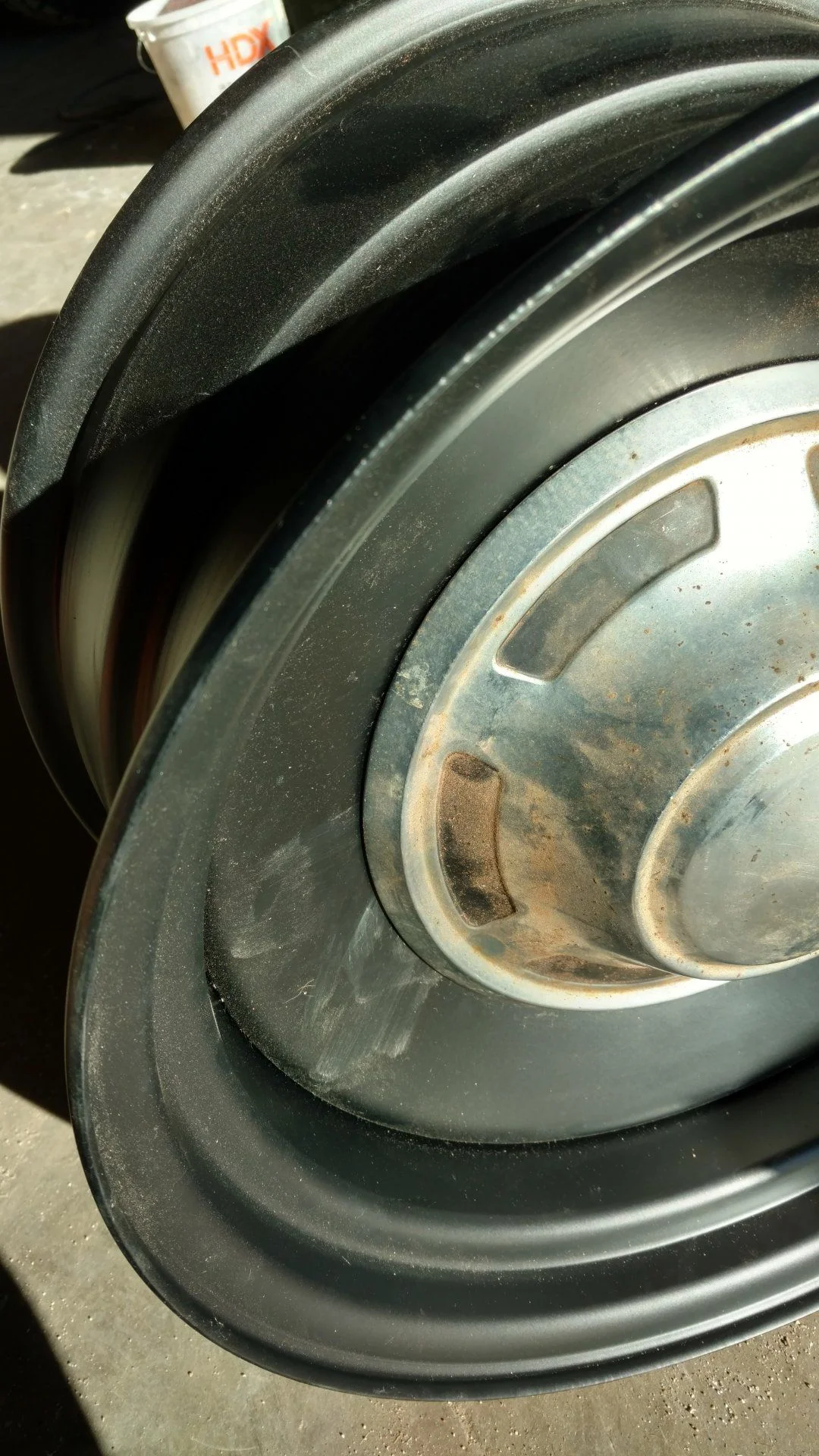

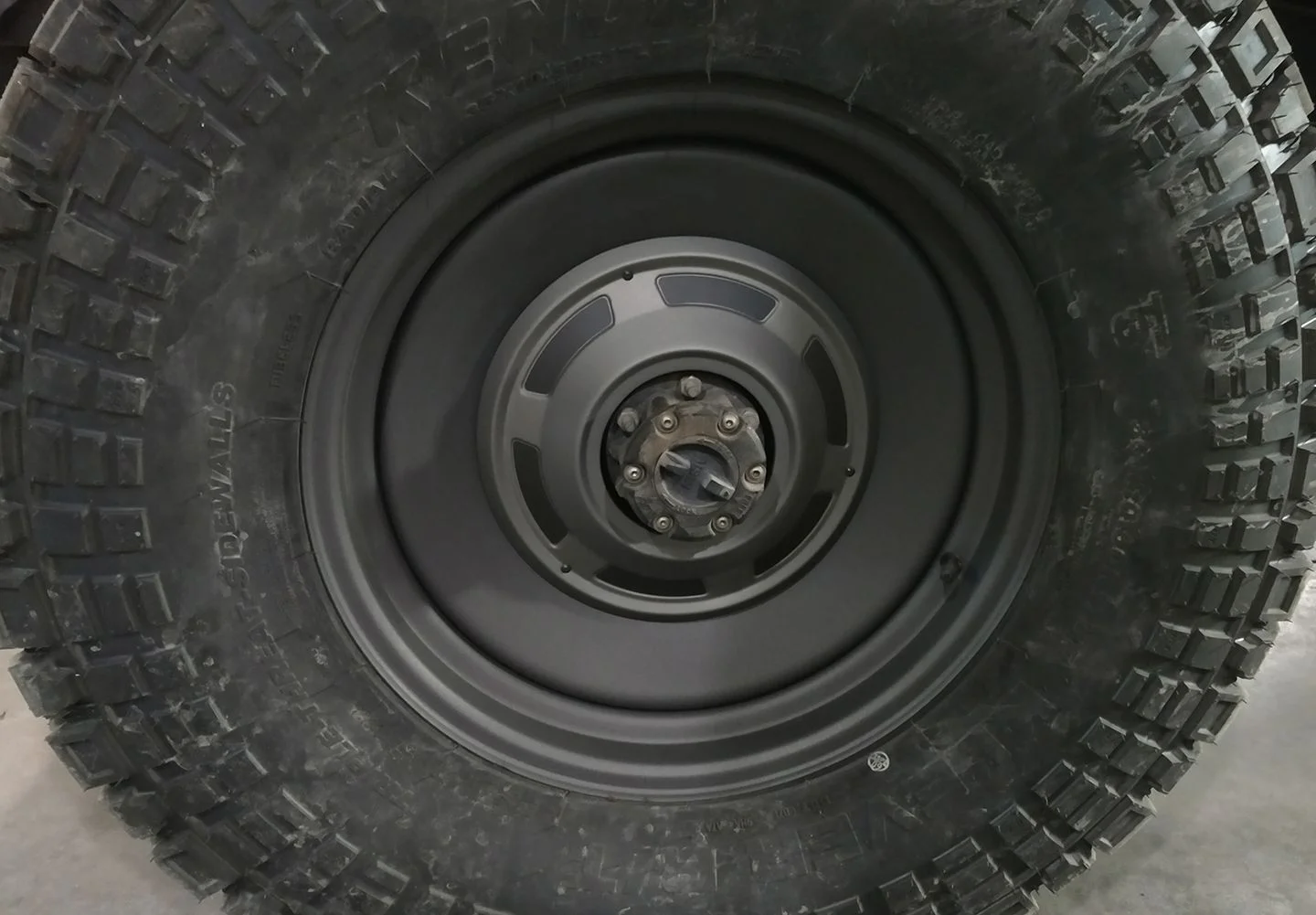

kind of inspired by @J Mack . He tapped straight into his wheels, but that was with a different rim

4272C39F 882D 4FEC 877C 8048E7A2D4B2


F3CB4E2C 132D 4BDF 8BD6 2BEB009C363D


81DBA3BE E6B3 4772 90F2 267C6AFE3D73


203B290F 9F4E 4A18 985D 6B9719EEE74B

EWheeler

EWheeler

4 Cruisers, No Garage !
GOLD Star
Joined
Apr 5, 2008
Messages
1,319
Location
Menifee, CA
Awesome thread guys, this has the gears turning in my head. Love the idea of stockish looking 17’s with the factory caps for a resto mod project.

Tank5

Tank5

SILVER Star
Joined
Nov 15, 2009
Messages
3,337
Great ideas guys!
@cruisermatt I like what you did with yours since I am looking to use the same wheel. I will have to see if I can find a way to run a screw through the acorn style cap to make your solution work with the different profile hub cap.

keep the ideas coming

merbesfield

merbesfield

SILVER Star
Joined
Jan 28, 2005
Messages
3,334
Location
Atlanta, GA
Someone needs to figure out how to do this using the wheels City Racer sells. Stock look w caps.

Tank5

Tank5

SILVER Star
Joined
Nov 15, 2009
Messages
3,337
Dizzy

Dizzy

Joined
Feb 5, 2018
Messages
2,436
Location
Santa Fe, New Mexico

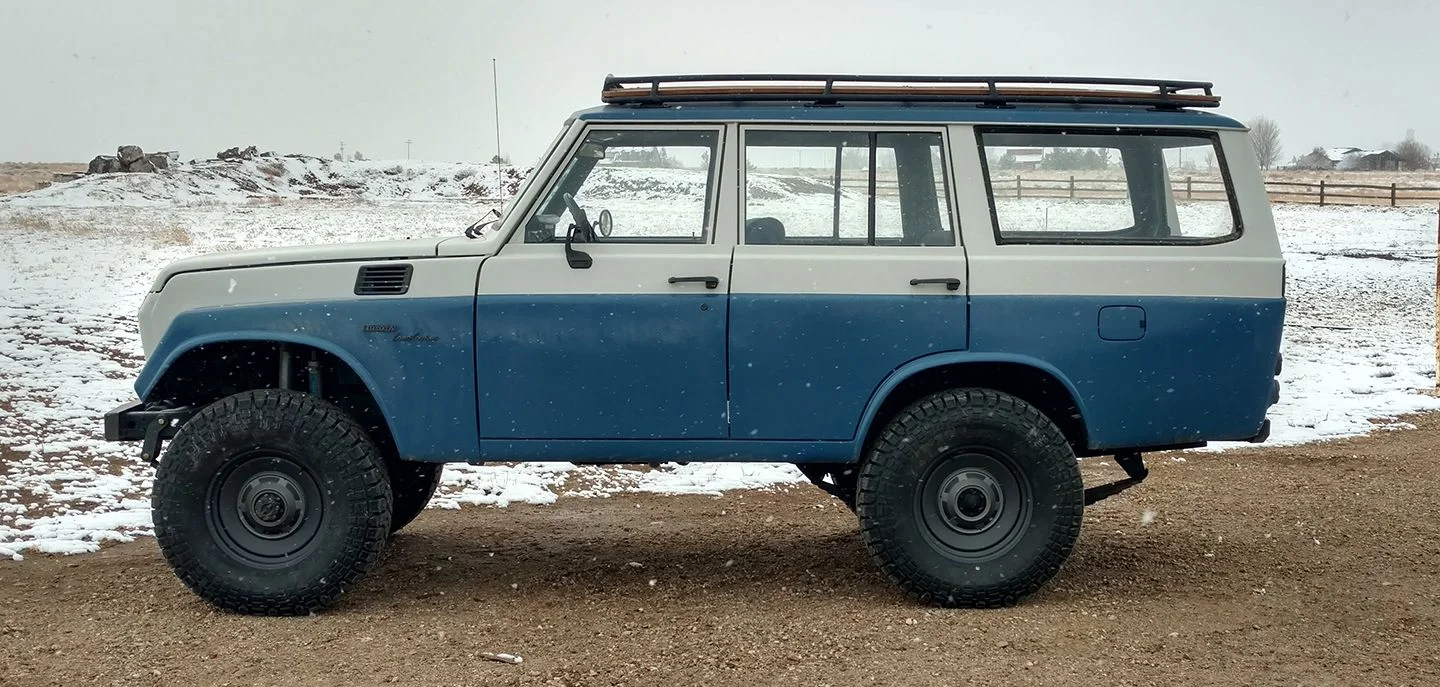

Hey, I recognize that crusty 15" wheel.

Use my old wheels. Take them to someone with a lathe to part off the ridge that stops the back of the cap face. Drill out enough material so that the lug nuts grab the tapered portion of your 17" wheels, and not the donor wheels. If the holes that you drill are less than the diameter of the hex on your actual lug nuts, it will hold the assembly on, but, secure them with a tapped hole or spot weld to the actual wheel. Who knows until it is measured? Just make sure that the caps don't fly off in traffic.

The funny thing is that I always had a liking for the look of the stock wheels with clips without the stock caps. However, the J Mack wheels look awesome with the black and dark grey.

Sheck44

Sheck44

SILVER Star
Joined
Aug 24, 2011
Messages
529
Location
Stouffville Ontario
Morning Guys ... Just an FYI, The Wheelsmith folks are now doing 17's !!
Call, them and ask for Rex. Order the wheels and send them a new set of OE hubcaps and they will build them for you

I was going to order a new set of 17's for Killer Piggy but I am going in a more 'Resto-mod' direction and will be going with a set of Method Racing

Cheers
Steve

merbesfield

merbesfield

SILVER Star
Joined
Jan 28, 2005
Messages
3,334
Location
Atlanta, GA
Morning Guys ... Just an FYI, The Wheelsmith folks are now doing 17's !!
Call, them and ask for Rex. Order the wheels and send them a new set of OE hubcaps and they will build them for you

@GA Architect also used Wheelsmith.

Still want to see City Racer wheels widened.
