Electrical connector help…please

ollanik

ollanik

Joined
Feb 22, 2017
Messages
255
Location
Tucson, Arizona

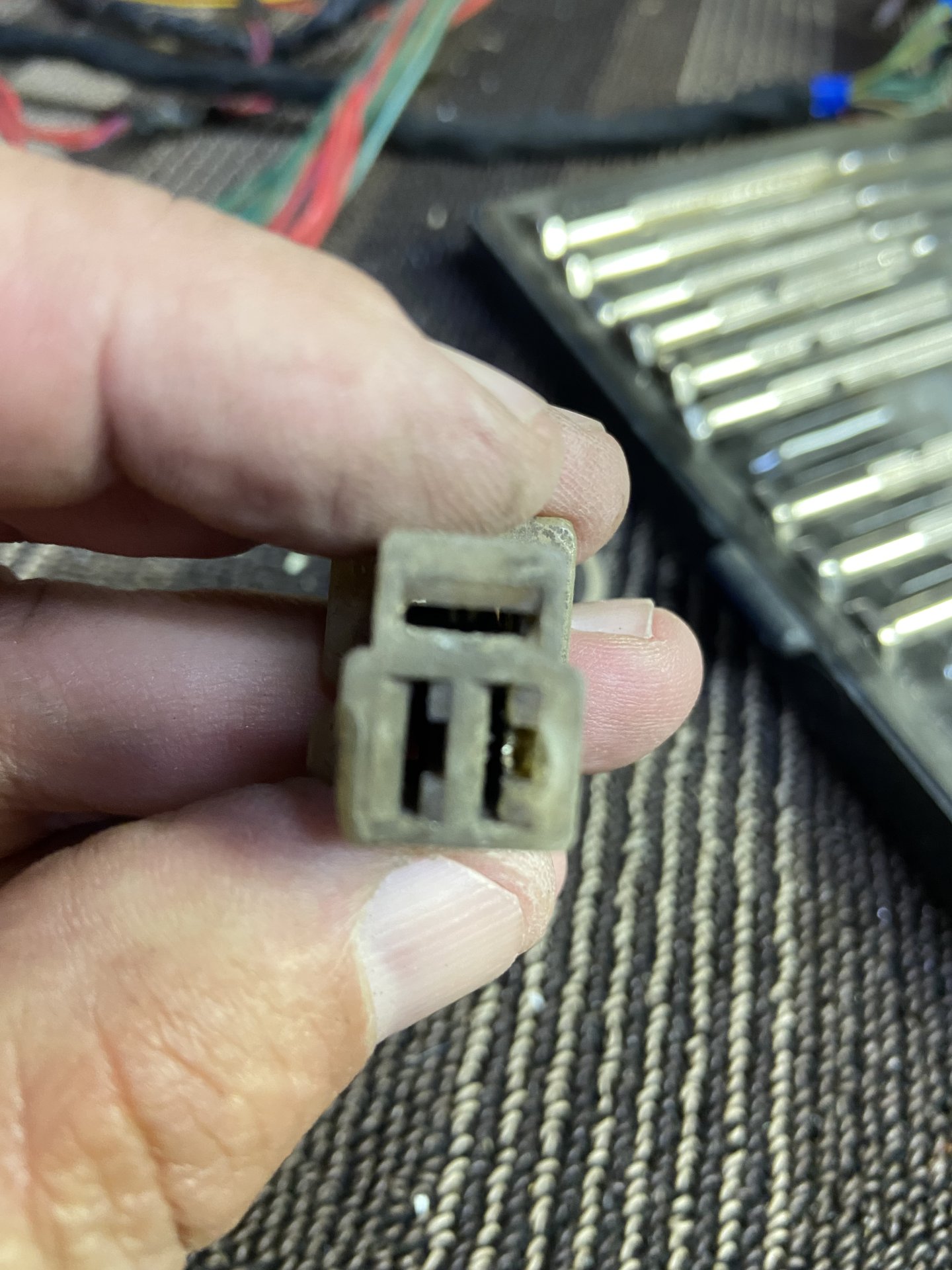

There must be an easy way to get wire and connector out of the housing or do I need to just buy new (old) parts?
F5B2B685 12BD 4135 A131 99008FCB5443

YODA 88 62

YODA 88 62

SILVER Star
Joined
Sep 1, 2005
Messages
366
Location
Austin, TX
Sometimes they are tricky. Push the wire into the connector first, insert a flat terminal removal tool, push up to flatten the tab on the terminal, and pull, wiggling the terminal out. It may take several attempts. Make sure the tool is centered and the connector is not melted.

ollanik

ollanik

Joined
Feb 22, 2017
Messages
255
Location
Tucson, Arizona
Sometimes they are tricky. Push the wire into the connector first, insert a flat terminal removal tool, push up to flatten the tab on the terminal, and pull, wiggling the terminal out. It may take several attempts. Make sure the tool is centered and the connector is not melted.
Terminal removal tool? I guess I am going to add a new tool to my collection…

ToyotaMatt

ToyotaMatt

Factory Focus-Point Mind-Set Approach
Supporting Vendor
GOLD Star
Joined
Aug 12, 2007
Messages
19,725
Location
EAST COAST
Website
vintageteqparts.com
There must be an easy way to get wire and connector out of the housing or do I need to just buy new (old) parts?View attachment 2879905


the dry rotted UV damage Kruysty factor you have going is a loosing battle


go new oem japan parts ONLY

China crap on ebay will hurt your feelings , no jokes here on that


89620 60060jpgimage500 x400   Copy 3   Copy   Copy

YODA 88 62

YODA 88 62

SILVER Star
Joined
Sep 1, 2005
Messages
366
Location
Austin, TX
Terminal removal tool? I guess I am going to add a new tool to my collection…

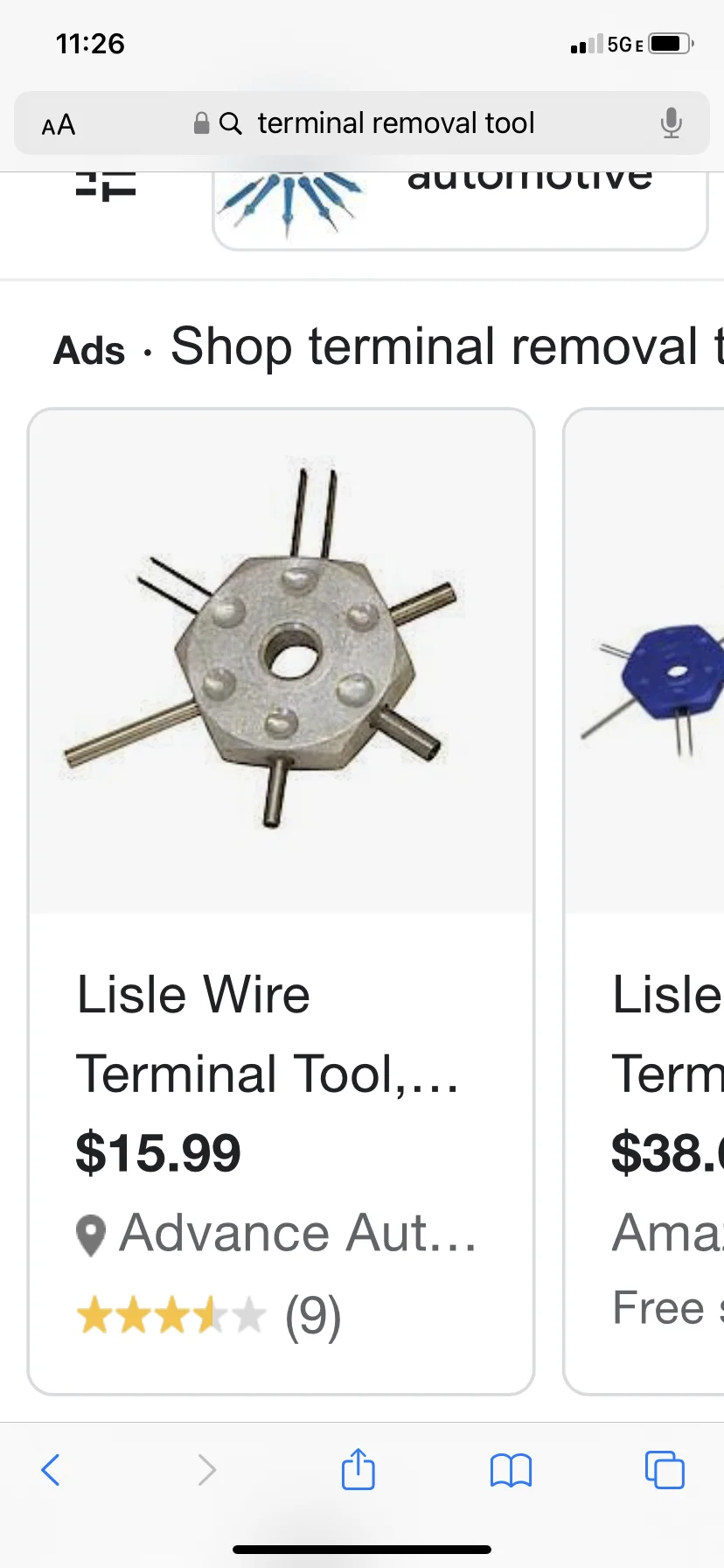

I have one like this. Bend the flat ones out and they’ll fit in the connector. I’ve run into terminals that needed the small, flat remover shaved down to a smaller width to fit.

There’s a whole spectrum of specific terminal removers. This one has done the job for a couple different projects so far.

D31D45A7 9CF5 4627 A734 481874B5CC3B

YODA 88 62

YODA 88 62

SILVER Star
Joined
Sep 1, 2005
Messages
366
Location
Austin, TX
The connector you are working on is likely the horn relay. It would be worth changing since it lives in the engine bay and will begin to crumble apart.

Engineer8000

Engineer8000

CAPE FEAR ELECTRONICS
Supporting Vendor
Joined
Aug 16, 2019
Messages
1,054
Location
SOUTHPORT NC
Website
forum.ih8mud.com

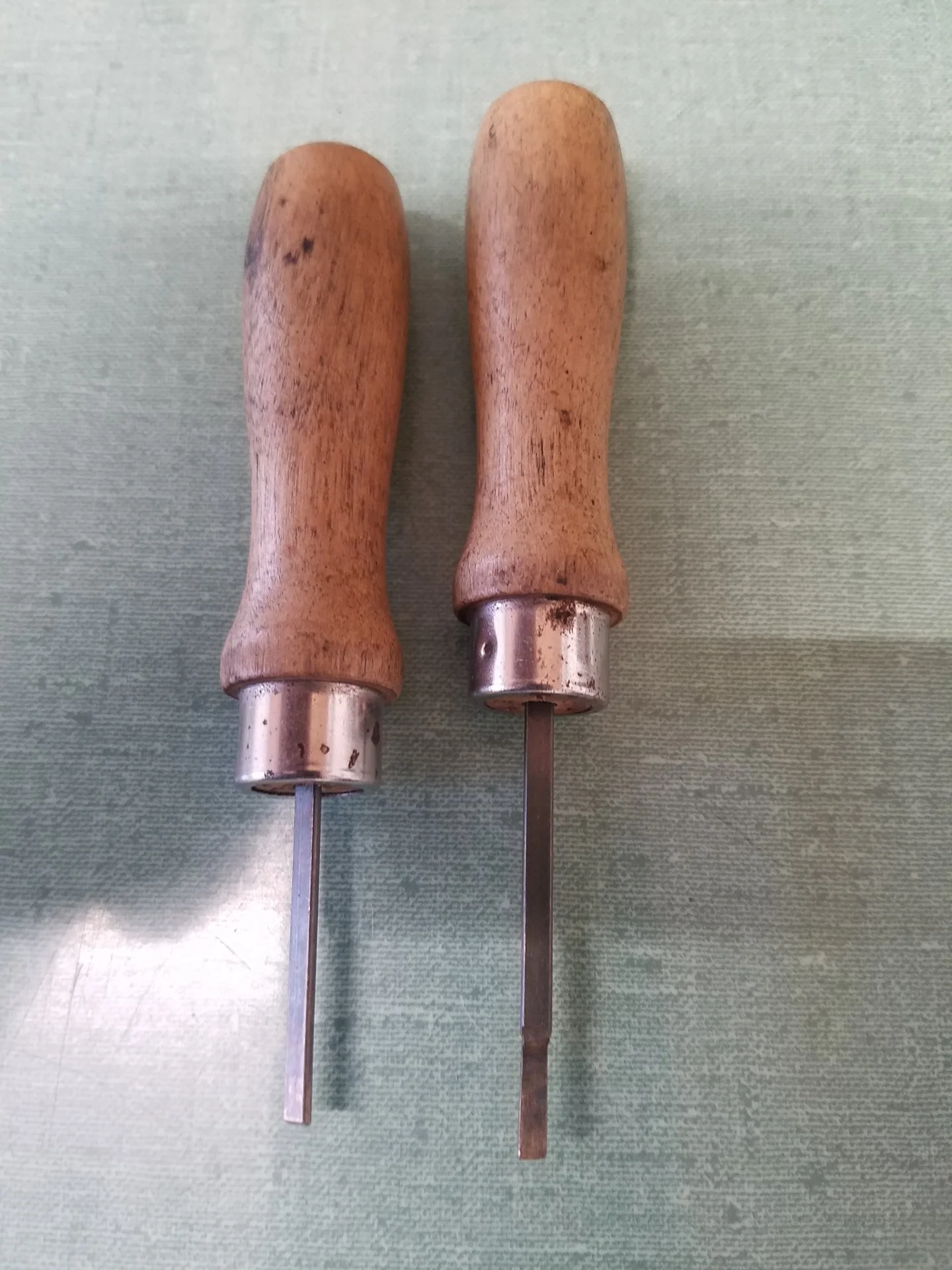

I made a couple removal tools using a couple small file handles and some brazing rod. Very durable. You can see the one on the right has been ground down to be thinner. The thinner one is used for the connectors like you have.



20211231 142324


Insert the tool in the front side of the connector in the little slot, push the terminal up in the housing, you may have to work at pushing that little tab in as @YODA 88 62 described.

20211231 142343

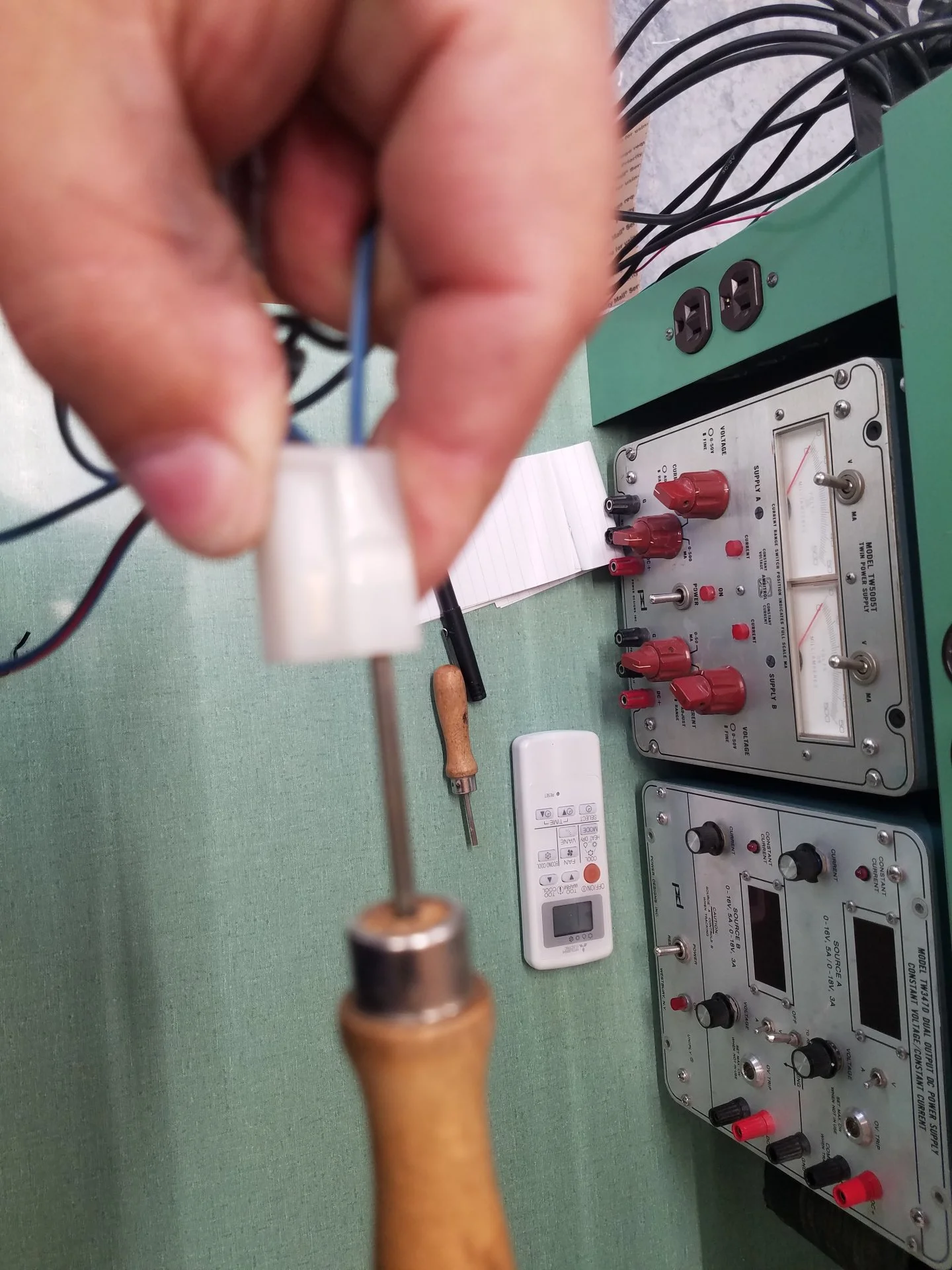

I grab the housing and wire like this so I can pull on the wire while pushing the tool in. Don't pull until the tool is inserted or you will never get it free.

20211231 142447


You will want to bend the little tab back out before reinserting in the new housing.

20211231 142522

Last edited:
Engineer8000

Engineer8000

CAPE FEAR ELECTRONICS
Supporting Vendor
Joined
Aug 16, 2019
Messages
1,054
Location
SOUTHPORT NC
Website
forum.ih8mud.com
The other type housing you may run into doesn't have the tab on the terminal, it has a triangular lock as part of the housing.

20211231 142603



These you go at from the tail end. I use the thicker tool. Insert between the plastic triangle lock and terminal to lift it out of the way.

20211231 142652

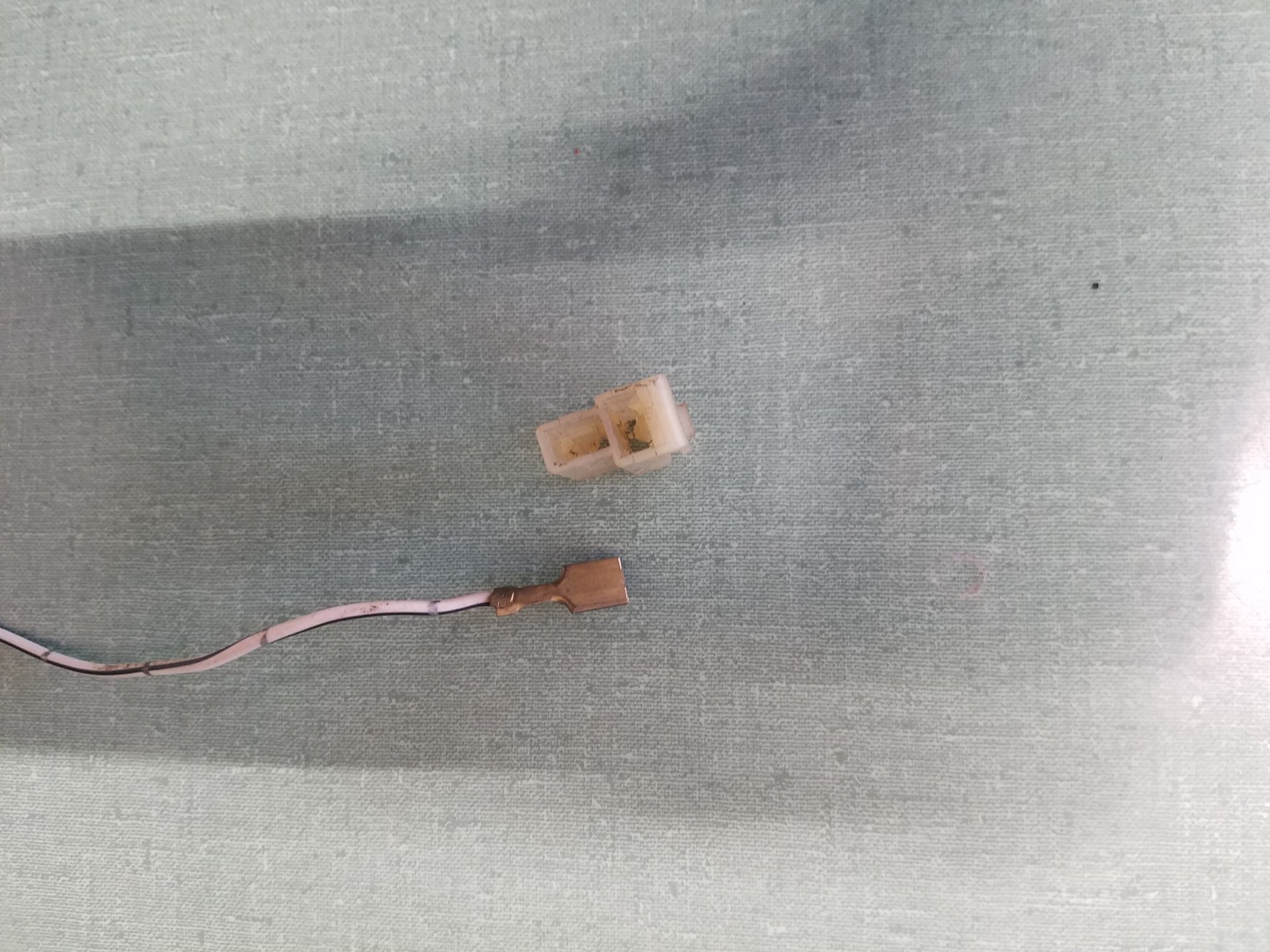

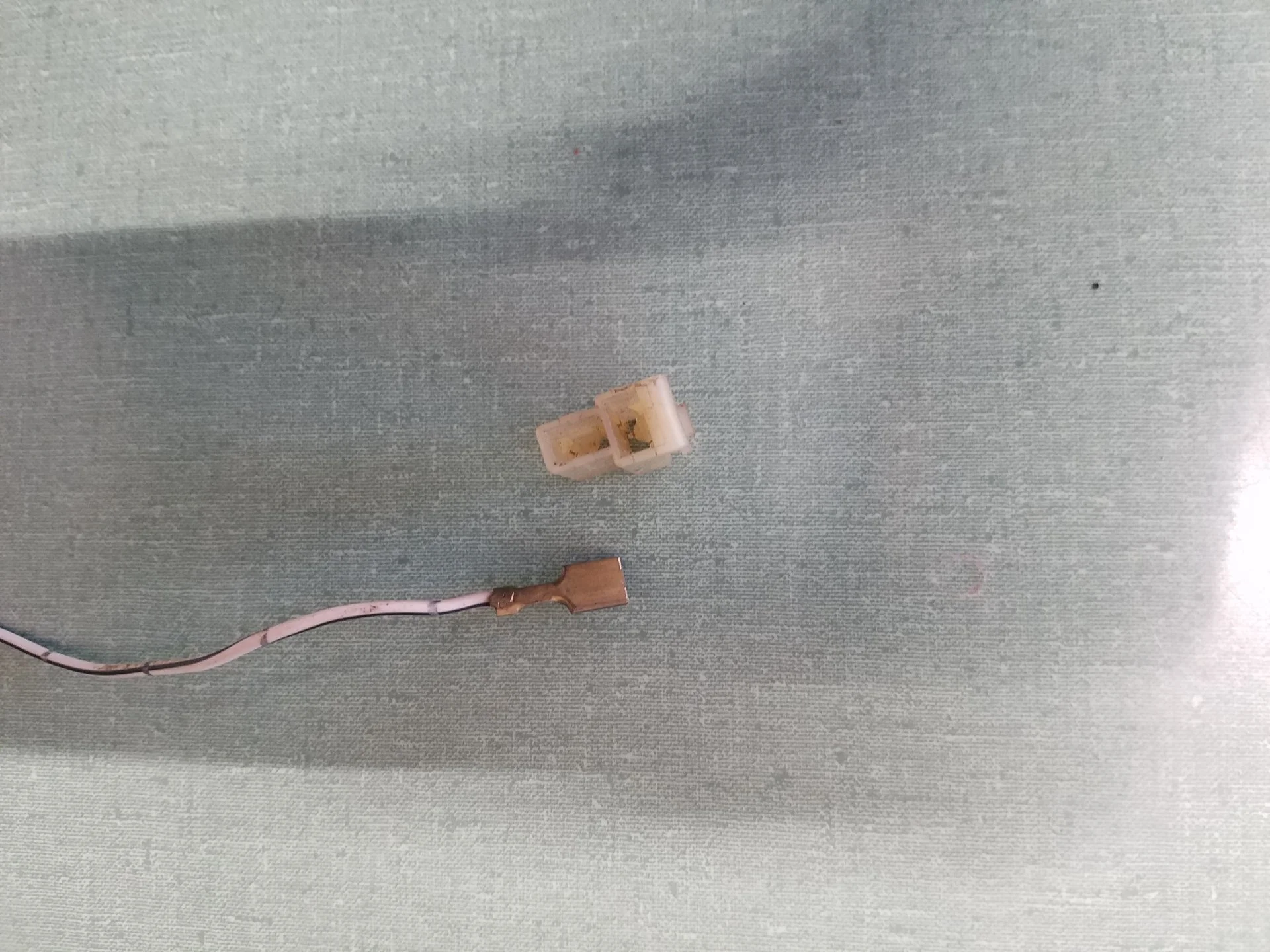

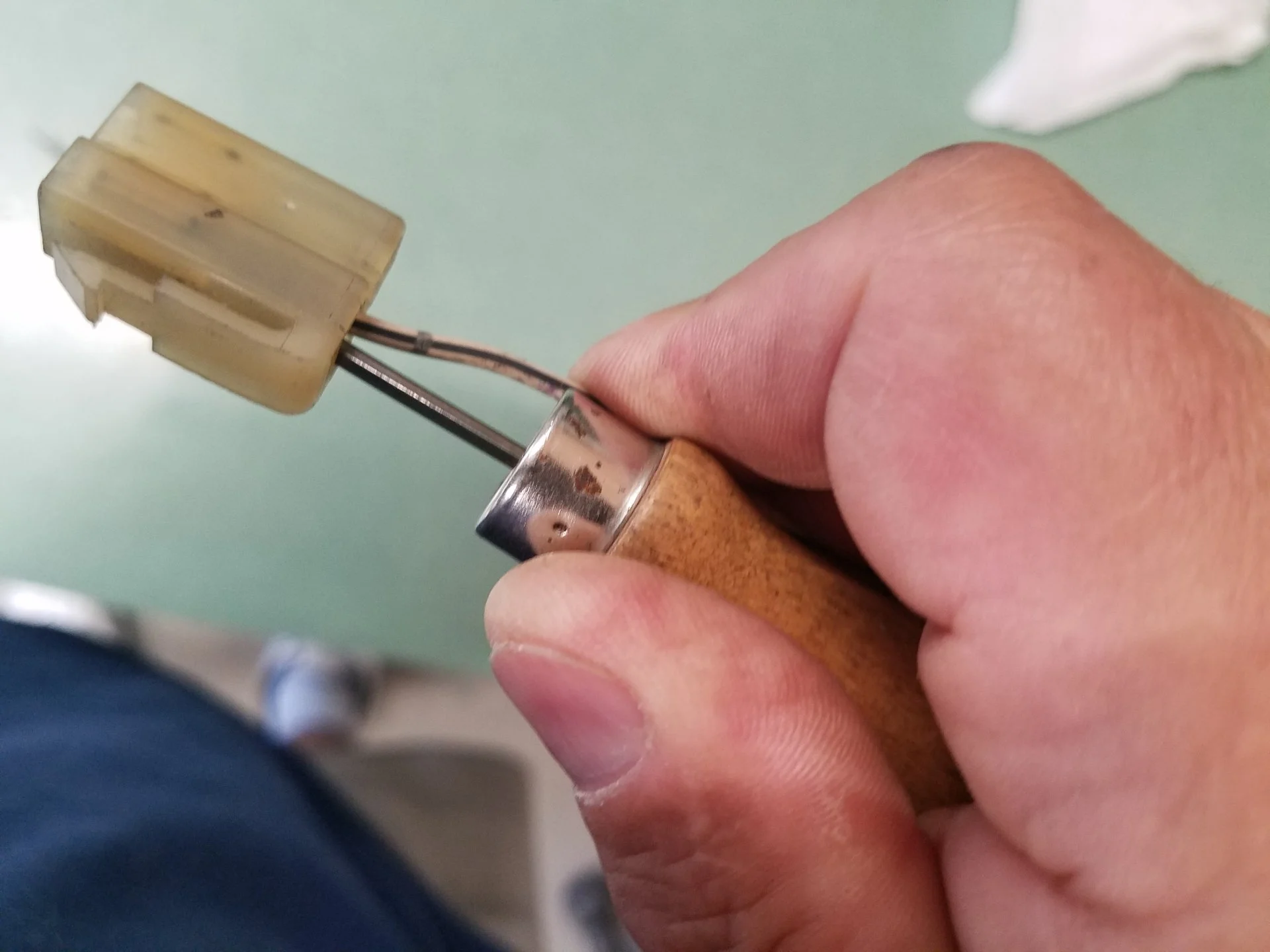

I hold it like this then just pull it out of the housing.

20211231 142701


20211231 142715

Shark56

Shark56

SILVER Star
Joined
May 12, 2005
Messages
1,080
Location
Dover, DE

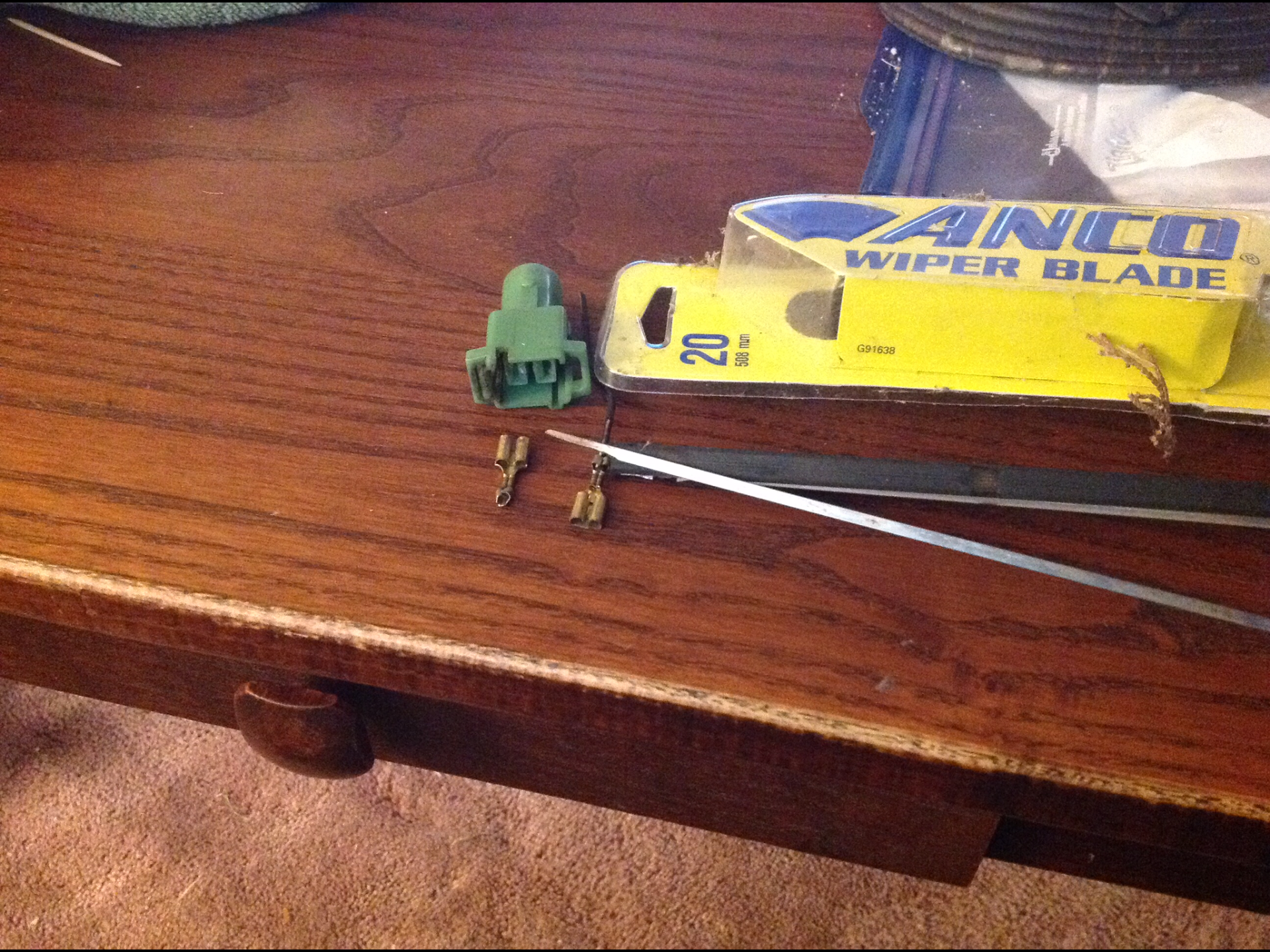

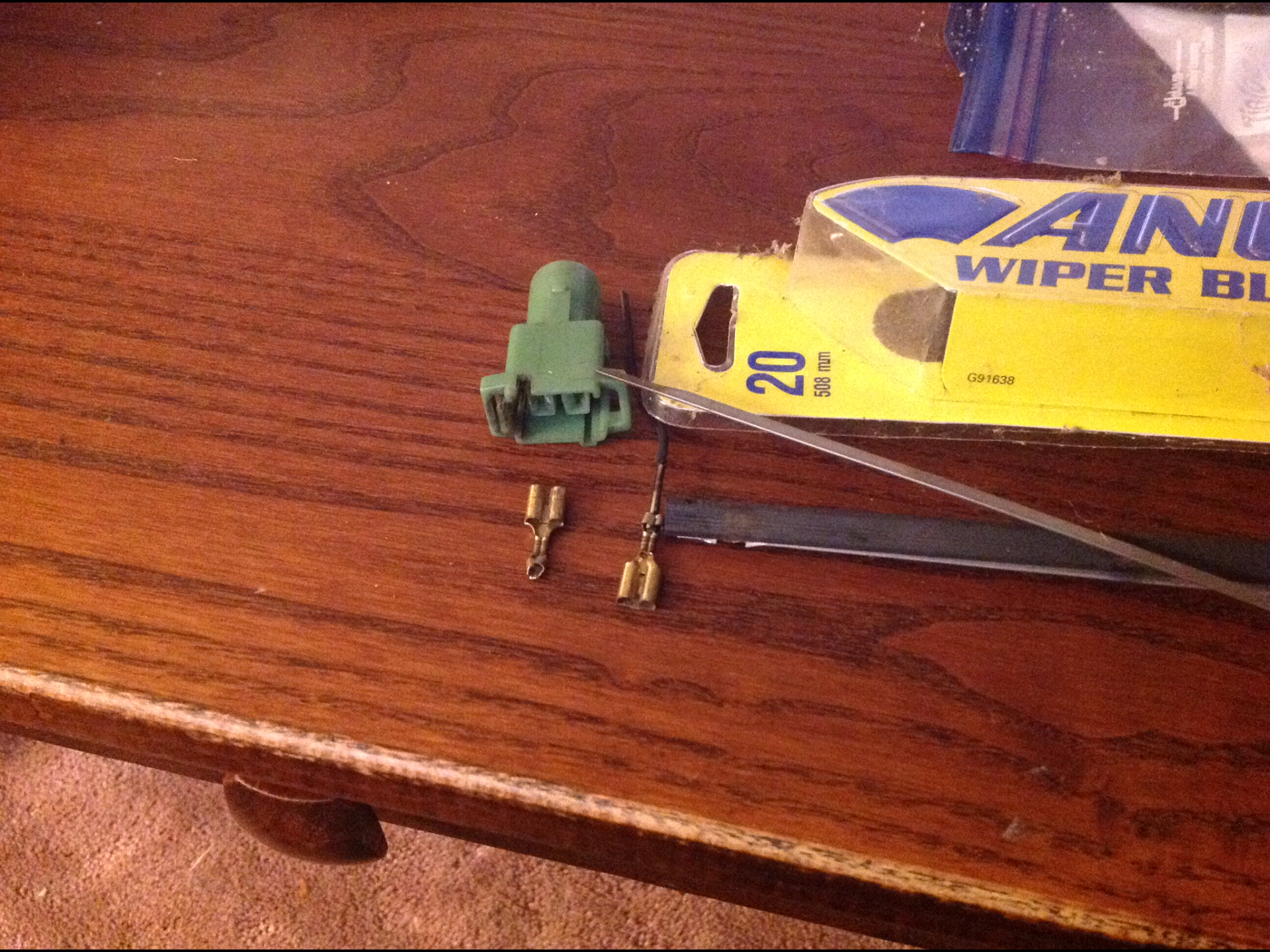

Or you can make your own tool. Pull the metal strip from a discarded windshield wiper blade. File the tip to proper size. Works perfect.

As suggested by @toolsrus.

View attachment 2880297

View attachment 2880298

I have done a couple like this with different widths and thickness ground into each end. I use them often for all kinds of small tedious projects. And the were free.

Z

zerotreedelta

Joined
Nov 29, 2020
Messages
644
Location
Wausau WI
Wiper blade steel is a great idea. I typically use one of those small jeweler-type screwdrivers...just about anything will catch the tab on these blade-type connectors.

The new types like Deutsch are a bit pickier.

Curtice

Curtice

SILVER Star
Joined
Jun 15, 2010
Messages
1,215
Location
Issaquah, WA
I’ve had good success with these tools
