Hello
Currently Have IM 2” springs planning on adding 20mm spacers or putting in a pair of 3” springs. Totaling 2-3/4 or 3” lift
I have the Heavy Duty Man-A-Fre tie rod kit. Question is…. if I install the Landtank 2.5 caster plates will I have to grind some clearance in my stock Radius arms?

Was planing on going with Black Hawk radius arms but the USA dealer 4xO keeps giving me false lead times, so unfortunately I’ll be canceling that order and taking the cheap route. Upon placing my order with 4XOUSA, according to Darren I would have received my order about 6 weeks ago.

Thanks





77mustard40

SILVER Star
Joined
Nov 28, 2010
Messages
1,993
Location
Austin, TX
My first suspension was the IM 2" kit, and I paired that with the 2.5" Landtank plates. I ended up picking up some lightly used Gen 1 Dobinsons 146-VT springs and currently sit at 23.8" up front. I have not had any issues with clearance. I don't have a photo but can get you one if needed.

Only downside for me is that my caster is a little low at this height


77mustard40

SILVER Star
Joined
Nov 28, 2010
Messages
1,993
Location
Austin, TX
Here you go, keep in mind this is the stock tie rod




Joined
Jan 19, 2005
Messages
3,364
Location
South west utah
Hello
Currently Have IM 2” springs planning on adding 20mm spacers or putting in a pair of 3” springs. Totaling 2-3/4 or 3” lift
I have the Heavy Duty Man-A-Fre tie rod kit. Question is…. if I install the Landtank 2.5 caster plates will I have to grind some clearance in my stock Radius arms?

Was planing on going with Black Hawk radius arms but the USA dealer 4xO keeps giving me false lead times, so unfortunately I’ll be canceling that order and taking the cheap route. Upon placing my order with 4XOUSA, according to Darren I would have received my order about 6 weeks ago.

Thanks

View attachment 3071346

View attachment 3071347

Every rig is different.

My 91 had the man a fre HD steering kit.

I had OME caster bushings and trunnion caster bearings on that rig with a 2" lift.

After I installed the trunnion caster bearings my steering linkage did hit my radius arms.

I didn't have to grind much to get them to clear. I probably took 1/8" off the top of my arms.

I never had any problems with those arms. I totalled that rig in a bad head on collision. Bad enough that I severely bent the frame and all 4 doors wouldn't close correctly, but the radius arms were still straight.

So I would say go for the lift and plates. If you do have clearance issues they will be small. Don't be afraid to grind a little off the arms.

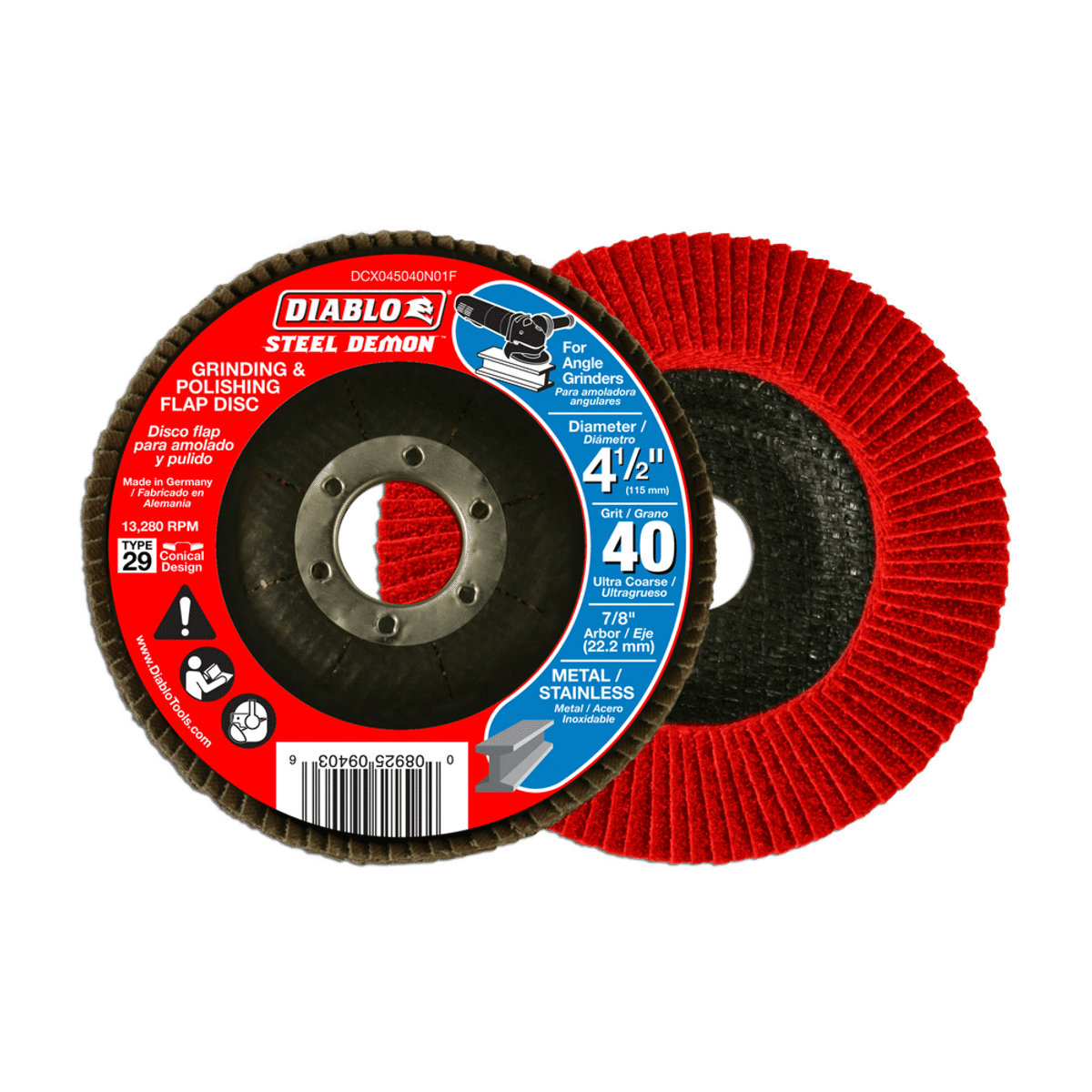

If you do have to grind the arms spend the $$$ on a good quality aggressive flap disk. Something like this.


Having a good disk will really speed up the job.

Just undo the two front bolts and let the arms drop down. Than you should be able to do the grinding under the truck. Only disconnect one arm at a time.

The key to doing this correctly is to avoid "notching the arms" you need to probably grind 12" - 18" along the top and blend it, avoid just "notching" one spot to clear the linkage because that will cause a stress spot.

Start by knocking the little ridge in the middle of the arm down. Than measure and take a 1/16th of an inch off at a time. Check the clearance and repeat as necessary. Do not go more than 3/16". If you need to remove more than that than order some aftermarket arms before doing so.

I am sure some people will post and say this is dangerous and doing this will kill you and others and cause cancer.

But plenty of people have done this without issues, except for the guy who notched his arms and snapped them in half. So don't notch them lol


77mustard40

SILVER Star
Joined
Nov 28, 2010
Messages
1,993
Location
Austin, TX
So this is with the Dobinson 2.5 springs? thank you, might have to do a little touch with the grinder, I'm just trying to avoid grinding thru the top lip like i see so many people do. I've researched that subject already.
Correct, but keep in mind those spring generate way more lift than advertised, that's why I gave you my measurement up front. I'm closer to 4" of lift and still have plenty of room.

Joined
Feb 12, 2021
Messages
158
Location
New Idria 95043
Every rig is different.

My 91 had the man a fre HD steering kit.

I had OME caster bushings and trunnion caster bearings on that rig with a 2" lift.

After I installed the trunnion caster bearings my steering linkage did hit my radius arms.

I didn't have to grind much to get them to clear. I probably took 1/8" off the top of my arms.

I never had any problems with those arms. I totalled that rig in a bad head on collision. Bad enough that I severely bent the frame and all 4 doors wouldn't close correctly, but the radius arms were still straight.

So I would say go for the lift and plates. If you do have clearance issues they will be small. Don't be afraid to grind a little off the arms.

If you do have to grind the arms spend the $$$ on a good quality aggressive flap disk. Something like this.


Having a good disk will really speed up the job.

Just undo the two front bolts and let the arms drop down. Than you should be able to do the grinding under the truck. Only disconnect one arm at a time.

The key to doing this correctly is to avoid "notching the arms" you need to probably grind 12" - 18" along the top and blend it, avoid just "notching" one spot to clear the linkage because that will cause a stress spot.

Start by knocking the little ridge in the middle of the arm down. Than measure and take a 1/16th of an inch off at a time. Check the clearance and repeat as necessary. Do not go more than 3/16". If you need to remove more than that than order some aftermarket arms before doing so.

I am sure some people will post and say this is dangerous and doing this will kill you and others and cause cancer.

But plenty of people have done this without issues, except for the guy who notched his arms and snapped them in half. So don't notch them lol
Seen that post lol
So dumb question, if I have let’s say 1/8 clearance on level ground and I go into max flextion with the arms interface with the drag link?
Does the clearance change depending on the flex?

Joined
Jan 19, 2005
Messages
3,364
Location
South west utah
Seen that post lol
So dumb question, if I have let’s say 1/8 clearance on level ground and I go into max flextion with the arms interface with the drag link?
Does the clearance change depending on the flex?

The clearance will change a little when flexed but not much. It will also change through the range of steering from lock to lock.

This is why it's good to do it on the truck. As you progress you can put the bolts back in the front of the arms and check the clearance as you rotate the steering wheel.

You can also color the tops of the arms with sharpie and than you can see where they are rubbing.

Joined
Feb 12, 2021
Messages
158
Location
New Idria 95043
It's too bad you canceled your order with 4xO. A pallet of parts just arrived stateside today.
