Can anyone verify wire colors/plug end colors for an 87 4 runner 22re?

Joined
Sep 1, 2009
Messages
2,897
Location
Greenville, SC
I had to do a wiring swap from one 87 4 runner to another. One was automatic. The automatic looks like someone had already pulled the harnesses and swapped it with another. It had a tach.

The harness I'm using is a 5 speed, no tach. Both have ac.

I need the wire colors and plastic plug color for the following of any of you could be so kind.

Stater solenoid (to key)

Oil dummy light sensor

Water temp sensor

Brake fluid reservoir sensor


Im ditching the 22re for a diesel so all other wires for engine harness shall be removed.

Sadly Both harnesses have been hacked a bit but one is much better than the other.

Joined
Sep 1, 2009
Messages
2,897
Location
Greenville, SC
Ih8mud to the rescue. Thank you.


pappy

photosynthesizing
Moderator
Joined
Oct 7, 2003
Messages
11,974
Location
Too far north. Too far east.
Connector color.
Stater solenoid (to key): Brown, one wire, on the engine harness

Oil dummy light sensor: white, two wire, on the engine harness

Water temp sensor: Blue, one wire, on the engine harness

Brake fluid reservoir sensor: I want to say yellow, two wire, on the dash harness

Joined
Sep 1, 2009
Messages
2,897
Location
Greenville, SC
Can I add a plug color and wire color to the list guys? The ac compressor power wire. Thank you guys ahead of time.


pappy

photosynthesizing
Moderator
Joined
Oct 7, 2003
Messages
11,974
Location
Too far north. Too far east.
Blue/ black single spade hanging out on the inner fender by the battery
What he said.

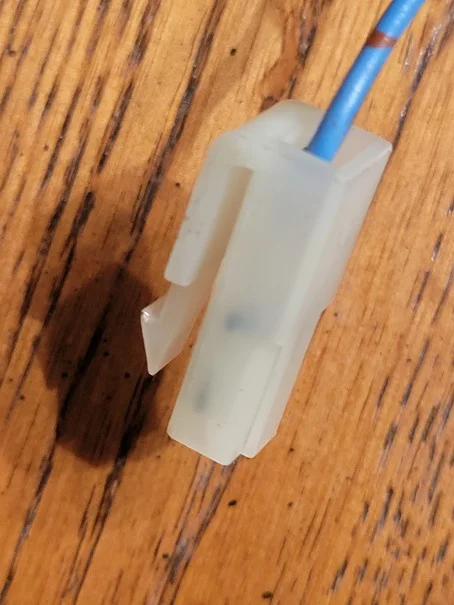

AC Connector.jpg

Joined
Sep 1, 2009
Messages
2,897
Location
Greenville, SC
Thank you! I thought that was the one.
