i was wondering where the blower motor connects to the vent on the side of the cowl what goes inbetween there to connect the two. there seems to be a couple of inches that is open pictures would be nice thanks for all the help building my rig

Joined
Mar 19, 2008
Messages
64
Location
CT Coast
mine just sits there with the gap. I thought it was strange 2.

Then i figured this does 2 things

1 isolates excess vibration from the blower
2 pre-warms the air when it is very cold outside, it is a heater after all.

Joined
Sep 3, 2007
Messages
8,871
Location
New Zealand


Yes. A foam gasket goes there.

The OEM gasket was black foam as I recall.

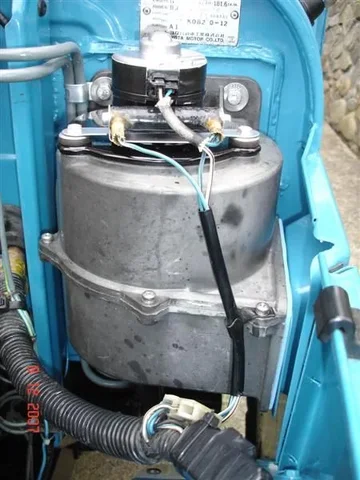

But I cut my own replacement from some blue foam that roughly matches my paint colour.:



I should have used thicker foam because there is still a little gap at the bottom. (I have some thicker stuff too.)

Without the gasket you may smell engine-fumes when you turn on your blower with the "fresh" control open.

Joined
Mar 19, 2008
Messages
64
Location
CT Coast
the gap on mine is a lot wider mabey an inch more.
I am pretty sure there is no seperate part # for this. I am wondering if the foam gasket was glued onto the blower from the factory.

Joined
Sep 3, 2007
Messages
8,871
Location
New Zealand


the gap on mine is a lot wider mabey an inch more.....
I seem to remember that the mounting holes are elongated to allow quite a bit of "sideways blower movement" (to adjust the gap on the vent-louvre side).

....I am pretty sure there is no seperate part # for this. I am wondering if the foam gasket was glued onto the blower from the factory.
I don't see the point in trying to source an OEM gasket anyway.

I used an old "sleeping mat" (as used beneath a sleeping bag when sleeping in a tent on the ground). I reckon this material is ideal and it comes in a variety of thicknesses and colours. And if you want it superthick you could double-up the thickness.

Joined
Mar 19, 2008
Messages
64
Location
CT Coast
I am just being curious. The orginal must have came afixed to the blower, similar to the louver gaskets on the inside of the heater.


Thanks for the tip on the adjustment I will check it out.

Joined
Sep 3, 2007
Messages
8,871
Location
New Zealand


I am just being curious. The orginal must have came afixed to the blower, similar to the louver gaskets on the inside of the heater.


Thanks for the tip on the adjustment I will check it out.
Well I can confirm the old ones were glued on because I remember scr@ping them off (and I glued my new ones on with contact adhesive too).
