BJ70 3B Alternator Part #

Joined
Aug 11, 2006
Messages
401
Location
Purcellville, VA
Learned today that my son's alternator is bad in his 85 BJ70 with a 3B. I've been looking around for part numbers, but there are quite a few. Does anyone have the right part number? There are quite a few that start with 27020-XXXXX. I will say that I'm not 100% sure if it is a 12V or 24V. It does have two batteries but that doesn't necessarily mean 24V, correct? How would I tell if it is a 24V System? The next question would be are these still available and is there a replacement? Thanks for the help.


jblueridge

SILVER Star
Joined
Aug 12, 2014
Messages
2,592
Location
Near Charlottesville, VA
In my 24V truck the 2 batteries are next to each other.
The pos terminal of one them connects directly to the neg of the other.


Squash

SILVER Star
Joined
Dec 8, 2006
Messages
1,732
Location
Sudbury, Ont. CA
If you can find a starter/ alternator rebuild shop they just might have what you need. Look for one of those back alley shops run buy an old guy.

Joined
Sep 11, 2020
Messages
710
Location
Leverkusen , Germany
HI
In that period the BJ7# 3B usually were 24V. The position of the batteries is no indication, though.
If a cable connects positive with negative between the two batteries (serial), its 24V.
There were three alternators for YoM 1984-1988 24V:
2702056230 25A
2702056310 30A
and 2702056320 30A, which was used on the 13BT and models with powersteering.
I suggest to get the alternator out and check the plate on it, which should tell details.
The 25A model apparently is available from DENKI, still. All others models apparently are discontinued.
So, finding a shop who can rebuild it is a good advice.
Good luck Ralf

Joined
Aug 21, 2006
Messages
2,240
Location
Kennesaw, GA
Learned today that my son's alternator is bad in his 85 BJ70 with a 3B. I've been looking around for part numbers, but there are quite a few. Does anyone have the right part number? There are quite a few that start with 27020-XXXXX. I will say that I'm not 100% sure if it is a 12V or 24V. It does have two batteries but that doesn't necessarily mean 24V, correct? How would I tell if it is a 24V System? The next question would be are these still available and is there a replacement? Thanks for the help.

If you can find a starter/ alternator rebuild shop they just might have what you need. Look for one of those back alley shops run buy an old guy.

As Squash said, a good local shop should be able to handle rebuilding/repairing your son's alternator. The guy at my local shop said after the rebuild that the consumable internals in the Toyota alternator were standard stock parts for him so the rebuild was nothing special. The vacuum pump was typical to what he had worked with on other alternators for diesels.

If you want to use this as an opportunity for a major refresh for the alternator, Mosley motors offers the spa treatment for 24V alternators too.

Good luck.


Squash

SILVER Star
Joined
Dec 8, 2006
Messages
1,732
Location
Sudbury, Ont. CA
I had the same unit, same year Canadian spec 12 volt.

Joined
Aug 11, 2006
Messages
401
Location
Purcellville, VA
So, wrestled that bugger off today. I've never seen an alternator tied into the oil filter......

It looks like the P/N is 27040-56030 (12V).

I've looked and cannot find this new anywhere. I put an inquiry into Mosely for a rebuild and one other shop in MI. It is Sunday, so I haven't had any luck with local shops. Does anyone know of a place I can send this for a rebuild?


jblueridge

SILVER Star
Joined
Aug 12, 2014
Messages
2,592
Location
Near Charlottesville, VA
I ran all over central VA and up into MD with my 24V alt with no luck.
Bastards in Fredericksburg kept it 2 weeks only to tell me they were afraid to open it up since it was antique.
You could call White Post Restorations. They do brake hydraulics as a side business. They might have an electrical only person.

Shipped mine to Michigan. Auto Electrical Restoration Experts | Precision Power | Lansing MI - https://www.precision-pwr.com/

Turned out, it had a blown winding and Precision re-wound it for me, checked/replaced brushes, bearings, etc.
I highly recommend them as the kind of “can-do” shop that used to be common in the States.

Joined
Aug 11, 2006
Messages
401
Location
Purcellville, VA
Thanks for the recommendation. Just called them. They said it would be 5-8 wk turnaround. Yikes. But, sounds like they can get 'er done.

Joined
Aug 11, 2006
Messages
401
Location
Purcellville, VA
Land Cruiser Heaven in Hagerstown also asked me to bring it by to take a look. They also have used, working take offs, from Dubai that they can sale.

Joined
Aug 11, 2006
Messages
401
Location
Purcellville, VA

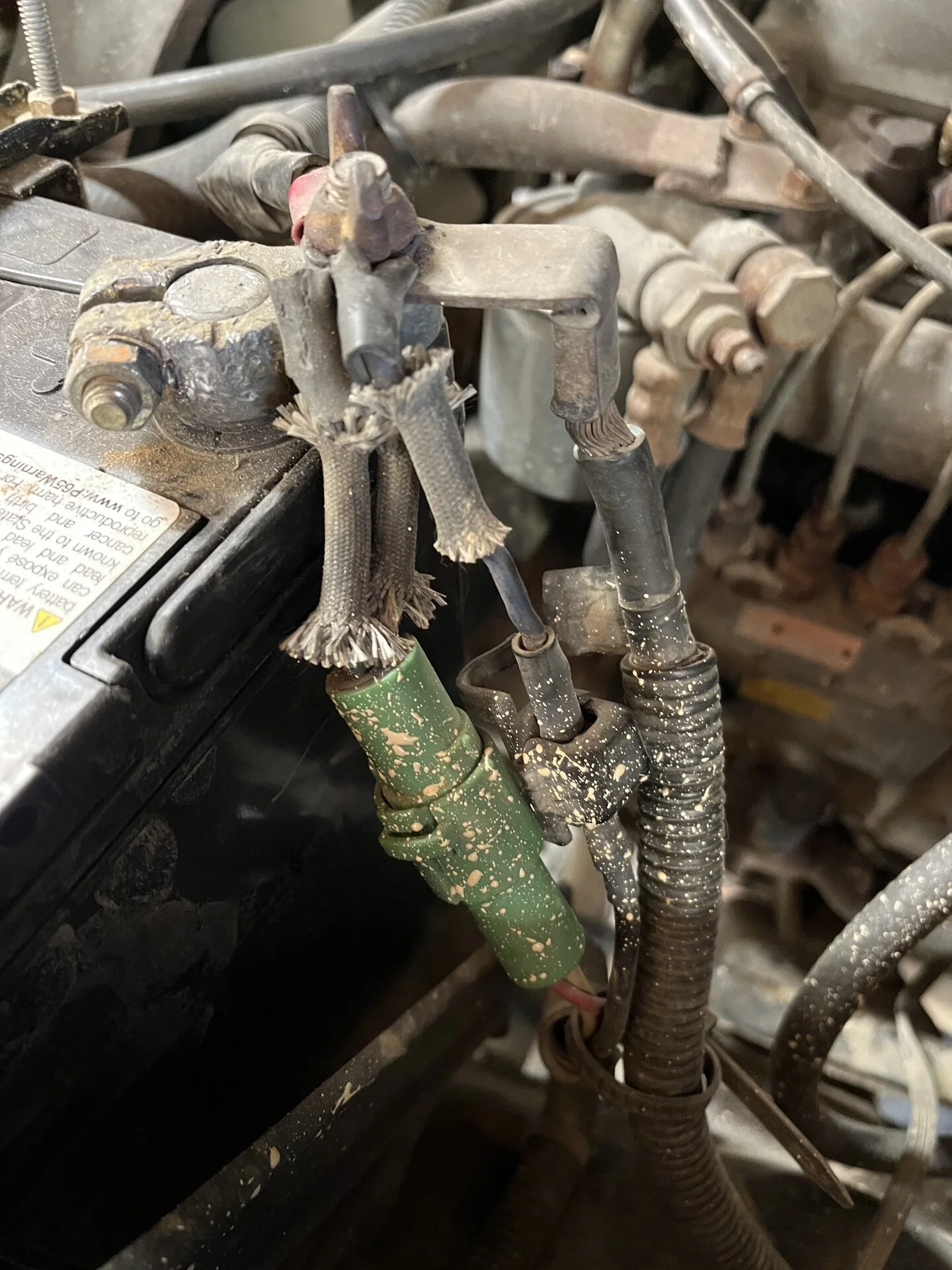

Update and question - got a new alternator and put it in after a little modification. But now my rig won’t start. I might have a bad fusible link. This doesn’t look to be stock. Does anyone know where to get this replacement link? It does not look like a OEM 3b??



ceylonfj40nut

Waiting for Barn Time
SILVER Star
Joined
Jan 11, 2015
Messages
4,982
Location
TX
Battery fully charged?

Joined
Aug 2, 2019
Messages
647
Location
Wilmington, North Carolina
There are options, mines not pretty just wired in two 30amp fuses in place. Worked fine for me the past 2 years since when I blew my fusible link

Joined
Jul 27, 2018
Messages
455
Location
North Carolina
Update and question - got a new alternator and put it in after a little modification. But now my rig won’t start. I might have a bad fusible link. This doesn’t look to be stock. Does anyone know where to get this replacement link? It does not look like a OEM 3b??

View attachment 3202962

@ToyotaMatt can probably make/re-create you a new fusible link. He has most if not all of the OEM components plugs etc, and know how to do it. He has my old 3b fusible link to use as a model, but I had a different green connector. I'm sure he can make it happen if you reach out to him.

Or as others mentioned generic fusible links/work arounds are out there.


ToyotaMatt

Factory Focus-Point Mind-Set Approach
Supporting Vendor
GOLD Star
Joined
Aug 12, 2007
Messages
23,520
Location
EAST COAST
Website
vintageteqparts.com
Update and question - got a new alternator and put it in after a little modification. But now my rig won’t start. I might have a bad fusible link. This doesn’t look to be stock. Does anyone know where to get this replacement link? It does not look like a OEM 3b??

View attachment 3202962


that IS a factory TOYOTA original fusible links set up .....


i have ALL needed OEM electrical parts to whip one or more out for you


i have seen this set up before , buy its been a while for sure ...

DO NOT simply install any silly MAXI blade fuses as a sustitute here , oem yazaki fusible link wire is a unique thing and meant to do what it does

it puzzles me why toyota had so many varieties but now has NO resources to repair them at all ?



PM me please

thanks


ToyotaMatt

Factory Focus-Point Mind-Set Approach
Supporting Vendor
GOLD Star
Joined
Aug 12, 2007
Messages
23,520
Location
EAST COAST
Website
vintageteqparts.com

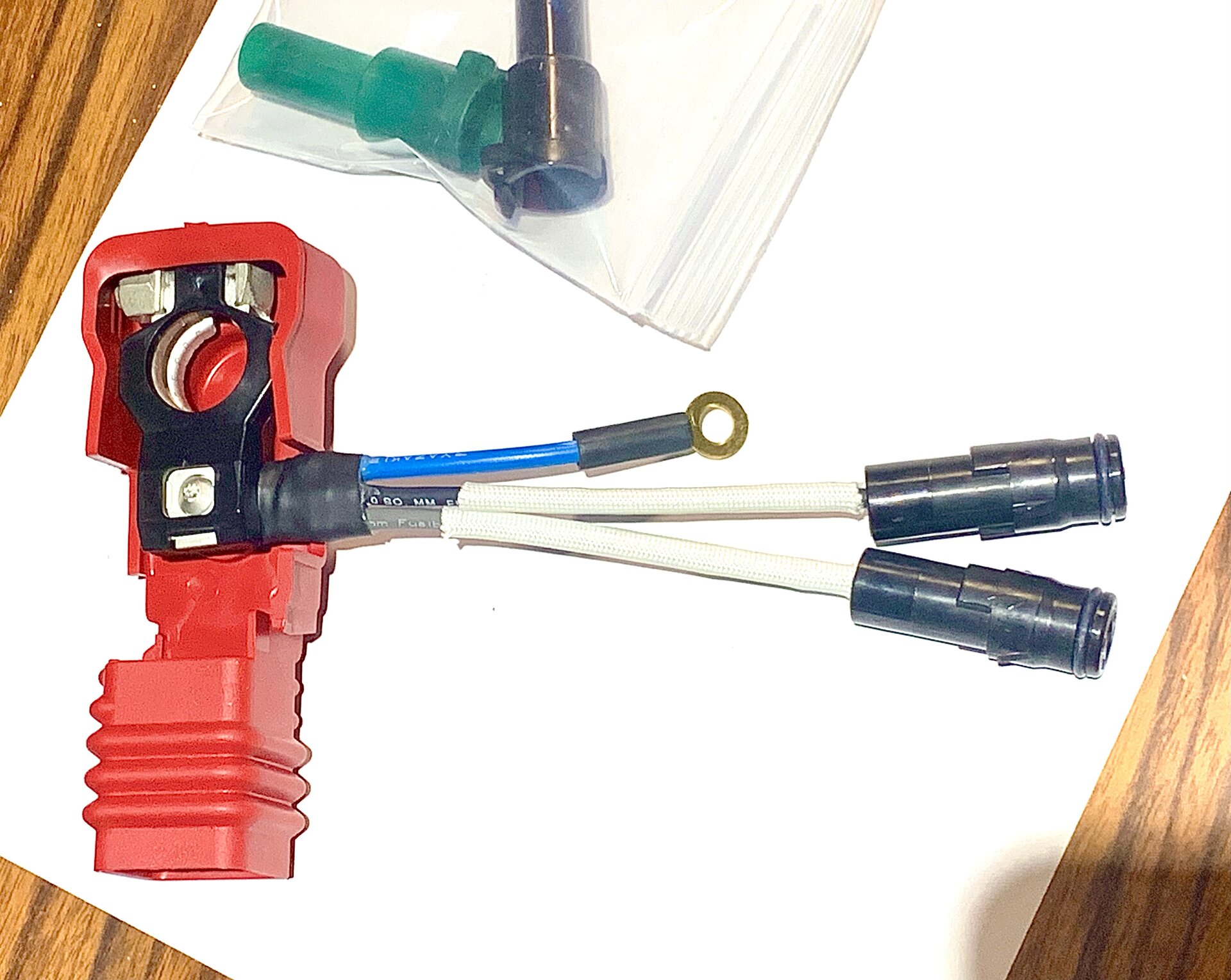

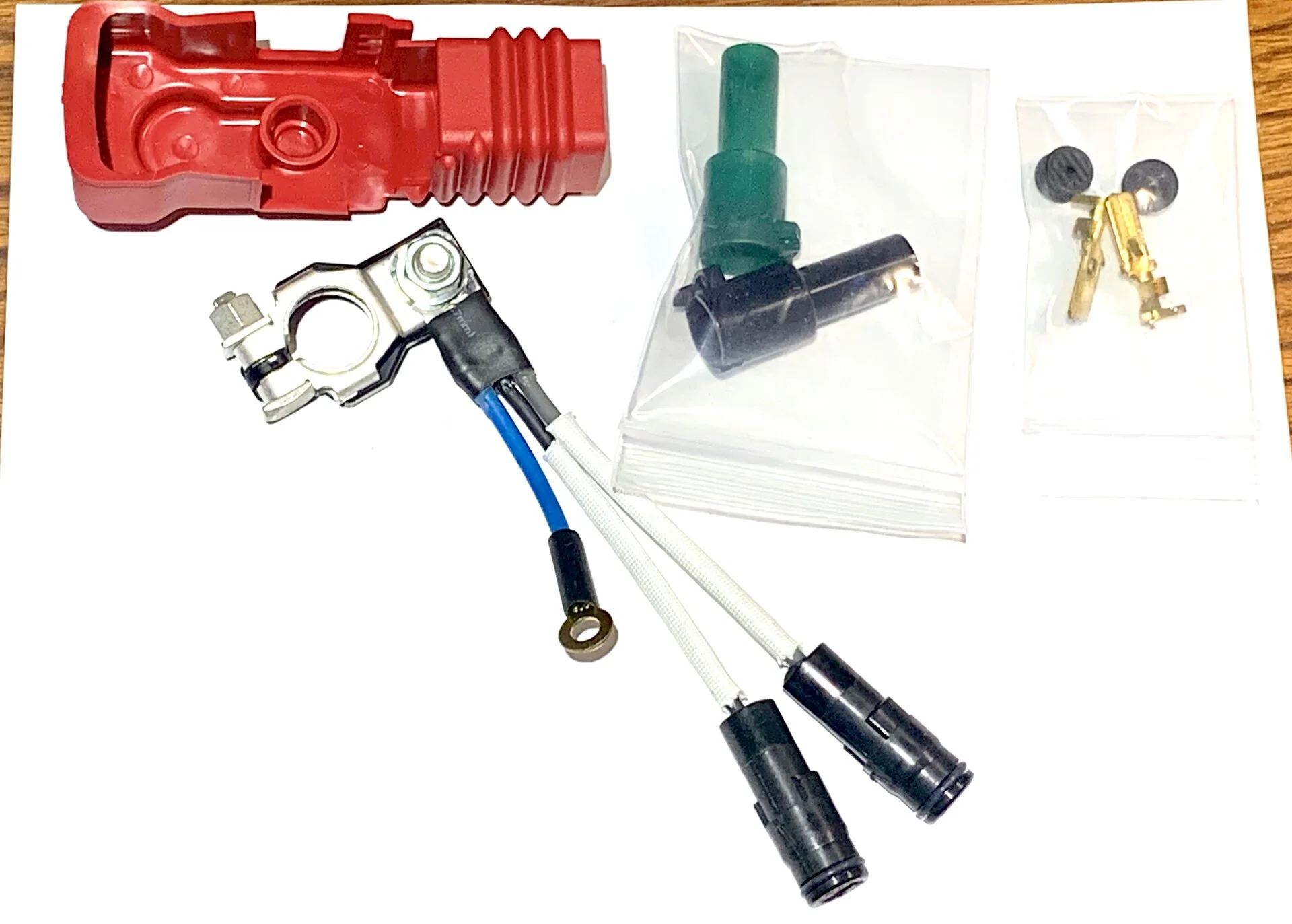

Here is a tech images example only of what to expect ,

You a have the later 2 pin fusible links. Connector this is the early double connectors version

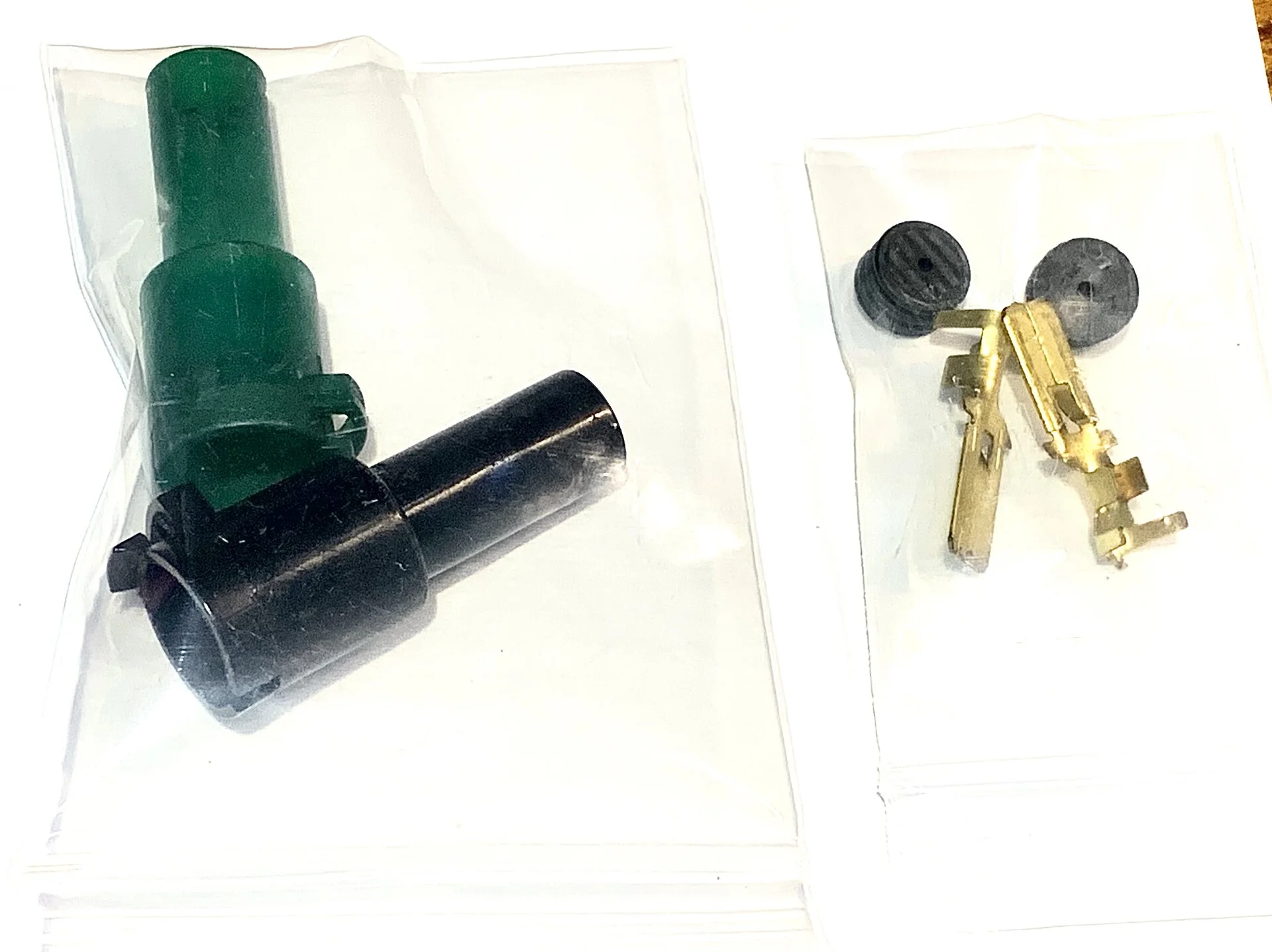

All parts oem japan spec yazaki and Toyota Genuine service parts too all made by yazaki for Toyota

I create a kit form end product that sets you up for success because nothing else matters except that ….

99% of time the harness side adjoining parts any of them are compromised from age and time. So this philosophy is factor focus points is the why behind all that JDM jaZZ …

You also get a very very special pos. Battery flexible soft rubber non USA boot , because it prevents someone who is a bit dim , from installing jumper cables in reverse order , hence blowing up my work


I don’t like my handy work being blown up my the dim….

And YES it has happened more than once …

After the incorporation of the OEM special service boot cover
With its double sided fusible links exit door openings ,

That monkey 🙉 business Rarely occurs…








Last edited:
Joined
Aug 11, 2006
Messages
401
Location
Purcellville, VA
Saga continues….

Bought a new 12v alternator from cruiser parts in NH. Installed and wouldn’t start. Took to Lance at iron pig. Tested alternator and putting out 36v. Vehicle starts but will blow engine fuse.

So, I either need a new alternator or is there a way to externally regulate this alternator?

Any other good ideas? I’ve looked and looked and looked for a drop in replacement with no luck.
