Bent up my rear bumper tire carrier- Need repair advice. (1 Viewer)

Joined
Mar 25, 2019
Messages
933
Location
NWFL

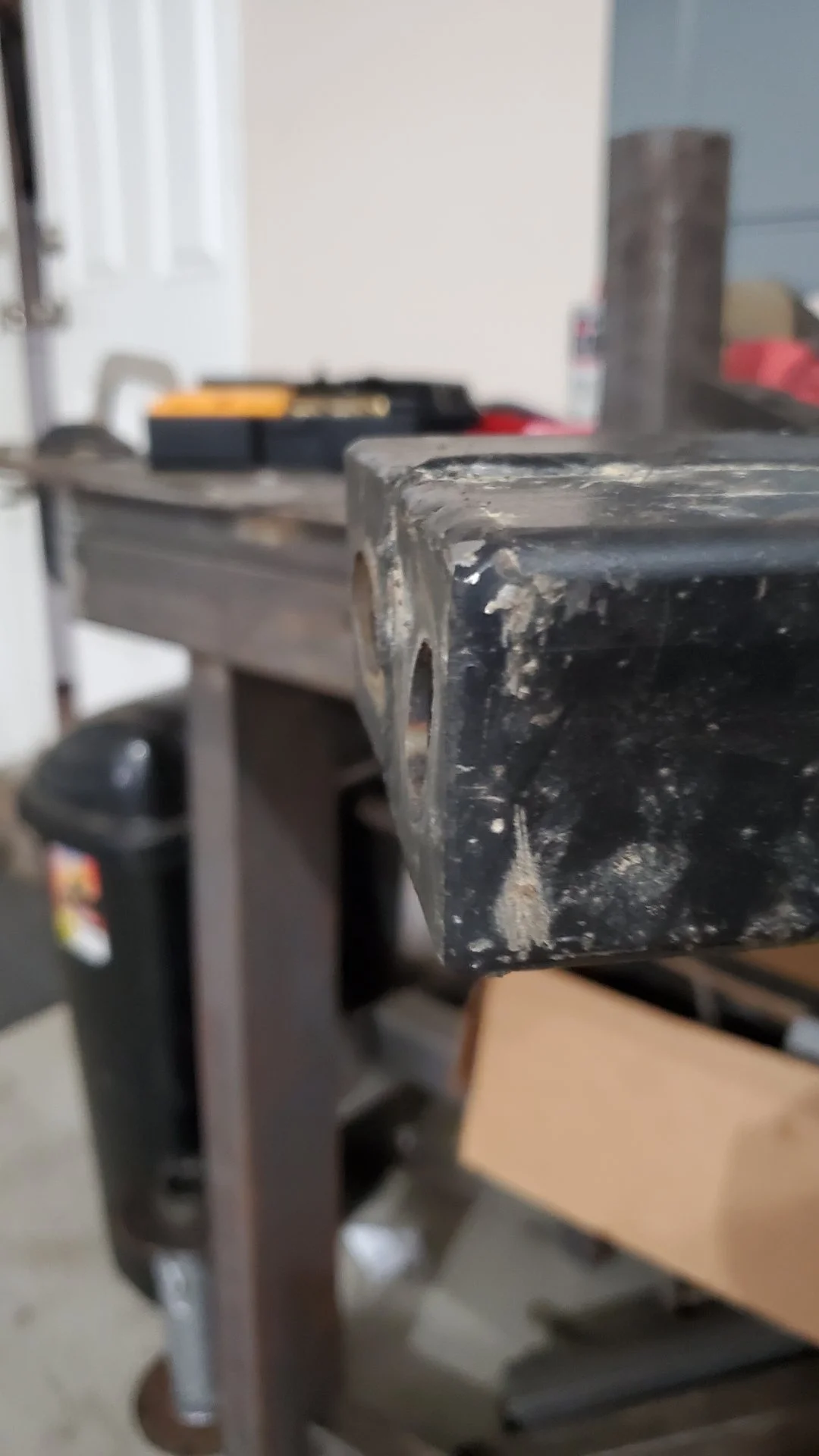

Off road this weekend my rear tire hit the ground coming out of a hole and I think torqued upward and bent the bolts that are attached to the pivot point. The pictures below show where my pivot points are threaded in. I had capped these 1/8" wall square tubes with some 10 gauge I had and that was obviously not strong enough as you can see it warped. Once of the nuts I welded on the inside so I could thread the bolt in busted loose during the hit as well.

Any advice on the best way to cut these caps out while maintaining a straight edge to mount the new cap to? I'm going to cap these ends with 1/4" thick pieces now. I was thinking I would just cut the middle of the old caps out and weld the 1/4" with the new hole right to the top, but I have a safety pin on the opposite end of the swingarm that wouldn't line up if the length changes by 1/4" if that makes sense.

I guess worst case I can fill in the old safety pin location and drill a new hole, but I'd rather not have to do that.


Any ideas?

20201206_114305 (1).jpg










MrMikeyG

SILVER Star
Joined
Jun 19, 2018
Messages
736
Location
Seattle, Wa USA
What tools are available to you? what you have will make all the difference in time and straight/square-ness of cut. Your spare carrier assembly is going to be a bugger to hold on any kind of chop saw or band saw table, but that's where I would try and go. Otherwise, you have some quick layout work and nice and steady angle grinder work ahead of you.

Joined
Mar 25, 2019
Messages
933
Location
NWFL
Otherwise, you have some quick layout work and nice and steady angle grinder work ahead of you.

HAHA That's what I was afraid of........

I don't have a table band saw available to me, but I could get a porta band


MrMikeyG

SILVER Star
Joined
Jun 19, 2018
Messages
736
Location
Seattle, Wa USA
There are some crazy blades available for skilsaws these days. Portaband could work. I don't use one very often, so I tend to get cruddy cuts when I do. For me it's usually cutting metal tube closet rods.

Joined
Mar 25, 2019
Messages
933
Location
NWFL
There are some crazy blades available for skilsaws these days. Portaband could work. I don't use one very often, so I tend to get cruddy cuts when I do. For me it's usually cutting metal tube closet rods.

Now I do have a metal blade for my circular saw that has worked pretty good in the past. That might get me a better cut than my grinder


2mbb

SILVER Star
Joined
Sep 1, 2003
Messages
5,146
Location
WC, CA

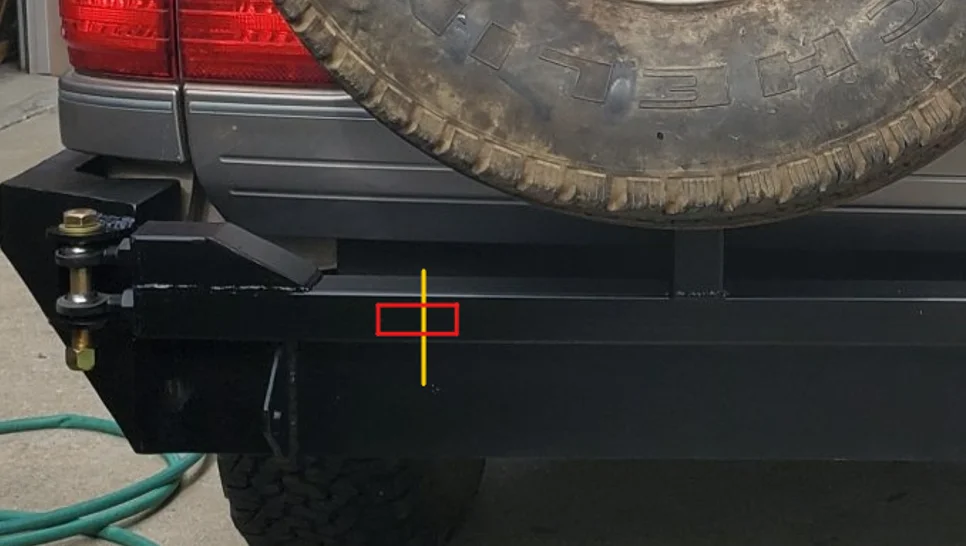

cut the square tube back to the right of the double tube part. build new the left section. put a sleeve inside the single tube and weld . The sleeve will give you some allowance for getting the horizontal dimension correct. Fill in the gap with welds and grind smooth. You won't have to worry about making a perfect cut.


Joined
Mar 25, 2019
Messages
933
Location
NWFL
cut the square tube back to the right of the double tube part. build new the left section. put a sleeve inside the single tube and weld . The sleeve will give you some allowance for getting the horizontal dimension correct. Fill in the gap with welds and grind smooth. You won't have to worry about making a perfect cut.

View attachment 2663994

ah yeah, I like this idea. I think I have just enough square tubing left for that.


e9999

Gotta get outta here...
Moderator
Joined
Sep 20, 2003
Messages
17,524
Location
US
I'm probably missing something here but with the length-adjustable ball joint (great idea btw) it seems like you would have some leeway for a bit of miscalculation when rewelding. I would cut off the offending bent end any reasonable way, jig up a thick end cap and weld it in, rather than redoing the whole end. The beauty of welding is that you have some leeway as far as gaps (within reason and paying attention to welding warpage).

Joined
Mar 25, 2019
Messages
933
Location
NWFL
I cut it (fairly square) and was able to weld it back on with 1/4" instead of 10 ga. I even got my old safety pin hole to line up. Bottom pic the bolt looks crooked but it looks straight to me when I'm standing there.
