Automotive Bolts with built in washers needed (1 Viewer)

flx

Joined
Jan 4, 2019
Messages
246
Location
France
From Toyota.

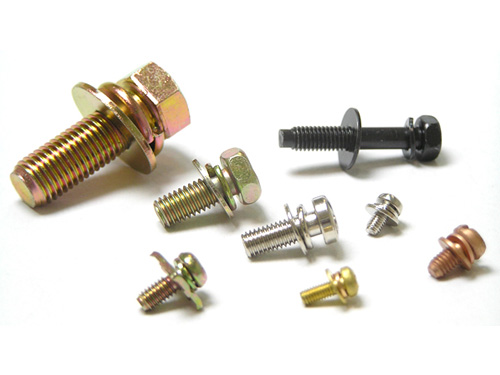

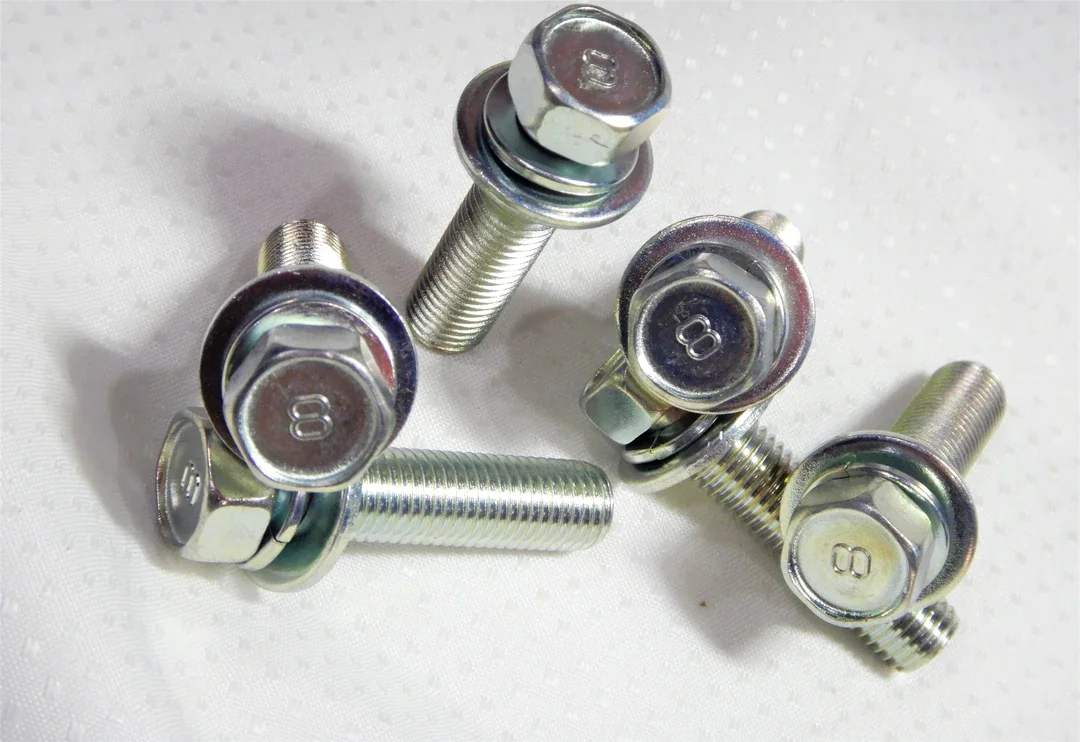

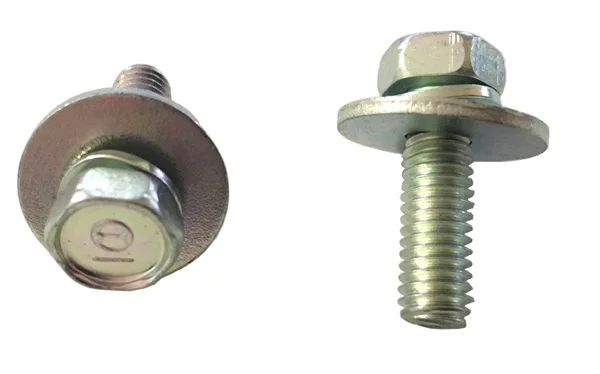

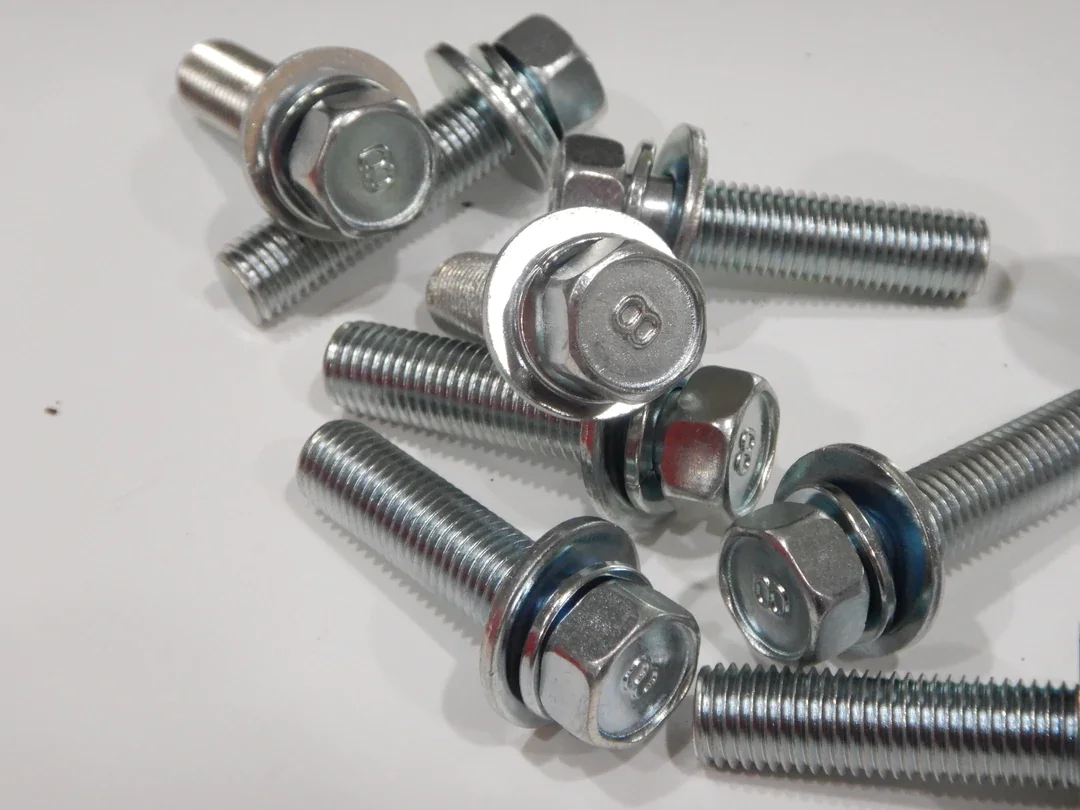

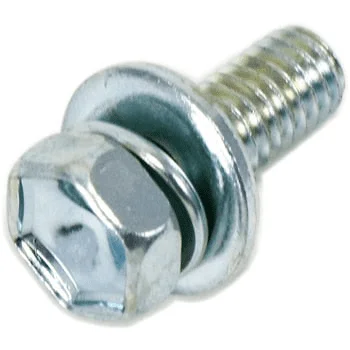

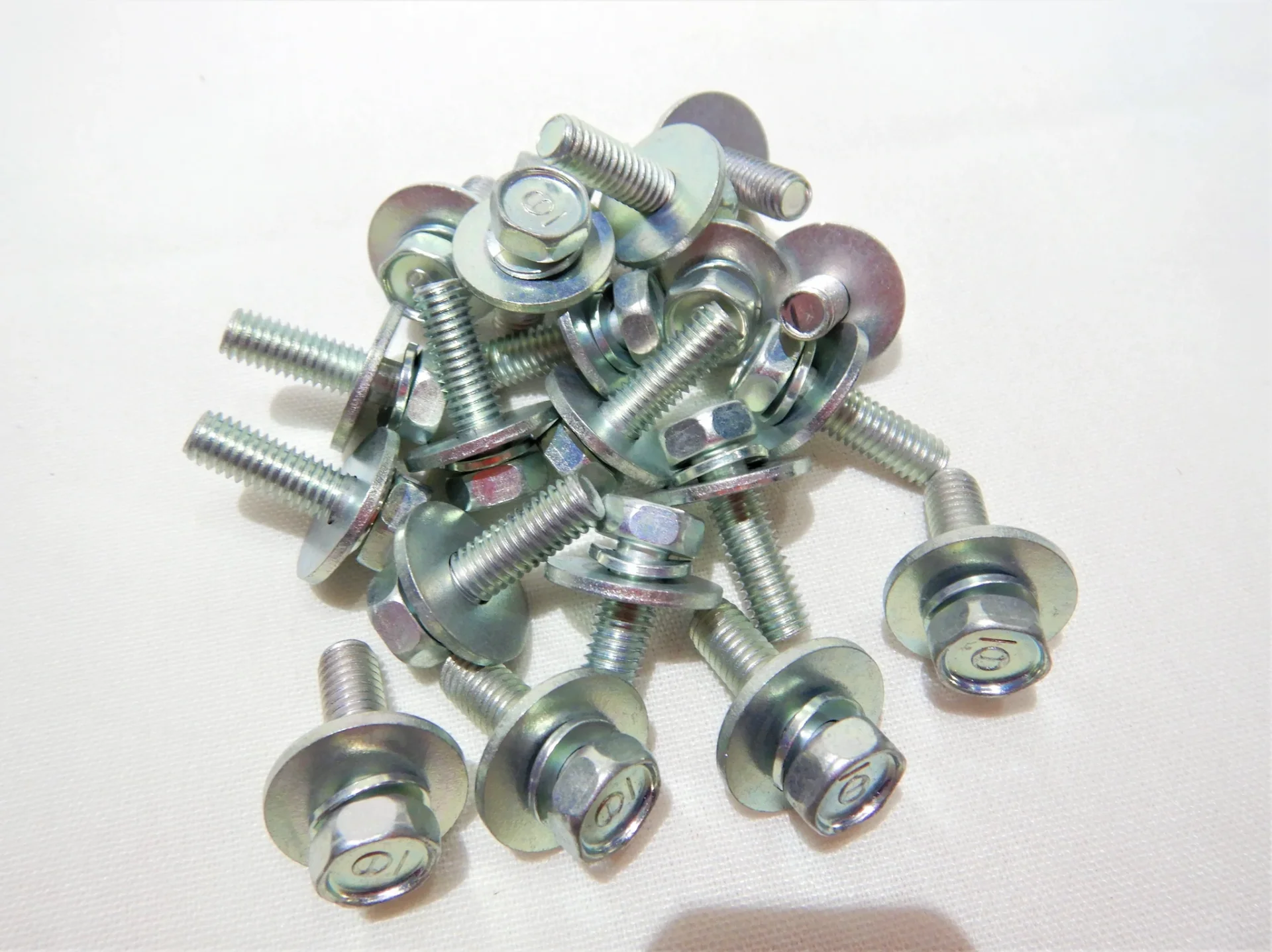

Partnumbers starting with 91651 will be bolts with split washer + regular washer.

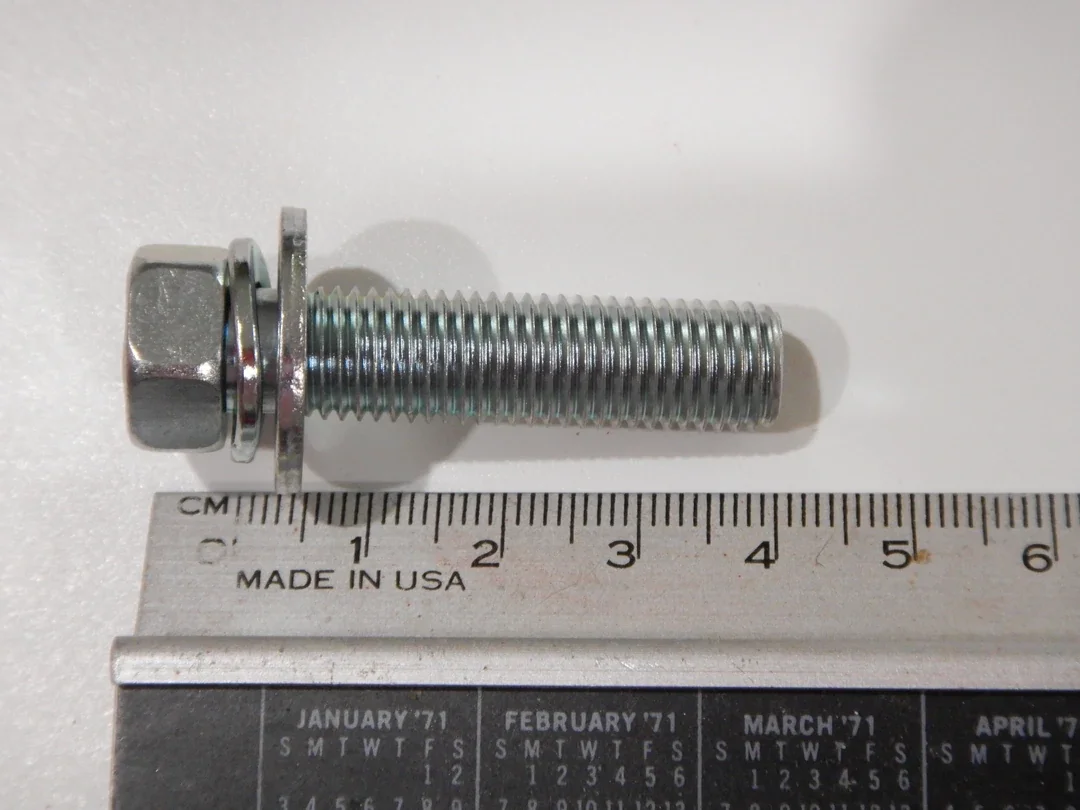

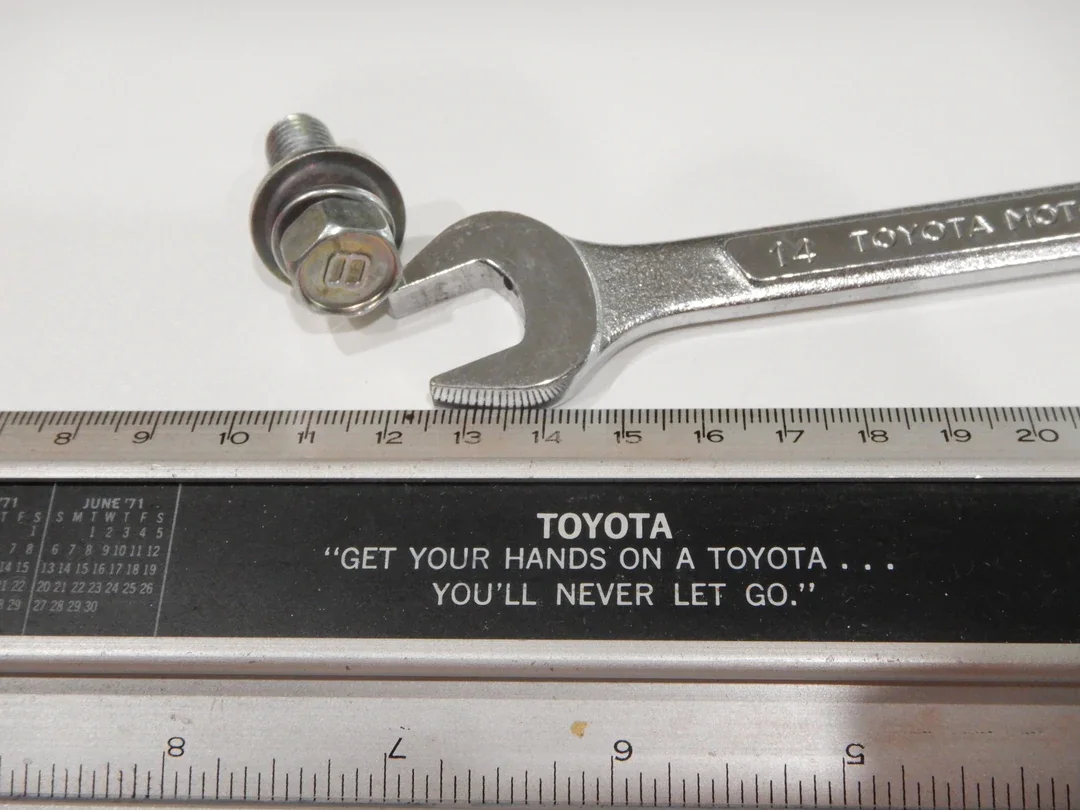

Then the second part gives the spec of the bolt, for example 91651-40845 is a long 45mm M8 :
4 => strengh
08 => M8
45 => 45mm long

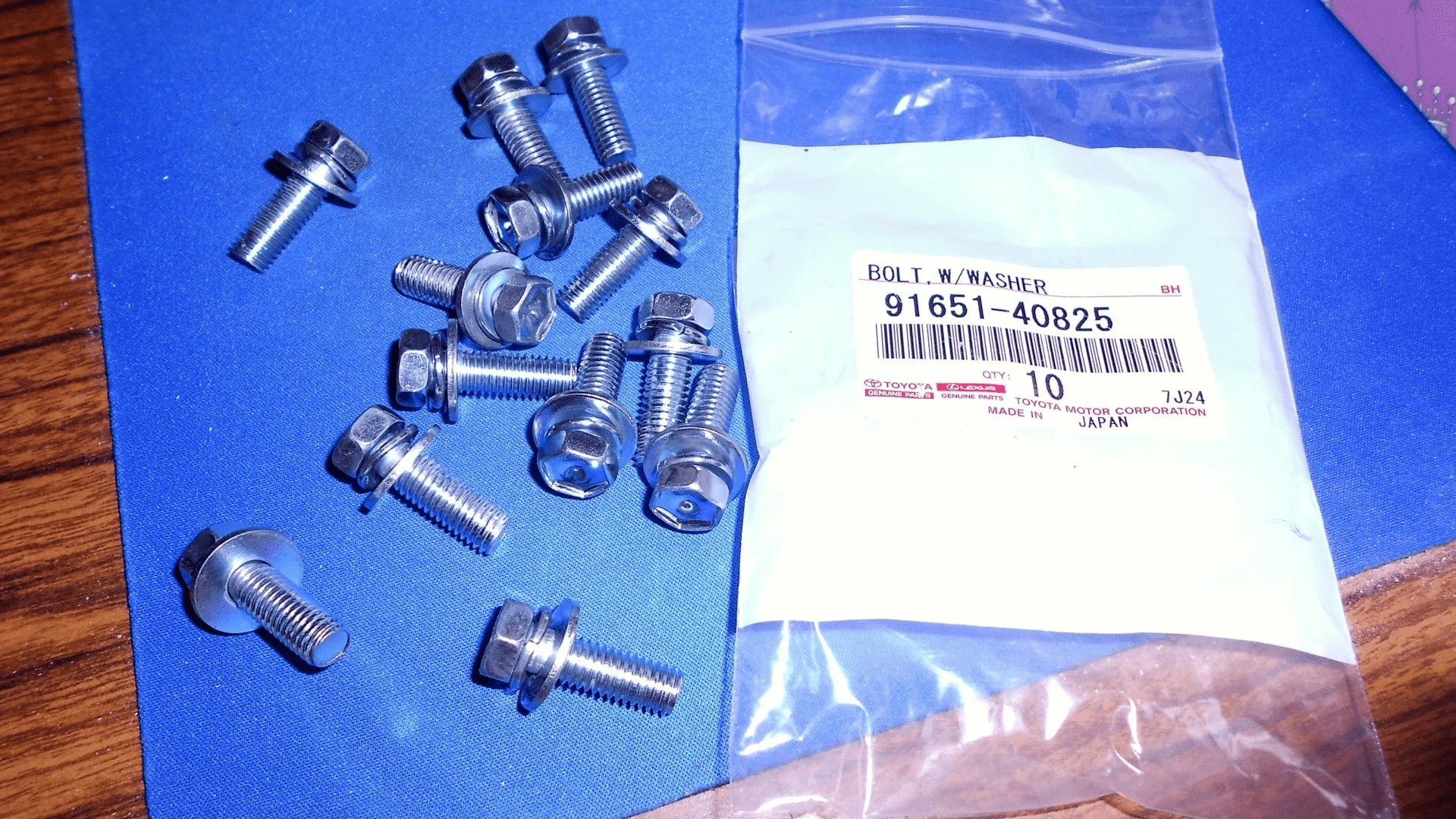

I also ordered 91651-40825 recently for a shorter length.

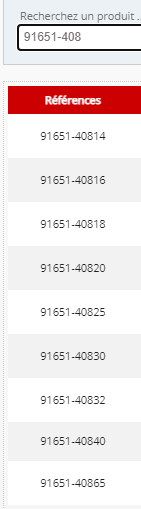

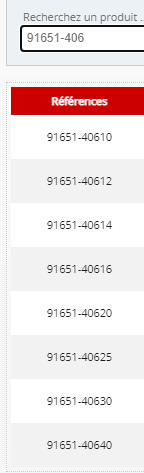

In M6 you can find 91651-40616 for a classical 16mm M6 but a lot of other sizes are available, play with the partnumbers on a seller thats sells by partnumber.







Just 2 examples from 1 seller in Europe, but different availability from Amayama or Toyotapartsdeal.


Onur

52122-60140
Moderator
GOLD Star
Joined
Aug 28, 2004
Messages
29,178
Location
Tabasco, NY
Read this thread and get educated.
