Anyone have troopy interior panel CAD drawings? (1 Viewer)

[c2dfj45]

For the life of me I know I saw where somebody had CAD drawings(I think they were CAD) for interior panels on a Troopy....does anyone know who had those? I can't find them.....must have been in a build thread somewhere. I need new ones and this may save some time making new ones.



[gilmorneau]

I did a set for this guy:

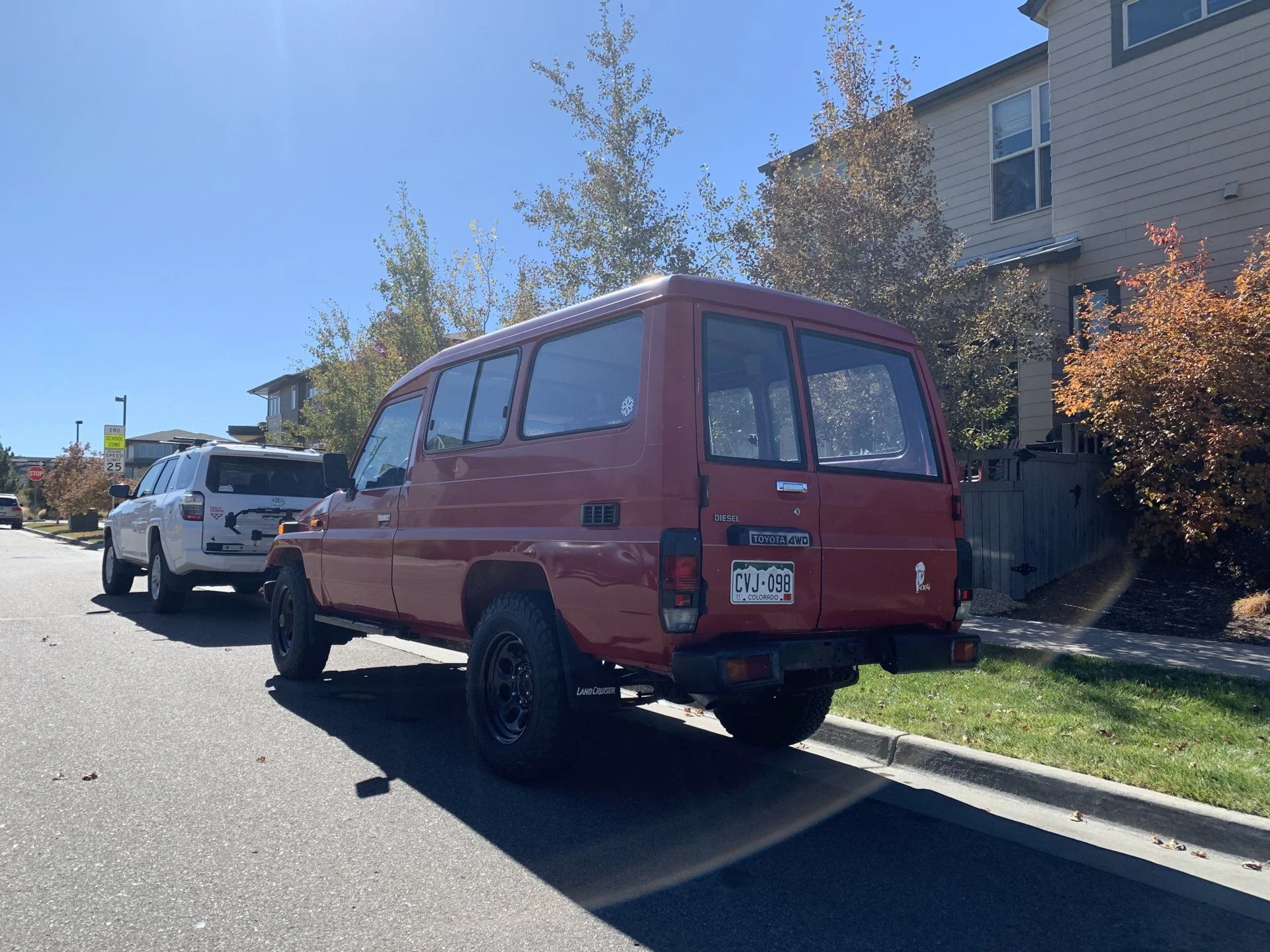

SOLD - 1987 LHD Toyota Troopy Land Cruiser BJ75 - Price Drop $19500

I am selling a 1987 LHD Toyota Troopy. I purchased this just over a year ago and have been fixing it up since then. After the repairs listed below, it runs quite well. I wouldn't hesitate to take a cross country trip tomorrow - but at a slower pace than the modern vehicles some are used to. I am...

forum.ih8mud.com

I made them from 1/8" gray PVC on the CNC router. Never did get as far as setting up the cut files for the panel mounting holes, but the outlines of the panels are done. If you like the ones in the "for sale" ad photos, that's my handiwork.

Pretty sure Goose Gear has files, but I imagine they'd want to sell you the whole kit.



[AndrewHadji]

For the life of me I know I saw where somebody had CAD drawings(I think they were CAD) for interior panels on a Troopy....does anyone know who had those? I can't find them.....must have been in a build thread somewhere. I need new ones and this may save some time making new ones.

will pm



[gilmorneau]

On my way to the Southwest 70-series meet-n-greet tomorrow morning, but will get back to you when I return.



[DenDen]

I am struggling to find dxf files as well. I see posts about it all the time, however nobody yet to upload the files. I should probably invest some time and make them myself.



[AndrewHadji]

I am struggling to find dxf files as well. I see posts about it all the time, however nobody yet to upload the files. I should probably invest some time and make them myself.

Do you need a troopy file or other? I have the troopy file i can send



[DenDen]

Do you need a troopy file or other? I have the troopy file i can send

I need a file for 73 however if troopy file includes front and rear door panels, then it still would be very helpful for me.
Thank you



[AndrewHadji]

sorry, only the rear troopy panels is what i have



[goexplore]

Join the Facebook group Troopcarriers of Australia. They have the DXF file ready to download for all interior panels.



[c2dfj45]

I've got it....sorting out the extra stuff holes and cutouts I don't need so I can have some made up. Thanks



[Zark B]

sorry, only the rear troopy panels is what i have

Hey Andrew. Just found this after some digging. I'm wondering if I could get this cad file off you?
Thanks



[joekatana]

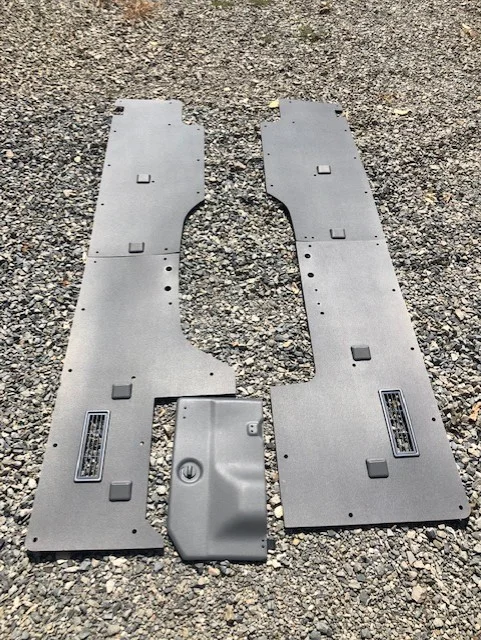

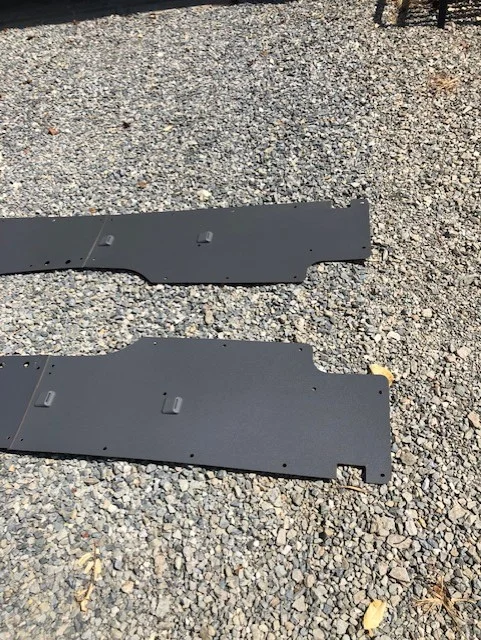

Just fyi I have new take off interior panels available for the troopy , these come out of new HZJ78's



[AndrewHadji]

Hey Andrew. Just found this after some digging. I'm wondering if I could get this cad file off you?
Thanks

crap just saw this, send a DM and ill get them to you



[RUWILD89]

Do you need a troopy file or other? I have the troopy file i can send

Do you still have the files ?



[radnaabaatar]

Do you still have the files ?

Afternoon,

Greetings from Mongolia! I am looking for drawings as well to replace my factory side panels. If you have something would you please share it with me? Thank you. Cheers, Radnaa



[RHINO]

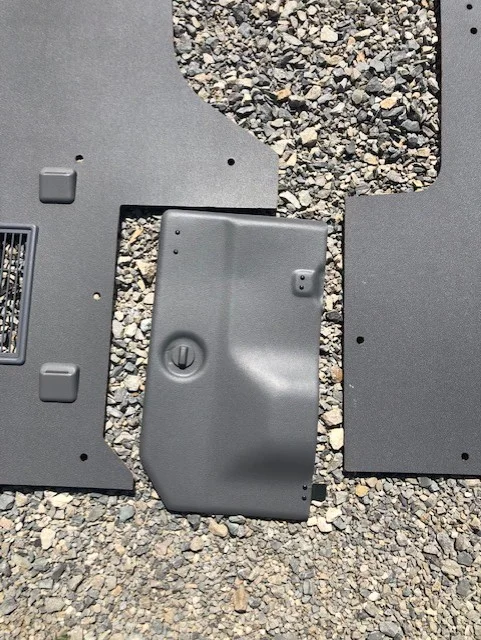

Just fyi I have new take off interior panels available for the troopy , these come out of new HZJ78'sView attachment 2791482

do you have a tool door you'd want to sell separately?



[joekatana]

do you have a tool door you'd want to sell separately?

Need to check but I might have some spare ones . Need tan or grey ?



[RHINO]

Need tan or grey ?

grey prefered but either is fine, i can SEM coat it to my charcoal color, thank you



[joekatana]

grey prefered but either is fine, i can SEM coat it to my charcoal color, thank you

Pm send
